Mode 6

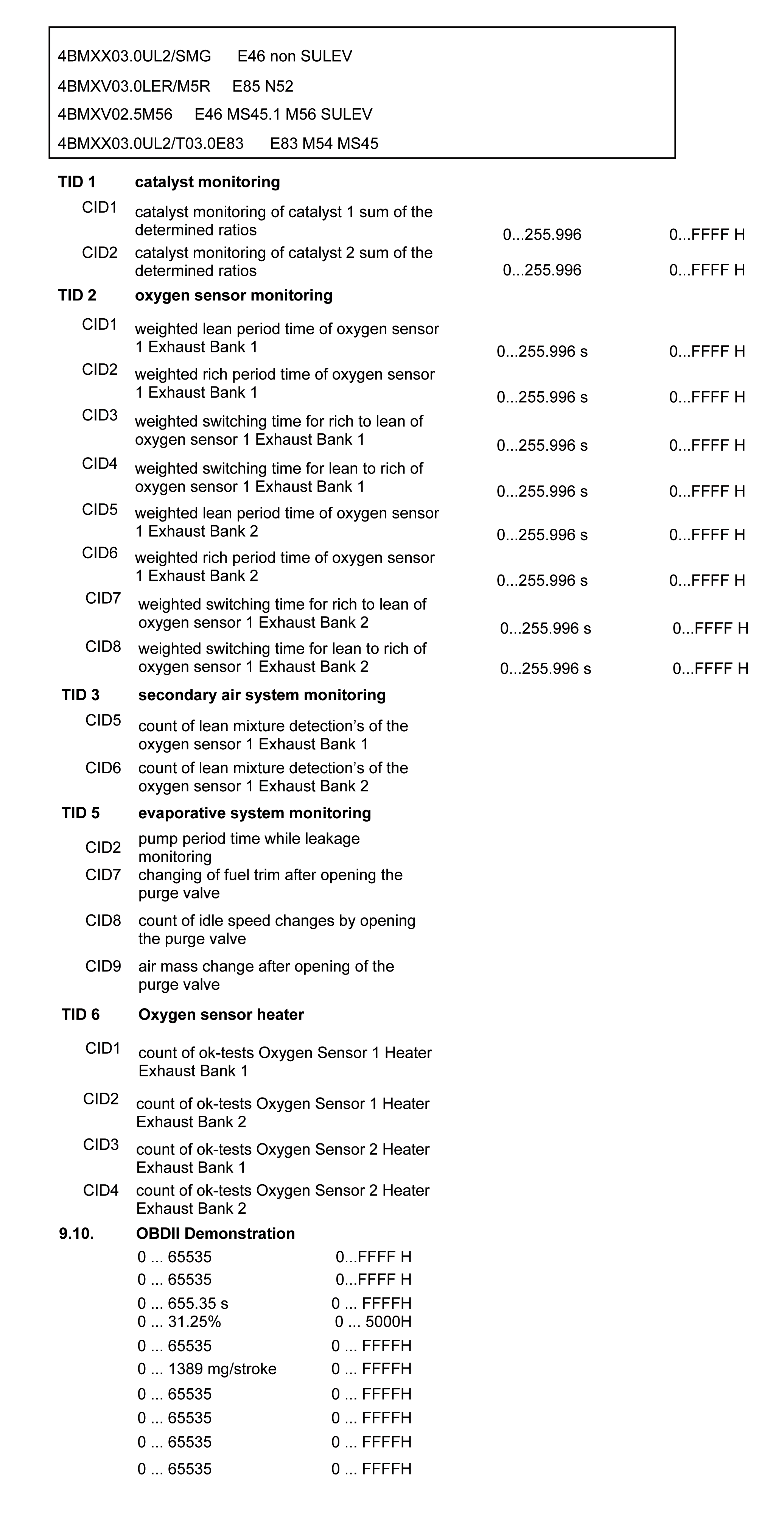

Fig 1: Mode 6 Data (1 Of 7)

G00105155

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Mode 6 Data (2 Of 7)

G00432996

Courtesy of BMW OF NORTH AMERICA, INC.

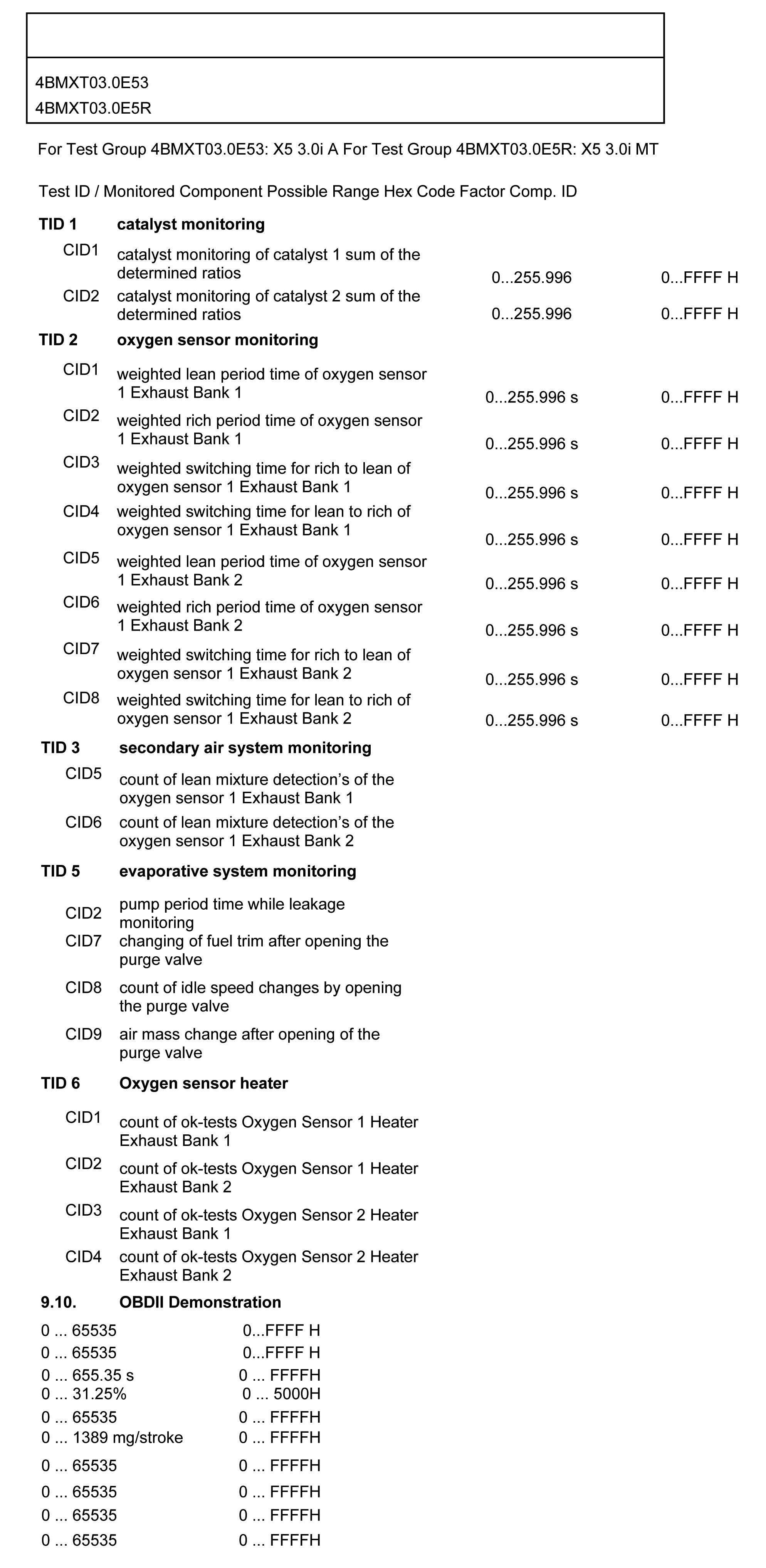

Fig 3: Mode 06 Data (3 Of 7)

G00105156

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Mode 06 Data (4 Of 7)

G00432980

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Mode 06 Data (5 Of 7)

G00432981

Courtesy of BMW OF NORTH AMERICA, INC.

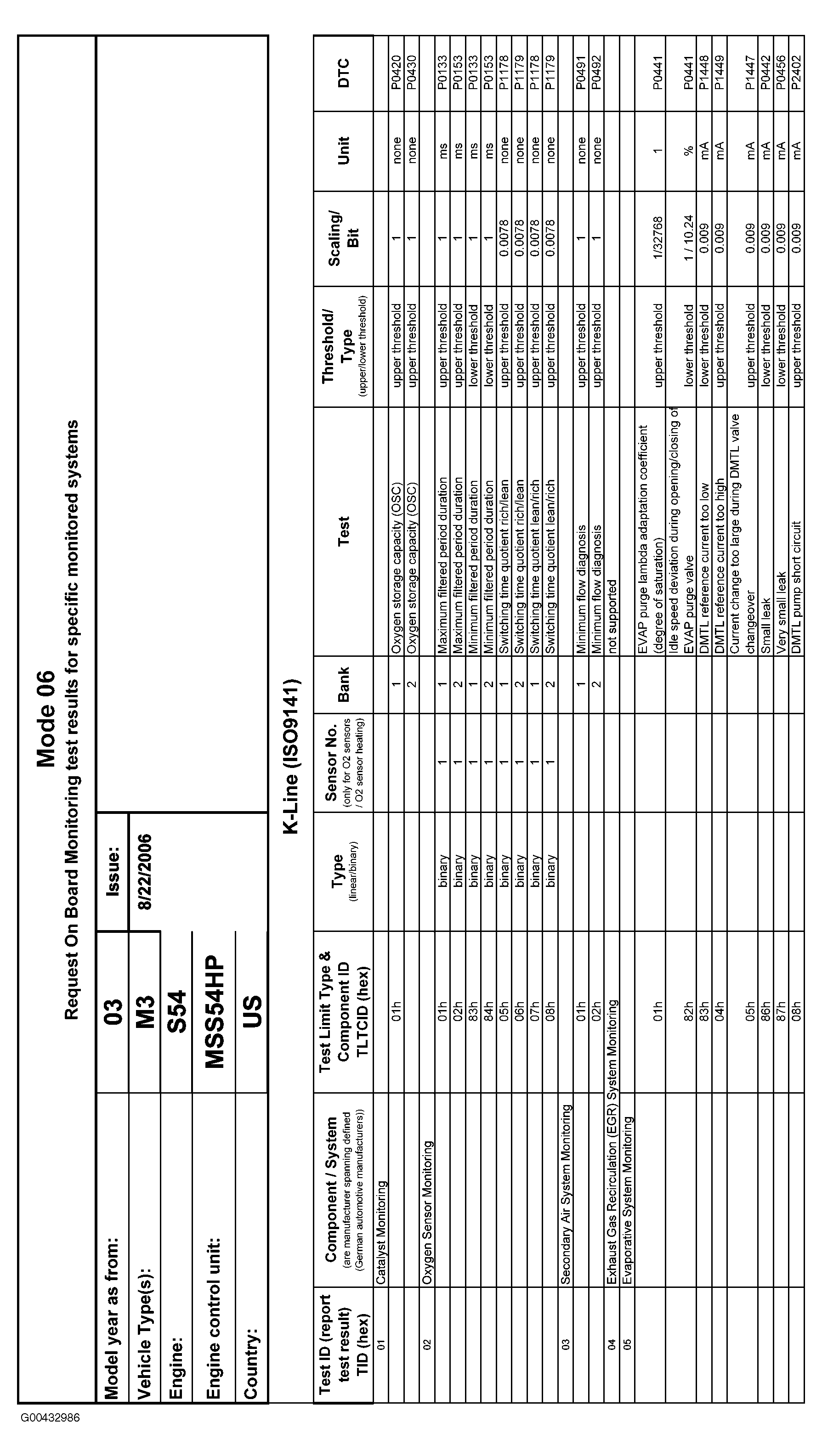

Fig 6: Mode 06 Data (6 Of 7)

G00432986

Courtesy of BMW OF NORTH AMERICA, INC.

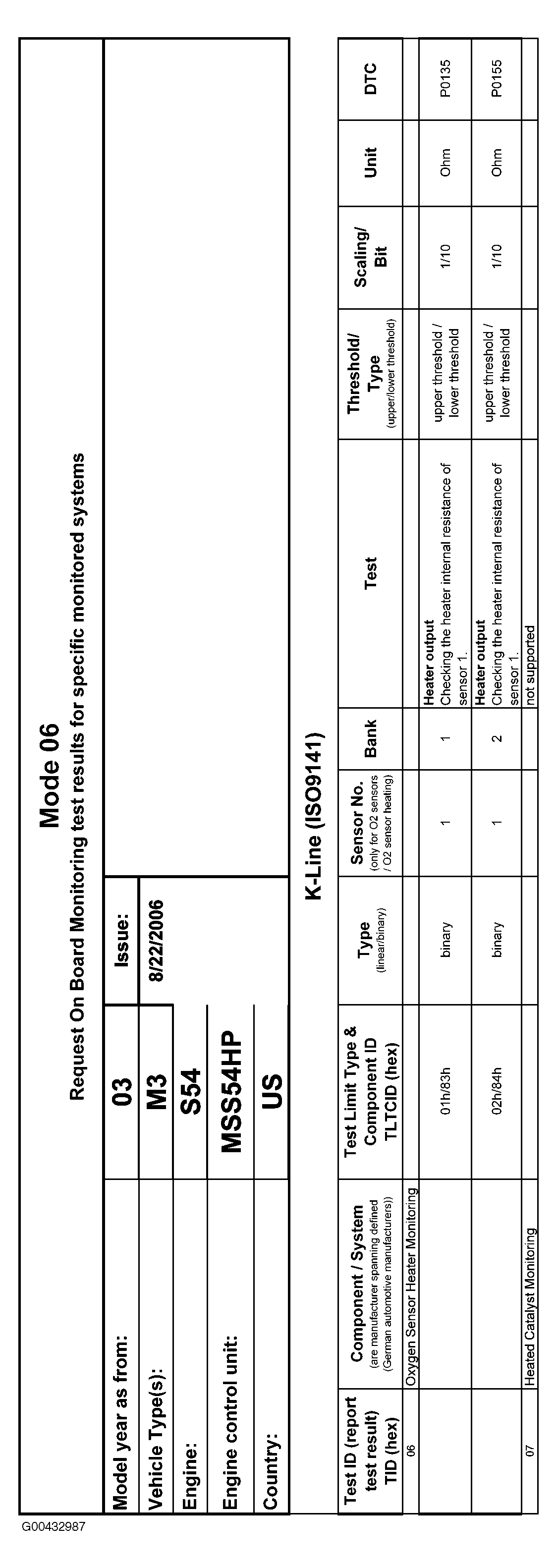

Fig 7: Mode 06 Data (7 Of 7)

G00432987

Courtesy of BMW OF NORTH AMERICA, INC.
