Program Start

Using DISplus or GT1 with the diagnostic head connected to the vehicle, select "Coding/ Programming" from the start mask.

When the program is started for the first time after a CD installation, there is a longer wait time (approx. 90 seconds).

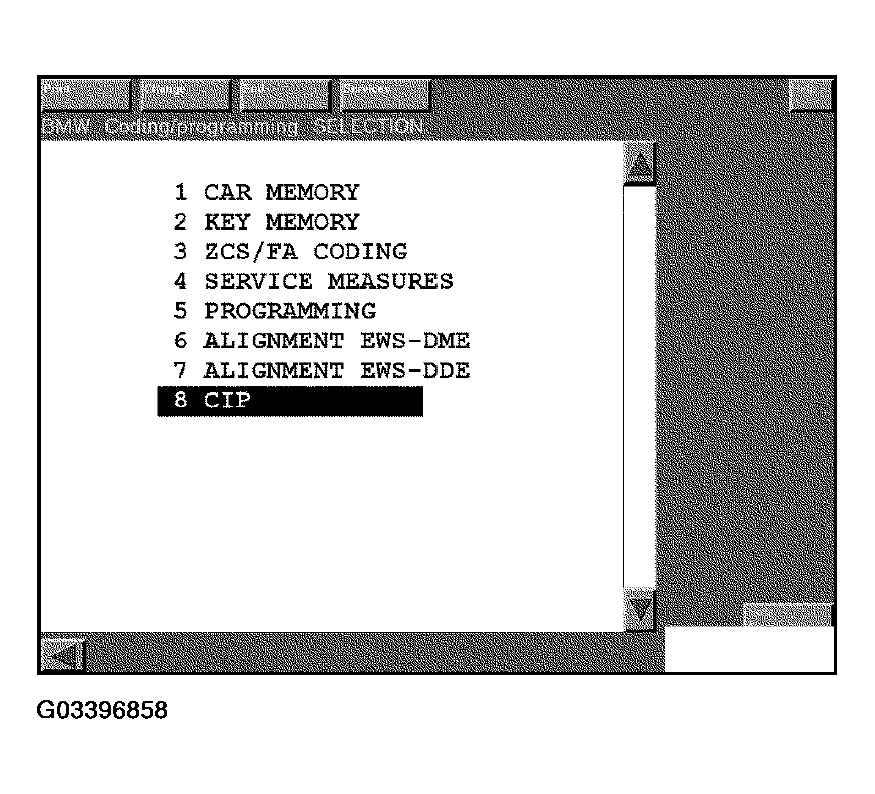

Fig 1: Selecting Coding/Programming From Start Mask

Courtesy of BMW OF NORTH AMERICA, INC.

Start CIP by selecting "8 CIP" , then press the forward arrow. The initial CIP screen is then displayed.

Fig 2: Displaying CIP Screen
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After startup, CIP determines the vehicle order (VO) previously known as the Central Coding Key (ZCS) and records which control modules are installed in the vehicle. The vehicle order is not displayed on the screen.
