MRS 5 Control Unit: Connector
The module has been expanded from one to two connectors.
One 26-pin connector is for the cockpit
One 54-pin connector if for the vehicle harness.

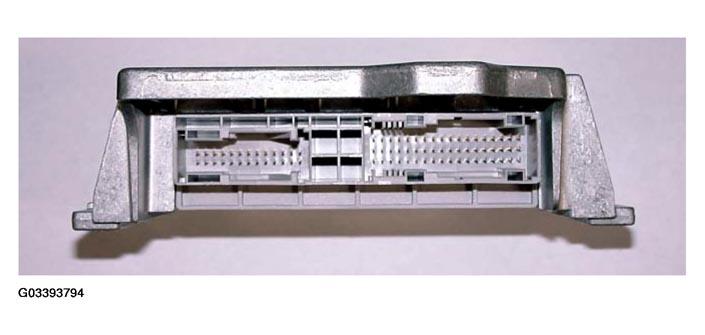

Fig 1: Identifying Connector MRS Control Unit
Courtesy of BMW OF NORTH AMERICA, INC.
