61 13... Crimping optical fibres

To crimp optical fibres, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 323 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until limit position when handles are pressed together.

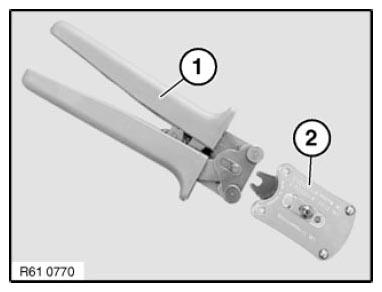

Fig 1: Identifying Crimping Set (61 4 320)

Courtesy of BMW OF NORTH AMERICA, INC.

Move contact guide by means of stop lever (1) into corresponding position (pin contact or jack).

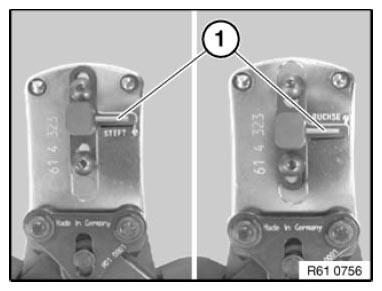

Fig 2: Identifying Stop Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (2).

Place pin contact or jack (1) in crimping head and secure with locking lever (3).

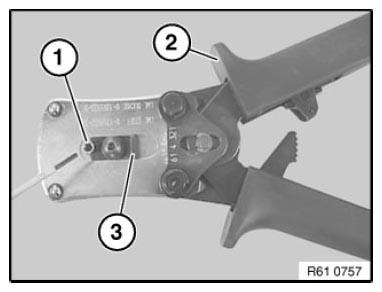

Fig 3: Identifying Hand Plier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION FROM OPTICAL FIBRES .

Insert stripped optical fibre(1) until limit position into pin contact or jack (2).

Close hand pliers (3) fully.

Open hand pliers (3) and locking lever (4).

Remove optical fibre (1).

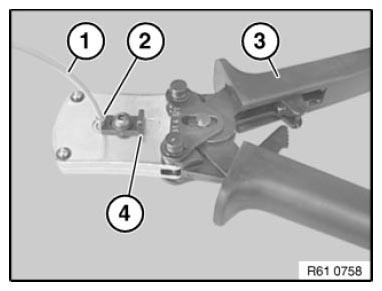

Fig 4: Removing Optical Fibre Using Hand Plier

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure optical fibre is correctly seated in jack.

Correct (A)

End of optical fibre (1) must be flush with tip of pin contact (2).

Wrong (B)

End of optical fibre (1) is not flush with tip of pin contact (2).

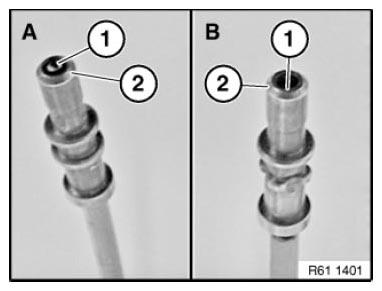

Fig 5: Identifying Optical Fibre End And Pin Contact Tip

Courtesy of BMW OF NORTH AMERICA, INC.
