Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

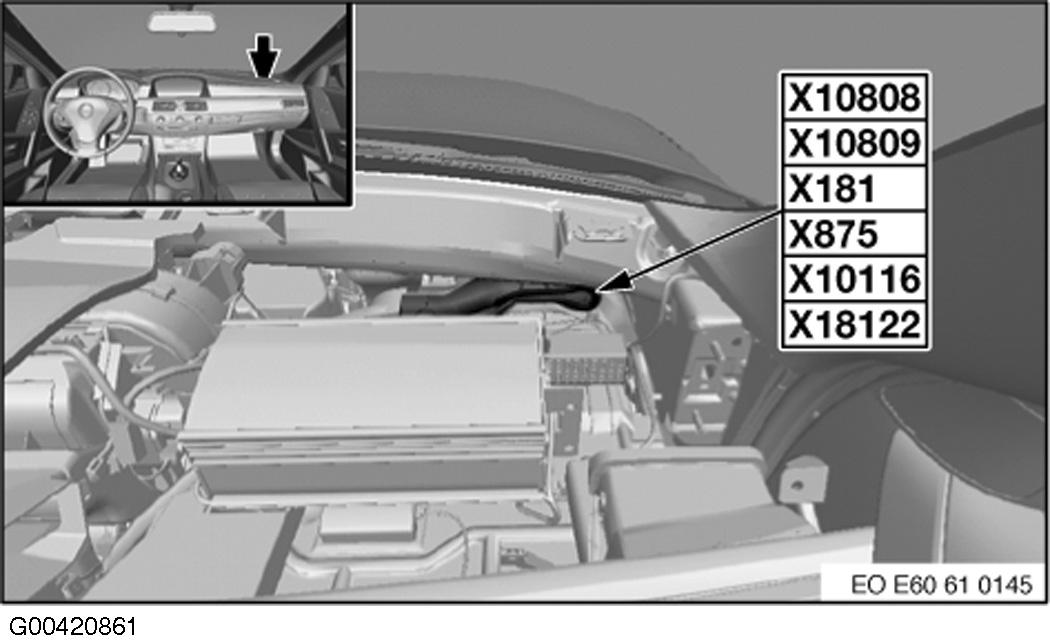

Fig 1: Behind Right Side Of Dash

G00420861

Courtesy of BMW OF NORTH AMERICA, INC.

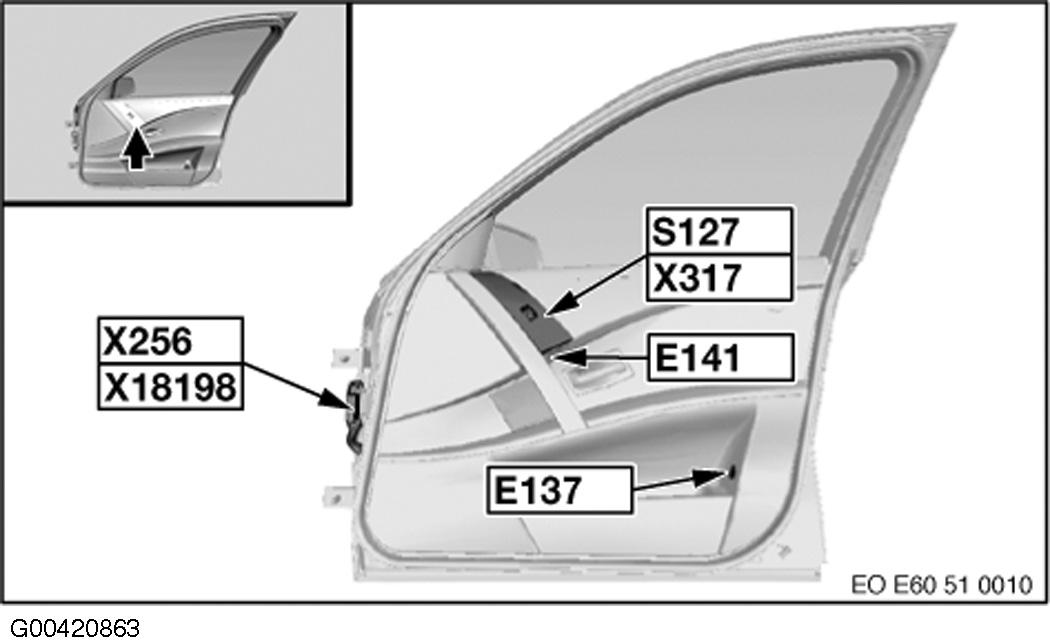

Fig 2: Lower Right "A" Pillar

G00420863

Courtesy of BMW OF NORTH AMERICA, INC.

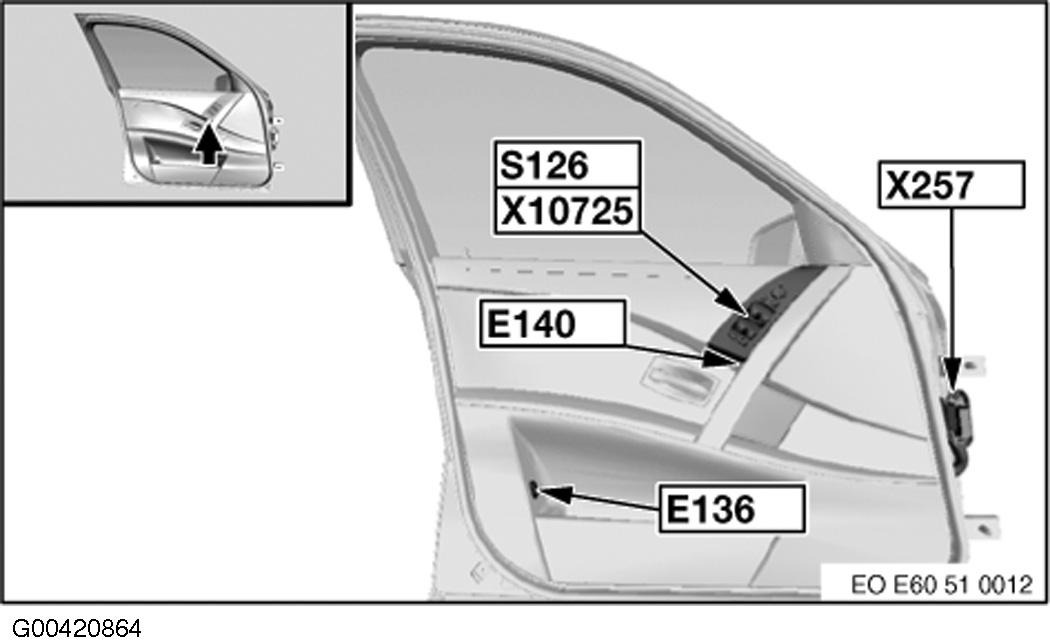

Fig 3: Lower Left "A" Pillar

G00420864

Courtesy of BMW OF NORTH AMERICA, INC.

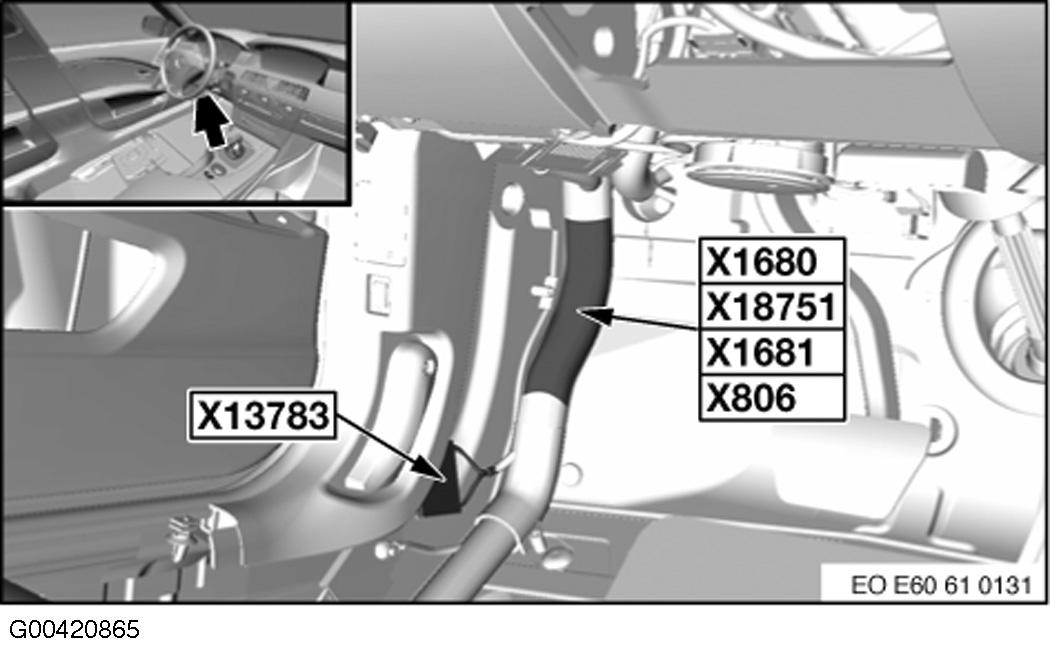

Fig 4: Behind Glove Box

G00420865

Courtesy of BMW OF NORTH AMERICA, INC.

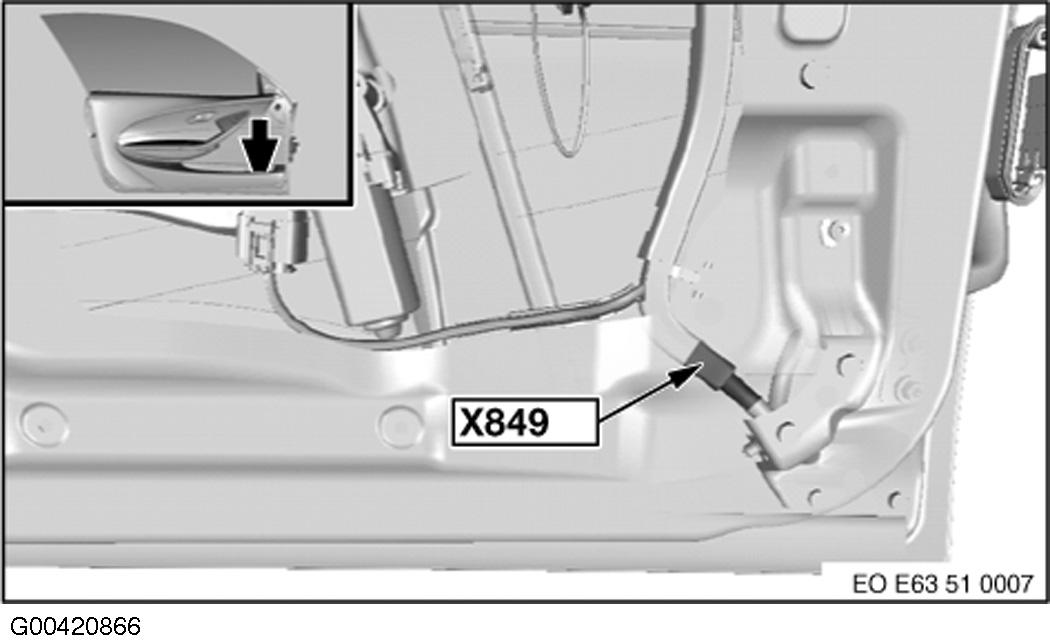

Fig 5: Left Front Door

G00420866

Courtesy of BMW OF NORTH AMERICA, INC.

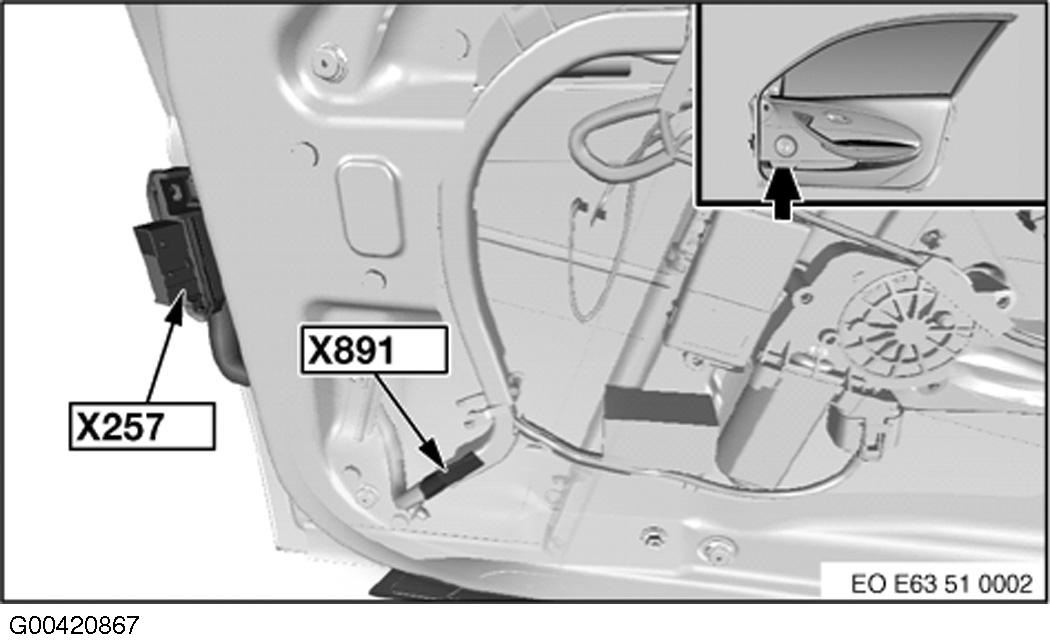

Fig 6: Right Front Door

G00420867

Courtesy of BMW OF NORTH AMERICA, INC.

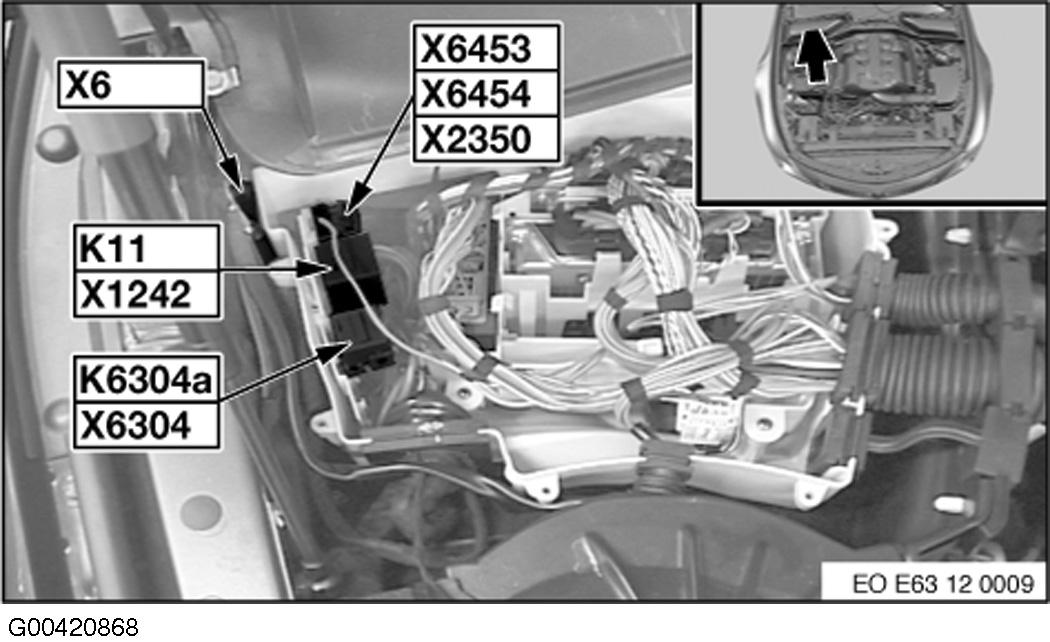

Fig 7: Right Rear Engine Compartment

G00420868

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Behind Glove Box

G00420869

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Right Kick Panel

G00420870

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Center Of Dash

G00420871

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Front Of Roof

G00420872

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Right Front Of Engine Compartment

G00420873

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Left Front Wheelwell

G00420874

Courtesy of BMW OF NORTH AMERICA, INC.

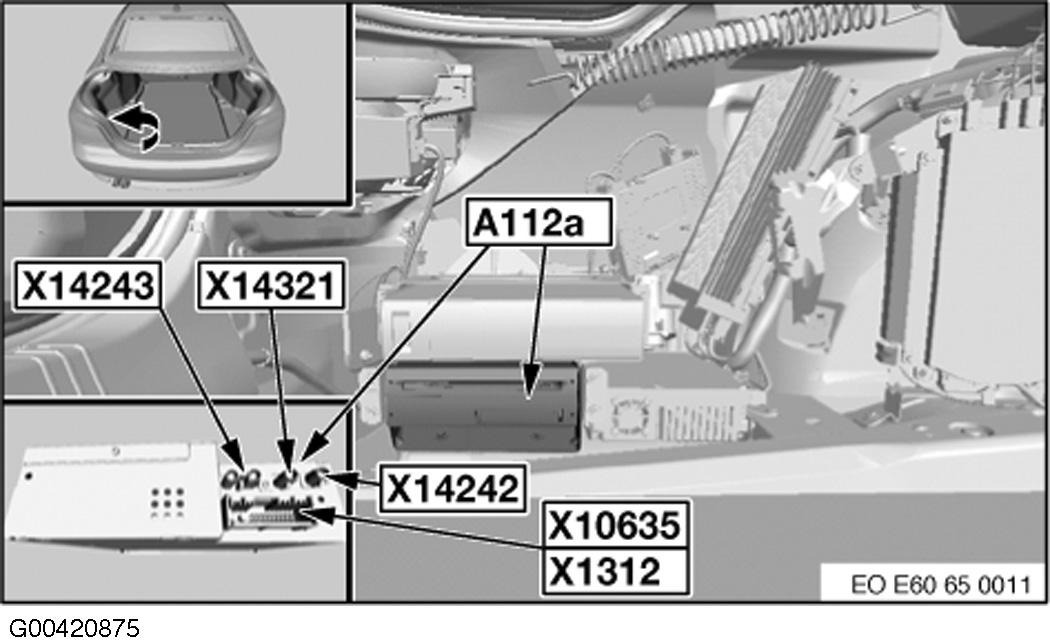

Fig 14: Left Rear Luggage Compartment

G00420875

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Right Of Luggage Compartment

G00420876

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Behind Right Side Of Dash

G00420878

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 17: Below Right Rear Seat

G00420879

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Right Side Of Left Footwell

G00420880

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Left Side Of Right Footwell

G00420881

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Right Rear Wheelwell

G00420882

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Right Front Wheelwell

G00420883

Courtesy of BMW OF NORTH AMERICA, INC.

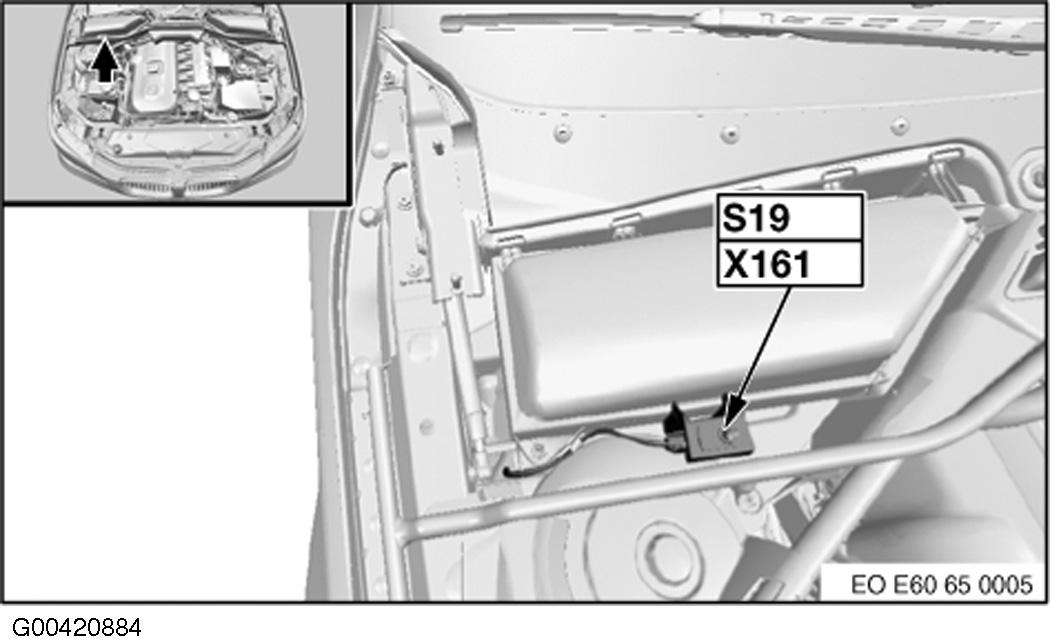

Fig 22: Right Rear Engine Compartment

G00420884

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 23: Left Side Of Dash

G00420885

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 24: Rear Center Console

G00420886

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 25: Center Console

G00420887

Courtesy of BMW OF NORTH AMERICA, INC.

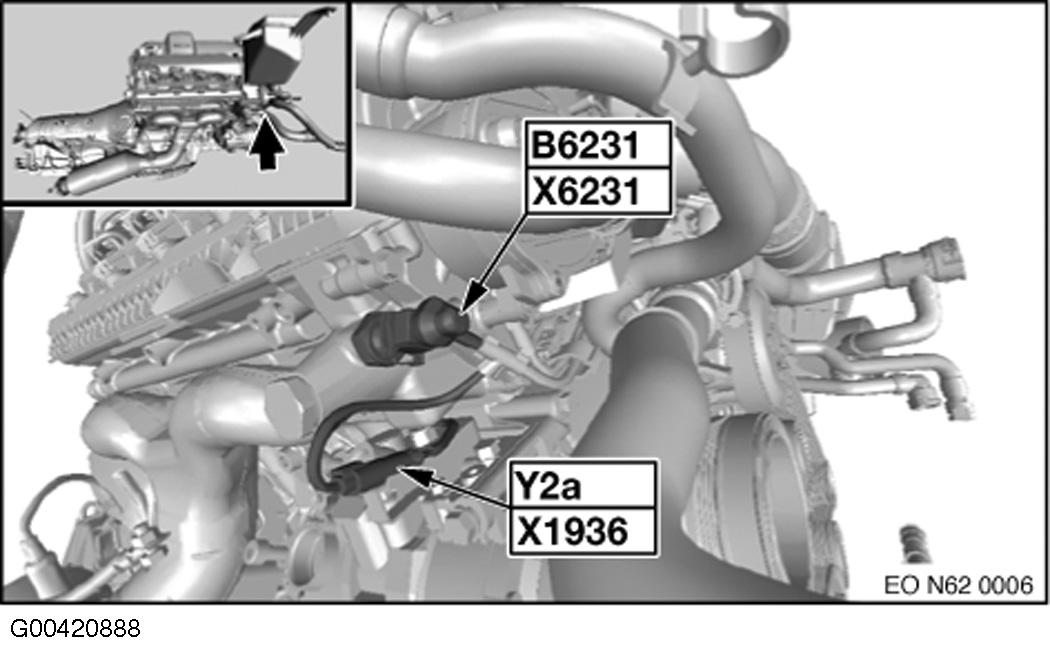

Fig 26: Right Side Of Engine

G00420888

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Driver's Seatback

G00420889

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 28: Passenger's Seatback

G00420890

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Right Side Of Left Footwell

G00420891

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Left Rear Engine Compartment

G00420892

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Under Front Of Vehicle

G00420893

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Top Center Of Dash

G00420894

Courtesy of BMW OF NORTH AMERICA, INC.

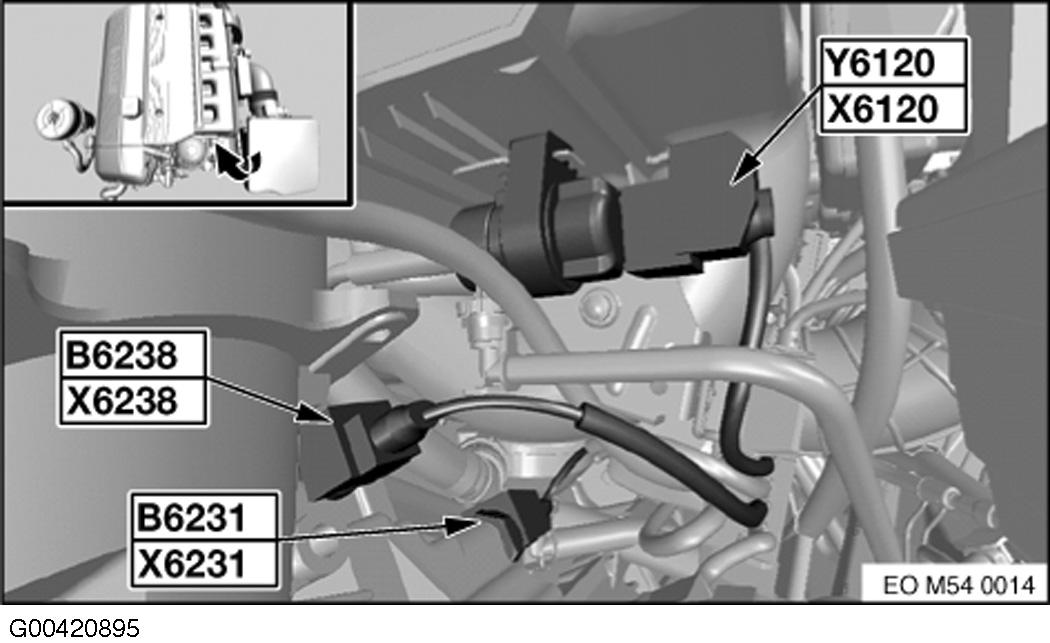

Fig 33: Lower Left Side Of Engine

G00420895

Courtesy of BMW OF NORTH AMERICA, INC.

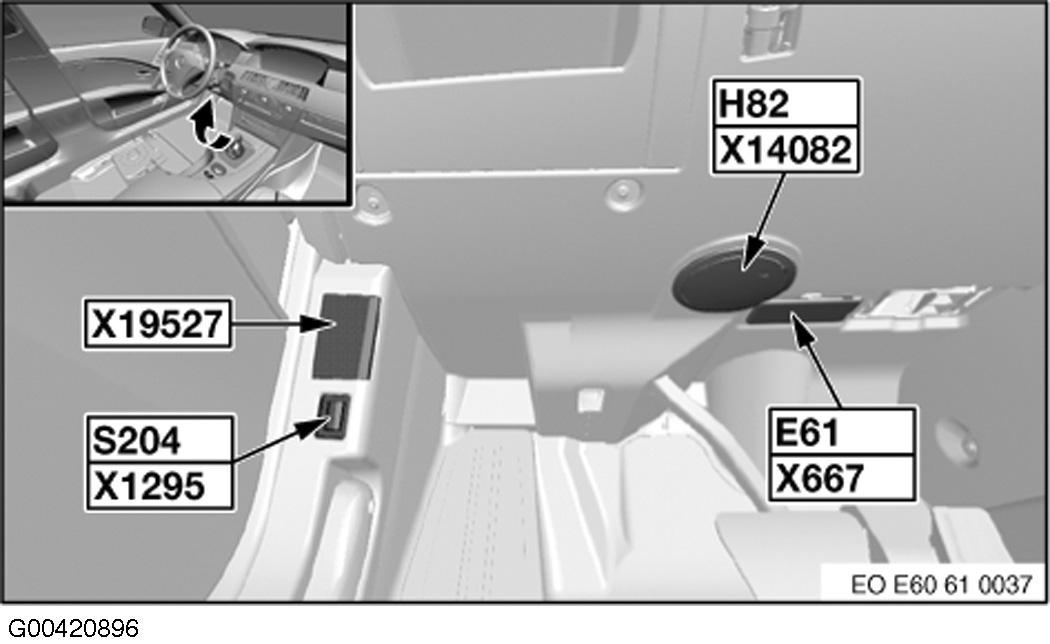

Fig 34: Below Left Side Of Dash

G00420896

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Right "C" Pillar

G00420897

Courtesy of BMW OF NORTH AMERICA, INC.

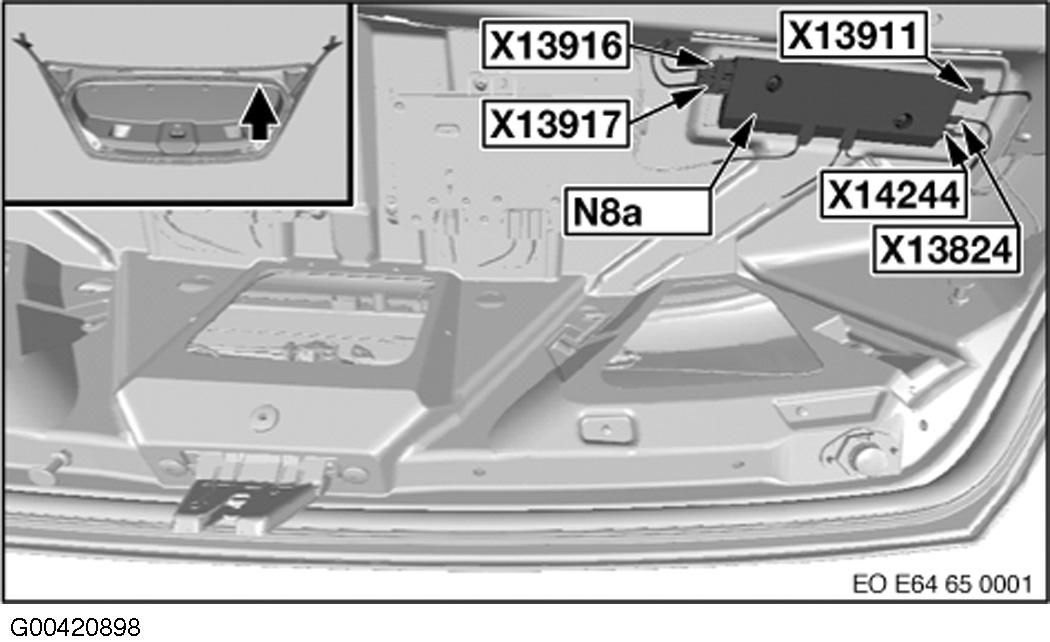

Fig 36: Trunk Lid (Convertible)

G00420898

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Right Front Of Engine

G00420899

Courtesy of BMW OF NORTH AMERICA, INC.

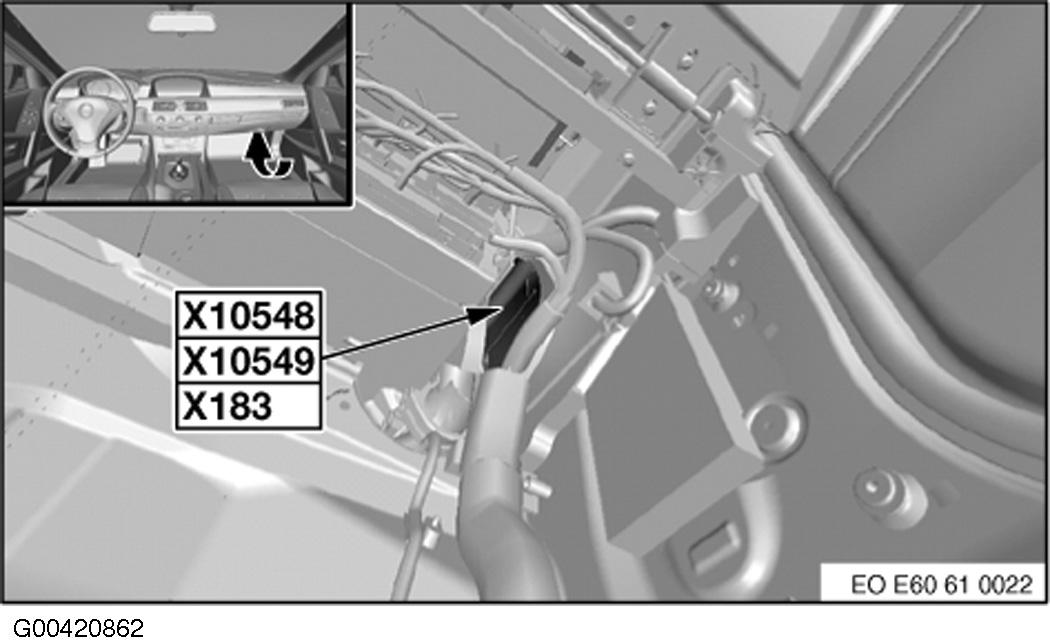

Fig 38: Behind Right Side Of Dash

G00420862

Courtesy of BMW OF NORTH AMERICA, INC.

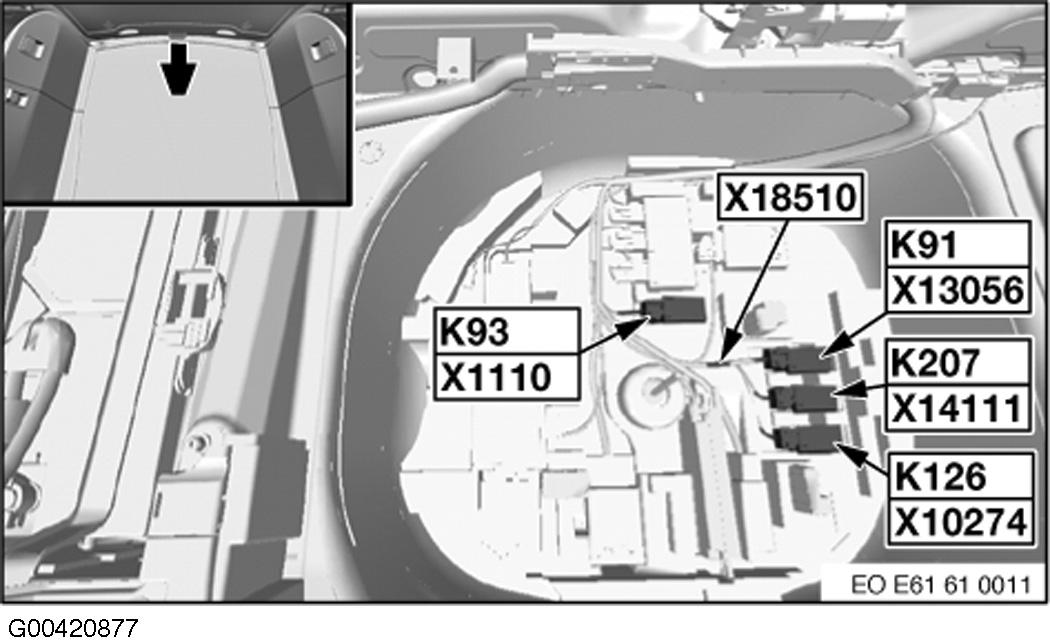

Fig 39: Cargo Area (Wagon)

G00420877

Courtesy of BMW OF NORTH AMERICA, INC.

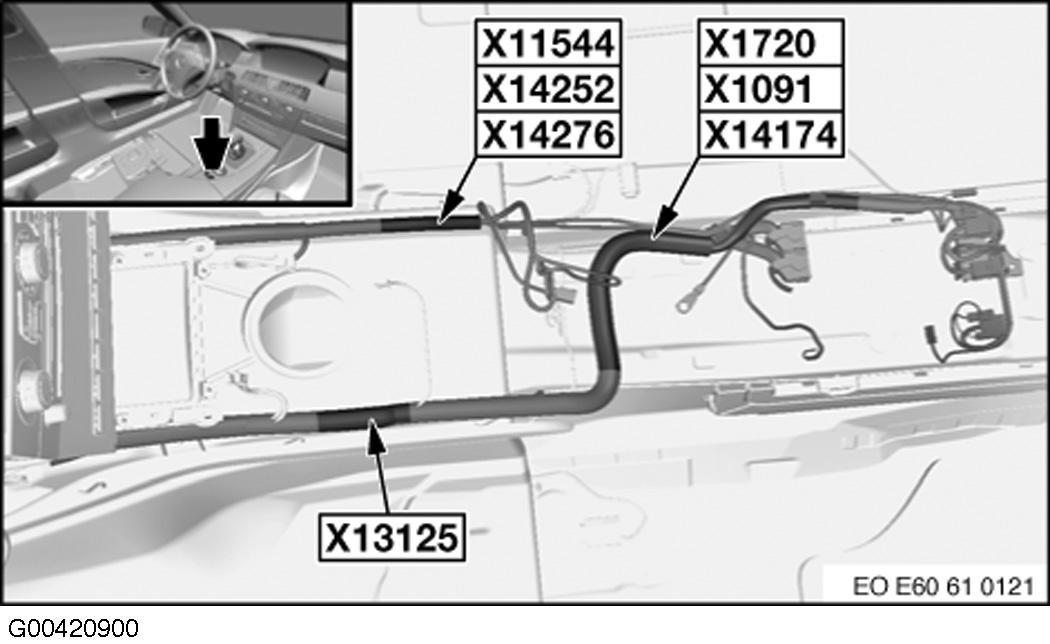

Fig 40: Below Center Console

G00420900

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 41: Left Front Rocker Panel

G00420901

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 42: Right Front Floor

G00420902

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 43: Right Kick Panel

G00420904

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 44: Left Kick Panel

G00420905

Courtesy of BMW OF NORTH AMERICA, INC.

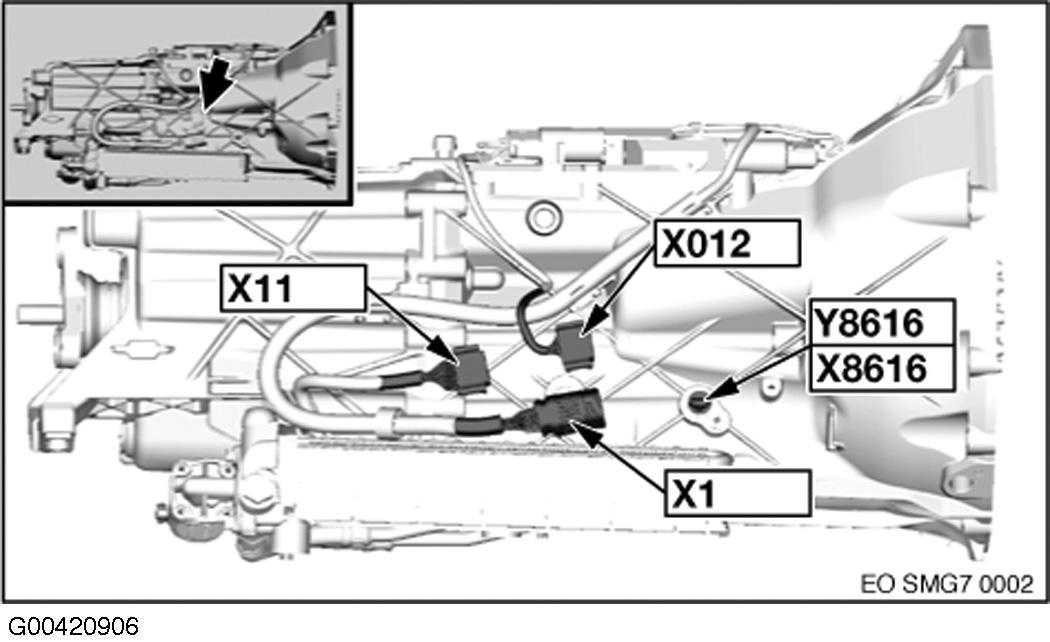

Fig 45: Right Side Of Transmission (M5)

G00420906

Courtesy of BMW OF NORTH AMERICA, INC.

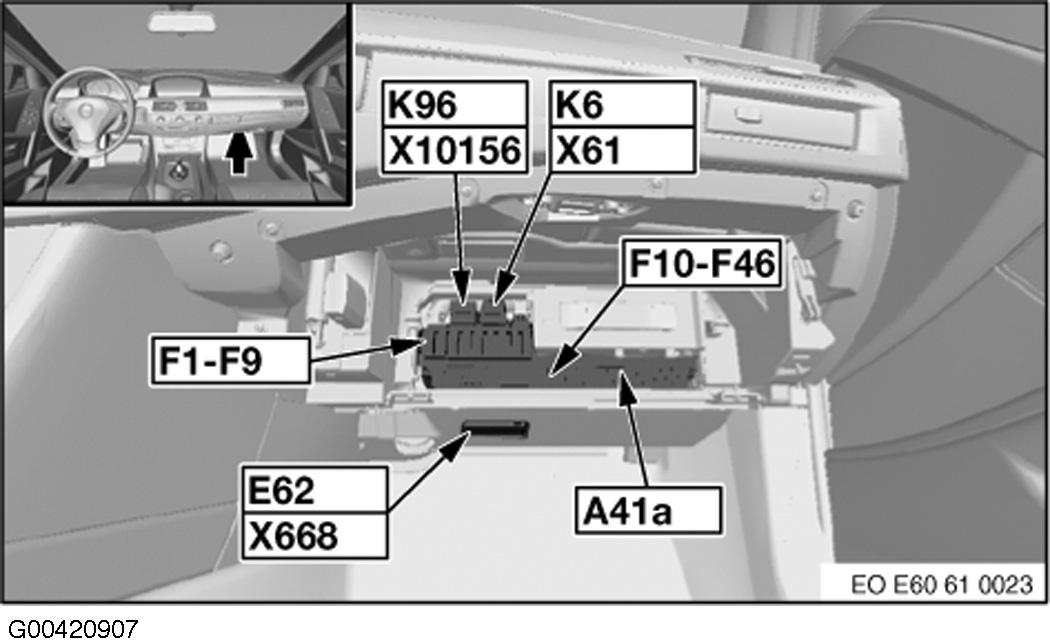

Fig 46: Behind Glove Box

G00420907

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 47: Right Rear Of Engine Compartment

G00420908

Courtesy of BMW OF NORTH AMERICA, INC.

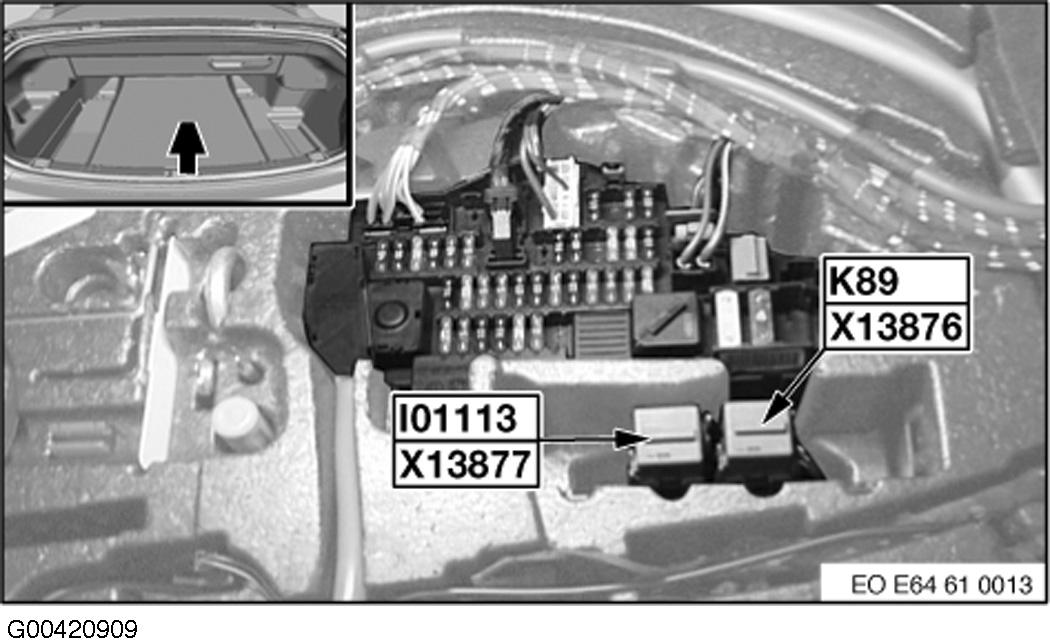

Fig 48: Rear Of Vehicle (Convertible)

G00420909

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 49: Rear Of Vehicle (Wagon)

G00420910

Courtesy of BMW OF NORTH AMERICA, INC.

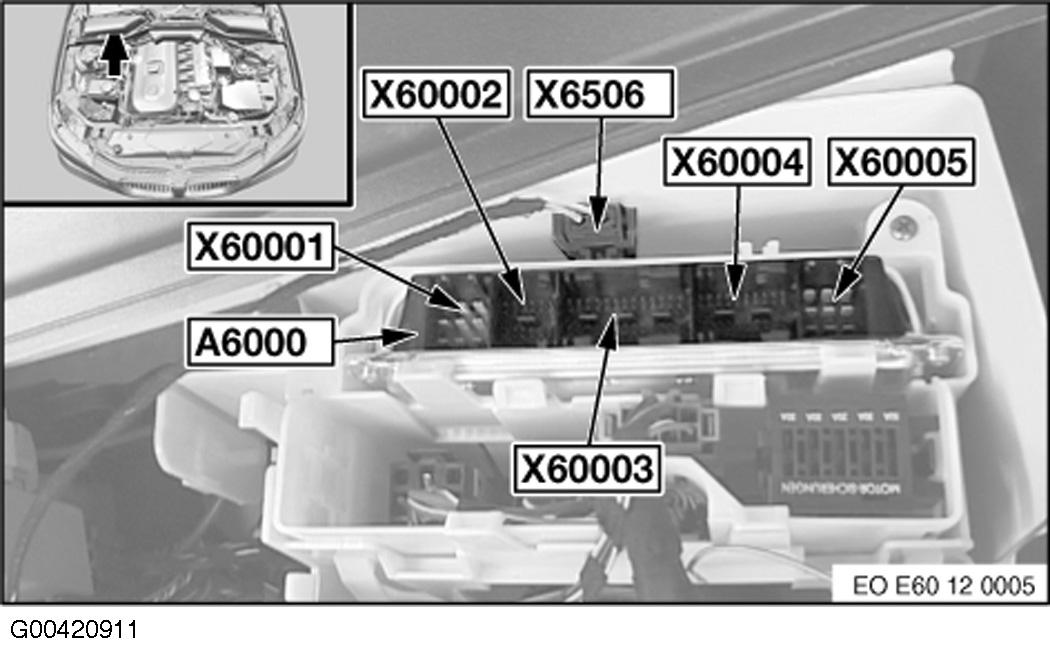

Fig 50: Right Rear Of Engine Compartment

G00420911

Courtesy of BMW OF NORTH AMERICA, INC.

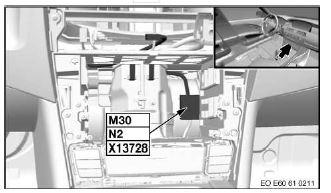

Fig 51: Behind Center of Dash

G00574306

Courtesy of BMW OF NORTH AMERICA, INC.

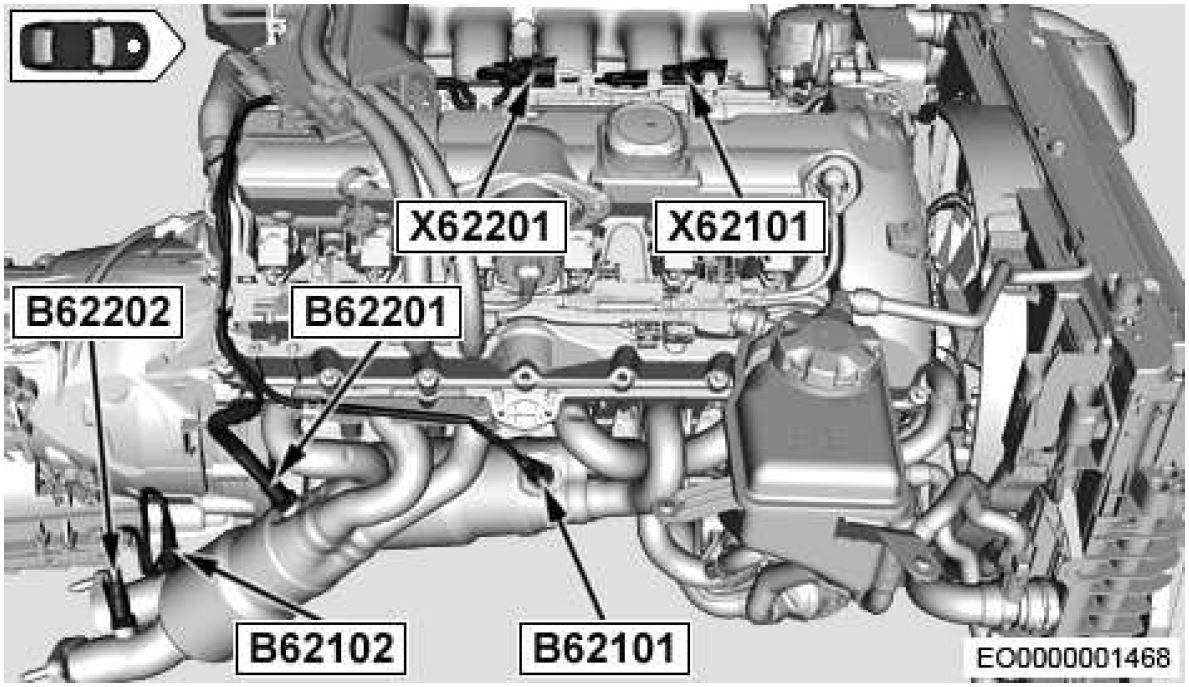

Fig 52: Oxygen Sensors

G00405749

Courtesy of BMW OF NORTH AMERICA, INC.
