Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Front Wheelwell

G00365149

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Right Front Engine Compartment

G00365150

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Left Rear Engine Compartment

G00420837

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Below Driver's Seat

G00365152

Courtesy of BMW OF NORTH AMERICA, INC.

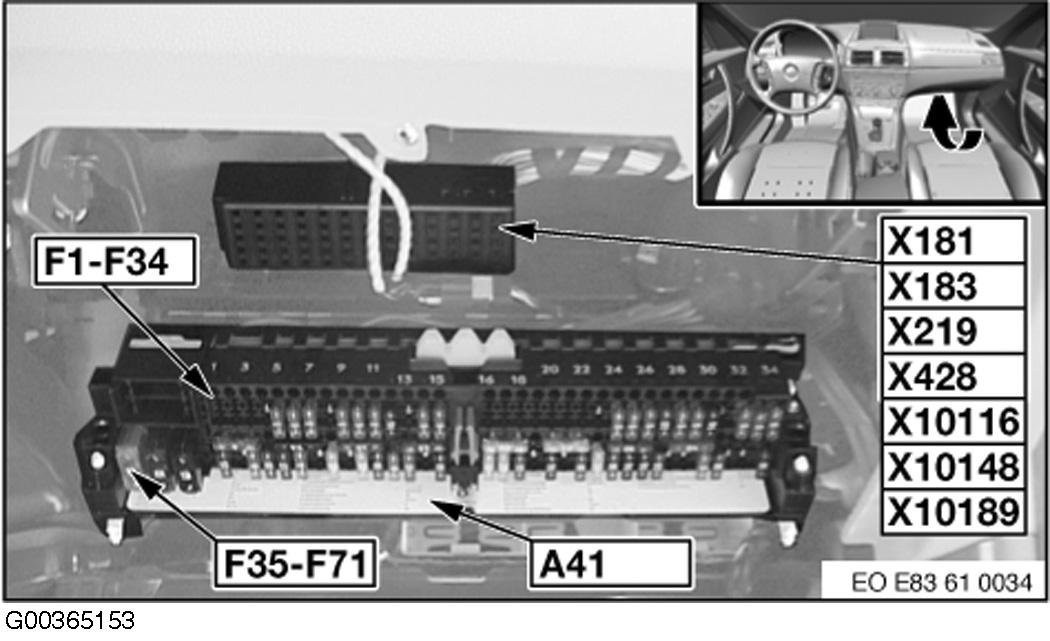

Fig 5: Right Side Of Dash

G00365153

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Left Side Of Dash

G00365154

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Left Kick Panel

G00365155

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Center Of Dash

G00365156

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Center Of Dash

G00365157

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Right Side Of Luggage Compartment

G00365158

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Right "A" Pillar

G00365159

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Left Side Of Dash

G00365160

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Right Front Door

G00365161

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Left Front Door

G00365162

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Center Console

G00365163

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Right Door Sill

G00365164

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 17: Right Side Of Rear Seat

G00365165

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Right Side Of Luggage Compartment

G00365166

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Left Front Engine Compartment

G00365168

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Right Side Of Dash

G00365169

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Center Console

G00365170

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 22: Right Side Of Dash

G00365171

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 23: Liftgate

G00365172

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 24: Right Side Of Dash

G00365173

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 25: Left Rear Engine Compartment

G00365174

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 26: Left Rear Engine Compartment

G00365175

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Right Front Wheelwell

G00365176

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 28: Under Left Front Of Vehicle

G00365177

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Left Front Wheel

G00365178

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Right Rear Wheel

G00365179

Courtesy of BMW OF NORTH AMERICA, INC.

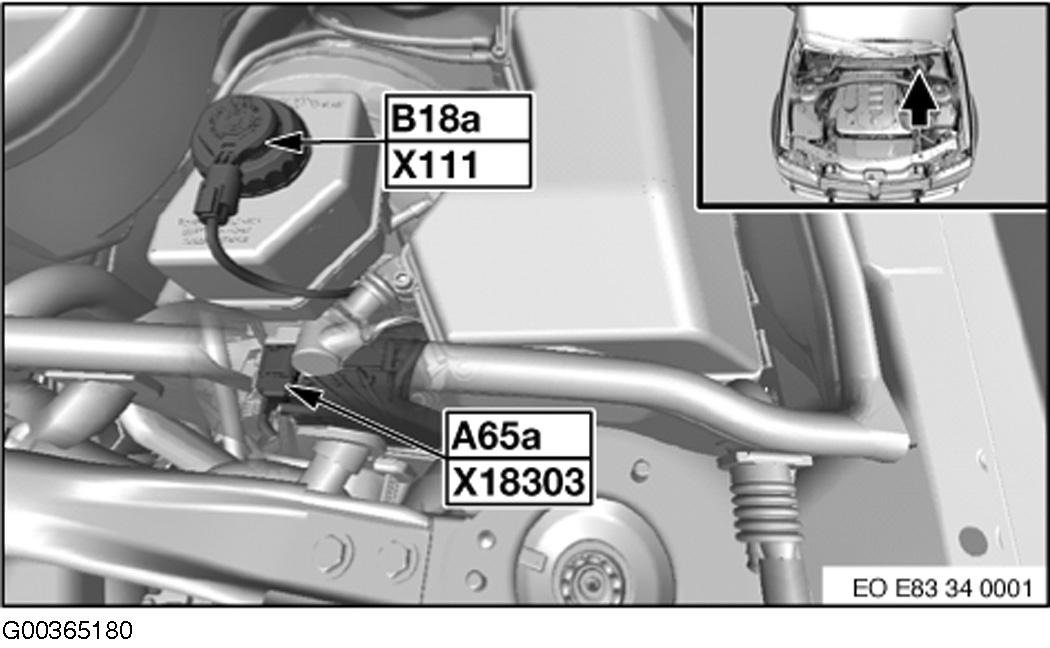

Fig 31: Left Rear Engine Compartment

G00365180

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Left Front Wheelwell

G00365181

Courtesy of BMW OF NORTH AMERICA, INC.

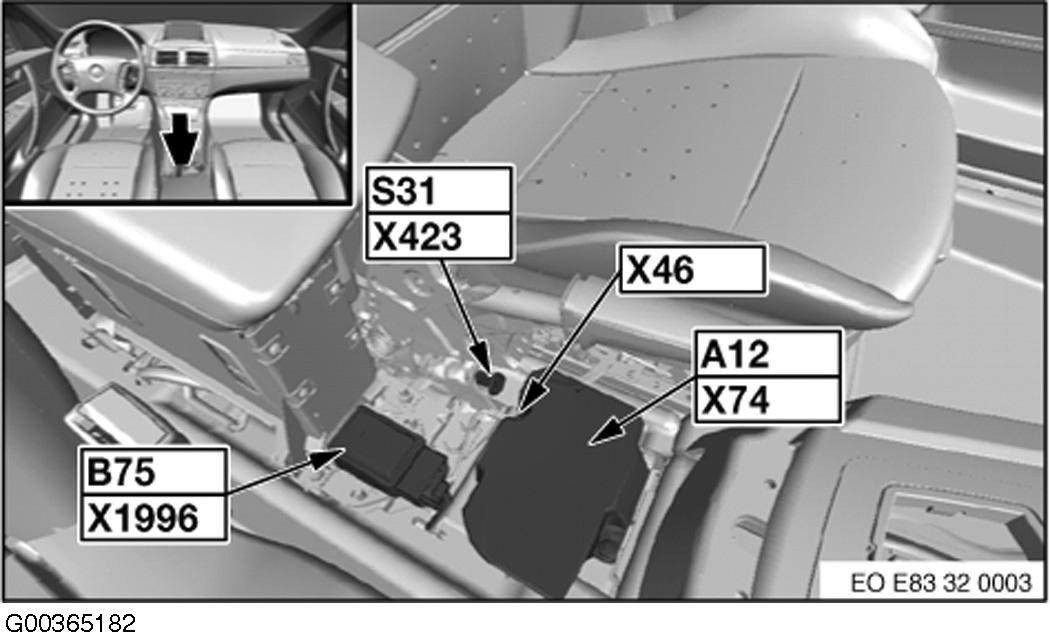

Fig 33: Center Console

G00365182

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Left Side Of Dash

G00365183

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Right Side Of Dash

G00365184

Courtesy of BMW OF NORTH AMERICA, INC.

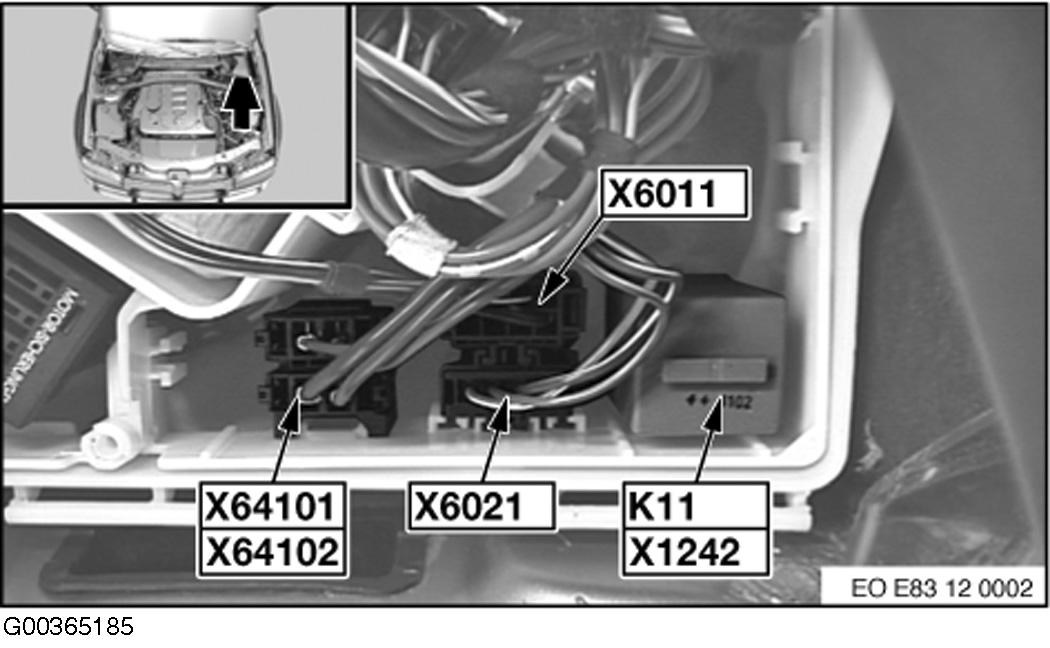

Fig 36: Left Rear Engine Compartment

G00365185

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Right Rear Quarterpanel

G00365186

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 38: Left Rear Engine Compartment

G00365187

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Below Right Rear Seat

G00365188

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 40: Right Side Of Engine Compartment

G00365189

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 41: Right Front Engine Compartment

G00365190

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 42: Under Left Side Of Dash

G00365191

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 43: Rear Center Console

G00365192

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 44: Left Front Engine Compartment

G00365193

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 45: Right Rear Side Of Transmission

G00365195

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 46: Left Side Of Engine

G00563566

Courtesy of BMW OF NORTH AMERICA, INC.

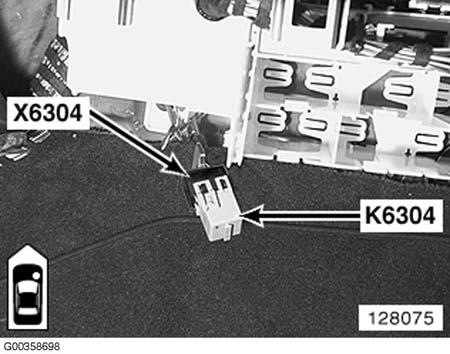

Fig 47: Right Footwell

G00358698

Courtesy of BMW OF NORTH AMERICA, INC.
