Engine identification

Drive in engine numbers at marked surface with impact tool.

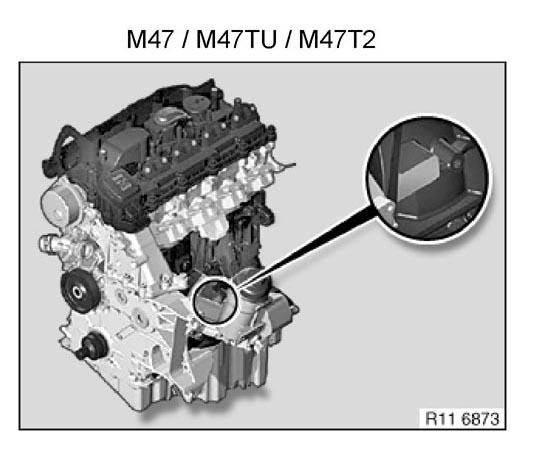

M47 / M47TU / M47T2

Fig 1: Identifying Engine Identification Numbers - M47 / M47TU / M47T2

Courtesy of BMW OF NORTH AMERICA, INC.

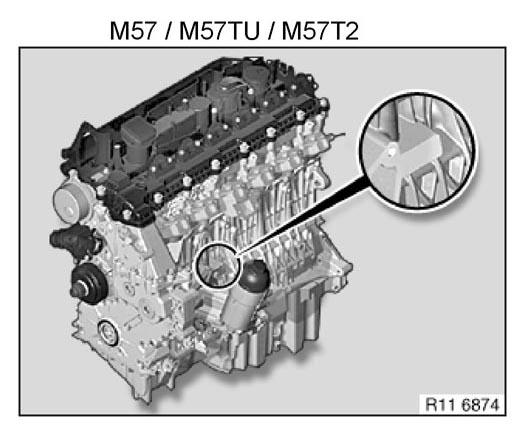

M57 / M57TU / M57T2

Fig 2: Identifying Engine Identification Numbers - M57 / M57TU / M57T2

Courtesy of BMW OF NORTH AMERICA, INC.

M67 / M67TU

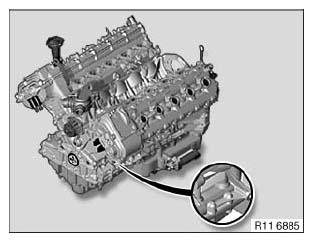

Fig 3: Identifying Engine Identification Numbers - M67 / M67TU

Courtesy of BMW OF NORTH AMERICA, INC.

N47

Fig 4: Identifying Engine Identification Numbers - N47

Courtesy of BMW OF NORTH AMERICA, INC.

M52 / M52TU

Fig 5: Identifying Engine Identification Numbers - M52 / M52TU

Courtesy of BMW OF NORTH AMERICA, INC.

M54

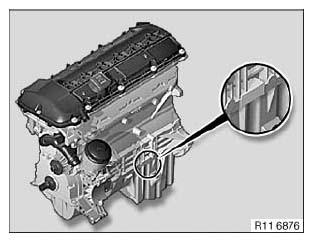

Fig 6: Identifying Engine Identification Numbers - M54

Courtesy of BMW OF NORTH AMERICA, INC.

M56

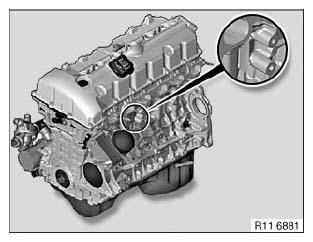

Fig 7: Identifying Engine Identification Numbers - M56

Courtesy of BMW OF NORTH AMERICA, INC.

N40 / N45

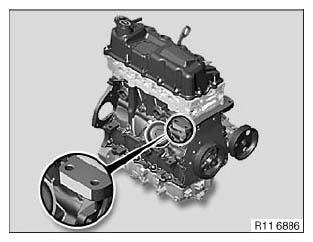

Fig 8: Identifying Engine Identification Numbers - N40 / N45

Courtesy of BMW OF NORTH AMERICA, INC.

N42 / N46 / N46T

Fig 9: Identifying Engine Identification Numbers - N42 / N46 / N46T

Courtesy of BMW OF NORTH AMERICA, INC.

N51 / N52 / N52K / N53 / N54

Fig 10: Identifying Engine Identification Numbers - N51 / N52 / N52K / N53 / N54

Courtesy of BMW OF NORTH AMERICA, INC.

N62

Fig 11: Identifying Engine Identification Numbers - N62

Courtesy of BMW OF NORTH AMERICA, INC.

N73

Fig 12: Identifying Engine Identification Numbers - N73

Courtesy of BMW OF NORTH AMERICA, INC.

S54

Fig 13: Identifying Engine Identification Numbers - S54

Courtesy of BMW OF NORTH AMERICA, INC.

S85

Fig 14: Identifying Engine Identification Numbers - S85

Courtesy of BMW OF NORTH AMERICA, INC.

W10 / W11

Fig 15: Identifying Engine Identification Numbers - W10 / W11

Courtesy of BMW OF NORTH AMERICA, INC.

W17

Fig 16: Identifying Engine Identification Numbers - W17

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
