Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Below Left Front Seat

G00360845

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Left Front Of Engine Compartment

G00360846

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Right Side Of Engine Compartment

G00360847

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Right Front Of Engine Compartment

G00360848

Courtesy of BMW OF NORTH AMERICA, INC.

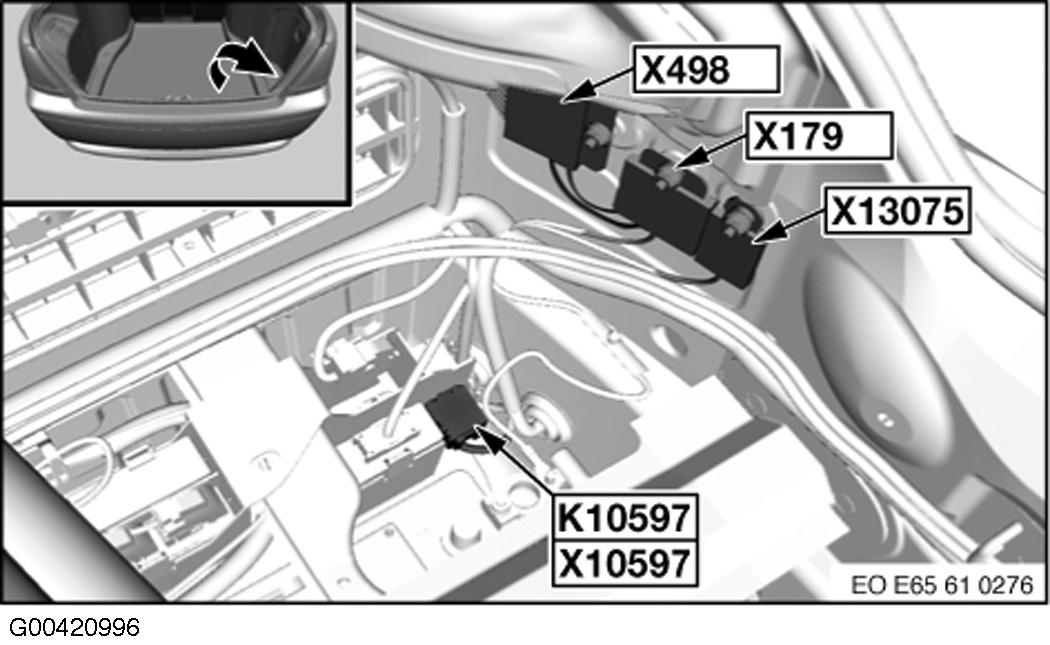

Fig 5: Right Rear Of Luggage Compartment

G00420996

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Left Rear Door

G00360850

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Right Front Of Engine Compartment

G00360851

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Left Front Door Sill

G00360852

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Right Footwell

G00360853

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Right Rear Of Engine Compartment

G00360854

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Left Rear Of Luggage Compartment

G00360855

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Behind Left Rear Seat

G00360856

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Behind Right Rear Seat

G00360857

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Left Side Of Dash

G00360858

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Left Side Of Dash

G00360859

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Driver's Door

G00360860

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 17: Under Right Front Seat

G00360861

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Right Rear Package Shelf

G00360862

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Left Rear Package Shelf

G00360863

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Driver's Door

G00360865

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Right Front Door

G00360866

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 22: Left Side Of Dash

G00360867

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 23: Driver's Door

G00360868

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 24: Right Front Door

G00360869

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 25: Right Side Of Engine Compartment

G00360871

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 26: Right Rear Of Luggage Compartment

G00360872

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Right Side Of Dash

G00360873

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 28: Right Side Of Dash

G00360874

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Right Rear Of Luggage Compartment

G00360875

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Left Rear Of Luggage Compartment

G00360876

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Behind Center Of Dash

G00360877

Courtesy of BMW OF NORTH AMERICA, INC.

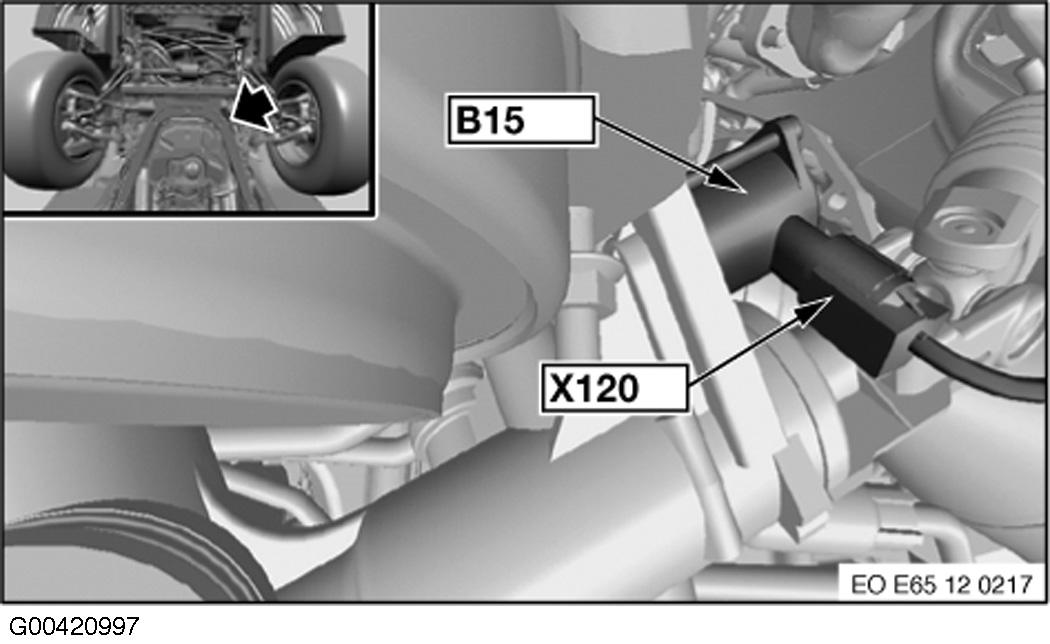

Fig 32: Under Left Front Of Vehicle

G00420997

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 33: Left Front Wheelwell

G00360879

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Right Rear Wheelwell

G00360880

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Left Rear Of Engine Compartment

G00360881

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 36: Right Front Wheelwell

G00360882

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Center Top Of Dash

G00360883

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 38: Right Side Of Dash

G00360886

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Right Rear Of Luggage Compartment

G00360887

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 40: Right Side Of Dash

G00360888

Courtesy of BMW OF NORTH AMERICA, INC.

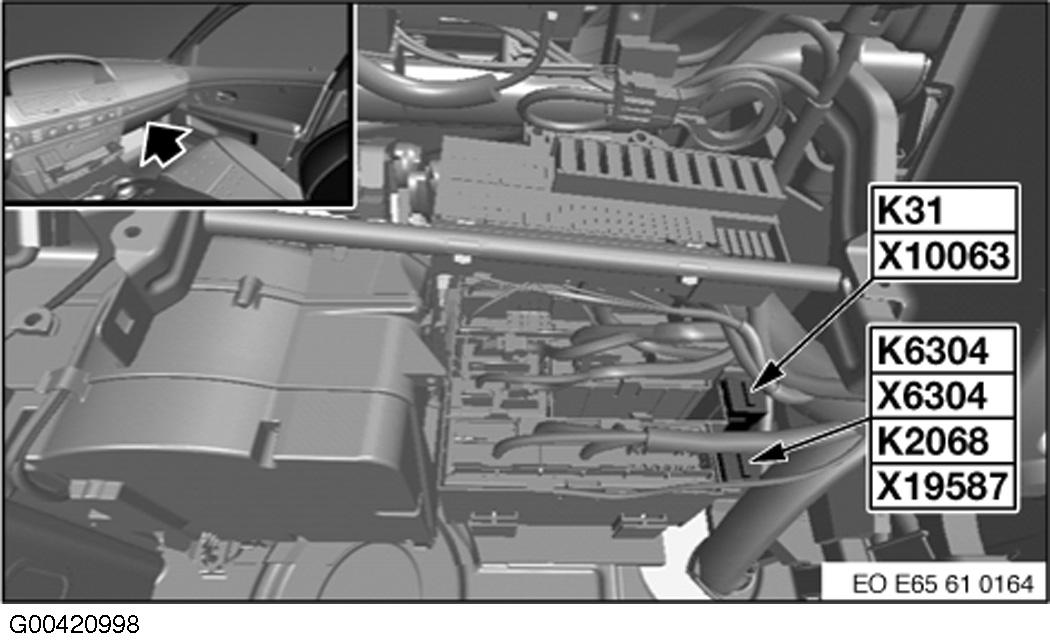

Fig 41: Right Side Of Dash

G00420998

Courtesy of BMW OF NORTH AMERICA, INC.

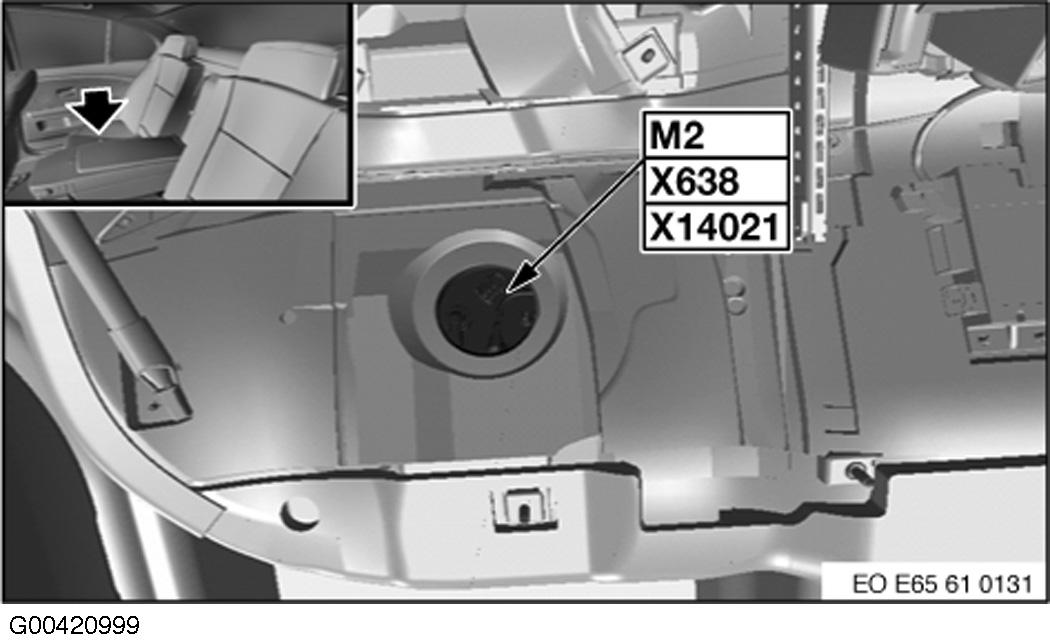

Fig 42: Below Right Rear Seat

G00420999

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 43: Left Front Wheelwell

G00360891

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 44: Right Side Of Dash

G00360892

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 45: Right Side Of Dash

G00360893

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 46: Center Of Dash

G00365135

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 47: Rear Window Shelf

G00365136

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 48: Left Rear Of Engine Compartment

G00365138

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 49: Left Side Of Dash

G00365139

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 50: Right Side Of Engine Compartment

G00365140

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 51: Left Rear Of Engine Compartment

G00365141

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 52: Left Front Wheelwell

G00365142

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 53: Right Side Of Engine Compartment

G00365143

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 54: Left Rear Of Engine Compartment

G00365144

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 55: Right Front Door

G00365145

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 56: Left Front Door

G00365146

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 57: Left Rear Door

G00365147

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 58: Right Rear Door

G00365148

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 59: Rear Compartment

G00444490

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 60: Behind Left Front Wheel

G00444491

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 61: Overhead Console

G00444492

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 62: Under Right Side Of Dash

G00444493

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 63: Top Of Right Rear Wheel

G00444494

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 64: Rear Overhead Console

G00444495

Courtesy of BMW OF NORTH AMERICA, INC.

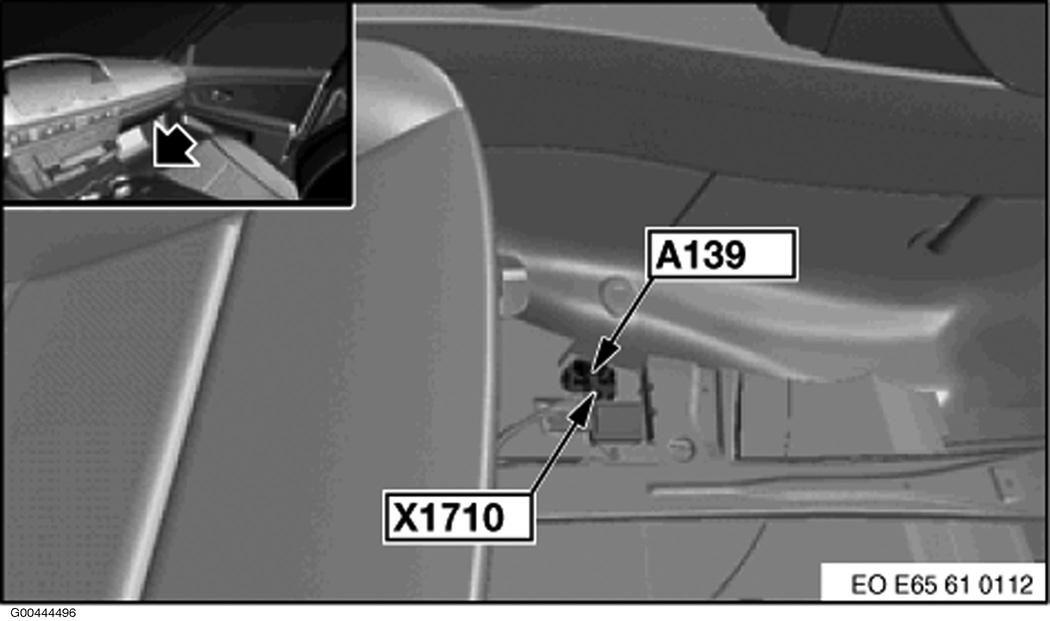

Fig 65: Right Footwell

G00444496

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 66: Front Bumper

G00444497

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 67: Right Side Of Dash

G00444498

Courtesy of BMW OF NORTH AMERICA, INC.

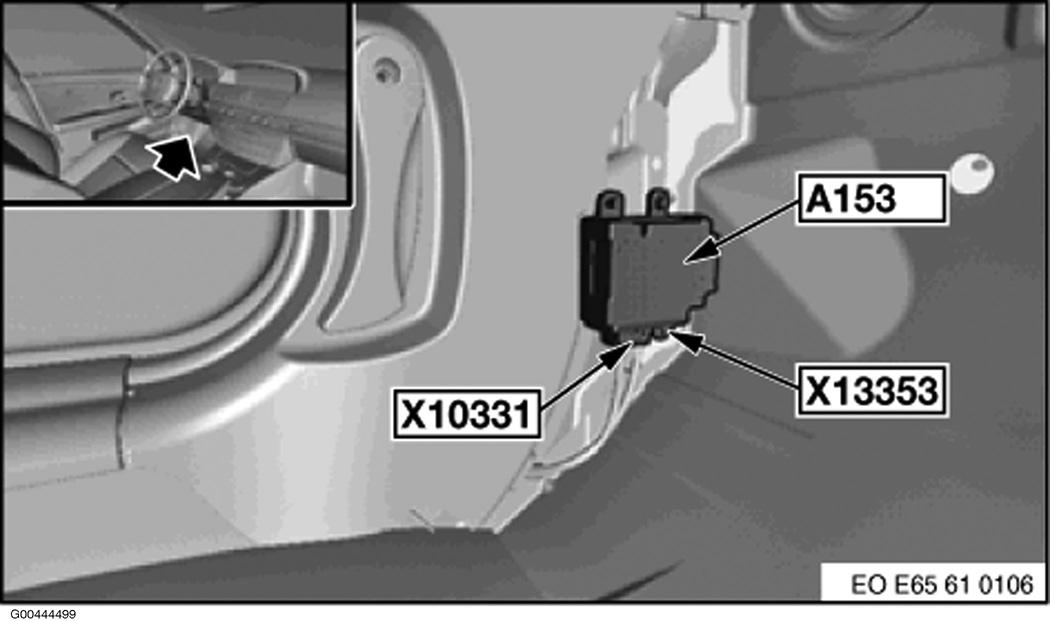

Fig 68: Left Footwell

G00444499

Courtesy of BMW OF NORTH AMERICA, INC.

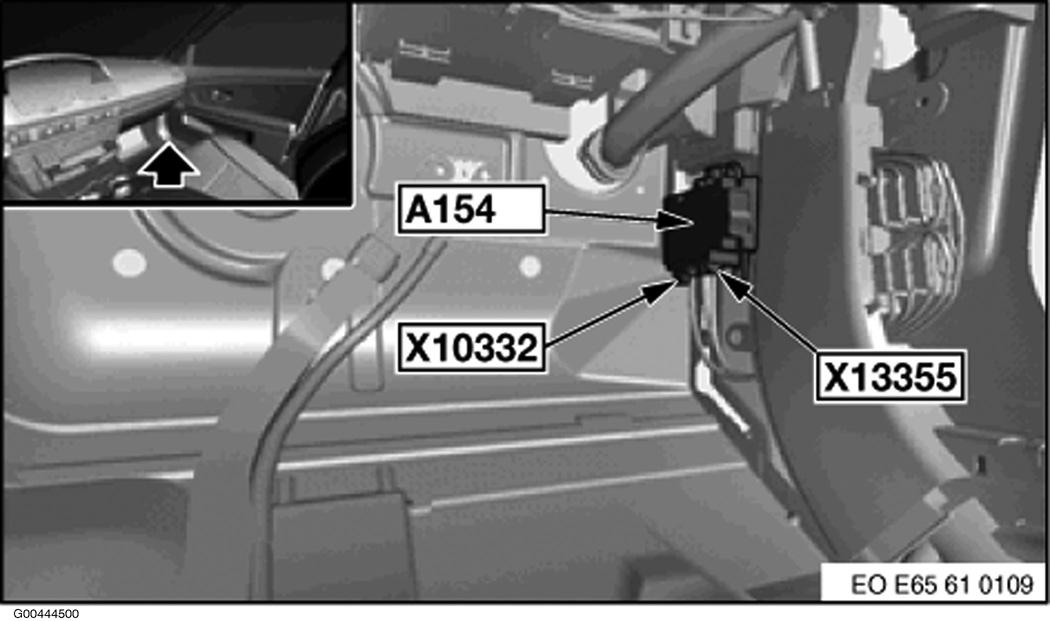

Fig 69: Right Footwell

G00444500

Courtesy of BMW OF NORTH AMERICA, INC.

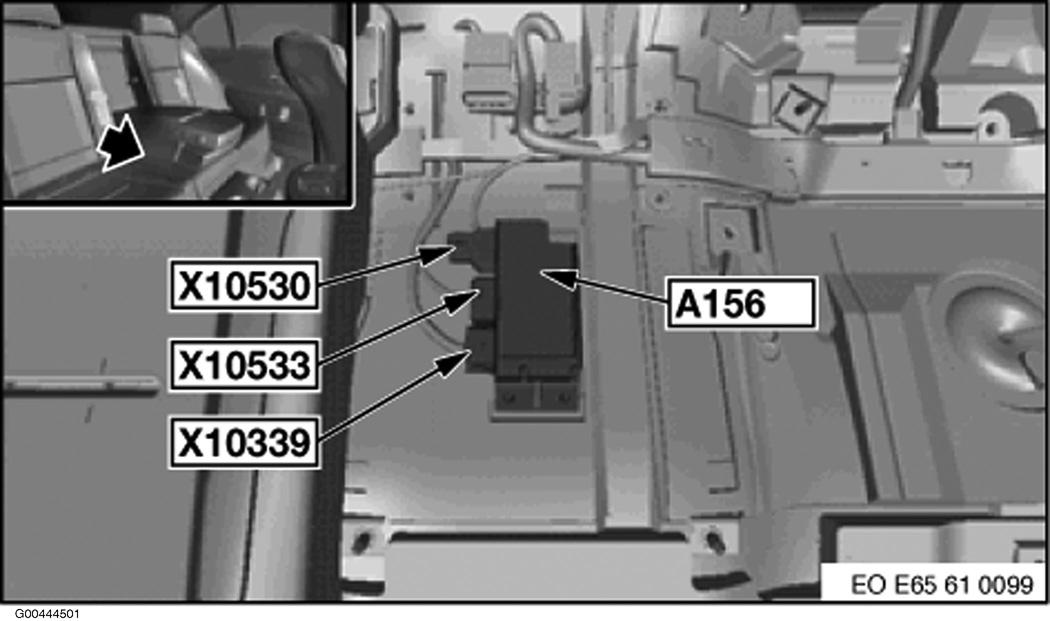

Fig 70: Rear Center Console

G00444501

Courtesy of BMW OF NORTH AMERICA, INC.

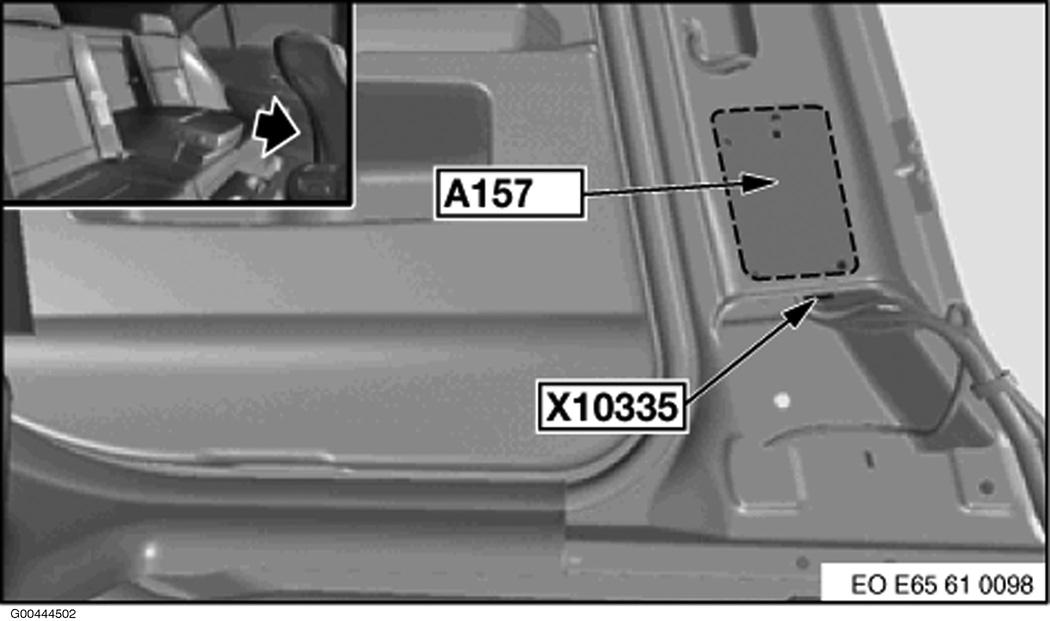

Fig 71: Bottom Of Left "B" Pillar

G00444502

Courtesy of BMW OF NORTH AMERICA, INC.

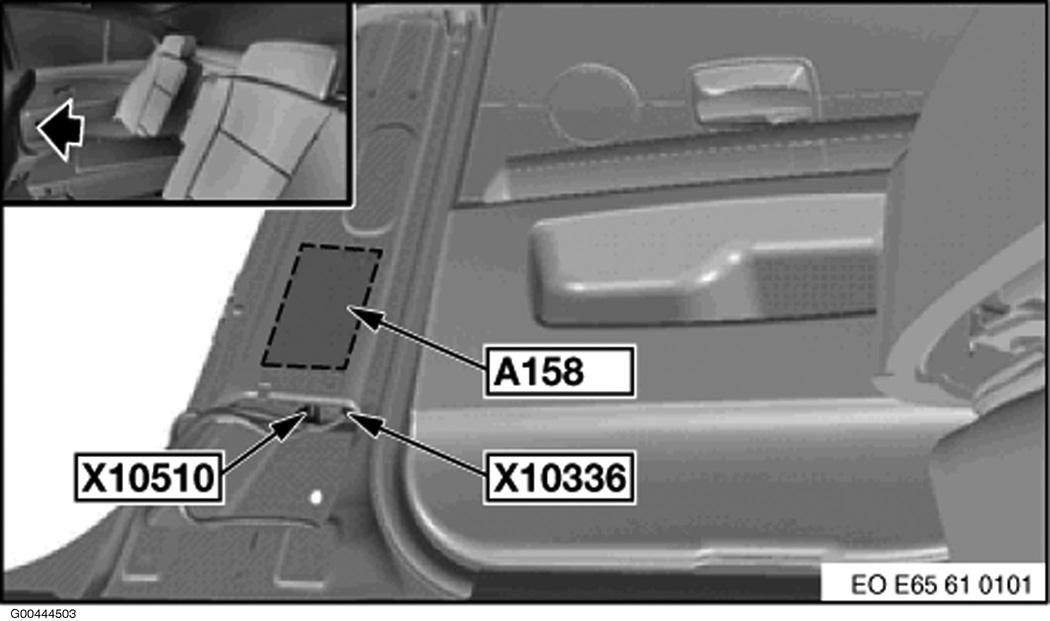

Fig 72: Bottom Of Right "B" Pillar

G00444503

Courtesy of BMW OF NORTH AMERICA, INC.

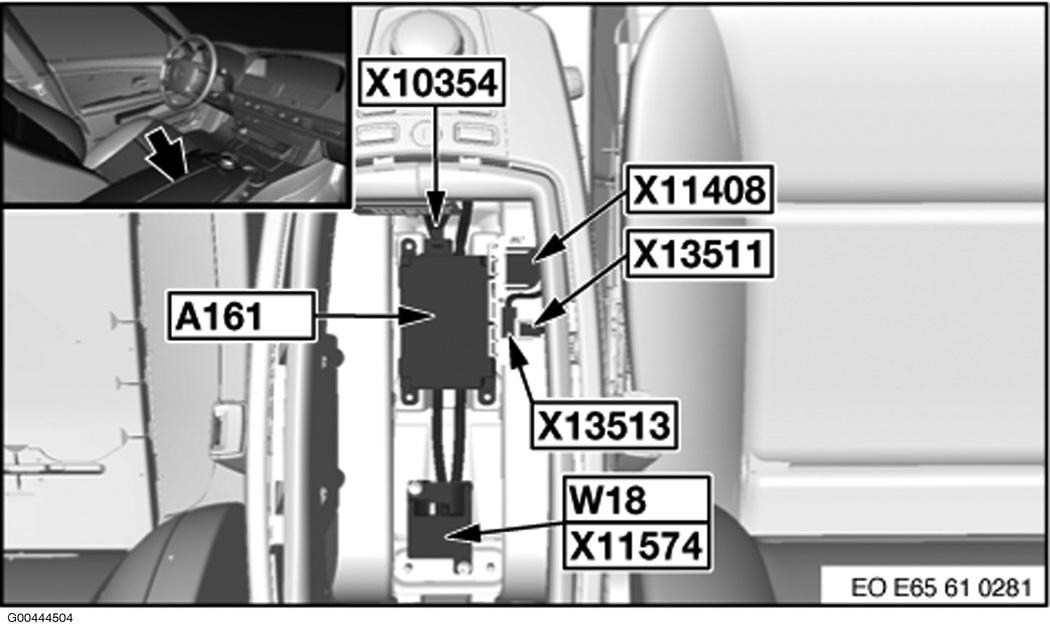

Fig 73: Center Console

G00444504

Courtesy of BMW OF NORTH AMERICA, INC.

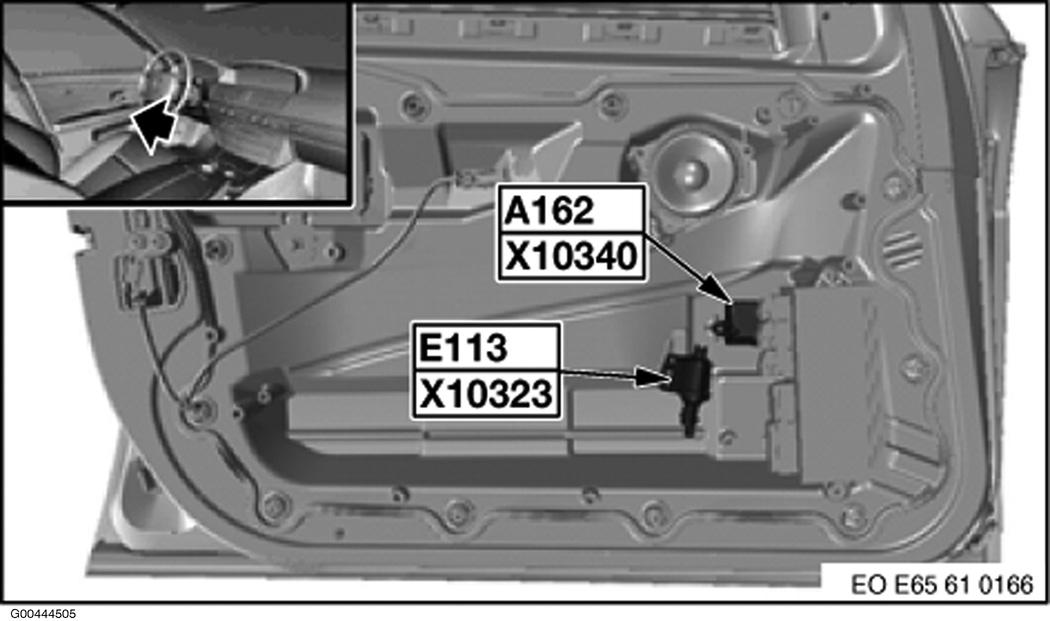

Fig 74: Driver's Door

G00444505

Courtesy of BMW OF NORTH AMERICA, INC.

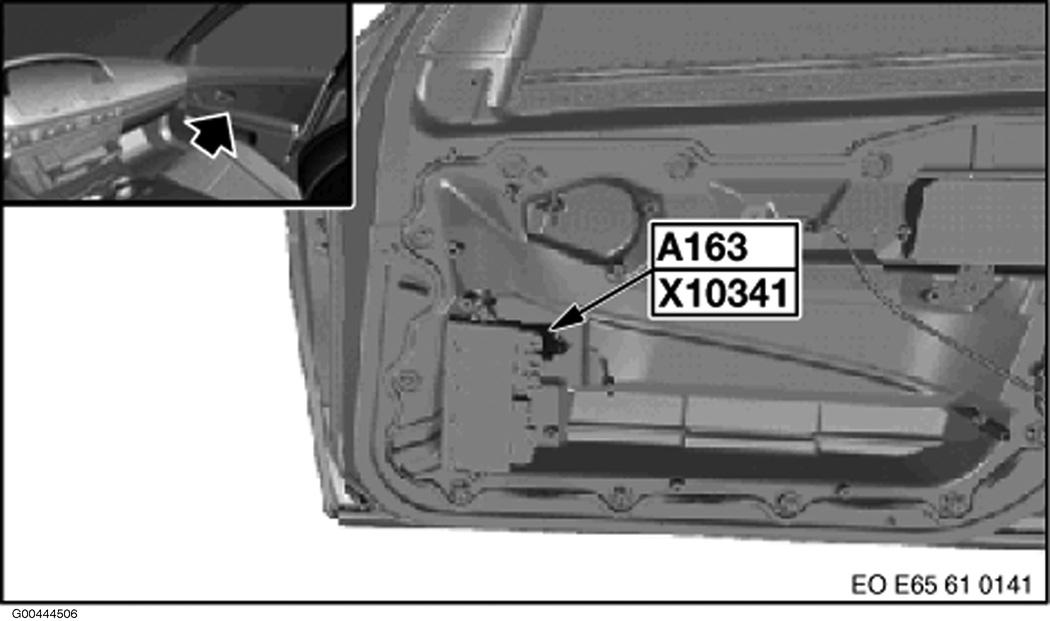

Fig 75: Front Passenger's Door

G00444506

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 76: Rear Compartment

G00444507

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 77: Center Console

G00444508

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 78: Under Left Side Of Dash

G00444509

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 79: Under Driver's Seat

G00444510

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 80: Under Front Passenger's Seat

G00444511

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 81: Rear Compartment

G00444512

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 82: Rear Compartment

G00444513

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 83: Rear Compartment

G00444514

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 84: Rear Compartment

G00444515

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 85: Left Rear Door

G00444516

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 86: Right Rear Door

G00444517

Courtesy of BMW OF NORTH AMERICA, INC.

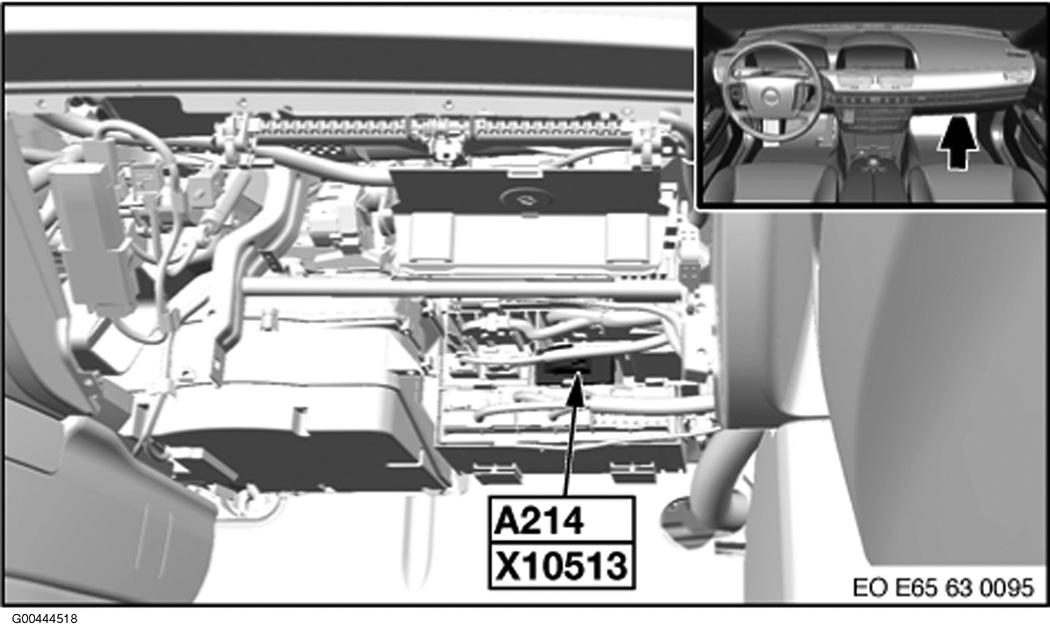

Fig 87: Under Right Side Of Dash

G00444518

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 88: Rear Compartment

G00444519

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 89: Behind Left Rear Seat

G00444520

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 90: Under Right Side Of Dash

G00444521

Courtesy of BMW OF NORTH AMERICA, INC.

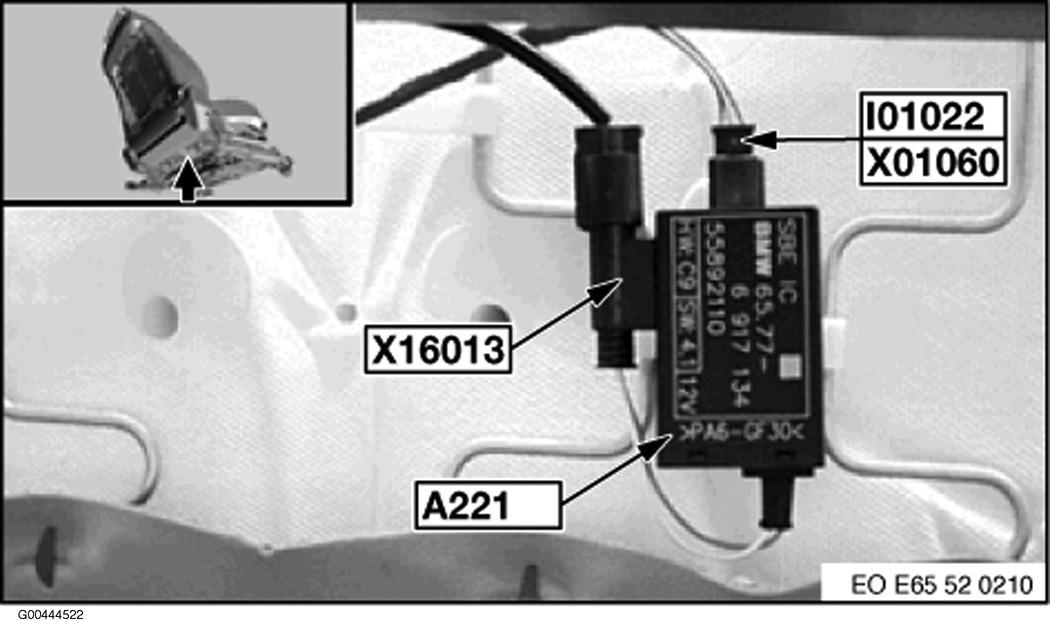

Fig 91: Under Driver's Seat

G00444522

Courtesy of BMW OF NORTH AMERICA, INC.

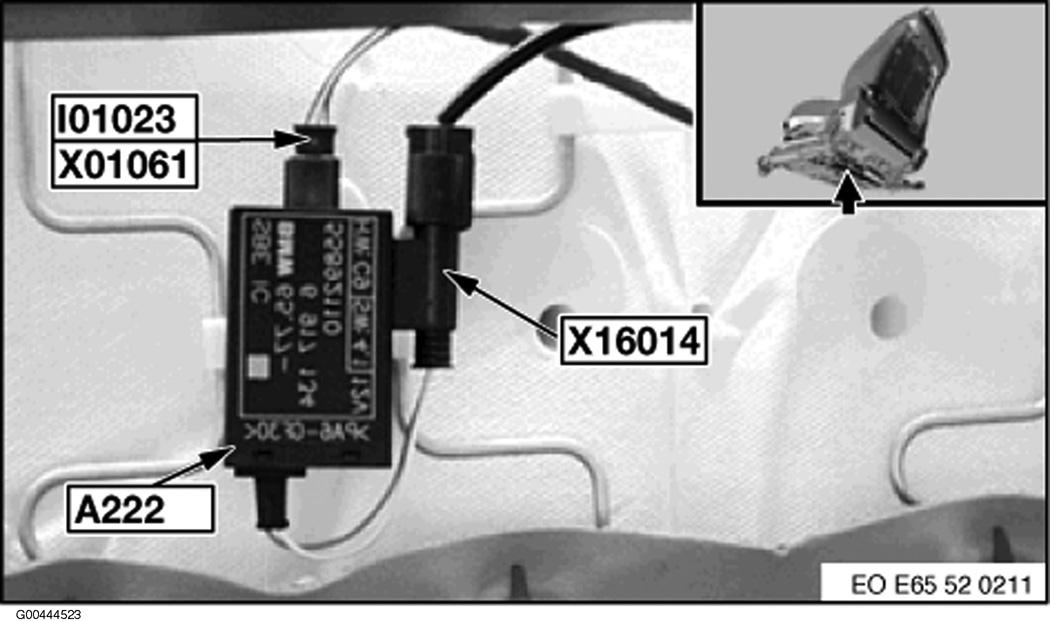

Fig 92: Under Front Passenger's Seat

G00444523

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 93: Right Rear Of Engine Compartment (4.8L)

G00444524

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 94: Right Rear Of Engine Compartment

G00444525

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 95: Right Rear Of Engine Compartment (6.0L)

G00444526

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 96: Right Rear Of Engine Compartment (6.0L)

G00444527

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 97: Right Rear Of Engine Compartment (6.0L)

G00444528

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 98: Right Rear Of Engine Compartment (4.8L)

G00444529

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 99: Right Rear Of Engine Compartment

G00444530

Courtesy of BMW OF NORTH AMERICA, INC.

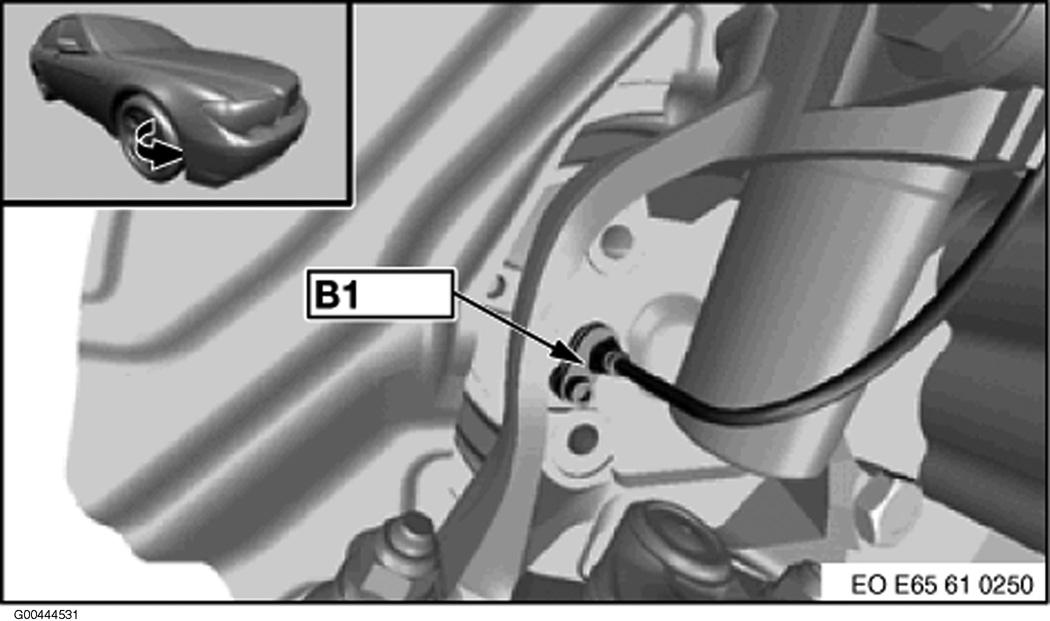

Fig 100: Front Of Right Front Wheel

G00444531

Courtesy of BMW OF NORTH AMERICA, INC.

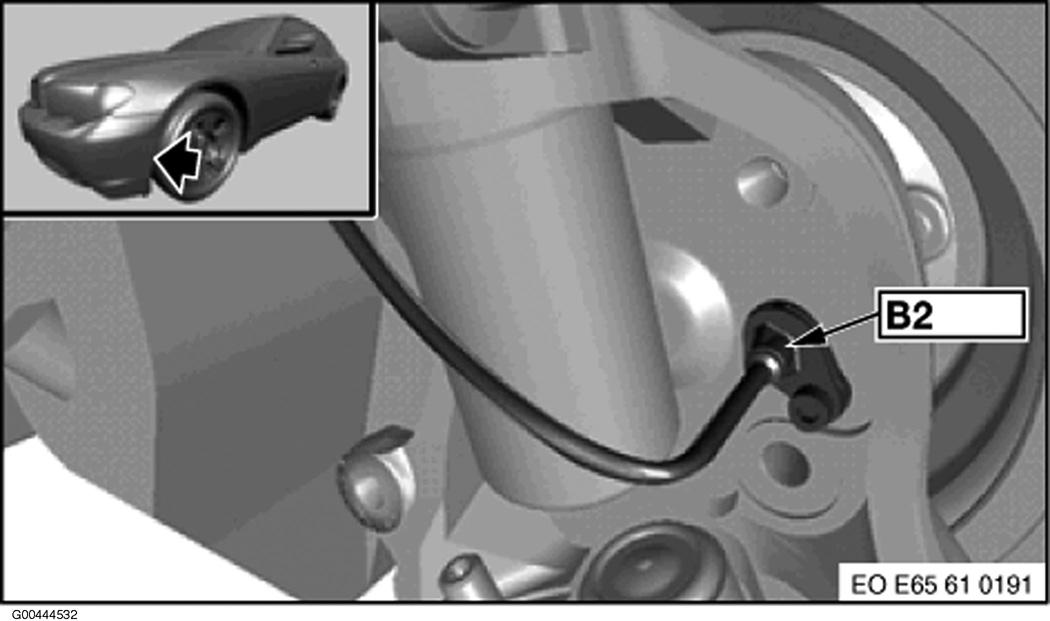

Fig 101: Front Of Left Front Wheel

G00444532

Courtesy of BMW OF NORTH AMERICA, INC.

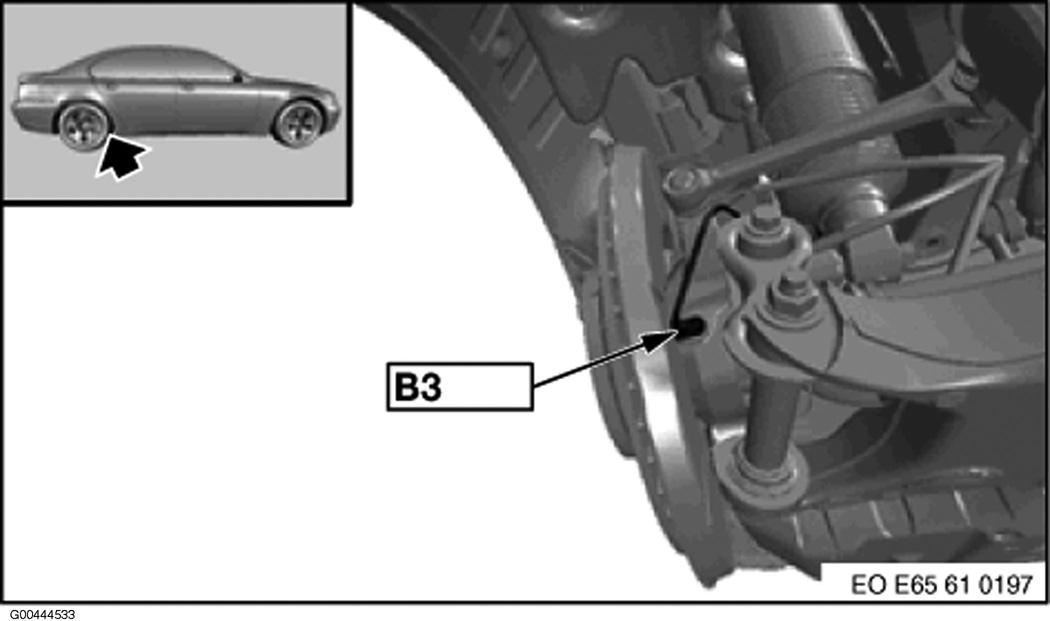

Fig 102: Front Of Right Rear Wheel

G00444533

Courtesy of BMW OF NORTH AMERICA, INC.

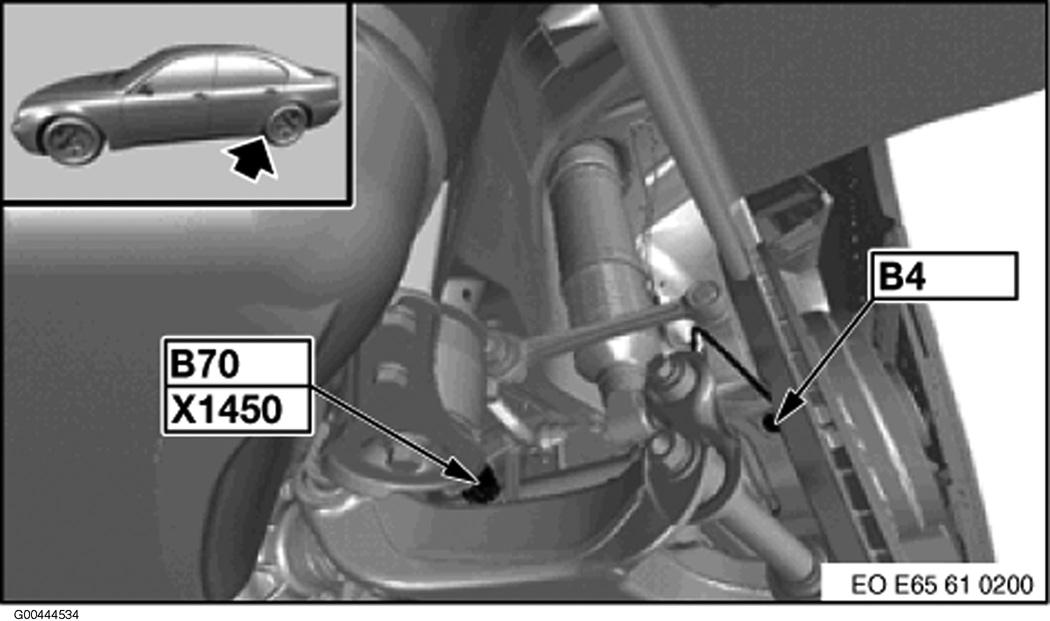

Fig 103: Front Of Left Rear Wheel

G00444534

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 104: Part Of Acceleration Pedal Assembly

G00444535

Courtesy of BMW OF NORTH AMERICA, INC.

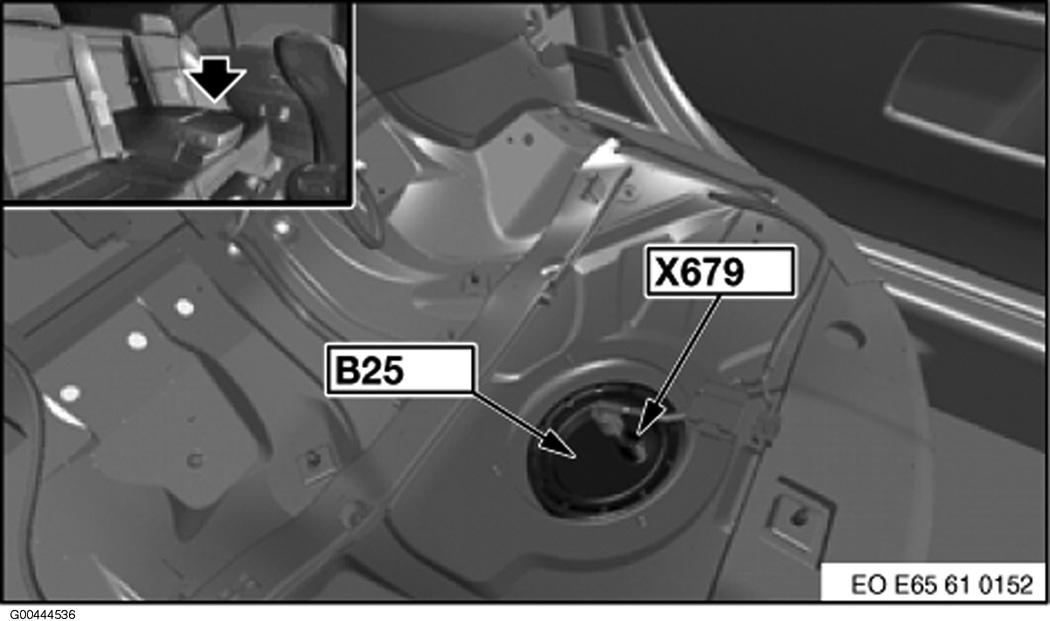

Fig 105: Under Left Rear Seat

G00444536

Courtesy of BMW OF NORTH AMERICA, INC.

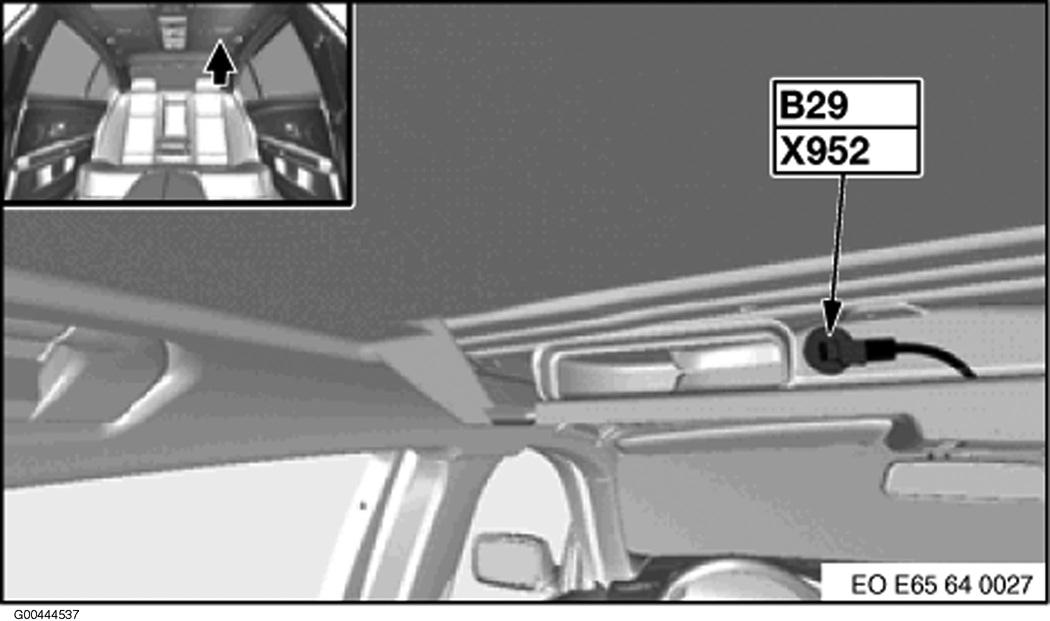

Fig 106: Left Rear Corner Of Roof

G00444537

Courtesy of BMW OF NORTH AMERICA, INC.

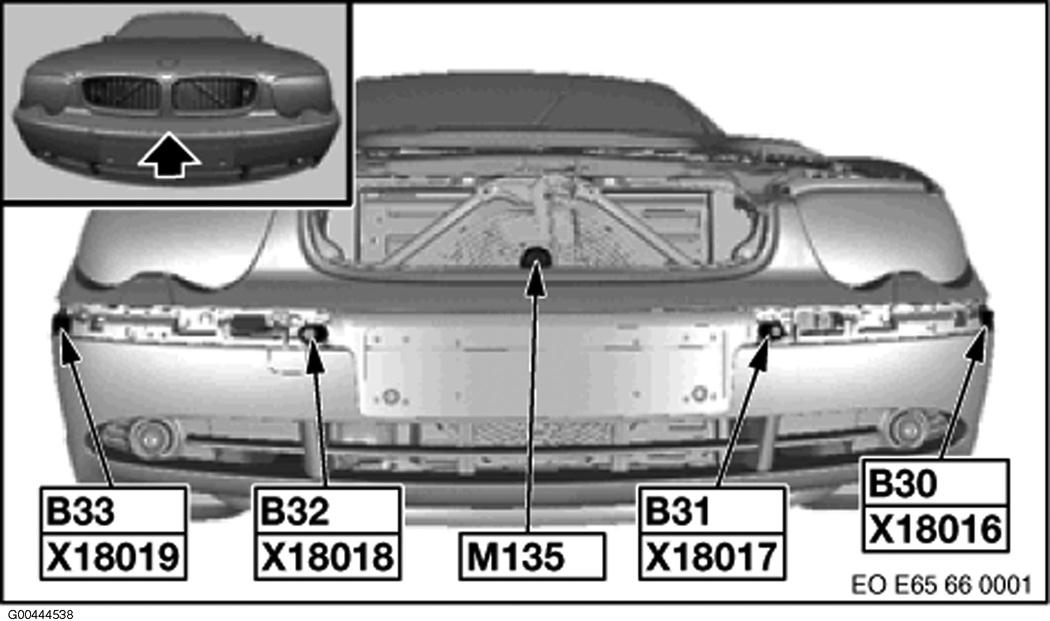

Fig 107: Front Bumper

G00444538

Courtesy of BMW OF NORTH AMERICA, INC.

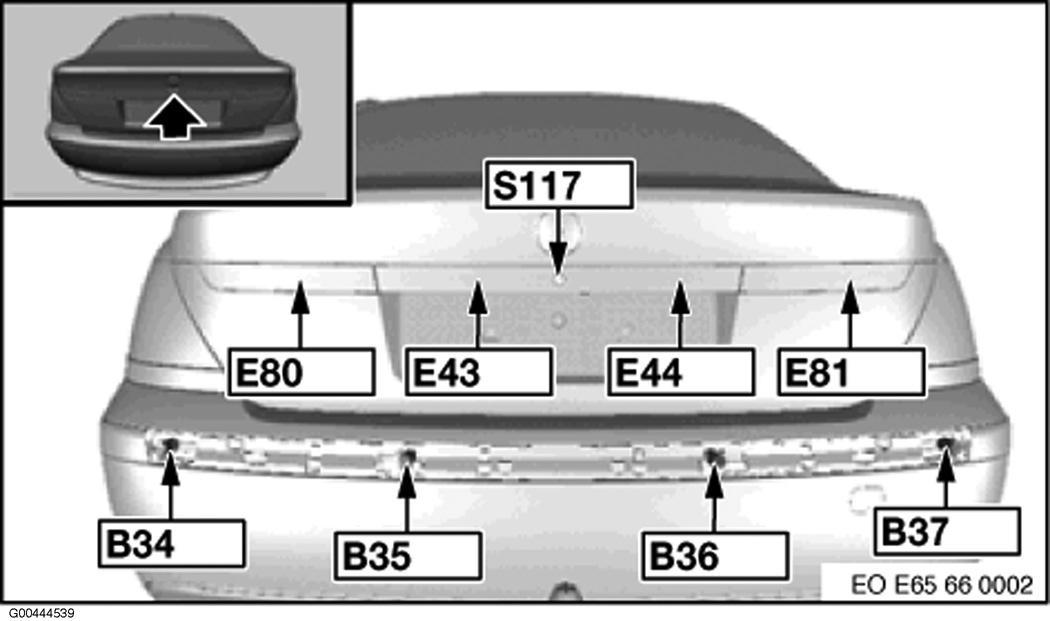

Fig 108: Rear Bumper

G00444539

Courtesy of BMW OF NORTH AMERICA, INC.

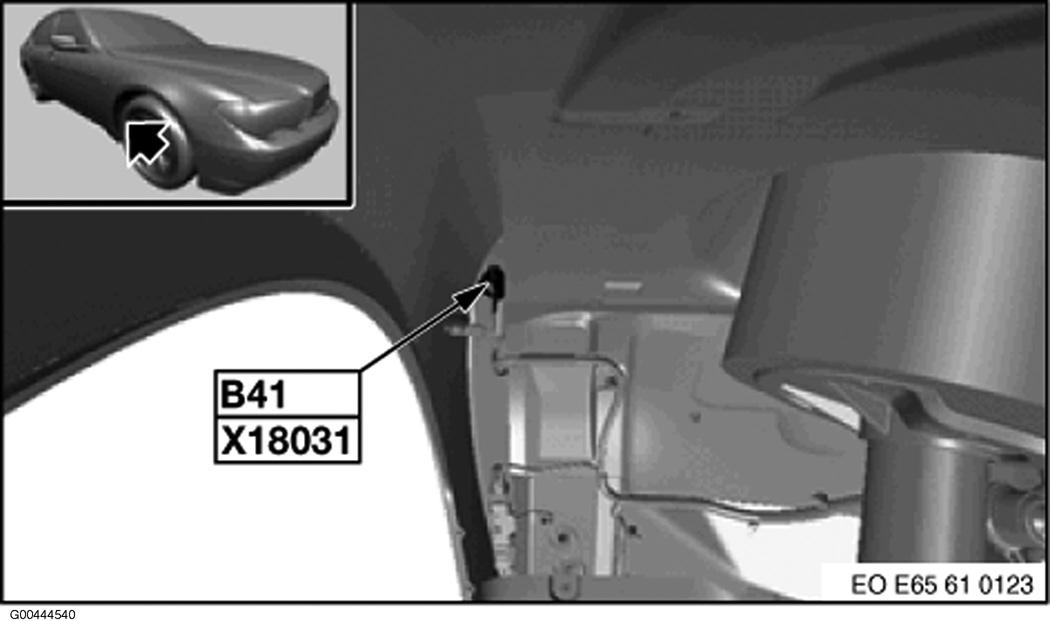

Fig 109: Behind Right Front Wheel

G00444540

Courtesy of BMW OF NORTH AMERICA, INC.

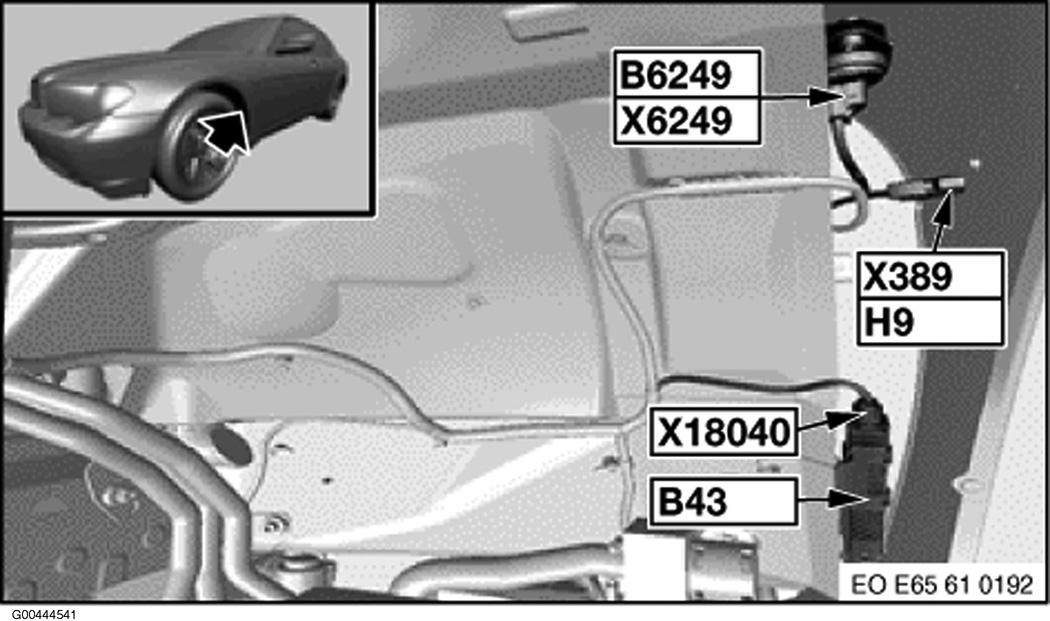

Fig 110: Behind Left Front Wheel

G00444541

Courtesy of BMW OF NORTH AMERICA, INC.

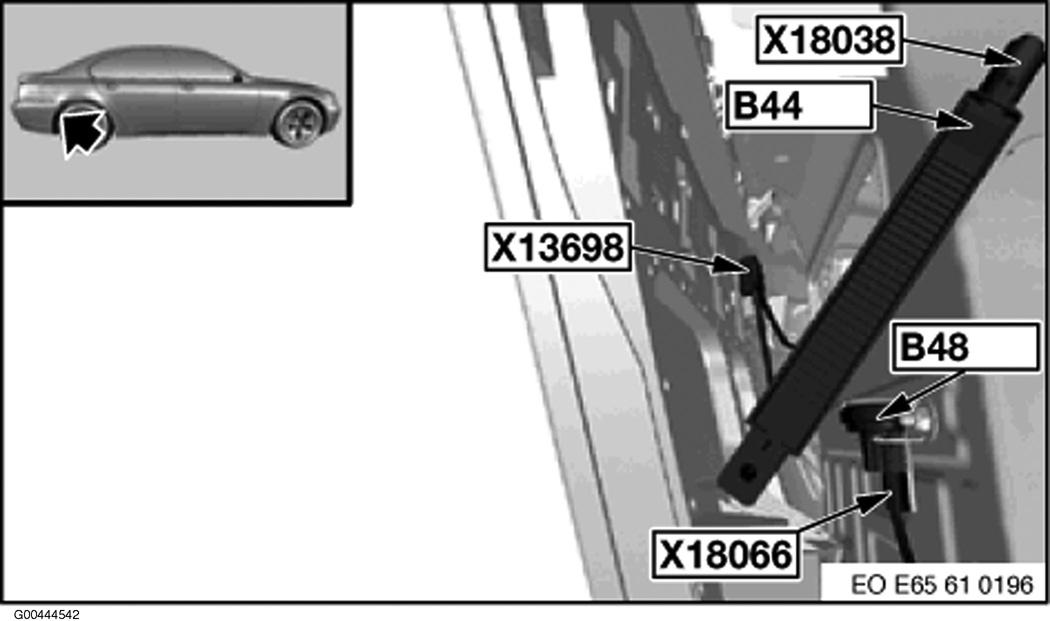

Fig 111: Behind Right Rear Wheel

G00444542

Courtesy of BMW OF NORTH AMERICA, INC.

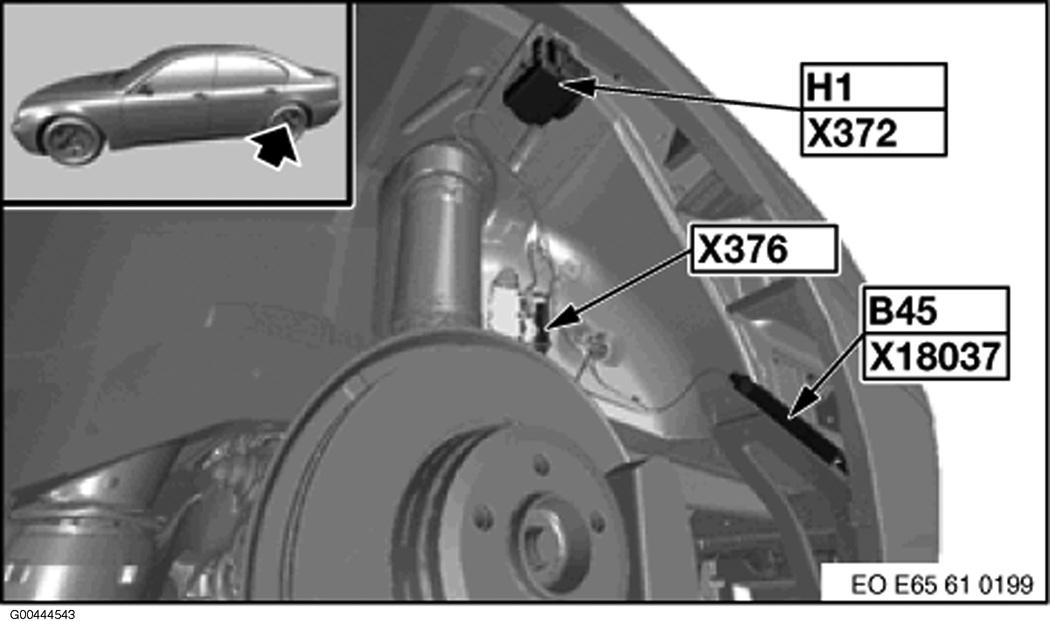

Fig 112: Behind Left Rear Wheel

G00444543

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 113: Behind Right Front Wheel

G00444544

Courtesy of BMW OF NORTH AMERICA, INC.

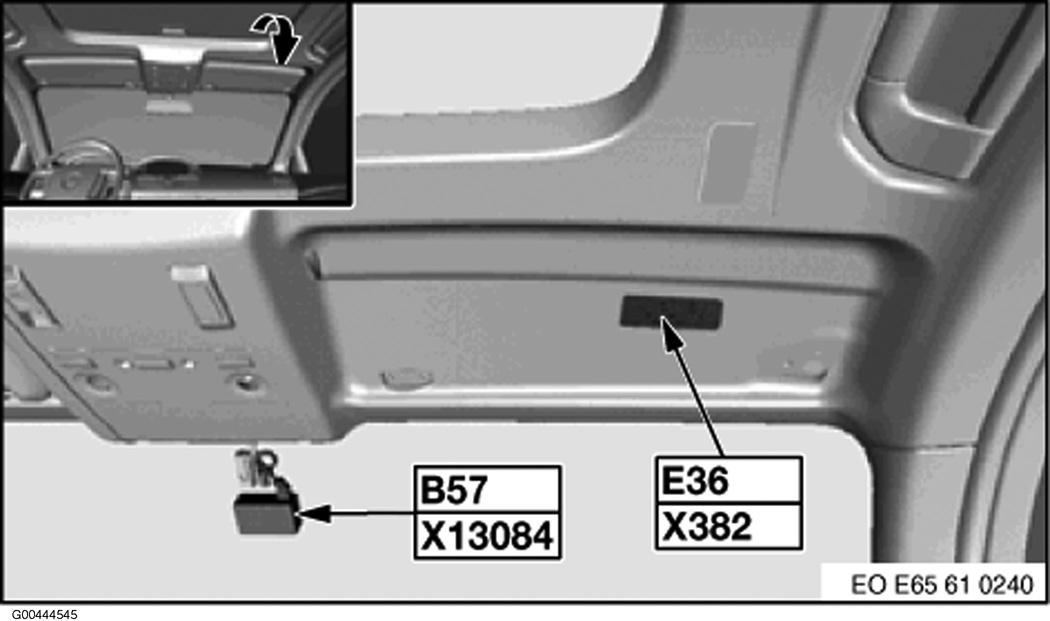

Fig 114: Top Center Of Windshield

G00444545

Courtesy of BMW OF NORTH AMERICA, INC.

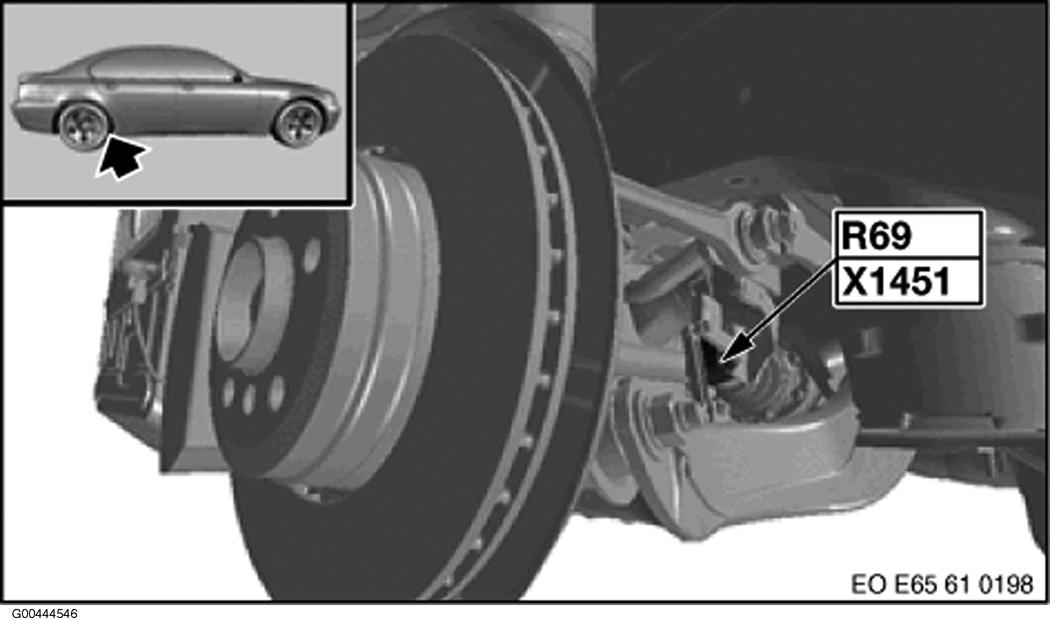

Fig 115: Front Of Right Rear Wheel

G00444546

Courtesy of BMW OF NORTH AMERICA, INC.

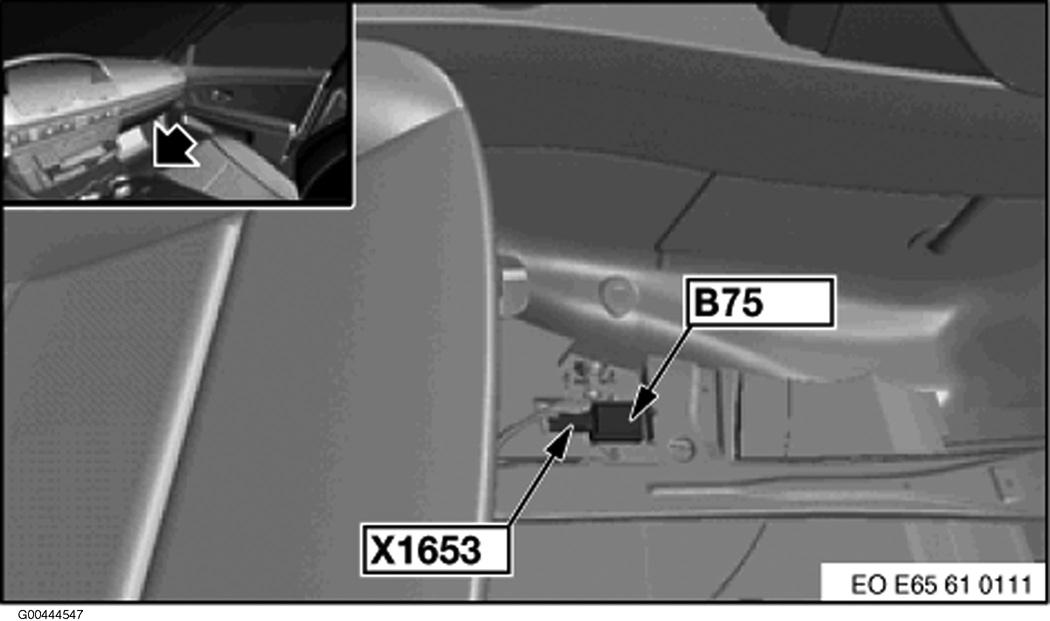

Fig 116: Right Footwell

G00444547

Courtesy of BMW OF NORTH AMERICA, INC.

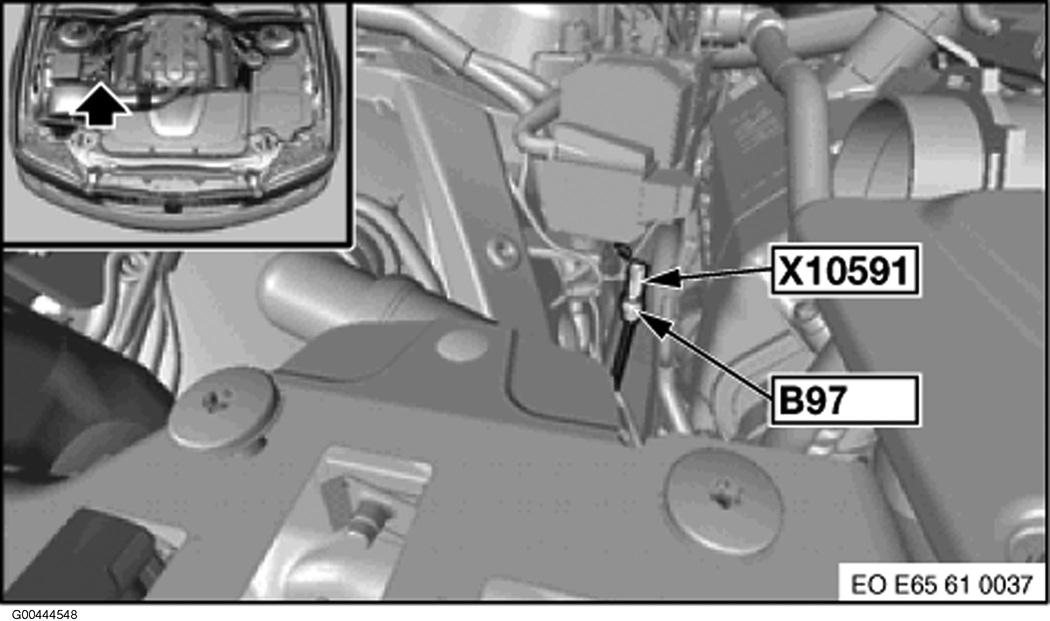

Fig 117: Right Side Of Engine Compartment

G00444548

Courtesy of BMW OF NORTH AMERICA, INC.

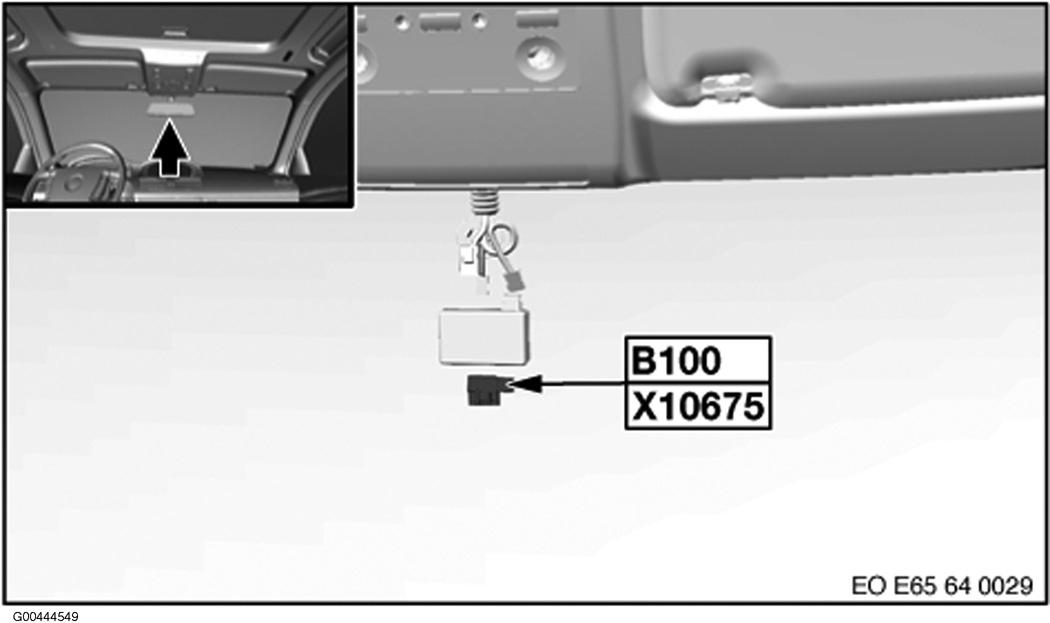

Fig 118: Top Center Of Windshield

G00444549

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 119: Left Front Corner Of Roof

G00444550

Courtesy of BMW OF NORTH AMERICA, INC.

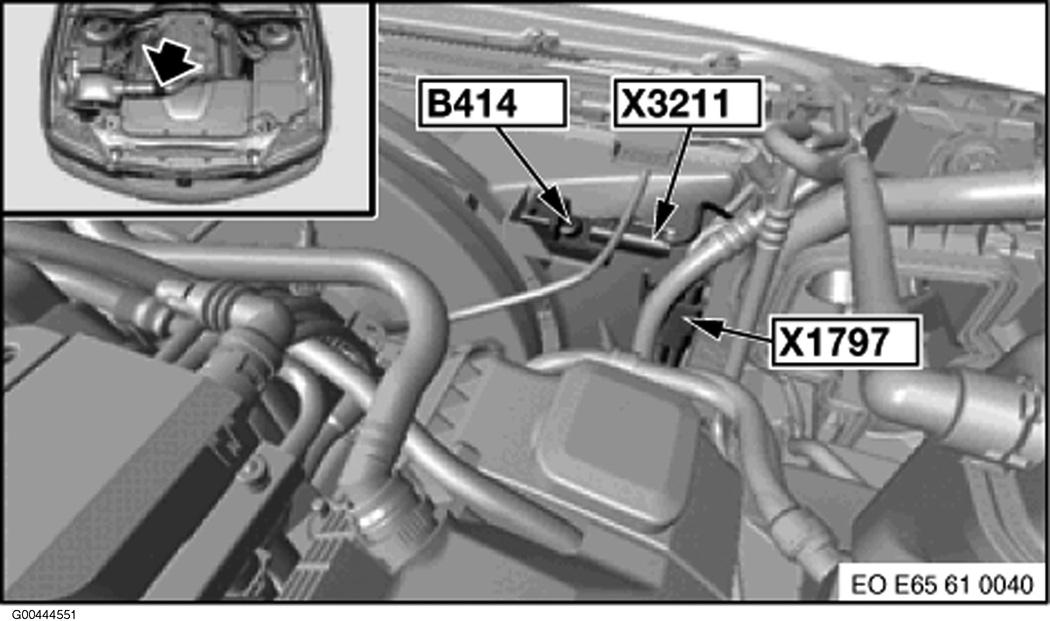

Fig 120: Right Side Of Engine Compartment

G00444551

Courtesy of BMW OF NORTH AMERICA, INC.

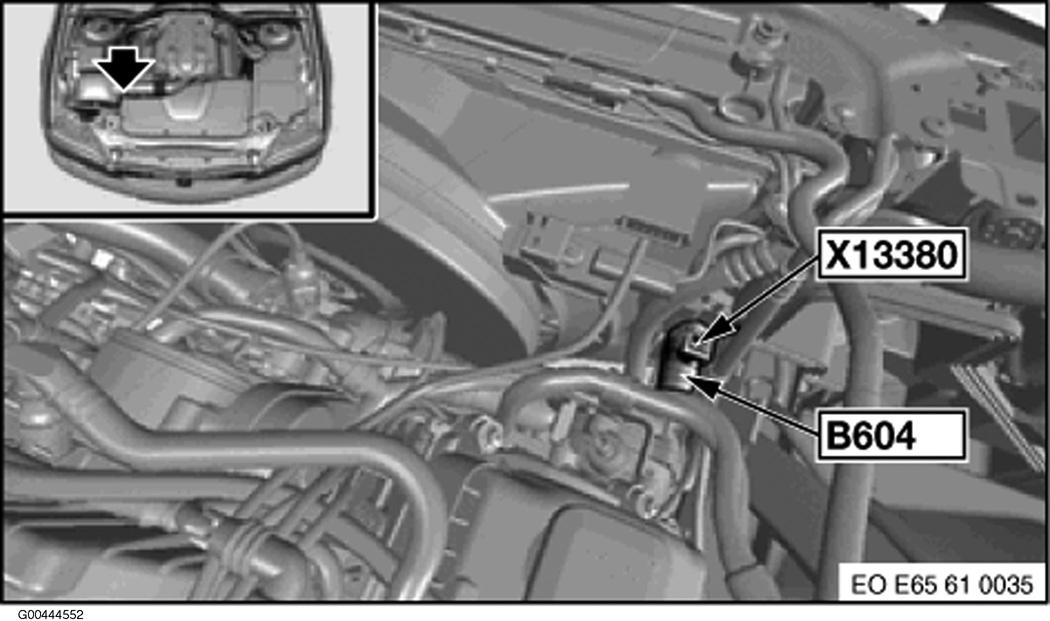

Fig 121: Right Side Of Engine Compartment

G00444552

Courtesy of BMW OF NORTH AMERICA, INC.

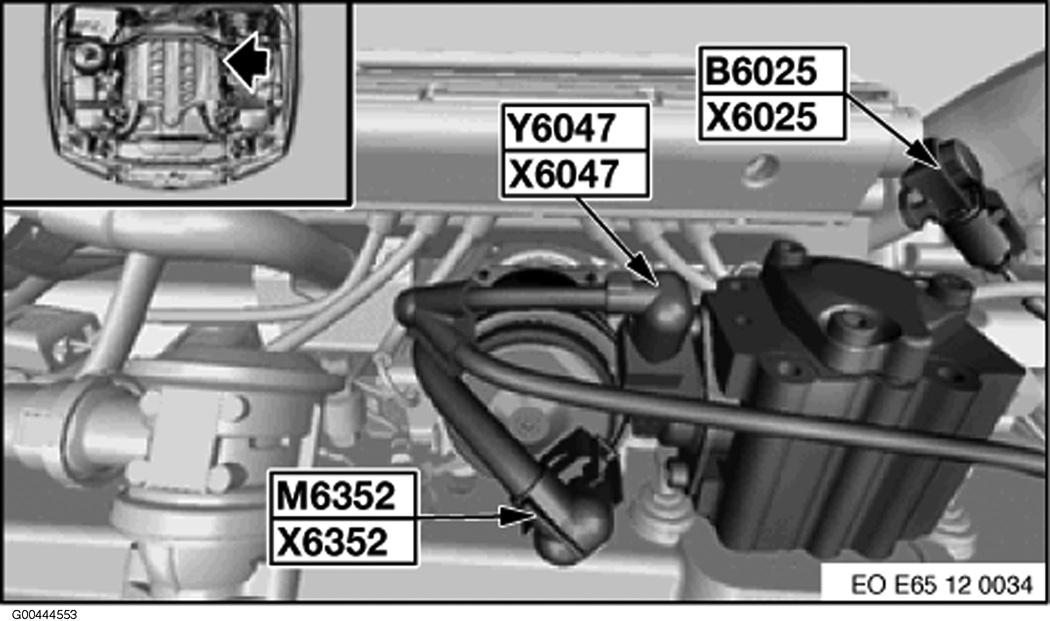

Fig 122: Left Side Of Engine Compartment (6.0L)

G00444553

Courtesy of BMW OF NORTH AMERICA, INC.

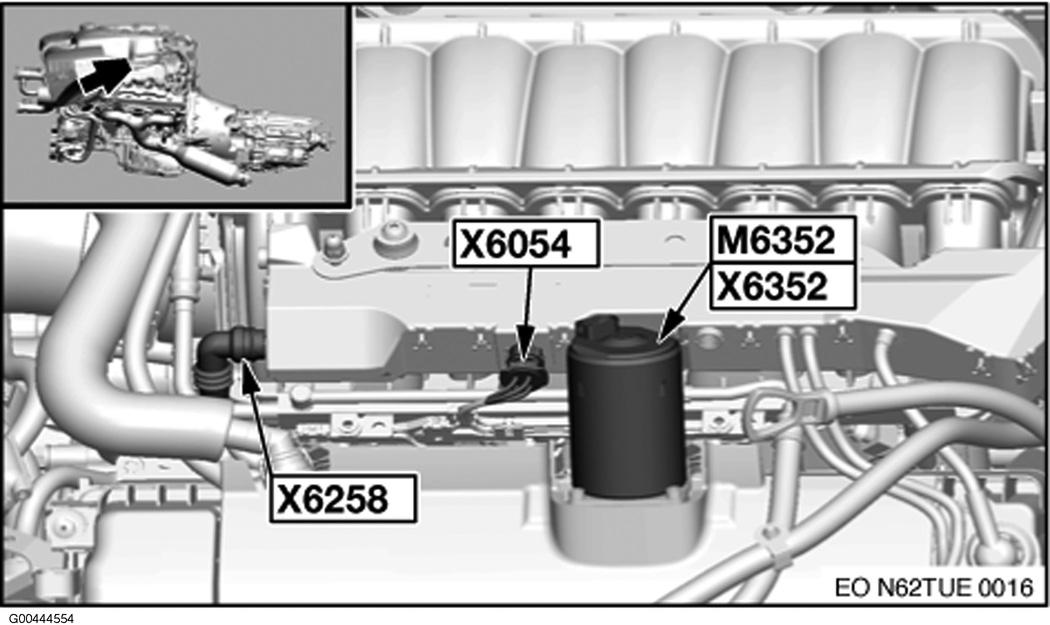

Fig 123: Left Side Of Engine

G00444554

Courtesy of BMW OF NORTH AMERICA, INC.

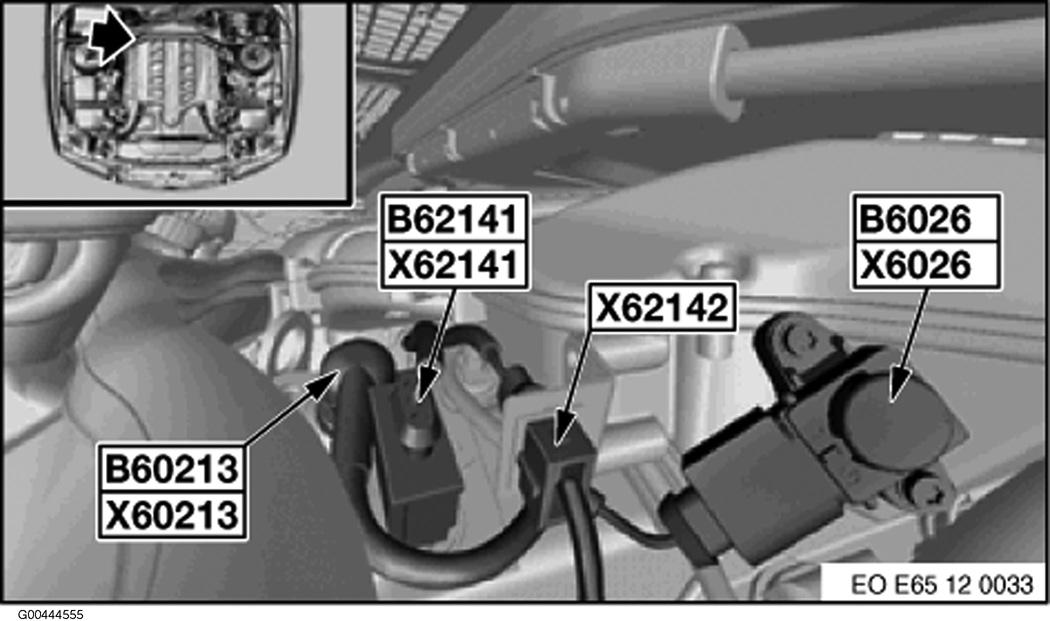

Fig 124: Right Side Of Engine Compartment

G00444555

Courtesy of BMW OF NORTH AMERICA, INC.

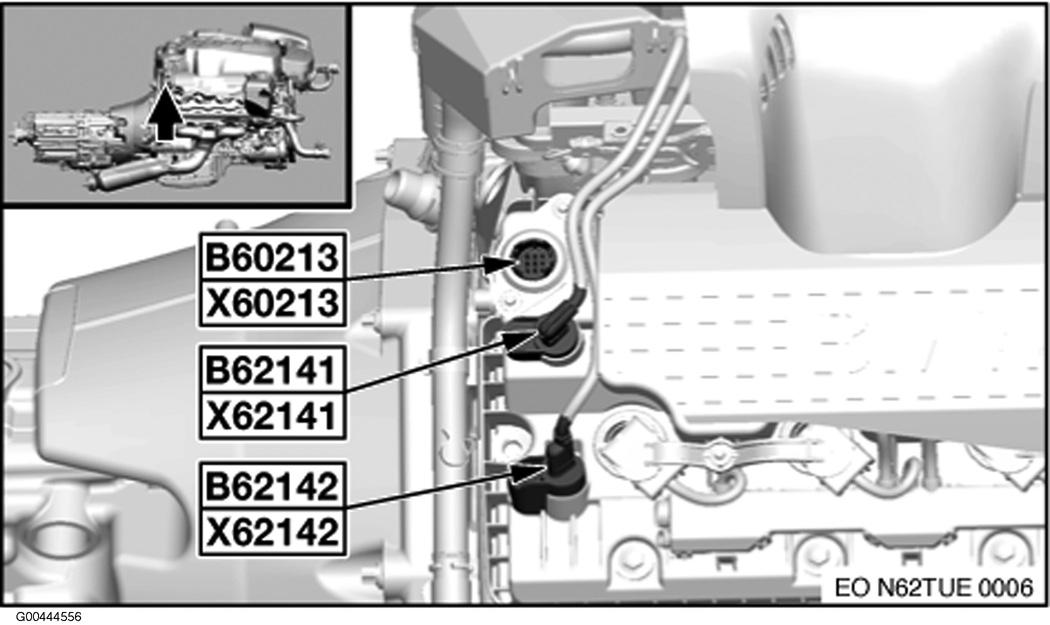

Fig 125: Right Side Of Engine

G00444556

Courtesy of BMW OF NORTH AMERICA, INC.

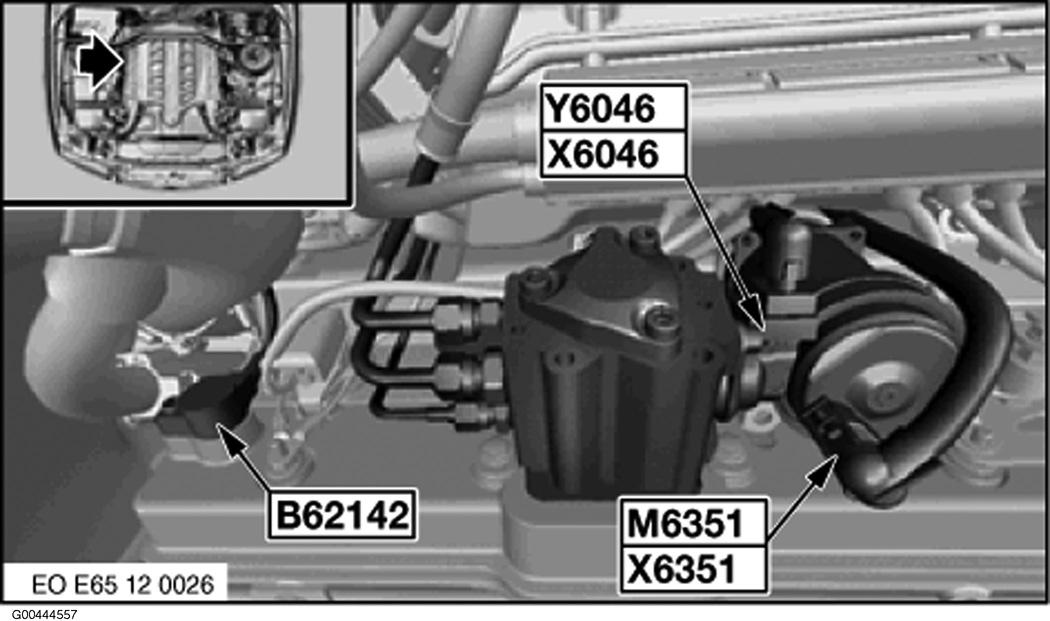

Fig 126: Right Side Of Engine Compartment

G00444557

Courtesy of BMW OF NORTH AMERICA, INC.

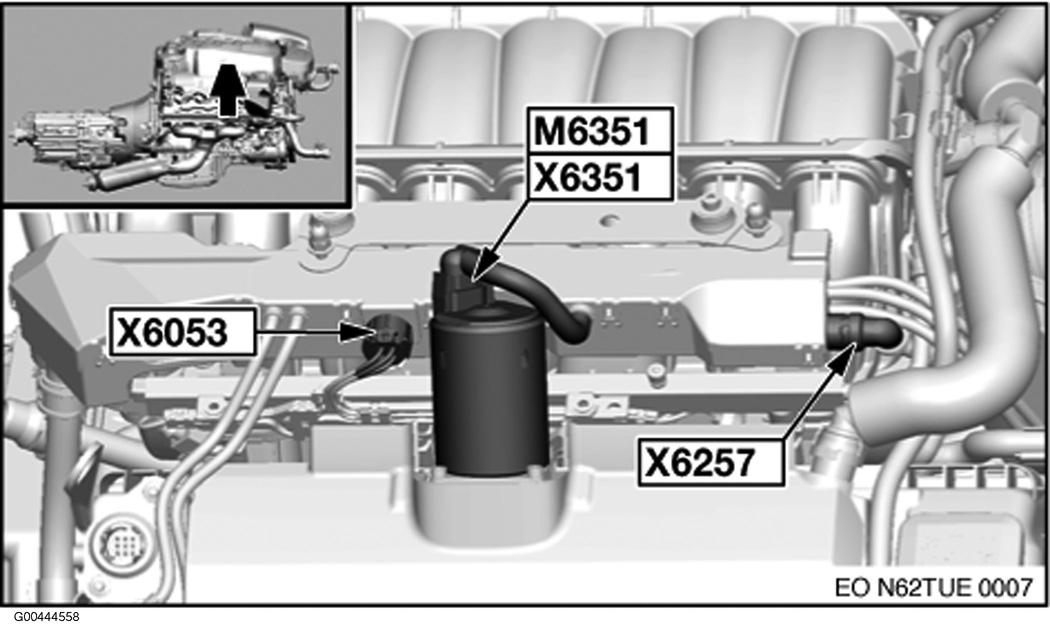

Fig 127: Right Side Of Engine

G00444558

Courtesy of BMW OF NORTH AMERICA, INC.

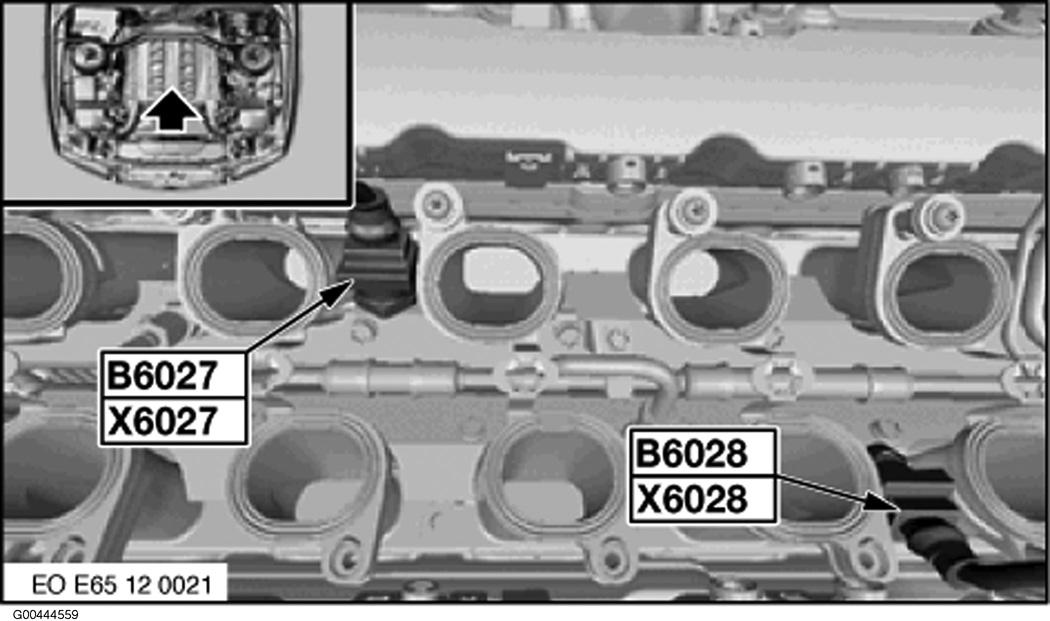

Fig 128: Front Of Engine Compartment

G00444559

Courtesy of BMW OF NORTH AMERICA, INC.

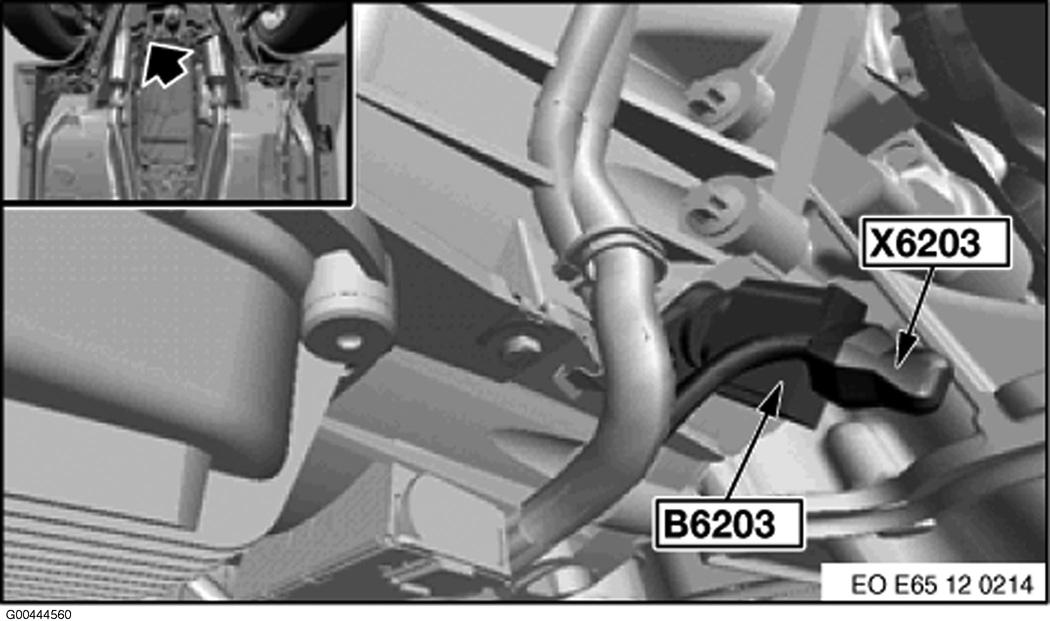

Fig 129: Under Vehicle

G00444560

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 130: Top Of Engine

G00444561

Courtesy of BMW OF NORTH AMERICA, INC.

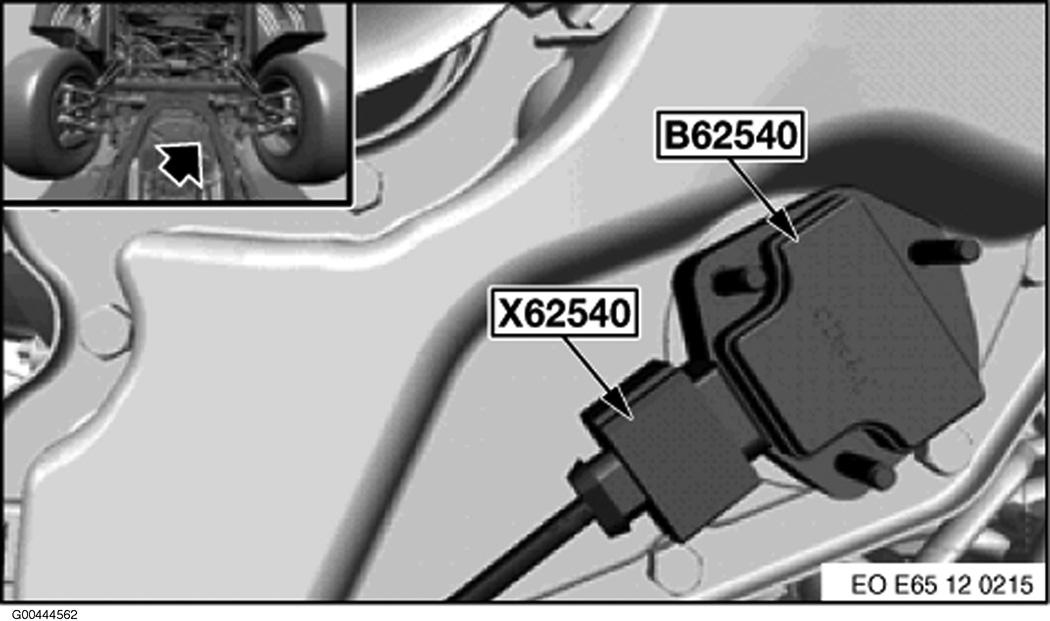

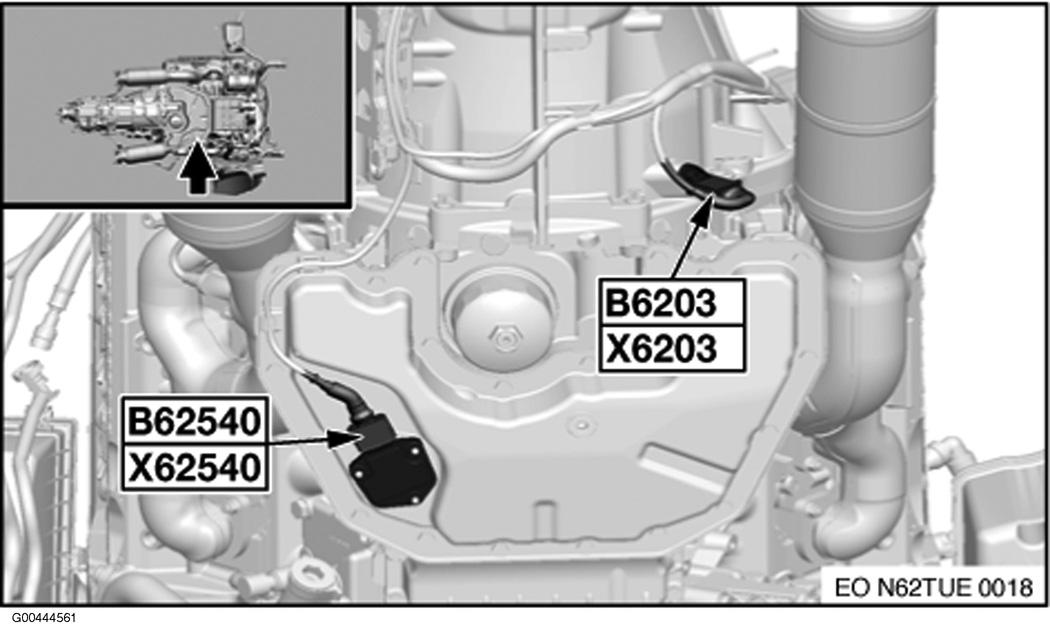

Fig 131: Under Vehicle

G00444562

Courtesy of BMW OF NORTH AMERICA, INC.

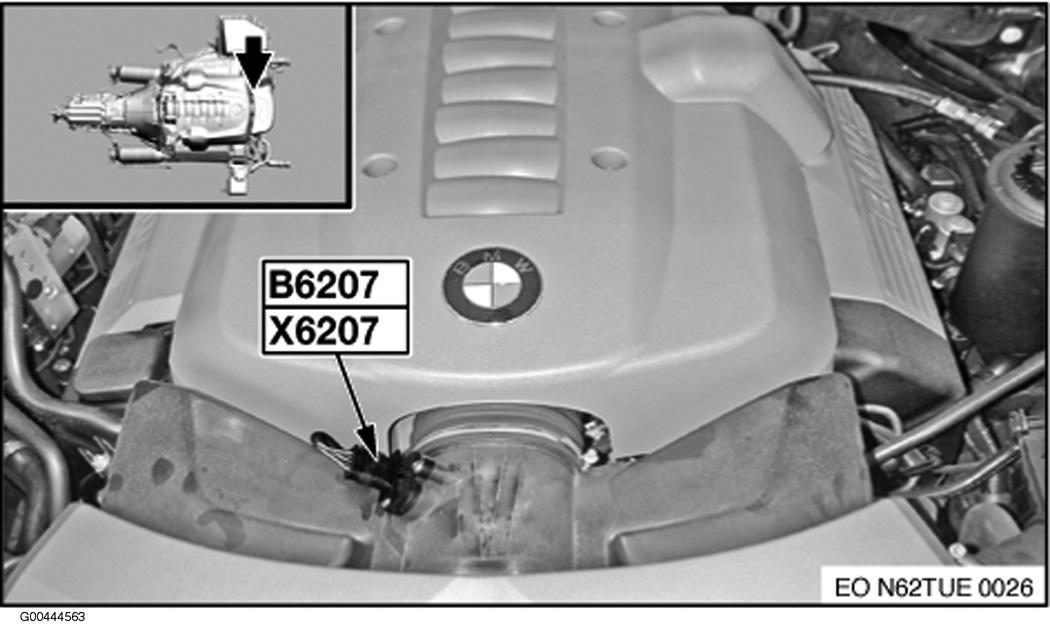

Fig 132: Top Of Engine

G00444563

Courtesy of BMW OF NORTH AMERICA, INC.

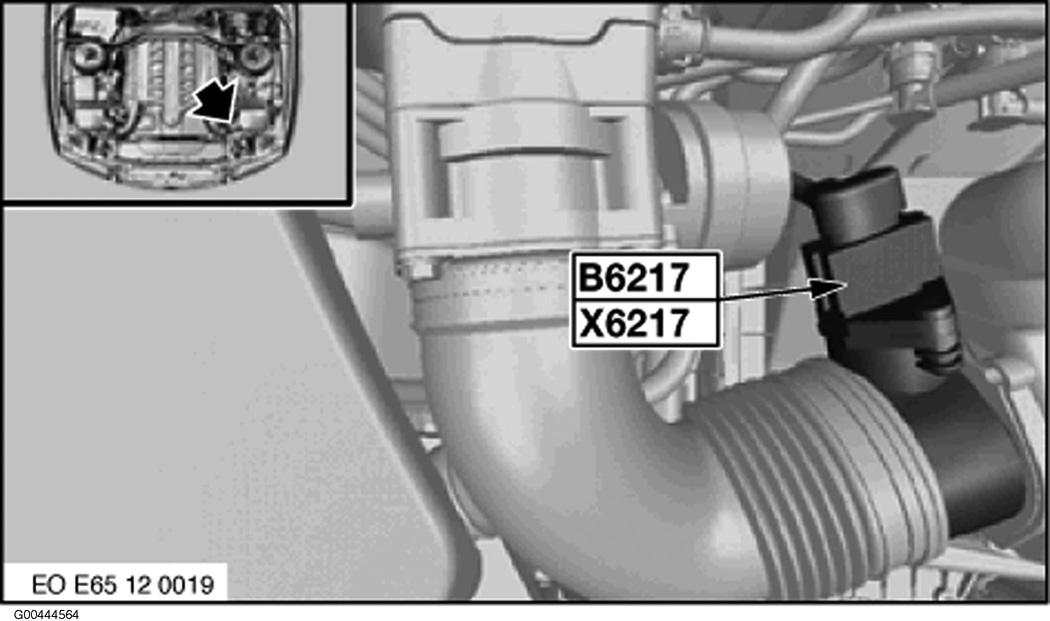

Fig 133: Left Side Of Engine Compartment

G00444564

Courtesy of BMW OF NORTH AMERICA, INC.

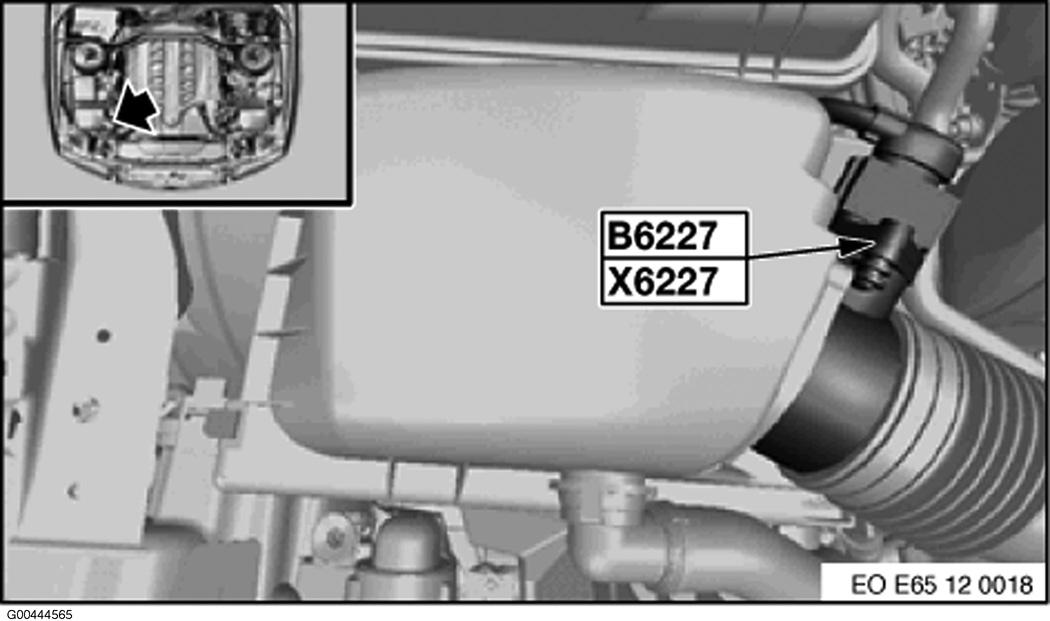

Fig 134: Right Side Of Engine Compartment

G00444565

Courtesy of BMW OF NORTH AMERICA, INC.

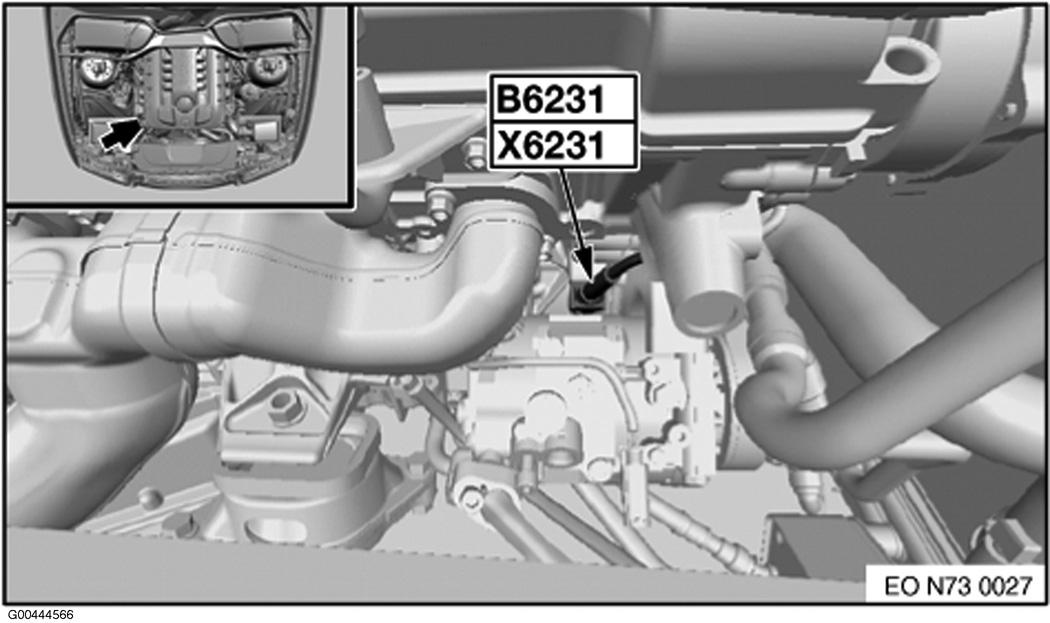

Fig 135: Right Side Of Engine Compartment (6.0L)

G00444566

Courtesy of BMW OF NORTH AMERICA, INC.

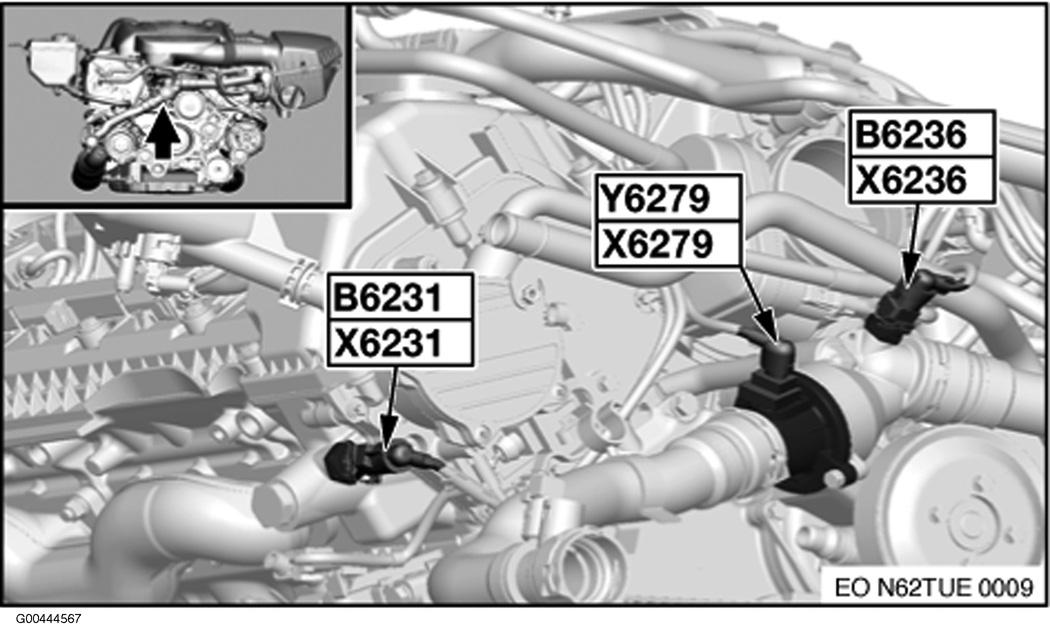

Fig 136: Front Of Engine (4.8L)

G00444567

Courtesy of BMW OF NORTH AMERICA, INC.

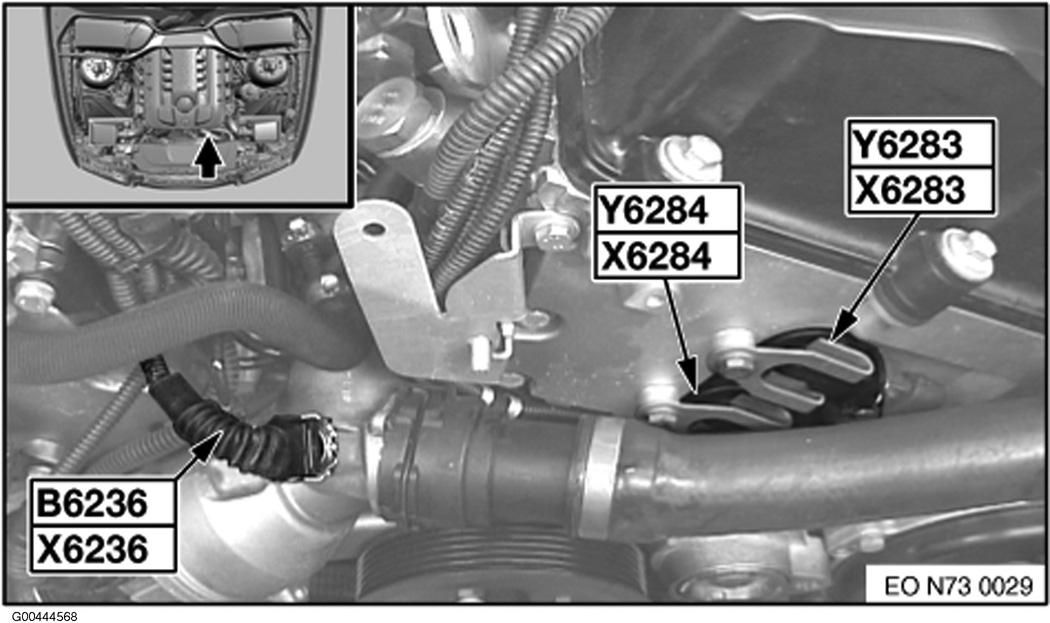

Fig 137: Front Of Engine Compartment (6.0L)

G00444568

Courtesy of BMW OF NORTH AMERICA, INC.

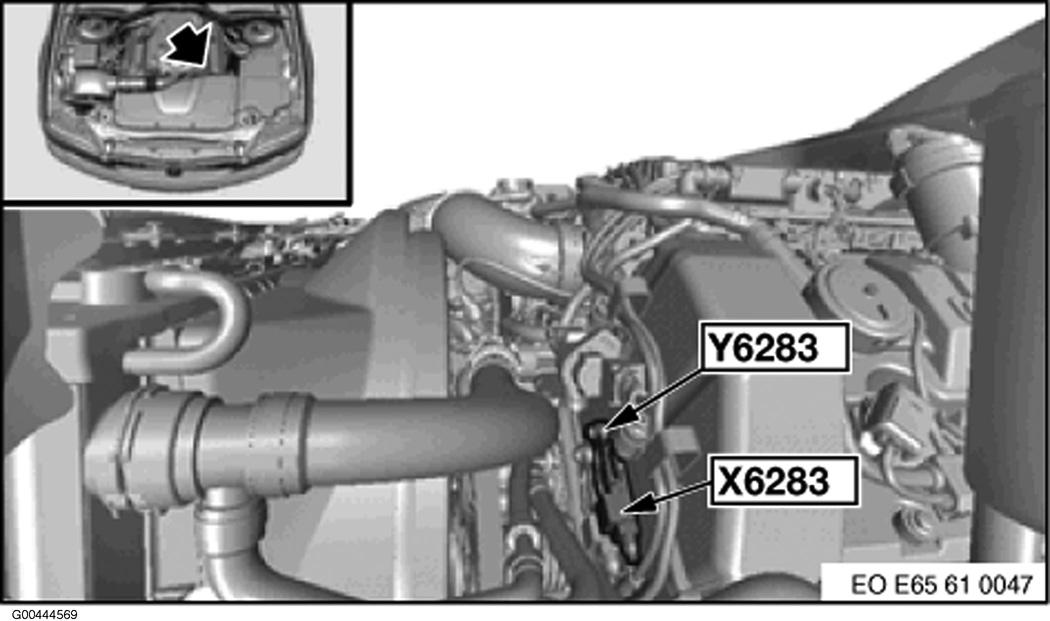

Fig 138: Left Side Of Engine Compartment

G00444569

Courtesy of BMW OF NORTH AMERICA, INC.

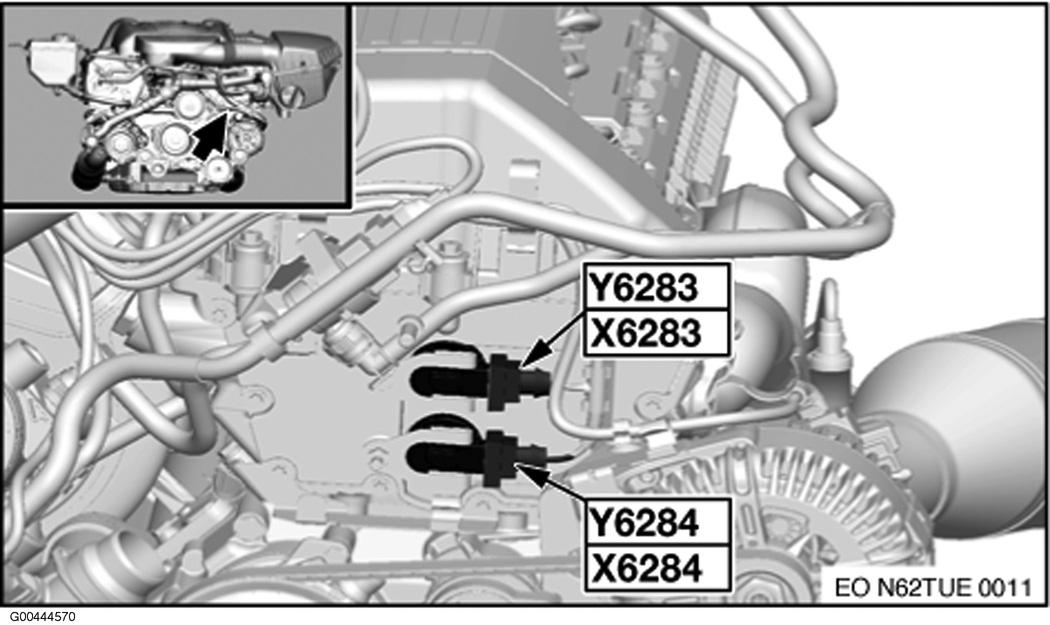

Fig 139: Front Of Engine

G00444570

Courtesy of BMW OF NORTH AMERICA, INC.

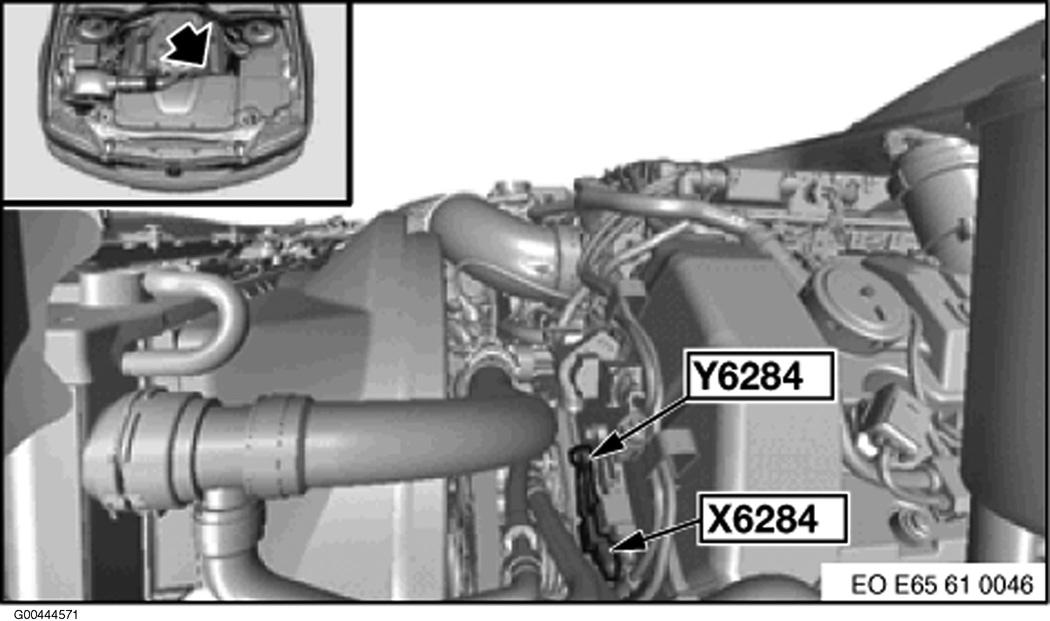

Fig 140: Left Side Of Engine Compartment

G00444571

Courtesy of BMW OF NORTH AMERICA, INC.

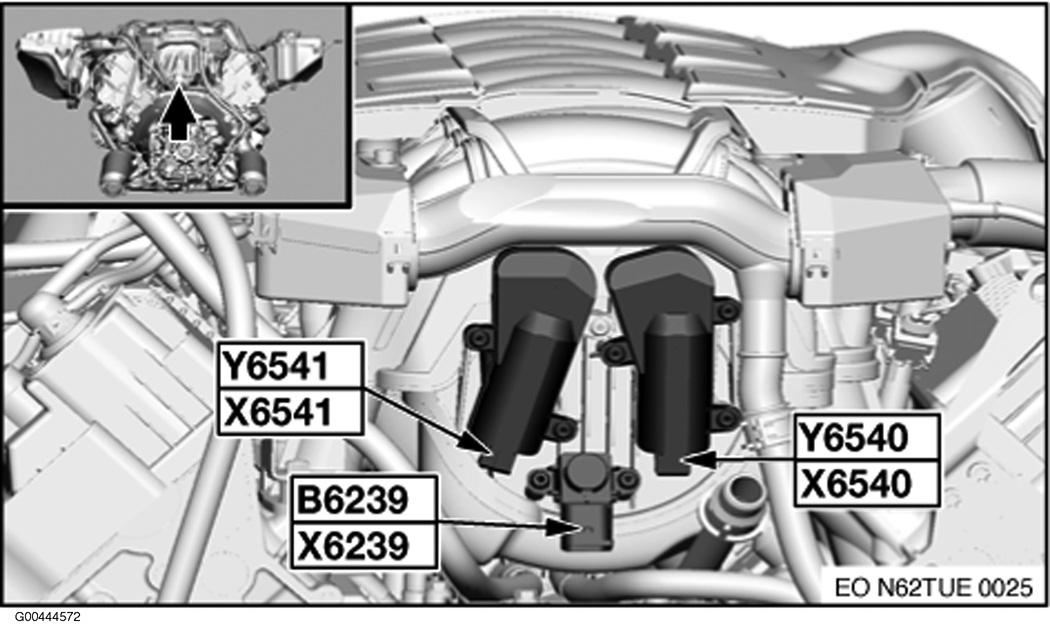

Fig 141: Front Of Engine

G00444572

Courtesy of BMW OF NORTH AMERICA, INC.

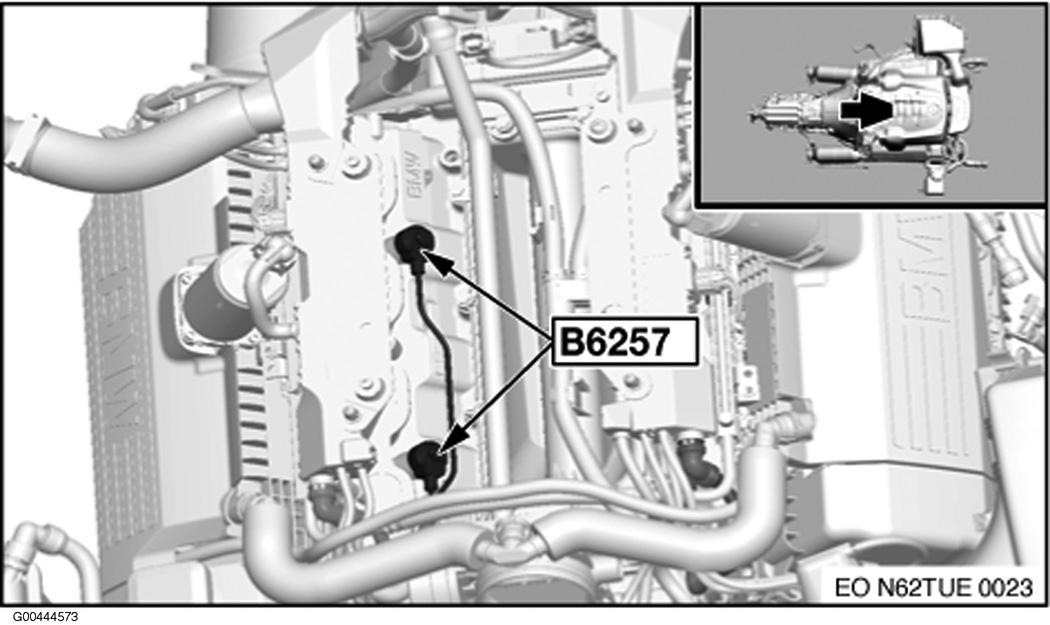

Fig 142: Top Of Engine

G00444573

Courtesy of BMW OF NORTH AMERICA, INC.

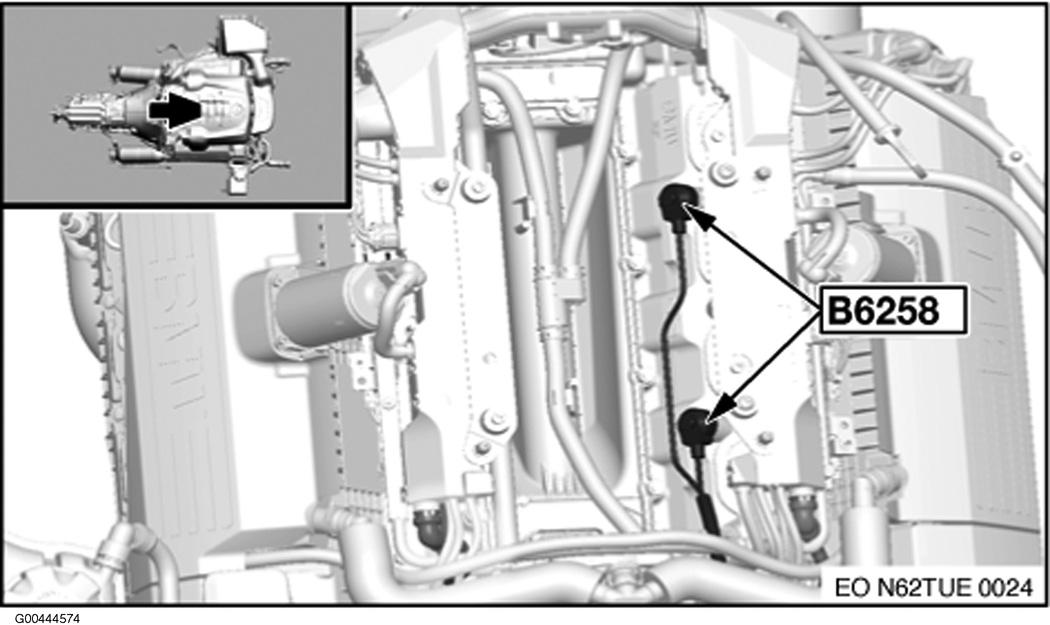

Fig 143: Top Of Engine

G00444574

Courtesy of BMW OF NORTH AMERICA, INC.

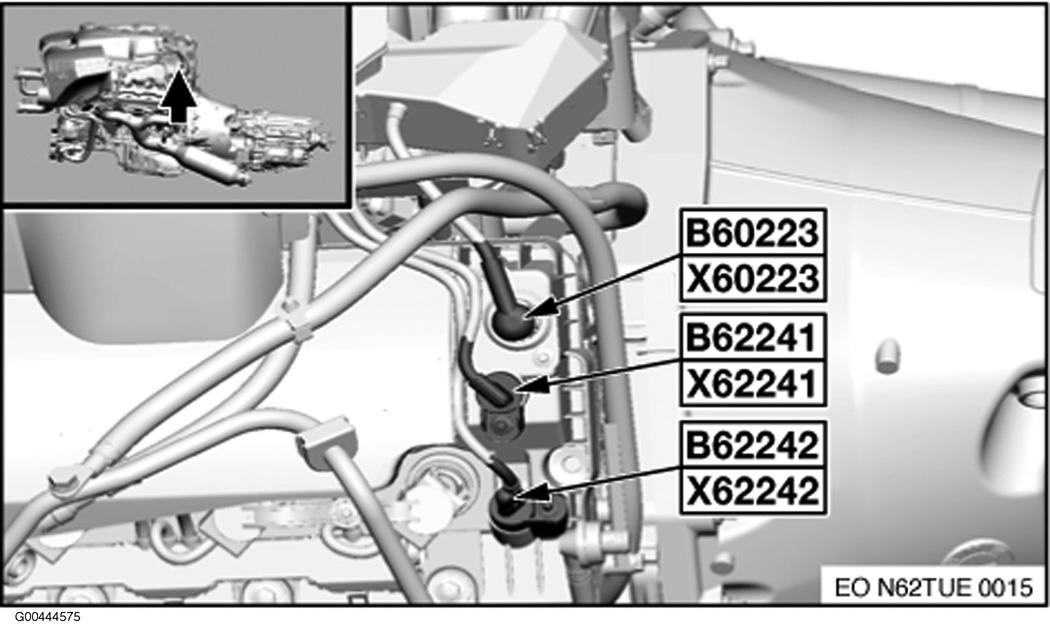

Fig 144: Left Side Of Engine

G00444575

Courtesy of BMW OF NORTH AMERICA, INC.

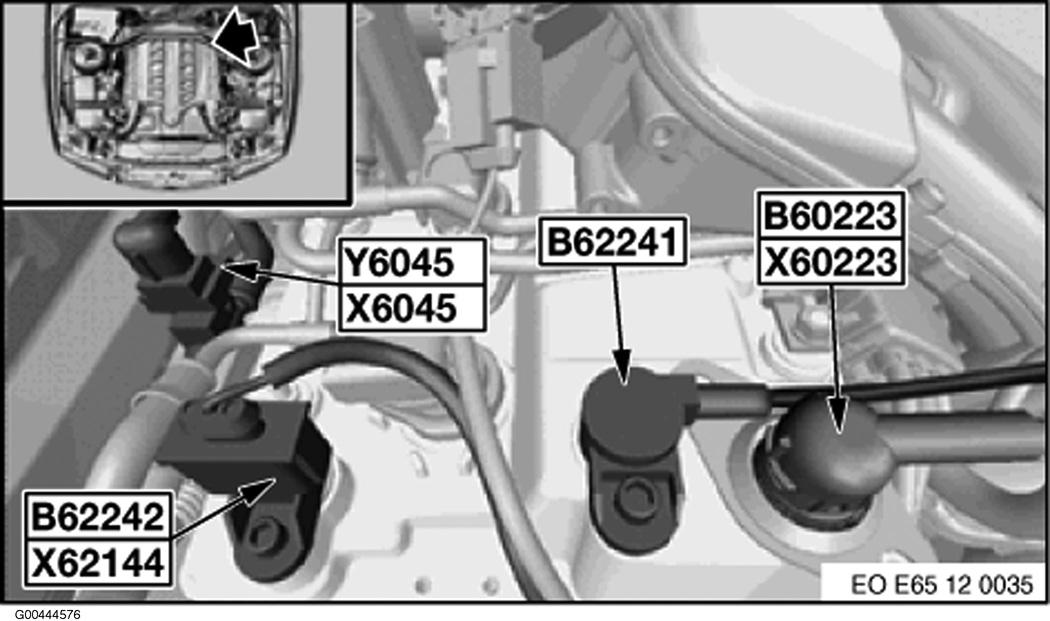

Fig 145: Left Side Of Engine Compartment

G00444576

Courtesy of BMW OF NORTH AMERICA, INC.

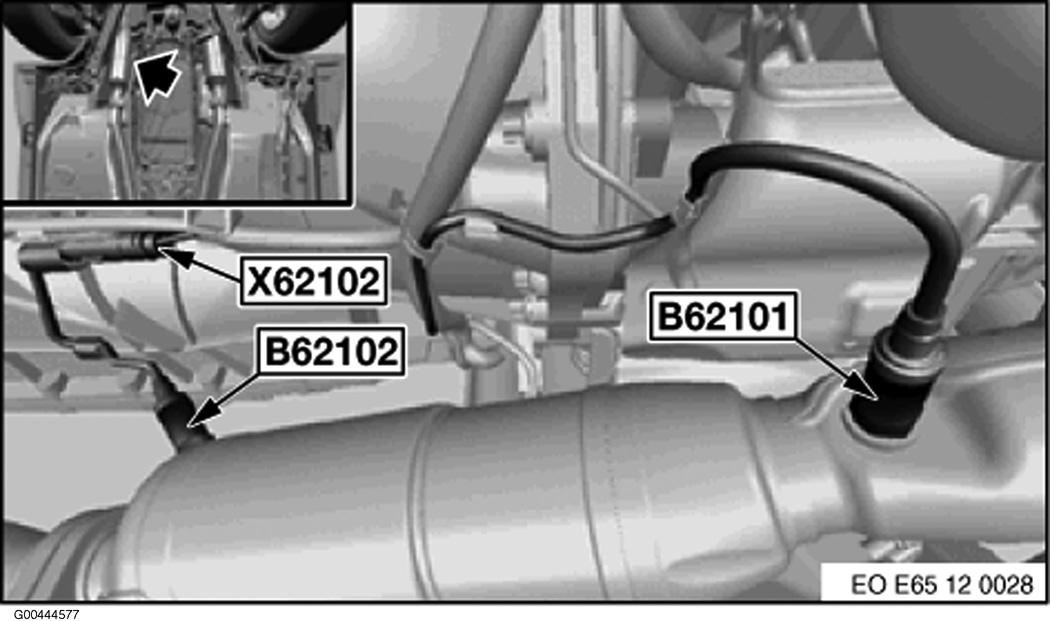

Fig 146: Under Vehicle

G00444577

Courtesy of BMW OF NORTH AMERICA, INC.

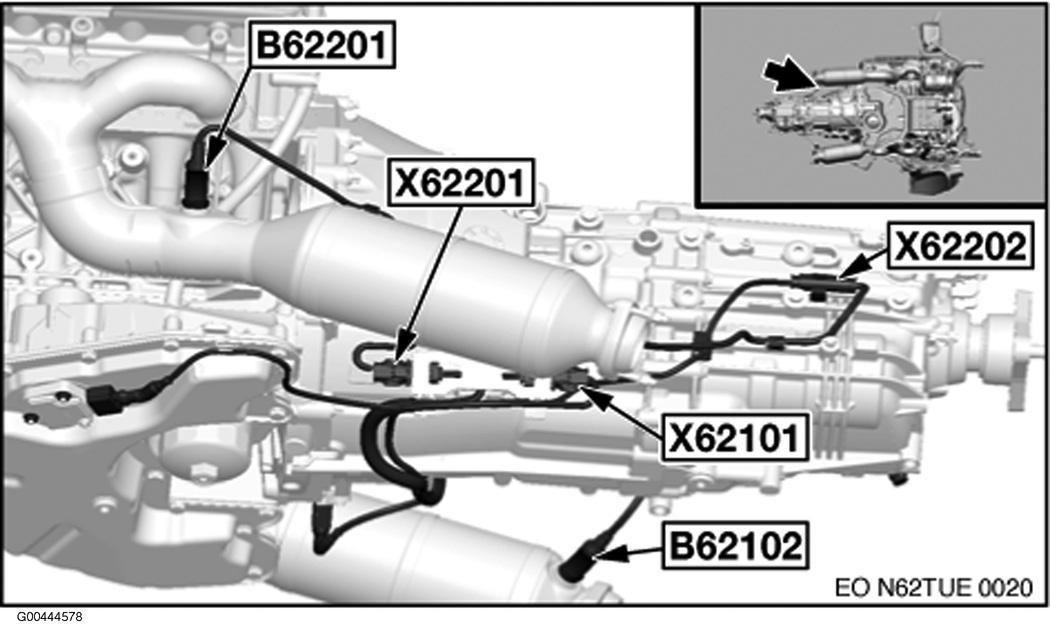

Fig 147: Rear Of Engine

G00444578

Courtesy of BMW OF NORTH AMERICA, INC.

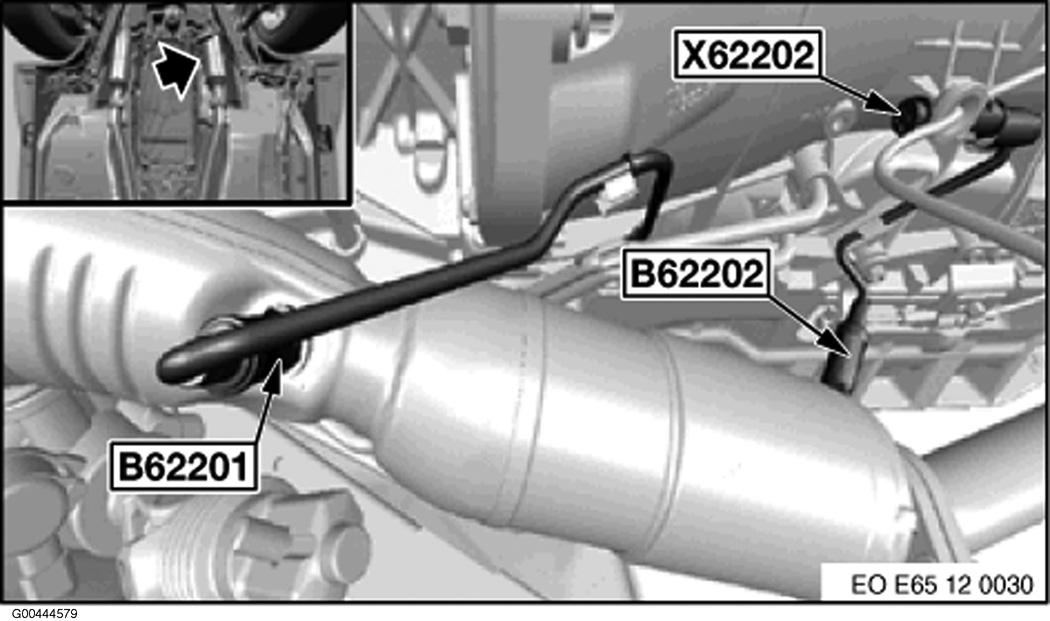

Fig 148: Under Vehicle

G00444579

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 149: Top Of Engine (6.0L)

G00444580

Courtesy of BMW OF NORTH AMERICA, INC.

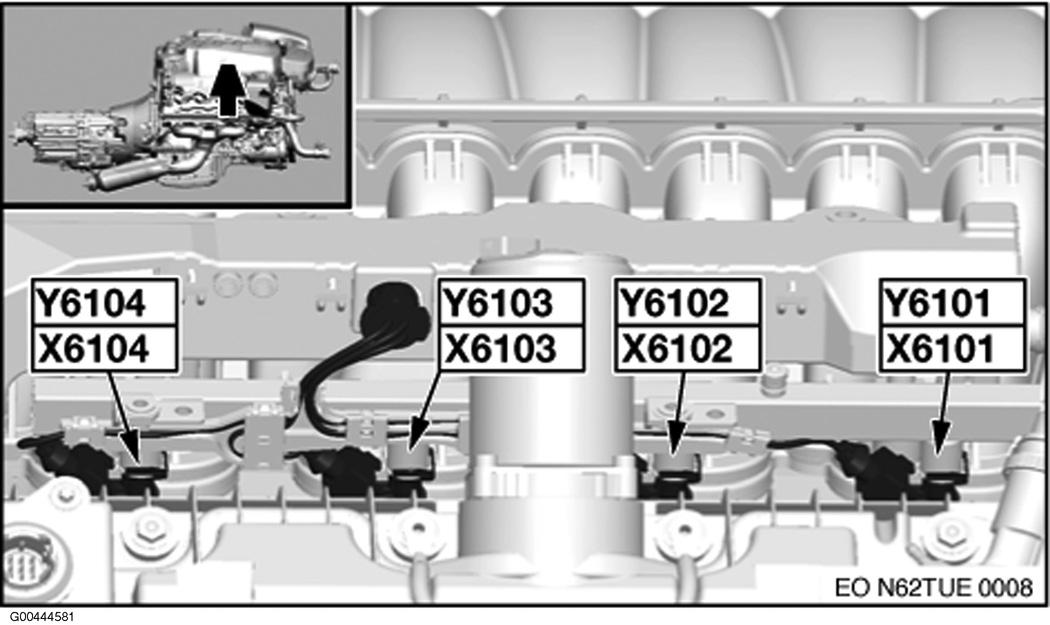

Fig 150: Right Side Of Engine (4.8L)

G00444581

Courtesy of BMW OF NORTH AMERICA, INC.

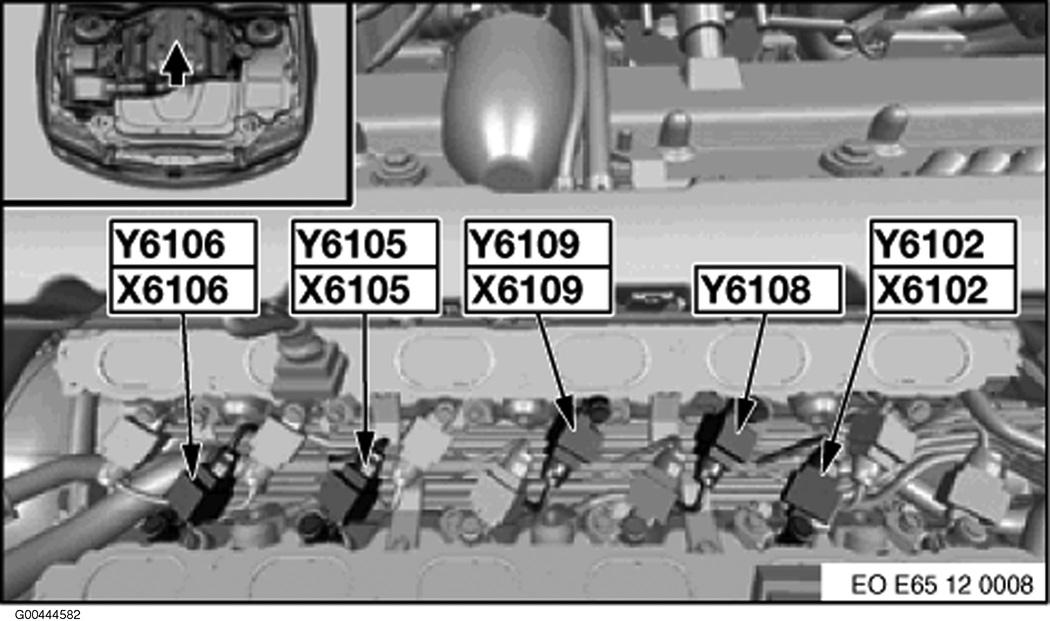

Fig 151: Top Of Engine (6.0L)

G00444582

Courtesy of BMW OF NORTH AMERICA, INC.

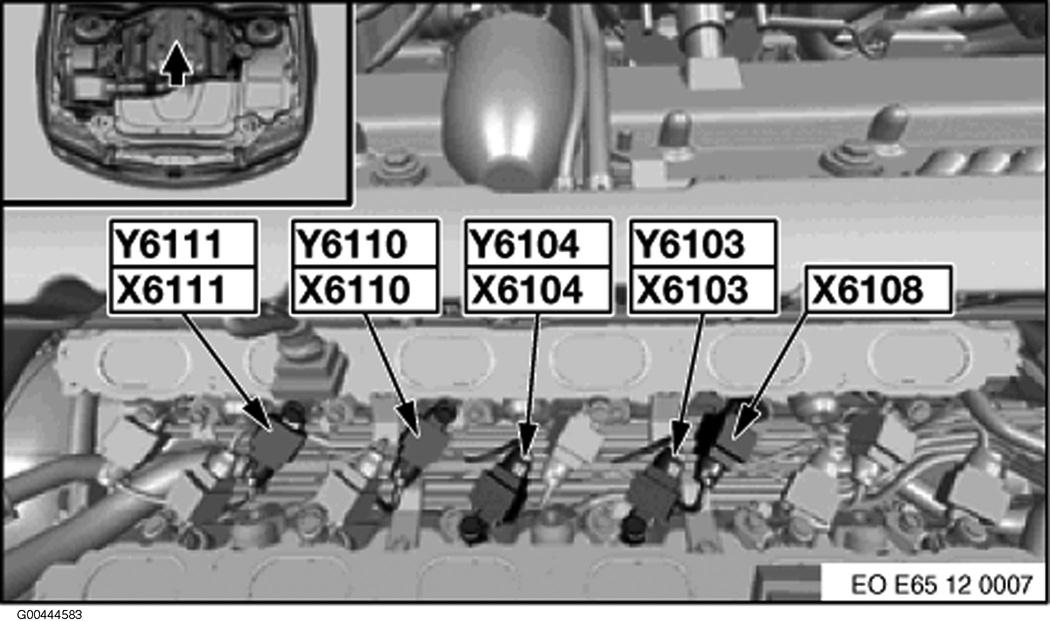

Fig 152: Top Of Engine (6.0L)

G00444583

Courtesy of BMW OF NORTH AMERICA, INC.

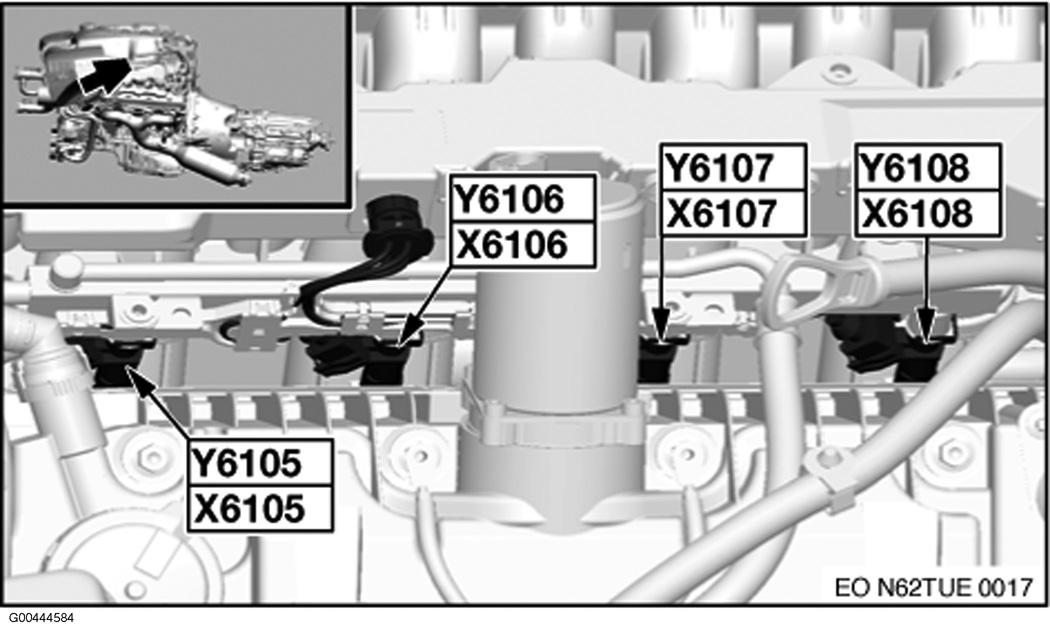

Fig 153: Left Side Of Engine (4.8L)

G00444584

Courtesy of BMW OF NORTH AMERICA, INC.

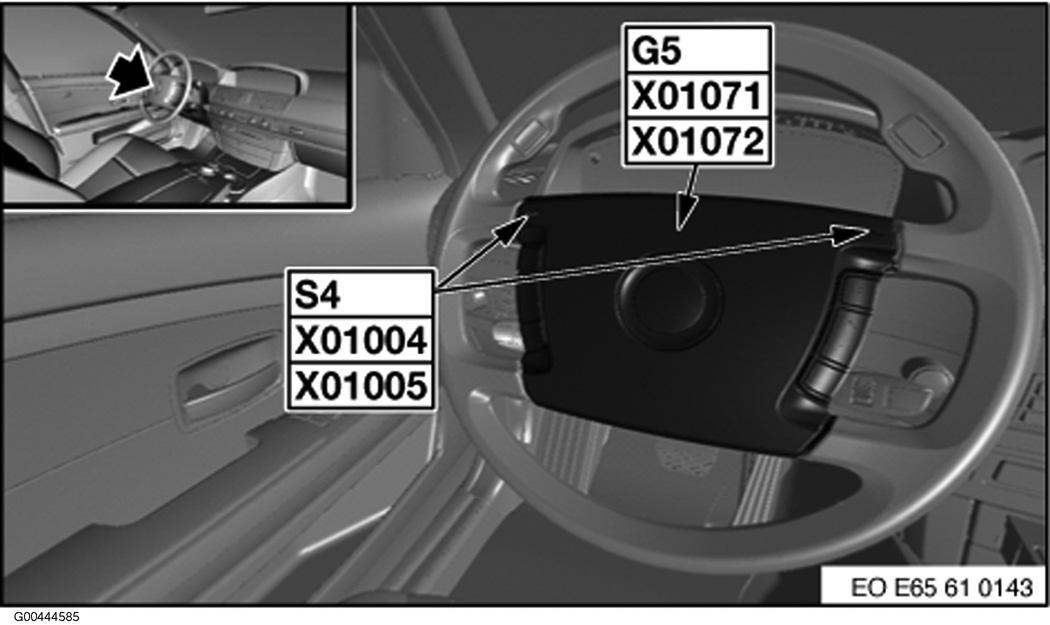

Fig 154: Part Of Steering Wheel

G00444585

Courtesy of BMW OF NORTH AMERICA, INC.

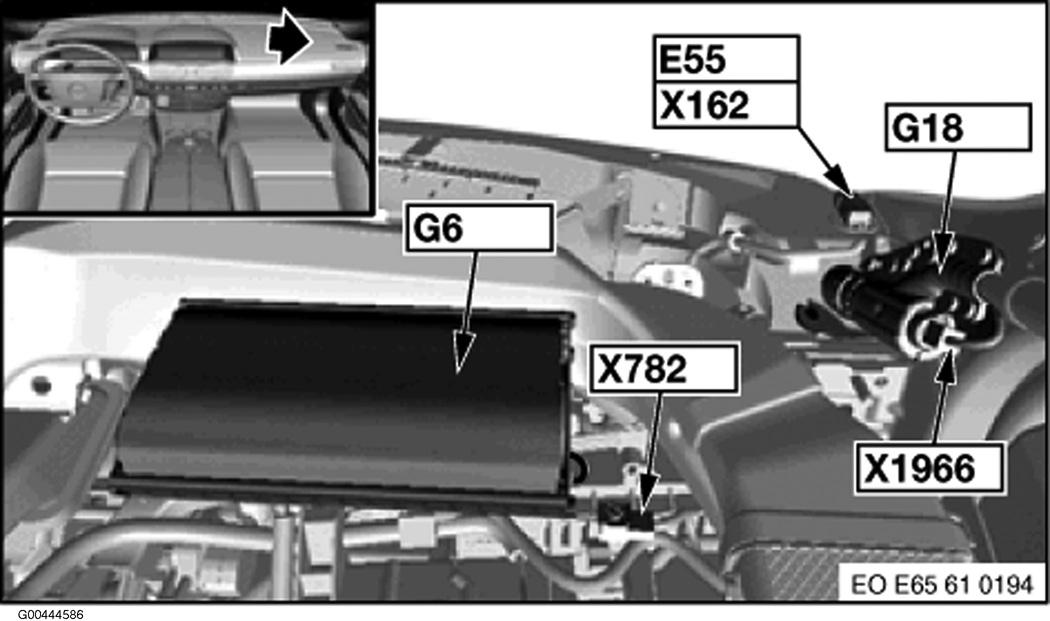

Fig 155: Top Right Side Of Dash

G00444586

Courtesy of BMW OF NORTH AMERICA, INC.

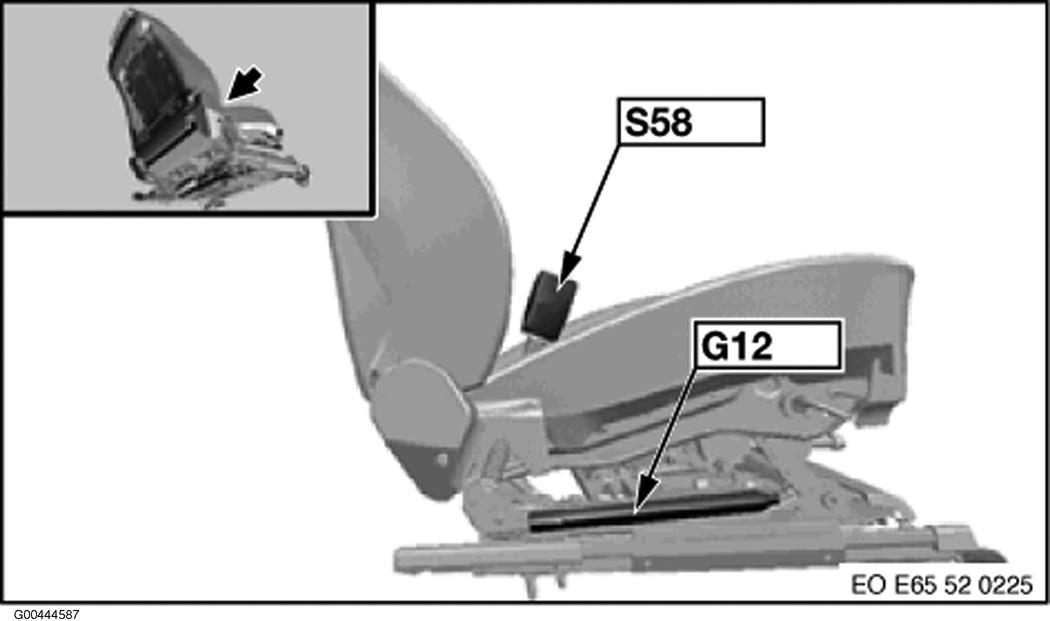

Fig 156: Under Driver's Seat

G00444587

Courtesy of BMW OF NORTH AMERICA, INC.

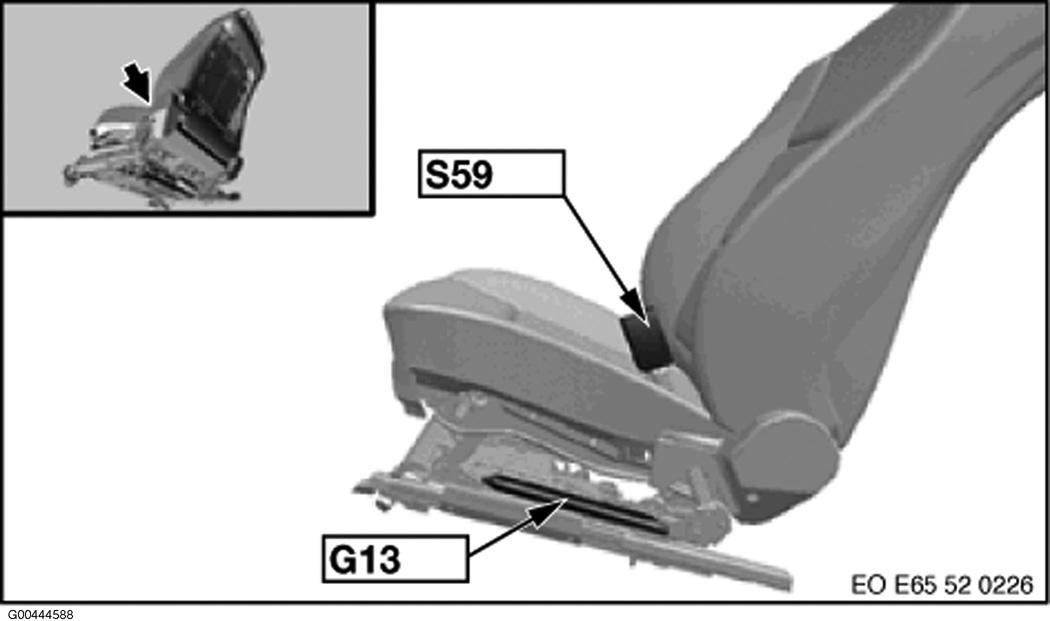

Fig 157: Under Front Passenger's Seat

G00444588

Courtesy of BMW OF NORTH AMERICA, INC.

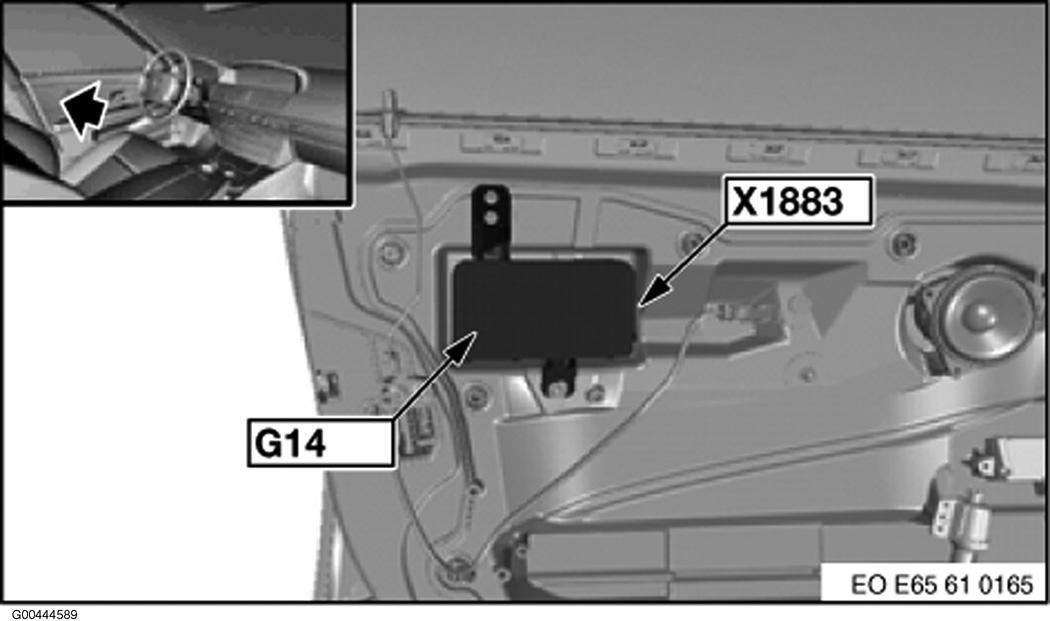

Fig 158: Driver's Door

G00444589

Courtesy of BMW OF NORTH AMERICA, INC.

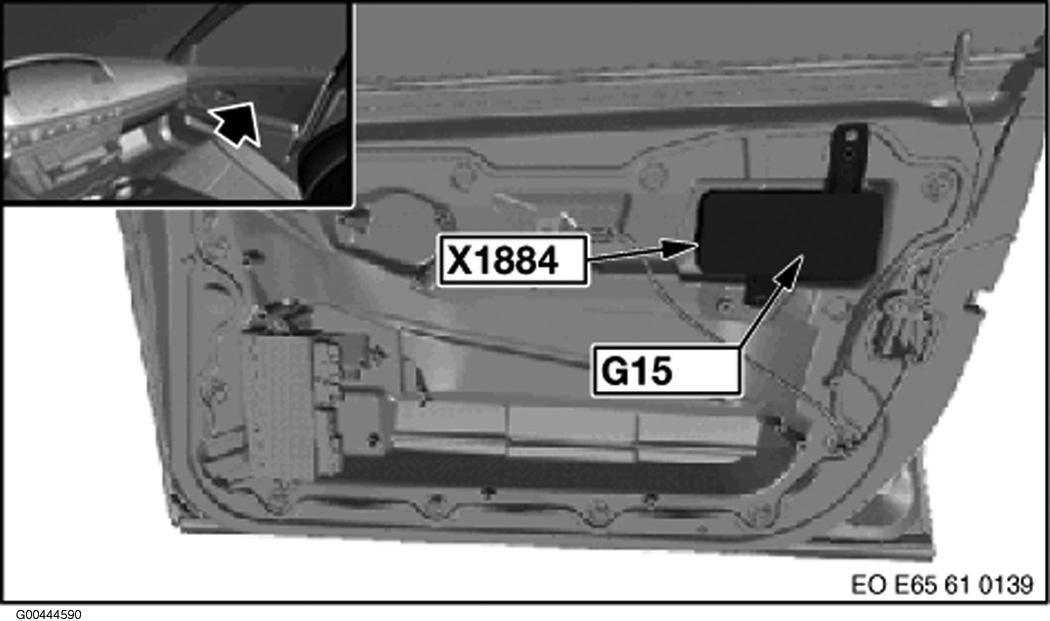

Fig 159: Front Passenger's Door

G00444590

Courtesy of BMW OF NORTH AMERICA, INC.

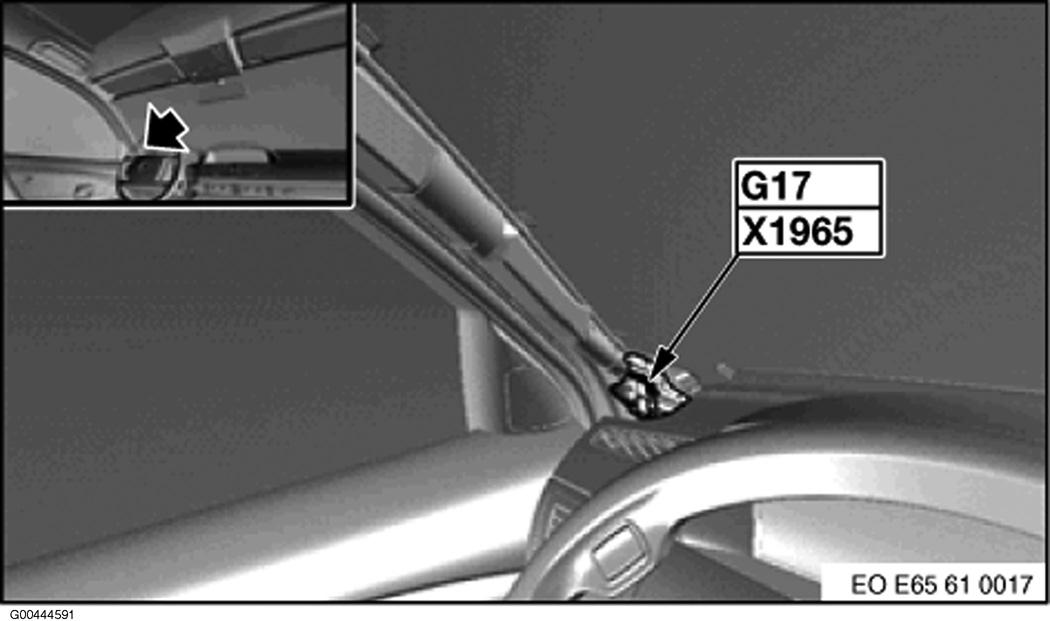

Fig 160: Bottom Of Left "A" Pillar

G00444591

Courtesy of BMW OF NORTH AMERICA, INC.

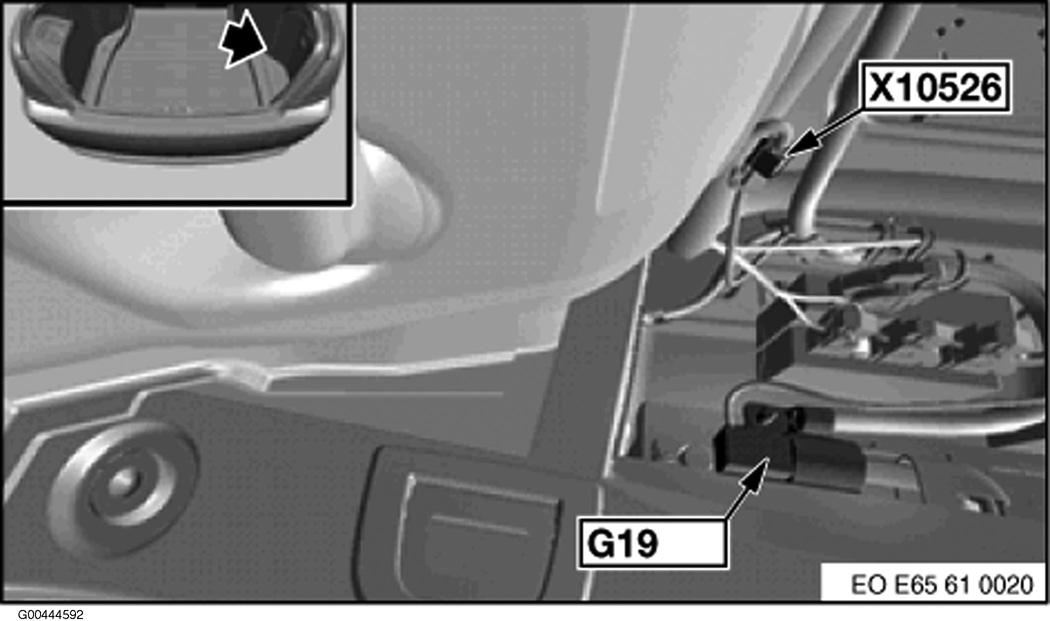

Fig 161: Rear Compartment

G00444592

Courtesy of BMW OF NORTH AMERICA, INC.

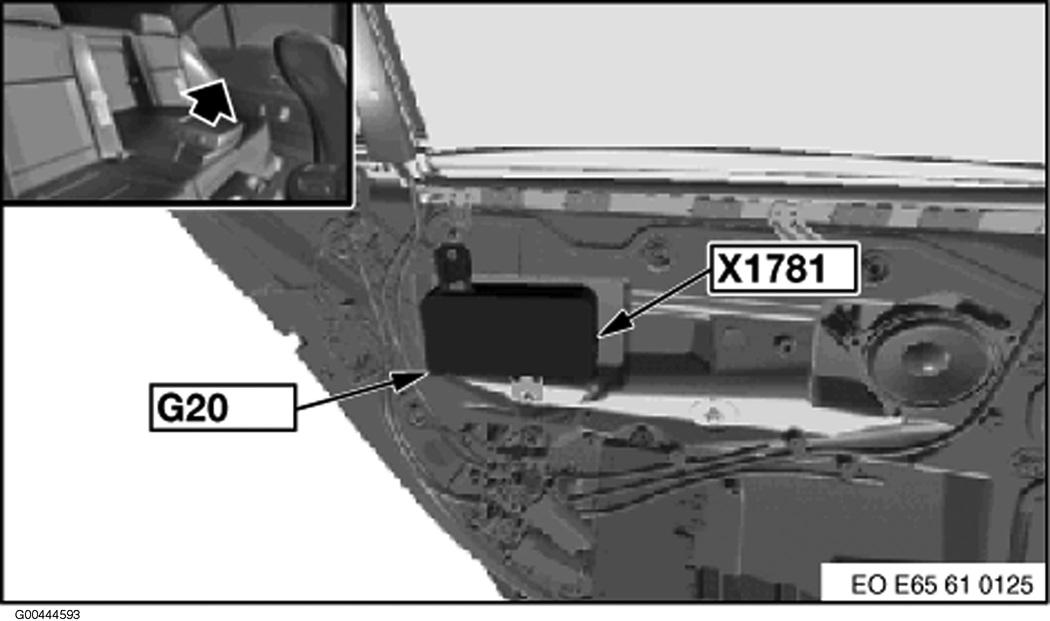

Fig 162: Left Rear Door

G00444593

Courtesy of BMW OF NORTH AMERICA, INC.

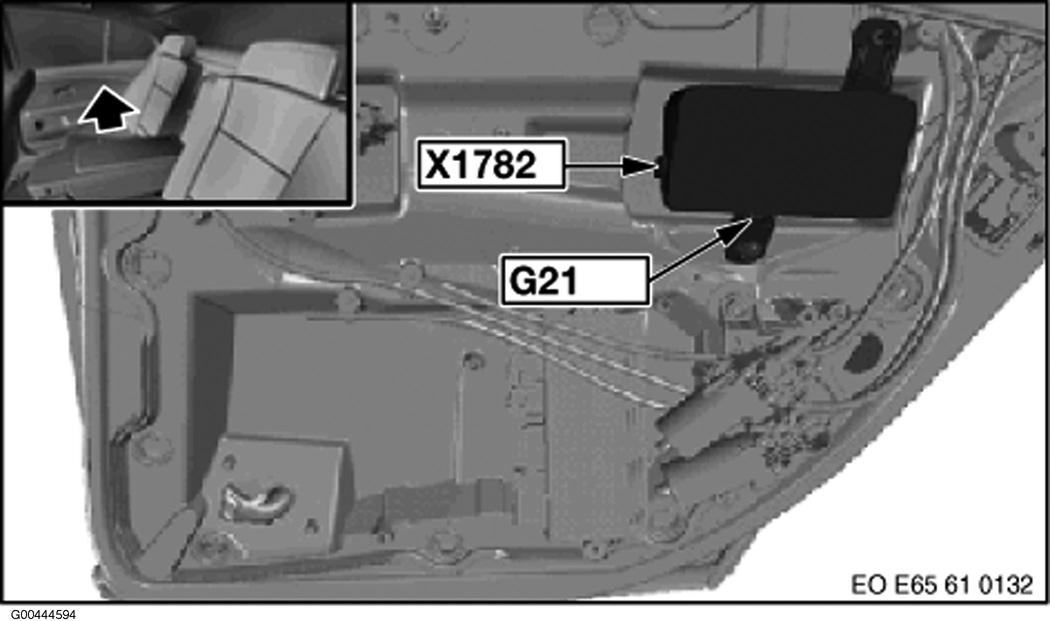

Fig 163: Right Rear Door

G00444594

Courtesy of BMW OF NORTH AMERICA, INC.

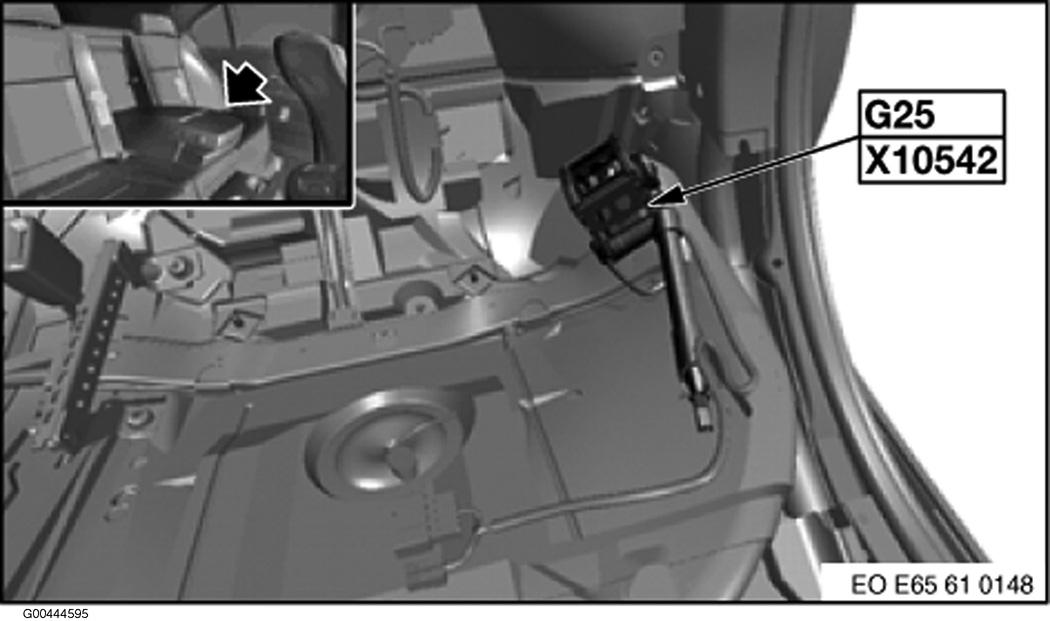

Fig 164: Under Left Rear Seat

G00444595

Courtesy of BMW OF NORTH AMERICA, INC.

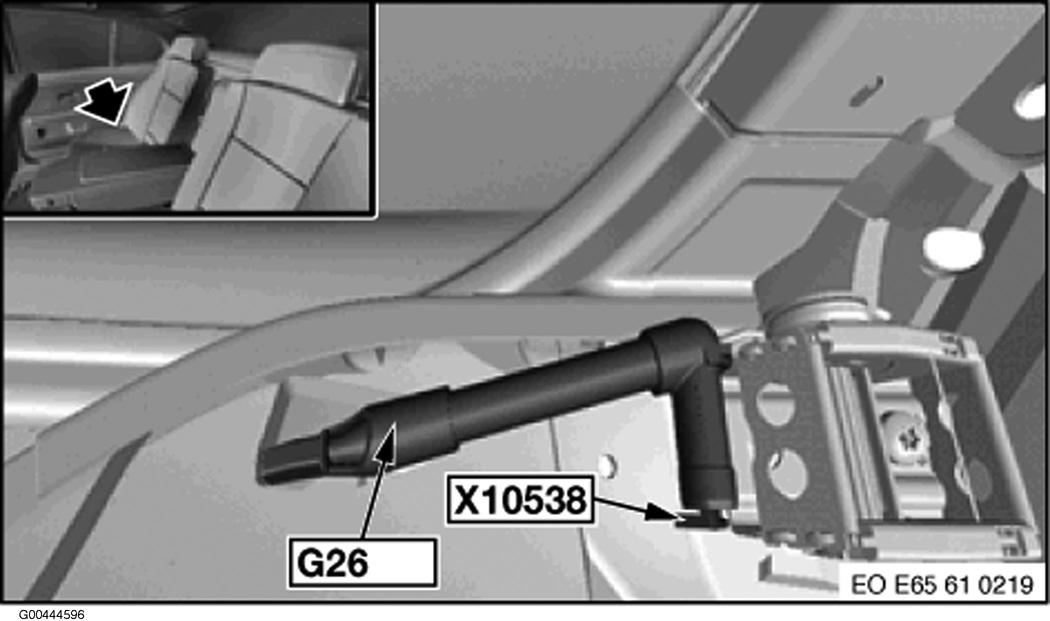

Fig 165: Under Right Rear Seat

G00444596

Courtesy of BMW OF NORTH AMERICA, INC.

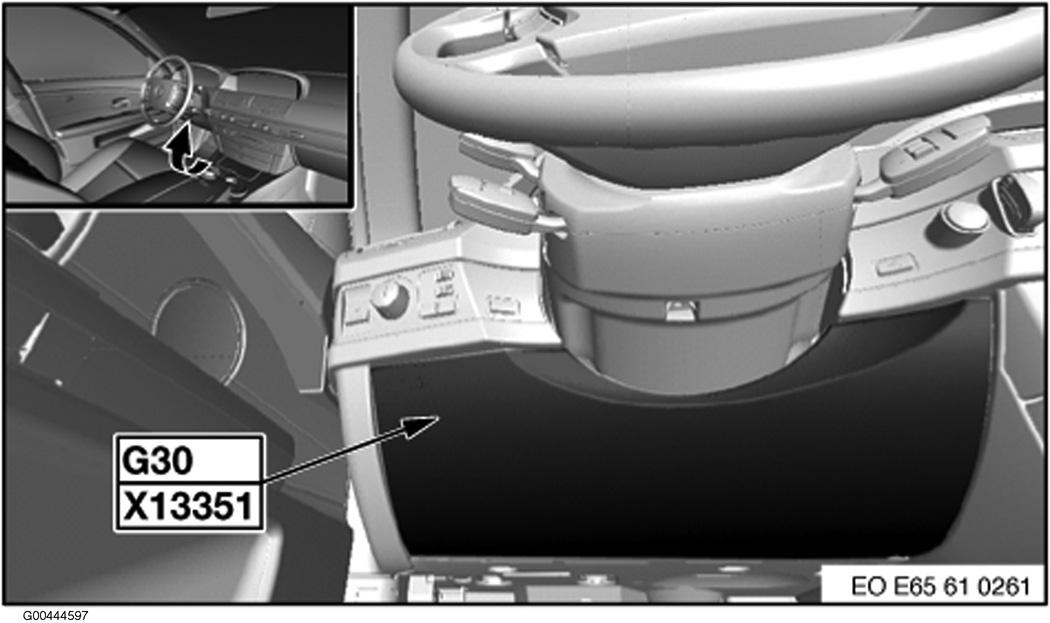

Fig 166: Under Left Side Of Dash

G00444597

Courtesy of BMW OF NORTH AMERICA, INC.

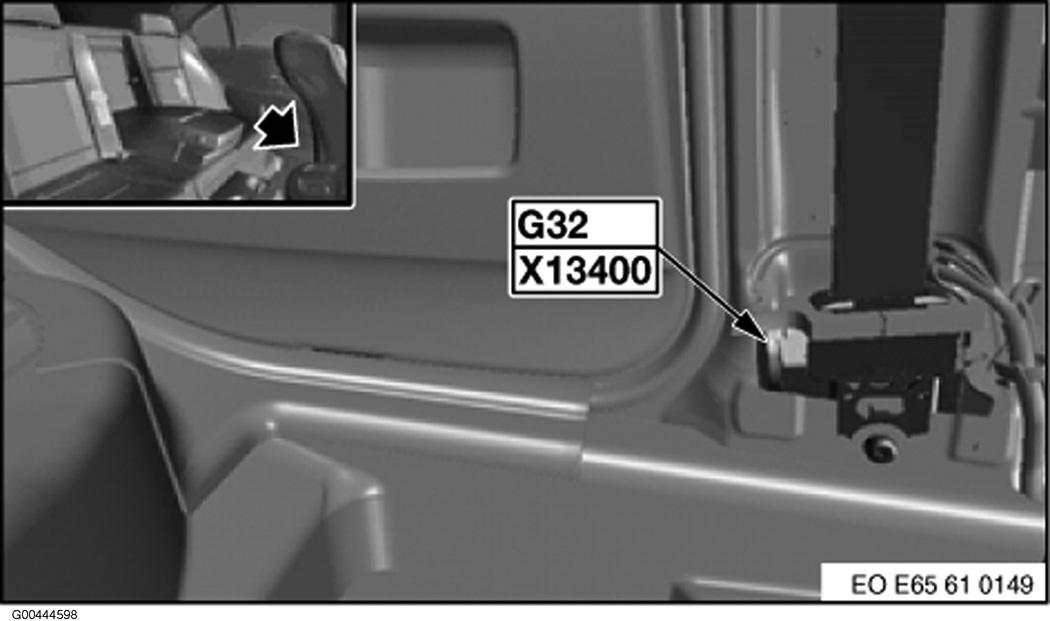

Fig 167: Bottom Of Left "B" Pillar

G00444598

Courtesy of BMW OF NORTH AMERICA, INC.

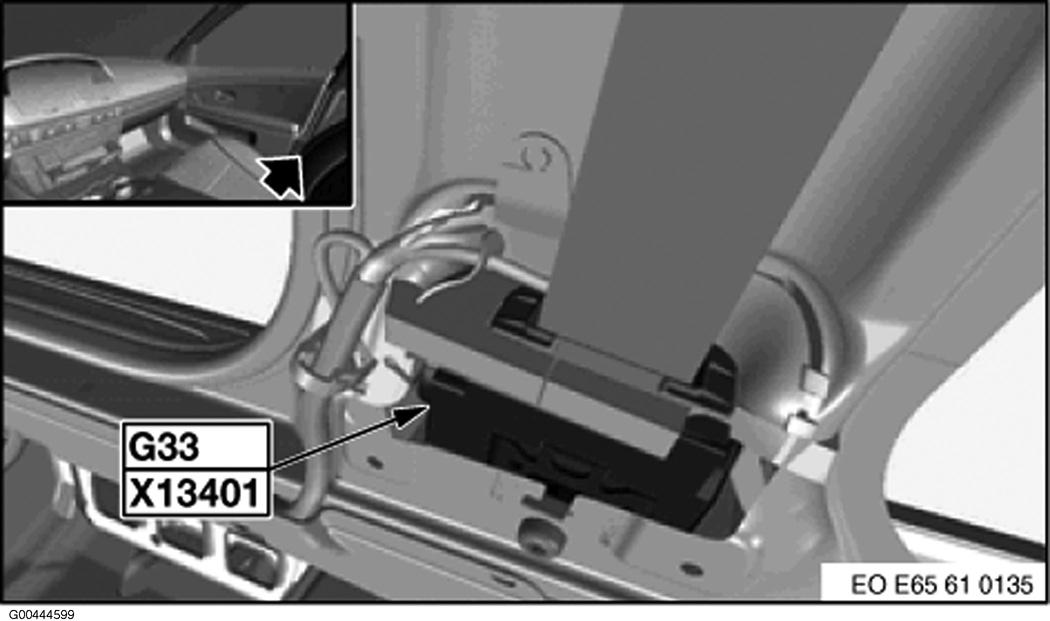

Fig 168: Bottom Of Right "B" Pillar

G00444599

Courtesy of BMW OF NORTH AMERICA, INC.

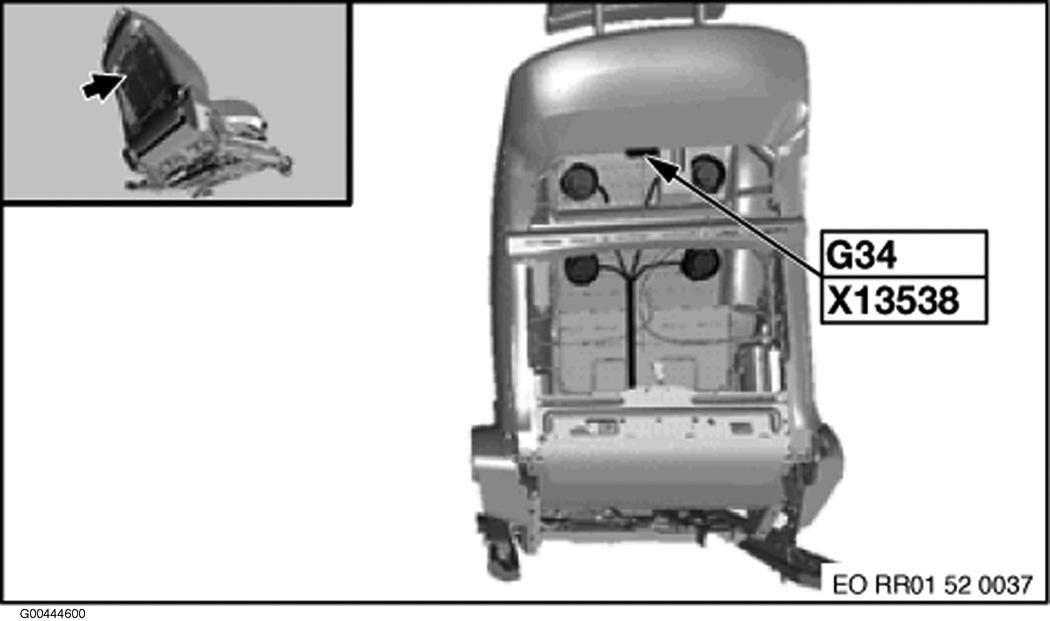

Fig 169: Driver's Seat Back

G00444600

Courtesy of BMW OF NORTH AMERICA, INC.

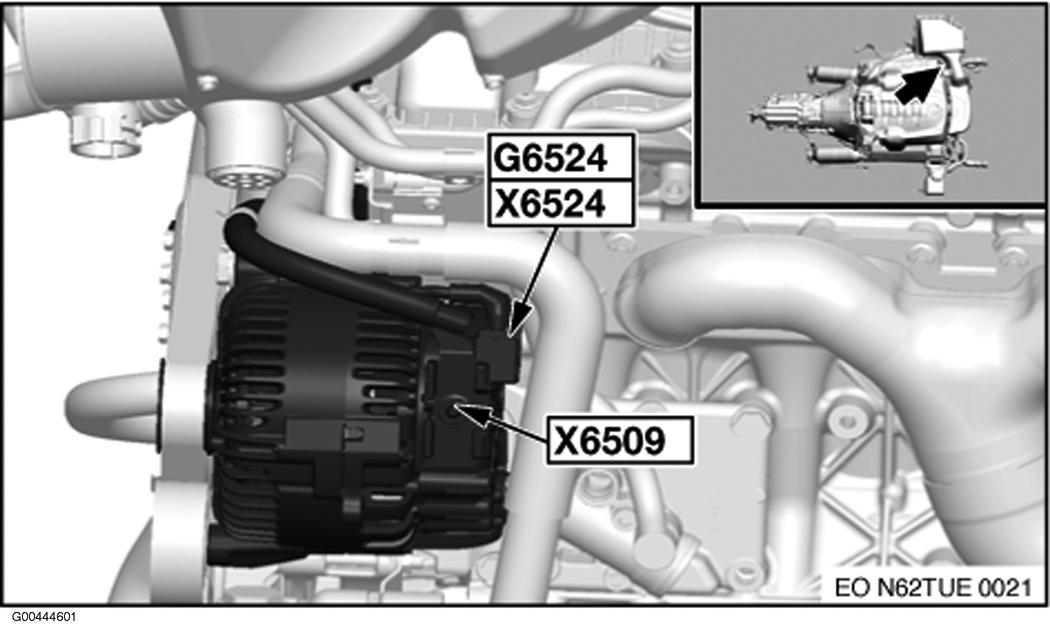

Fig 170: Top Of Engine

G00444601

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 171: Under Front Bumper

G00444602

Courtesy of BMW OF NORTH AMERICA, INC.

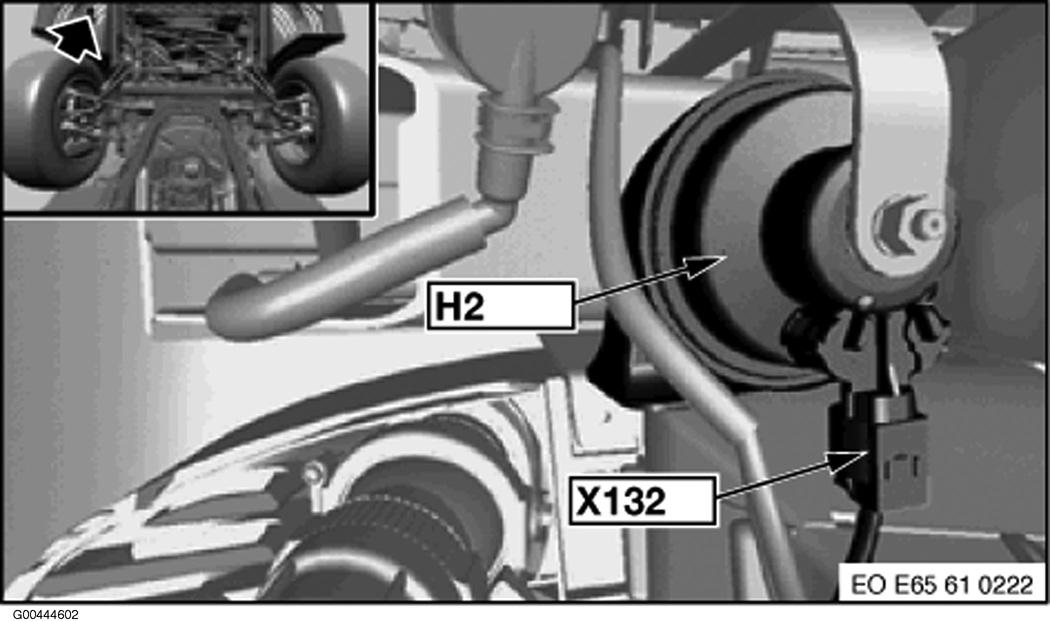

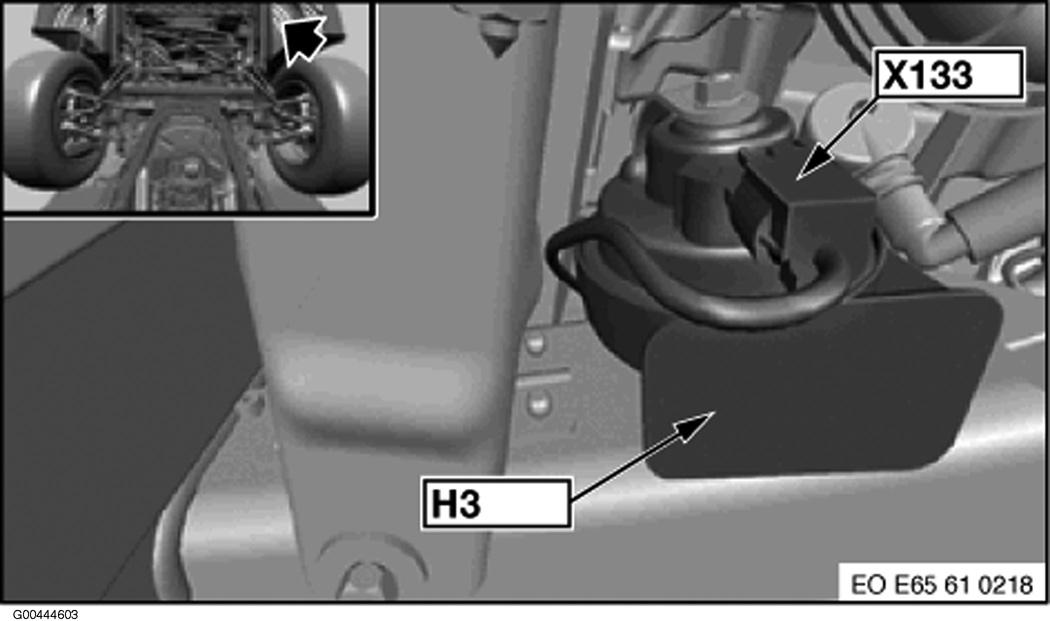

Fig 172: Under Front Bumper

G00444603

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 173: Part Of Steering Wheel

G00444604

Courtesy of BMW OF NORTH AMERICA, INC.

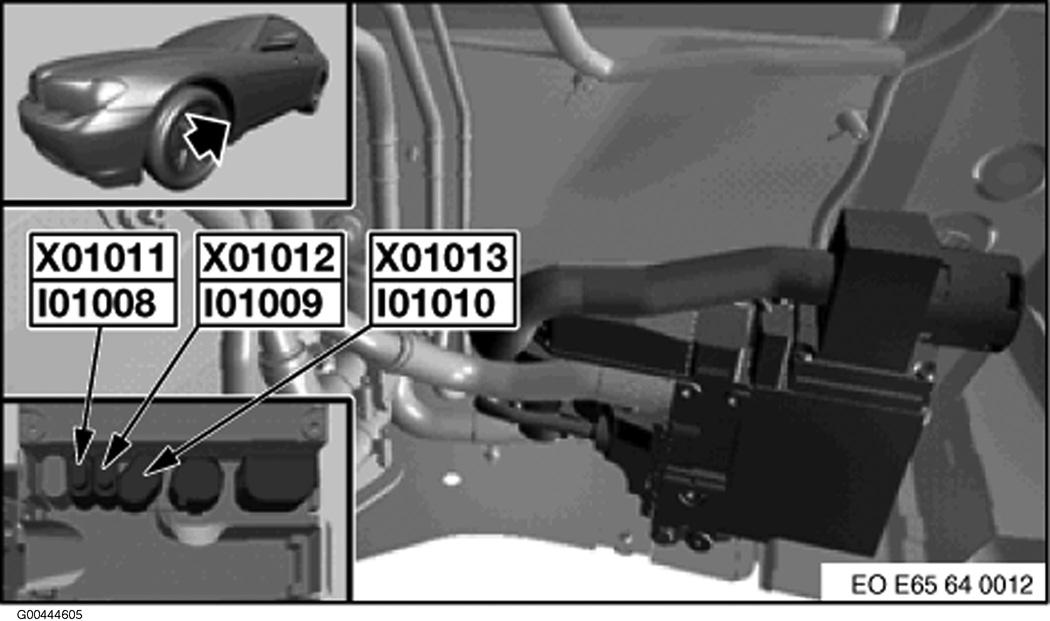

Fig 174: Behind Left Front Wheel

G00444605

Courtesy of BMW OF NORTH AMERICA, INC.

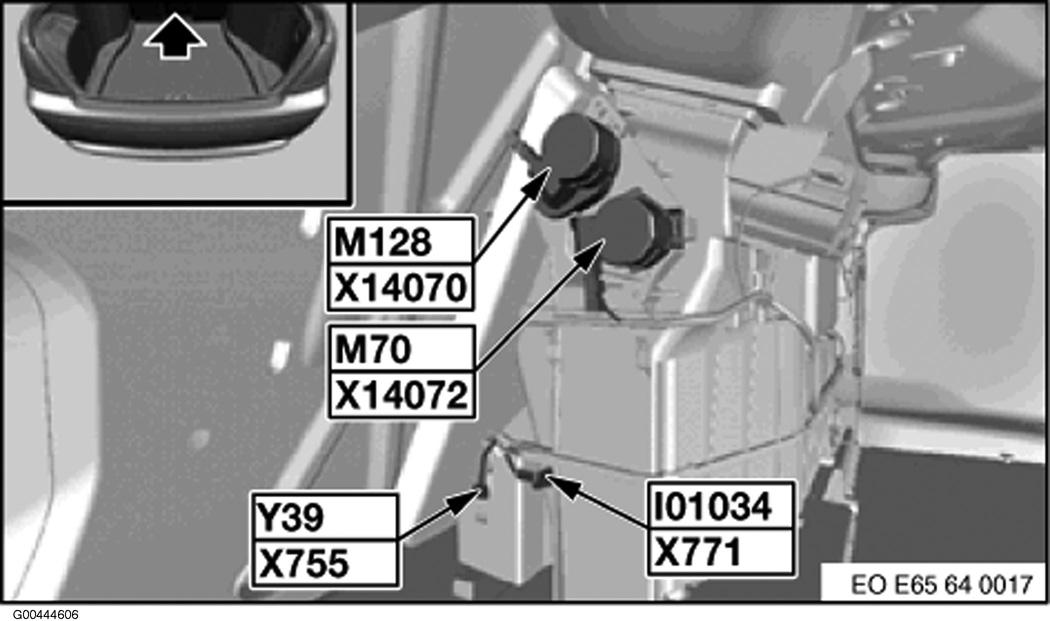

Fig 175: Rear Compartment

G00444606

Courtesy of BMW OF NORTH AMERICA, INC.

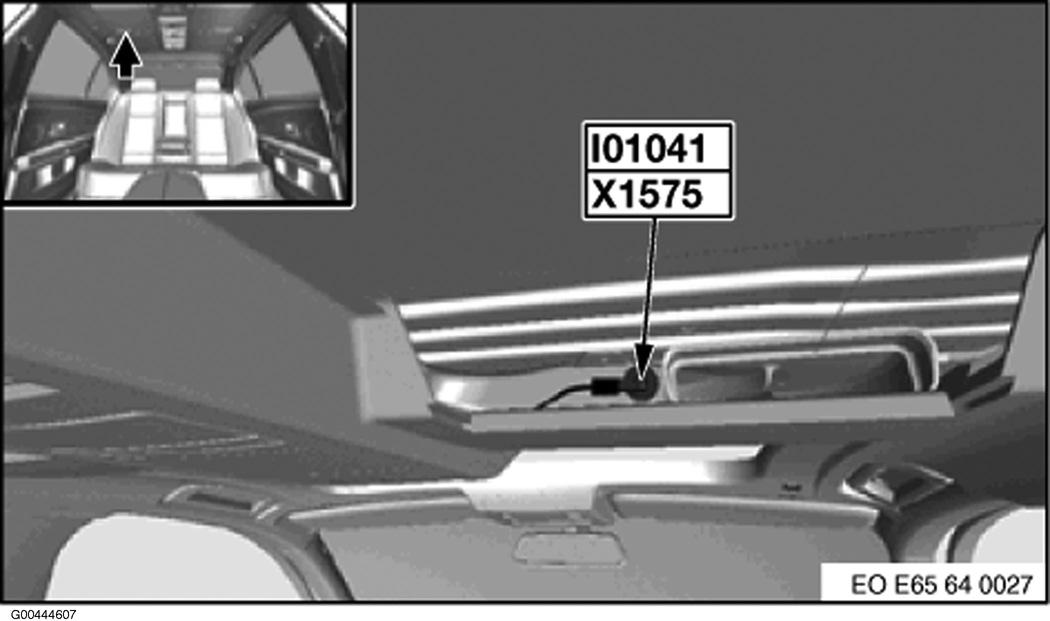

Fig 176: Right Rear Corner Of Roof

G00444607

Courtesy of BMW OF NORTH AMERICA, INC.

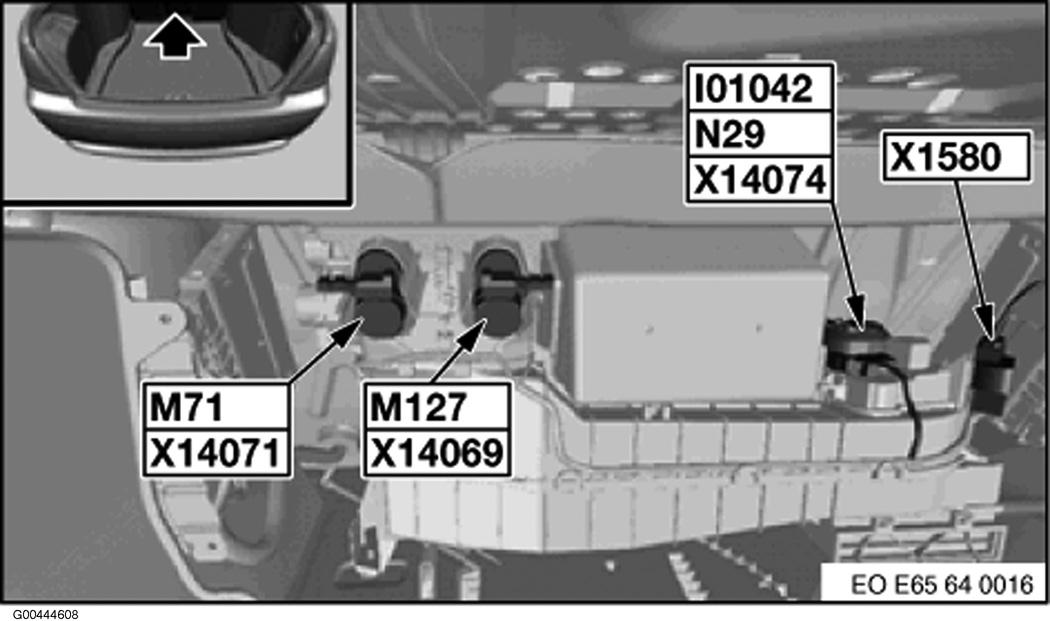

Fig 177: Rear Compartment

G00444608

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 178: Front Passenger's Seat Cushion

G00444609

Courtesy of BMW OF NORTH AMERICA, INC.

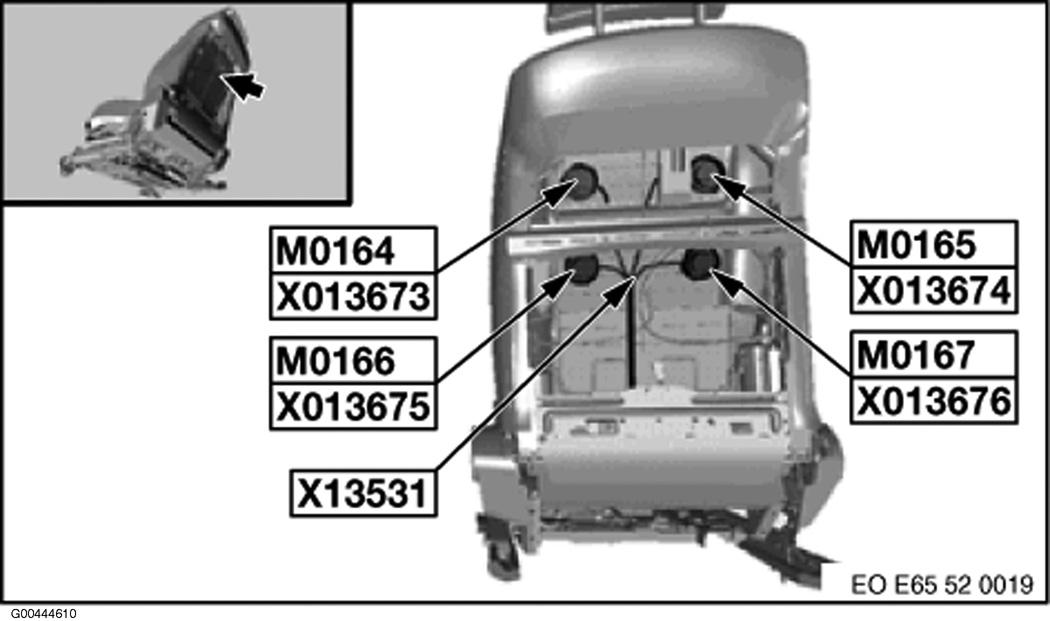

Fig 179: Front Passenger's Seat Back

G00444610

Courtesy of BMW OF NORTH AMERICA, INC.

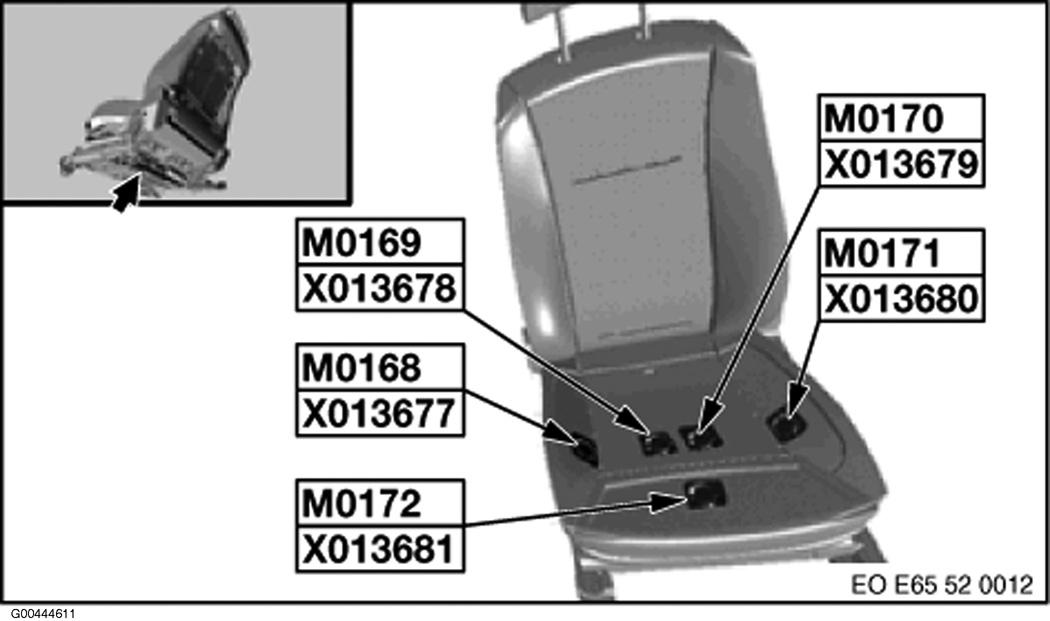

Fig 180: Right Rear Seat Cushion

G00444611

Courtesy of BMW OF NORTH AMERICA, INC.

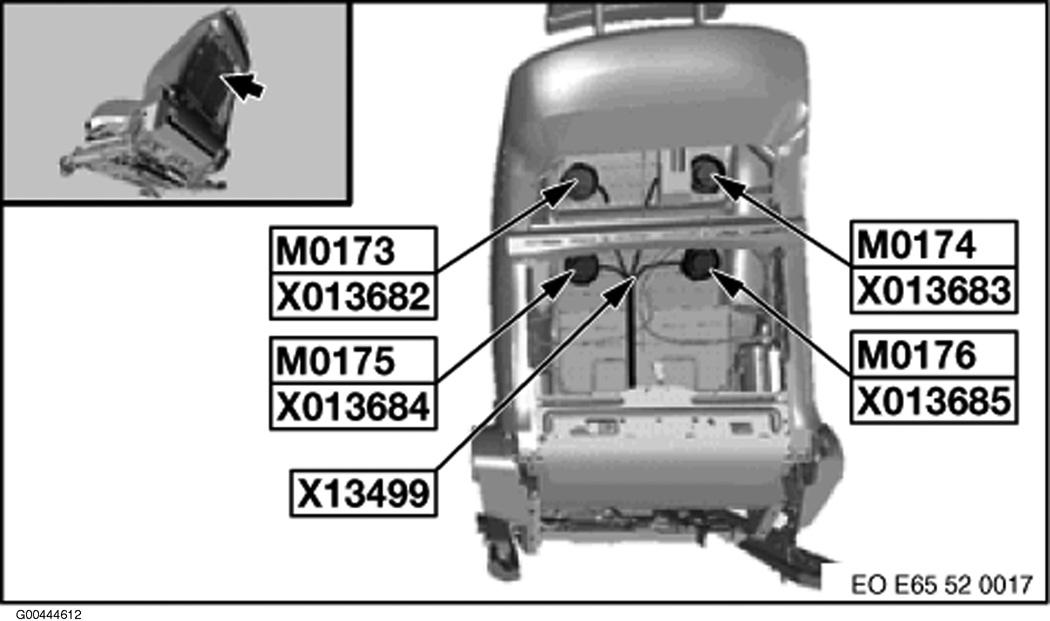

Fig 181: Right Rear Seat Back

G00444612

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 182: Left Rear Of Engine Compartment

G00444613

Courtesy of BMW OF NORTH AMERICA, INC.

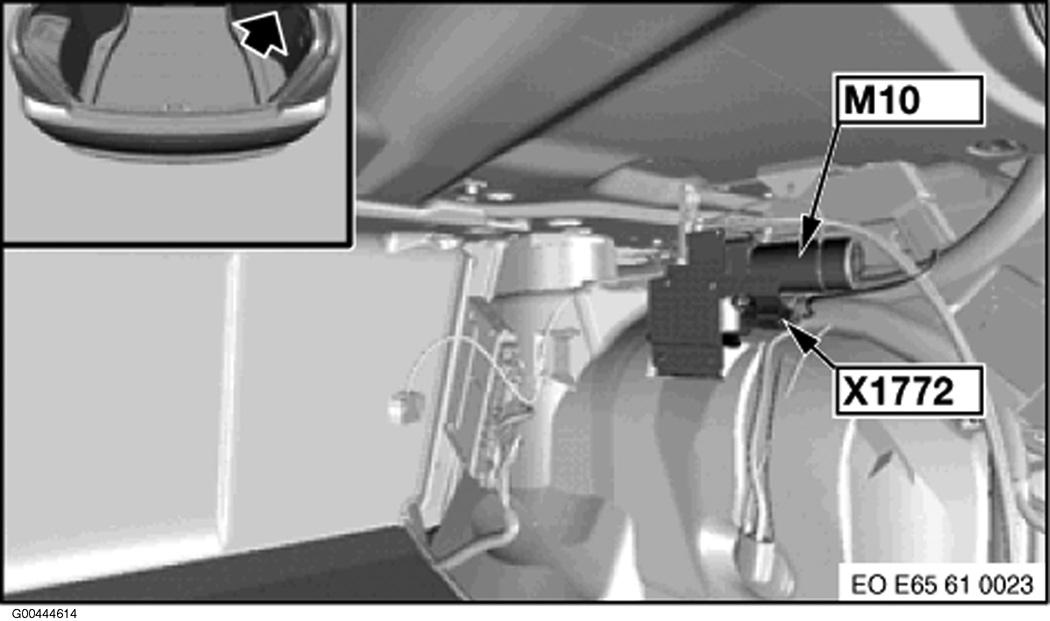

Fig 183: Rear Compartment

G00444614

Courtesy of BMW OF NORTH AMERICA, INC.

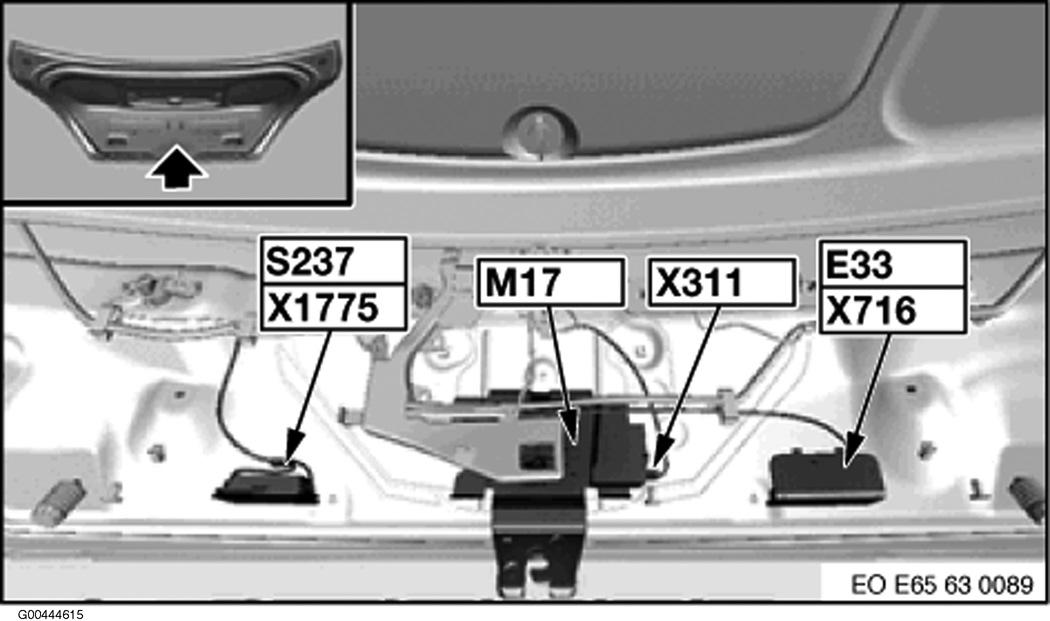

Fig 184: Rear Compartment Door

G00444615

Courtesy of BMW OF NORTH AMERICA, INC.

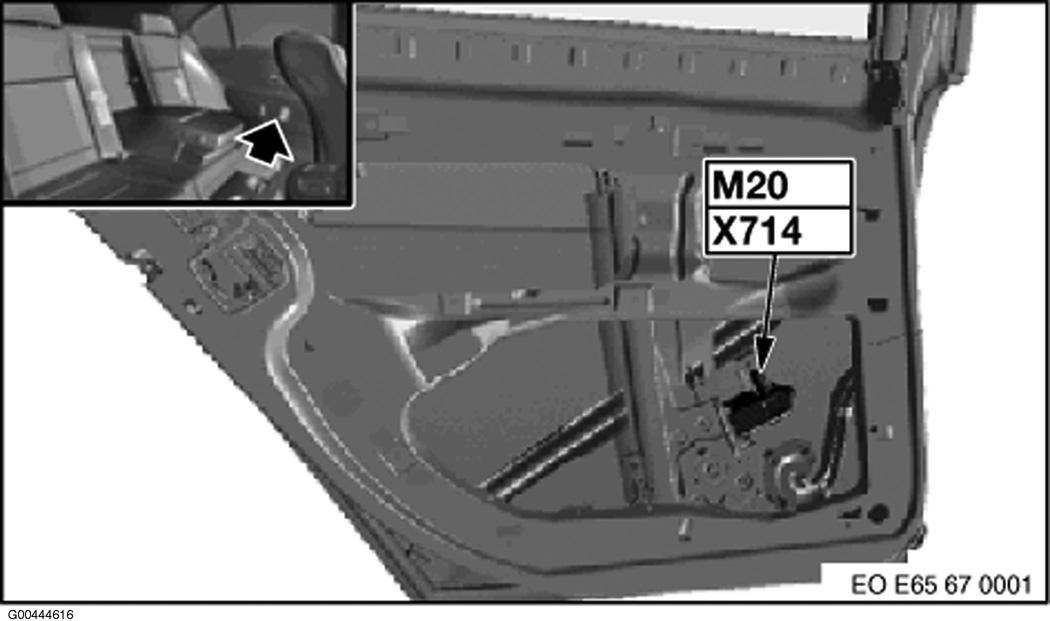

Fig 185: Left Rear Door

G00444616

Courtesy of BMW OF NORTH AMERICA, INC.

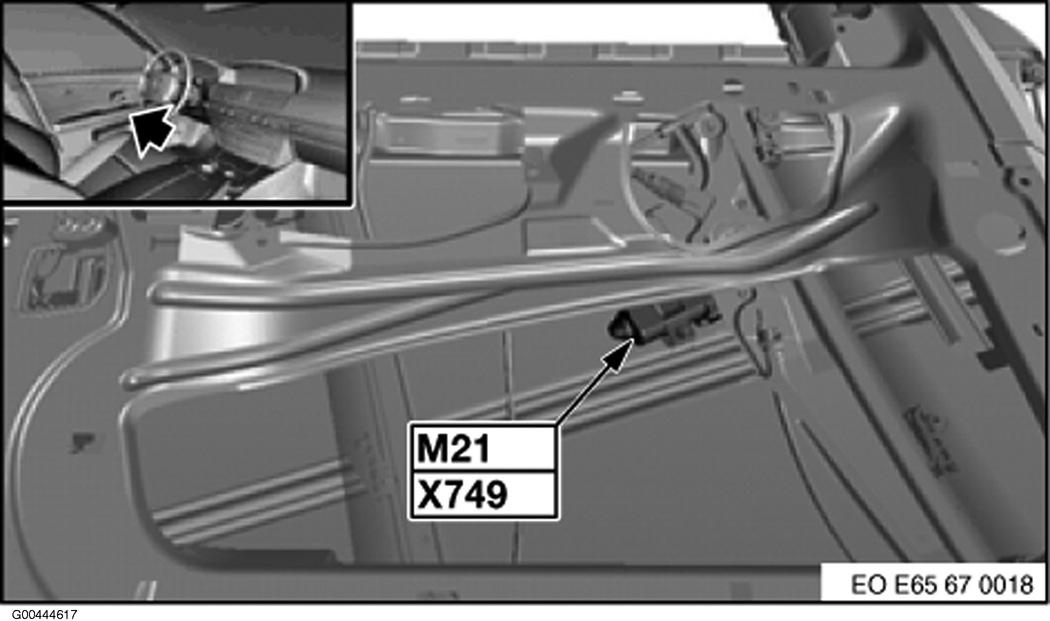

Fig 186: Driver's Door

G00444617

Courtesy of BMW OF NORTH AMERICA, INC.

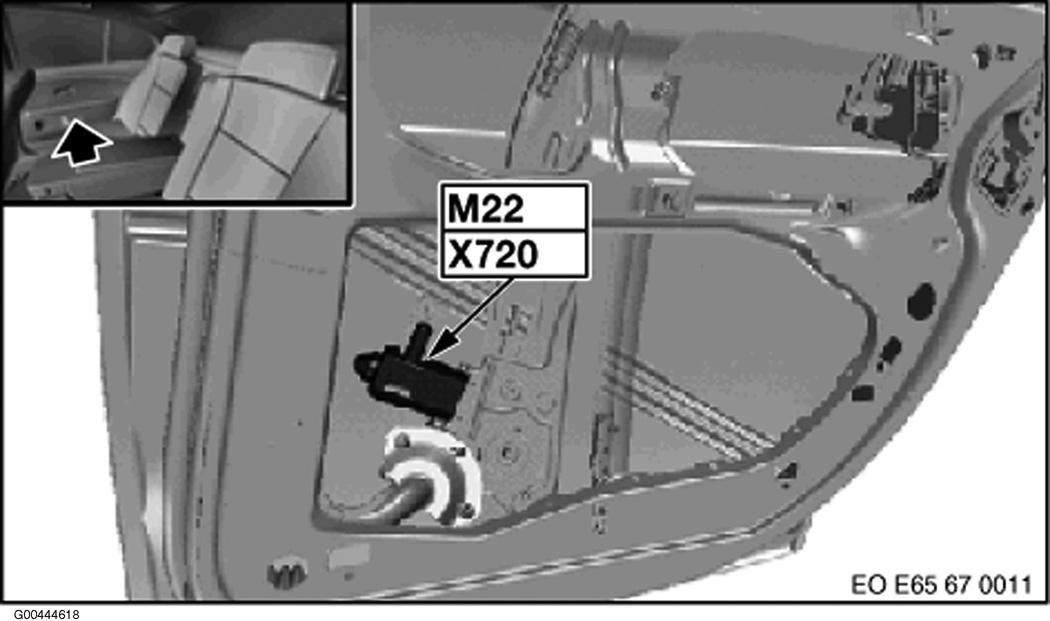

Fig 187: Right Rear Door

G00444618

Courtesy of BMW OF NORTH AMERICA, INC.

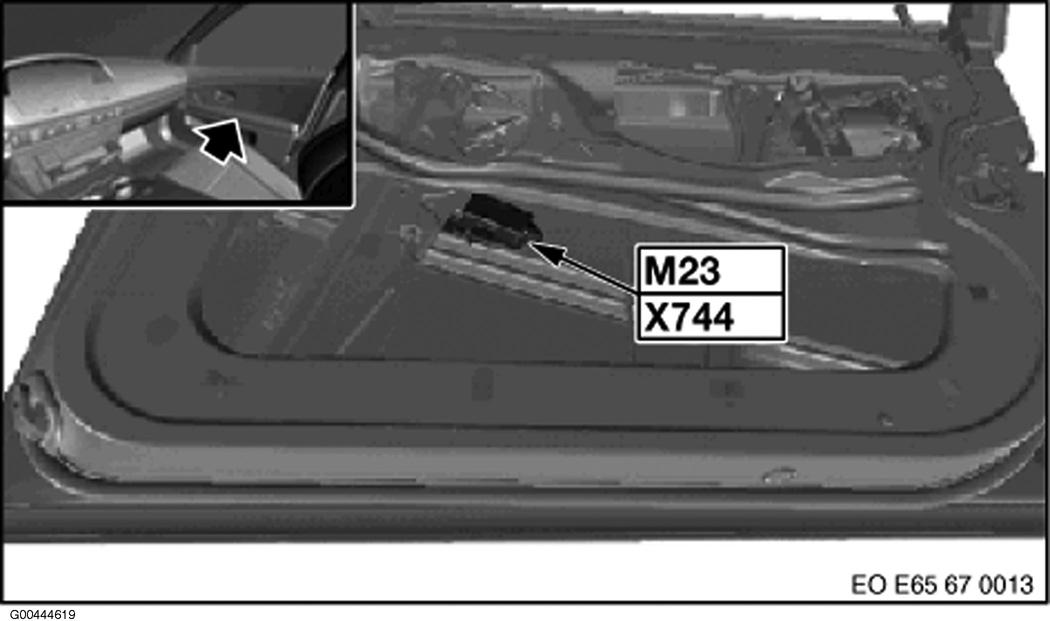

Fig 188: Front Passenger's Door

G00444619

Courtesy of BMW OF NORTH AMERICA, INC.

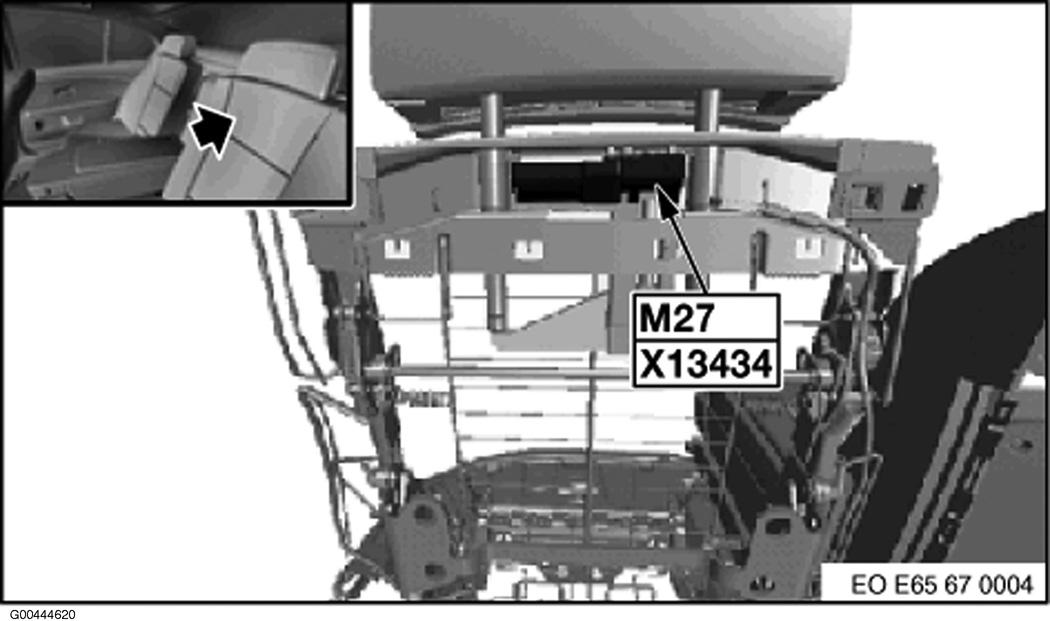

Fig 189: Behind Left Rear Seat

G00444620

Courtesy of BMW OF NORTH AMERICA, INC.

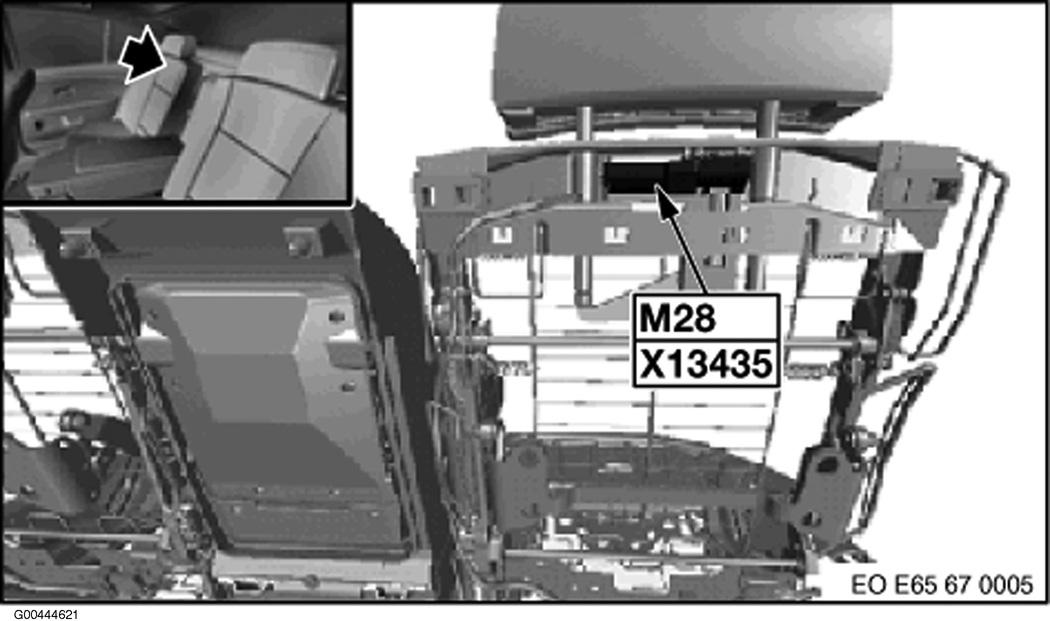

Fig 190: Behind Right Rear Seat

G00444621

Courtesy of BMW OF NORTH AMERICA, INC.

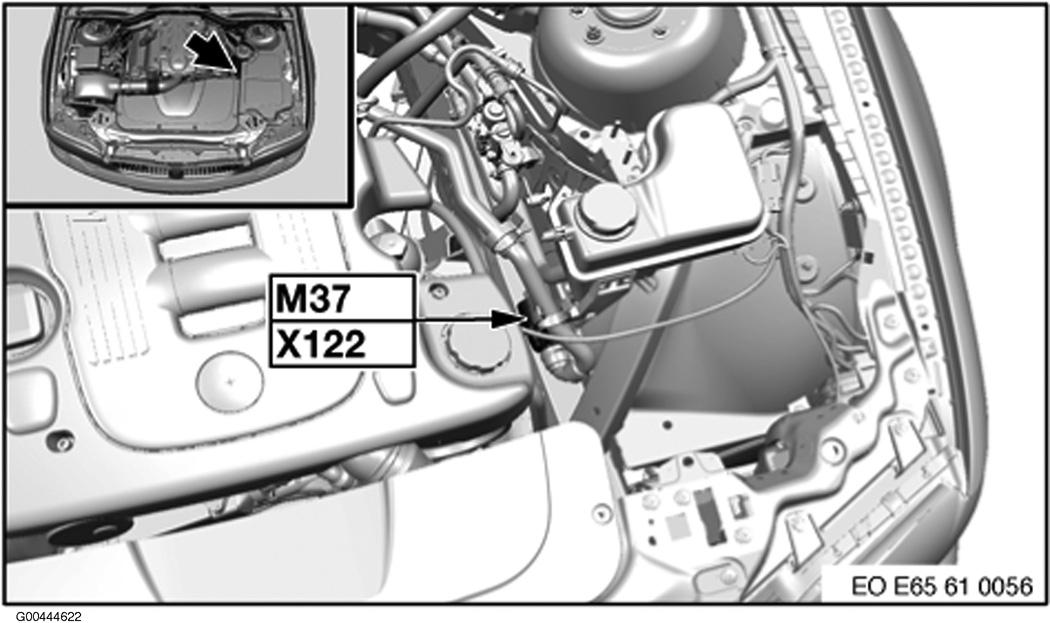

Fig 191: Left Side Of Engine Compartment

G00444622

Courtesy of BMW OF NORTH AMERICA, INC.

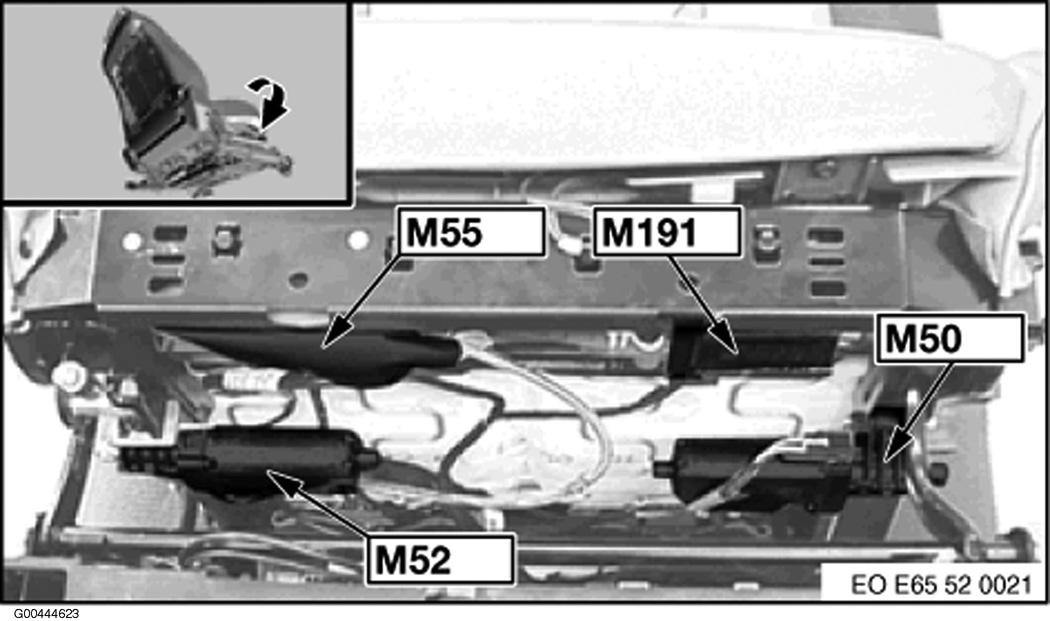

Fig 192: Under Driver's Seat

G00444623

Courtesy of BMW OF NORTH AMERICA, INC.

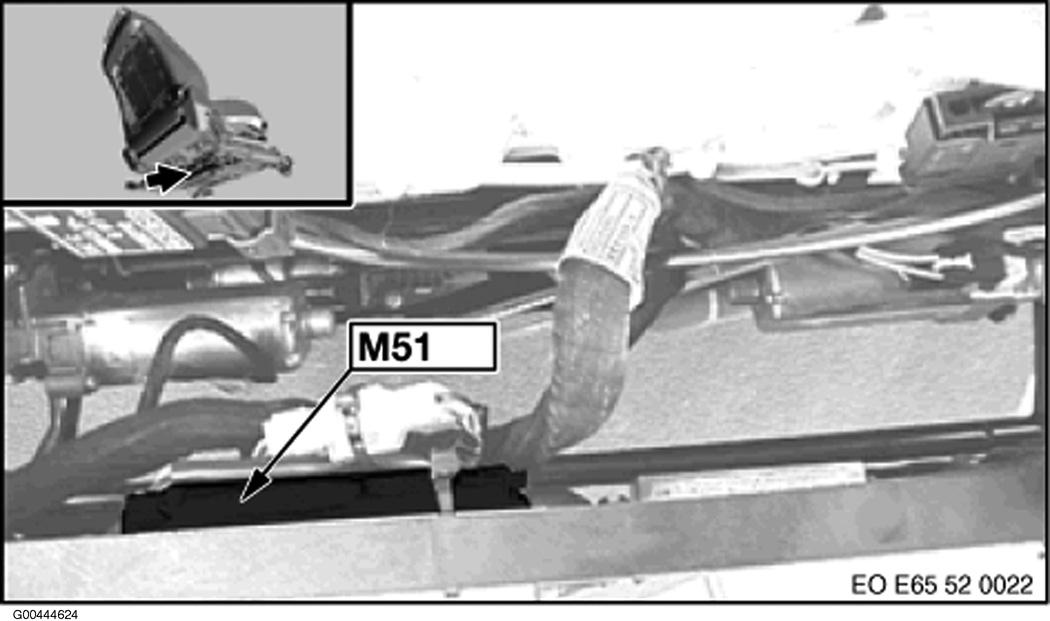

Fig 193: Under Driver's Seat

G00444624

Courtesy of BMW OF NORTH AMERICA, INC.

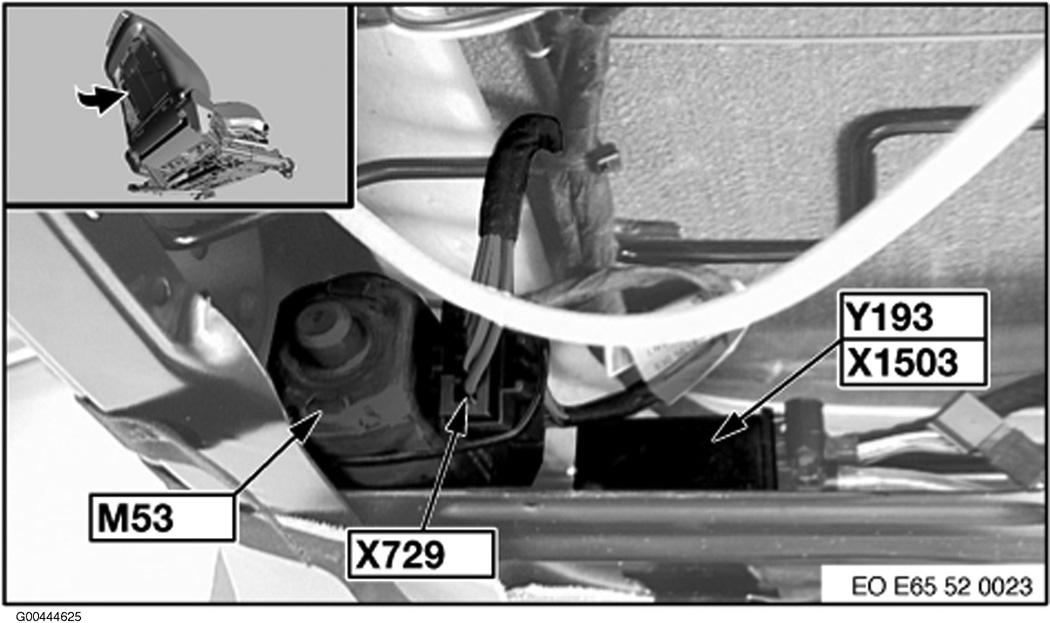

Fig 194: Driver's Seat Back

G00444625

Courtesy of BMW OF NORTH AMERICA, INC.

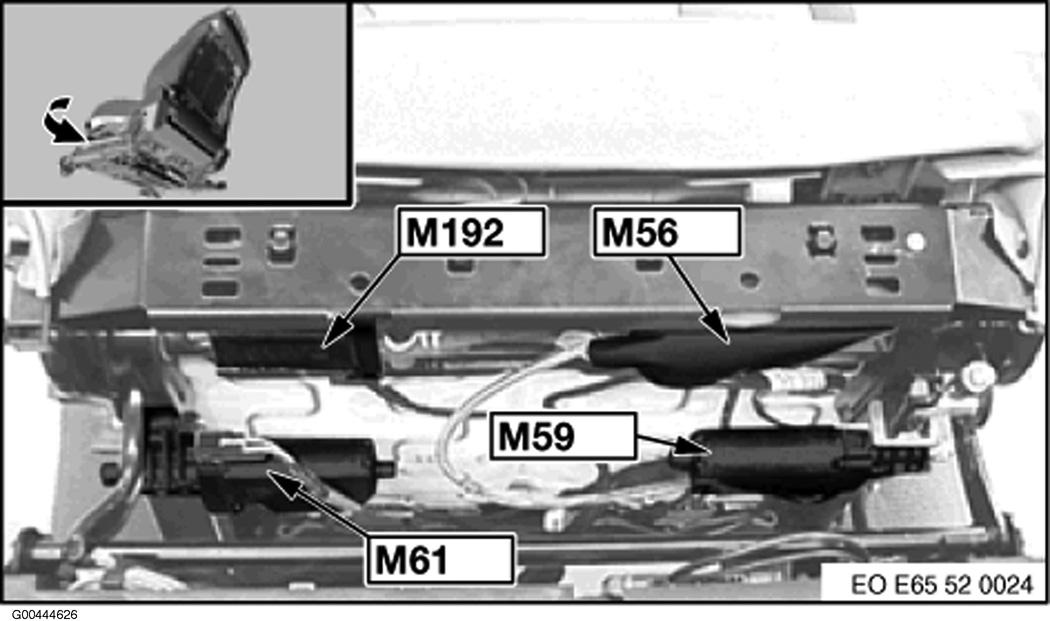

Fig 195: Under Front Passenger's Seat

G00444626

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 196: Front Passenger's Seat Back

G00444627

Courtesy of BMW OF NORTH AMERICA, INC.

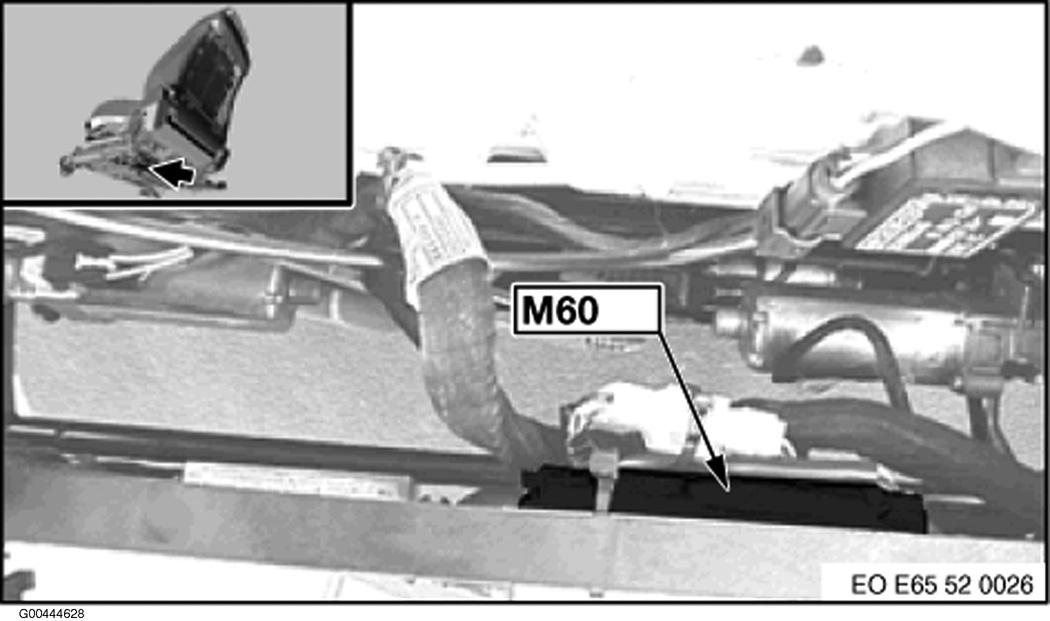

Fig 197: Under Front Passenger's Seat

G00444628

Courtesy of BMW OF NORTH AMERICA, INC.

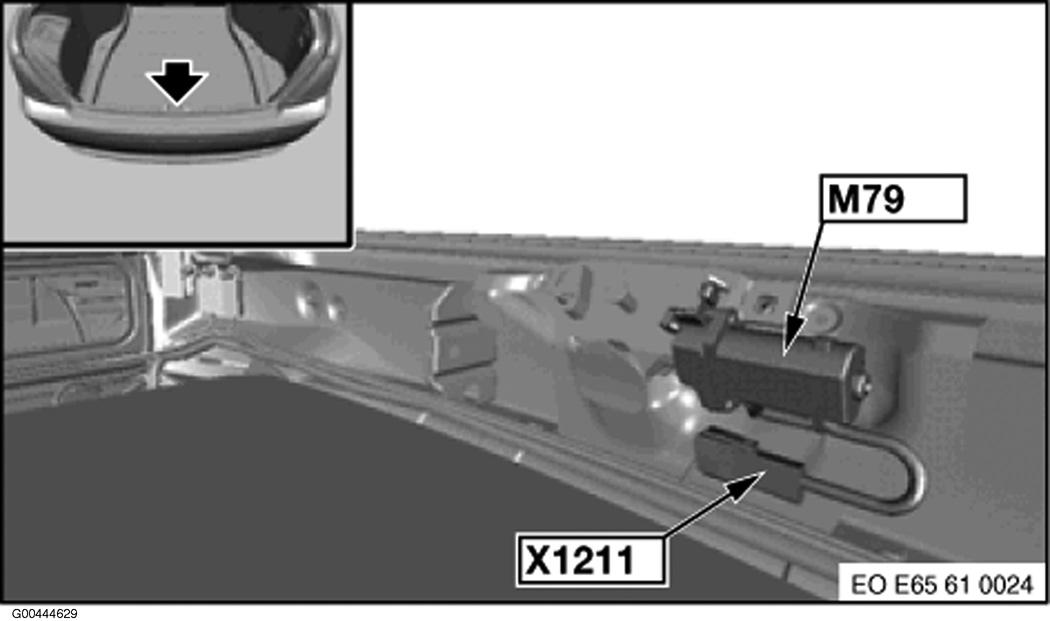

Fig 198: Rear Compartment

G00444629

Courtesy of BMW OF NORTH AMERICA, INC.

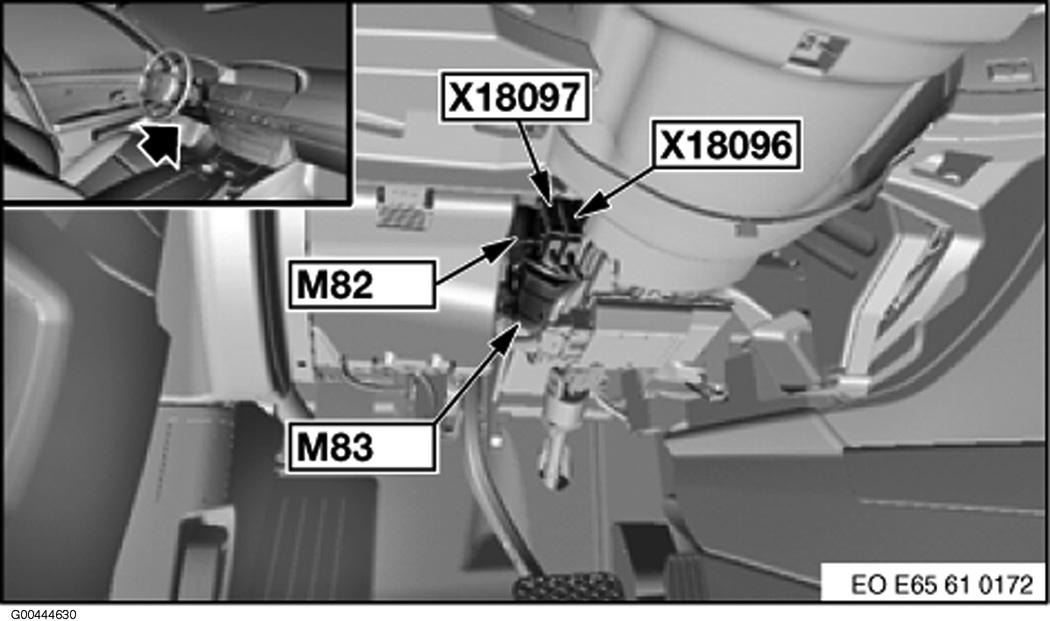

Fig 199: Under Left Side Of Dash

G00444630

Courtesy of BMW OF NORTH AMERICA, INC.

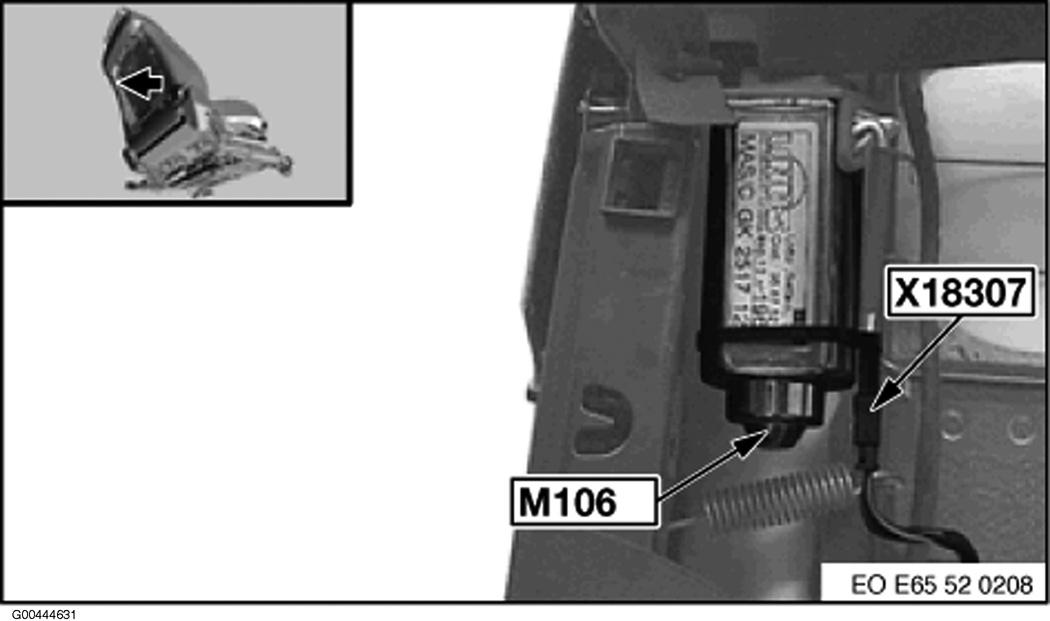

Fig 200: Driver's Seat Back

G00444631

Courtesy of BMW OF NORTH AMERICA, INC.

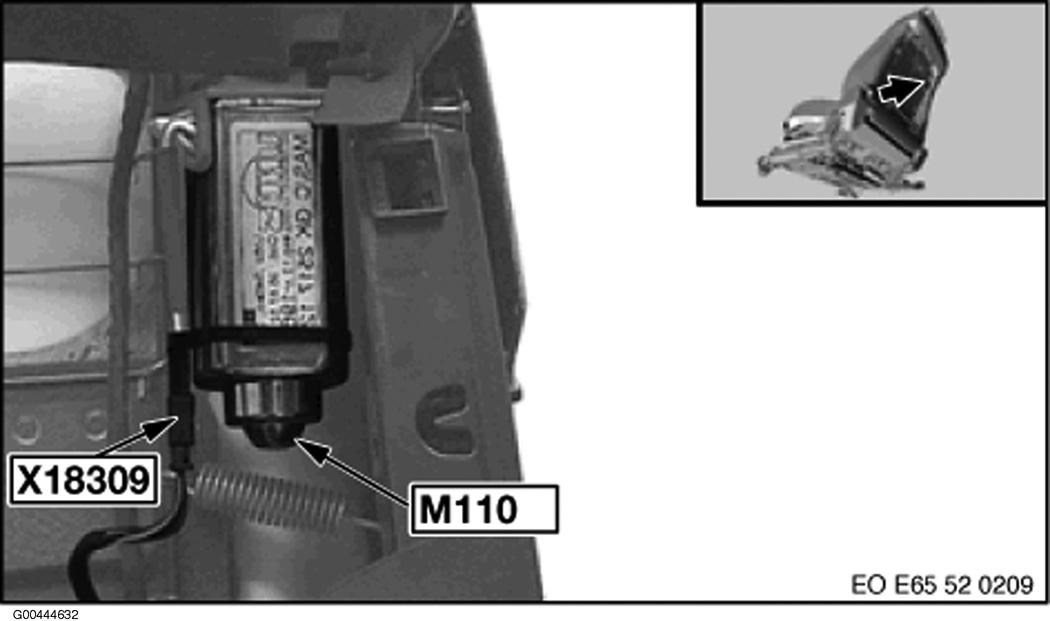

Fig 201: Front Passenger's Seat Back

G00444632

Courtesy of BMW OF NORTH AMERICA, INC.

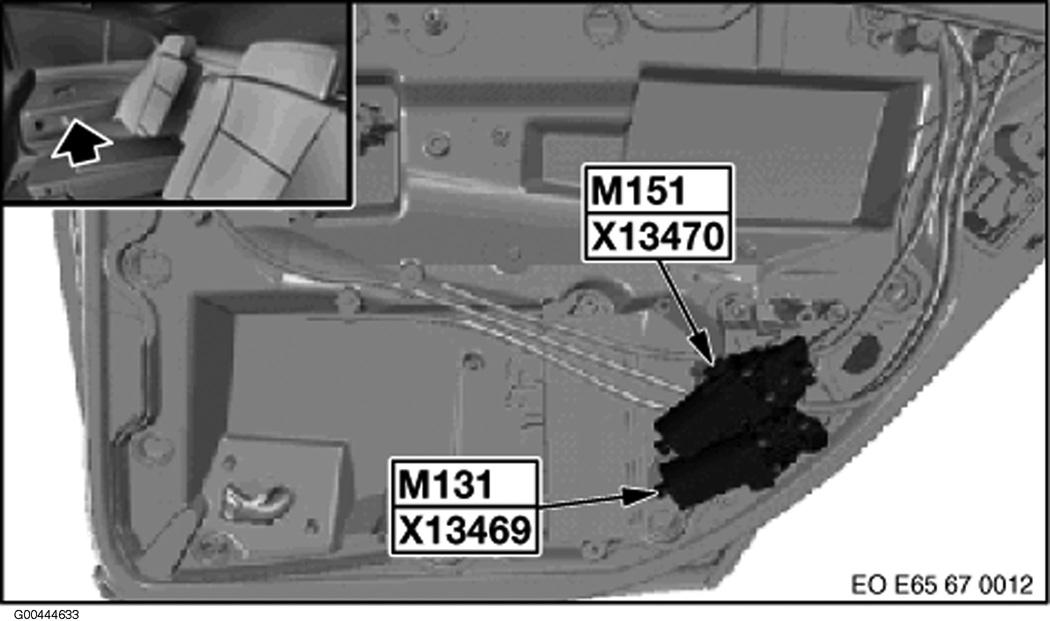

Fig 202: Right Rear Door

G00444633

Courtesy of BMW OF NORTH AMERICA, INC.

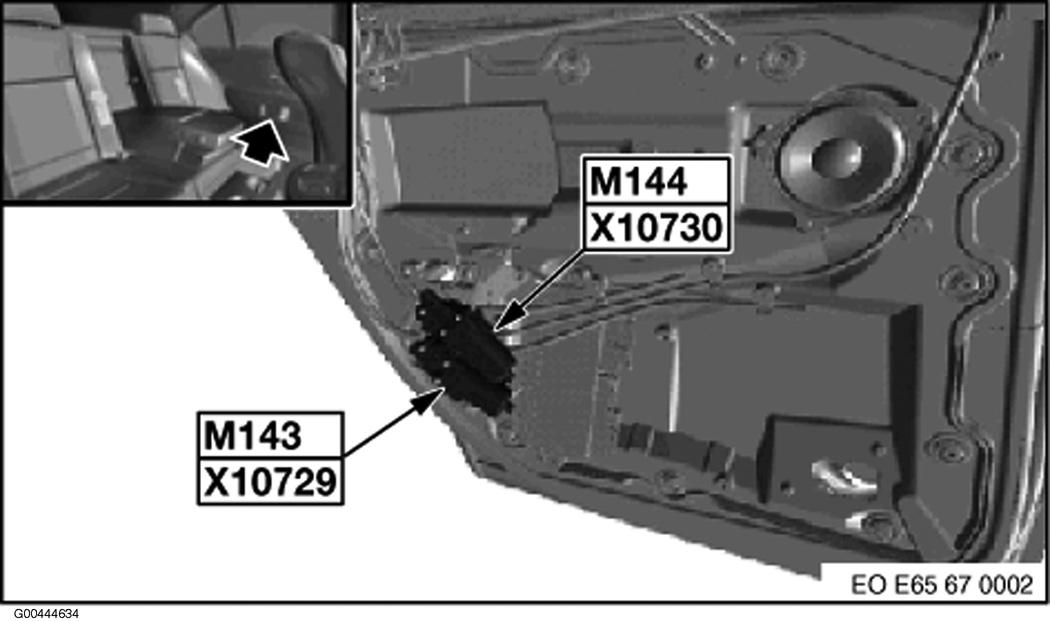

Fig 203: Left Rear Door

G00444634

Courtesy of BMW OF NORTH AMERICA, INC.

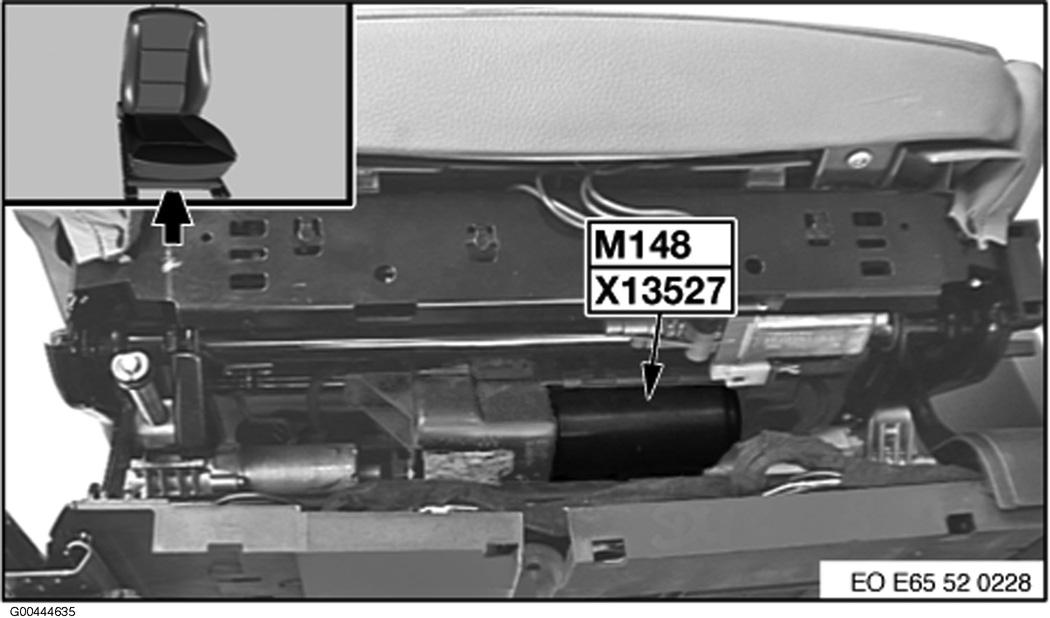

Fig 204: Under Front Passenger's Seat

G00444635

Courtesy of BMW OF NORTH AMERICA, INC.

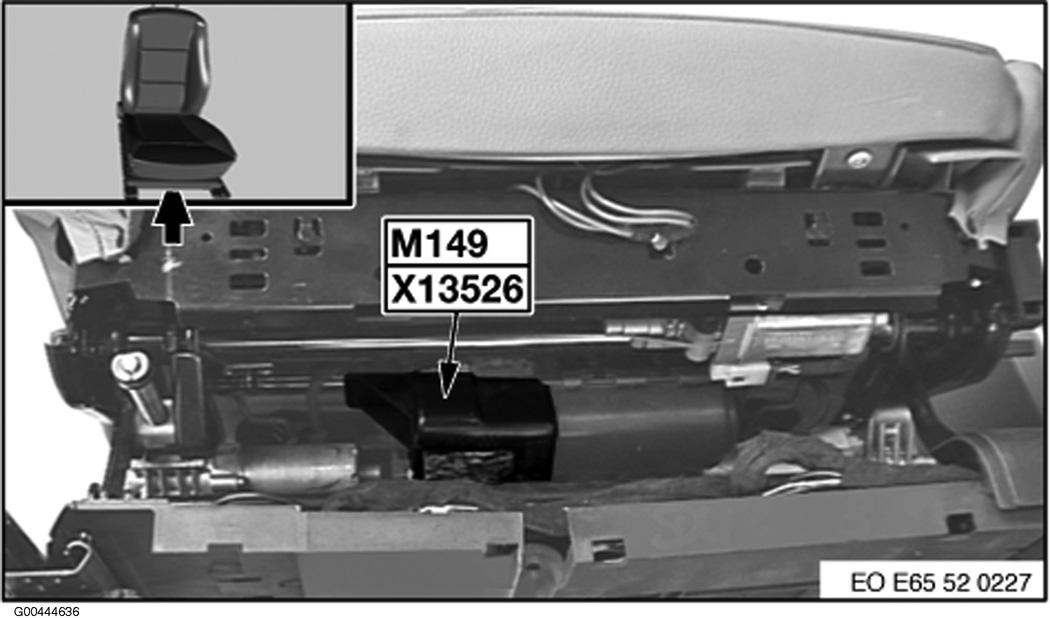

Fig 205: Under Driver's Seat

G00444636

Courtesy of BMW OF NORTH AMERICA, INC.

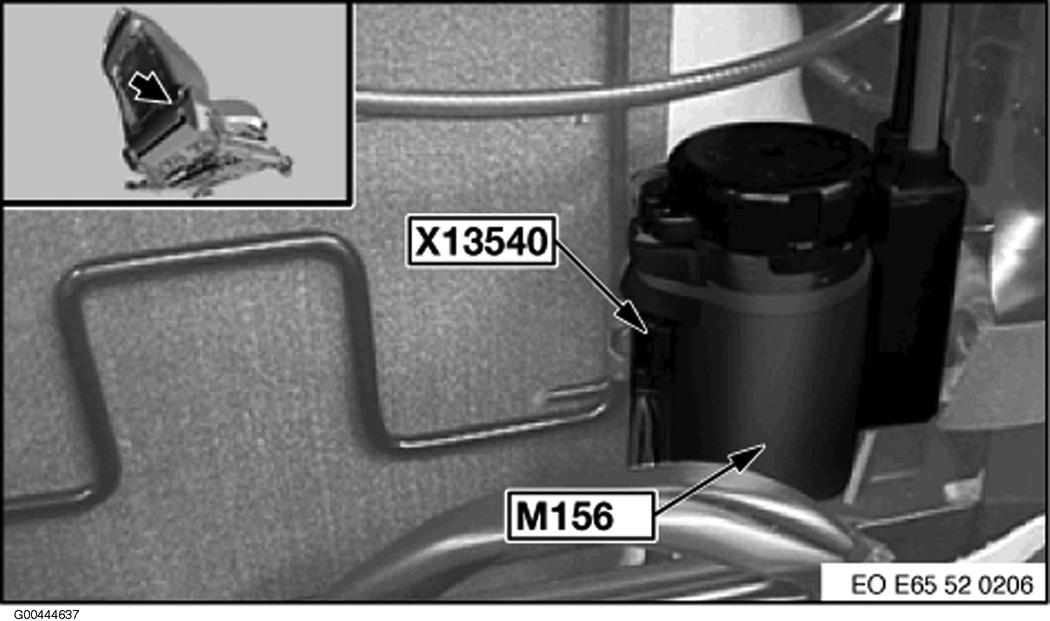

Fig 206: Driver's Seat Back

G00444637

Courtesy of BMW OF NORTH AMERICA, INC.

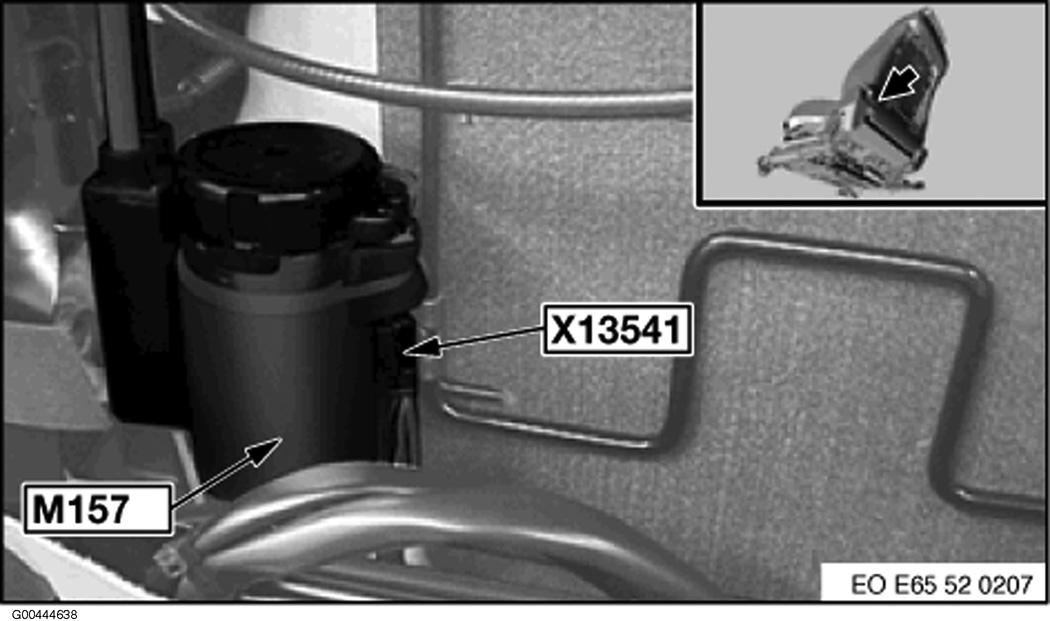

Fig 207: Front Passenger's Seat Back

G00444638

Courtesy of BMW OF NORTH AMERICA, INC.

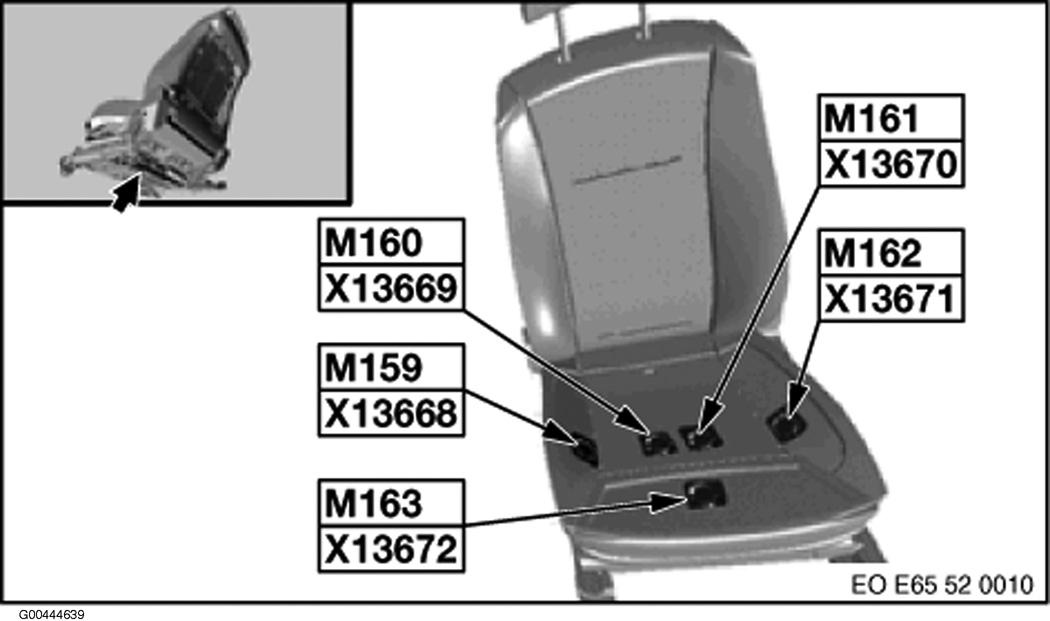

Fig 208: Driver's Seat Cushion

G00444639

Courtesy of BMW OF NORTH AMERICA, INC.

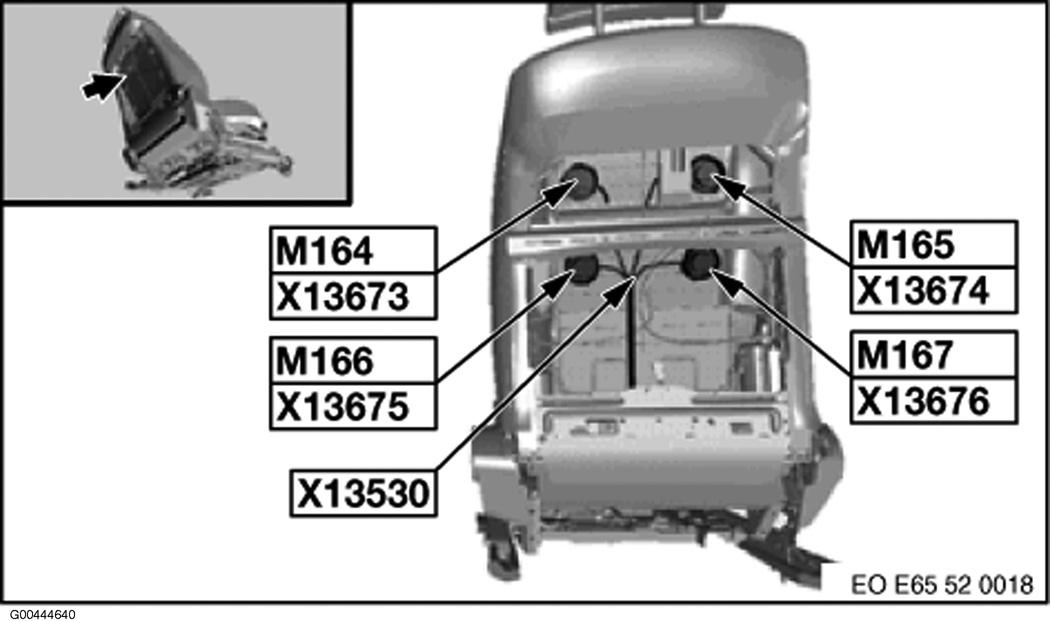

Fig 209: Driver's Seat Back

G00444640

Courtesy of BMW OF NORTH AMERICA, INC.

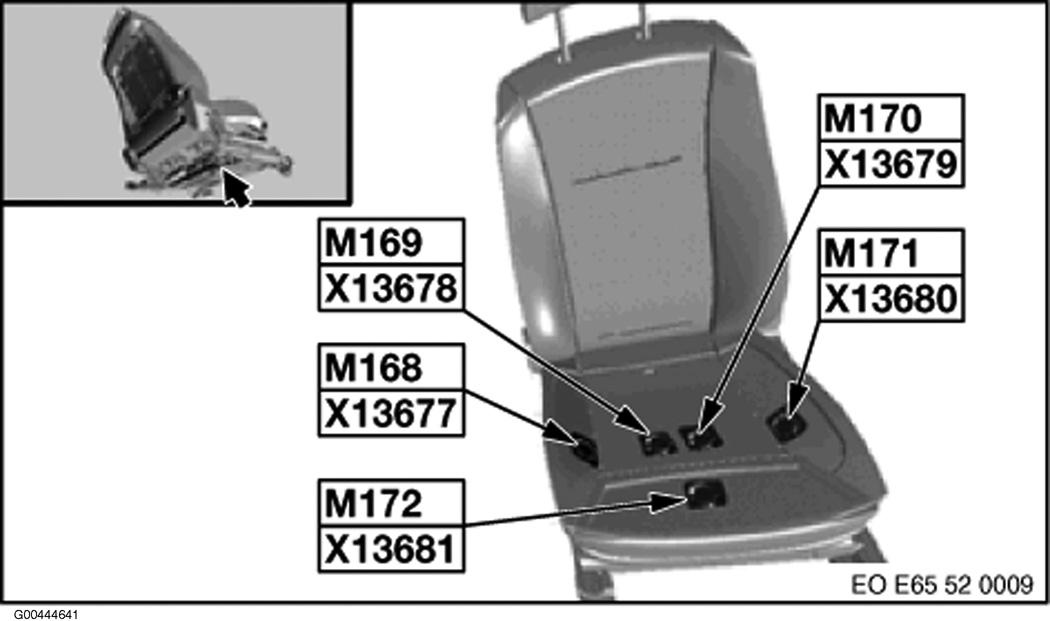

Fig 210: Left Rear Seat Cushion

G00444641

Courtesy of BMW OF NORTH AMERICA, INC.

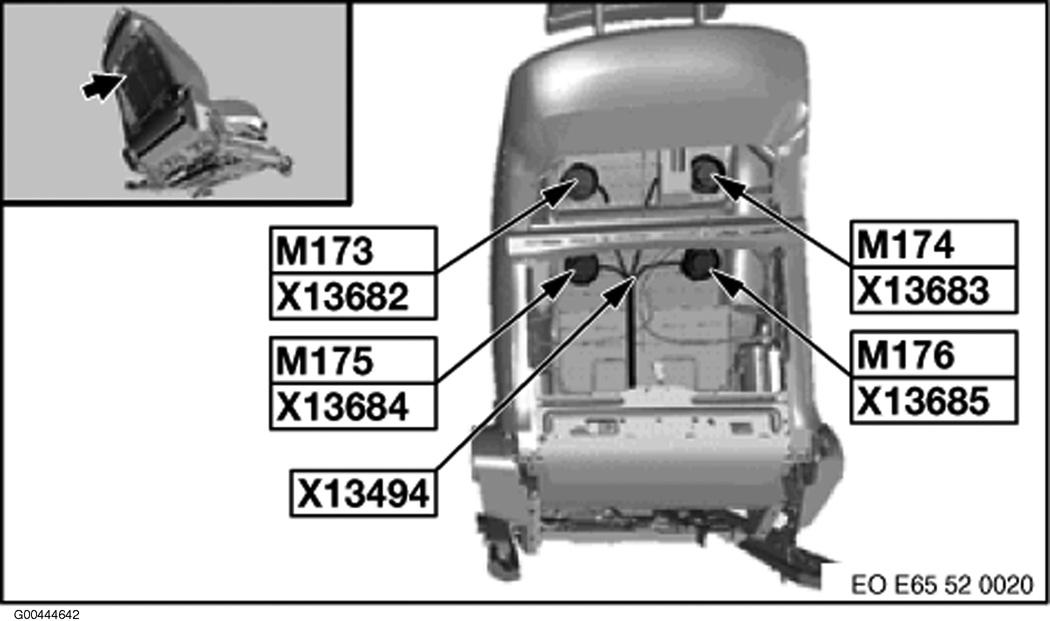

Fig 211: Left Rear Seat Back

G00444642

Courtesy of BMW OF NORTH AMERICA, INC.

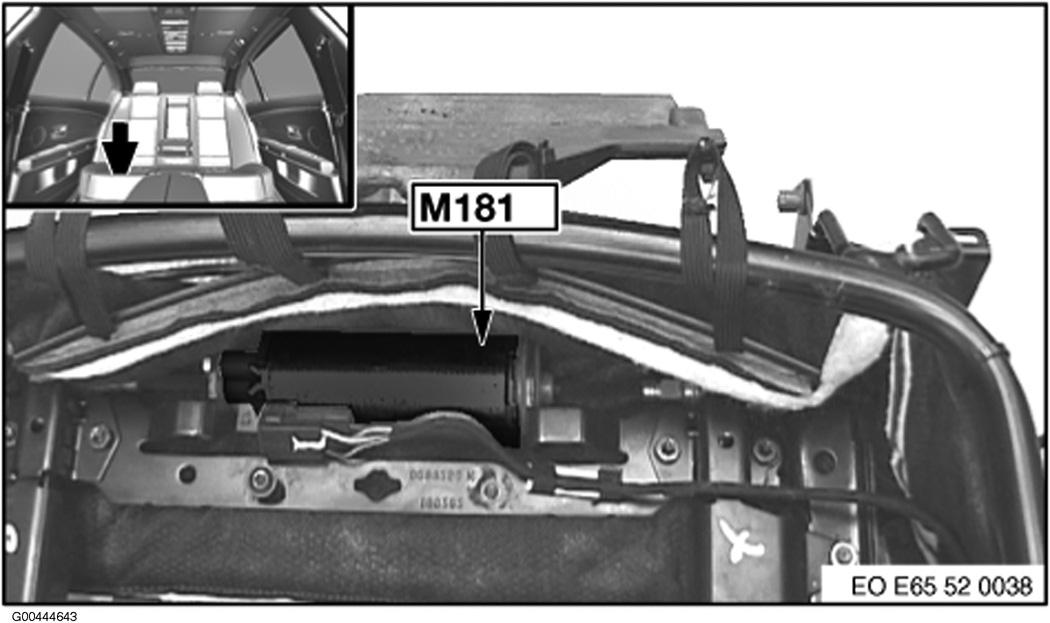

Fig 212: Under Right Rear Seat

G00444643

Courtesy of BMW OF NORTH AMERICA, INC.

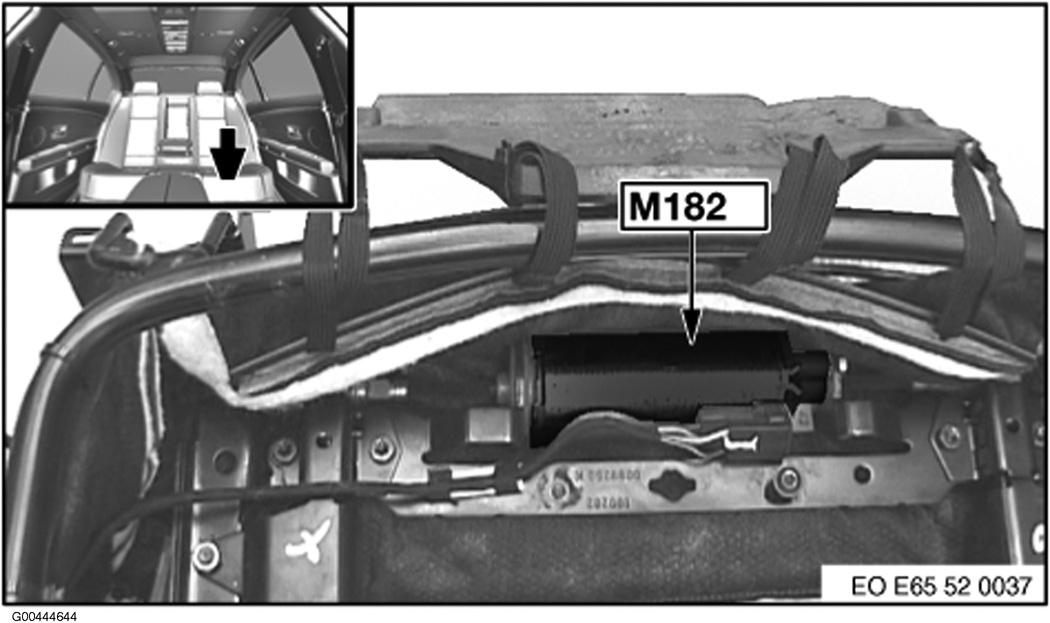

Fig 213: Under Left Rear Seat

G00444644

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 214: Behind Right Rear Seat

G00444645

Courtesy of BMW OF NORTH AMERICA, INC.

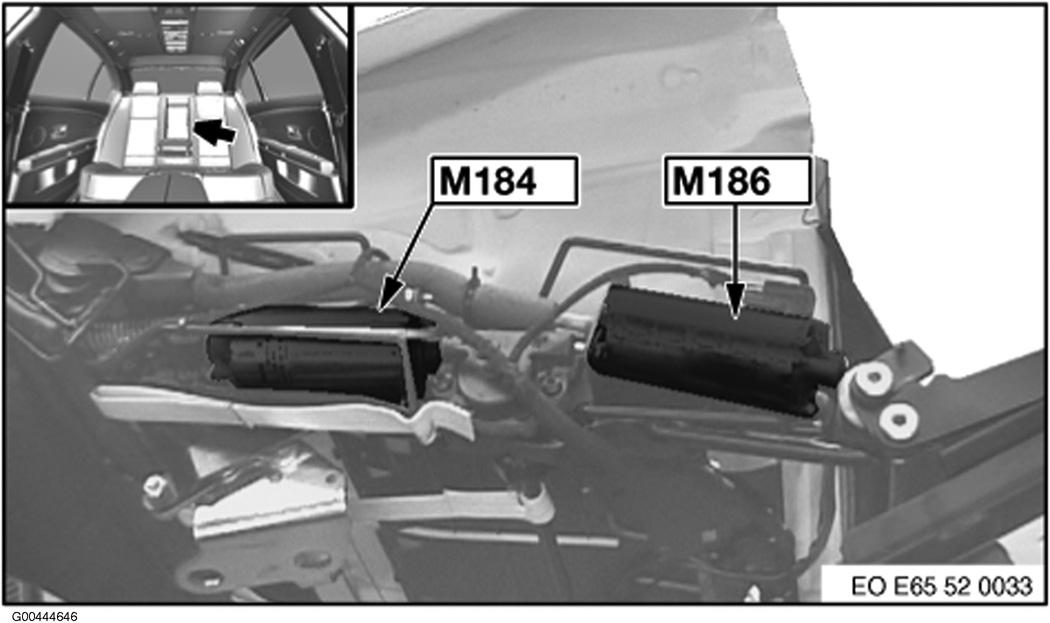

Fig 215: Behind Left Rear Seat

G00444646

Courtesy of BMW OF NORTH AMERICA, INC.

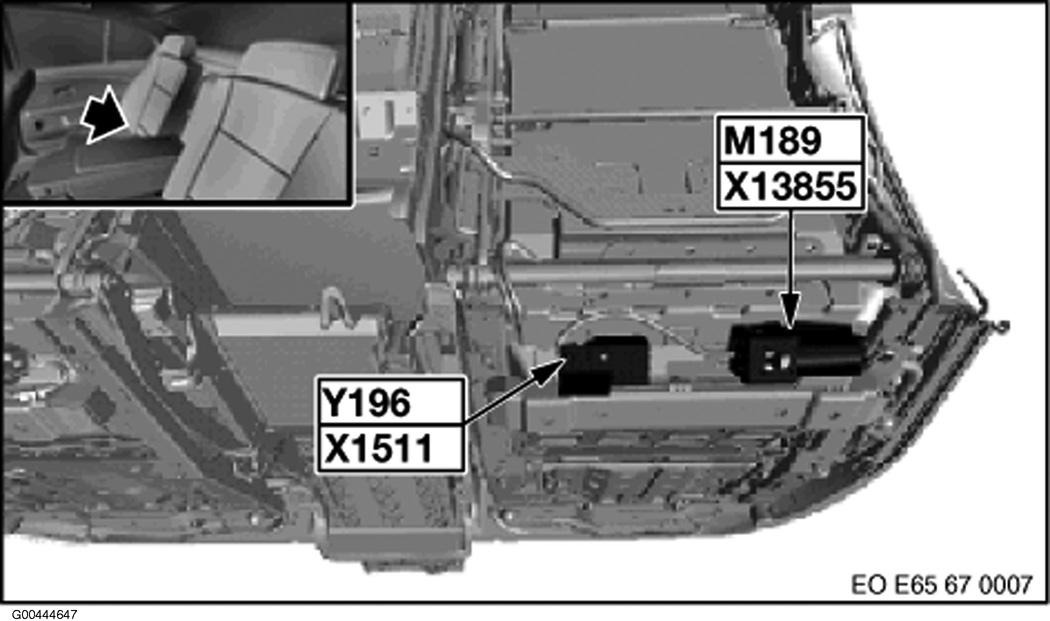

Fig 216: Behind Right Rear Seat

G00444647

Courtesy of BMW OF NORTH AMERICA, INC.

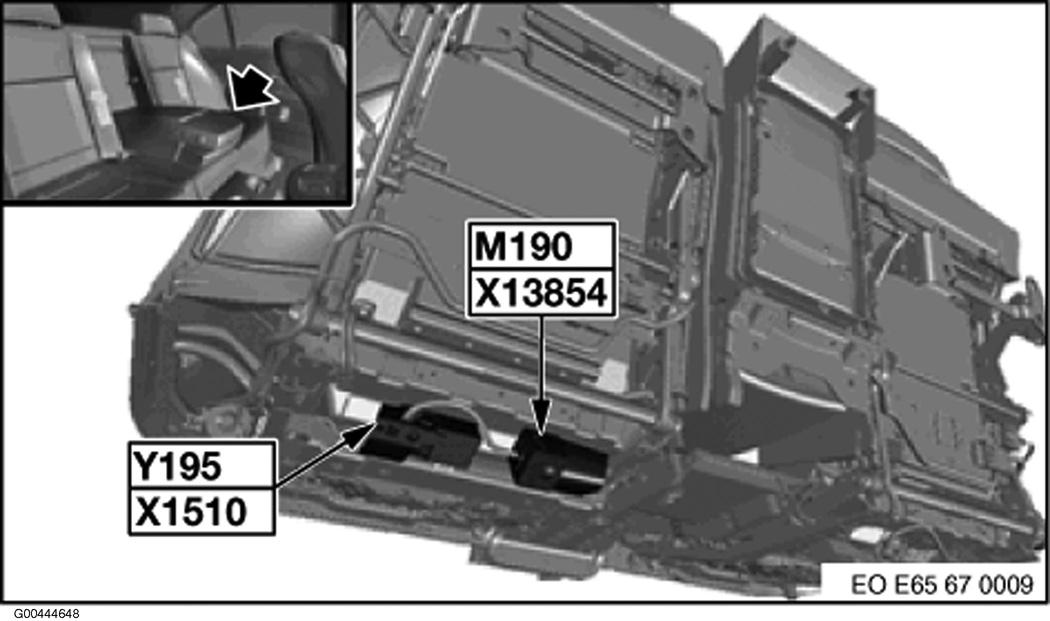

Fig 217: Behind Left Rear Seat

G00444648

Courtesy of BMW OF NORTH AMERICA, INC.

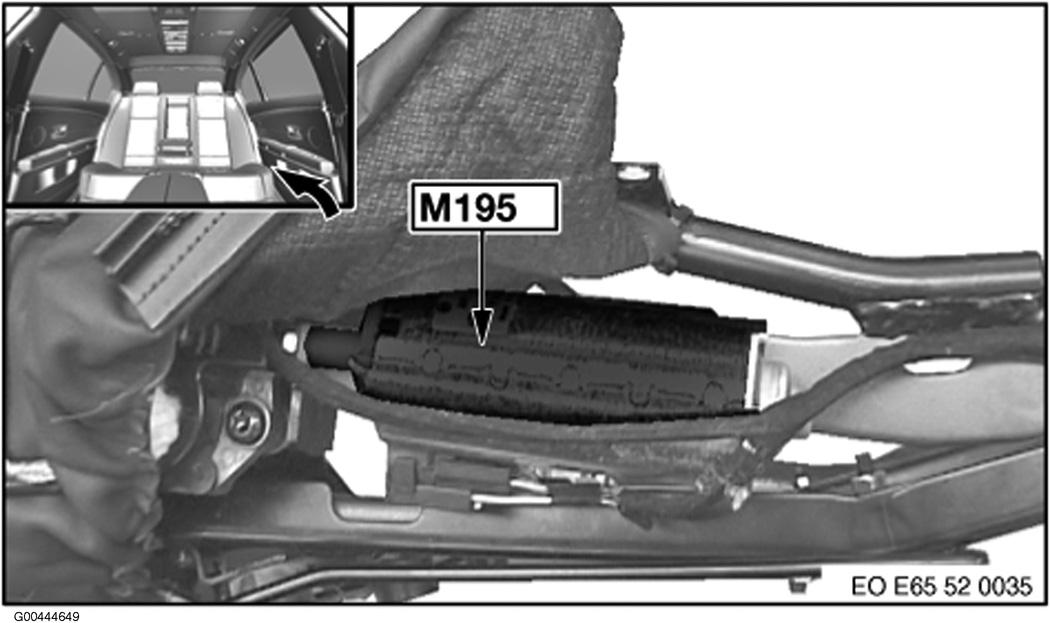

Fig 218: Under Left Rear Seat

G00444649

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 219: Under Right Rear Seat

G00444650

Courtesy of BMW OF NORTH AMERICA, INC.

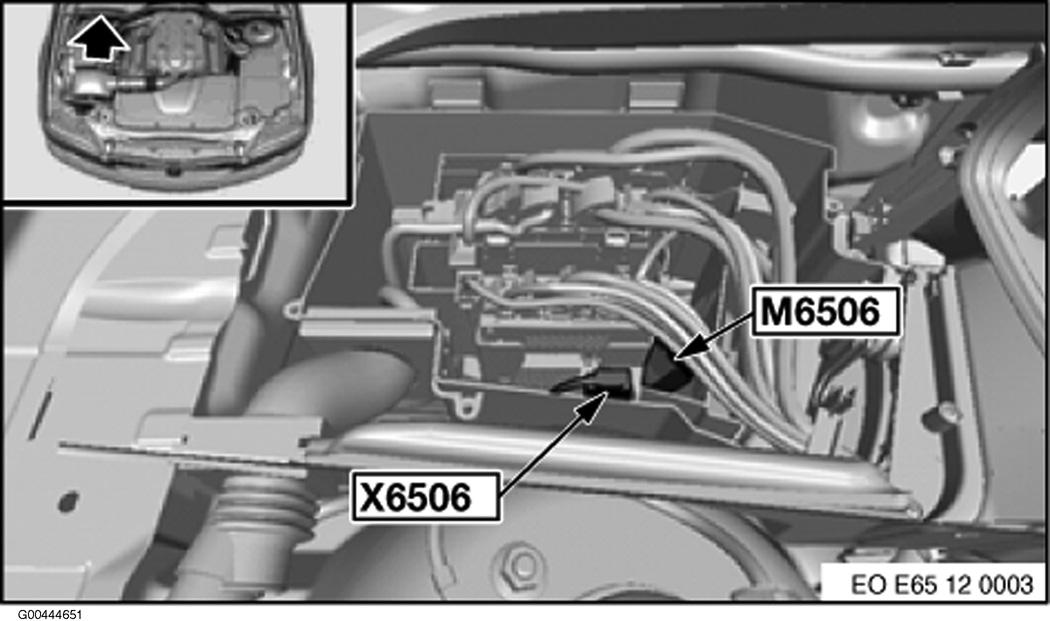

Fig 220: Right Rear Of Engine Compartment

G00444651

Courtesy of BMW OF NORTH AMERICA, INC.

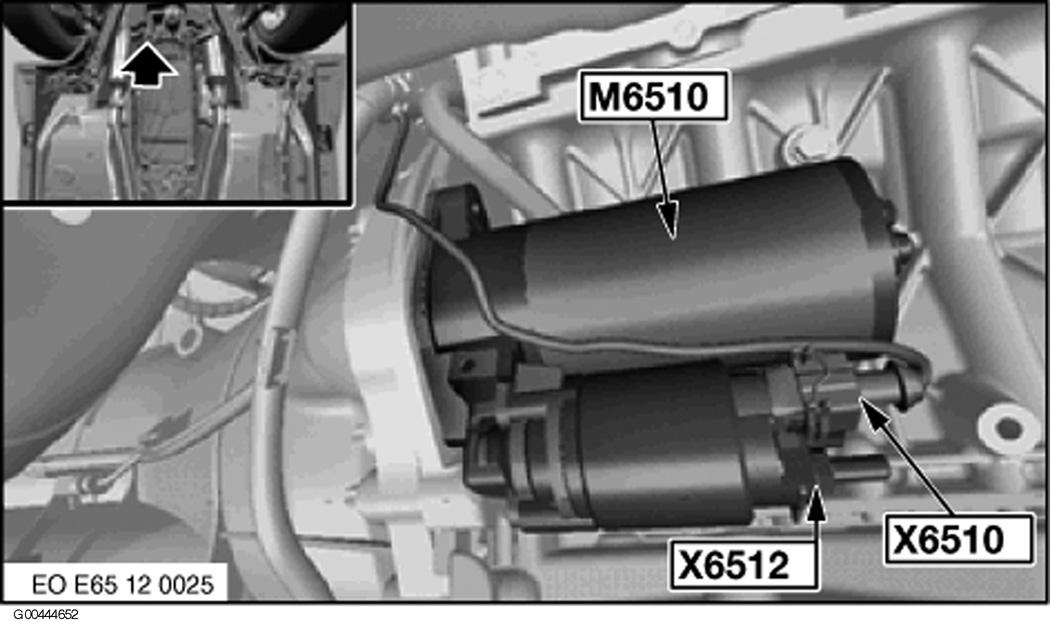

Fig 221: Under Vehicle

G00444652

Courtesy of BMW OF NORTH AMERICA, INC.

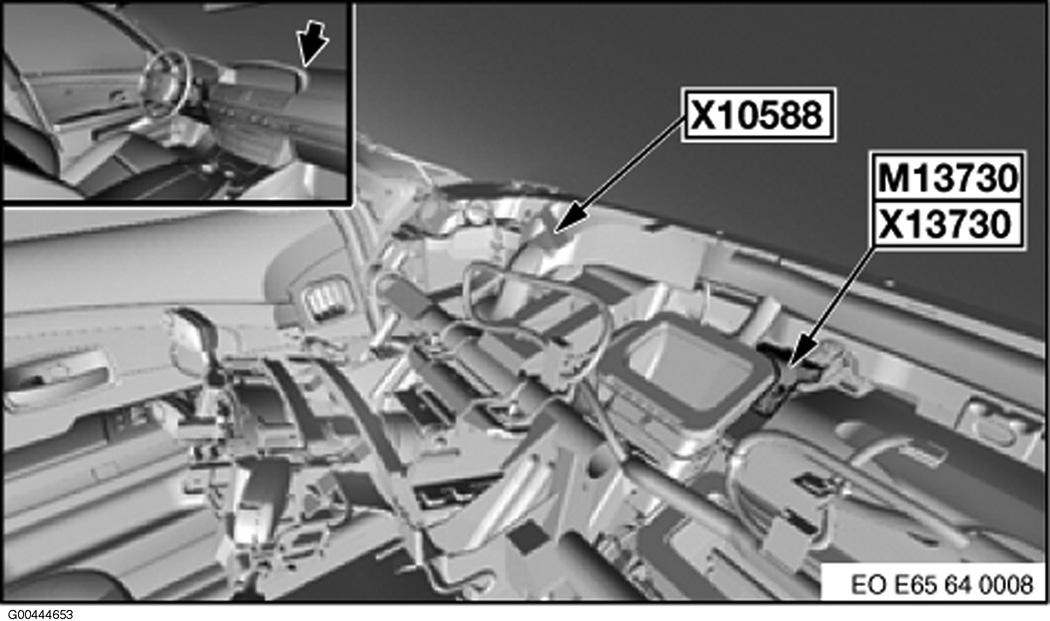

Fig 222: Top Center Of Dash

G00444653

Courtesy of BMW OF NORTH AMERICA, INC.

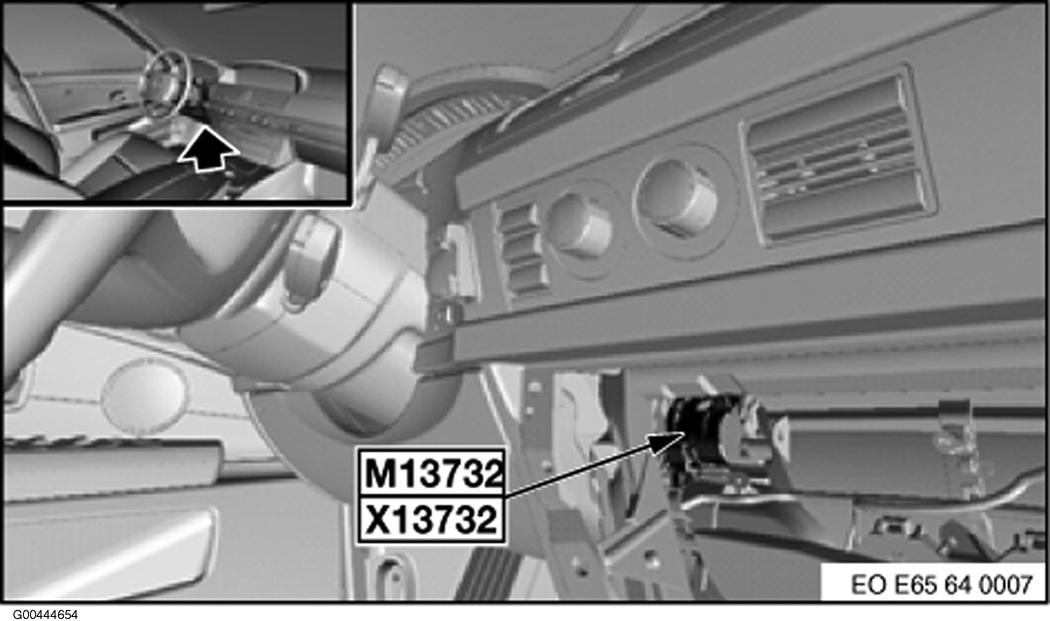

Fig 223: Center Of Dash

G00444654

Courtesy of BMW OF NORTH AMERICA, INC.

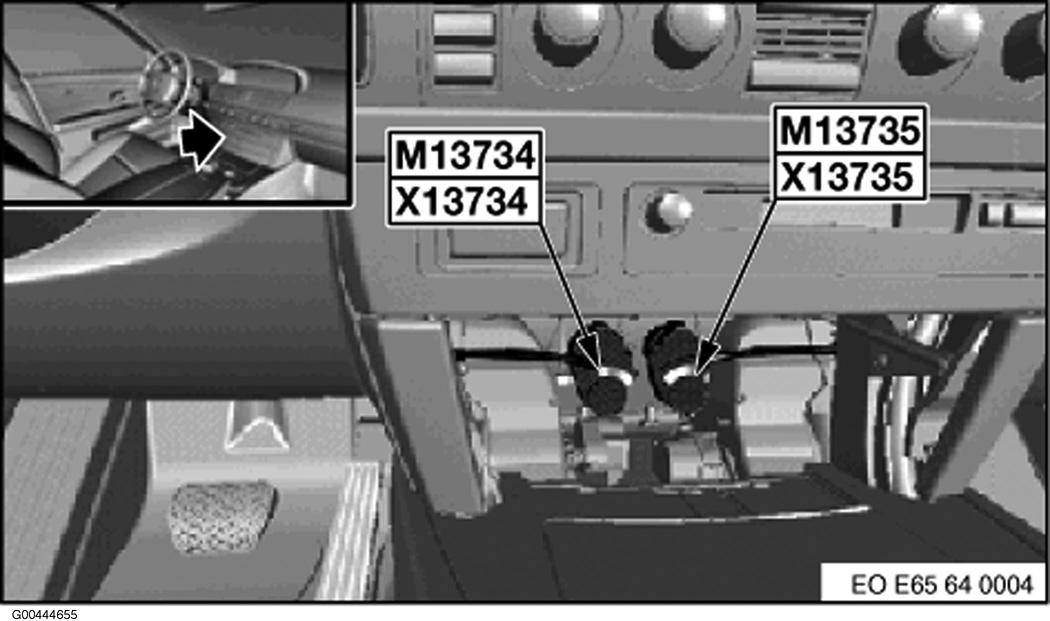

Fig 224: Center Of Dash

G00444655

Courtesy of BMW OF NORTH AMERICA, INC.

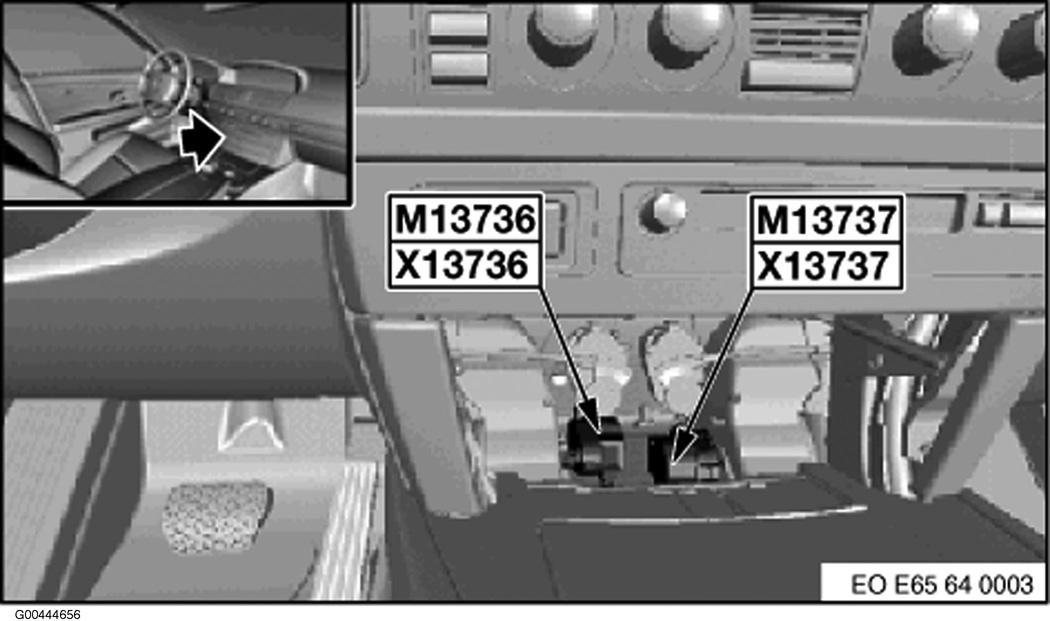

Fig 225: Center Of Dash

G00444656

Courtesy of BMW OF NORTH AMERICA, INC.

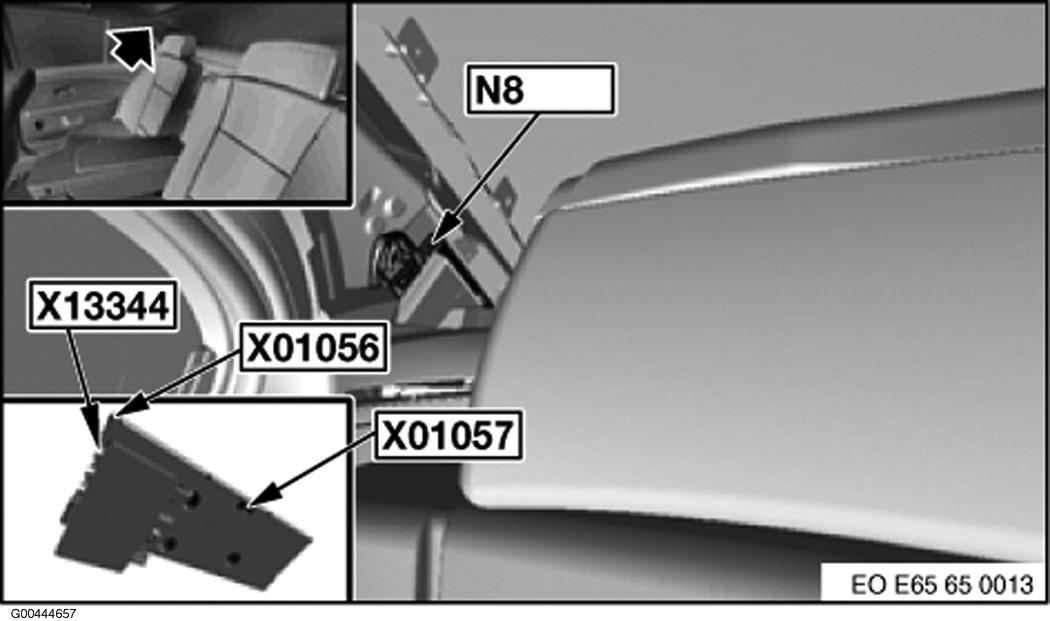

Fig 226: Bottom Of Right "C" Pillar

G00444657

Courtesy of BMW OF NORTH AMERICA, INC.

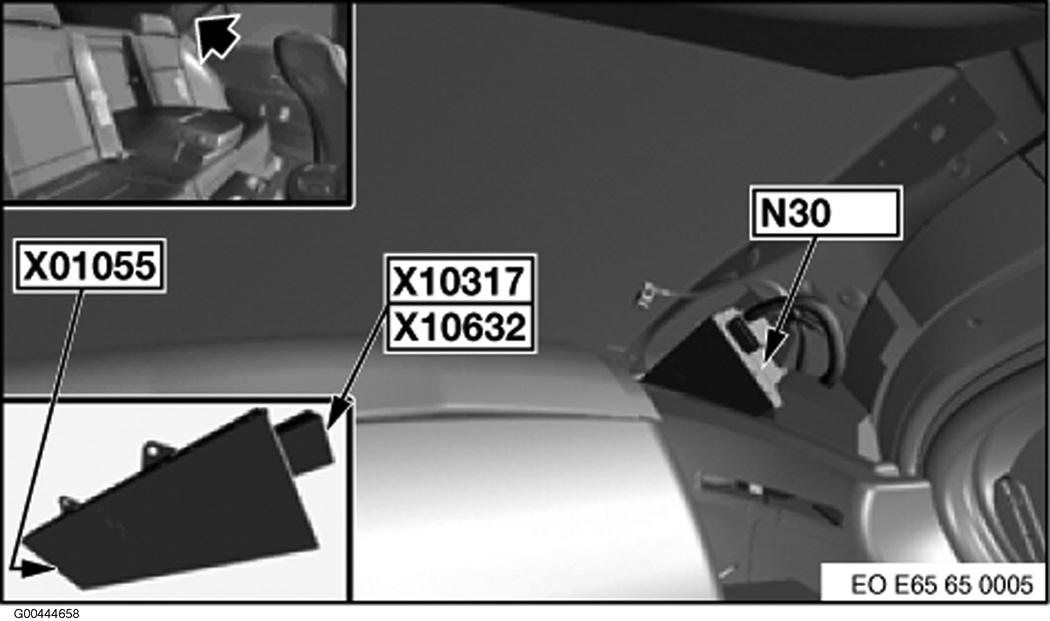

Fig 227: Bottom Of Left "C" Pillar

G00444658

Courtesy of BMW OF NORTH AMERICA, INC.

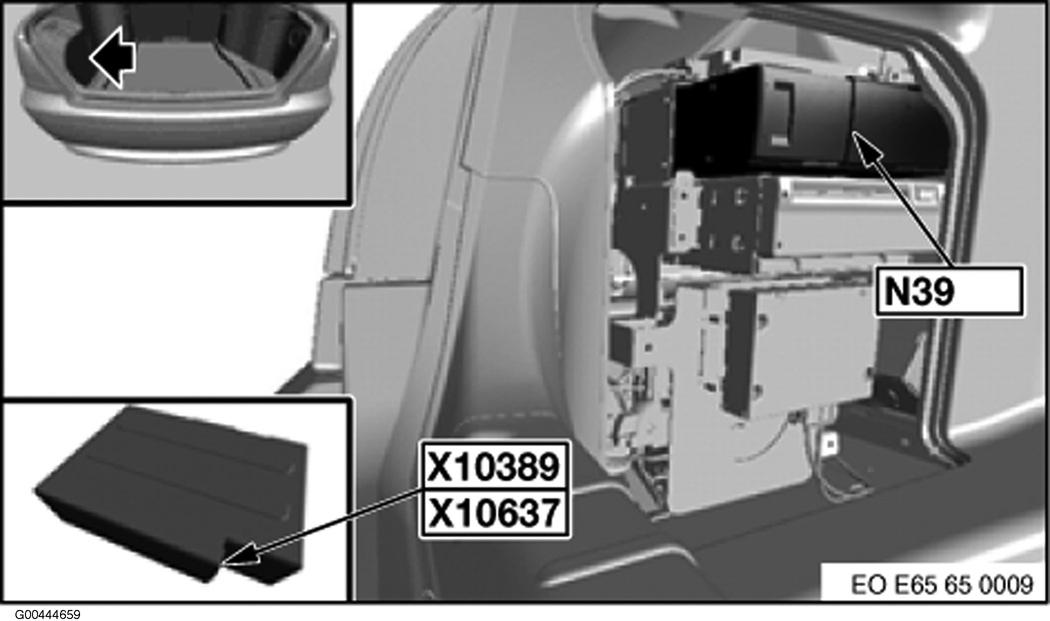

Fig 228: Rear Compartment

G00444659

Courtesy of BMW OF NORTH AMERICA, INC.

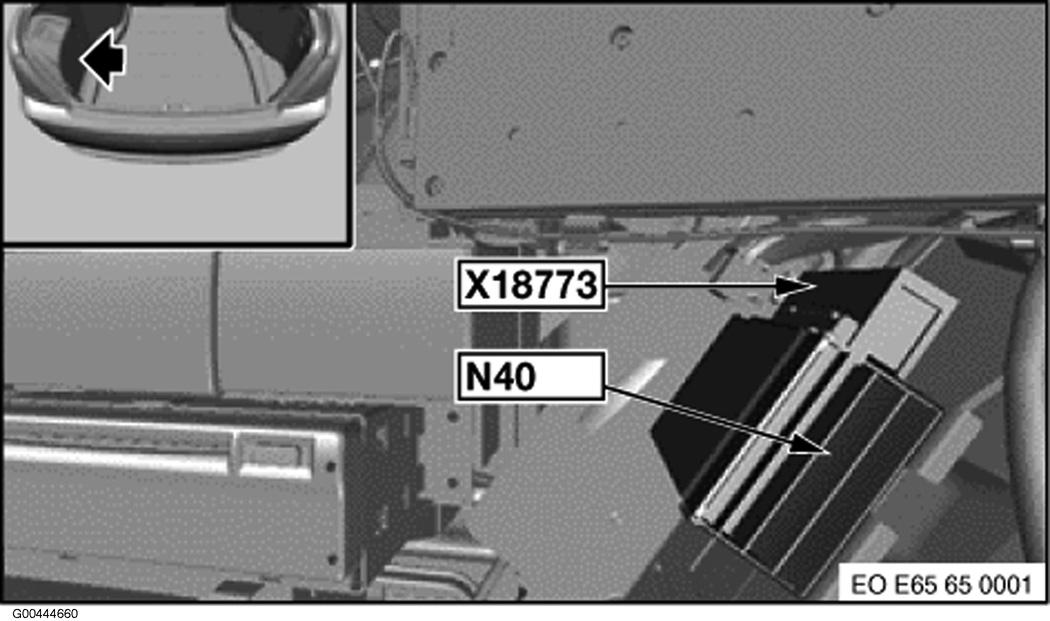

Fig 229: Rear Compartment

G00444660

Courtesy of BMW OF NORTH AMERICA, INC.

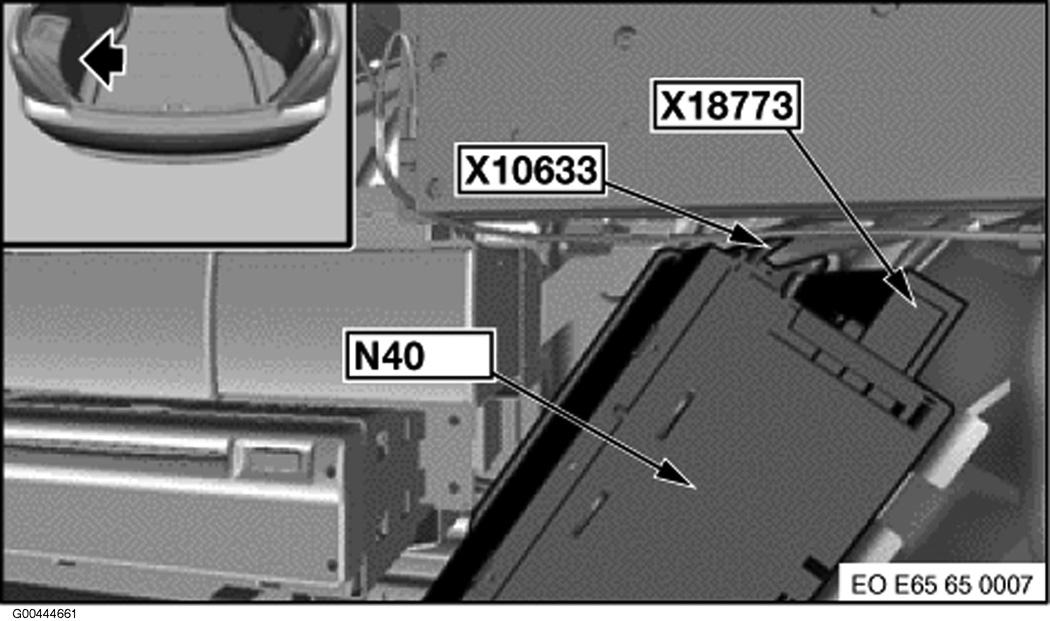

Fig 230: Rear Compartment

G00444661

Courtesy of BMW OF NORTH AMERICA, INC.

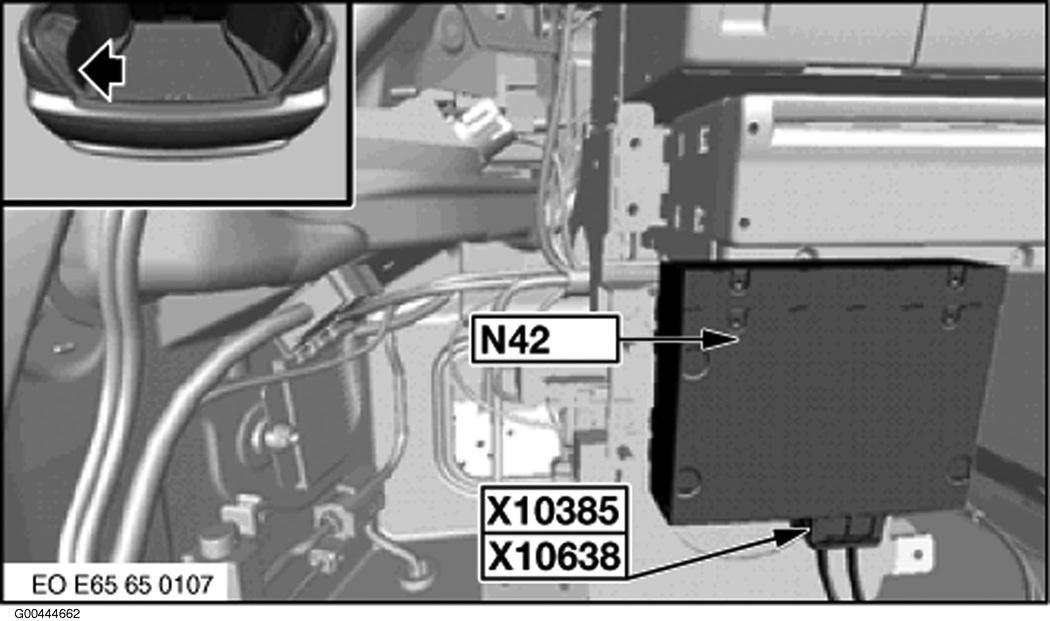

Fig 231: Rear Compartment

G00444662

Courtesy of BMW OF NORTH AMERICA, INC.

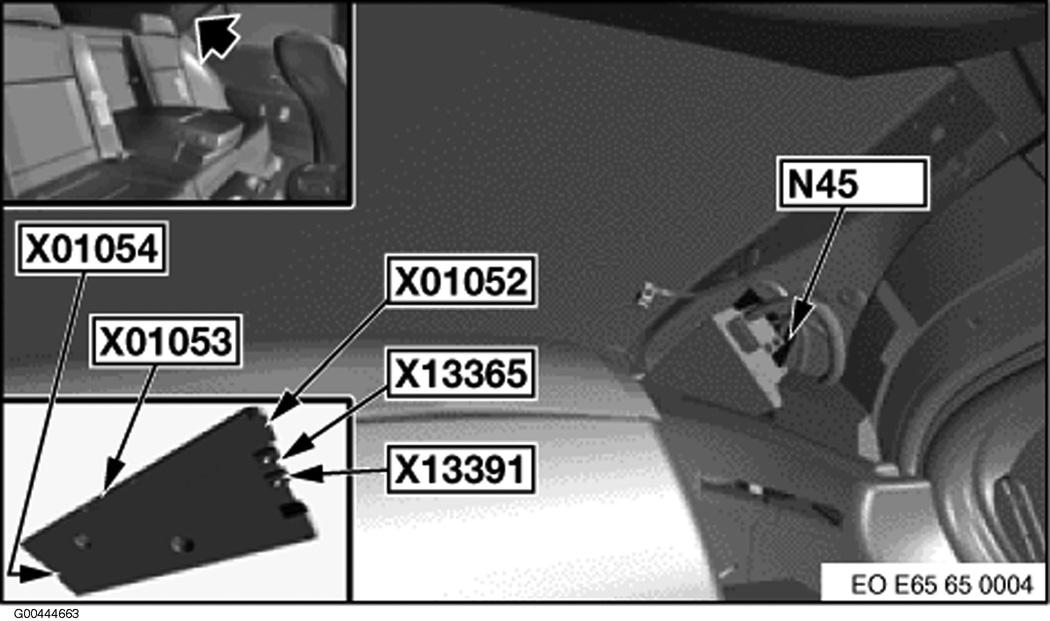

Fig 232: Bottom Of Left "C" Pillar

G00444663

Courtesy of BMW OF NORTH AMERICA, INC.

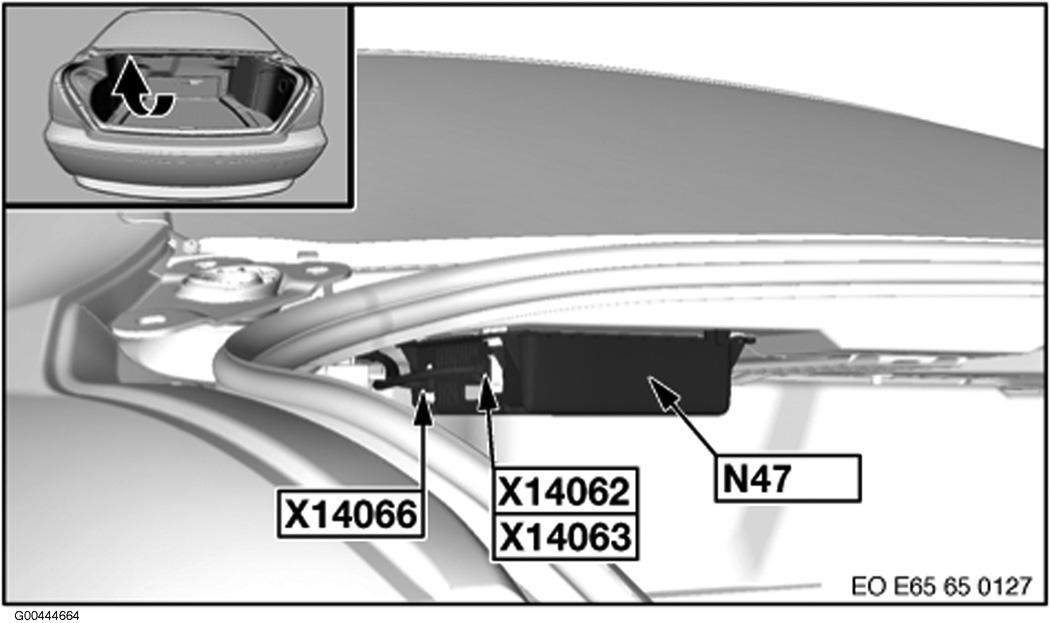

Fig 233: Rear Compartment

G00444664

Courtesy of BMW OF NORTH AMERICA, INC.

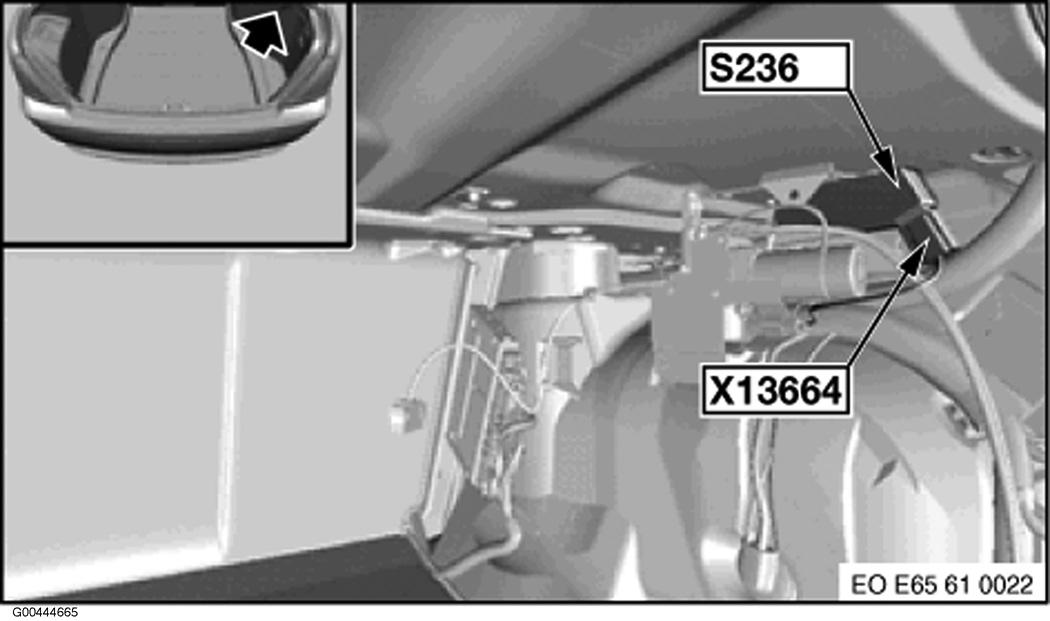

Fig 234: Rear Compartment

G00444665

Courtesy of BMW OF NORTH AMERICA, INC.

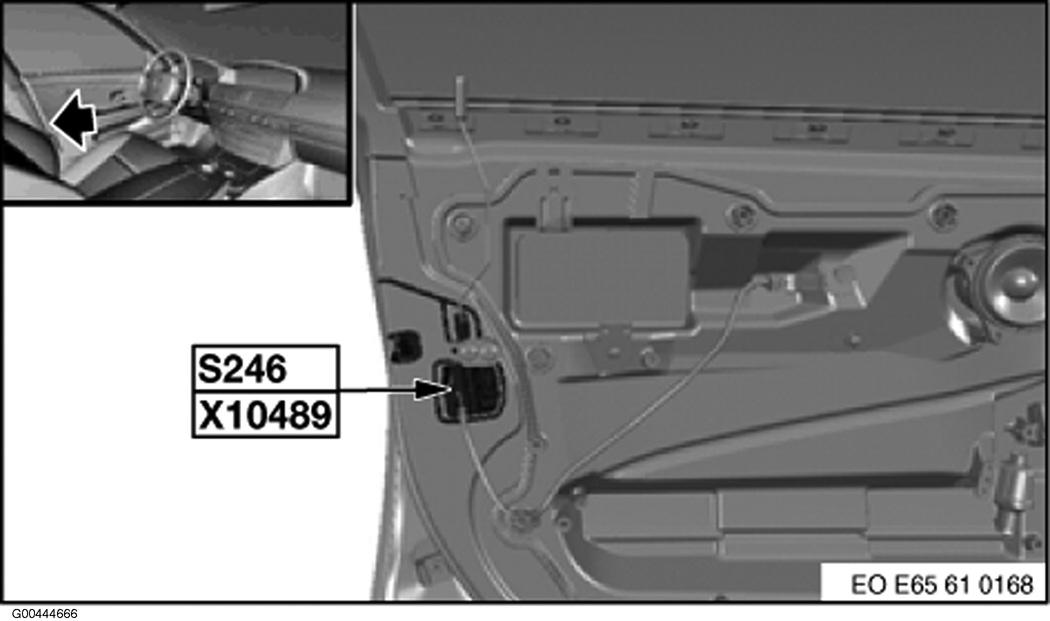

Fig 235: Driver's Door

G00444666

Courtesy of BMW OF NORTH AMERICA, INC.

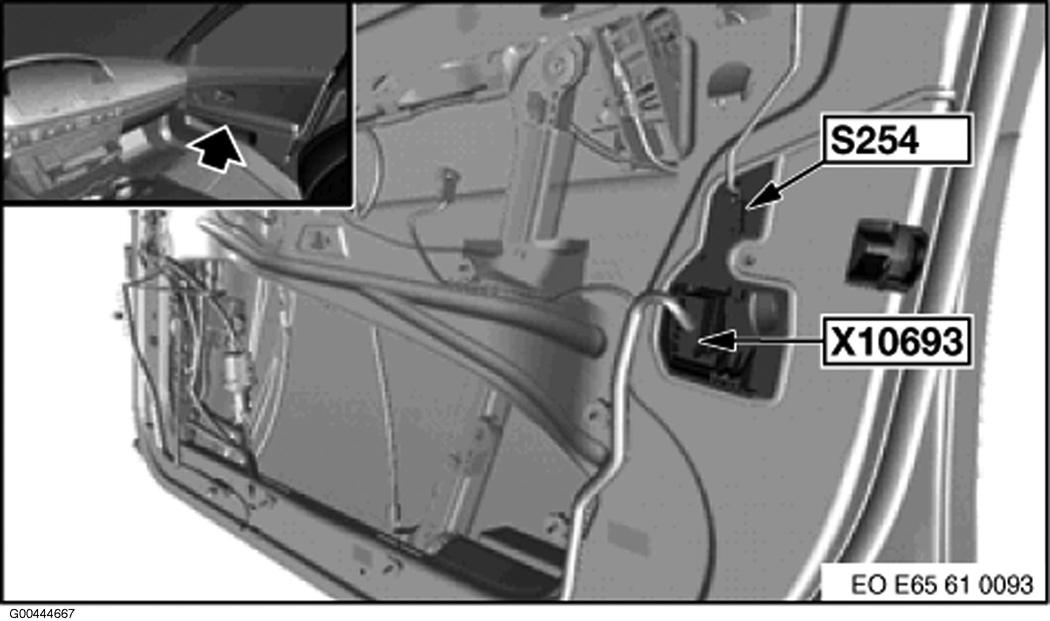

Fig 236: Front Passenger's Door

G00444667

Courtesy of BMW OF NORTH AMERICA, INC.

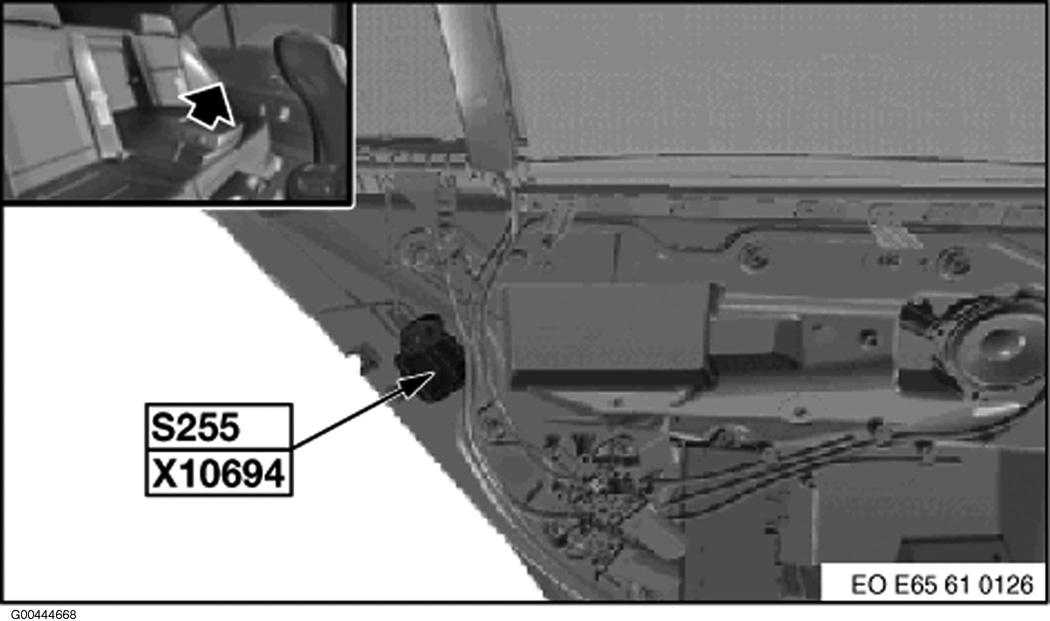

Fig 237: Left Rear Door

G00444668

Courtesy of BMW OF NORTH AMERICA, INC.

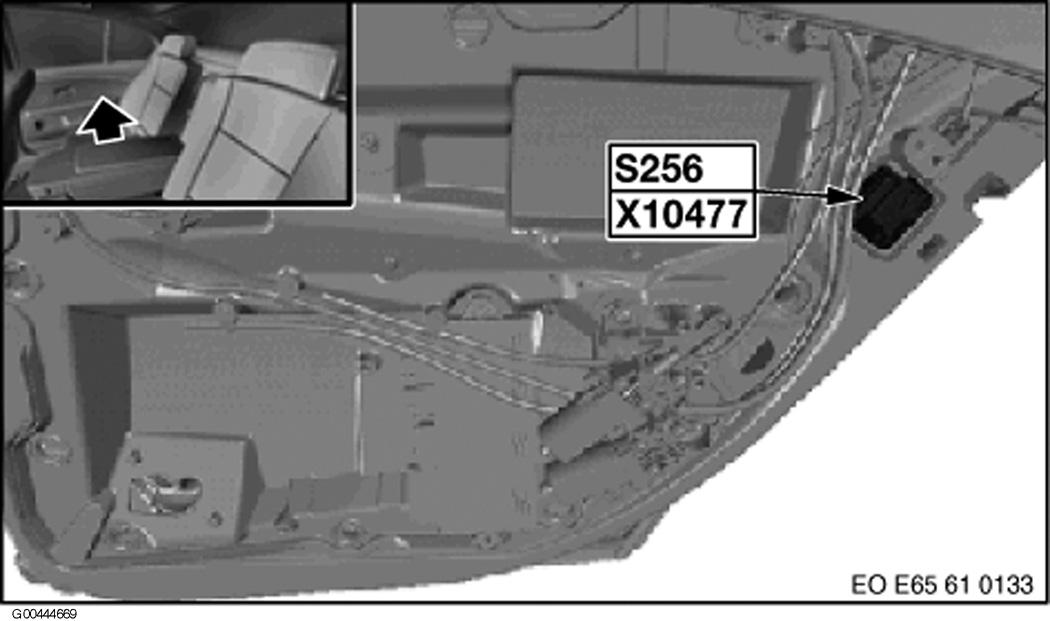

Fig 238: Right Rear Door

G00444669

Courtesy of BMW OF NORTH AMERICA, INC.

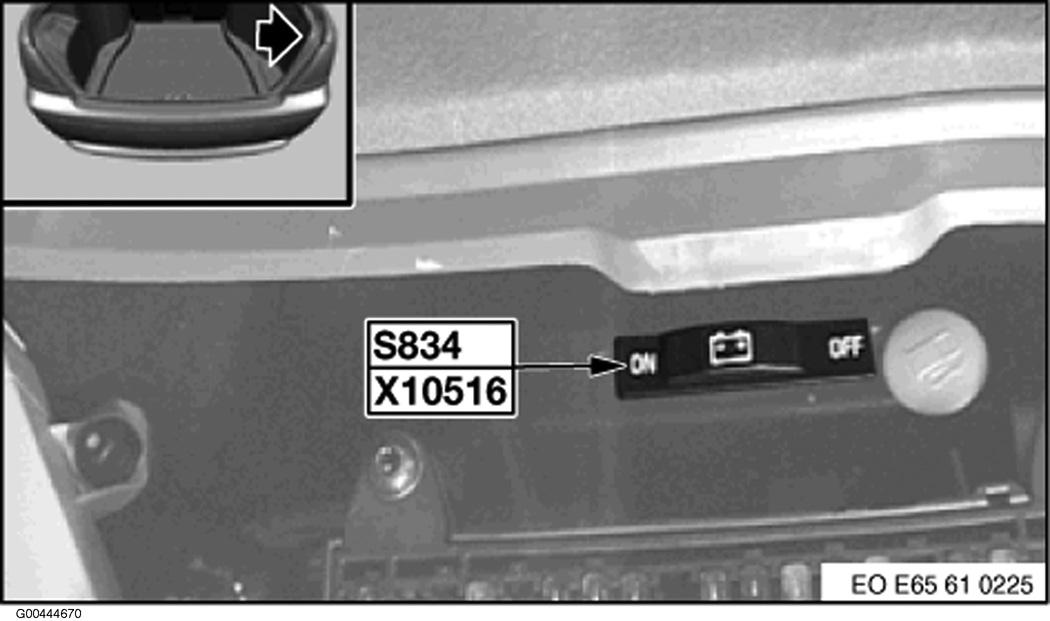

Fig 239: Rear Compartment

G00444670

Courtesy of BMW OF NORTH AMERICA, INC.

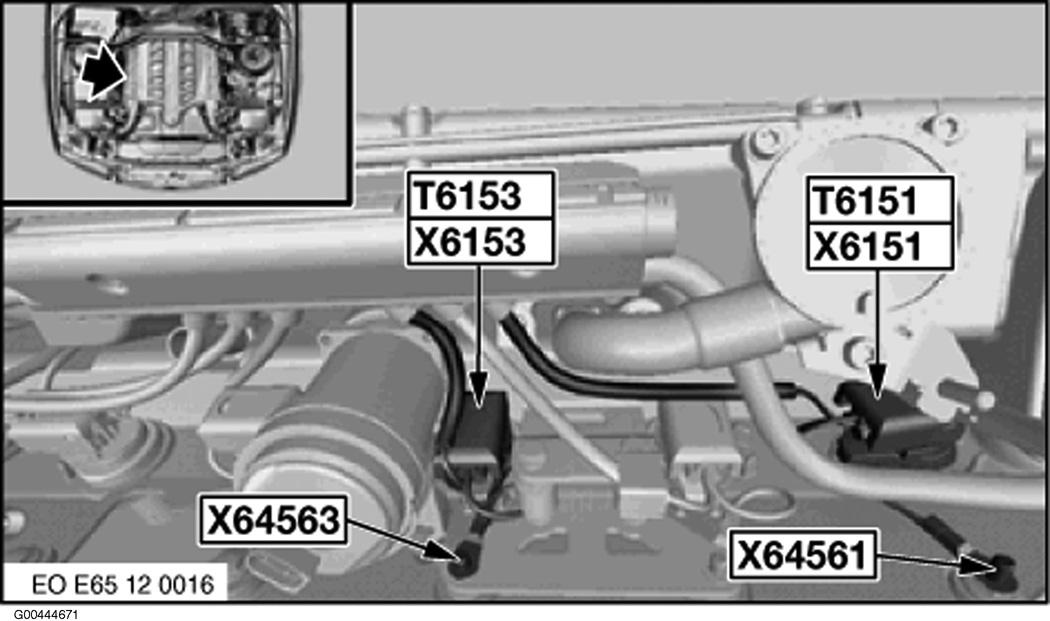

Fig 240: Right Side Of Engine Compartment (6.0L)

G00444671

Courtesy of BMW OF NORTH AMERICA, INC.

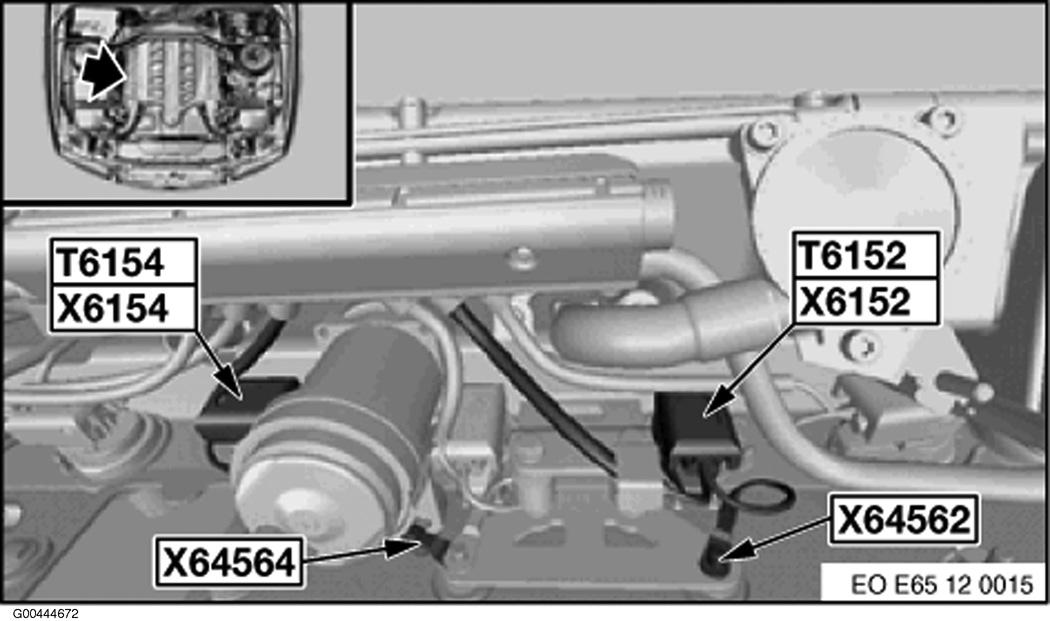

Fig 241: Right Side Of Engine Compartment (6.0L)

G00444672

Courtesy of BMW OF NORTH AMERICA, INC.

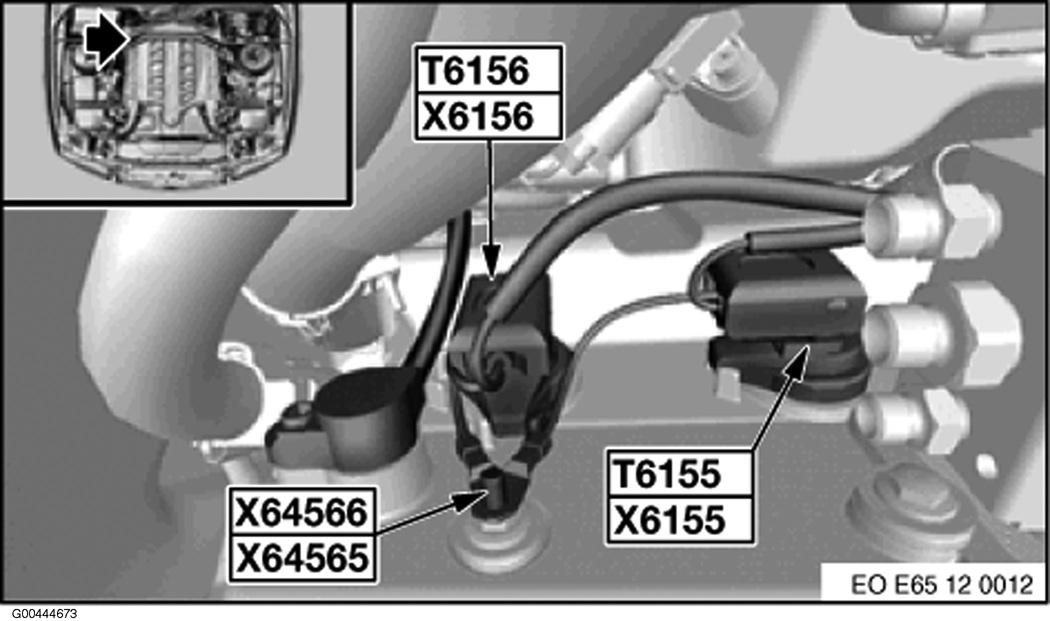

Fig 242: Right Rear Of Engine Compartment (6.0L)

G00444673

Courtesy of BMW OF NORTH AMERICA, INC.

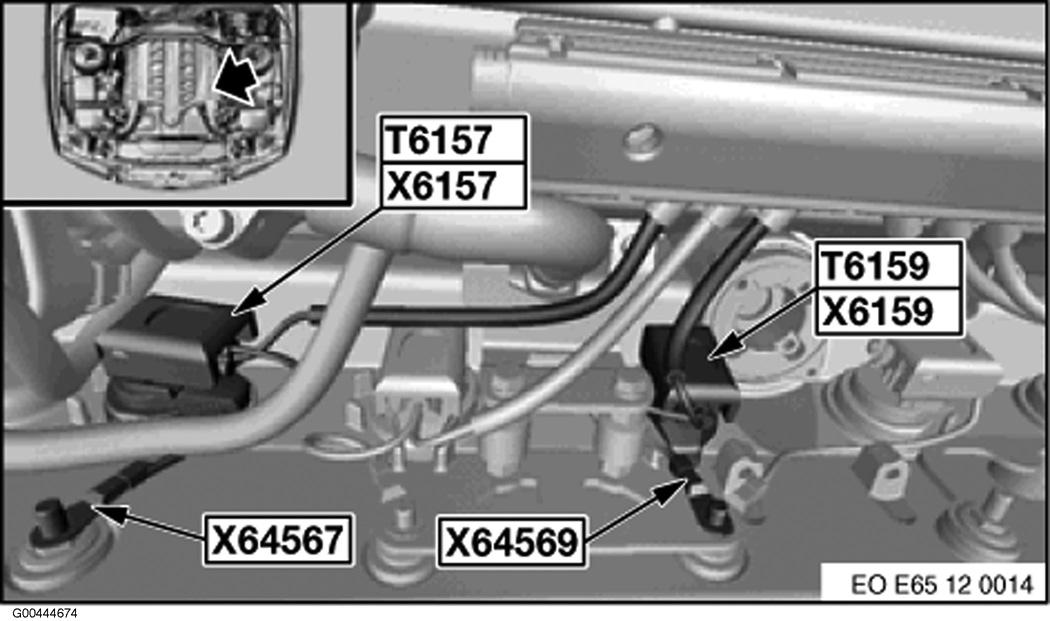

Fig 243: Left Side Of Engine Compartment (6.0L)

G00444674

Courtesy of BMW OF NORTH AMERICA, INC.

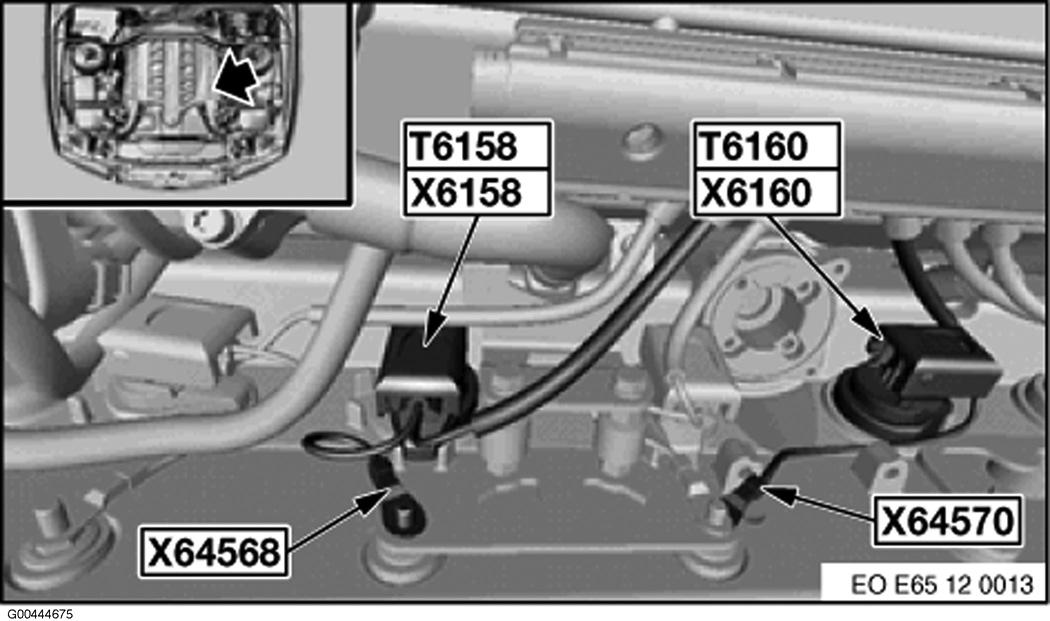

Fig 244: Left Side Of Engine Compartment (6.0L)

G00444675

Courtesy of BMW OF NORTH AMERICA, INC.

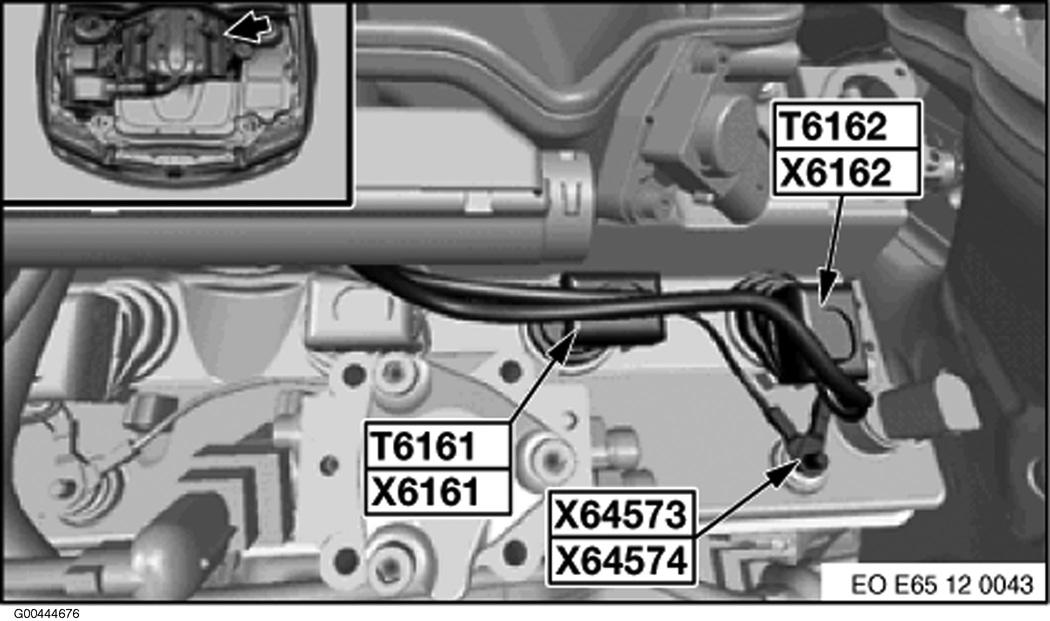

Fig 245: Left Rear Of Engine Compartment (6.0L)

G00444676

Courtesy of BMW OF NORTH AMERICA, INC.

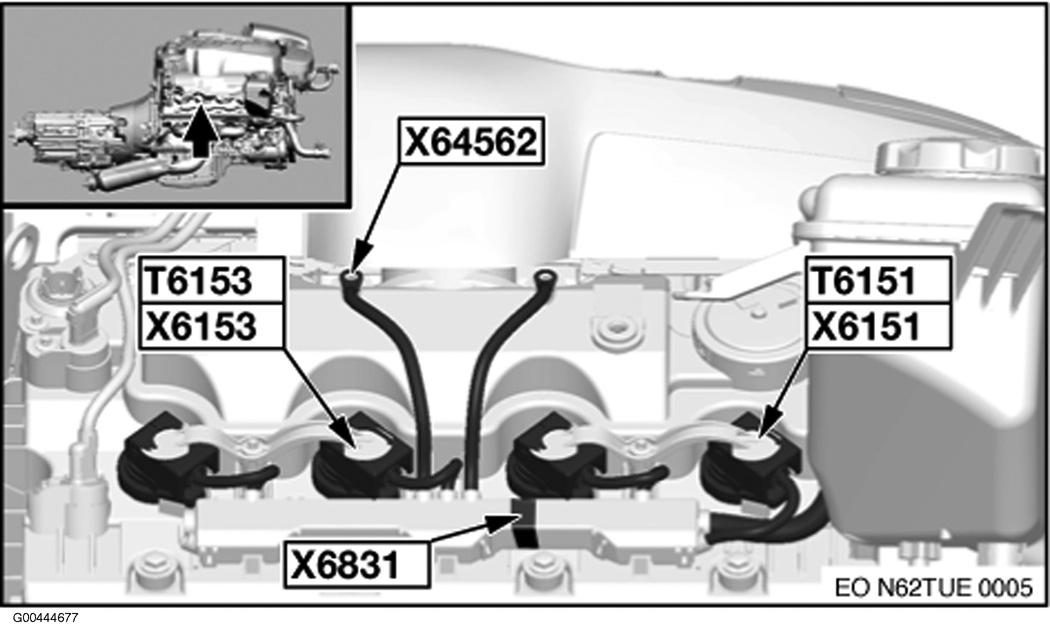

Fig 246: Right Side Of Engine (4.8L)

G00444677

Courtesy of BMW OF NORTH AMERICA, INC.

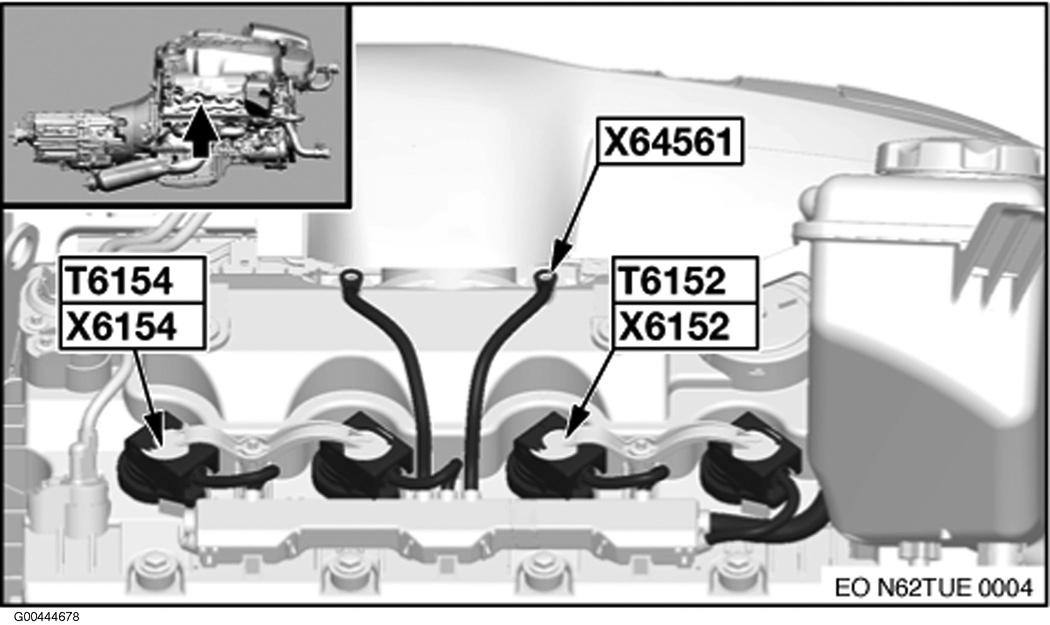

Fig 247: Right Side Of Engine (4.8L)

G00444678

Courtesy of BMW OF NORTH AMERICA, INC.

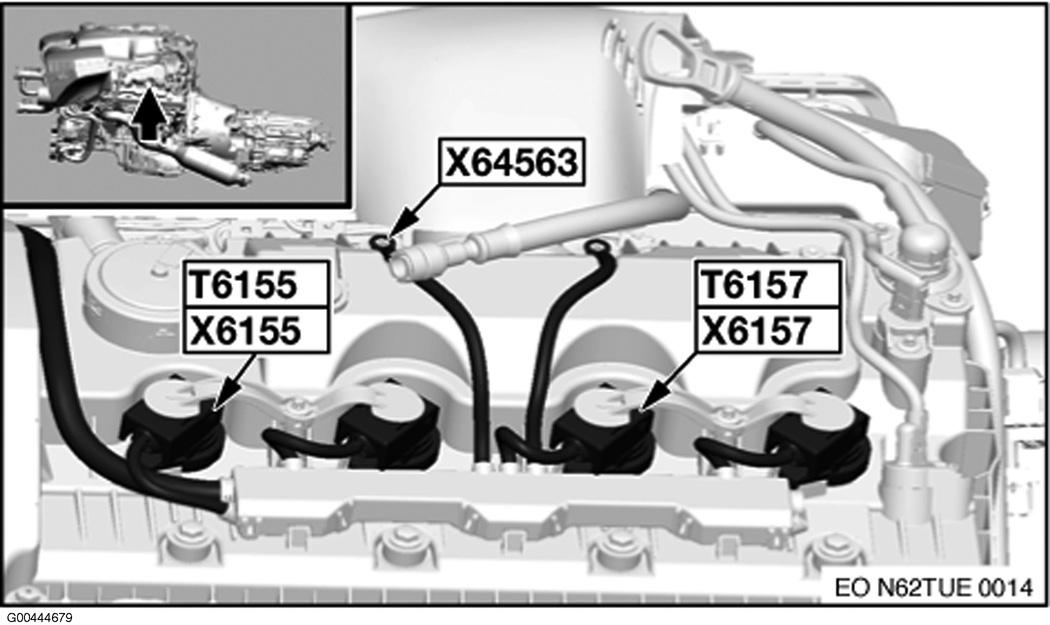

Fig 248: Left Side Of Engine (4.8L)

G00444679

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 249: Rear Compartment

G00444680

Courtesy of BMW OF NORTH AMERICA, INC.

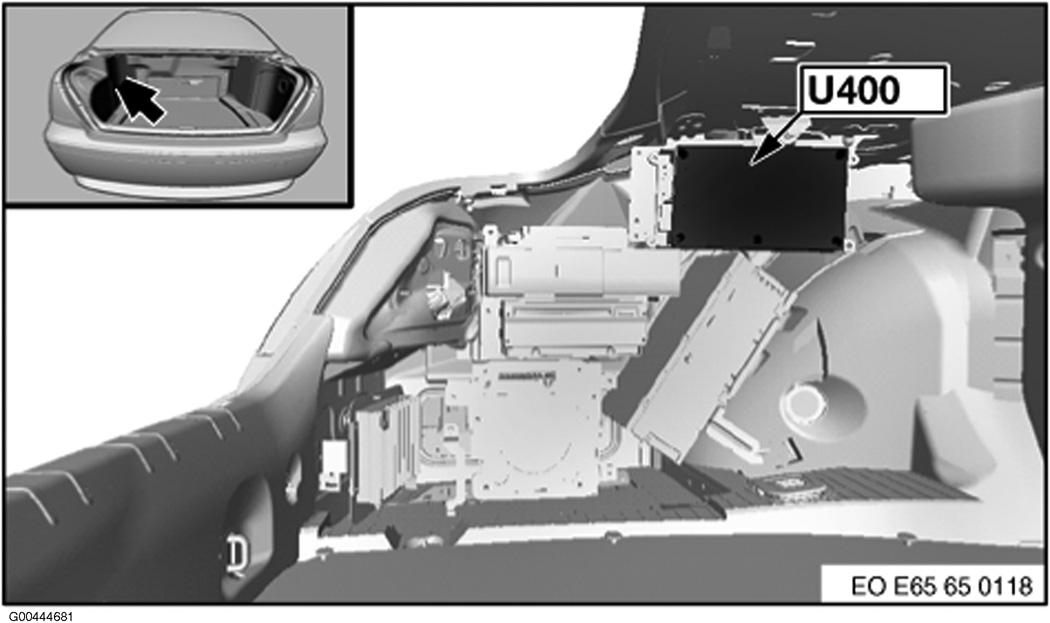

Fig 250: Rear Compartment

G00444681

Courtesy of BMW OF NORTH AMERICA, INC.

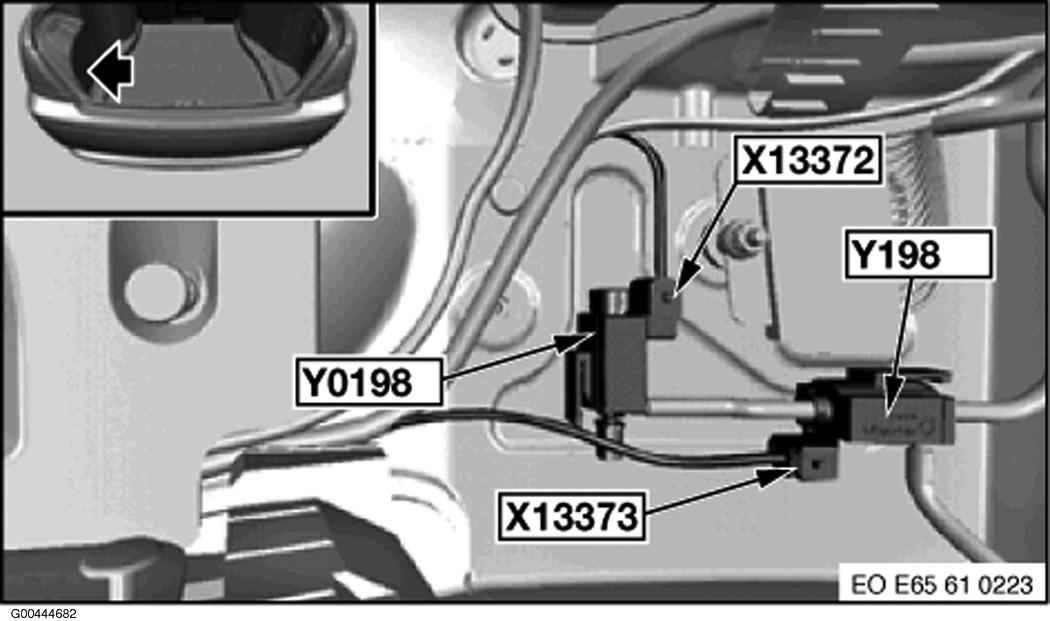

Fig 251: Rear Compartment

G00444682

Courtesy of BMW OF NORTH AMERICA, INC.

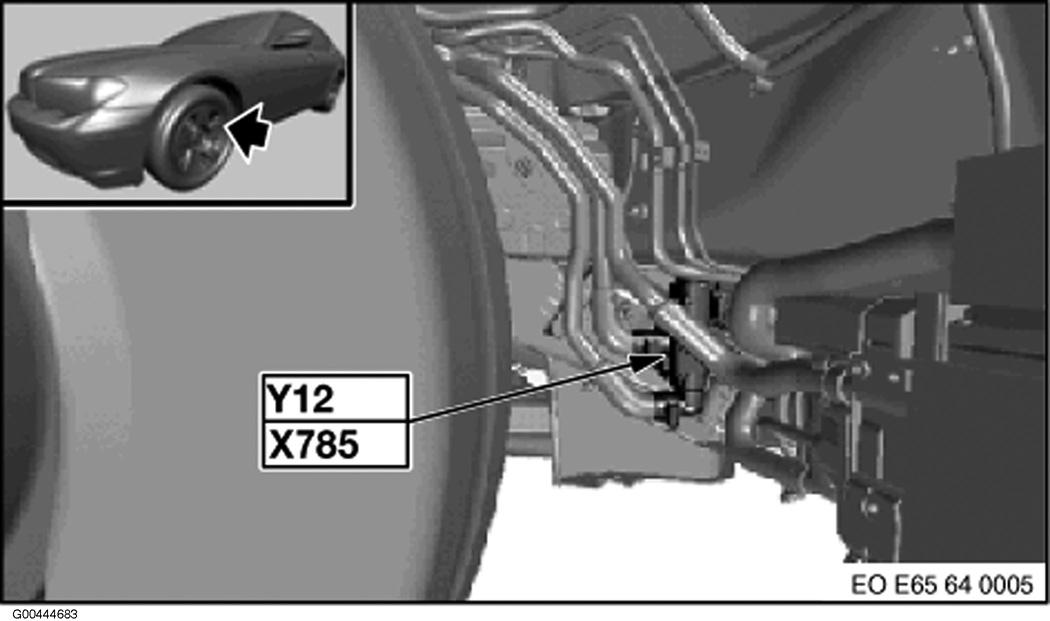

Fig 252: Behind Left Front Wheel

G00444683

Courtesy of BMW OF NORTH AMERICA, INC.

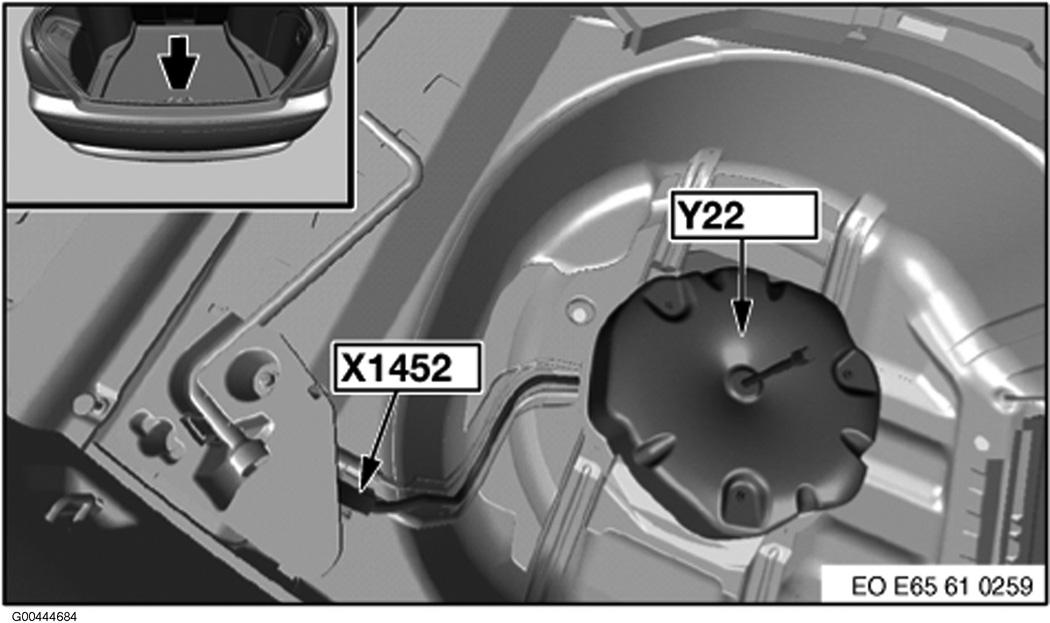

Fig 253: Rear Compartment

G00444684

Courtesy of BMW OF NORTH AMERICA, INC.

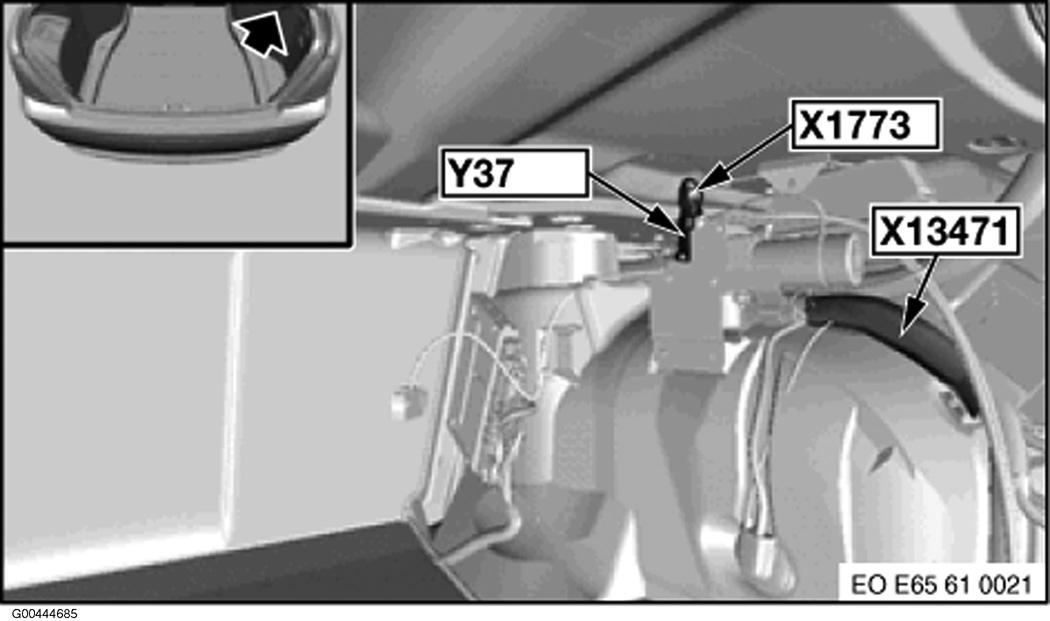

Fig 254: Rear Compartment

G00444685

Courtesy of BMW OF NORTH AMERICA, INC.

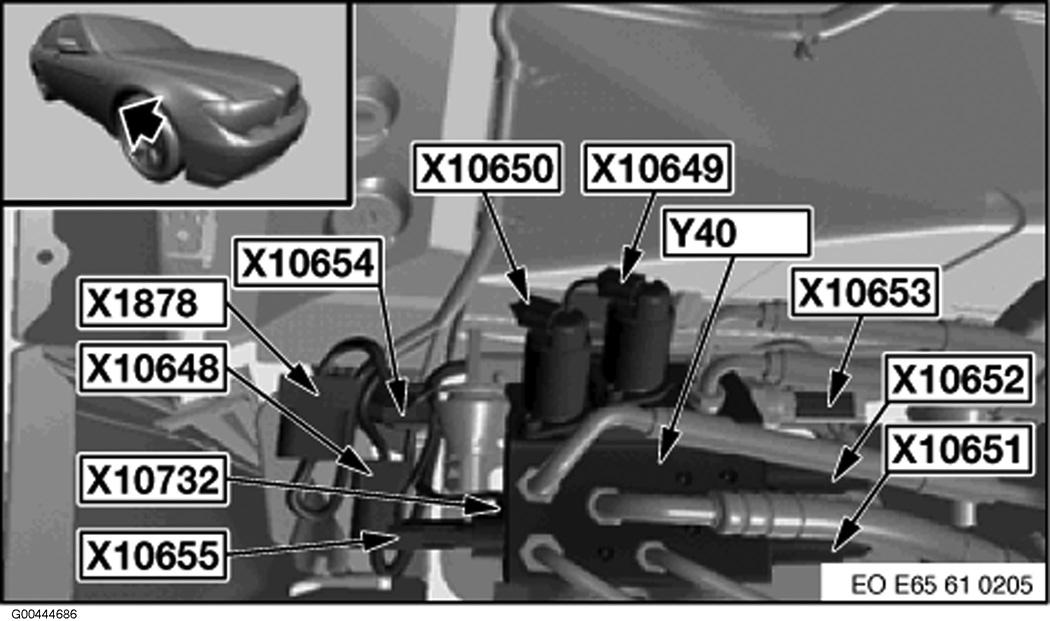

Fig 255: Behind Right Front Wheel

G00444686

Courtesy of BMW OF NORTH AMERICA, INC.

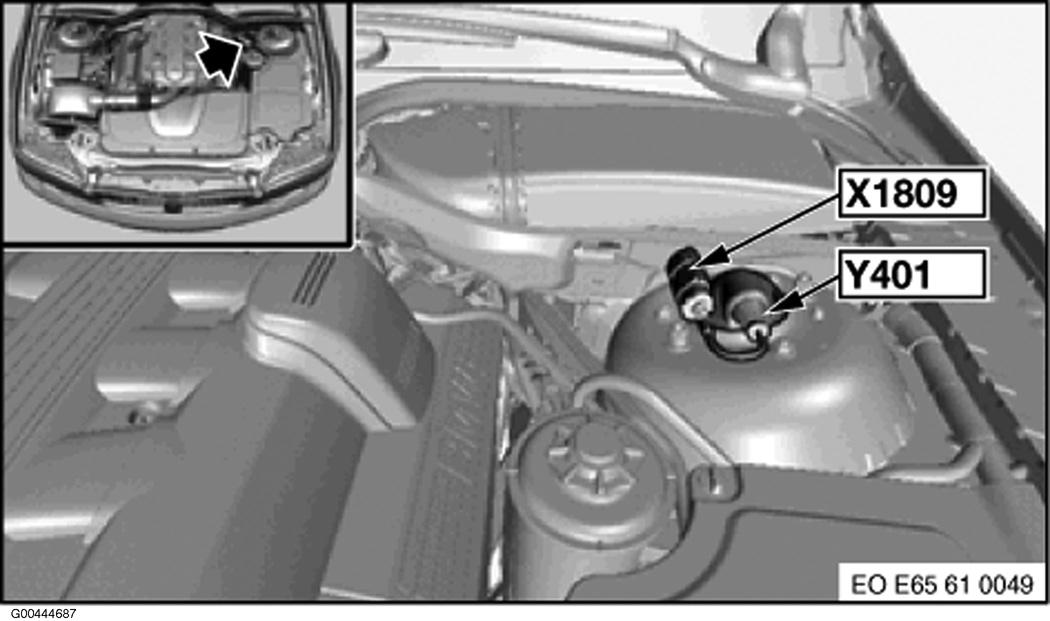

Fig 256: Left Rear Of Engine Compartment

G00444687

Courtesy of BMW OF NORTH AMERICA, INC.

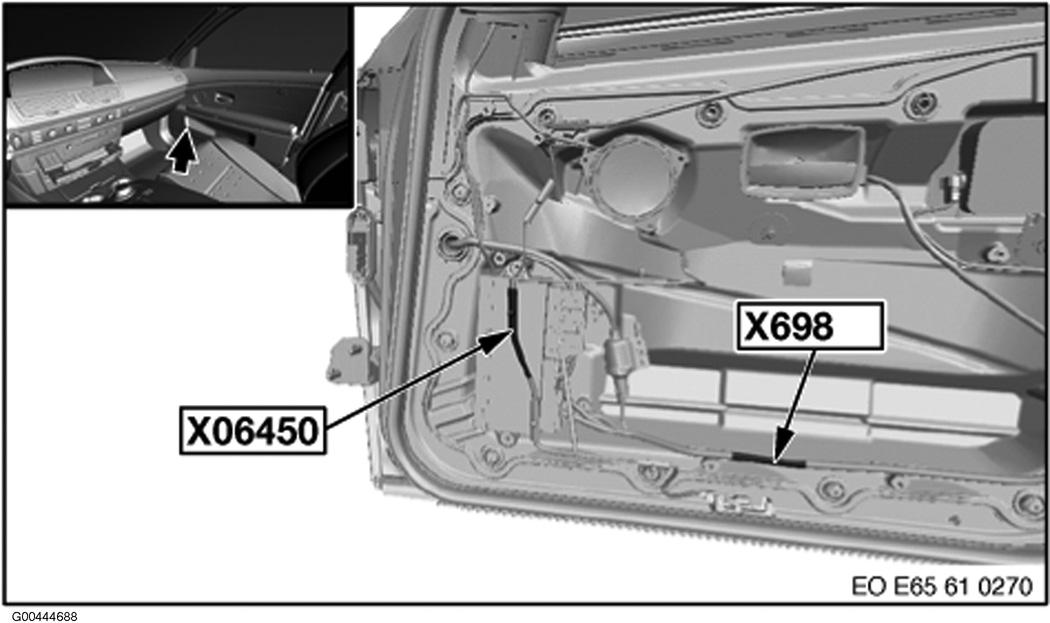

Fig 257: Front Passenger's Door

G00444688

Courtesy of BMW OF NORTH AMERICA, INC.

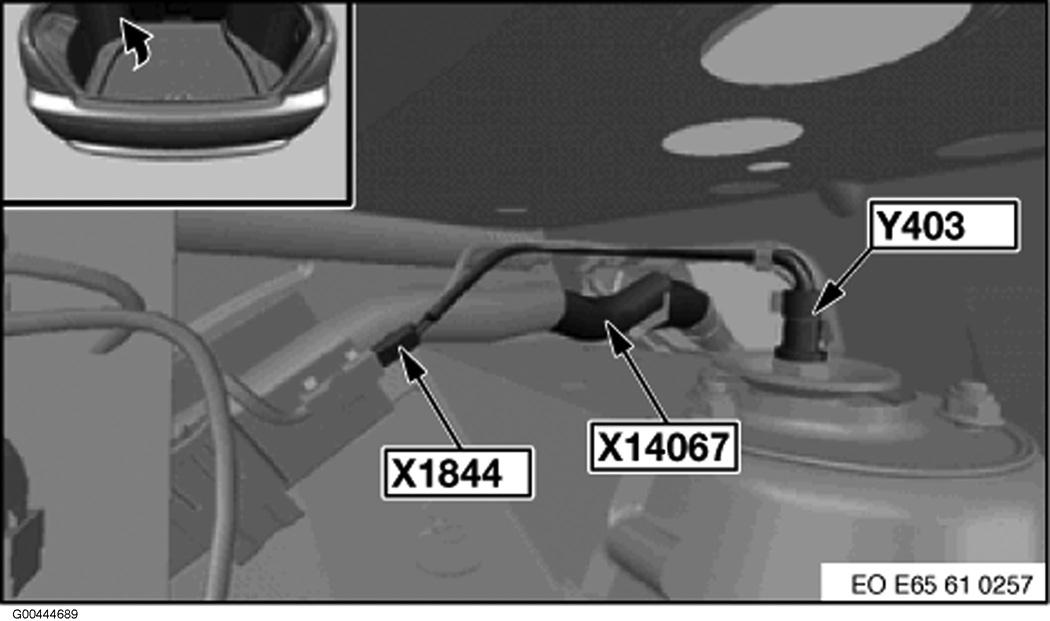

Fig 258: Rear Compartment

G00444689

Courtesy of BMW OF NORTH AMERICA, INC.

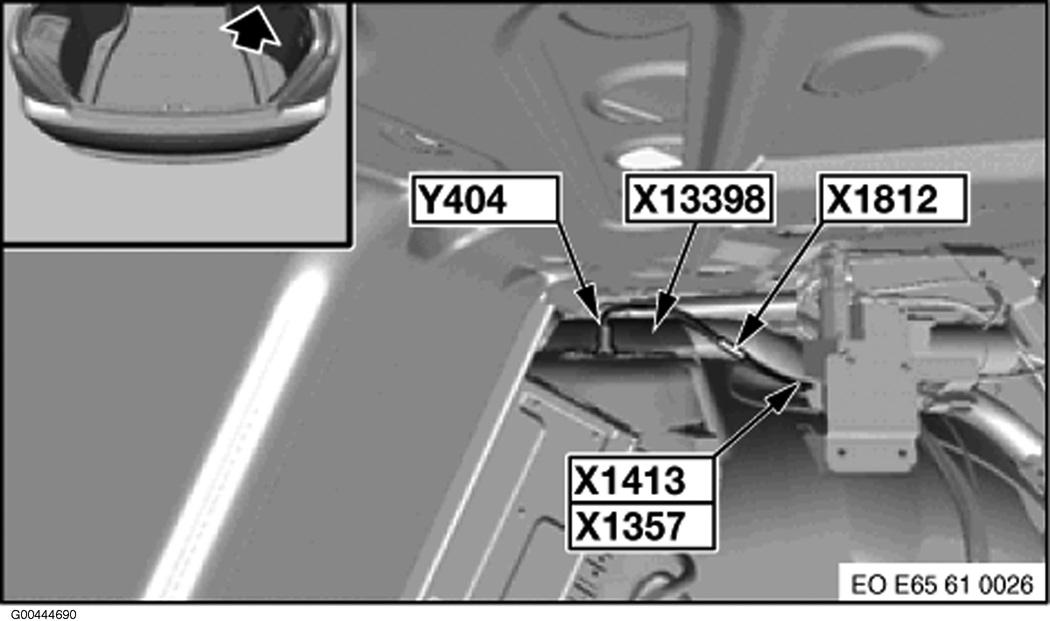

Fig 259: Rear Compartment

G00444690

Courtesy of BMW OF NORTH AMERICA, INC.

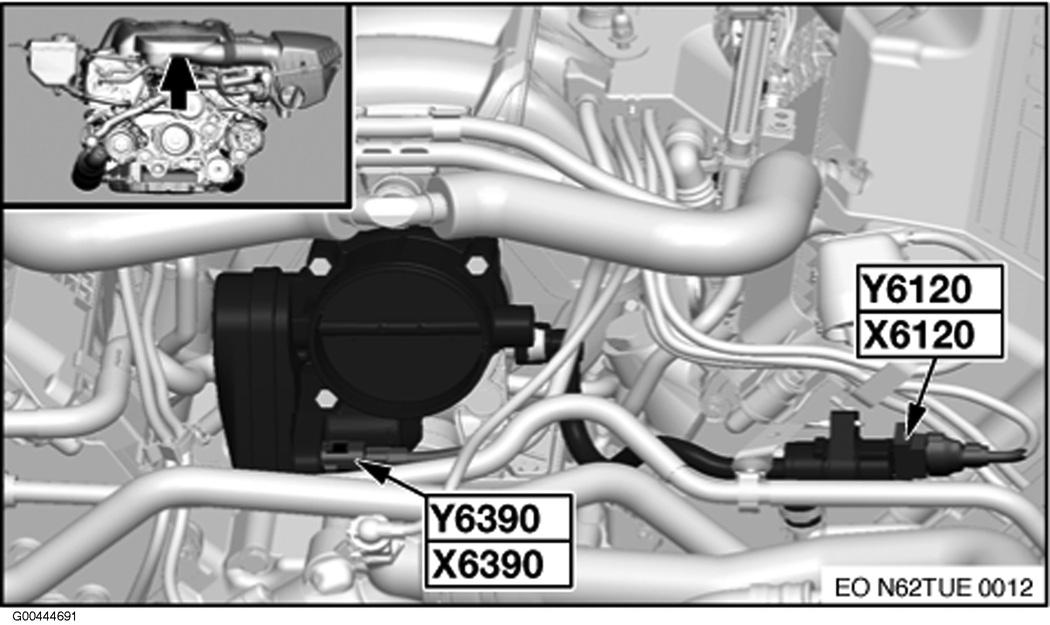

Fig 260: Front Of Engine (4.8L)

G00444691

Courtesy of BMW OF NORTH AMERICA, INC.

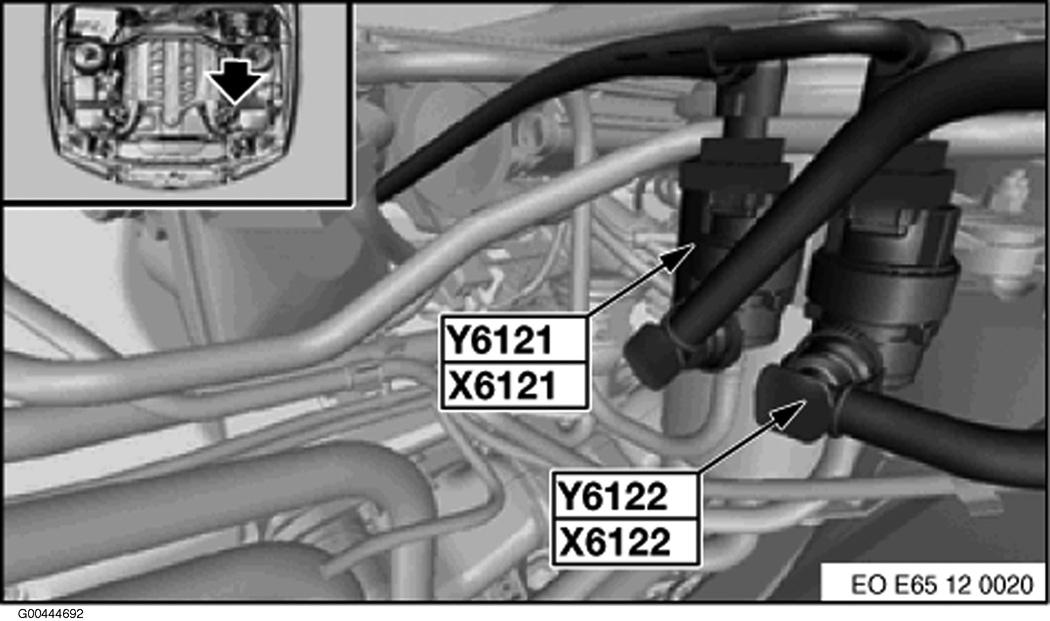

Fig 261: Left Side Of Engine Compartment

G00444692

Courtesy of BMW OF NORTH AMERICA, INC.

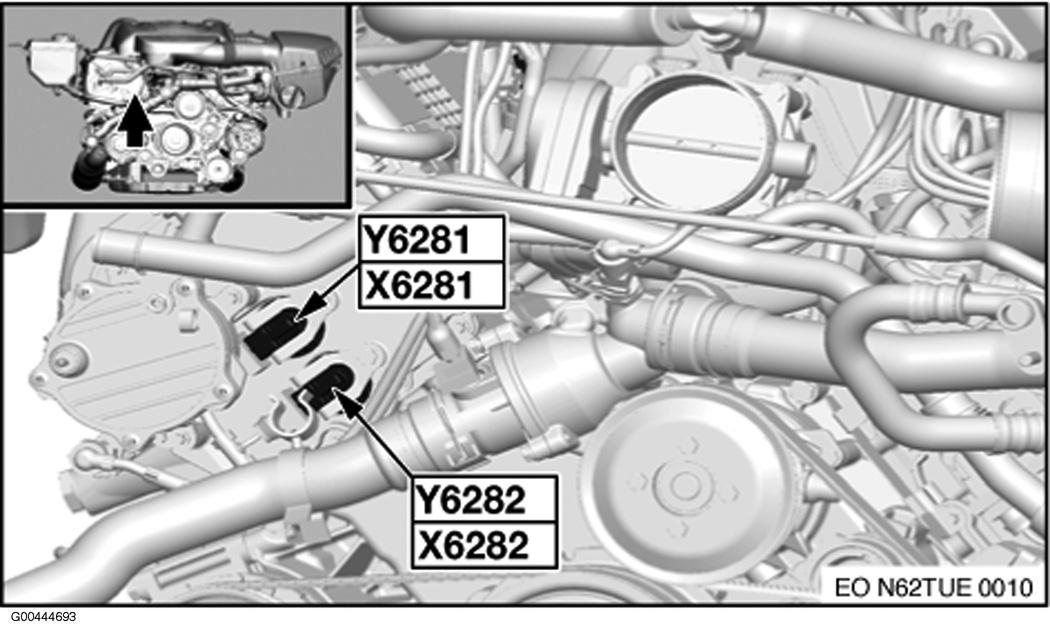

Fig 262: Front Of Engine (4.8L)

G00444693

Courtesy of BMW OF NORTH AMERICA, INC.

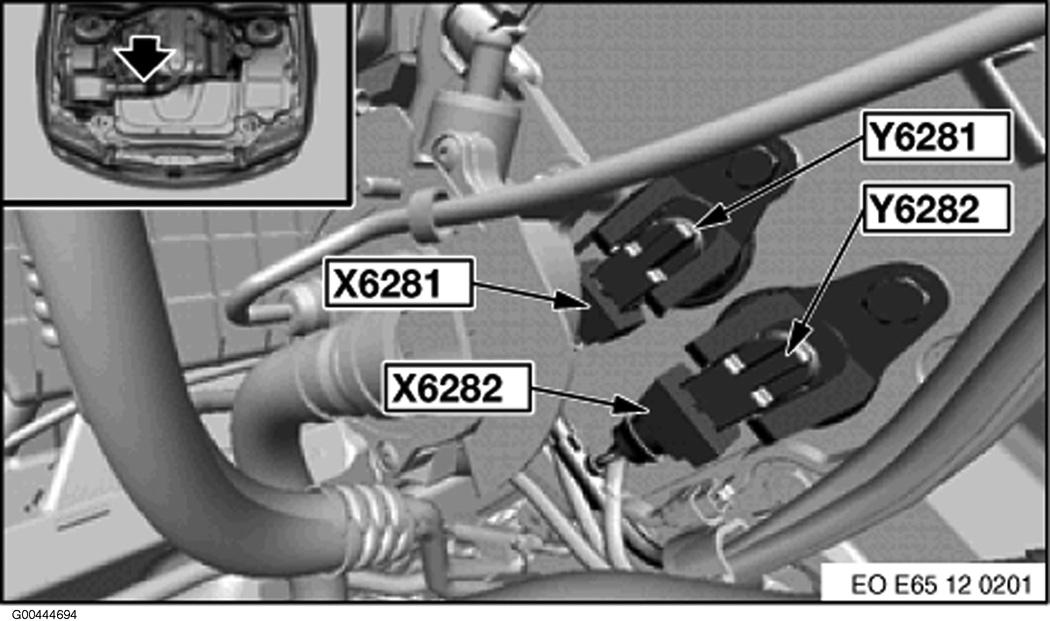

Fig 263: Right Front Of Engine Compartment (6.0L)

G00444694

Courtesy of BMW OF NORTH AMERICA, INC.

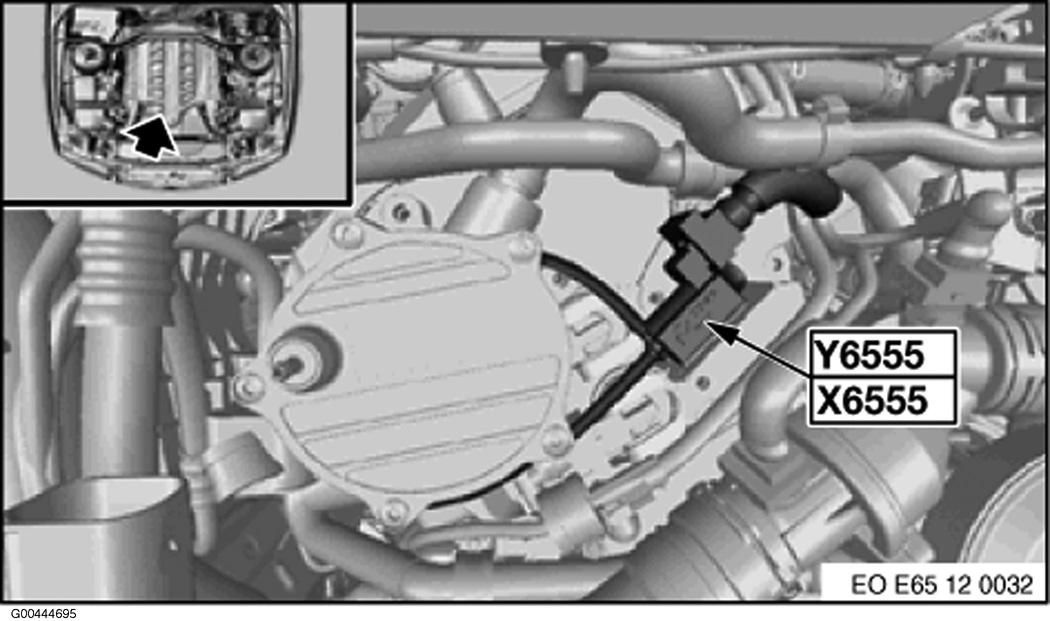

Fig 264: Right Front Of Engine Compartment

G00444695

Courtesy of BMW OF NORTH AMERICA, INC.

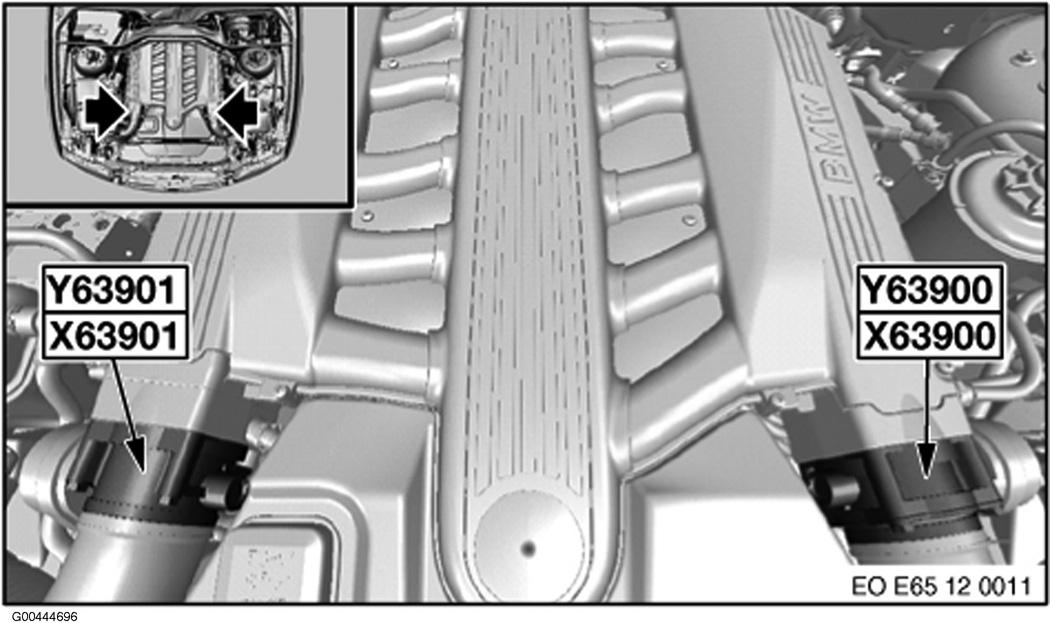

Fig 265: Front Of Engine Compartment (6.0L)

G00444696

Courtesy of BMW OF NORTH AMERICA, INC.

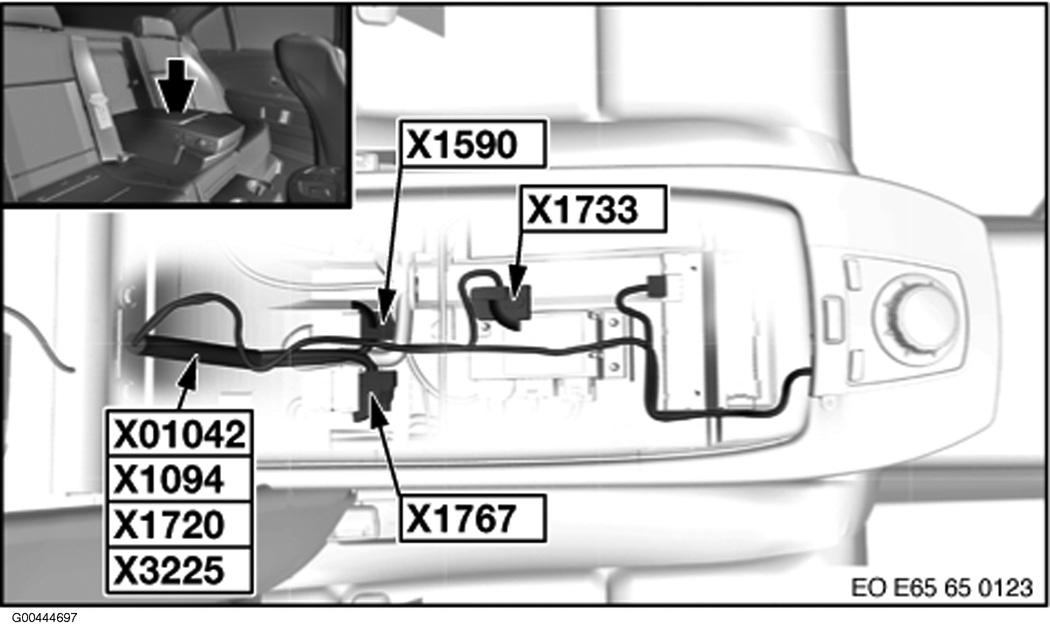

Fig 266: Rear Center Console

G00444697

Courtesy of BMW OF NORTH AMERICA, INC.

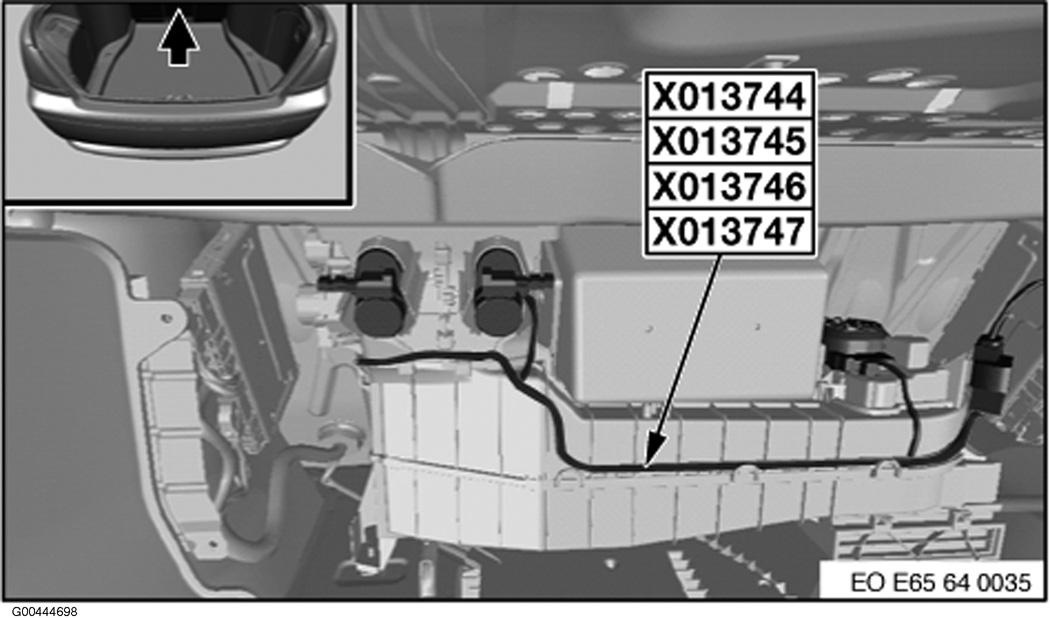

Fig 267: Rear Compartment

G00444698

Courtesy of BMW OF NORTH AMERICA, INC.

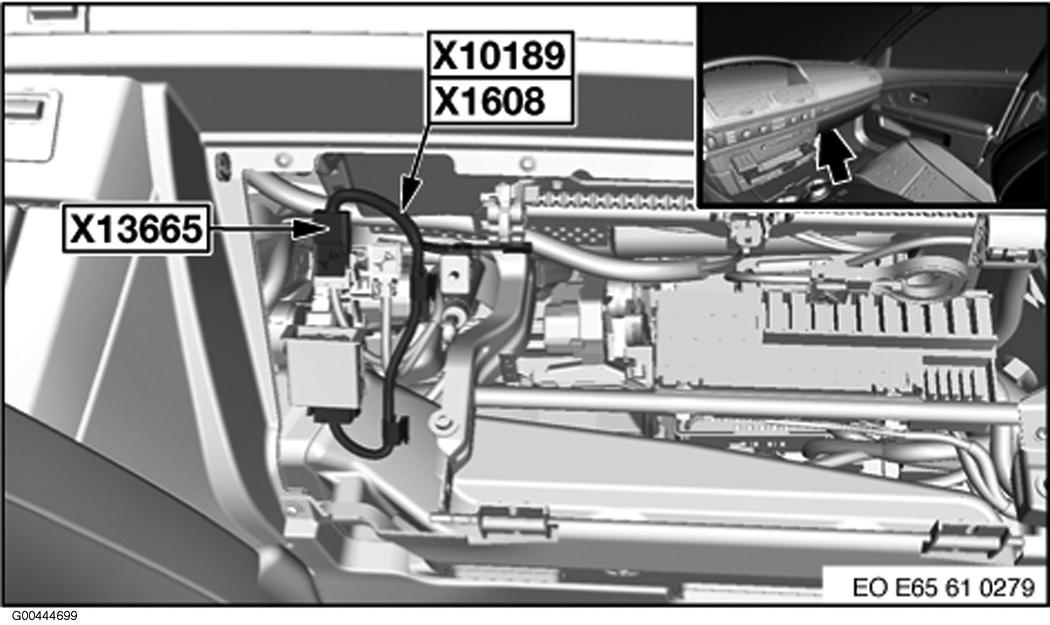

Fig 268: Under Right Side Of Dash

G00444699

Courtesy of BMW OF NORTH AMERICA, INC.

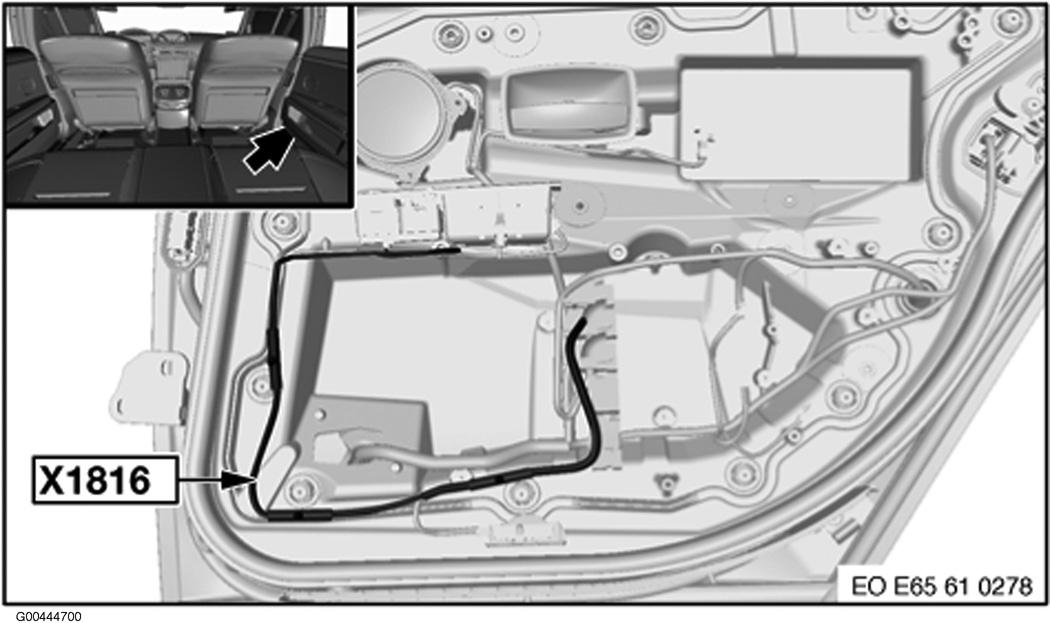

Fig 269: Right Rear Door

G00444700

Courtesy of BMW OF NORTH AMERICA, INC.

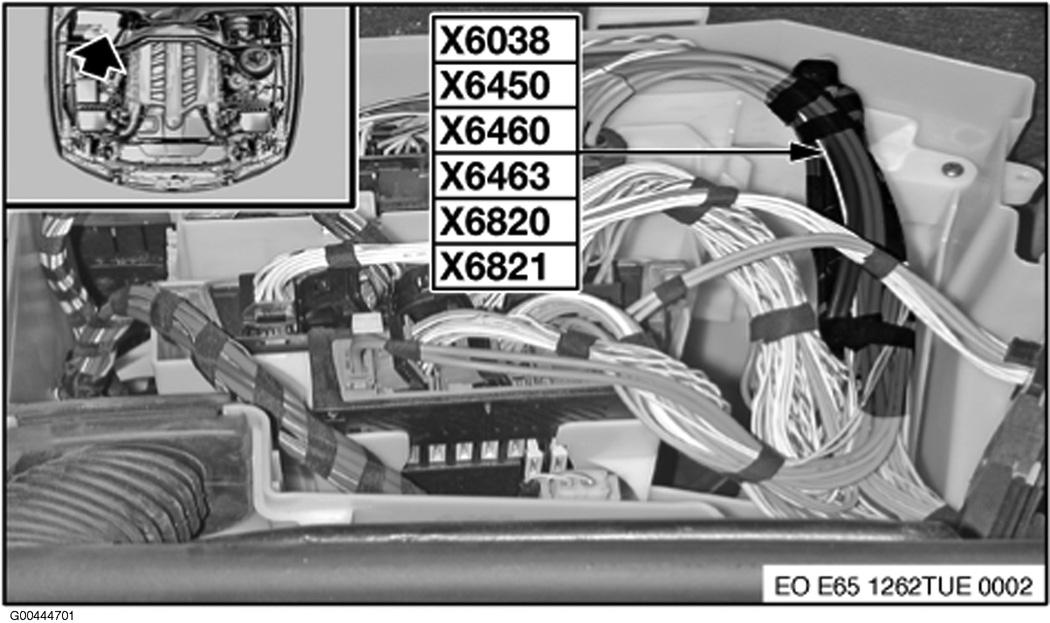

Fig 270: Right Rear Of Engine Compartment

G00444701

Courtesy of BMW OF NORTH AMERICA, INC.

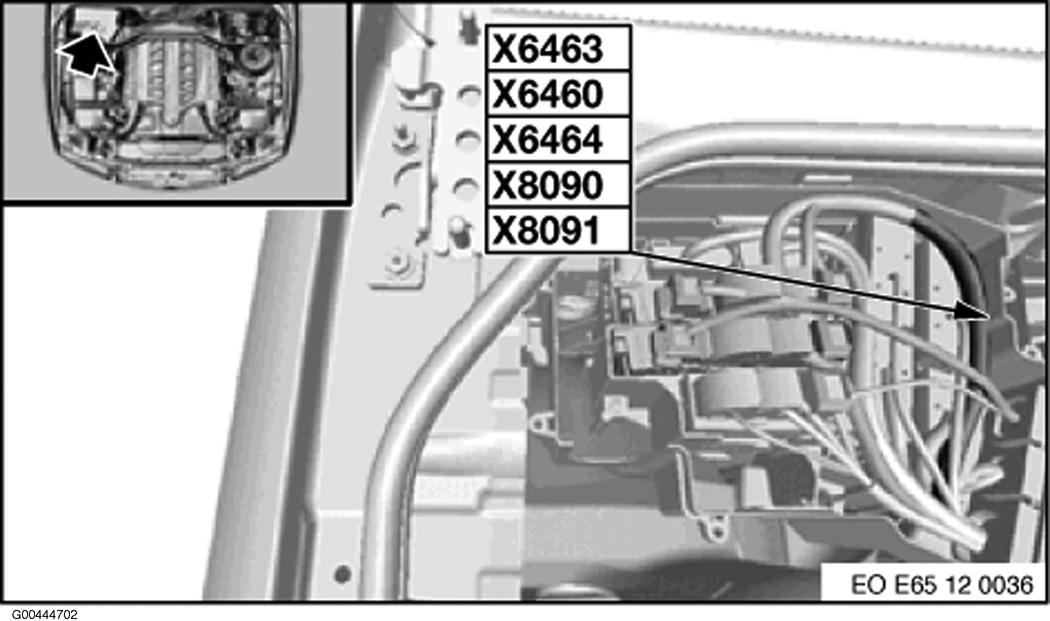

Fig 271: Right Rear Of Engine Compartment (6.0L)

G00444702

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 272: Right Rear Of Engine Compartment (4.8L)

G00444703

Courtesy of BMW OF NORTH AMERICA, INC.

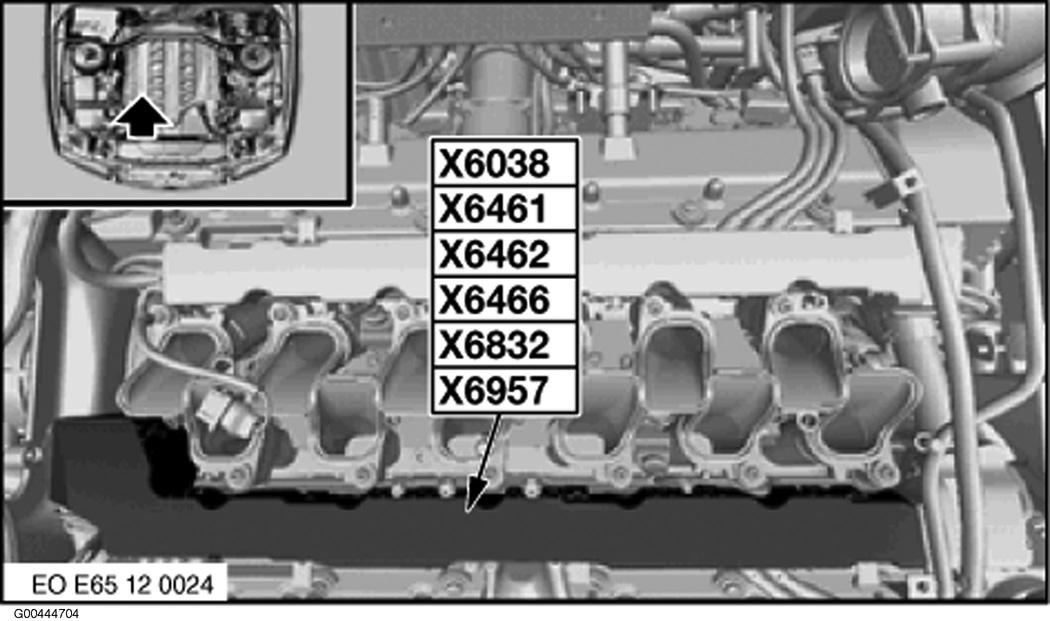

Fig 273: Right Front Of Engine Compartment

G00444704

Courtesy of BMW OF NORTH AMERICA, INC.

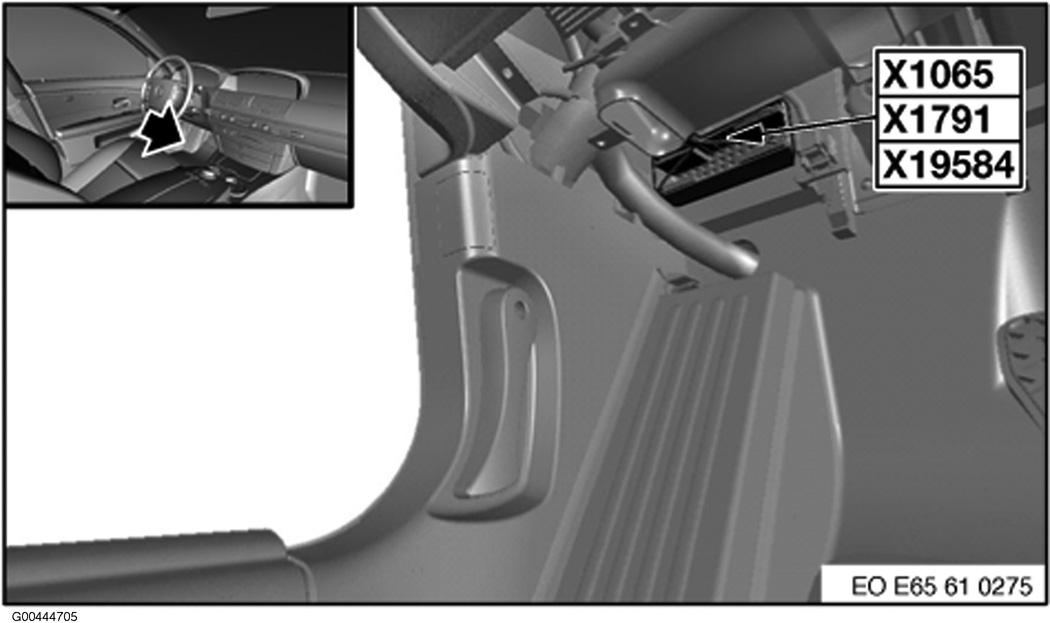

Fig 274: Left Footwell

G00444705

Courtesy of BMW OF NORTH AMERICA, INC.

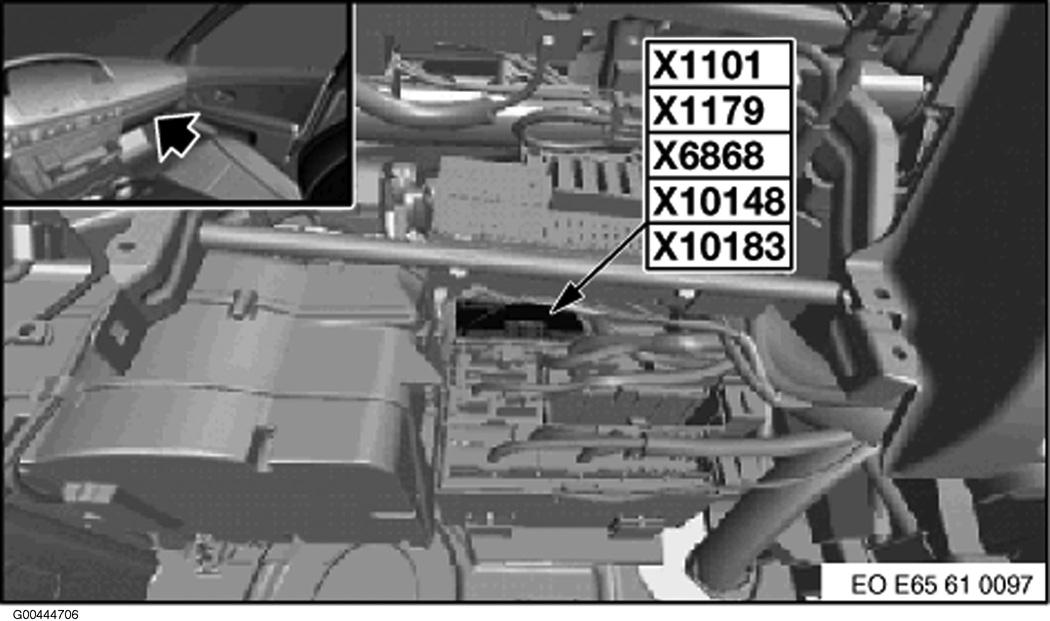

Fig 275: Under Right Side Of Dash

G00444706

Courtesy of BMW OF NORTH AMERICA, INC.

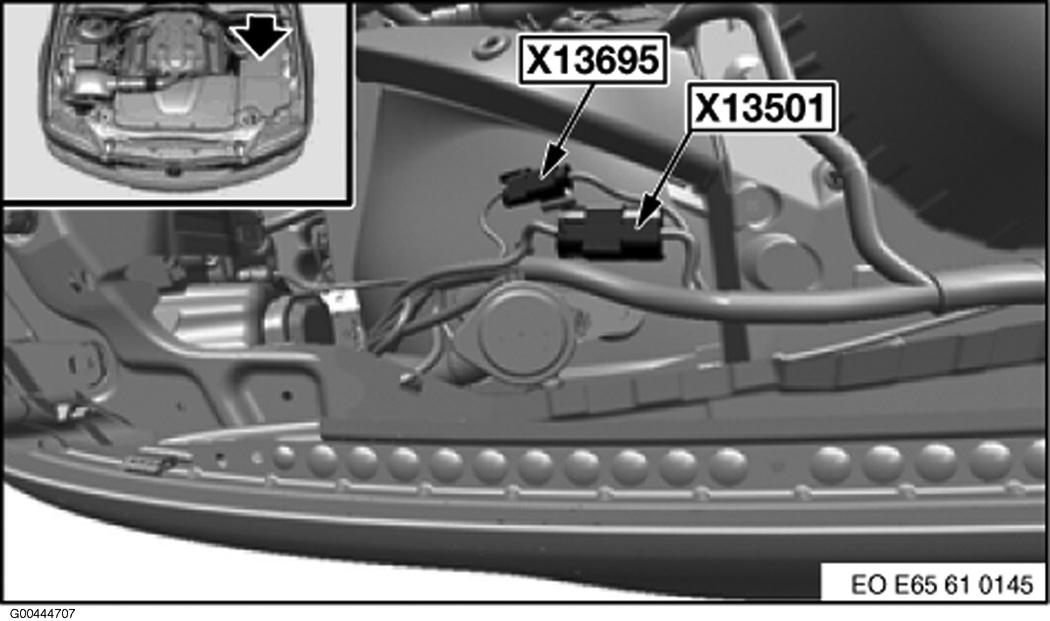

Fig 276: Left Rear Of Engine Compartment

G00444707

Courtesy of BMW OF NORTH AMERICA, INC.

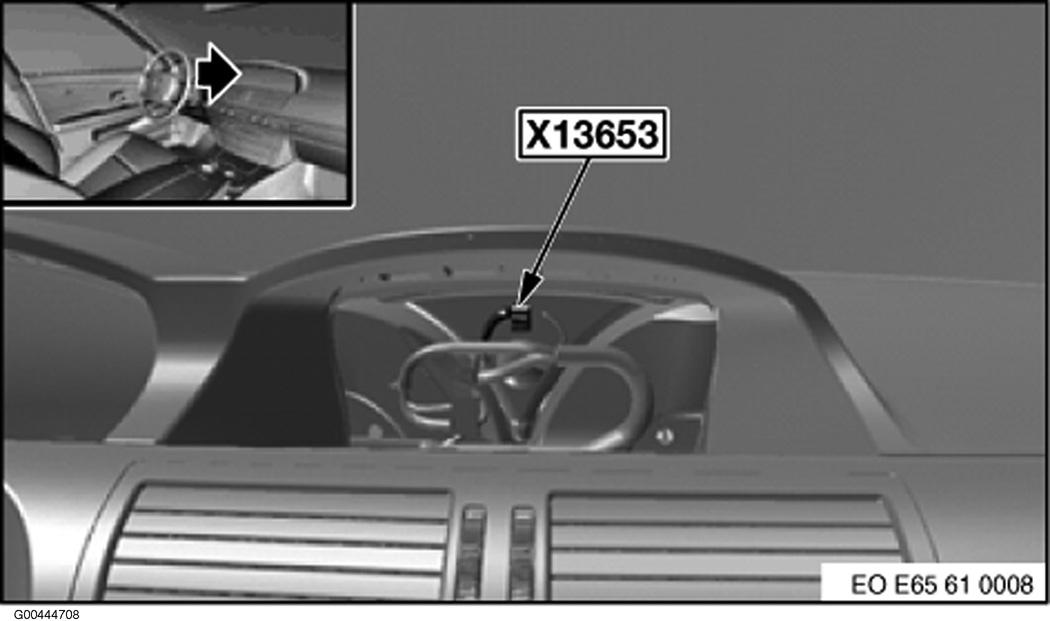

Fig 277: Top Center Of Dash

G00444708

Courtesy of BMW OF NORTH AMERICA, INC.

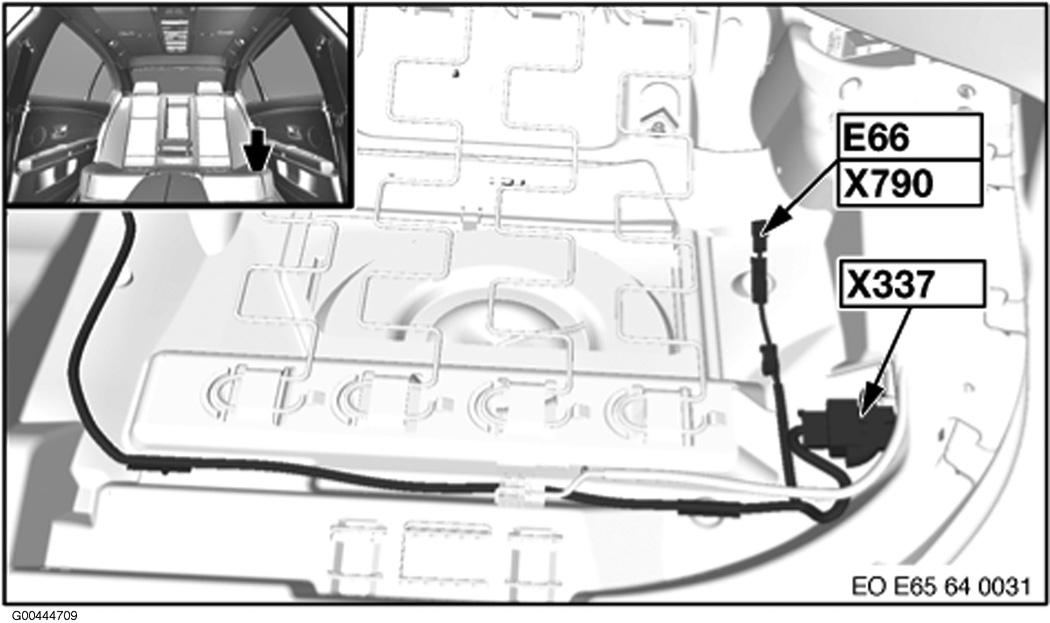

Fig 278: Under Left Rear Seat

G00444709

Courtesy of BMW OF NORTH AMERICA, INC.
