Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

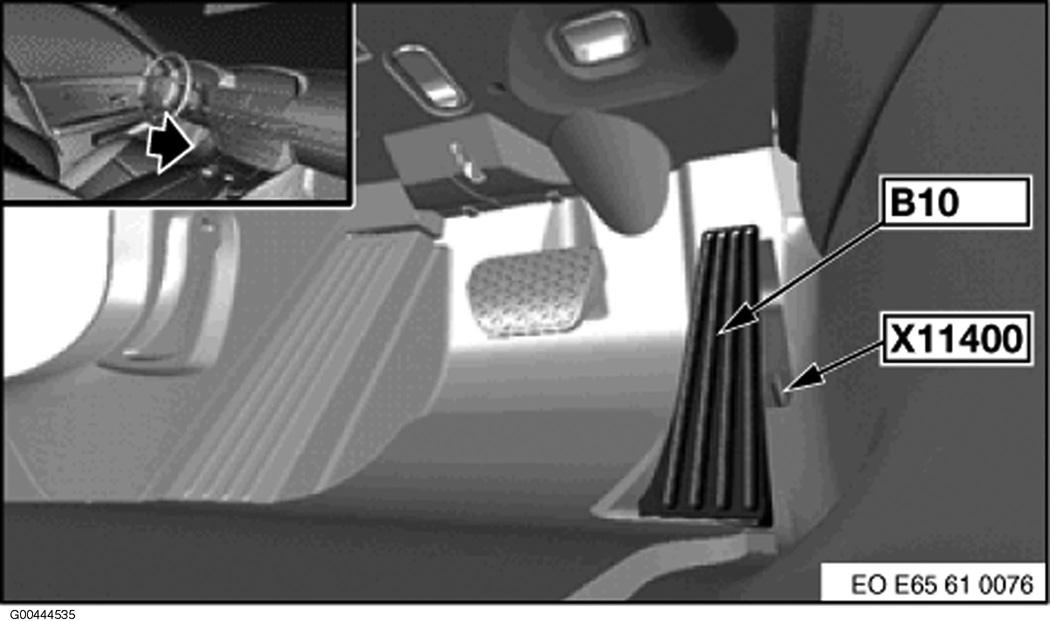

| Accelerator Pedal Module (B10) | Part of acceleration pedal assembly. See Figure. |

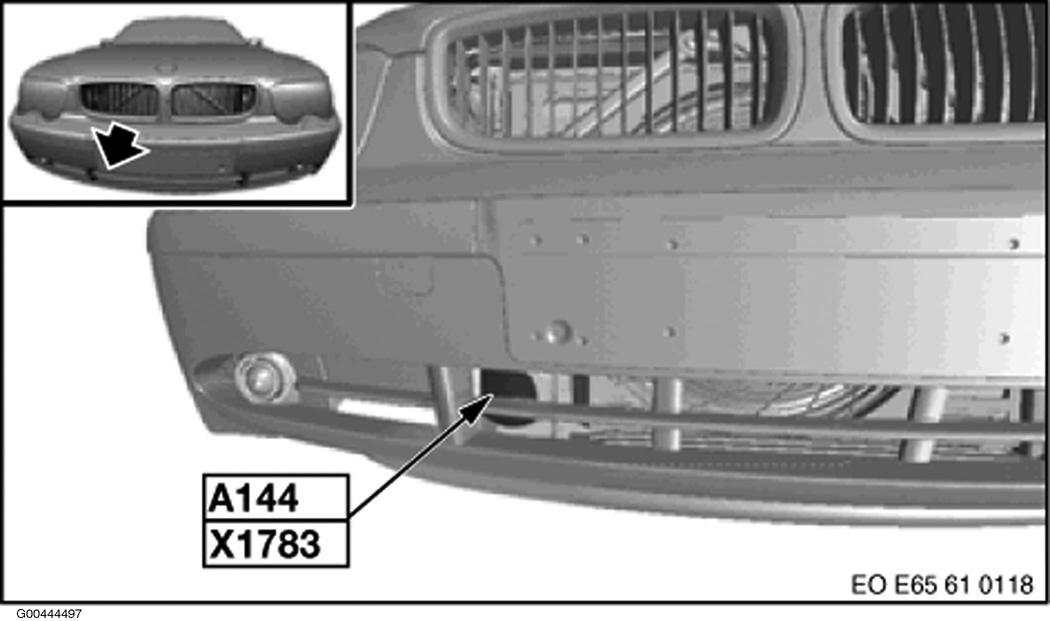

| Active Cruise Control Control Module (A144) | Right side of front bumper. See Figure. |
| Air Suspension Control Module (A118) | Right side of rear compartment. See Figure. |

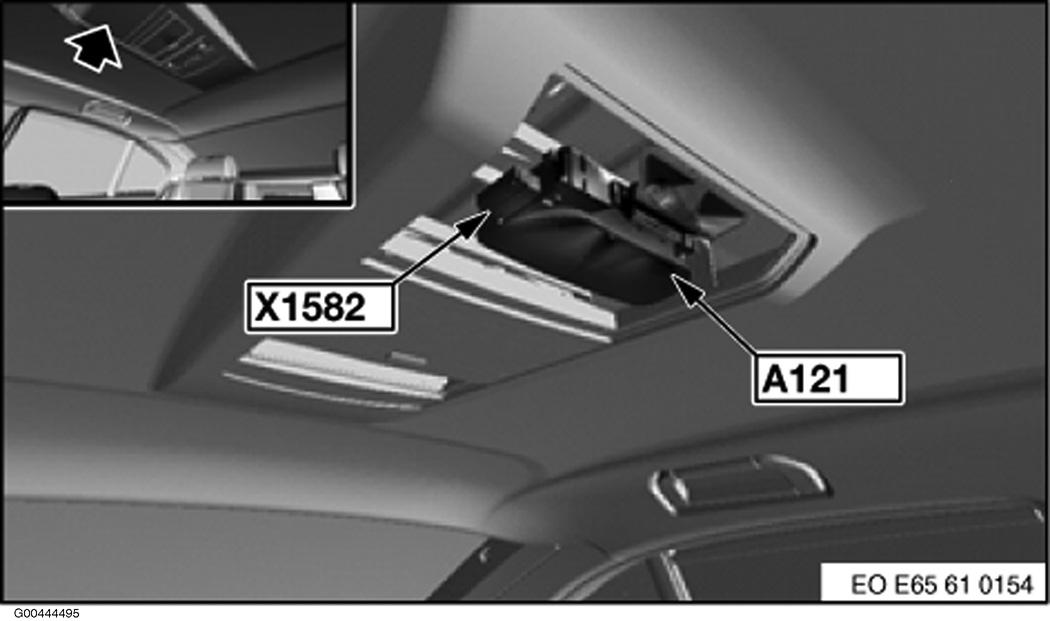

| Anti-Theft Alarm System Control Module (A121) | Rear overhead console. See Figure. |
| Central Gateway Module (ZGM) (A73) | Right side of dash. See Figure. |

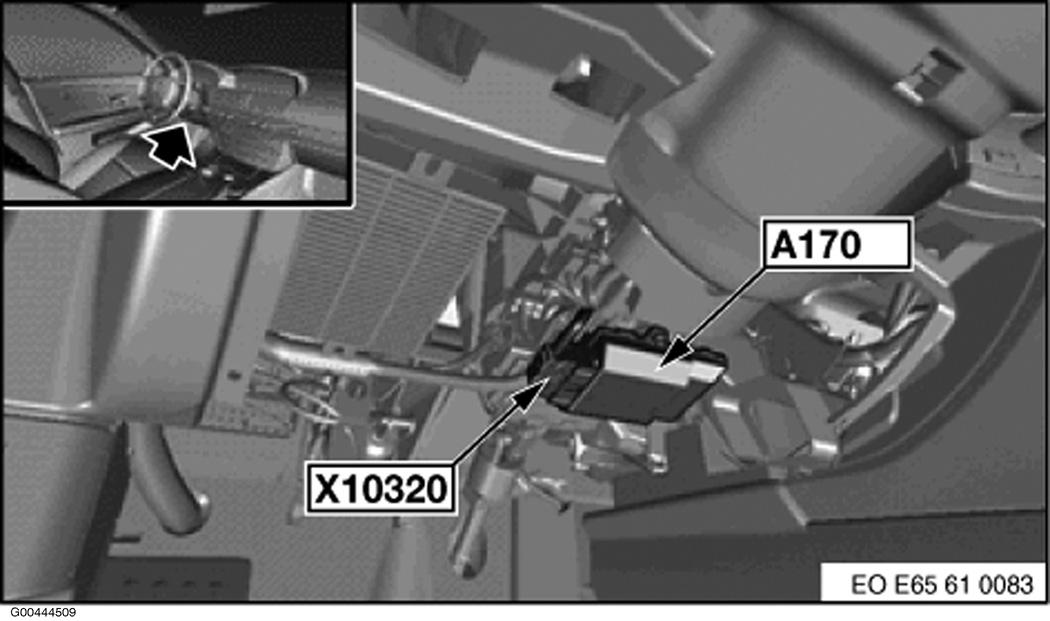

| Chassis Integration Module (CIM) (A170) | Under left side of dash. See Figure. |

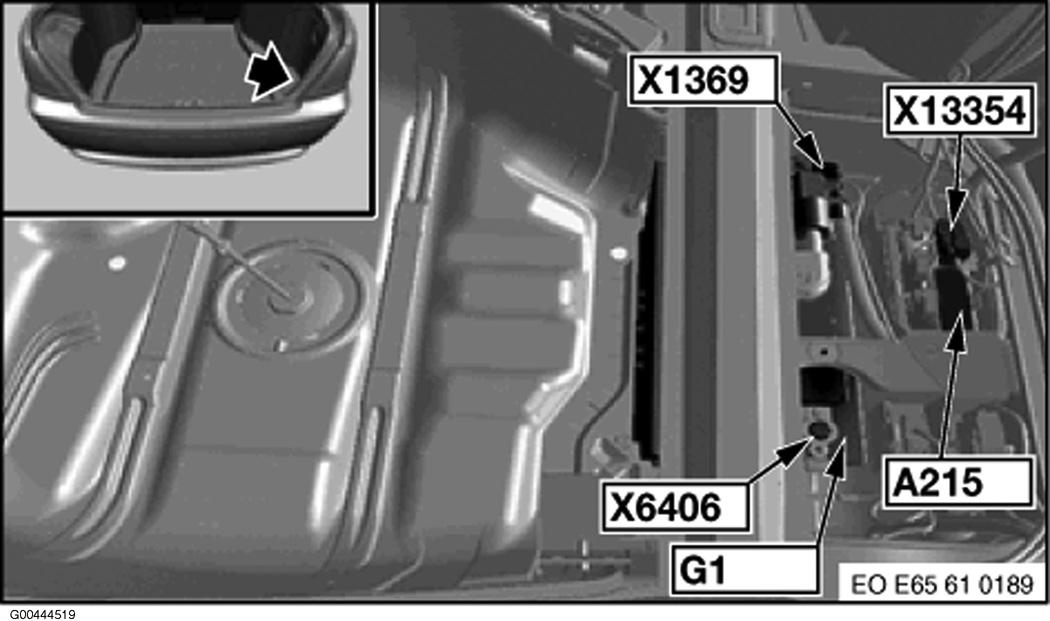

| Comfort Access Control Module (A215) | Right side of rear compartment. See Figure. |

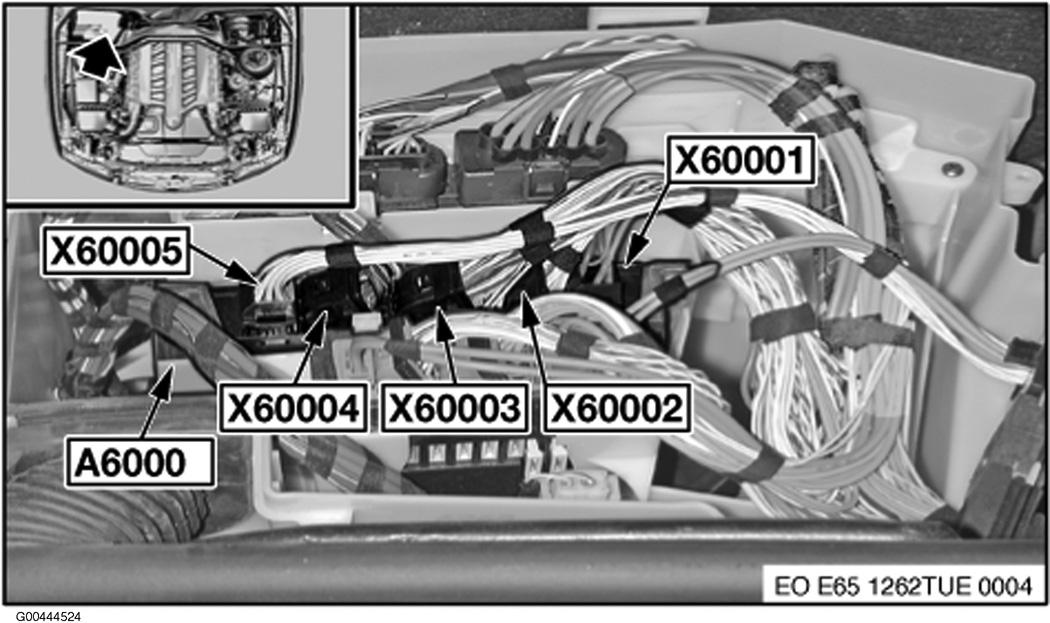

| Digital Motor Electronics (DME) Control Module (A6000) | Right rear of engine compartment. See Figure. |

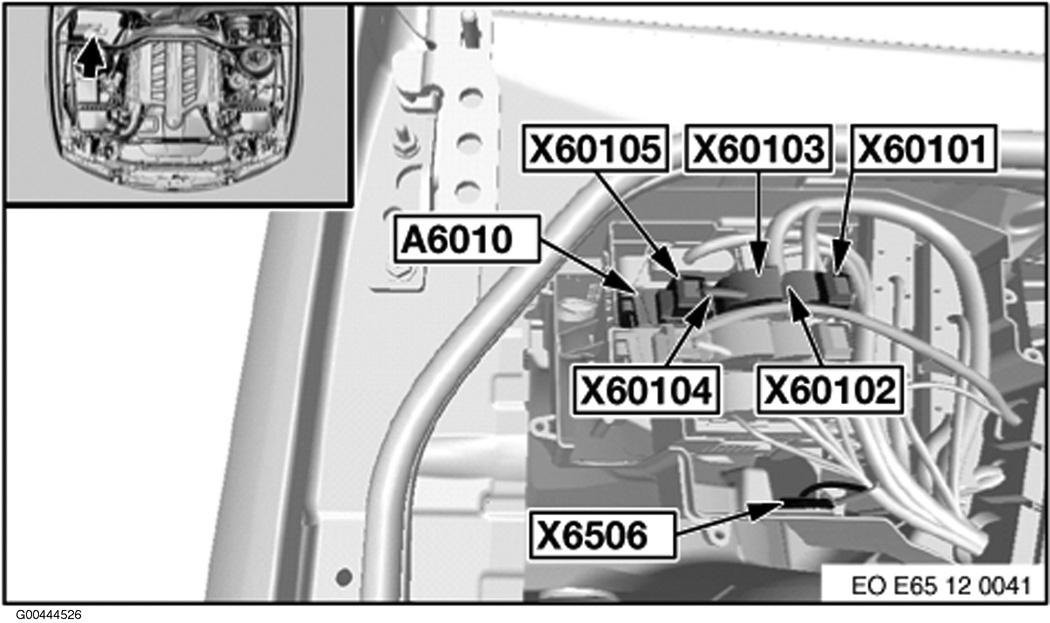

| Digital Motor Electronics (DME) Control Module I (A6010) | Right rear of engine compartment. See Figure. |

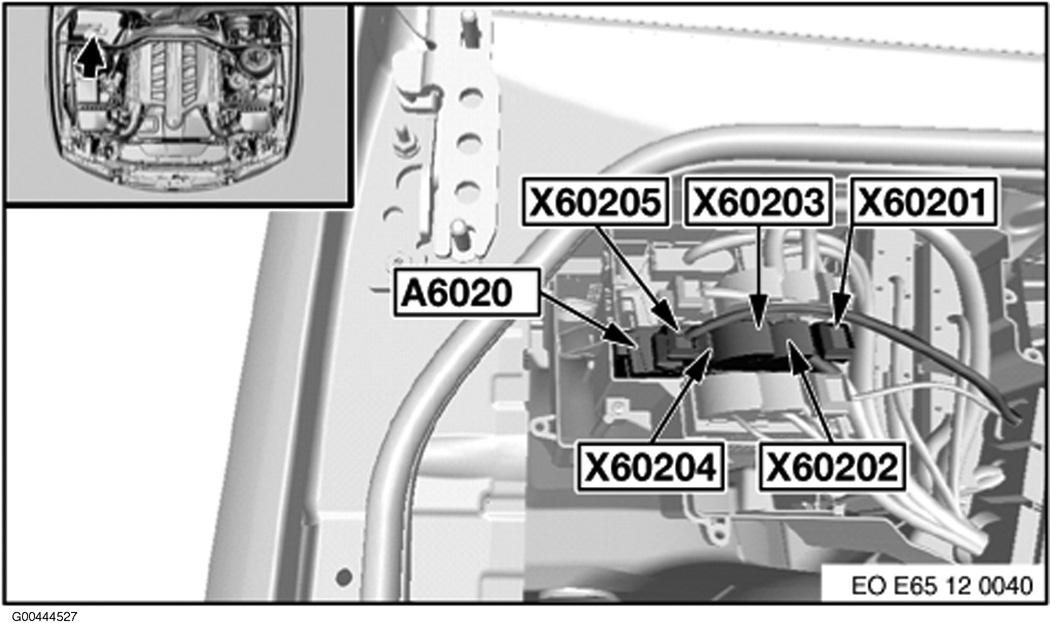

| Digital Motor Electronics (DME) Control Module II (A6020) | Right rear of engine compartment. See Figure. |
| Driver's Door Module (A23) | Driver's door. See Figure. |

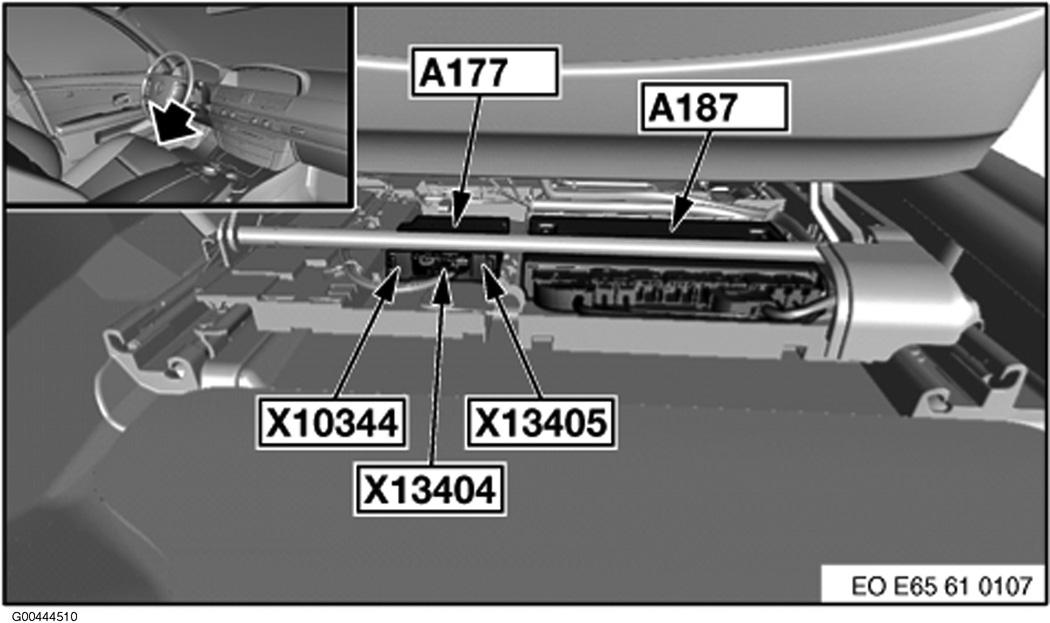

| Driver's Seat Module (A187) | Under driver's seat. See Figure. |

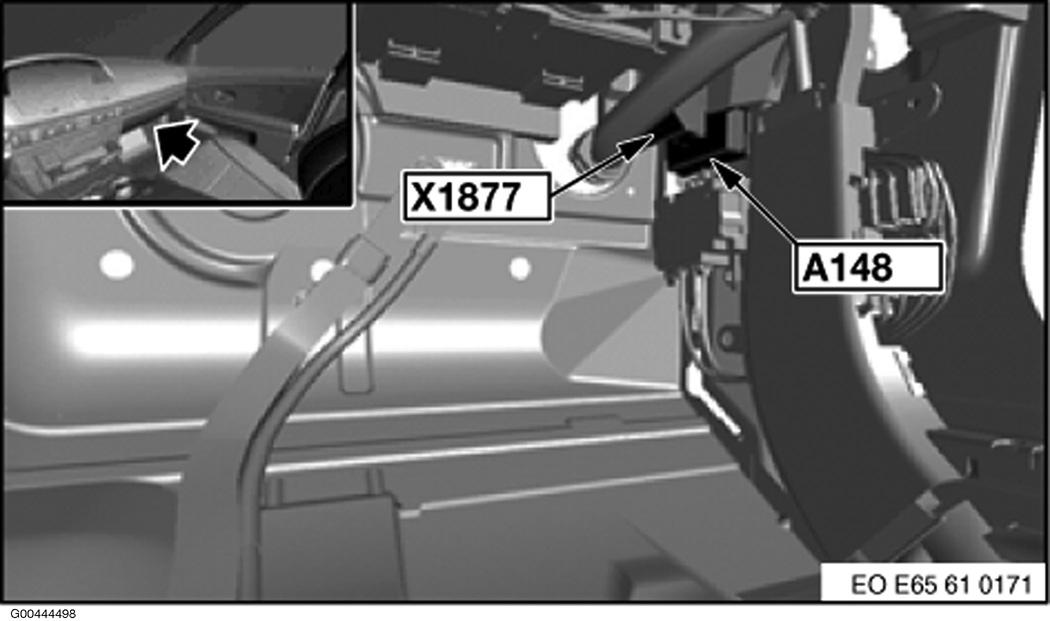

| Dynamic Drive Control Module (A148) | Right side of right footwell. See Figure. |
| Dynamic Stability Control Control Module (A65) | Right side of engine compartment. See Figure. |

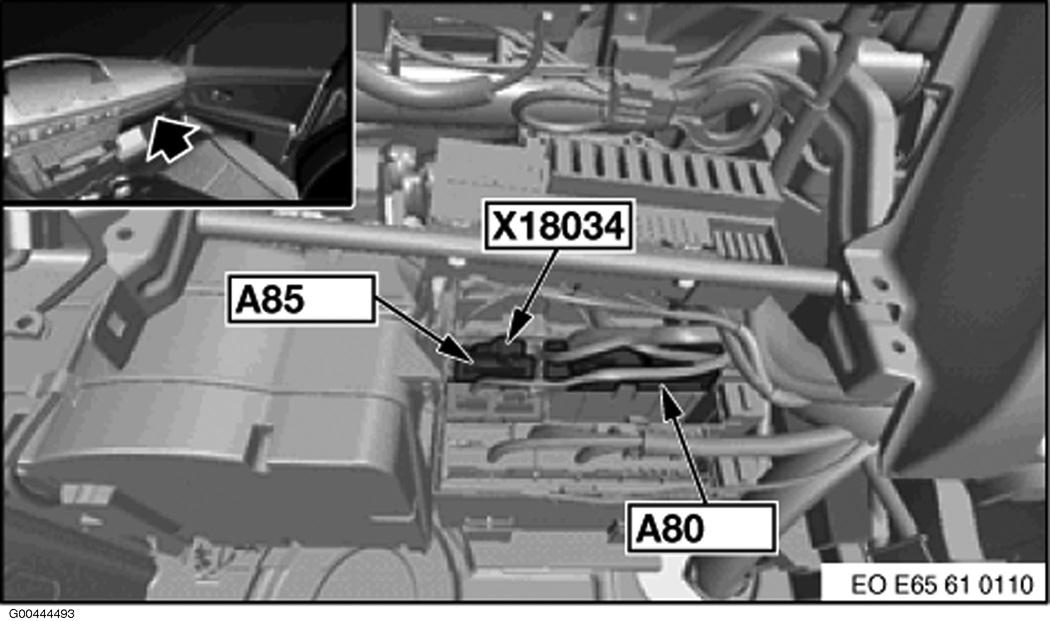

| Electronic Damper Control Control Module (A80) | Right side of dash. See Figure. |

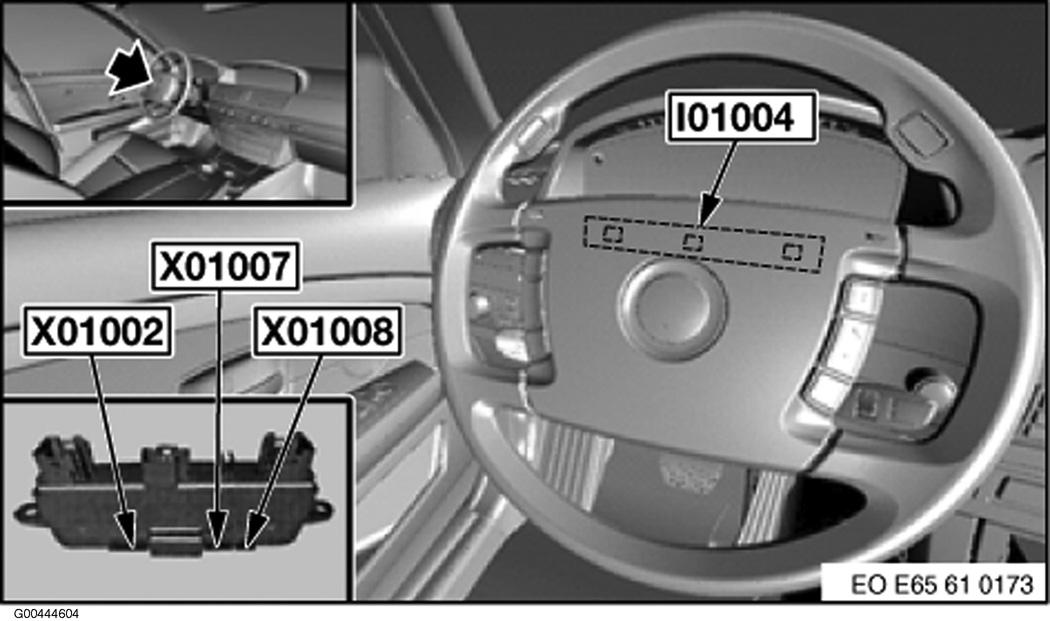

| Electronic Steering Wheel Module (I01004) | Part of steering wheel. See Figure. |

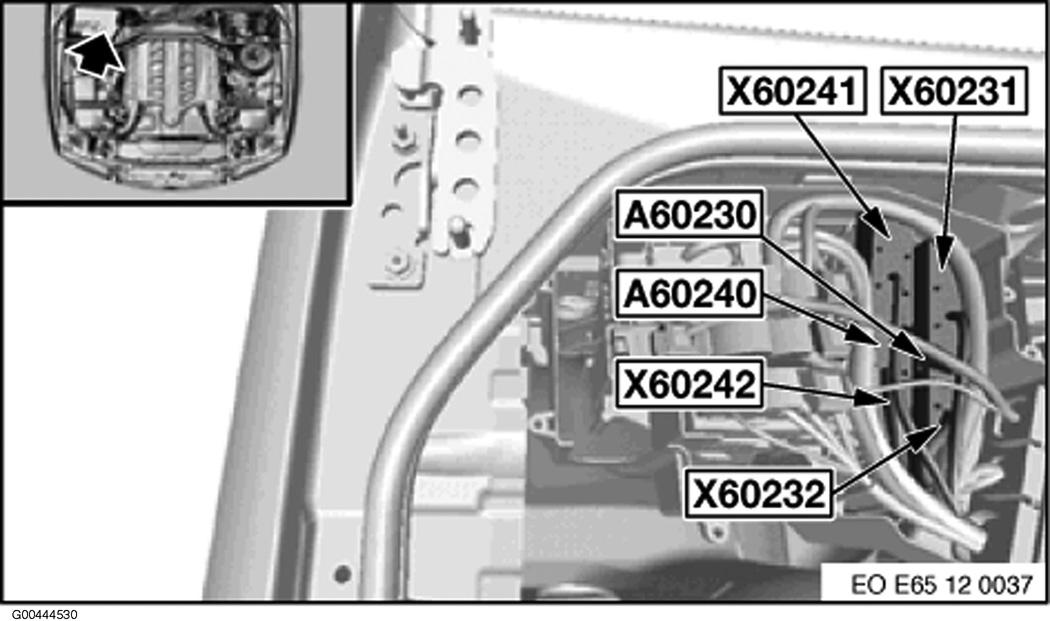

| Fuel Injectors Control Module - Bank 1 (A60230) | Right rear of engine compartment. See Figure. |
| Fuel Injectors Control Module - Bank 2 (A60240) | Right rear of engine compartment. See Figure. |

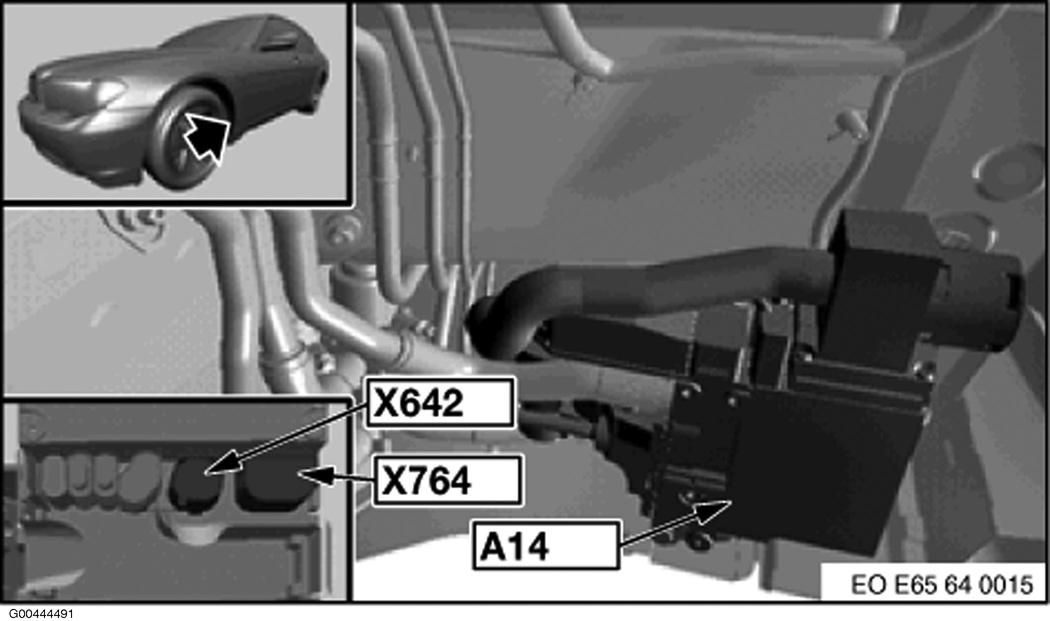

| Independent/Auxiliary Heating Control Module (A14) | Behind left front wheel. See Figure. |

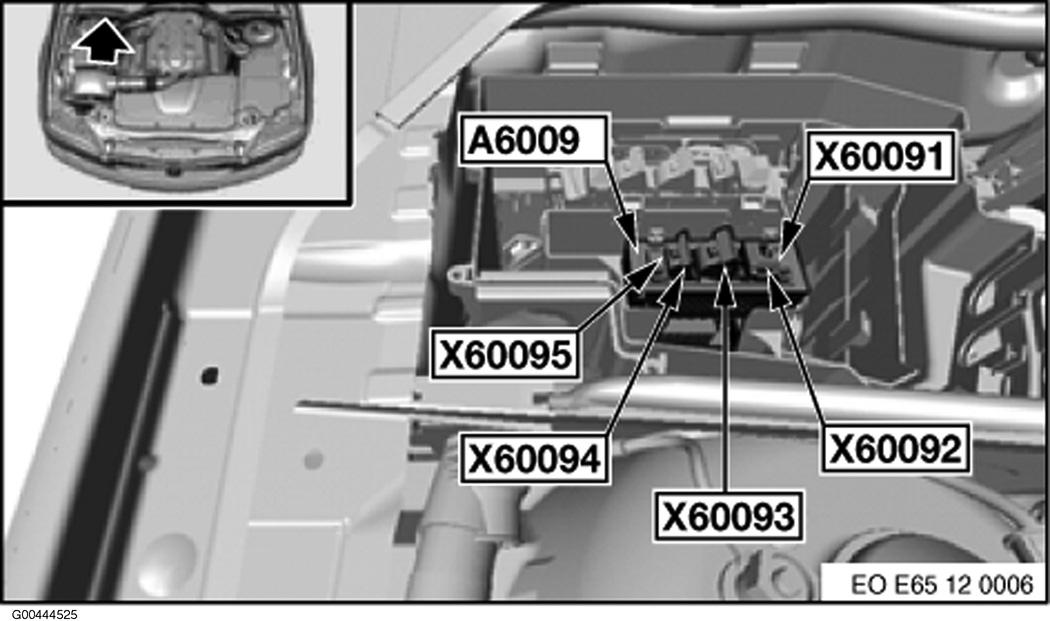

| Integrated Supply Module (IVM) (A6009) | Right rear of engine compartment. See Figure. |

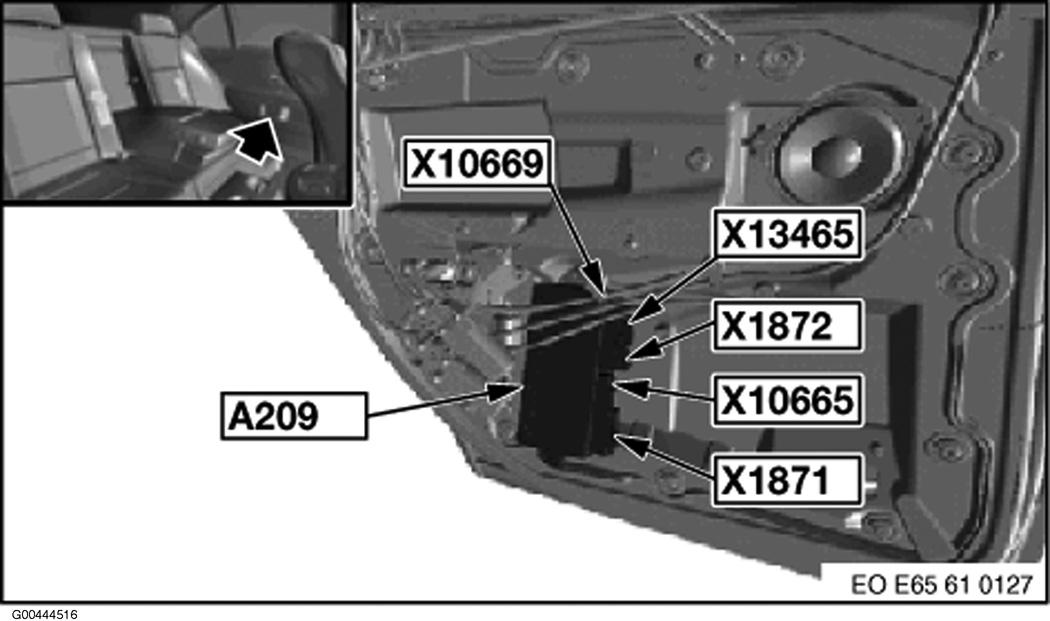

| Left Rear Door Module (A209) | Bottom left side of left rear door. See Figure. |

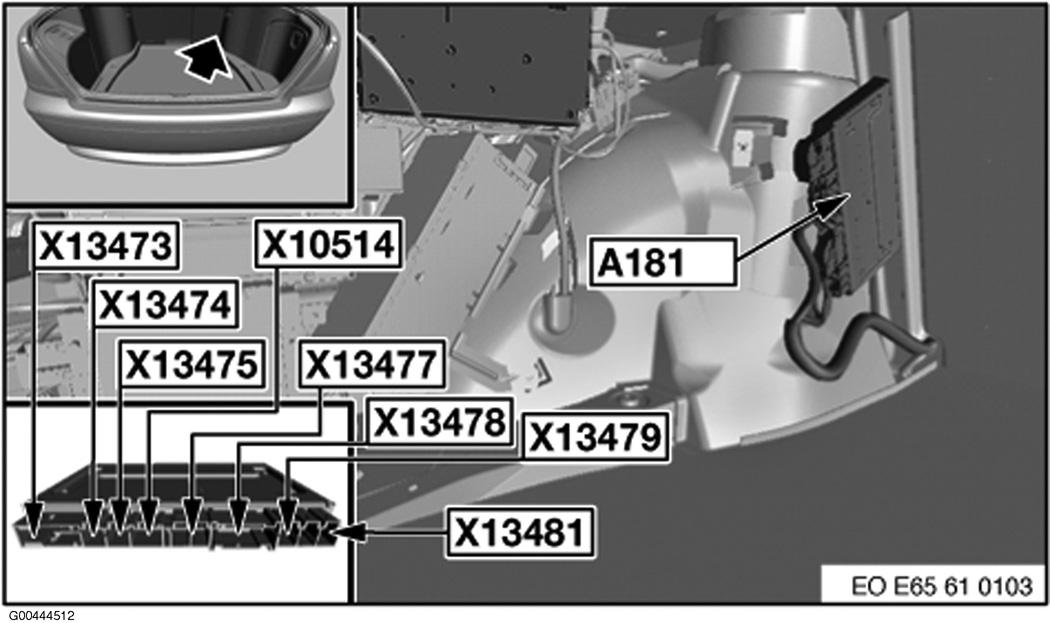

| Left Rear Seat Module (A181) | Right rear of rear compartment. See Figure. |
| Light Module (A3) | Left side of dash. See Figure. |
| Navigation Control Module (A112) | Left rear luggage compartment. See Figure. |
| Park Distance Control Unit (PDC) (A81) | Right rear luggage compartment. See Figure. |

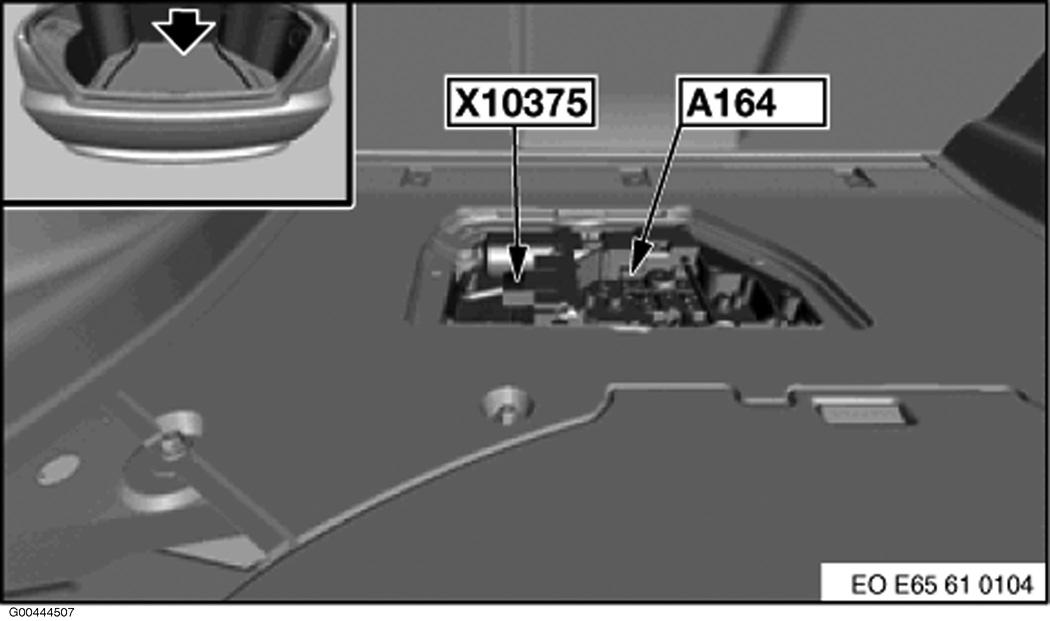

| Parking Brake (PBR) Control Module (A164) | Rear center of rear compartment floor board. See Figure. |
| Passenger's Door Module (A24) | Right front door. See Figure. |

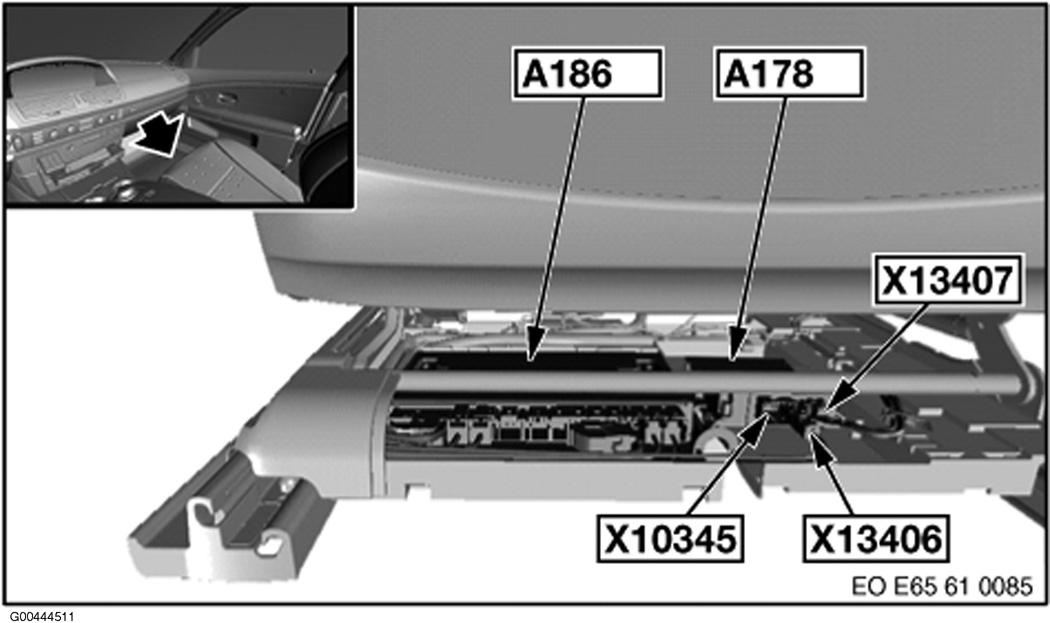

| Passenger's Seat Module (A186) | Under front passenger's seat. See Figure. |
| Power Module (A71) | Right rear luggage compartment. See Figure. |

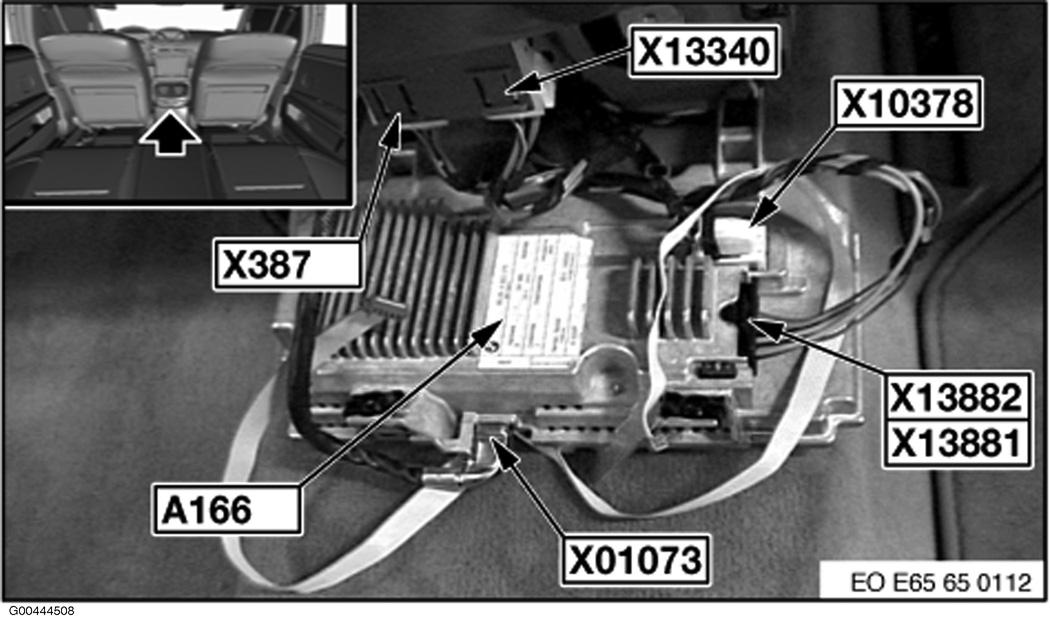

| Rear Compartment Monitor Control Module (A166) | Rear of center console. See Figure. |

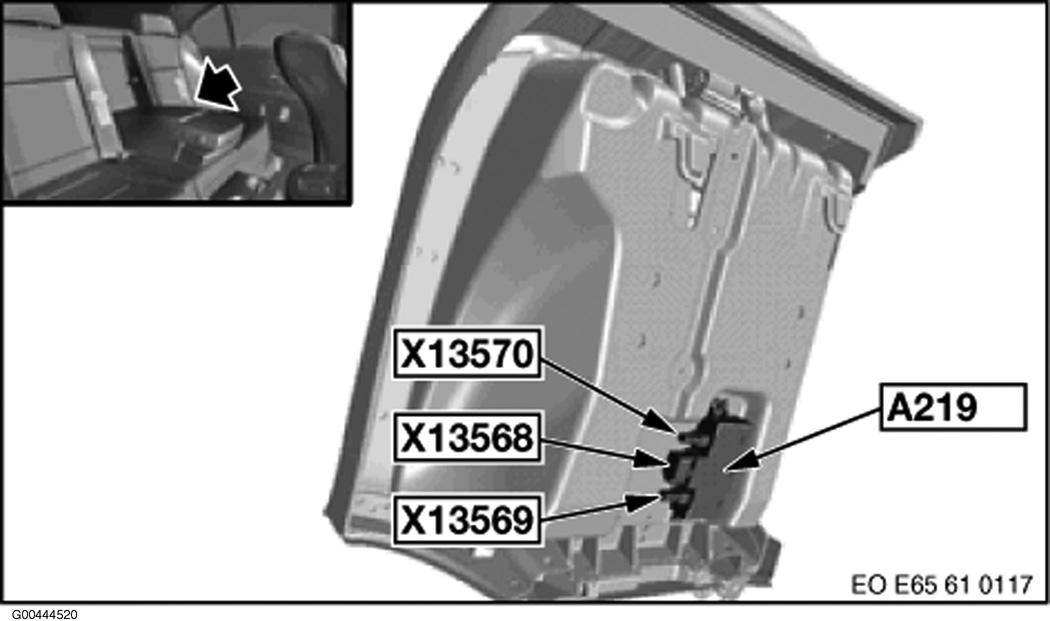

| Rear Compartment Seat Heating Control Module (A219) | Behind left rear seat. See Figure. |

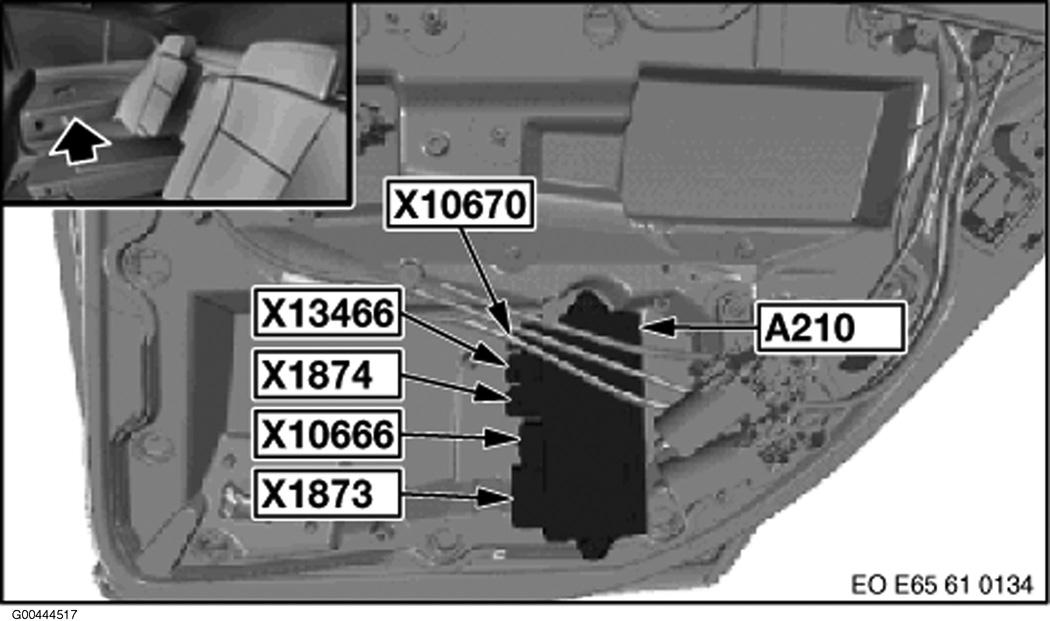

| Right Rear Door Module (A210) | Bottom right side of right rear door. See Figure. |

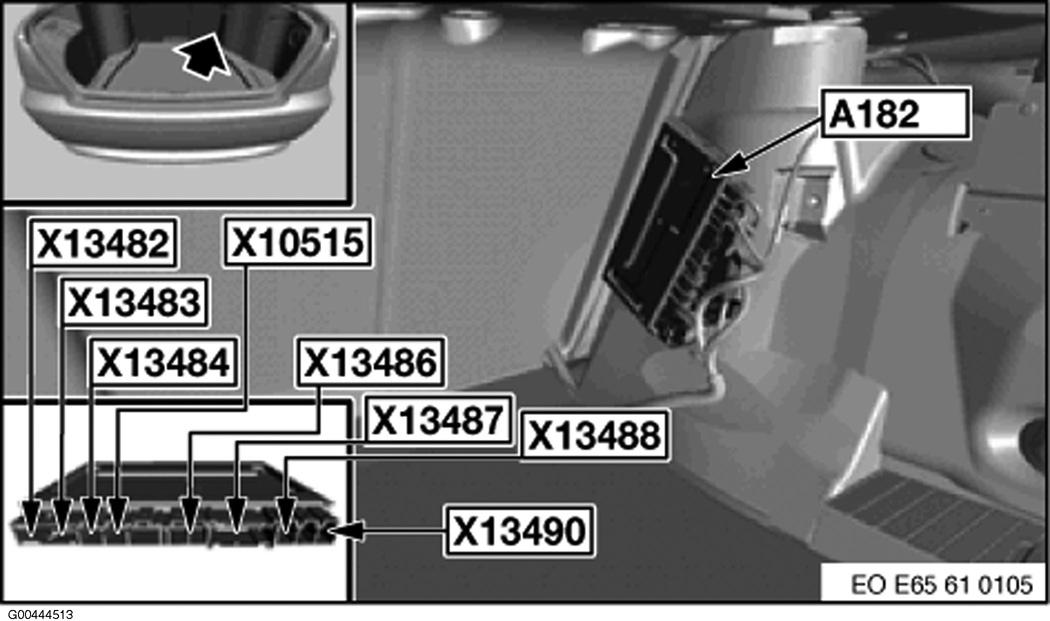

| Right Rear Seat Module (A182) | Right rear of rear compartment. See Figure. |

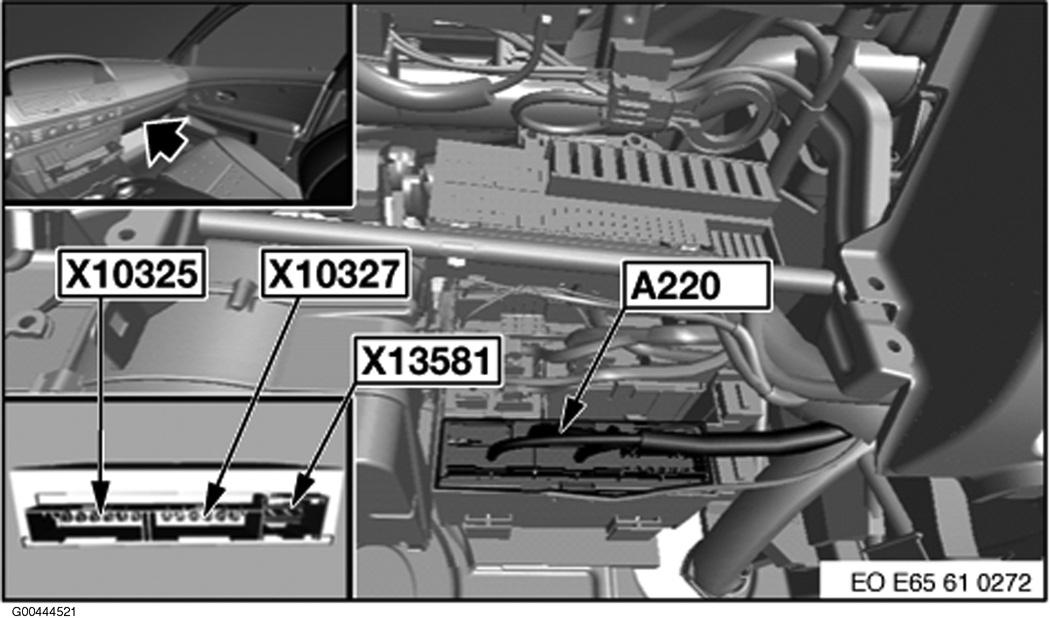

| Safety & Gateway Module (A220) | Under right side of dash. See Figure. |

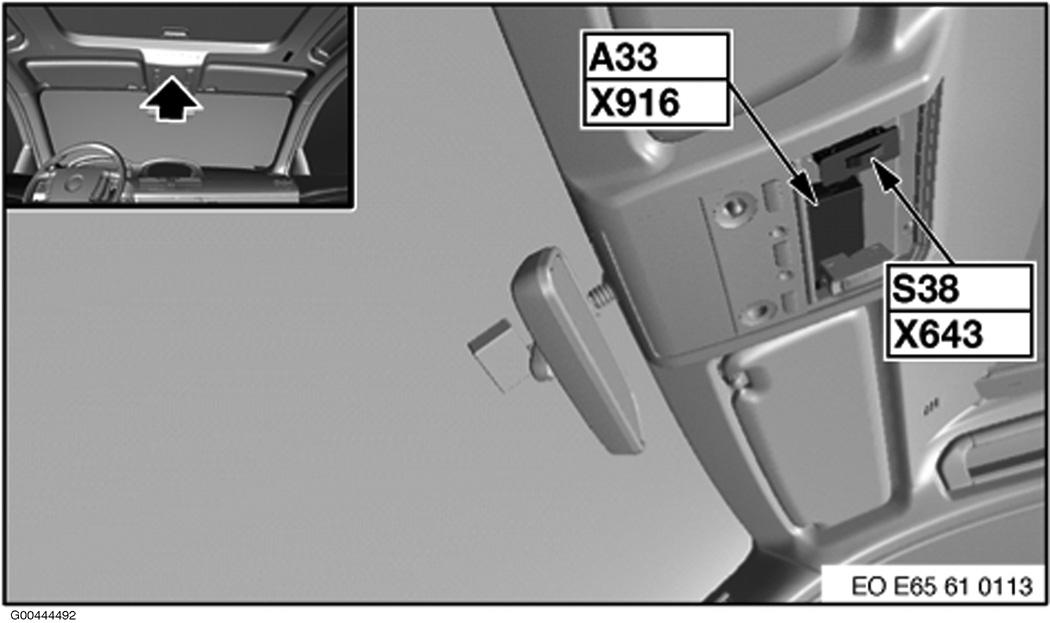

| Sunroof Module (A33) | Front of roof. See Figure. |

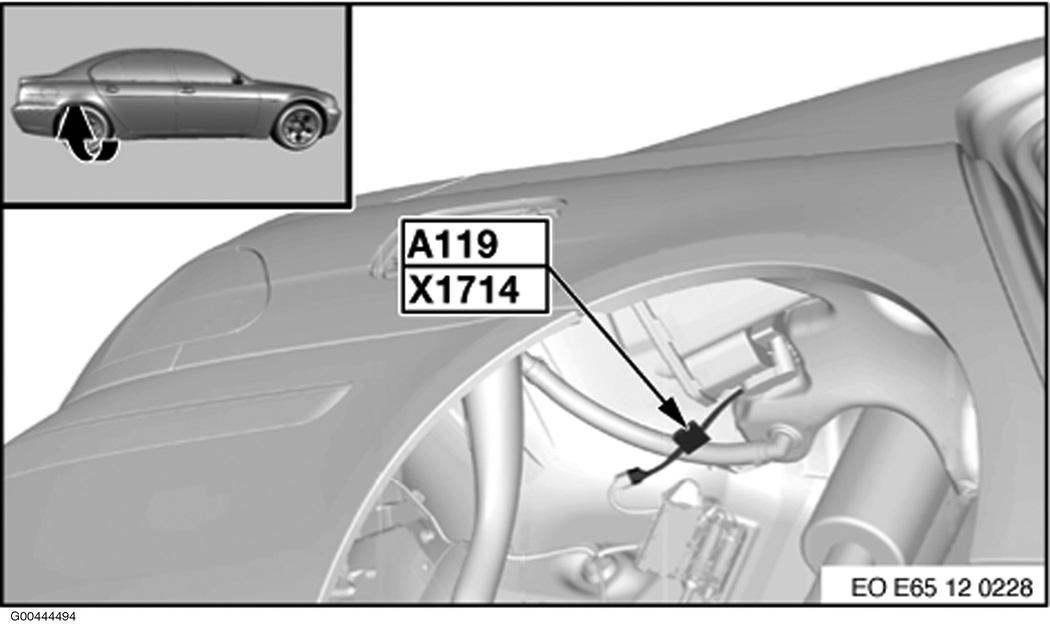

| Tank Leakage Diagnostic Module (A119) | Top of right rear wheel. See Figure. |
| Tire Pressure Control (RDC) Control Module (A85) | Under right side of dash. See Figure. |

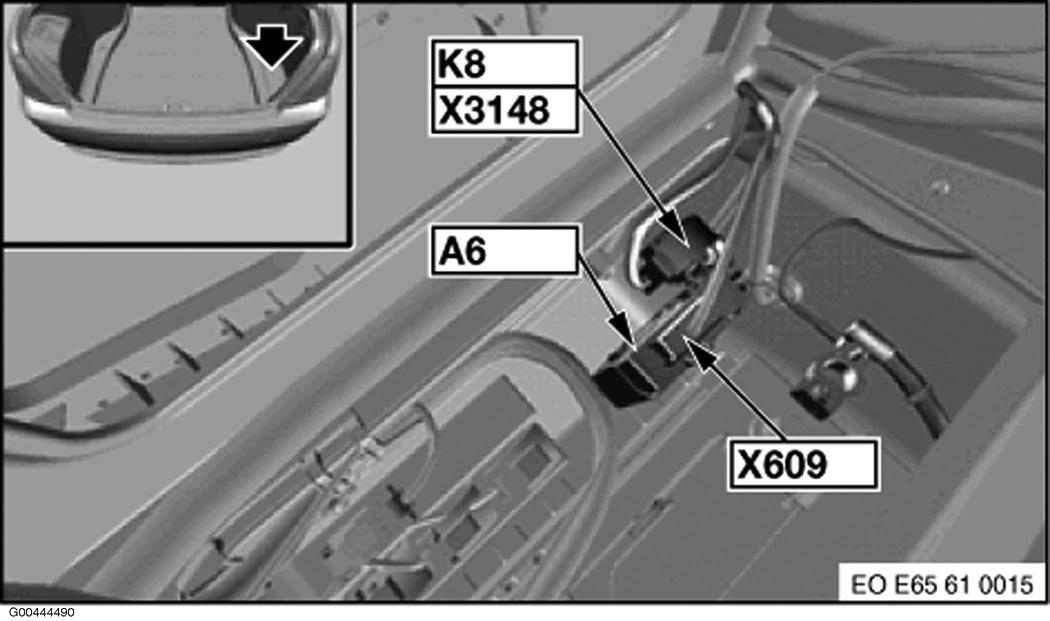

| Trailer Module (A6) | Right side of rear compartment. See Figure. |

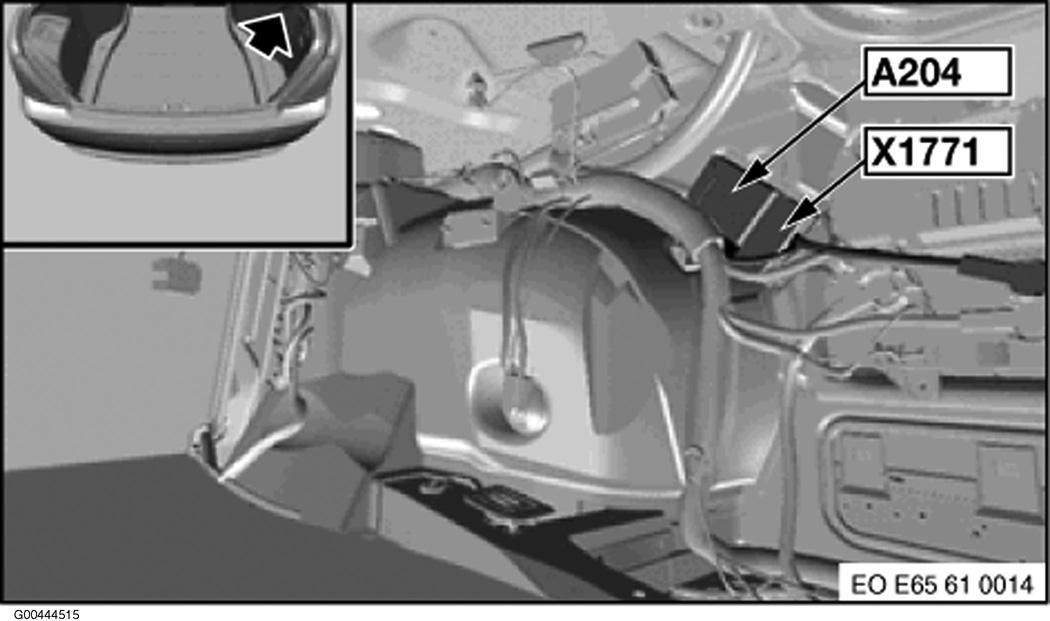

| Trunk Lid/Tailgate Module (A204) | Right rear of rear compartment. See Figure. |

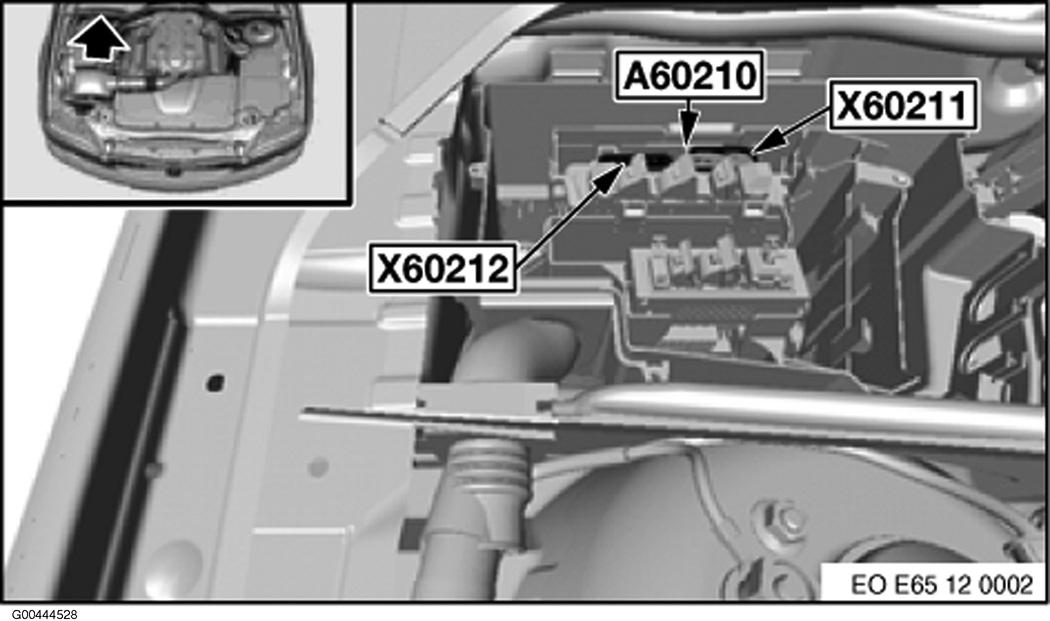

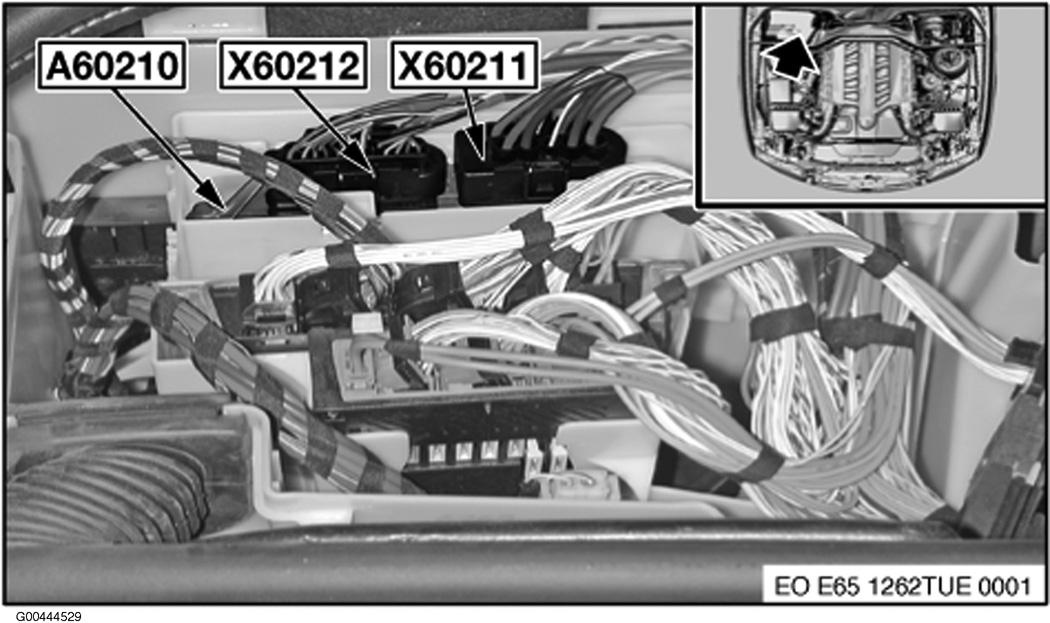

| Variable Valve Timing Gear Control Module (A60210) (4.8L) | Right rear of engine compartment. See Figure. |
| Variable Valve Timing Gear Control Module (A60210) (6.0L) | Right rear of engine compartment. See Figure. |

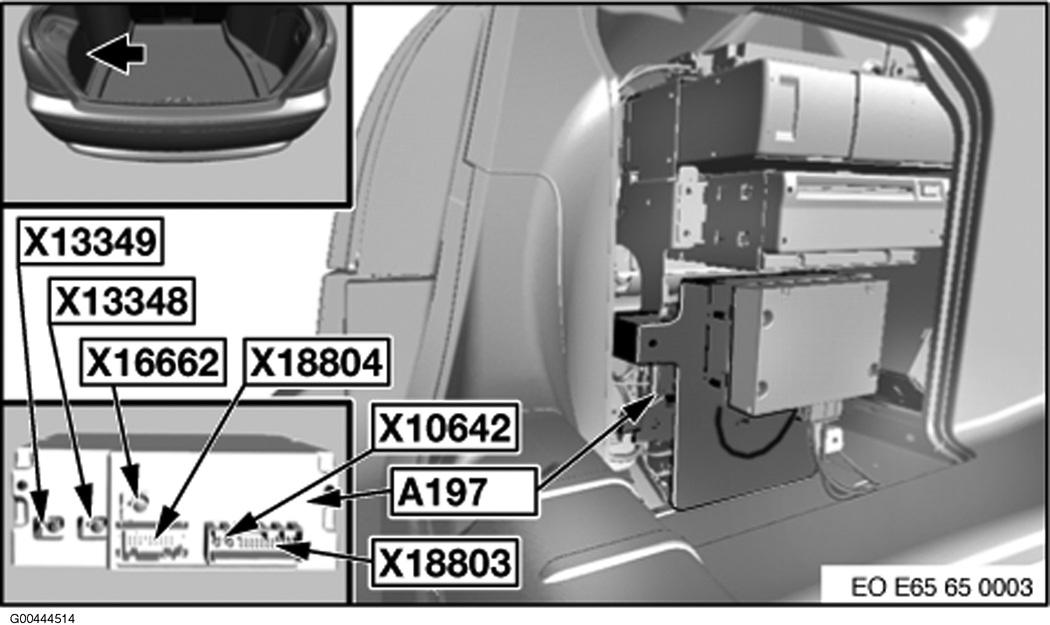

| Video Module (A197) | Left side of rear compartment. See Figure. |

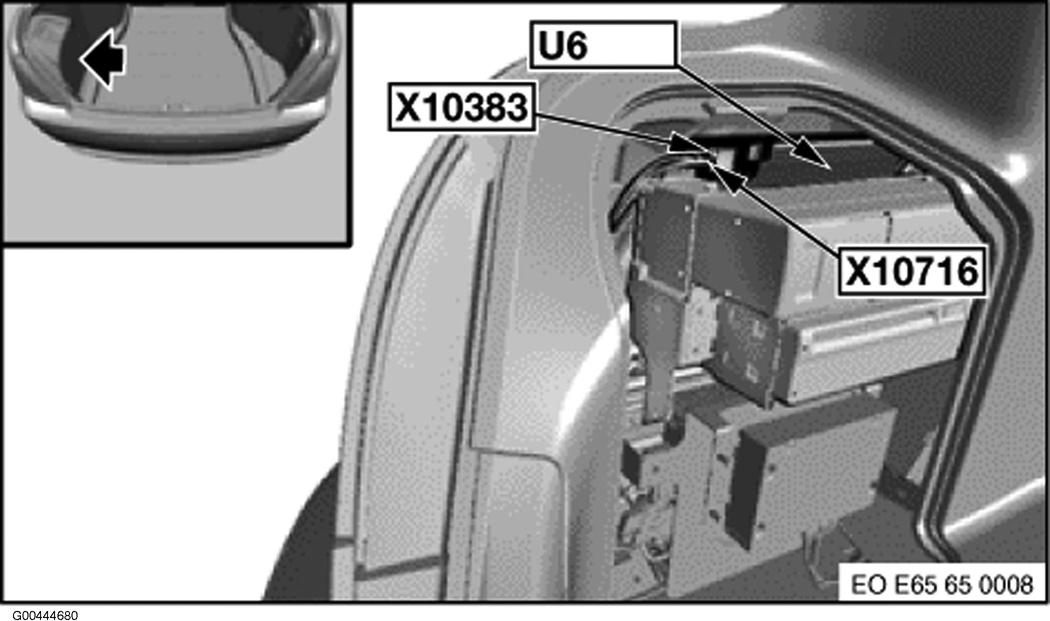

| Voice Input Control Module (U6) | Left side of rear compartment. See Figure. |

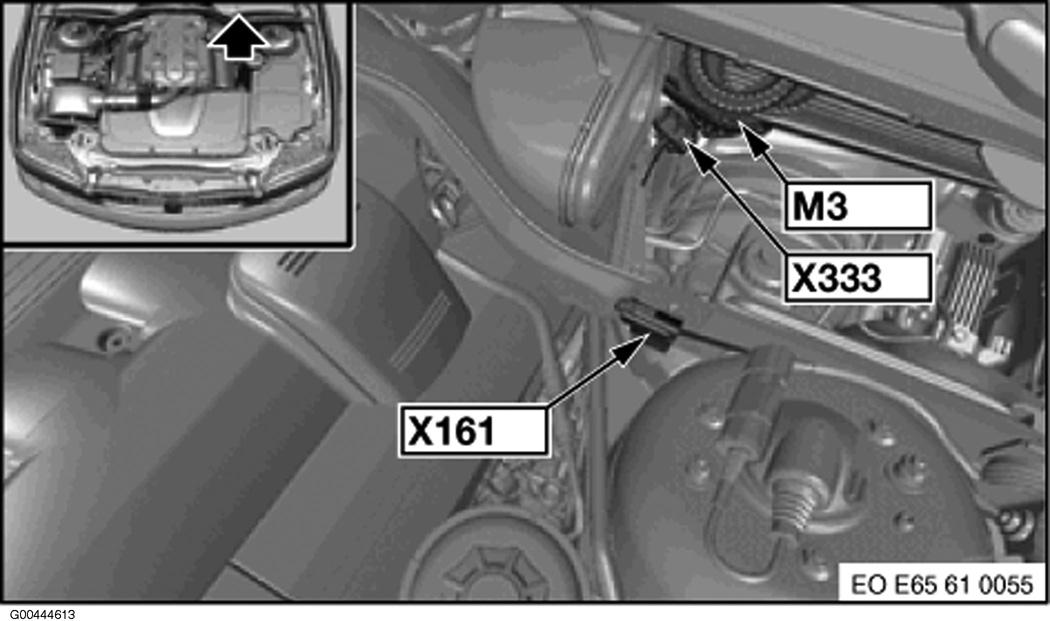

| Wiper Module (M3) | Left rear of engine compartment. See Figure. |
