Electrical Component Locator: Splices

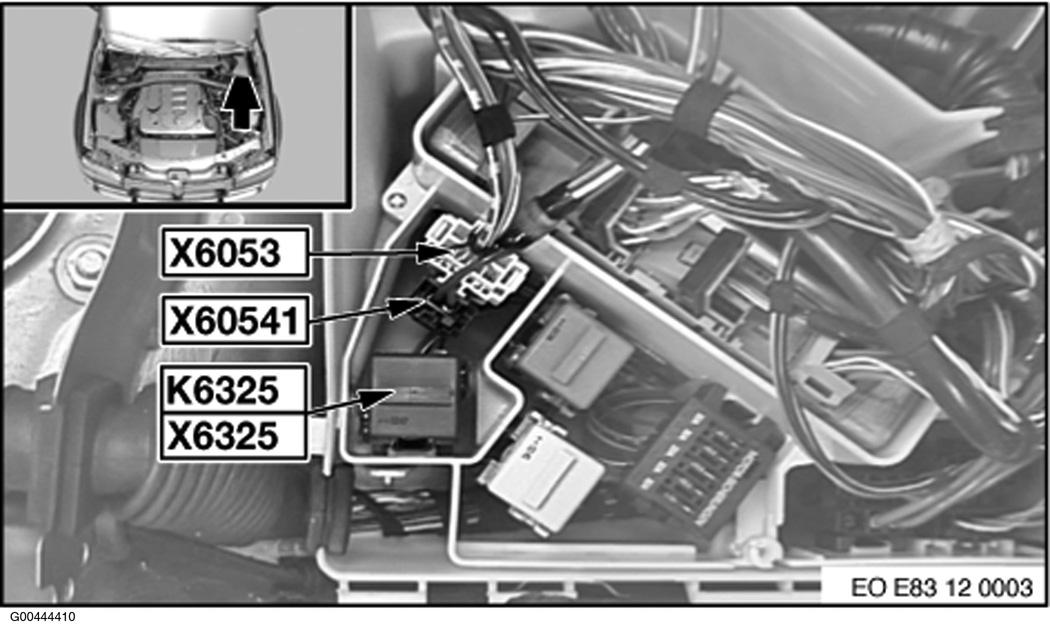

SPLICES LOCATION

Component Location
X181 Right side of dash. See Figure.
X183 Right side of dash. See Figure.
X217 Left side of dash. See Figure.
X218 Right side of right footwell. See Figure.
X219 Right side of dash. See Figure.
X428 Right side of dash. See Figure.
X461 Bottom right of rear compartment door. See Figure.
X595 Center of rear compartment floor board. See Figure.
X834 In left rear door. See Figure.
X835 In right rear door. See Figure.
X891 In front passenger's door. See Figure.
X10116 Right side of dash. See Figure.
X10148 Right side of dash. See Figure.
X10189 Right side of dash. See Figure.
X10237 Center of dash. See Figure.
X18826 Right side of right footwell. See Figure.
X18827 Right side of right footwell. See Figure.
