Airbag Indicator Lamp

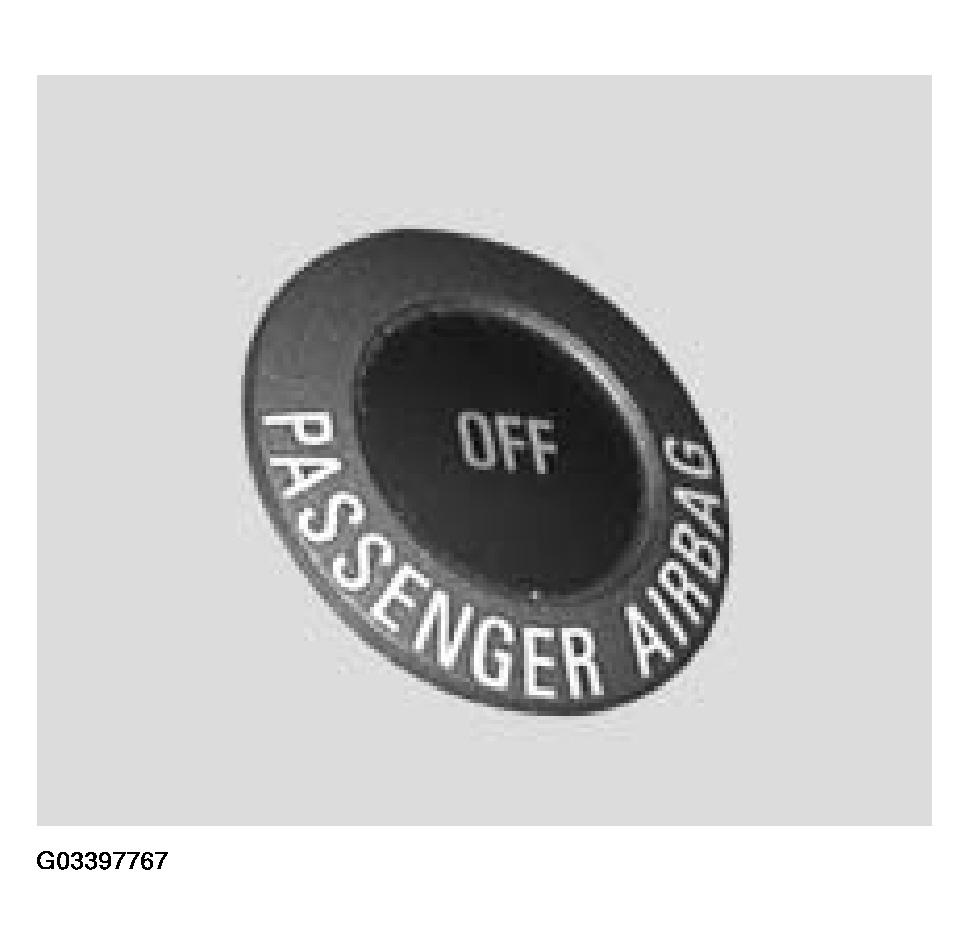

Fig 1: Identifying Airbag Indicator Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

The airbag indicator lamp is activated when the airbag switch assigns the state "Passenger Airbag OFF."

The airbag indicator lamp is activated by the SIM.

The airbag indicator lamp is diagnosed and monitored. If a fault is found in the power supply or at the lamp, a fault entry is made in the SIM.

The airbag warning lamp is activated.
