Airbag Switch

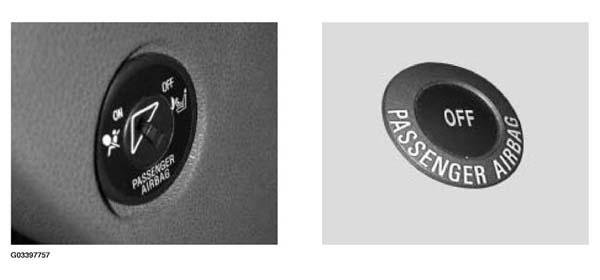

Fig 1: Identifying Airbag Switch
G03397757Courtesy of BMW OF NORTH AMERICA, INC.

The airbag switch is located on the right side of the dashboard at the A-Pillar and the indicator lamp for is located in the center console.

The airbag switch makes its possible for the driver to determine if the passenger front and side bags are active. The front passenger and passenger side airbag are activated or deactivated together only.

To prevent accidental activation or deactivation of the passenger airbags the switch may only be operated by the ignition key while the car is not moving and the passenger door is open.

The airbag indicator lamp consists of a number of LED's controlled by the SIM.
