Side Airbags

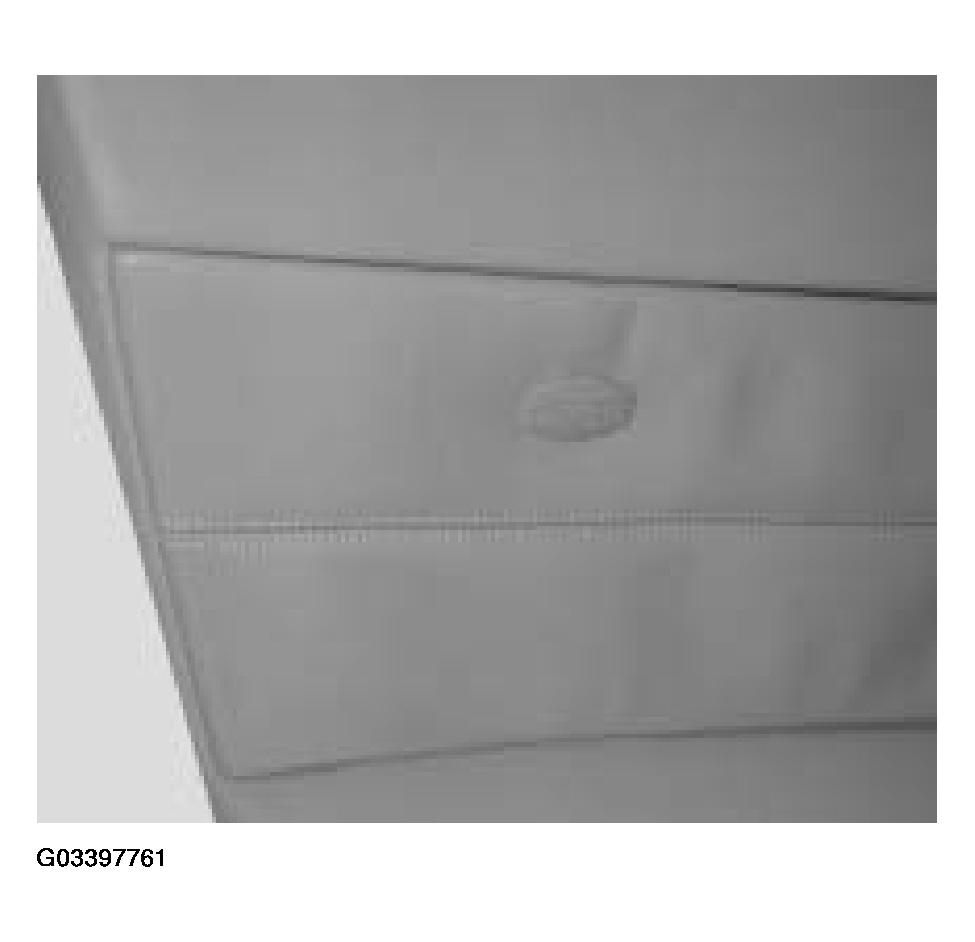

Fig 1: Identifying Side Airbags Door

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Side Airbags Module

Courtesy of BMW OF NORTH AMERICA, INC.

The side airbags in the doors reduce the risk of occupant injury in the torso region of the body in the case of a side-on crash.

The side airbags are located behind the door trim. The side airbags are secured to the inner door panel with 3 screws.

The side airbags are folded up in an aluminum housing with a plastic cover. The plastic cover has defined breaking points.
