Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| E Box |
Right rear of engine compartment. |

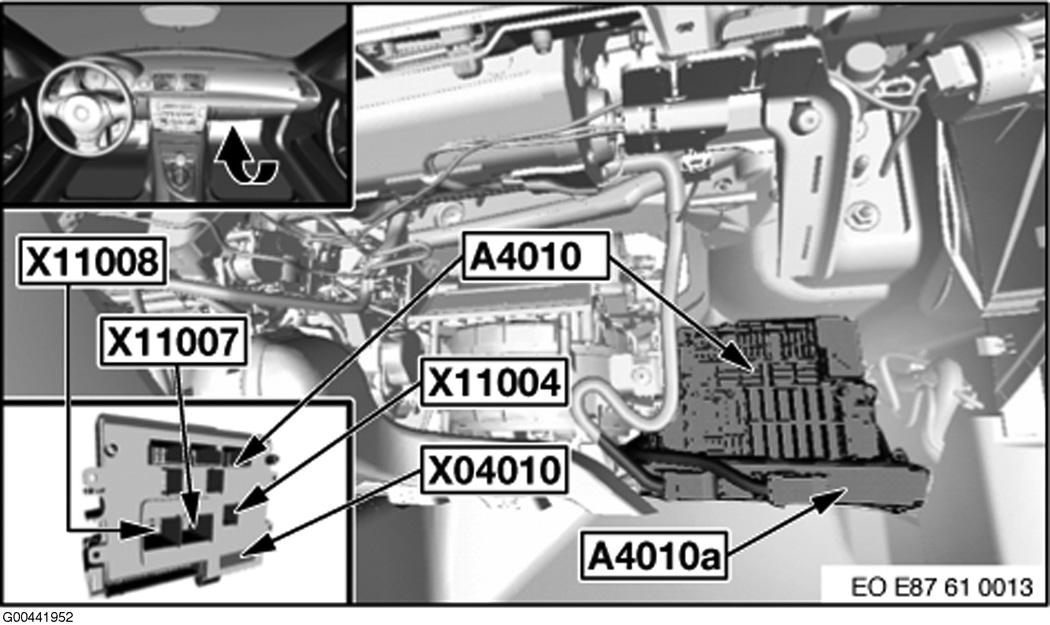

| Junction Box (A4010) |
Under right side of dash. See Figure. |
| Junction Box Electronics (A4010a) |
Under right side of dash. See Figure. |

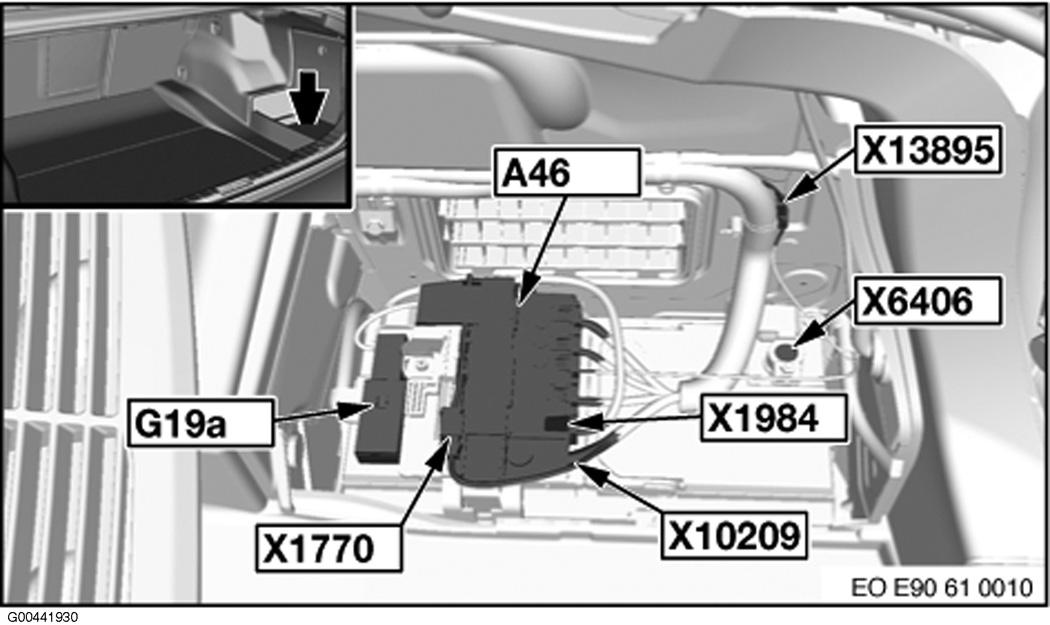

| Rear Fuse Holder (A46) |
Right side of rear compartment. See Figure. |
