Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

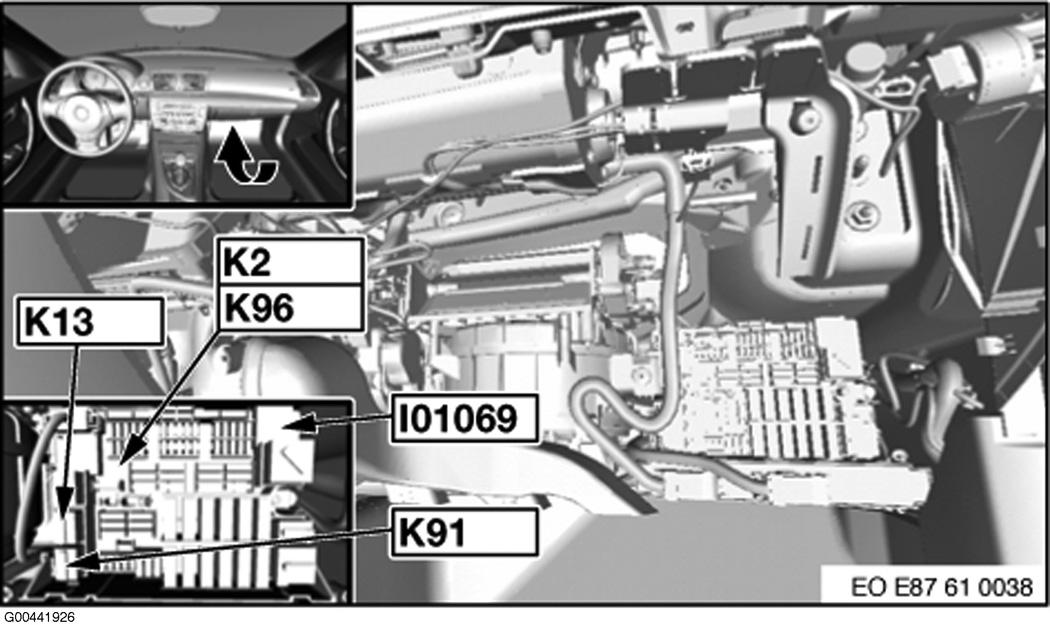

Fig 1: Right Side Of Dash

G00441926

Courtesy of BMW OF NORTH AMERICA, INC.

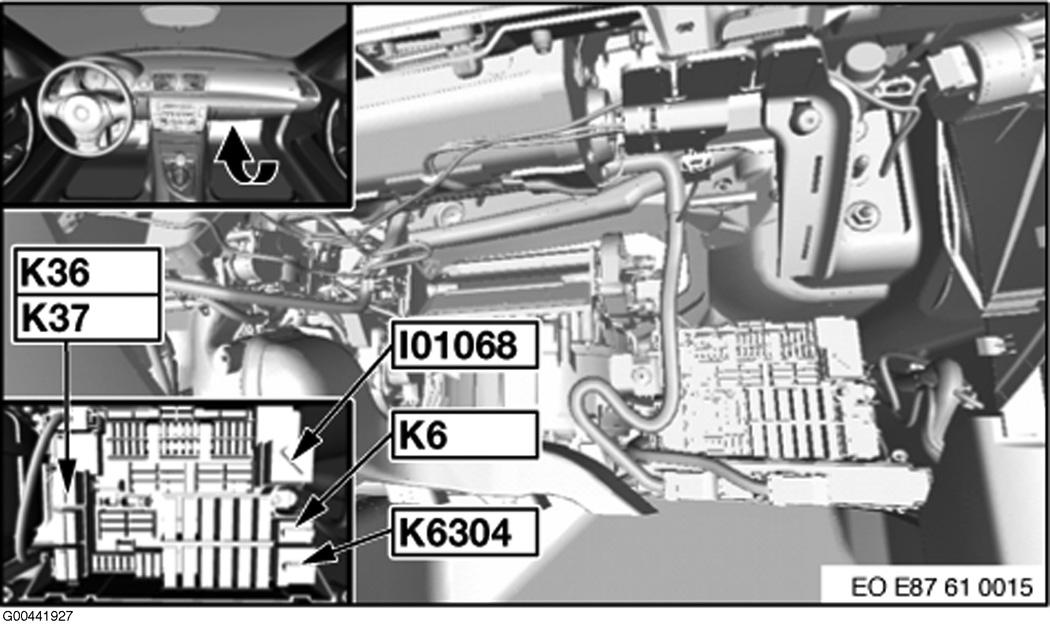

Fig 2: Right Side Of Dash

G00441927

Courtesy of BMW OF NORTH AMERICA, INC.

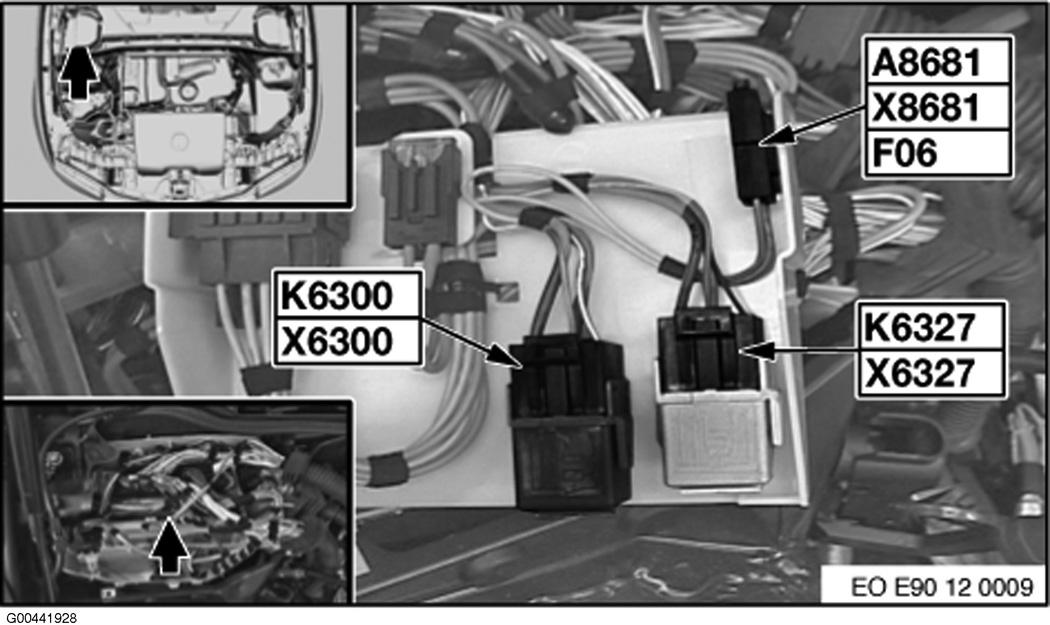

Fig 3: Right Rear Of Engine Compartment

G00441928

Courtesy of BMW OF NORTH AMERICA, INC.

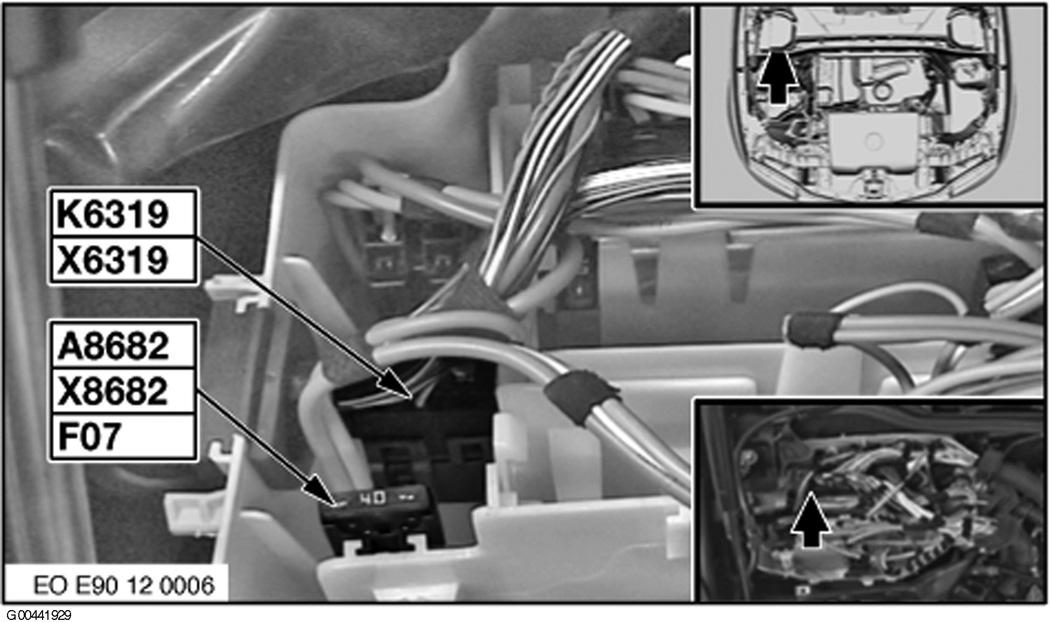

Fig 4: Right Rear Of Engine Compartment

G00441929

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Right Side Of Rear Compartment

G00441930

Courtesy of BMW OF NORTH AMERICA, INC.

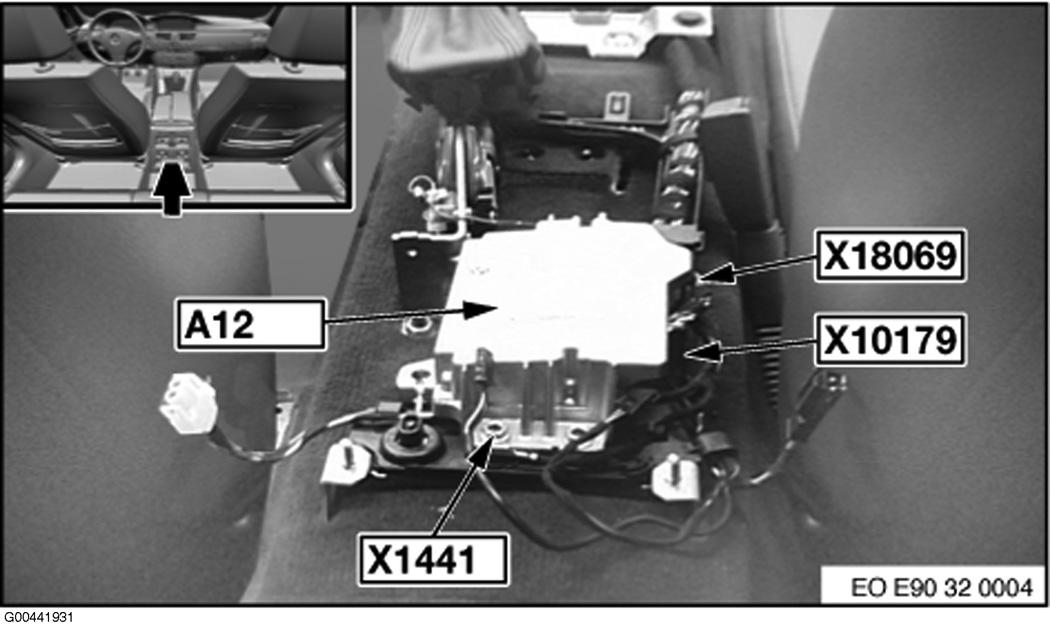

Fig 6: Under Center Console

G00441931

Courtesy of BMW OF NORTH AMERICA, INC.

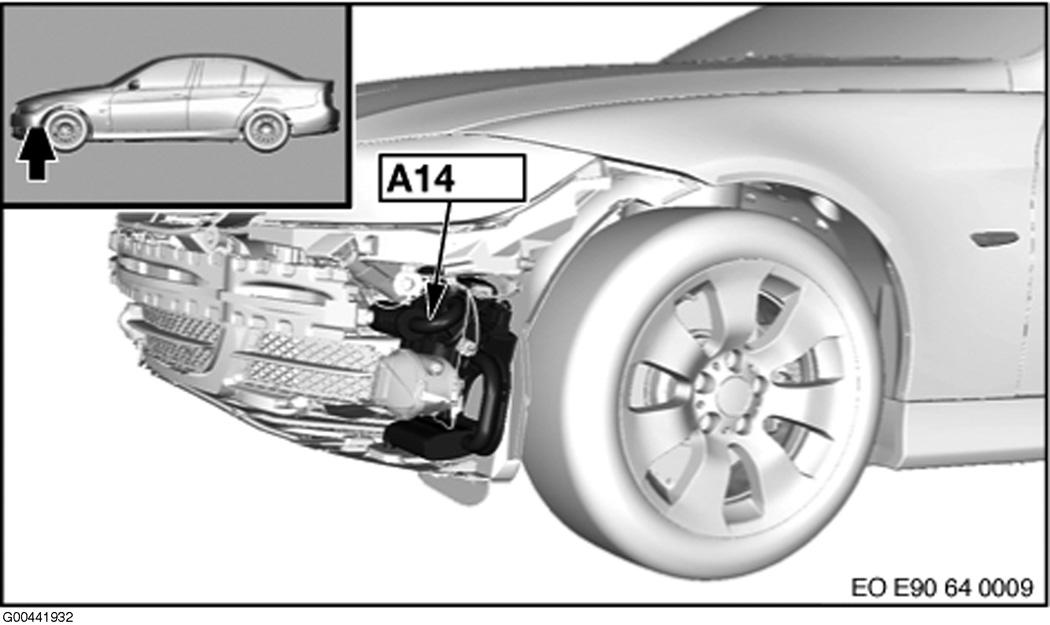

Fig 7: Left Front Bumper

G00441932

Courtesy of BMW OF NORTH AMERICA, INC.

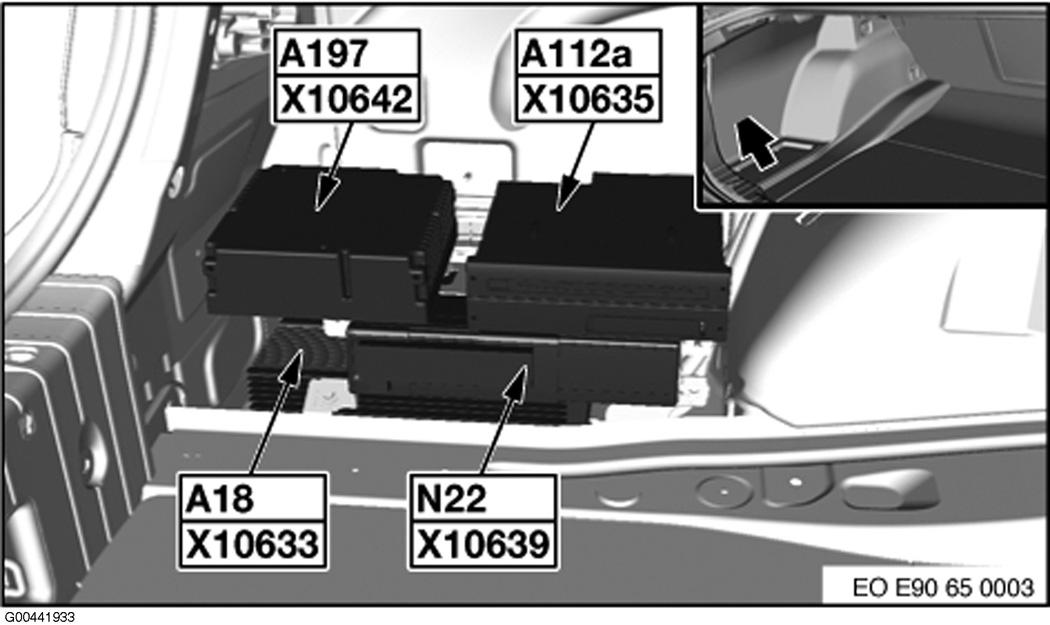

Fig 8: Left Side Of Rear Compartment

G00441933

Courtesy of BMW OF NORTH AMERICA, INC.

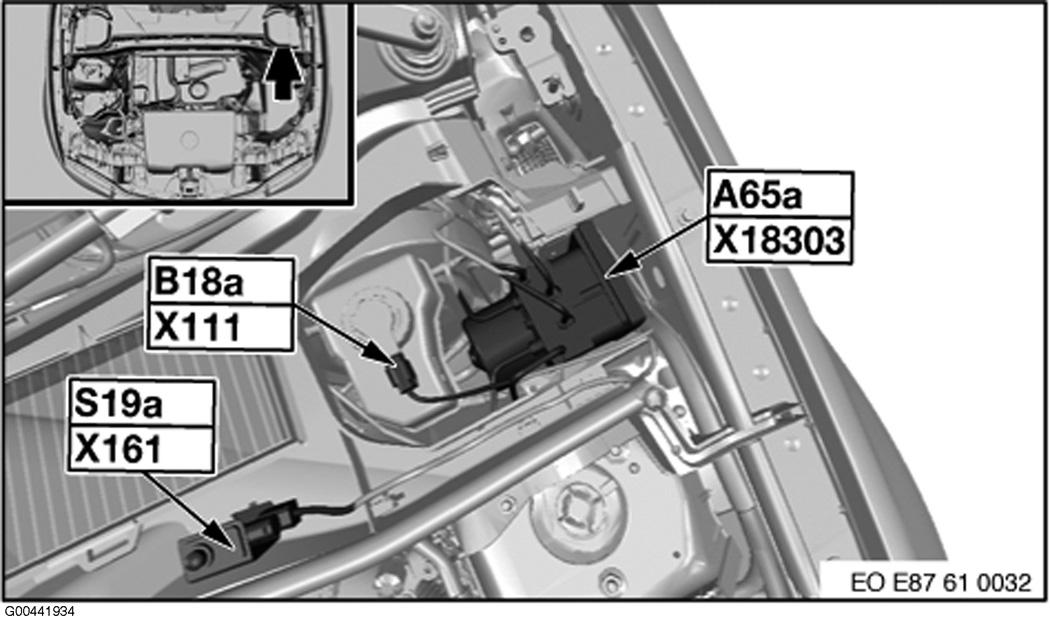

Fig 9: Left Rear Of Engine Compartment

G00441934

Courtesy of BMW OF NORTH AMERICA, INC.

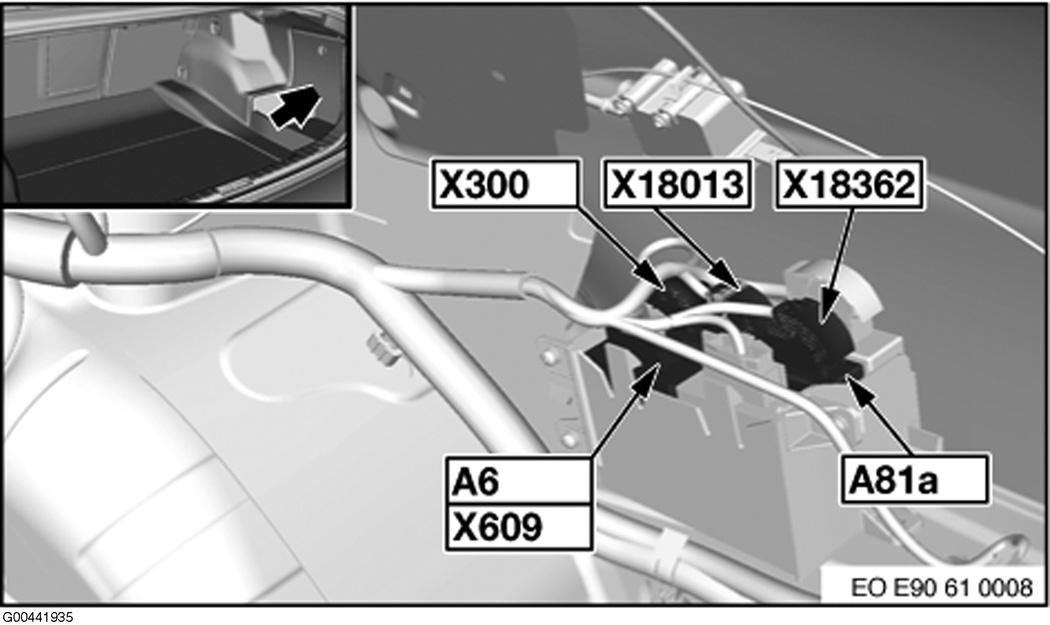

Fig 10: Right Side Of Rear Compartment

G00441935

Courtesy of BMW OF NORTH AMERICA, INC.

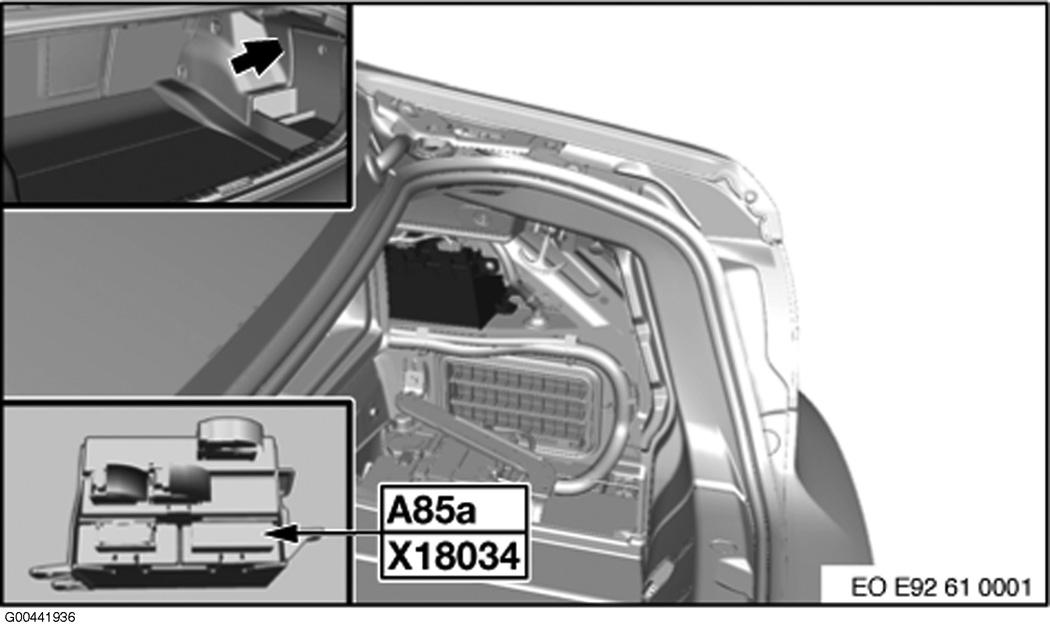

Fig 11: Right Side Of Rear Compartment

G00441936

Courtesy of BMW OF NORTH AMERICA, INC.

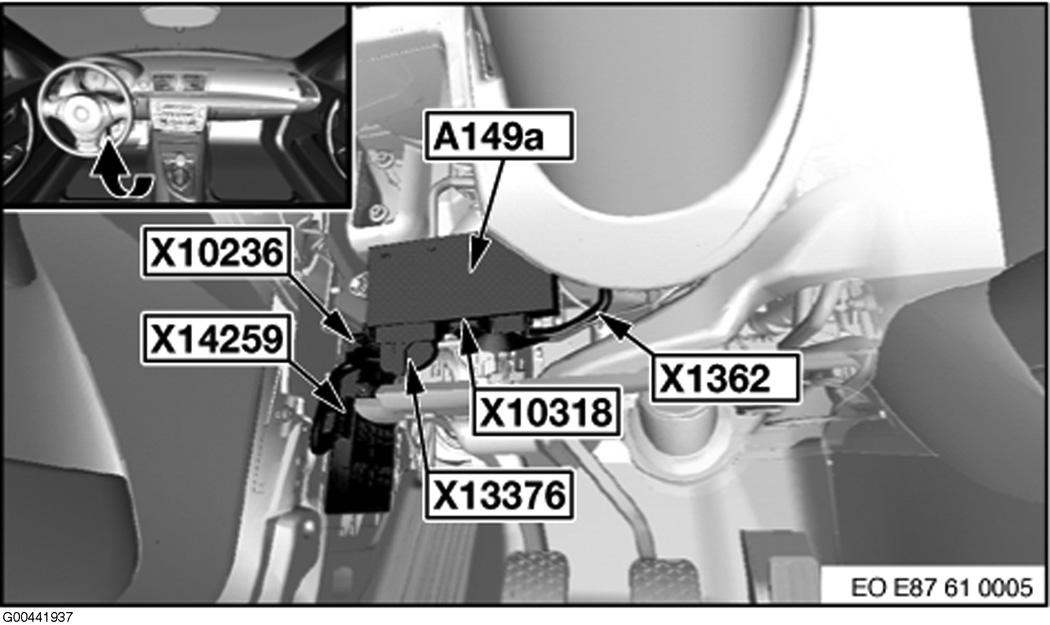

Fig 12: Left Side Of Dash

G00441937

Courtesy of BMW OF NORTH AMERICA, INC.

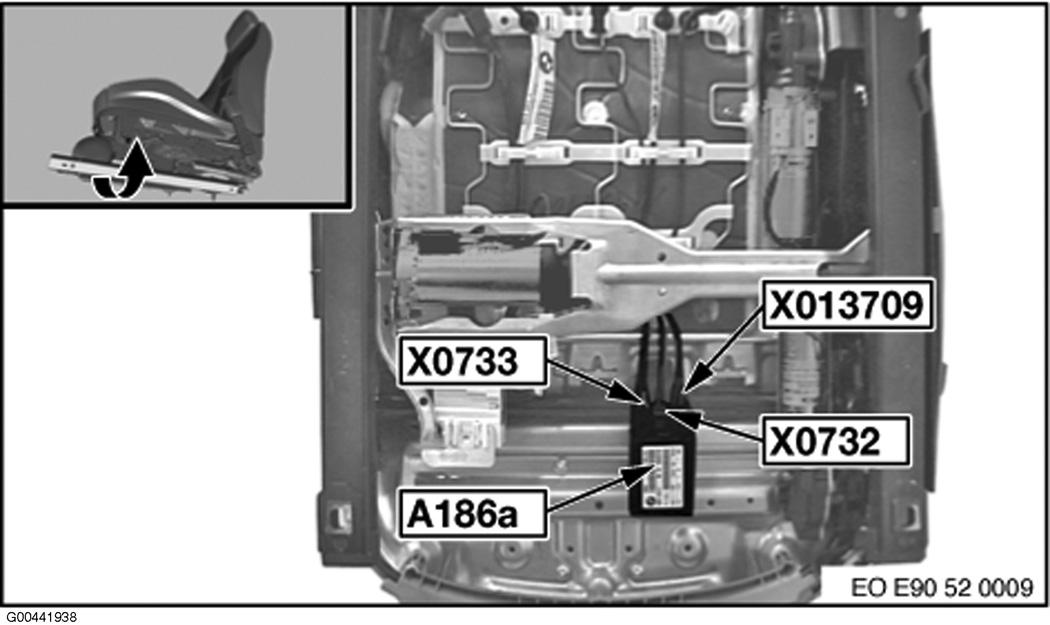

Fig 13: Under Passenger Seat

G00441938

Courtesy of BMW OF NORTH AMERICA, INC.

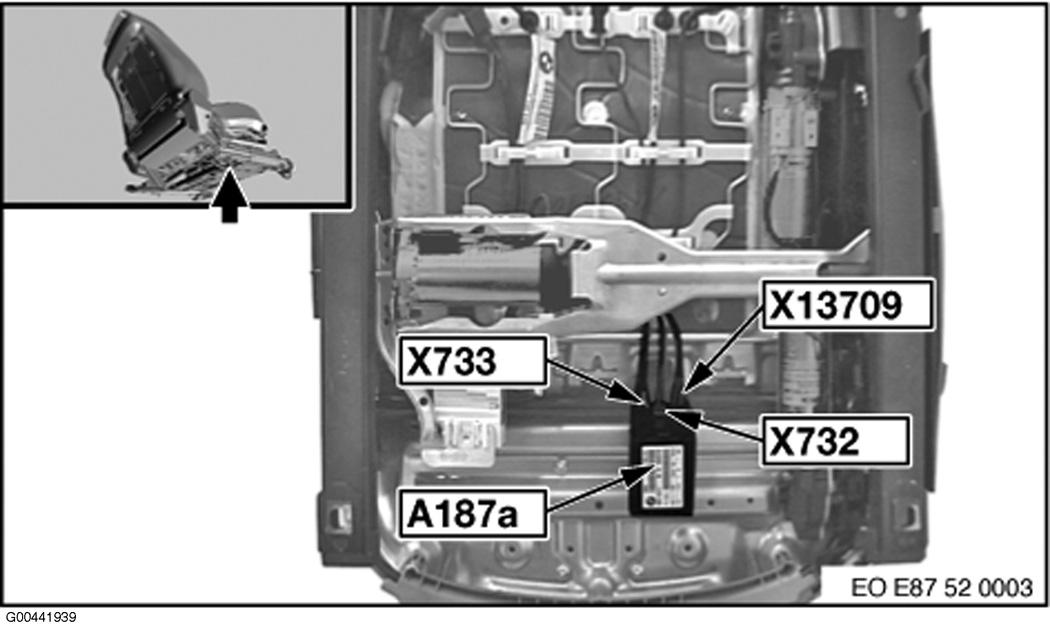

Fig 14: Under Driver Seat

G00441939

Courtesy of BMW OF NORTH AMERICA, INC.

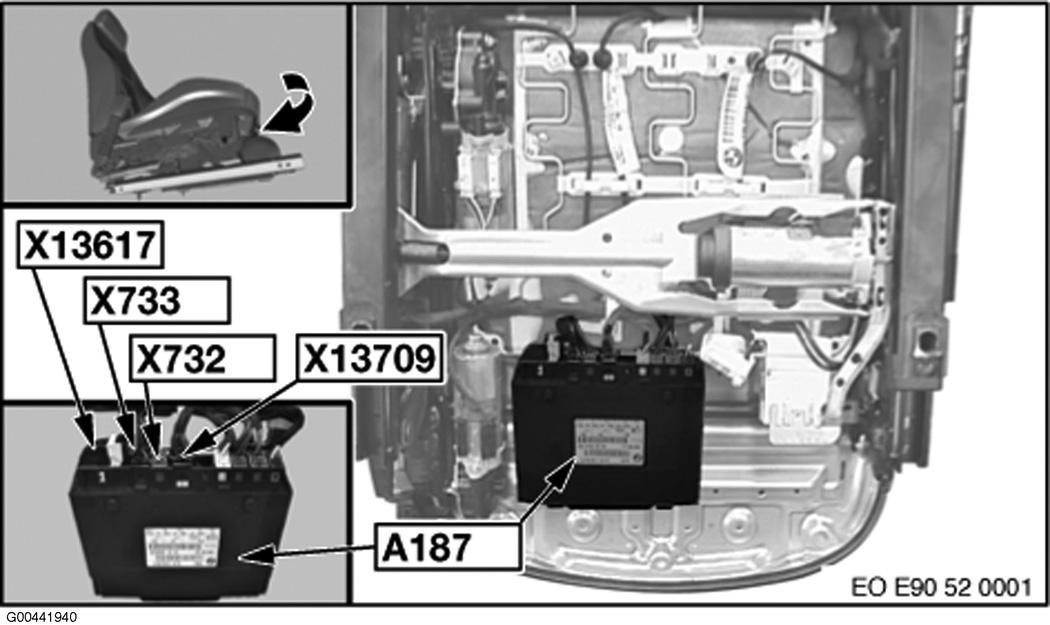

Fig 15: Under Driver Seat

G00441940

Courtesy of BMW OF NORTH AMERICA, INC.

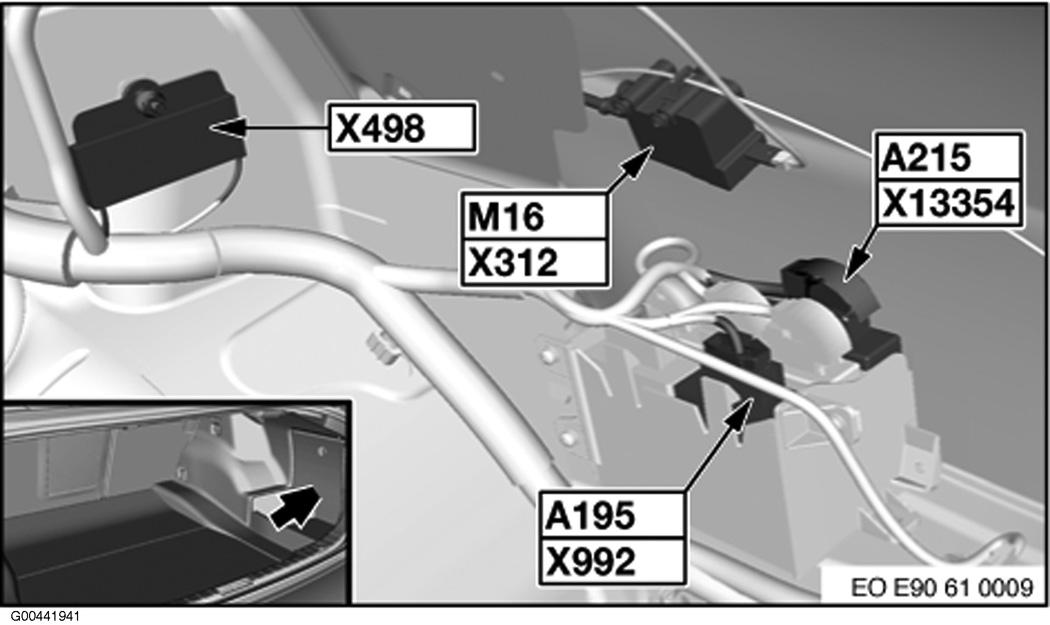

Fig 16: Right Side Of Rear Compartment

G00441941

Courtesy of BMW OF NORTH AMERICA, INC.

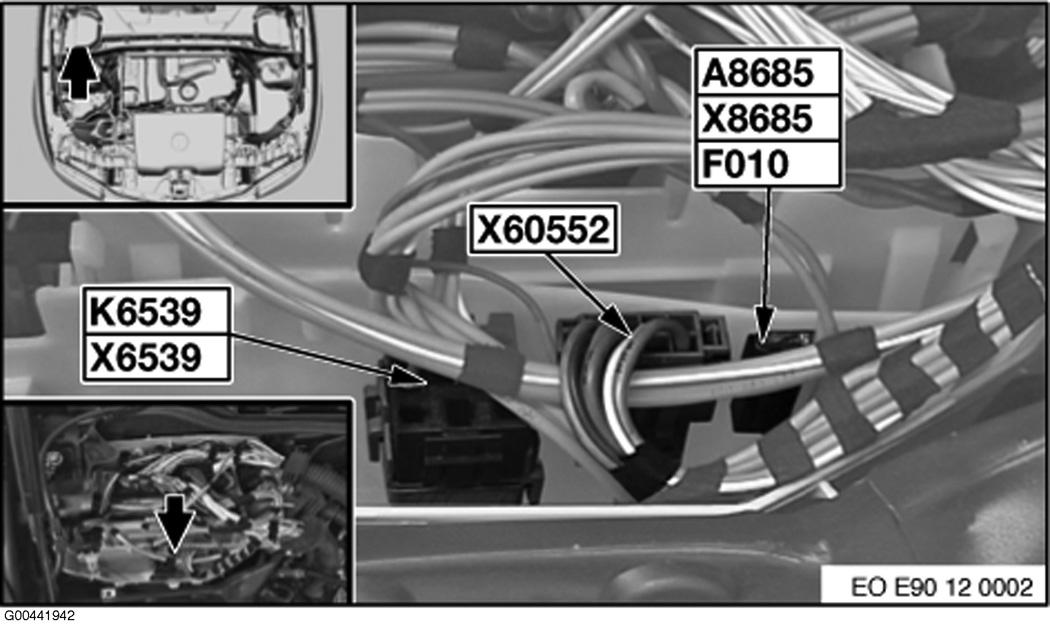

Fig 17: Right Rear Of Engine Compartment

G00441942

Courtesy of BMW OF NORTH AMERICA, INC.

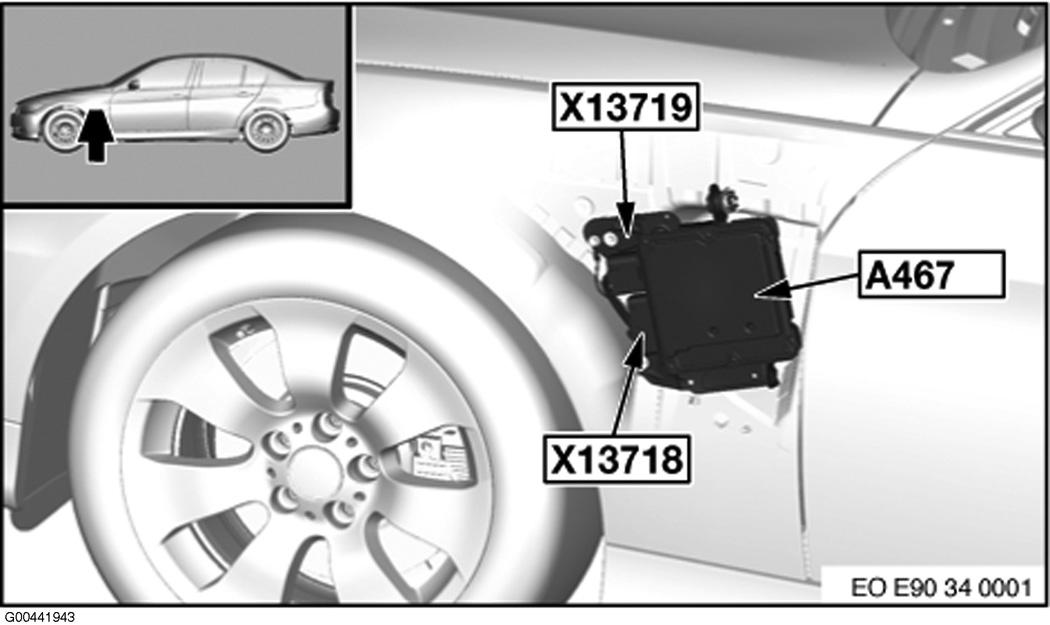

Fig 18: Behind Left Front Wheel Housing

G00441943

Courtesy of BMW OF NORTH AMERICA, INC.

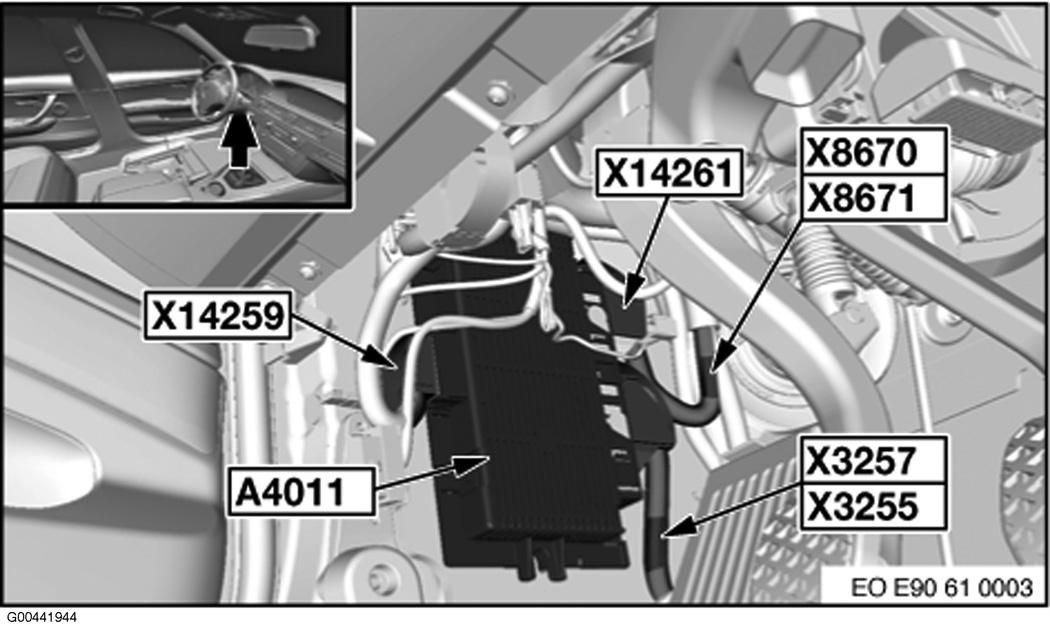

Fig 19: Left Side Of Dash

G00441944

Courtesy of BMW OF NORTH AMERICA, INC.

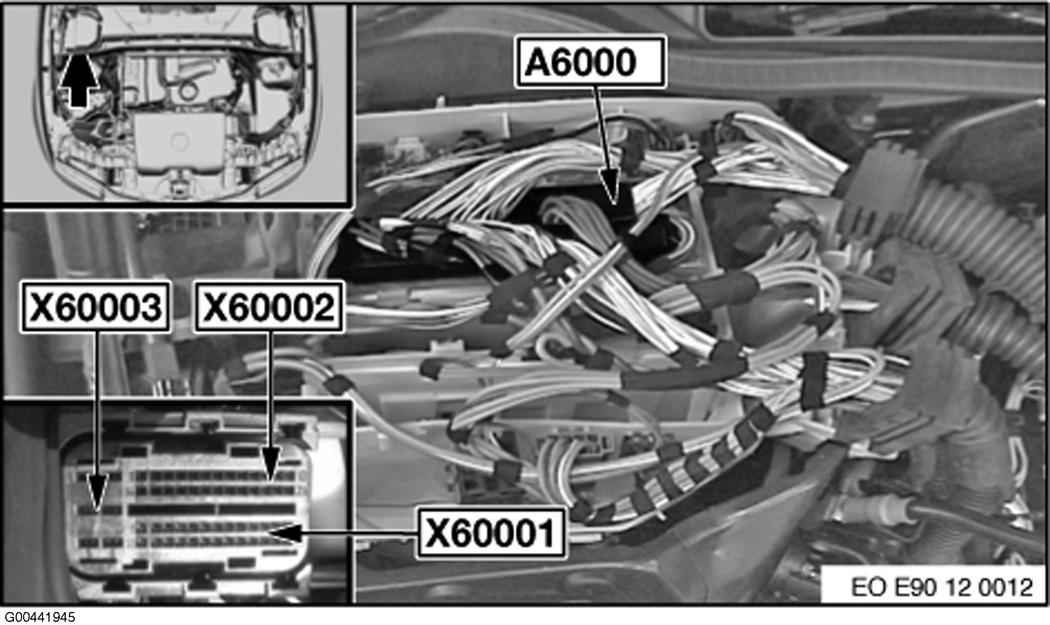

Fig 20: Right Rear Of Engine Compartment

G00441945

Courtesy of BMW OF NORTH AMERICA, INC.

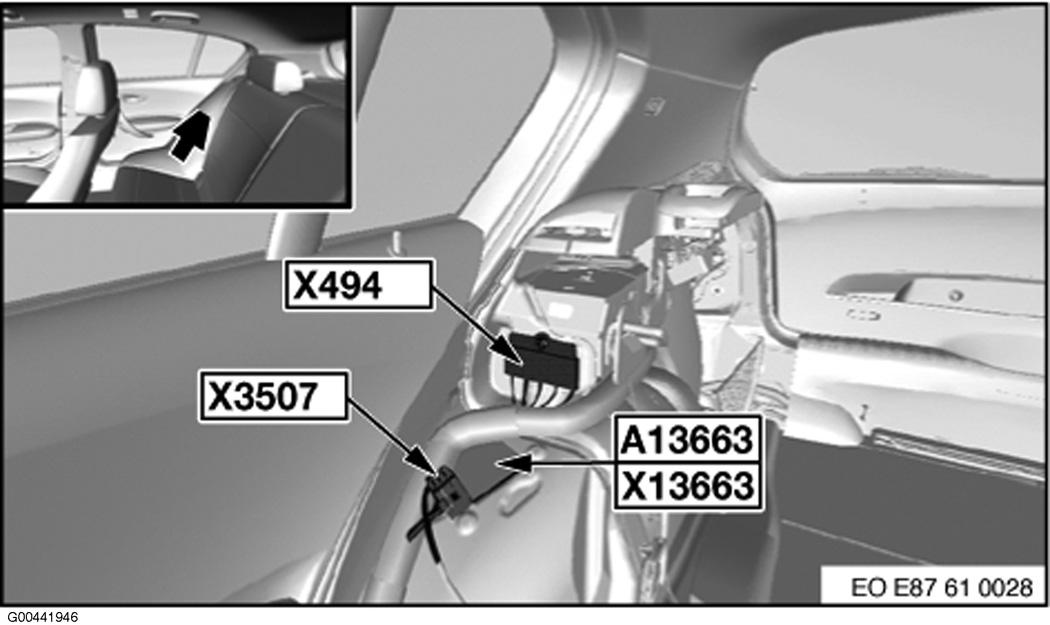

Fig 21: Right Side Of Right Rear Seat

G00441946

Courtesy of BMW OF NORTH AMERICA, INC.

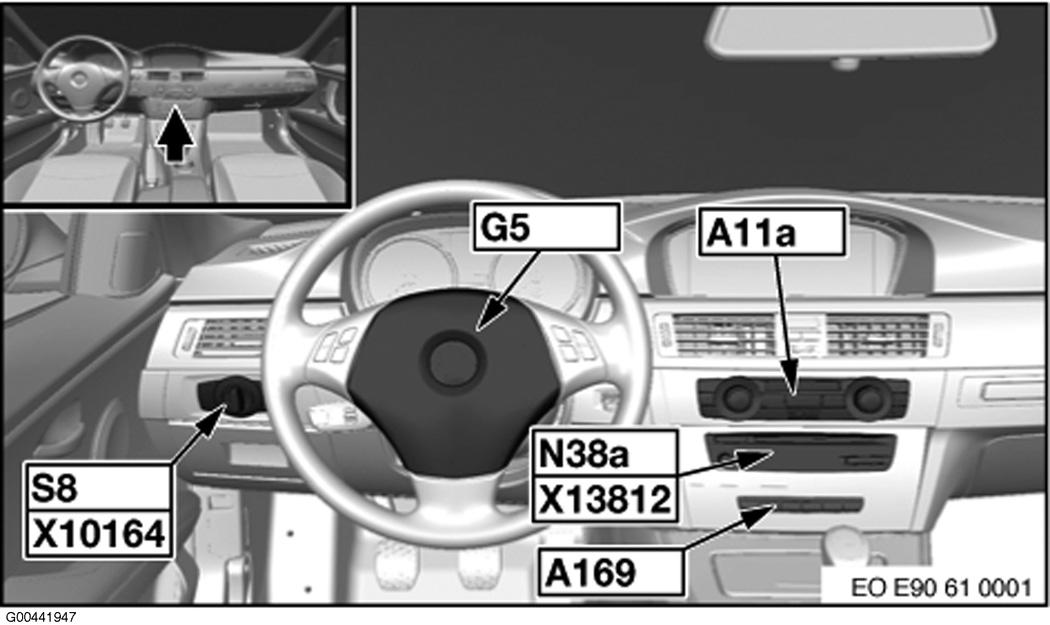

Fig 22: Center Of Dash

G00441947

Courtesy of BMW OF NORTH AMERICA, INC.

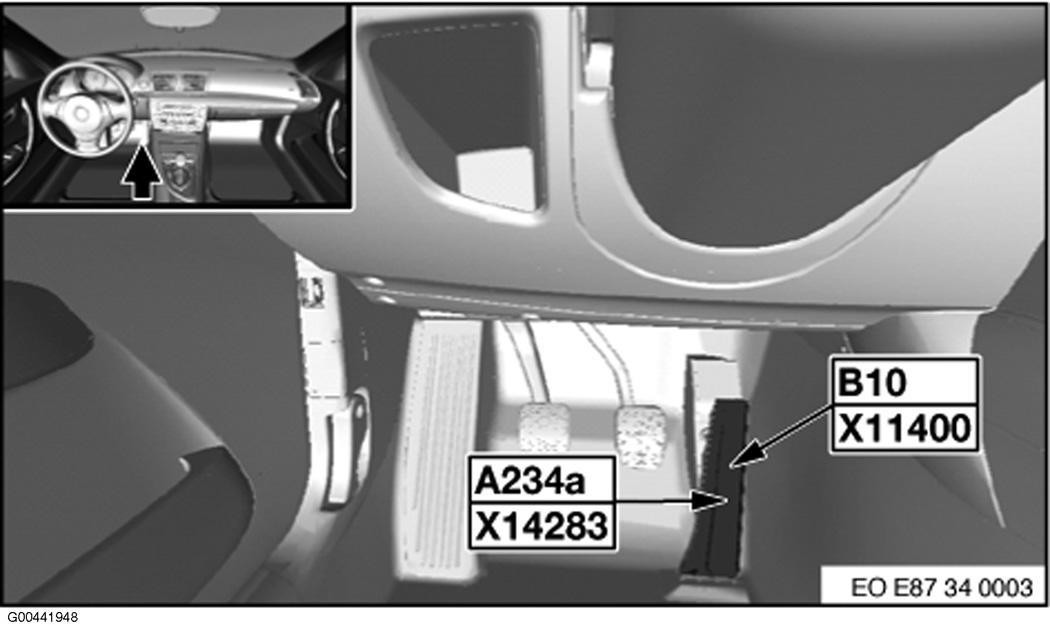

Fig 23: Part Of Accelerator Pedal

G00441948

Courtesy of BMW OF NORTH AMERICA, INC.

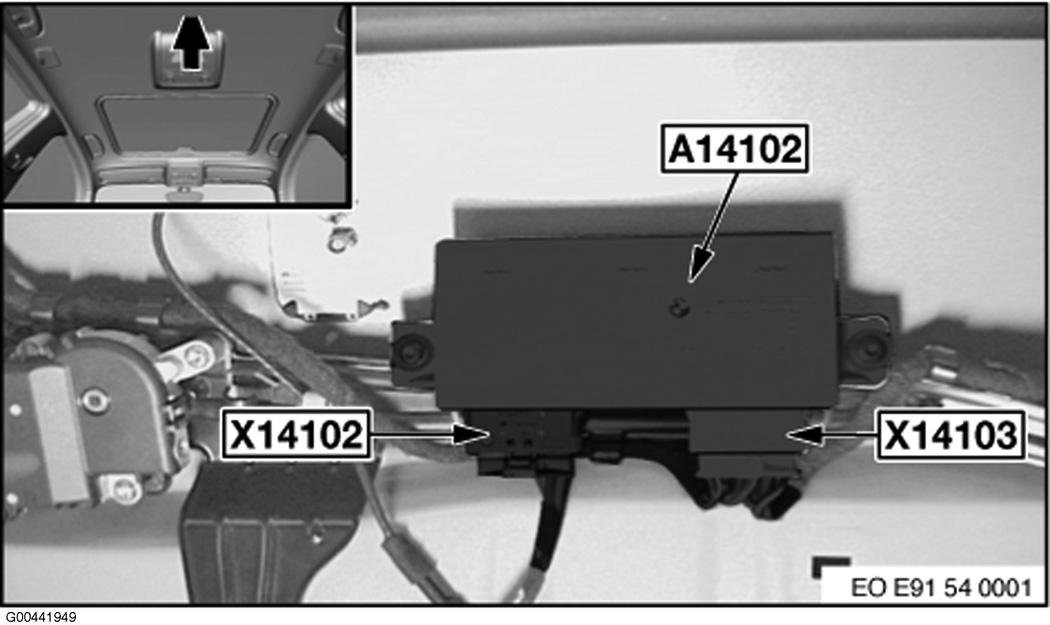

Fig 24: Center Of Roof, Forward Of Sunroof

G00441949

Courtesy of BMW OF NORTH AMERICA, INC.

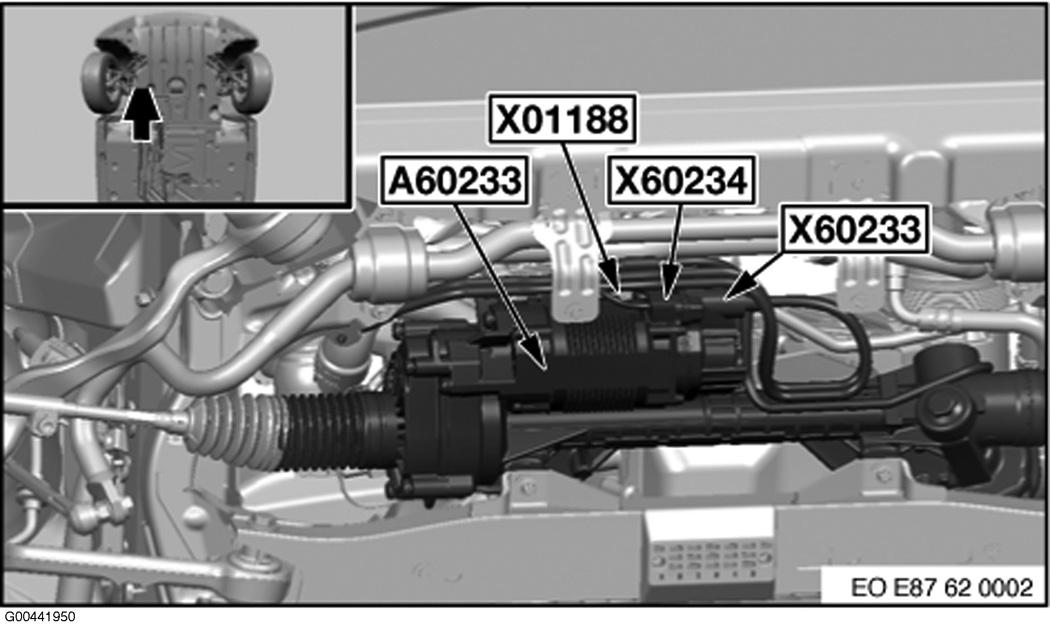

Fig 25: Under Vehicle, Near Right Front Wheel

G00441950

Courtesy of BMW OF NORTH AMERICA, INC.

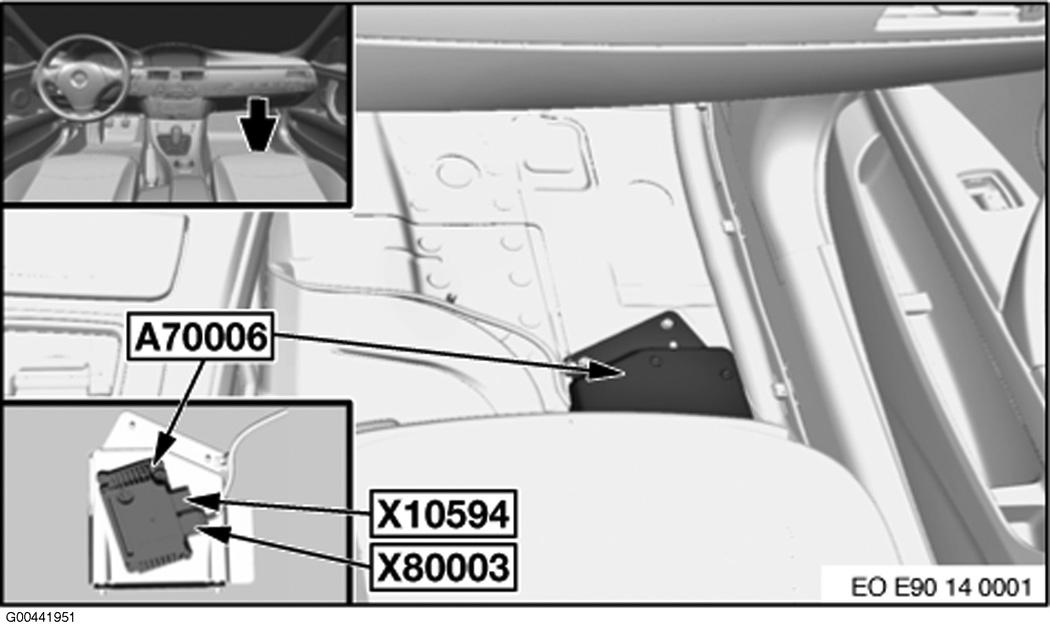

Fig 26: Under Carpet, Front Of Passenger Seat

G00441951

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Right Side Of Dash

G00441952

Courtesy of BMW OF NORTH AMERICA, INC.

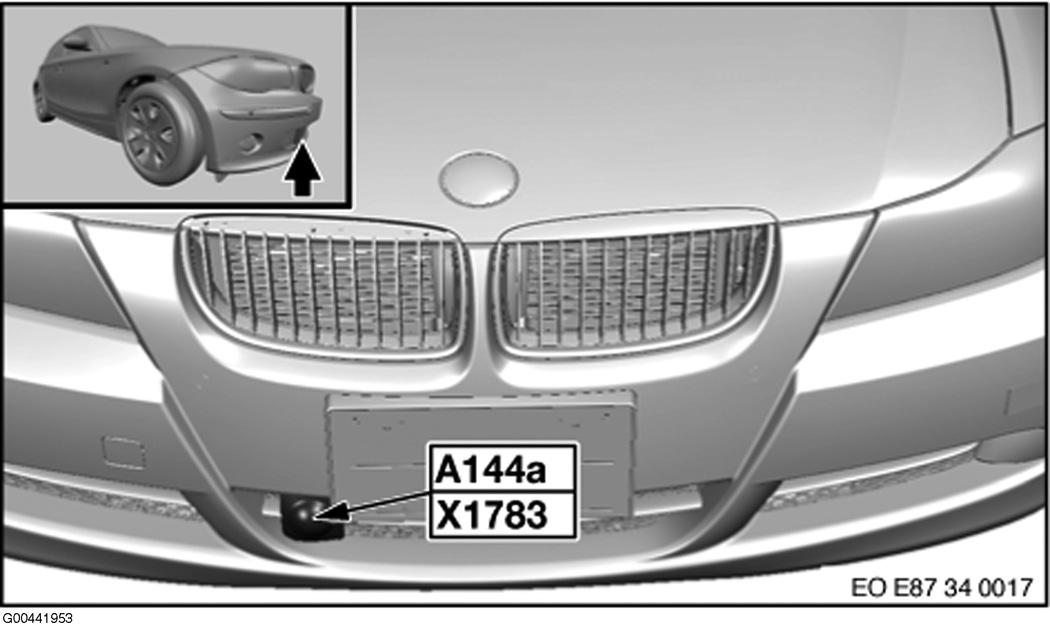

Fig 28: Right Front Bumper

G00441953

Courtesy of BMW OF NORTH AMERICA, INC.

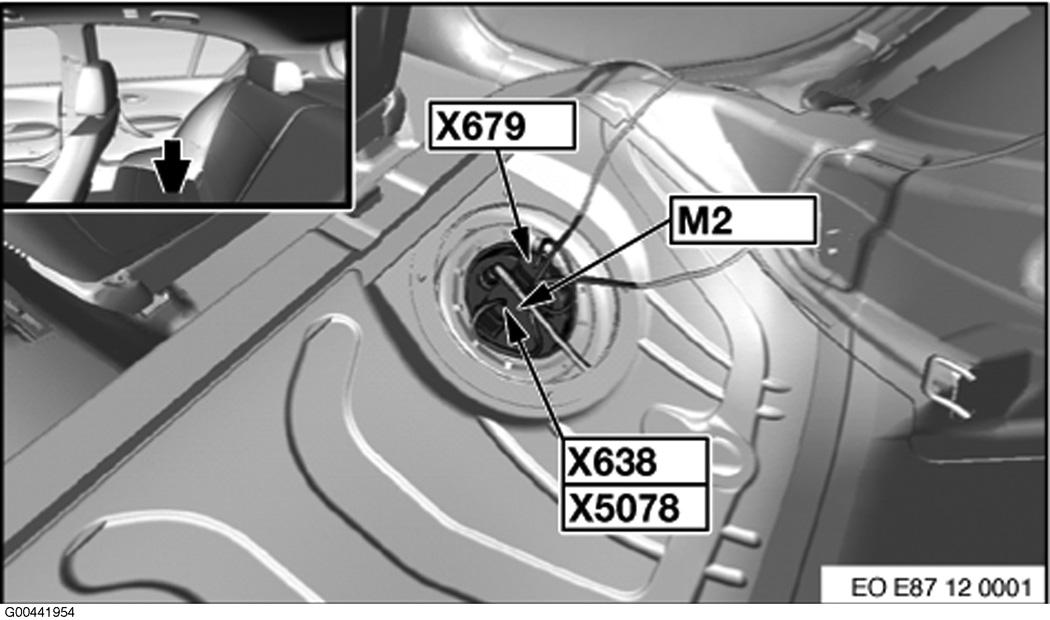

Fig 29: Under Right Rear Seat

G00441954

Courtesy of BMW OF NORTH AMERICA, INC.

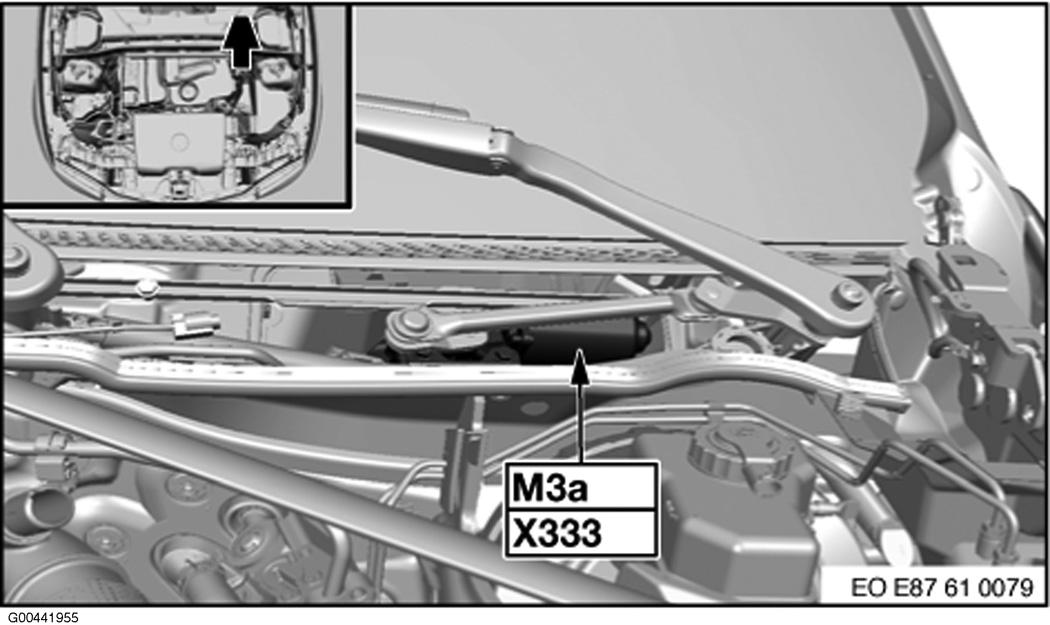

Fig 30: Left Side Of Windshield

G00441955

Courtesy of BMW OF NORTH AMERICA, INC.

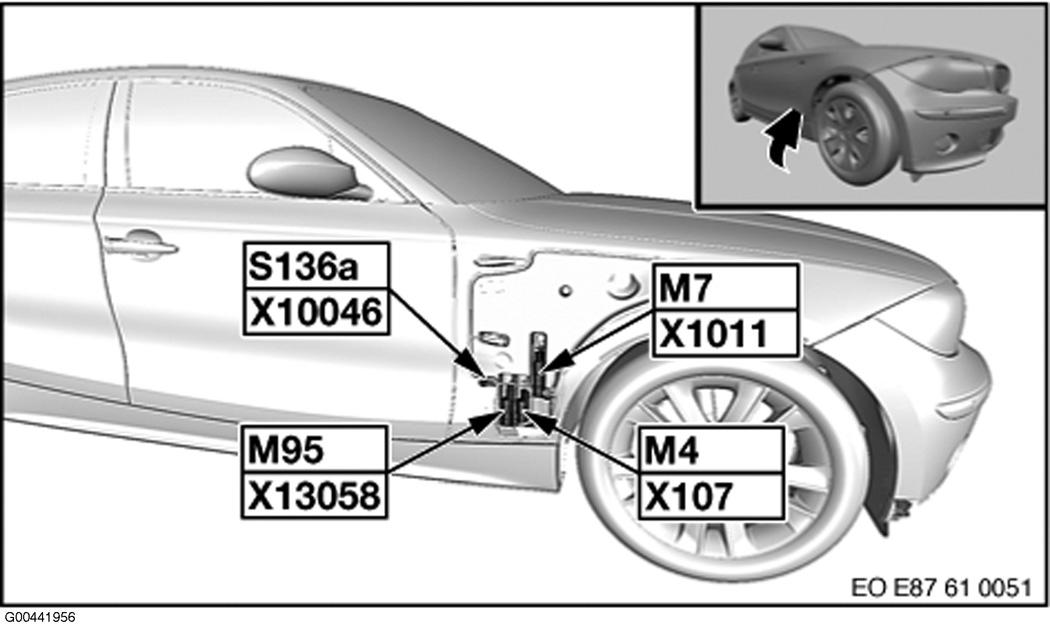

Fig 31: Behind Right Front Wheel Housing

G00441956

Courtesy of BMW OF NORTH AMERICA, INC.

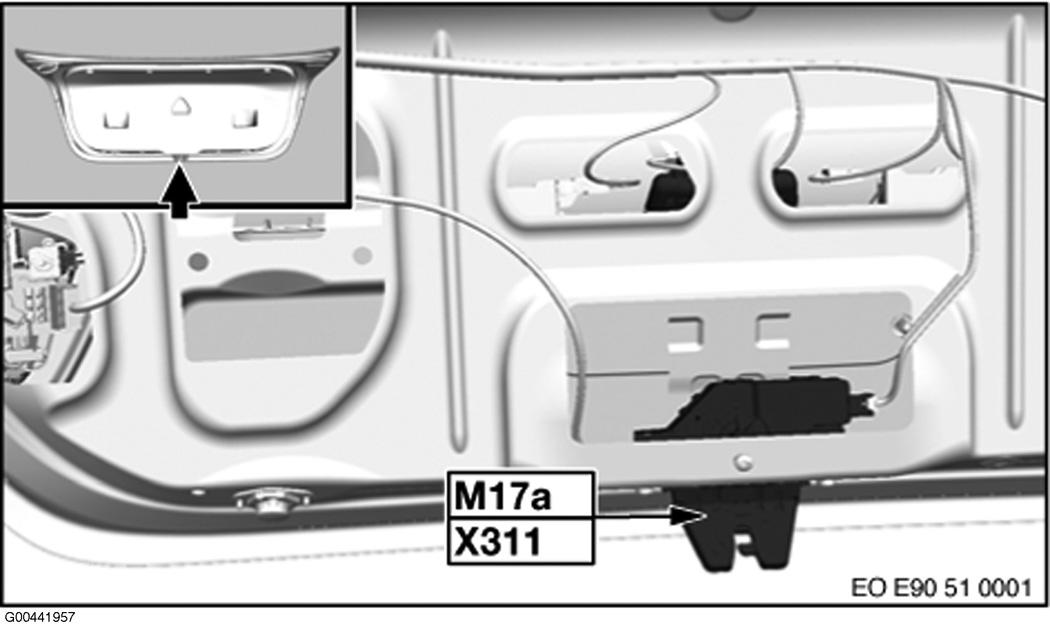

Fig 32: Rear Compartment

G00441957

Courtesy of BMW OF NORTH AMERICA, INC.

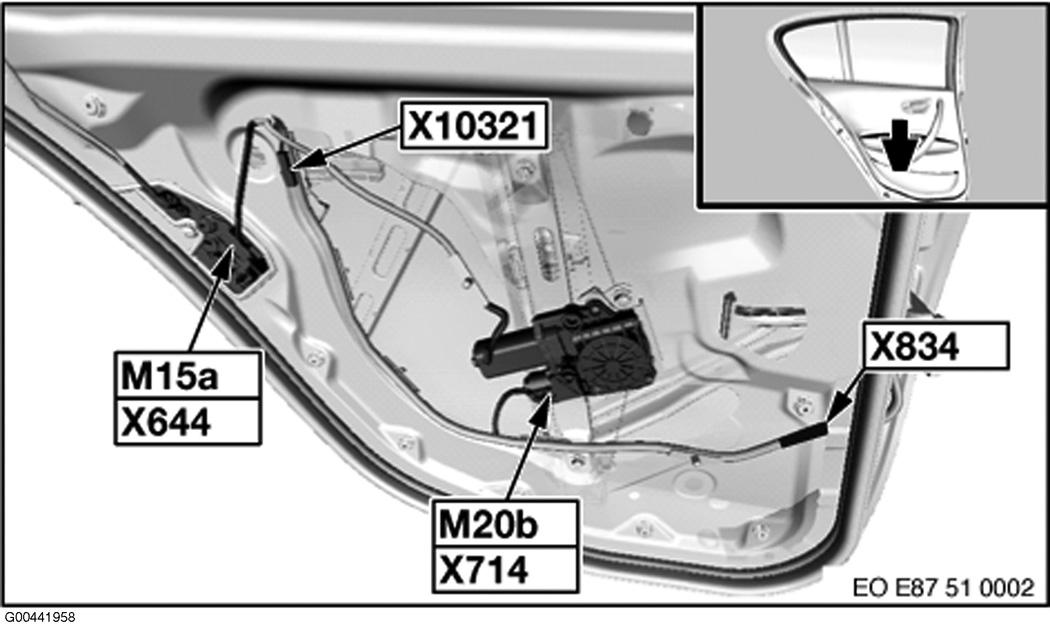

Fig 33: Left Rear Door

G00441958

Courtesy of BMW OF NORTH AMERICA, INC.

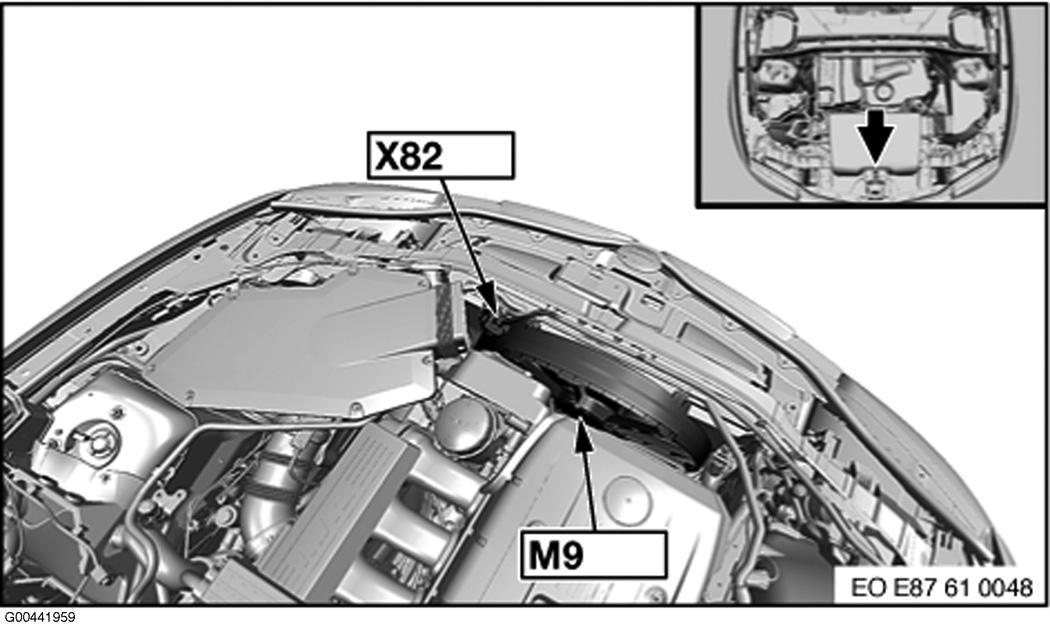

Fig 34: Front Of Engine

G00441959

Courtesy of BMW OF NORTH AMERICA, INC.

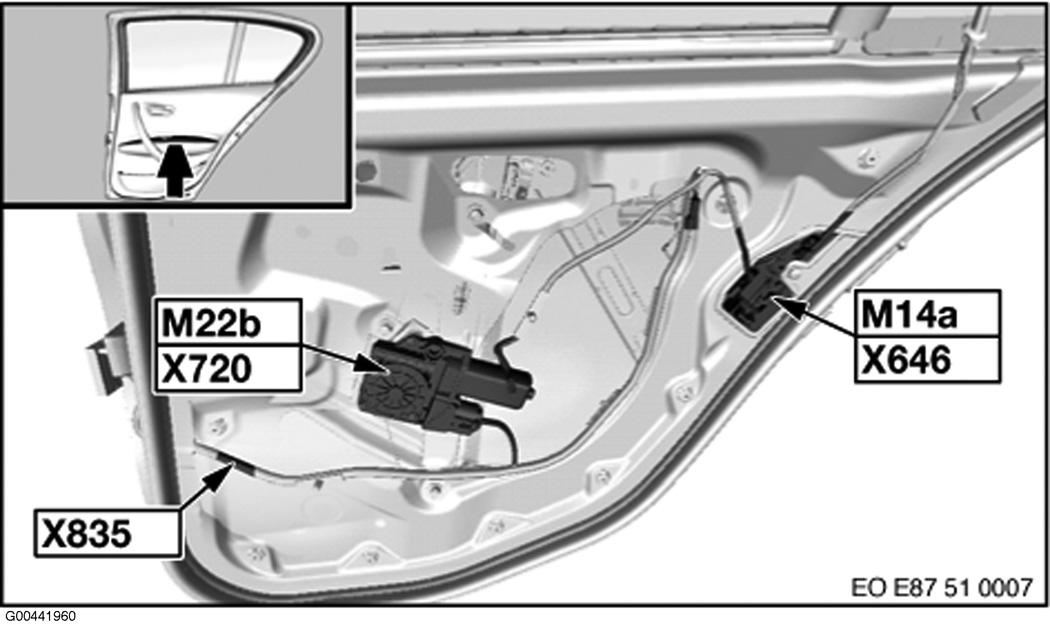

Fig 35: Right Rear Door

G00441960

Courtesy of BMW OF NORTH AMERICA, INC.

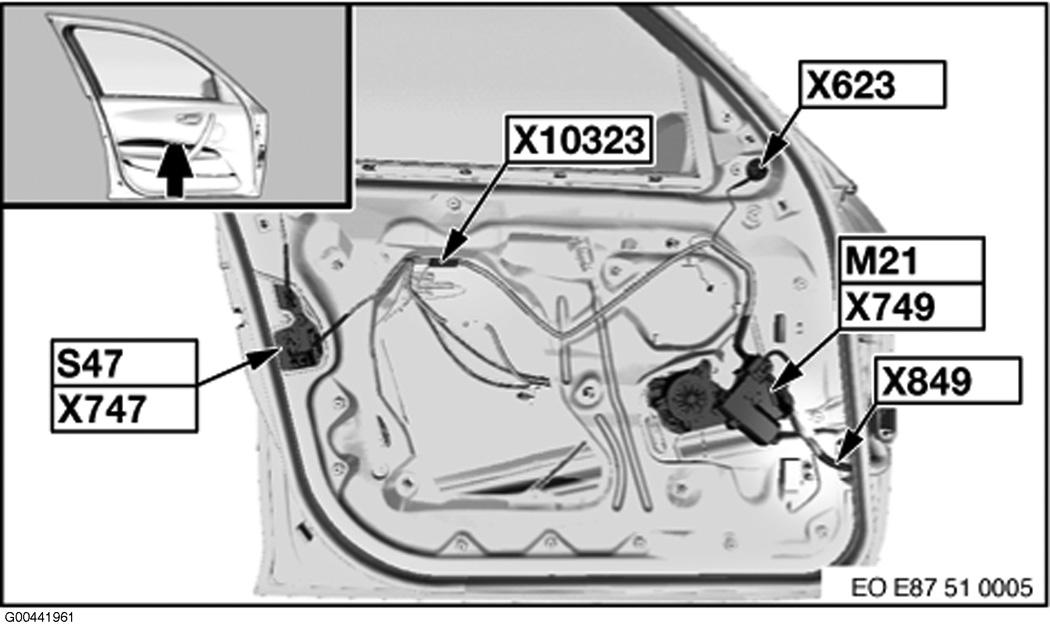

Fig 36: Driver Door

G00441961

Courtesy of BMW OF NORTH AMERICA, INC.

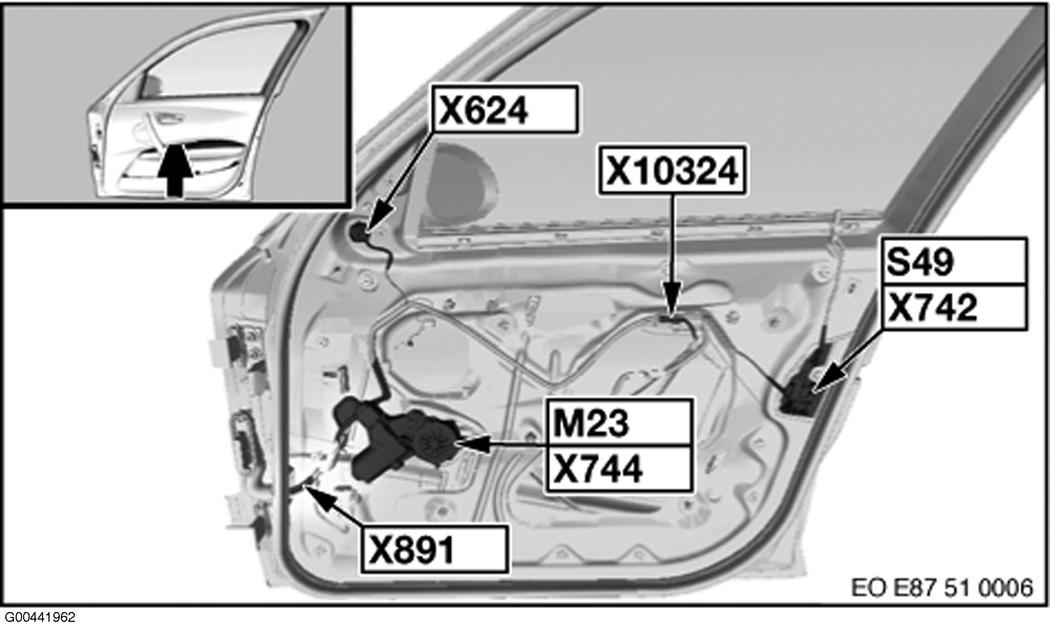

Fig 37: Front Passenger Door

G00441962

Courtesy of BMW OF NORTH AMERICA, INC.

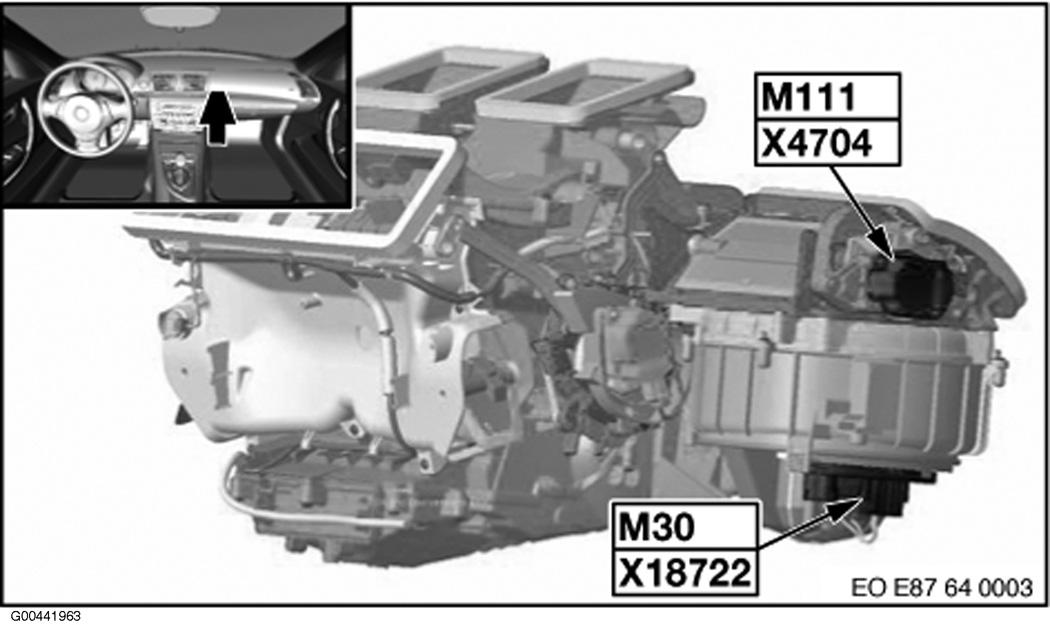

Fig 38: Right Side Of Dash

G00441963

Courtesy of BMW OF NORTH AMERICA, INC.

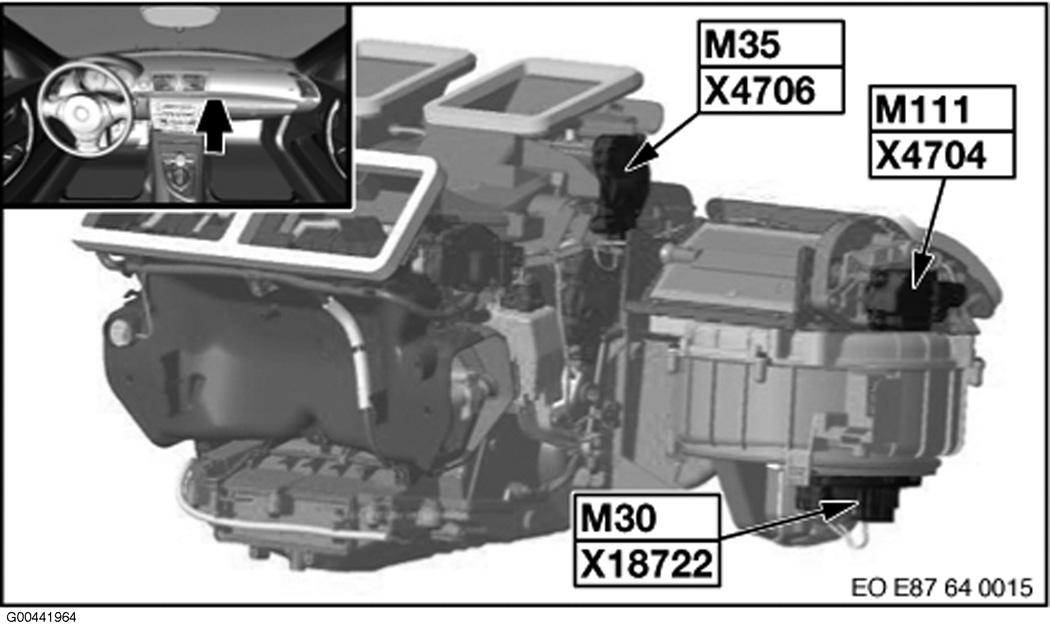

Fig 39: Right Side Of Dash

G00441964

Courtesy of BMW OF NORTH AMERICA, INC.

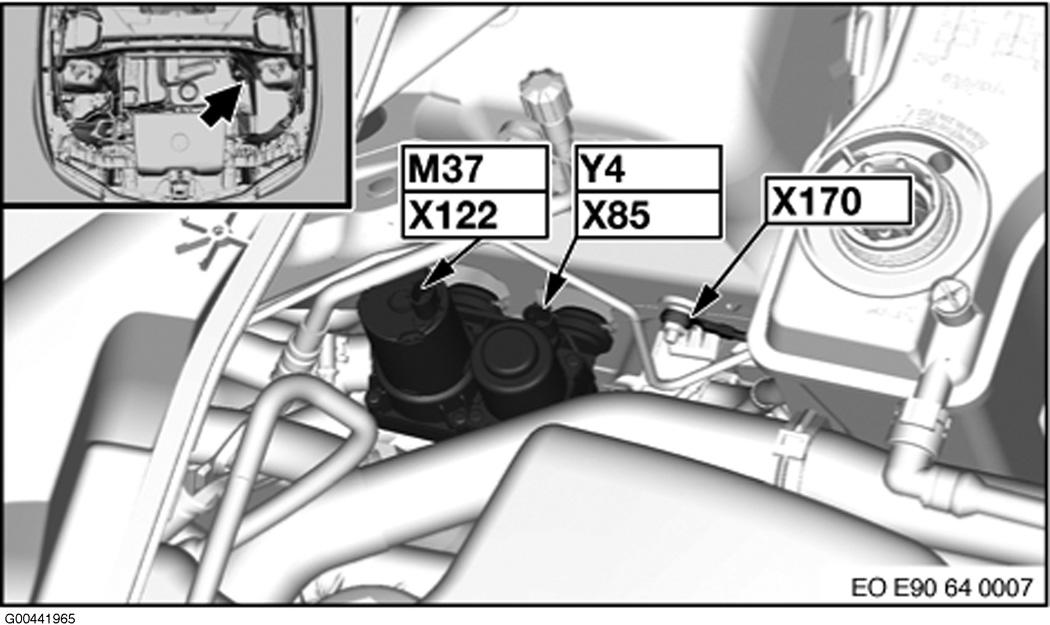

Fig 40: Left Side Of Engine Compartment

G00441965

Courtesy of BMW OF NORTH AMERICA, INC.

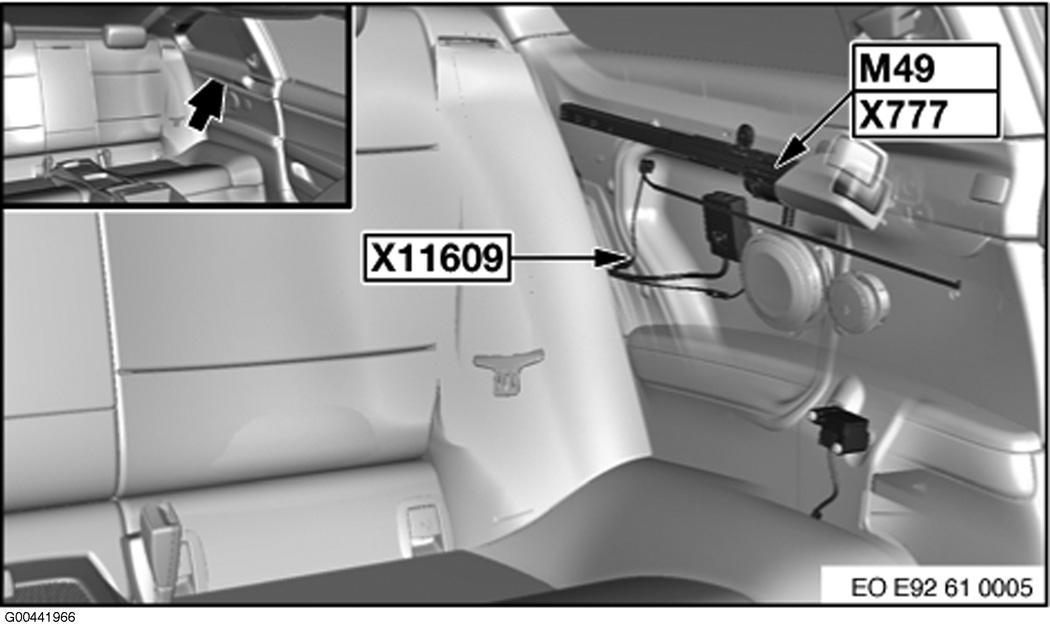

Fig 41: Left Side Of Left Rear Seat

G00441966

Courtesy of BMW OF NORTH AMERICA, INC.

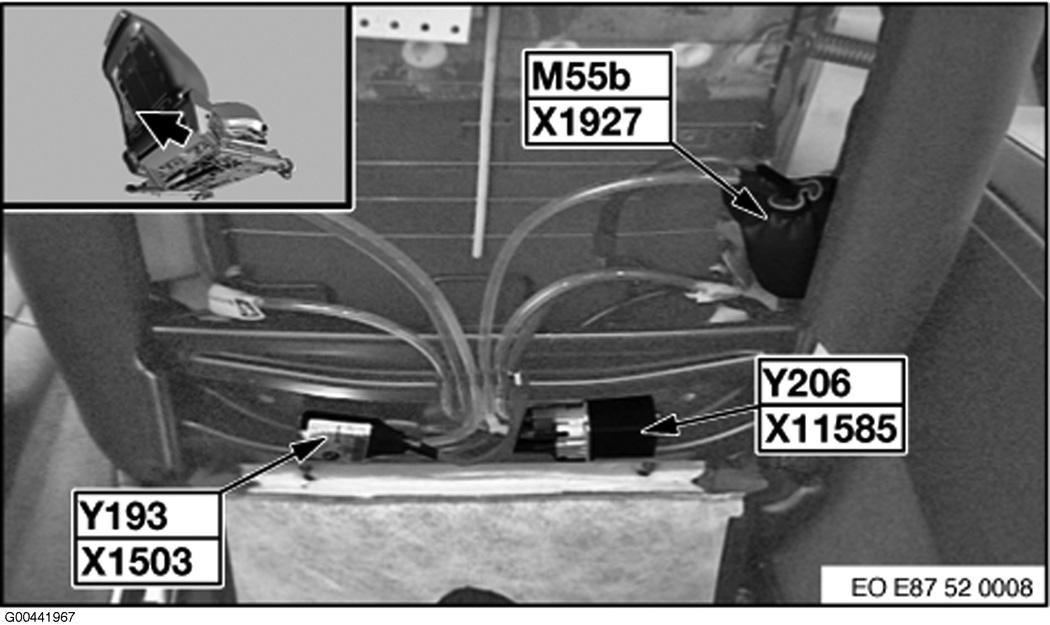

Fig 42: On Driver Seat Back

G00441967

Courtesy of BMW OF NORTH AMERICA, INC.

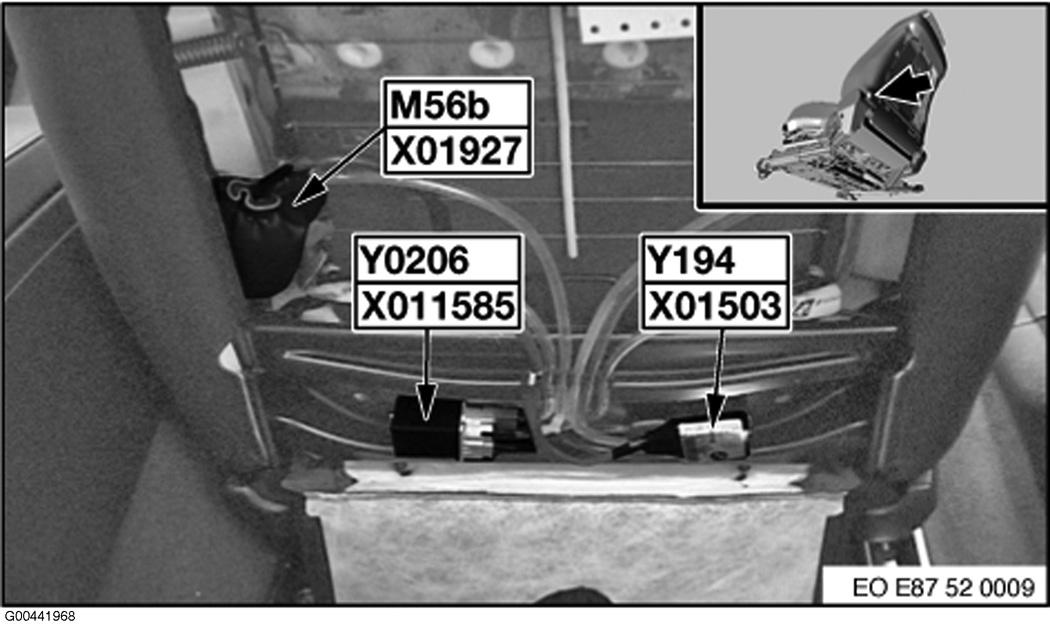

Fig 43: On Passenger Seat Back

G00441968

Courtesy of BMW OF NORTH AMERICA, INC.

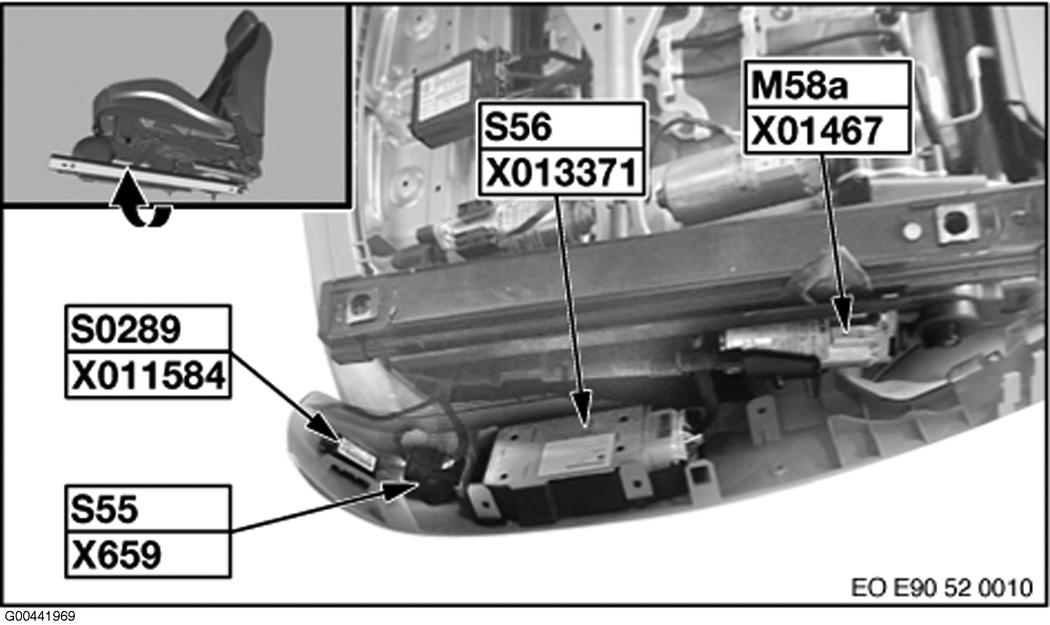

Fig 44: Under Passenger Seat

G00441969

Courtesy of BMW OF NORTH AMERICA, INC.

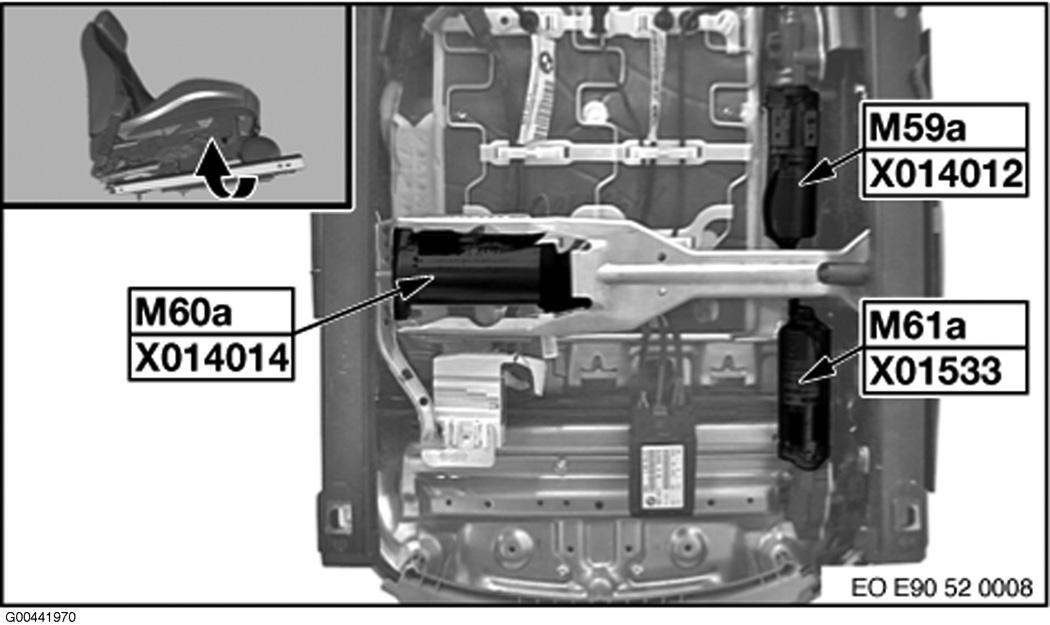

Fig 45: Under Passenger Seat

G00441970

Courtesy of BMW OF NORTH AMERICA, INC.

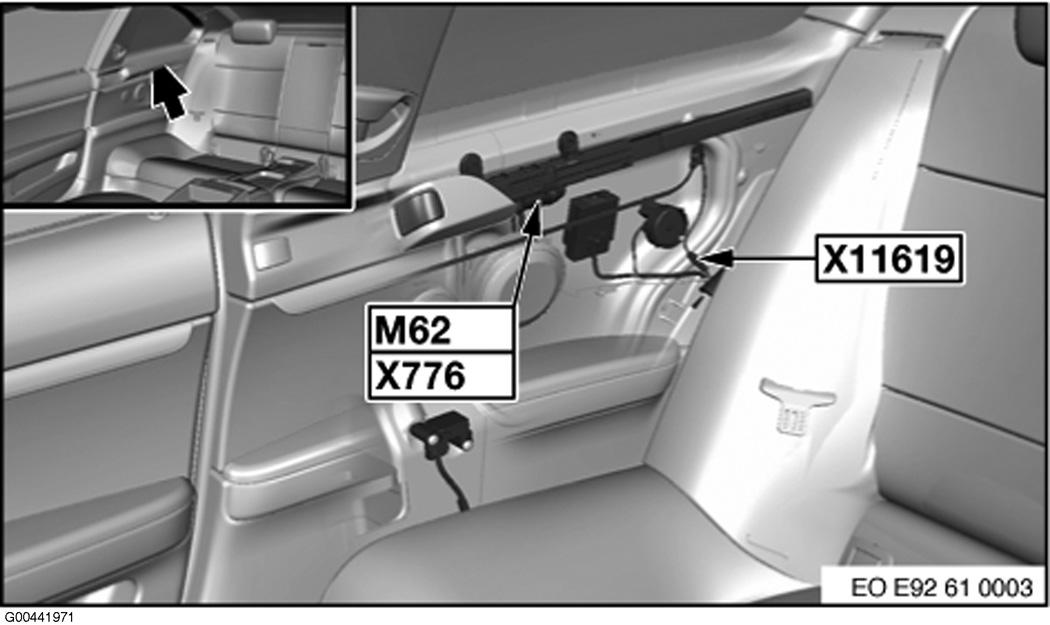

Fig 46: Right Side Of Right Rear Seat

G00441971

Courtesy of BMW OF NORTH AMERICA, INC.

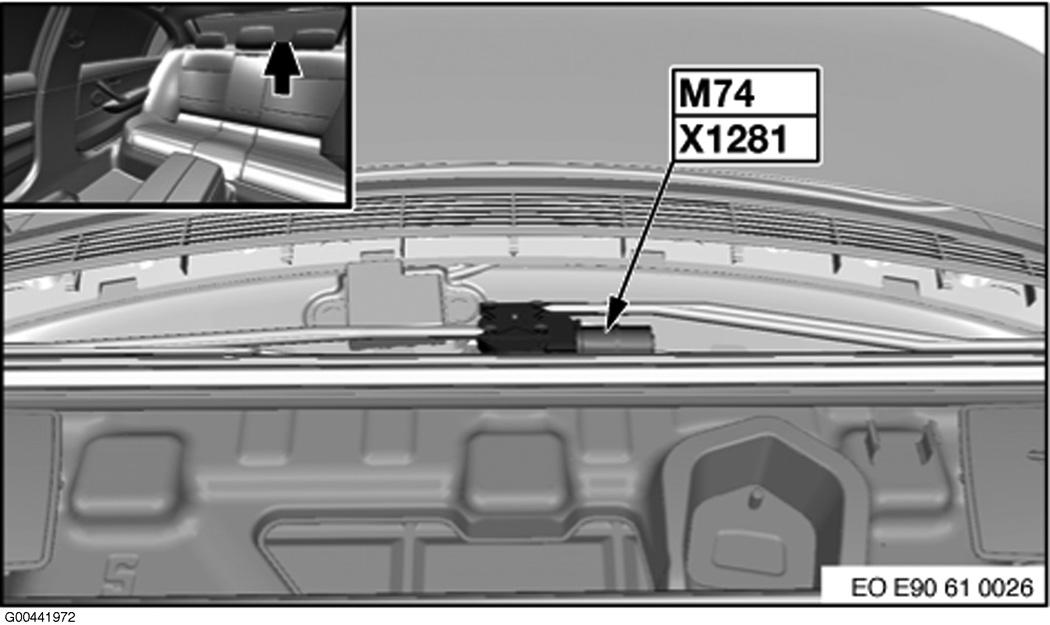

Fig 47: Center Of Rear Window

G00441972

Courtesy of BMW OF NORTH AMERICA, INC.

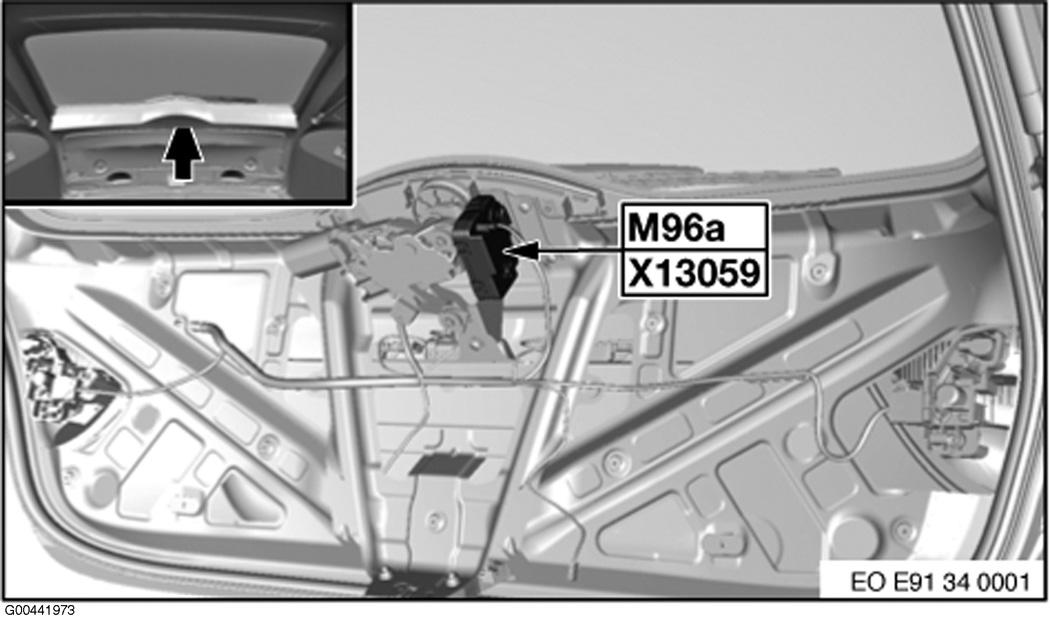

Fig 48: Rear Window

G00441973

Courtesy of BMW OF NORTH AMERICA, INC.

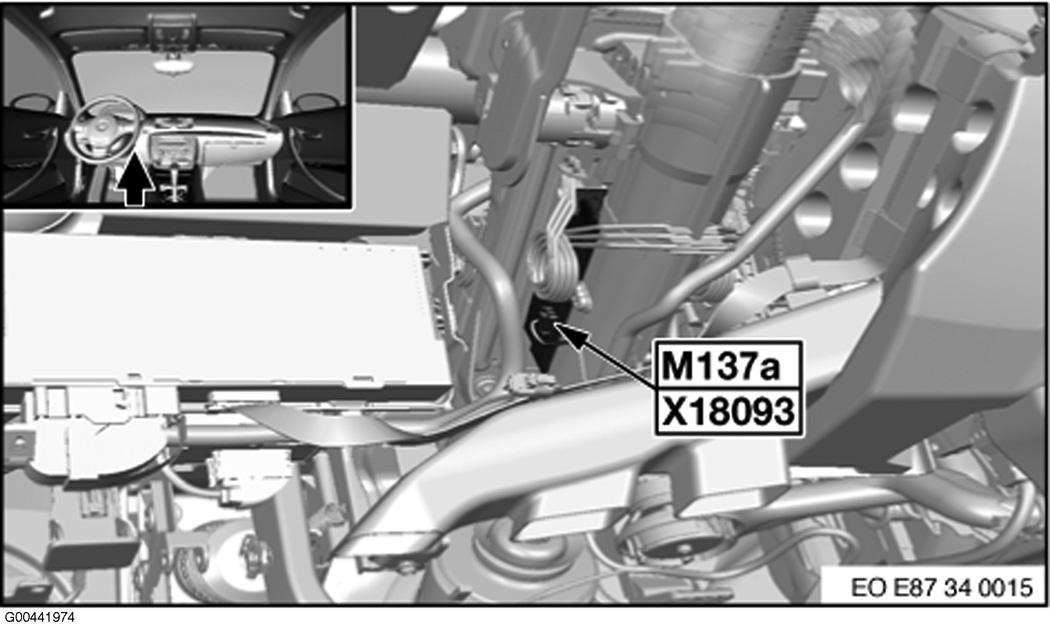

Fig 49: Left Side Of Dash

G00441974

Courtesy of BMW OF NORTH AMERICA, INC.

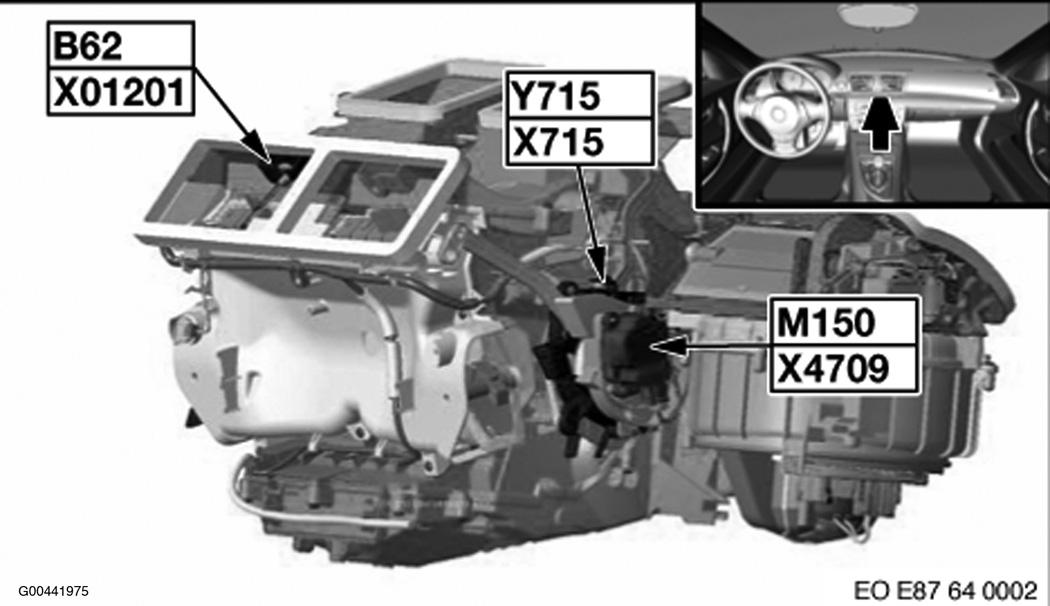

Fig 50: Center Of Dash

G00441975

Courtesy of BMW OF NORTH AMERICA, INC.

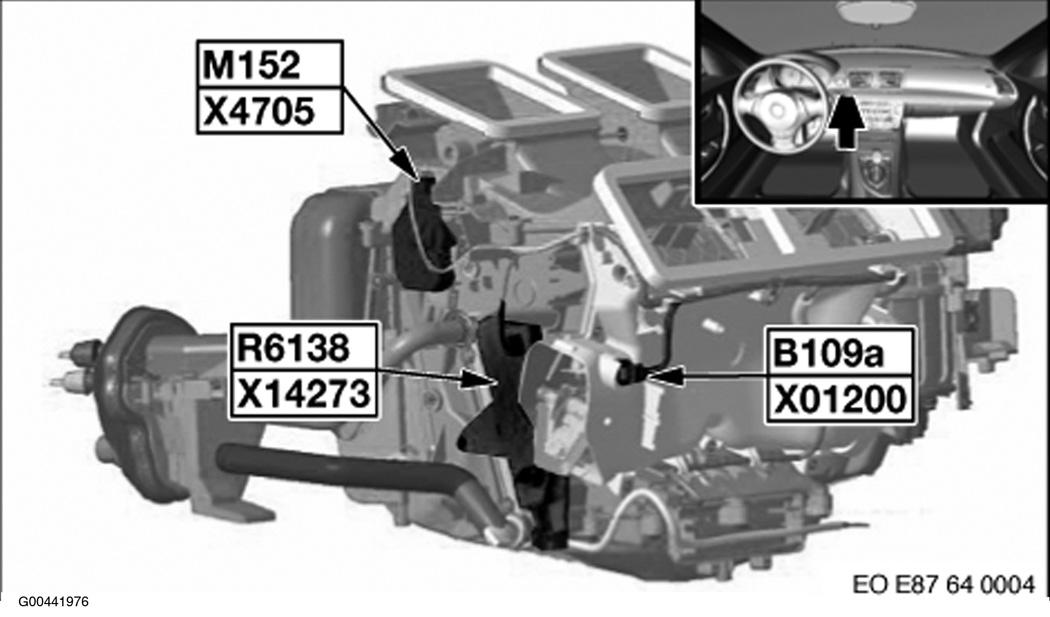

Fig 51: Center Of Dash

G00441976

Courtesy of BMW OF NORTH AMERICA, INC.

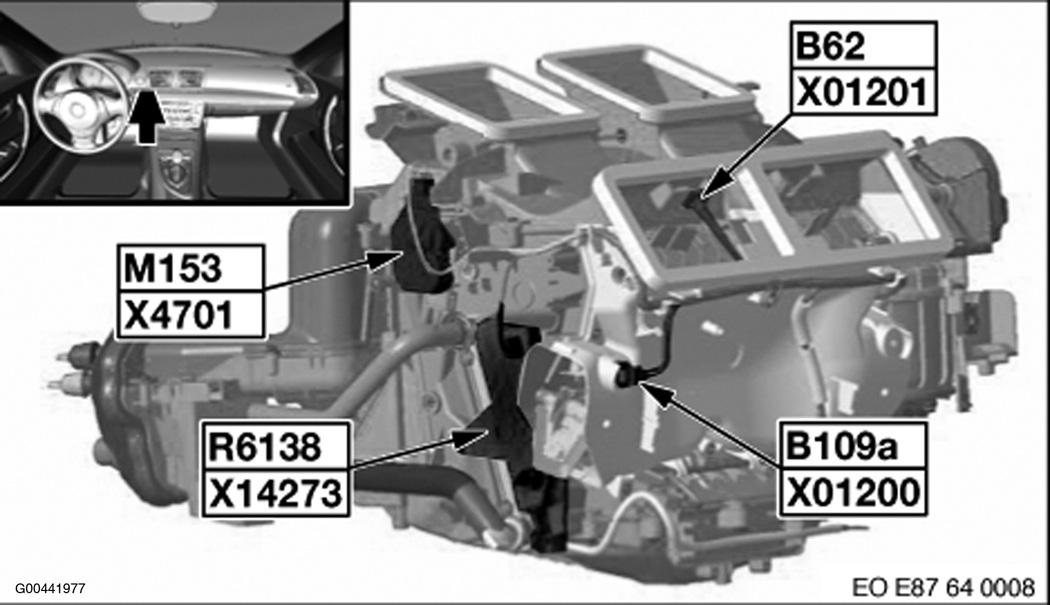

Fig 52: Center Of Dash

G00441977

Courtesy of BMW OF NORTH AMERICA, INC.

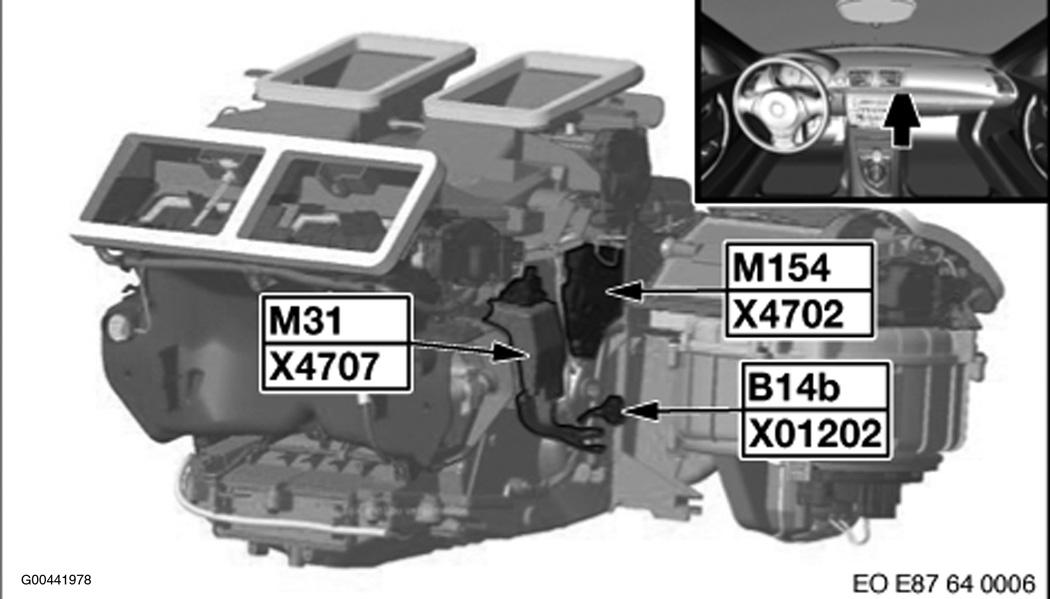

Fig 53: Center Of Dash

G00441978

Courtesy of BMW OF NORTH AMERICA, INC.

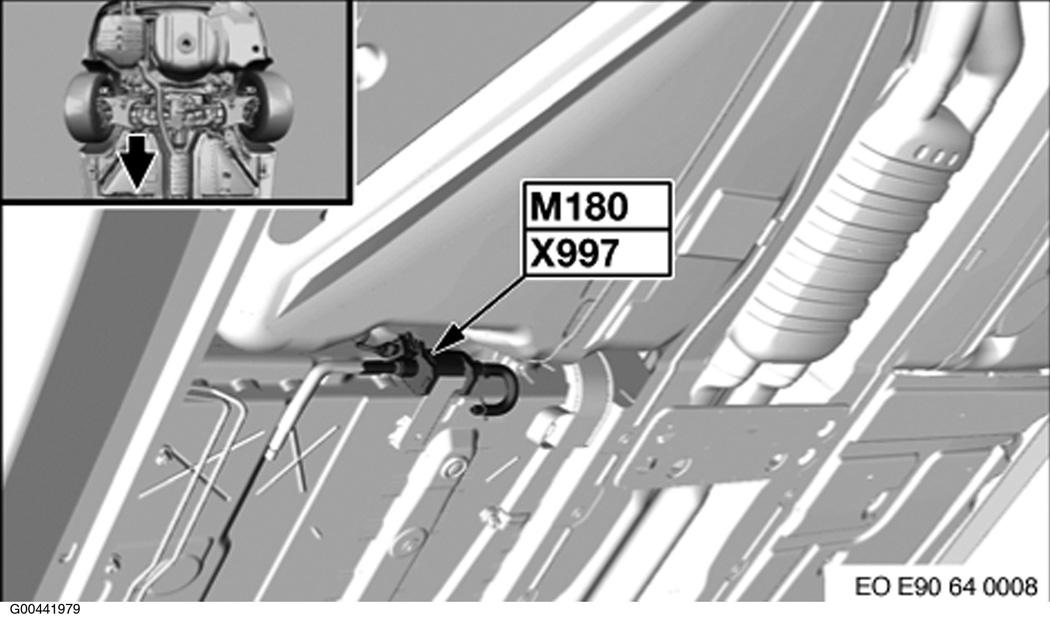

Fig 54: Under Vehicle

G00441979

Courtesy of BMW OF NORTH AMERICA, INC.

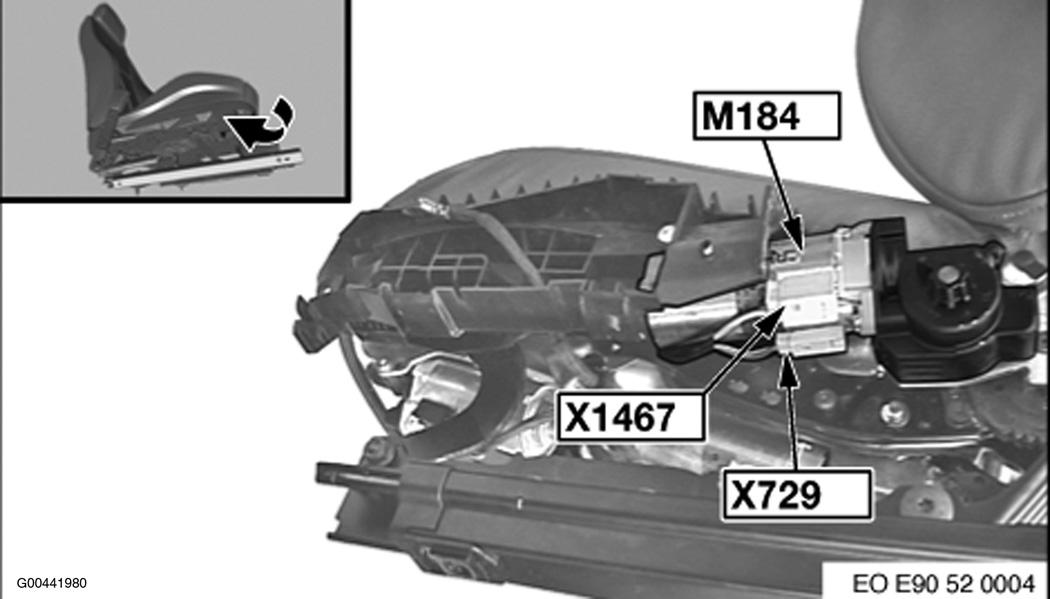

Fig 55: Under Driver Seat

G00441980

Courtesy of BMW OF NORTH AMERICA, INC.

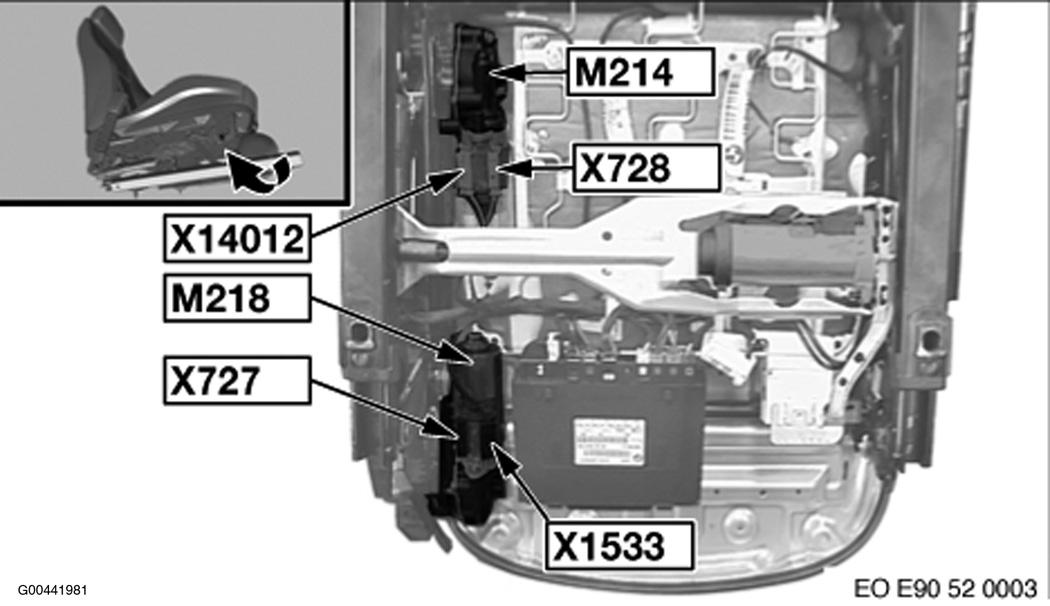

Fig 56: Under Driver Seat

G00441981

Courtesy of BMW OF NORTH AMERICA, INC.

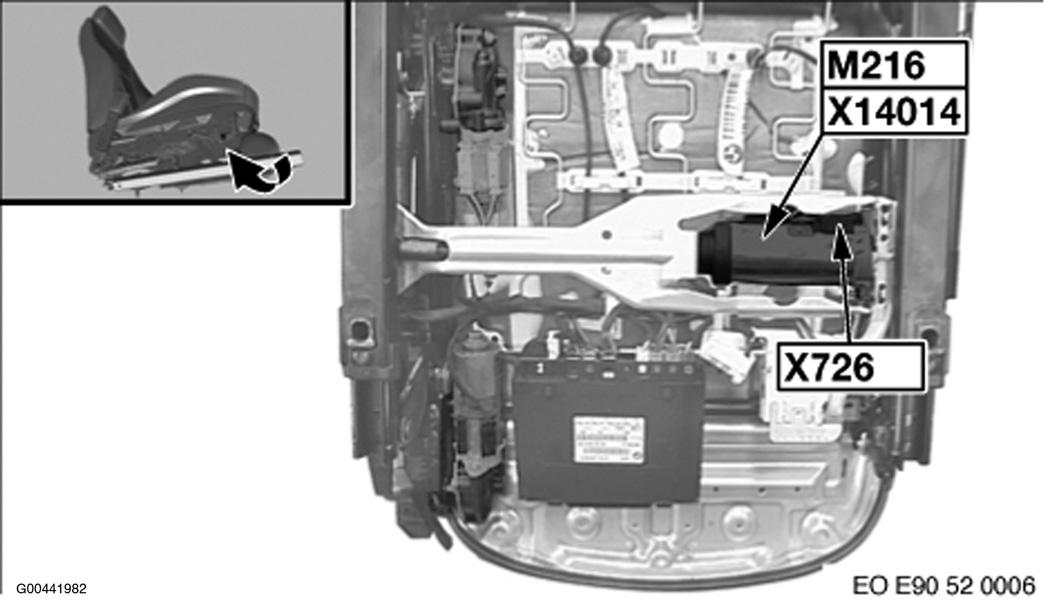

Fig 57: Under Driver Seat

G00441982

Courtesy of BMW OF NORTH AMERICA, INC.

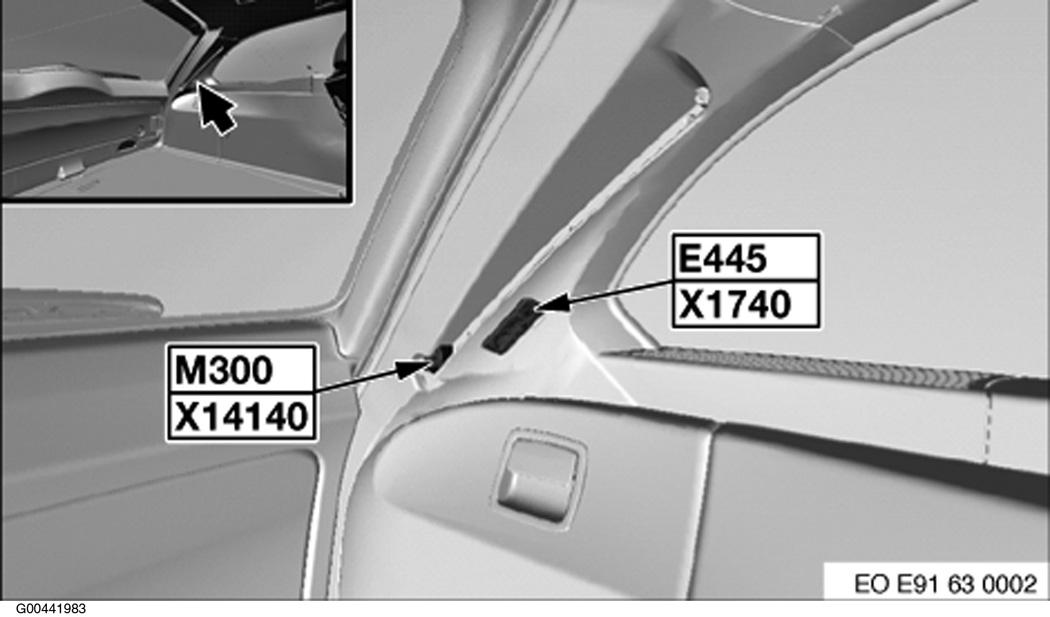

Fig 58: Left Roller Cover

G00441983

Courtesy of BMW OF NORTH AMERICA, INC.

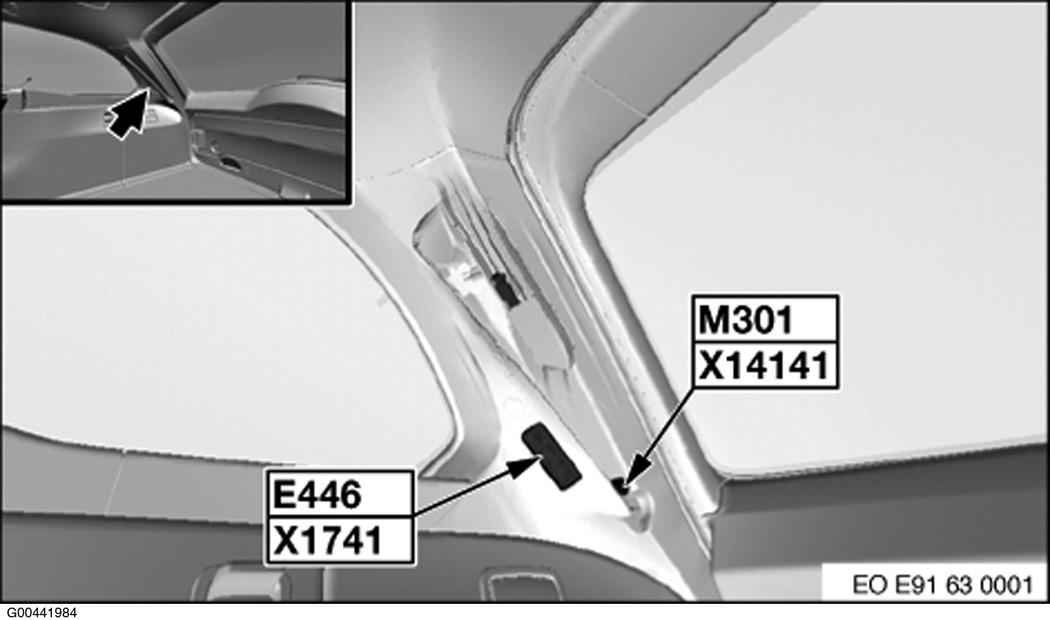

Fig 59: Right Roller Cover

G00441984

Courtesy of BMW OF NORTH AMERICA, INC.

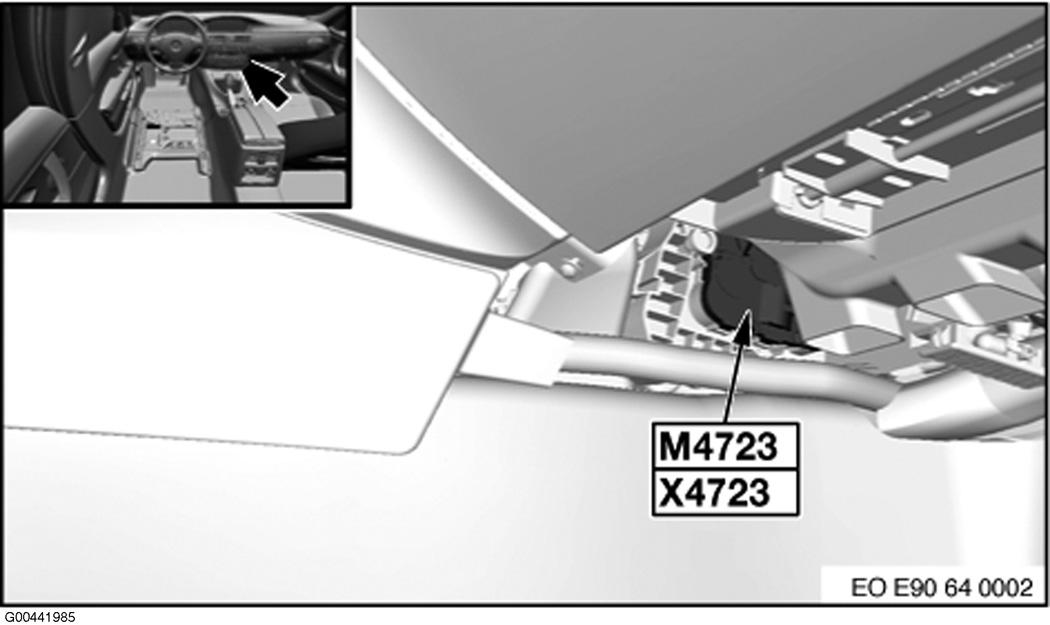

Fig 60: Right Side Of Dash

G00441985

Courtesy of BMW OF NORTH AMERICA, INC.

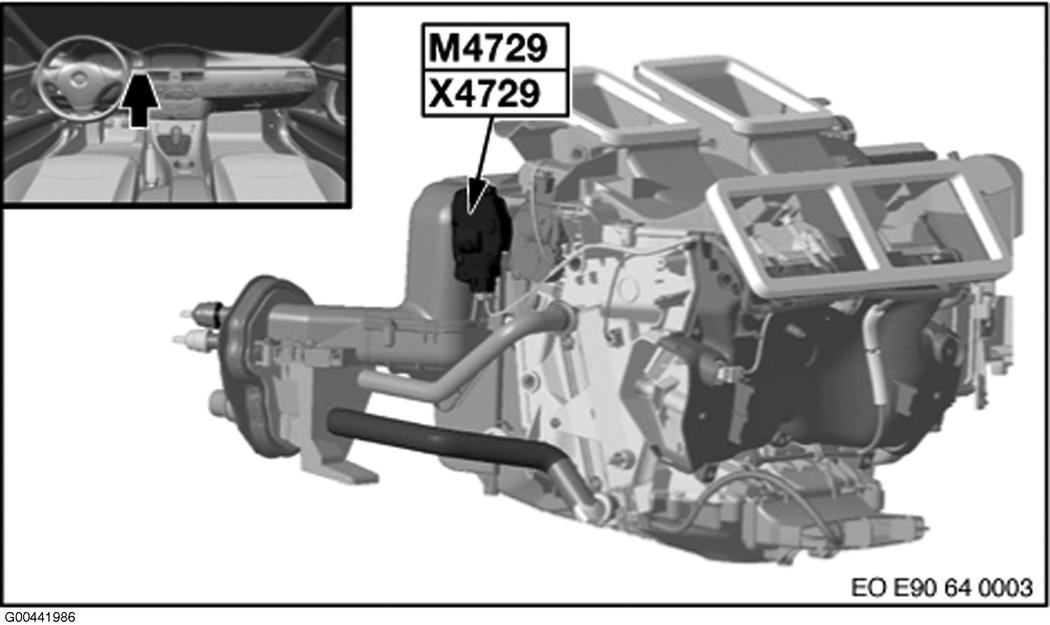

Fig 61: Left Side Of Dash

G00441986

Courtesy of BMW OF NORTH AMERICA, INC.

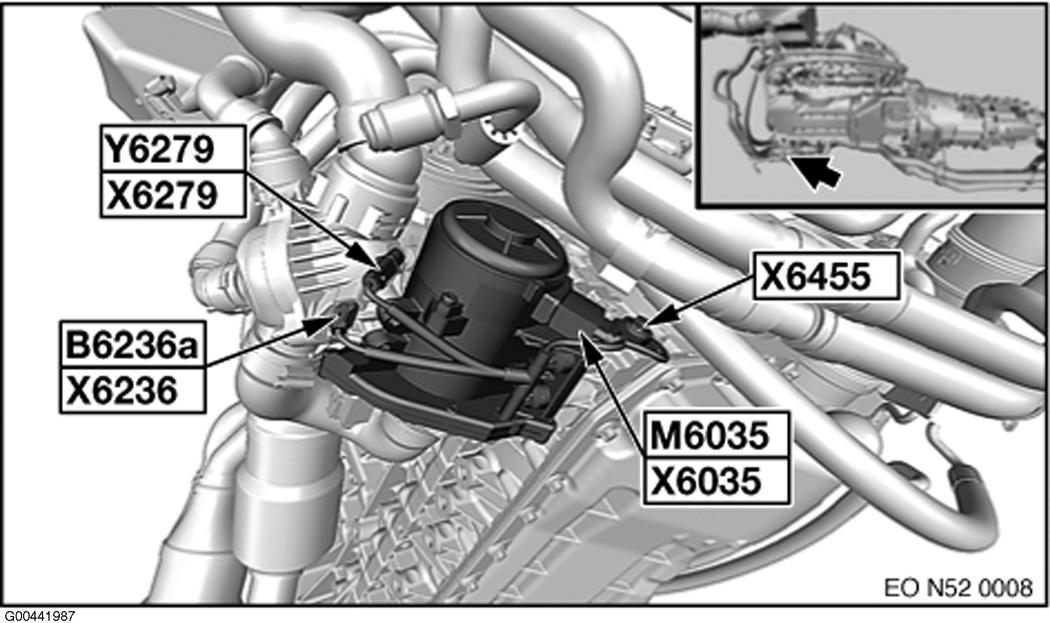

Fig 62: Engine Cooling System

G00441987

Courtesy of BMW OF NORTH AMERICA, INC.

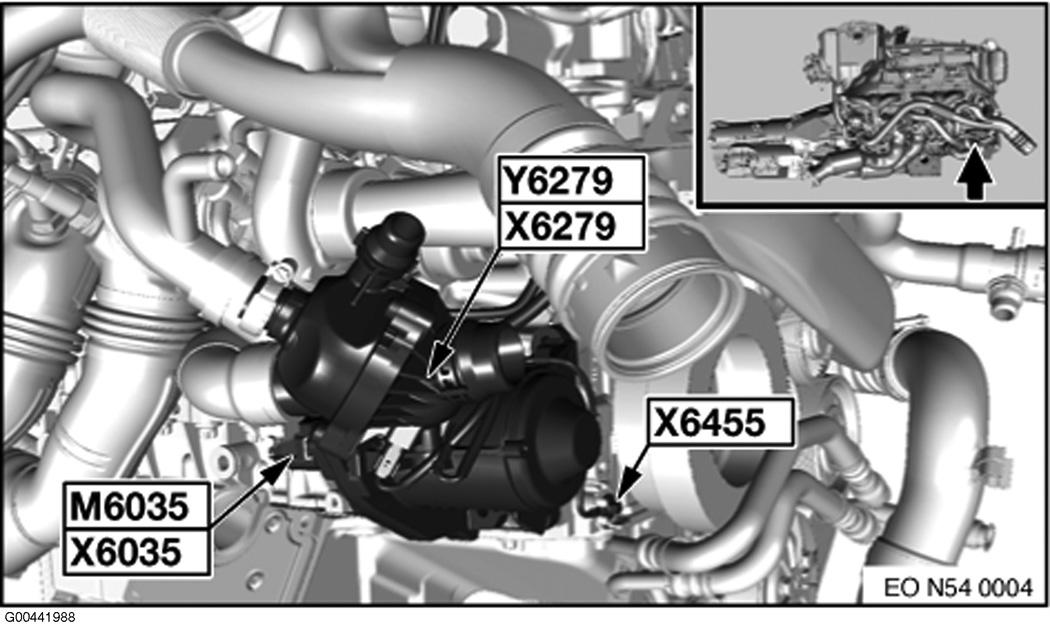

Fig 63: Engine Cooling System

G00441988

Courtesy of BMW OF NORTH AMERICA, INC.

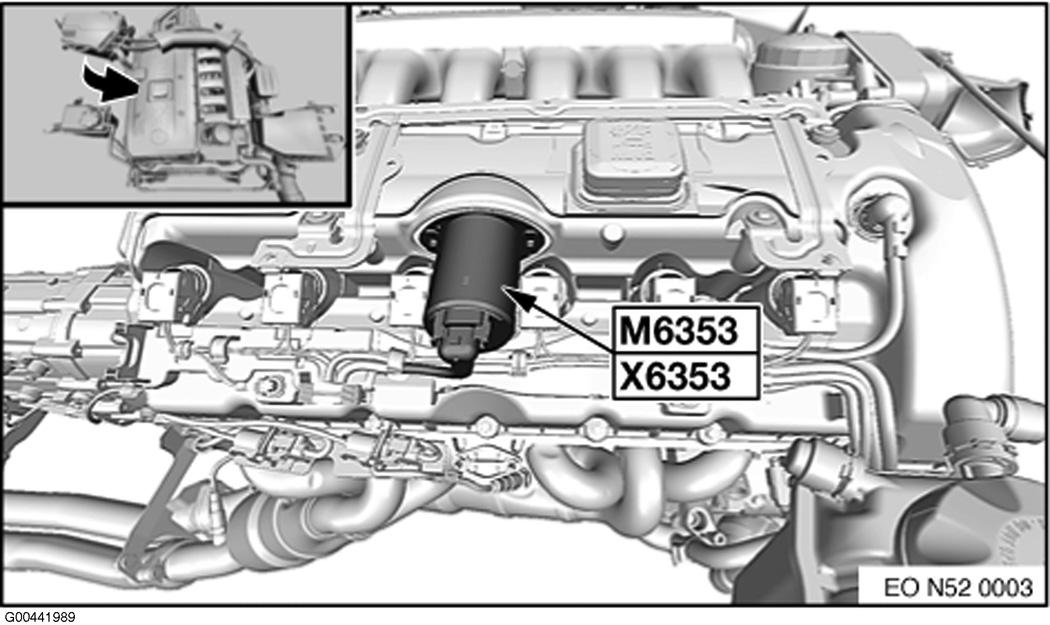

Fig 64: Right Side Of Engine

G00441989

Courtesy of BMW OF NORTH AMERICA, INC.

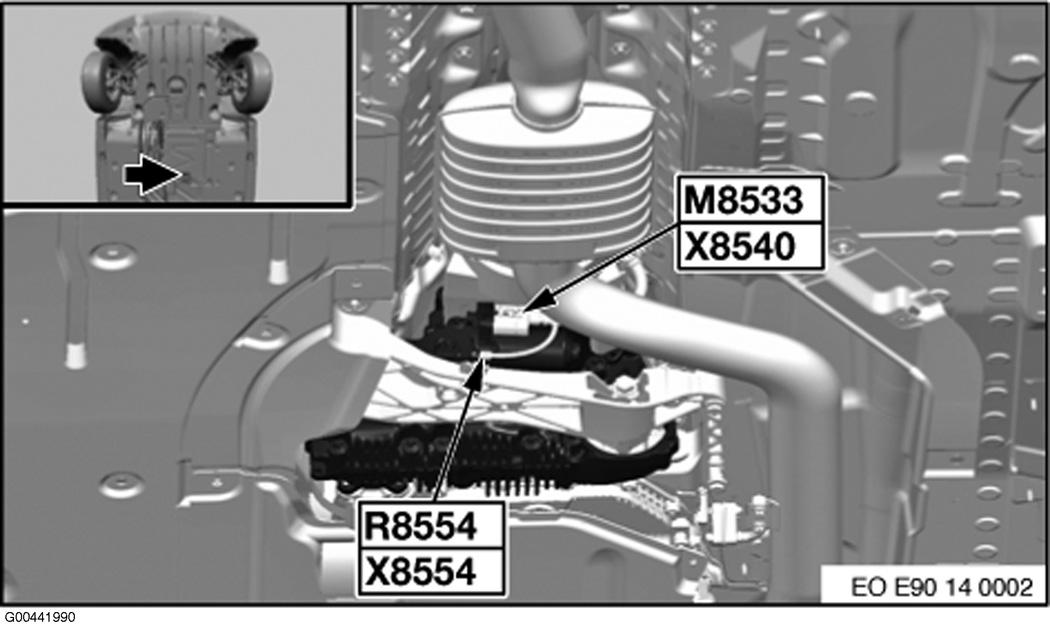

Fig 65: Under Vehicle

G00441990

Courtesy of BMW OF NORTH AMERICA, INC.

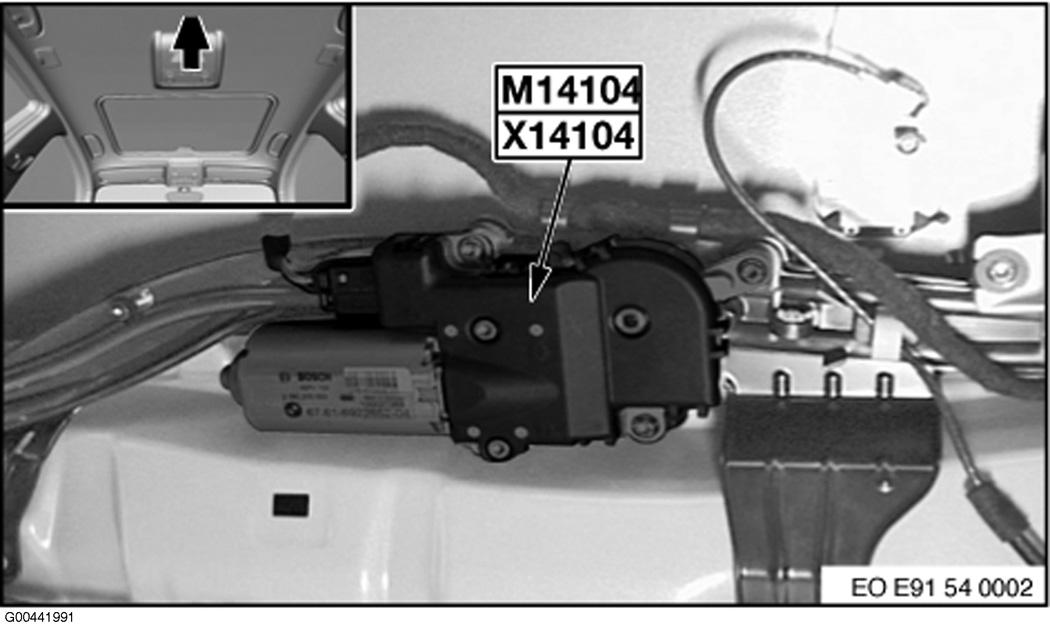

Fig 66: Center Of Roof, Forward Of Sunroof

G00441991

Courtesy of BMW OF NORTH AMERICA, INC.

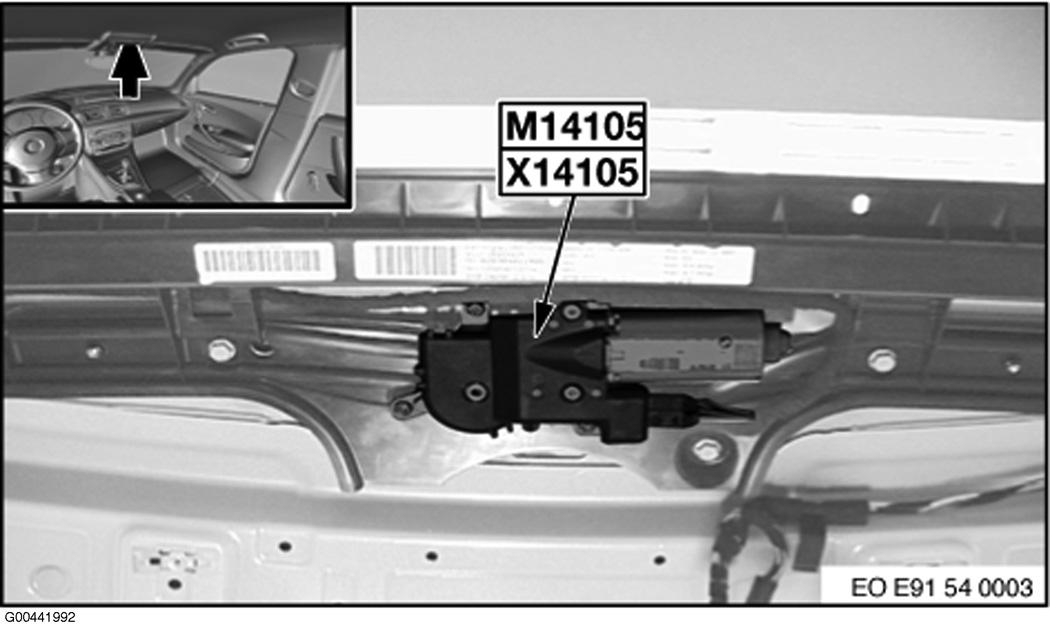

Fig 67: Right Side Of Headliner

G00441992

Courtesy of BMW OF NORTH AMERICA, INC.

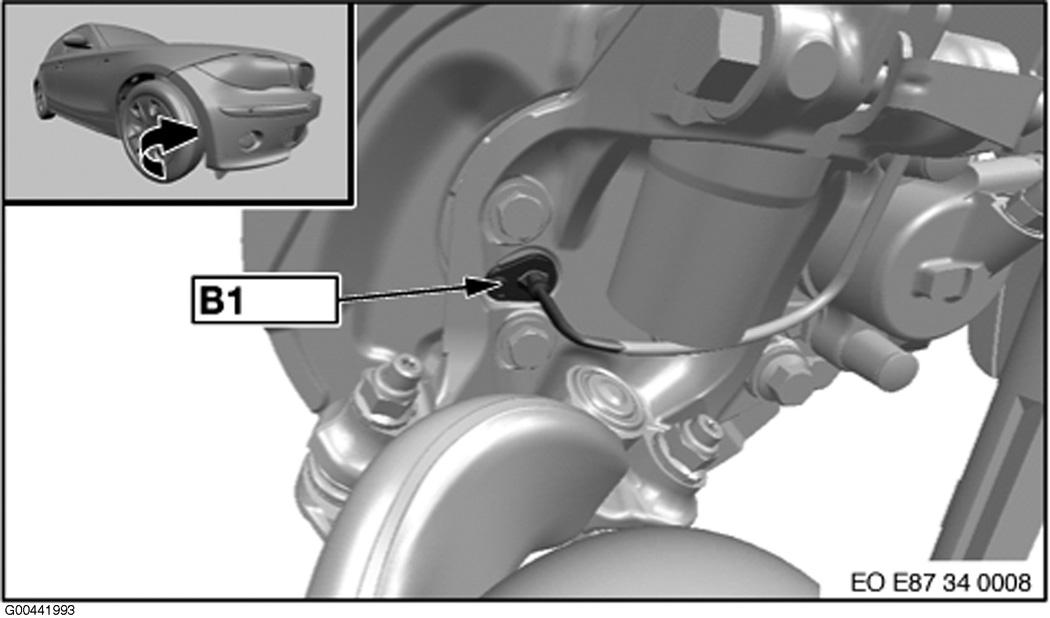

Fig 68: Front Of Right Front Wheel

G00441993

Courtesy of BMW OF NORTH AMERICA, INC.

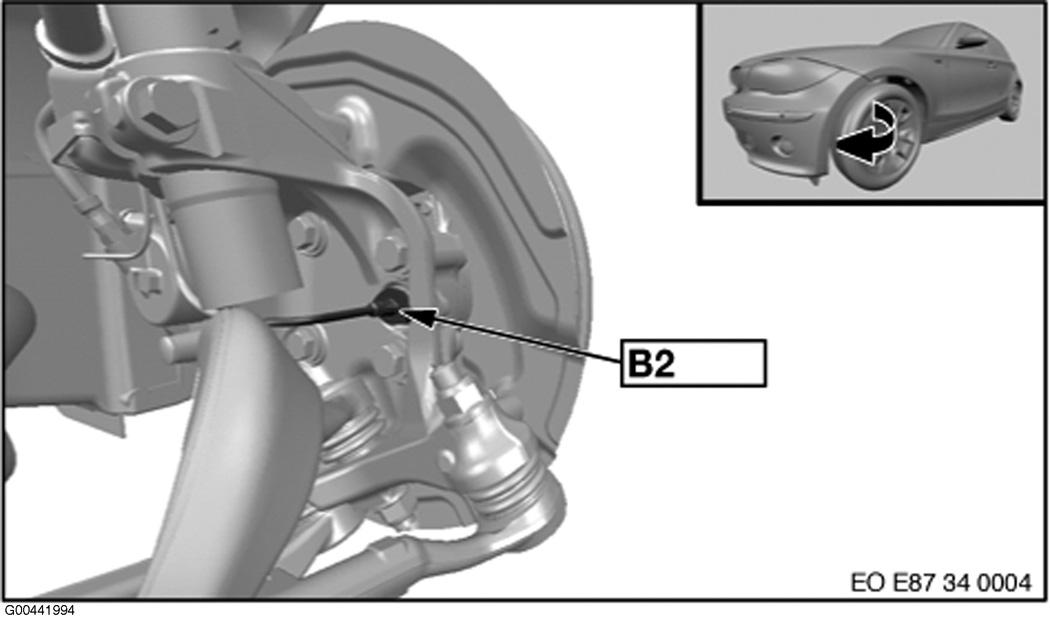

Fig 69: Front Of Left Front Wheel

G00441994

Courtesy of BMW OF NORTH AMERICA, INC.

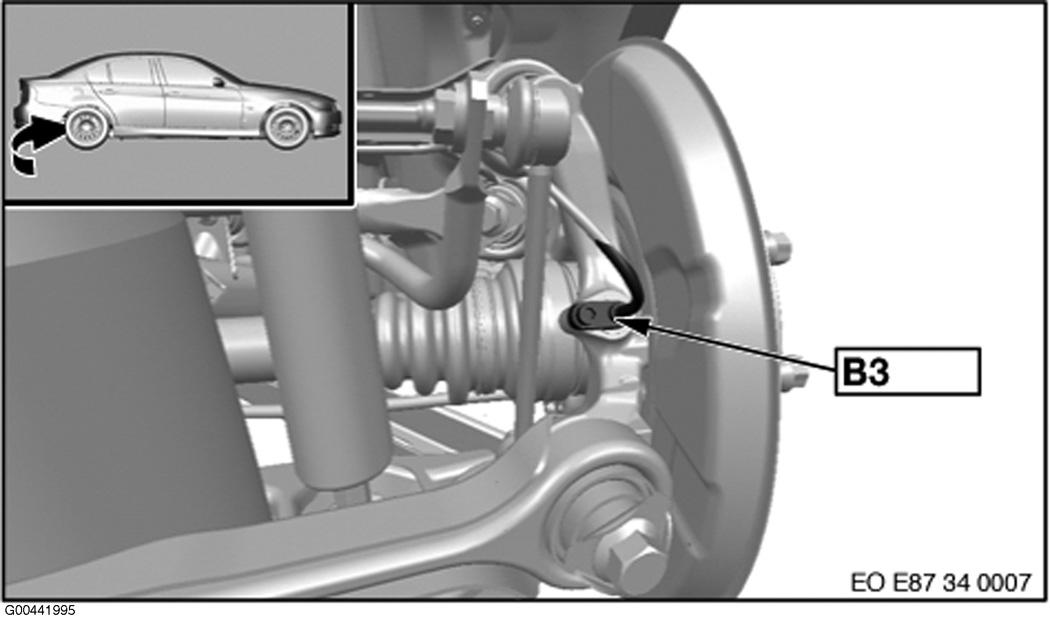

Fig 70: Right Rear Wheel Sensor

G00441995

Courtesy of BMW OF NORTH AMERICA, INC.

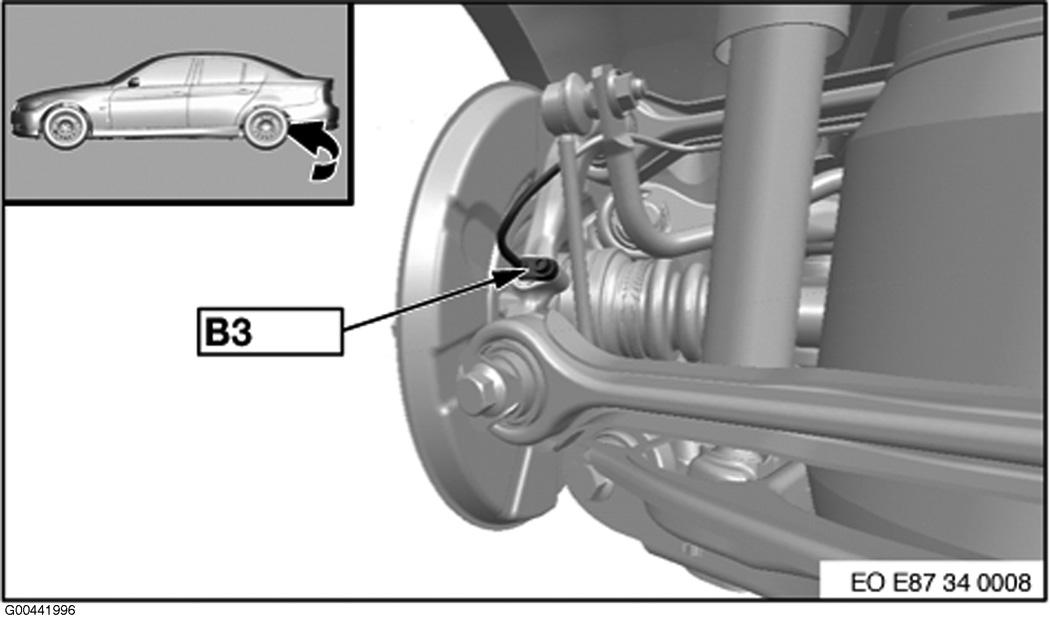

Fig 71: Left Rear Wheel Sensor

G00441996

Courtesy of BMW OF NORTH AMERICA, INC.

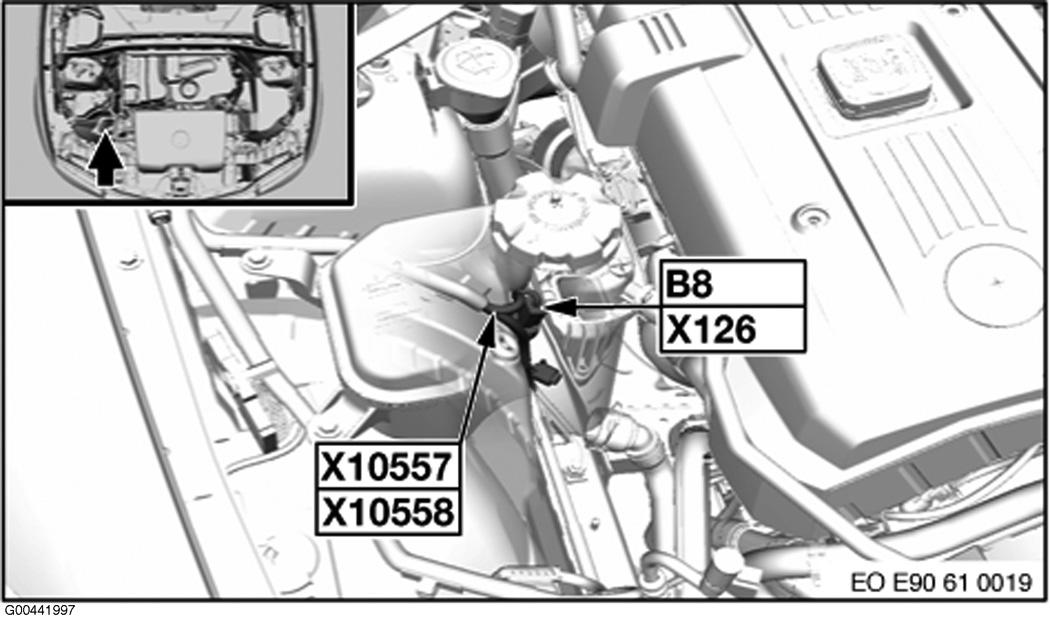

Fig 72: Right Front Of Engine Compartment

G00441997

Courtesy of BMW OF NORTH AMERICA, INC.

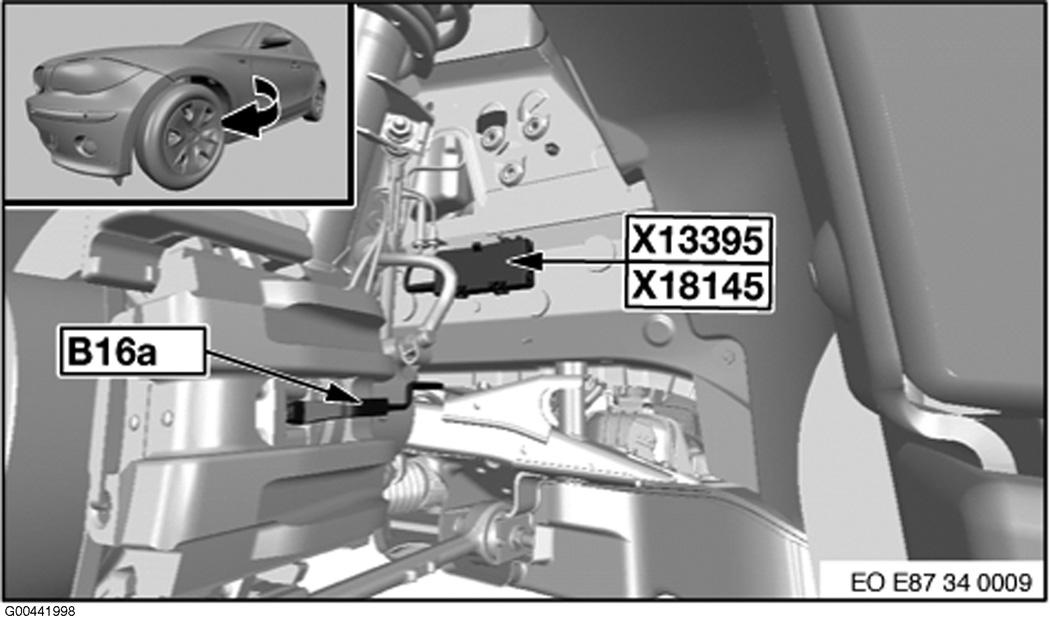

Fig 73: Left Rear Of Wheel Housing

G00441998

Courtesy of BMW OF NORTH AMERICA, INC.

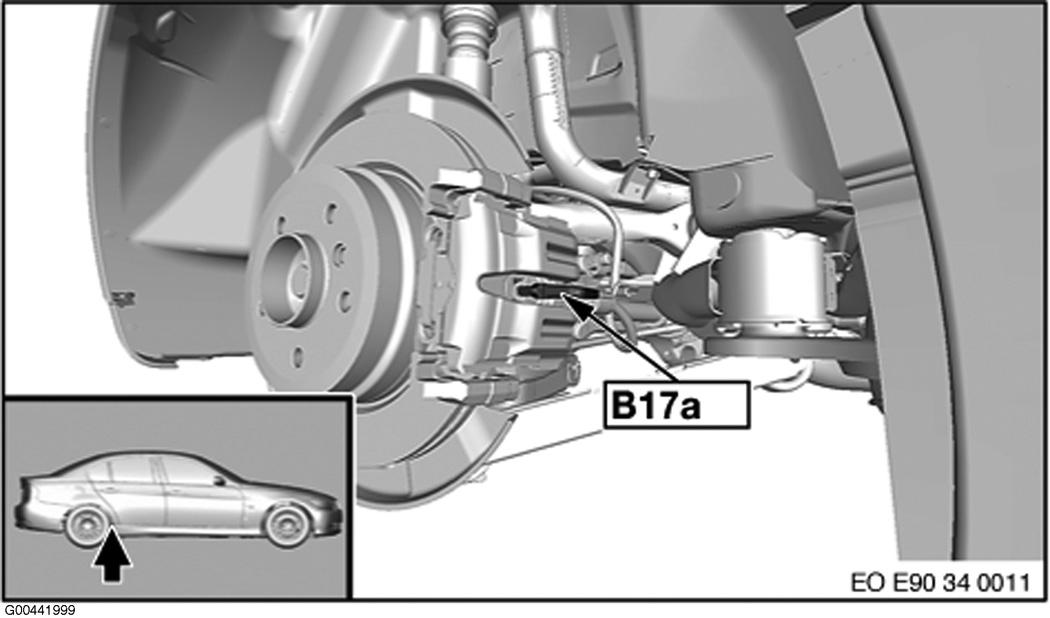

Fig 74: Brake Wear Sensor

G00441999

Courtesy of BMW OF NORTH AMERICA, INC.

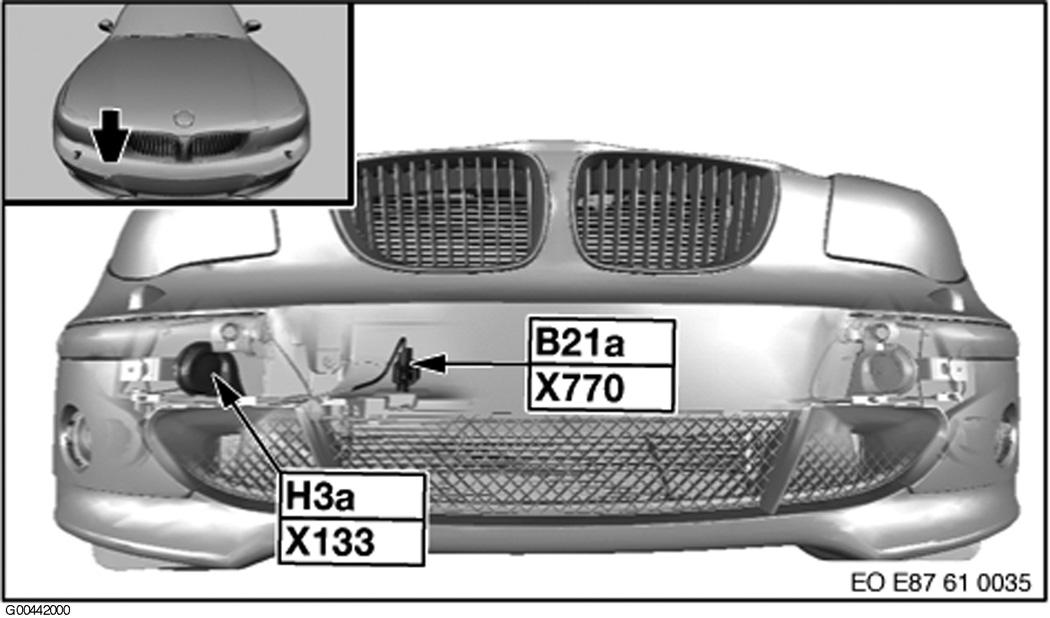

Fig 75: Right Front Of Bumper

G00442000

Courtesy of BMW OF NORTH AMERICA, INC.

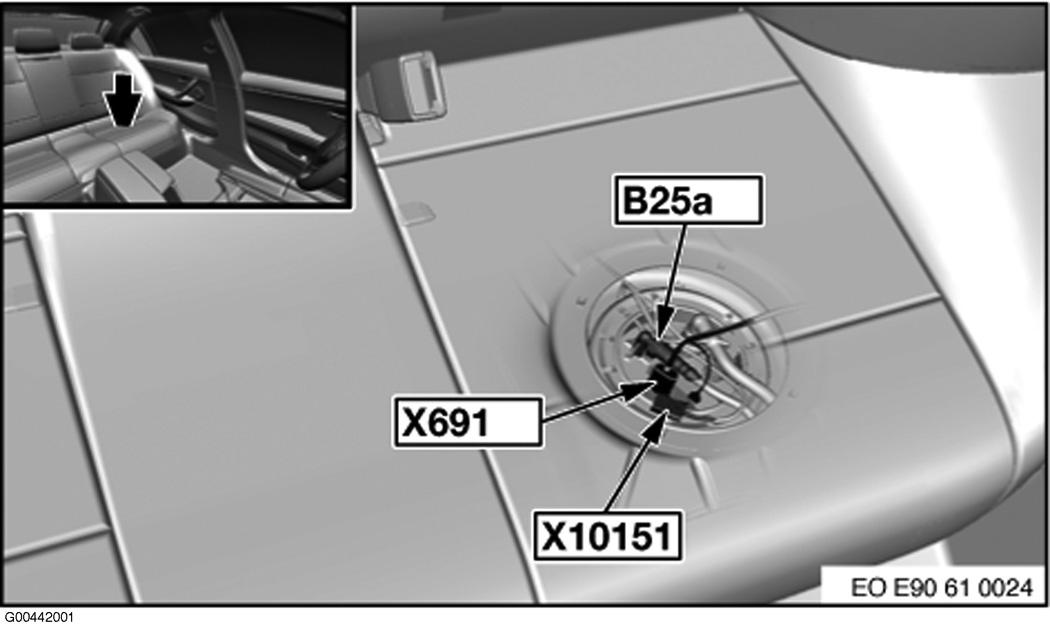

Fig 76: Under Left Rear Seat

G00442001

Courtesy of BMW OF NORTH AMERICA, INC.

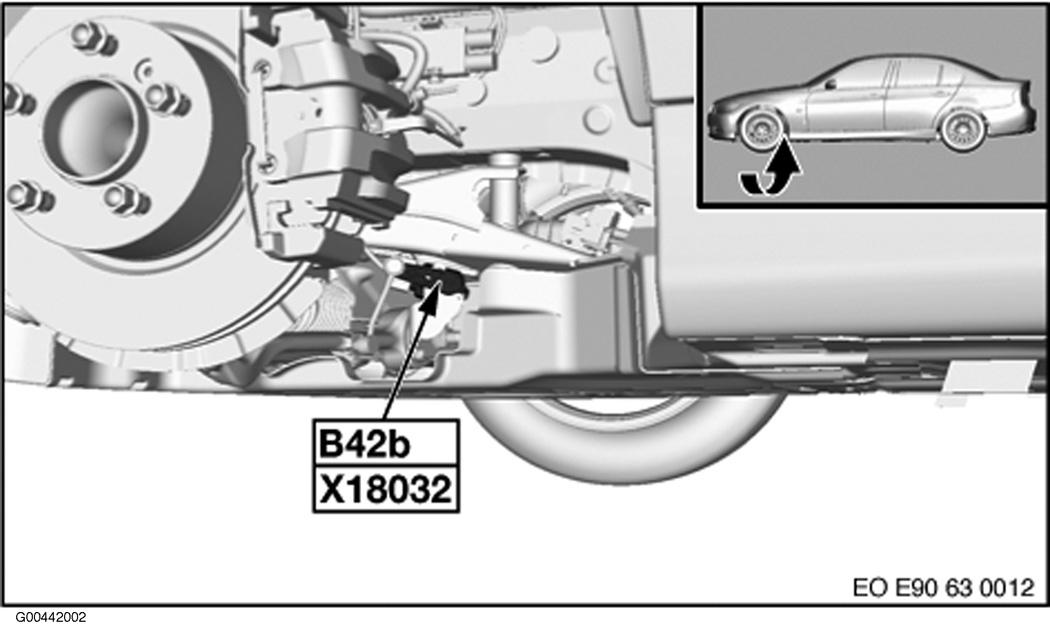

Fig 77: Rear Of Left Front Wheel

G00442002

Courtesy of BMW OF NORTH AMERICA, INC.

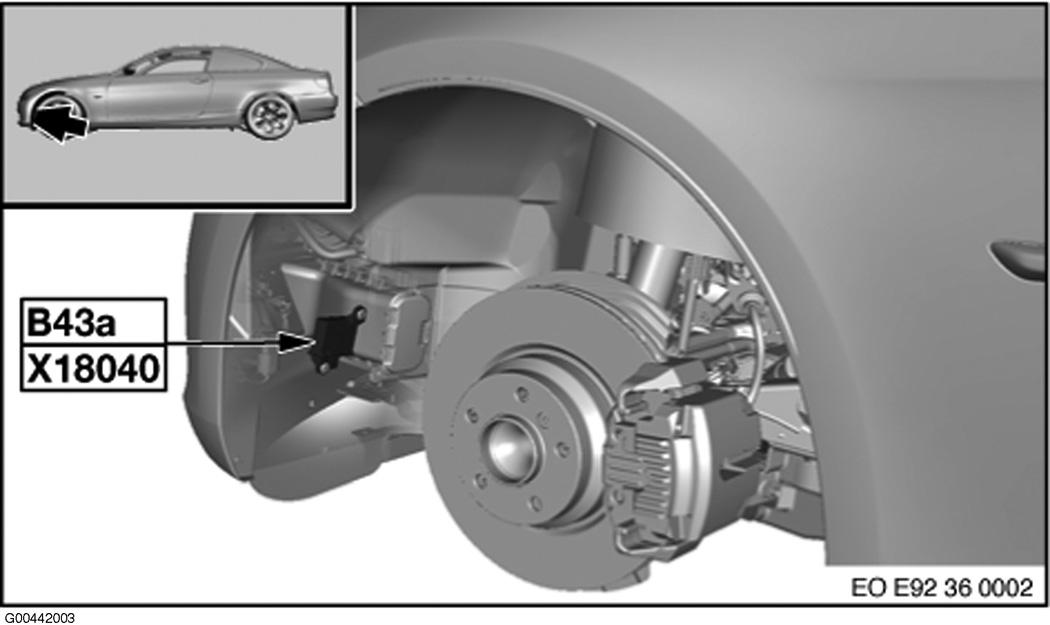

Fig 78: Front Of Left Front Wheel

G00442003

Courtesy of BMW OF NORTH AMERICA, INC.

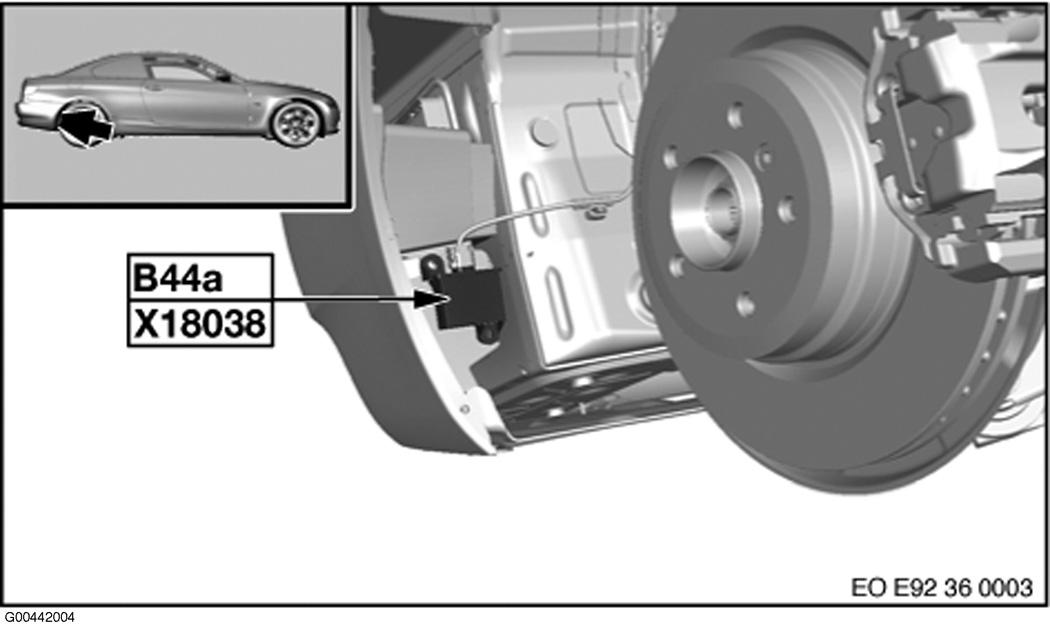

Fig 79: Rear Of Right Rear Wheel

G00442004

Courtesy of BMW OF NORTH AMERICA, INC.

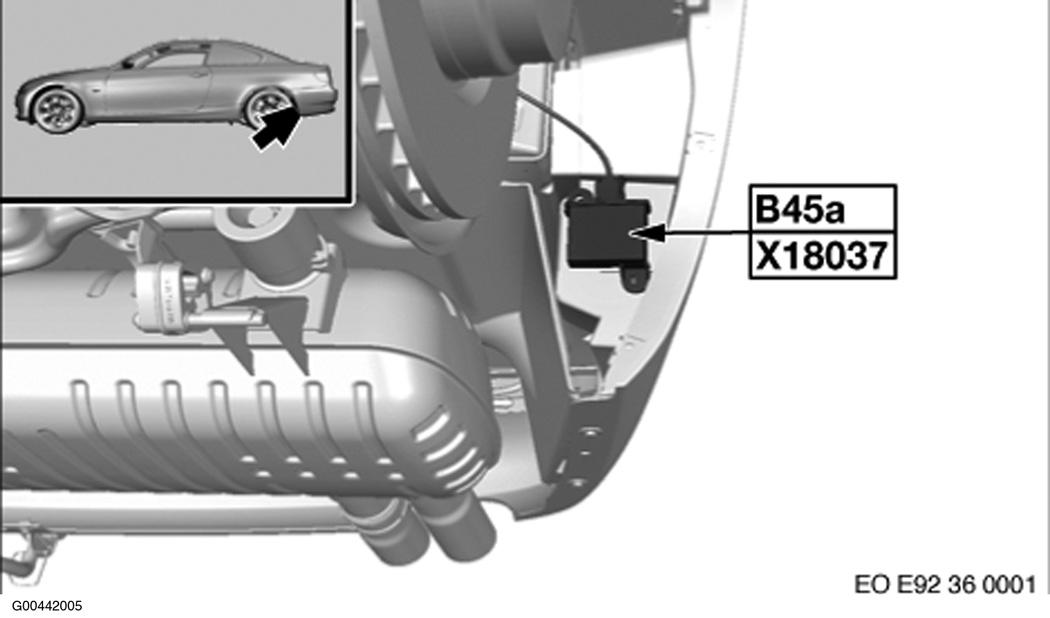

Fig 80: Rear Of Left Rear Wheel

G00442005

Courtesy of BMW OF NORTH AMERICA, INC.

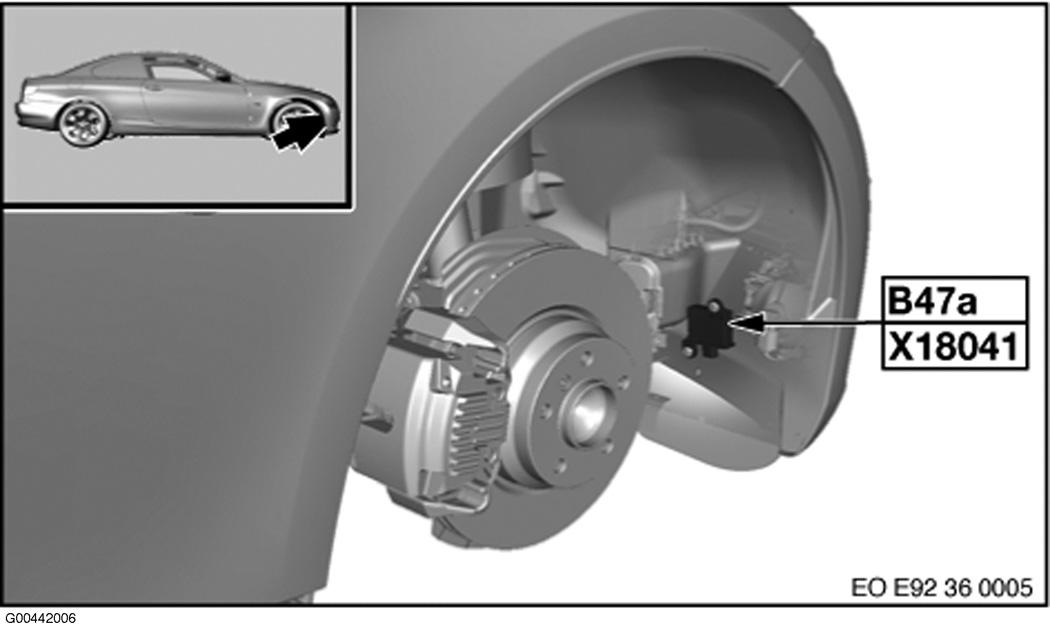

Fig 81: Front Of Right Front Wheel

G00442006

Courtesy of BMW OF NORTH AMERICA, INC.

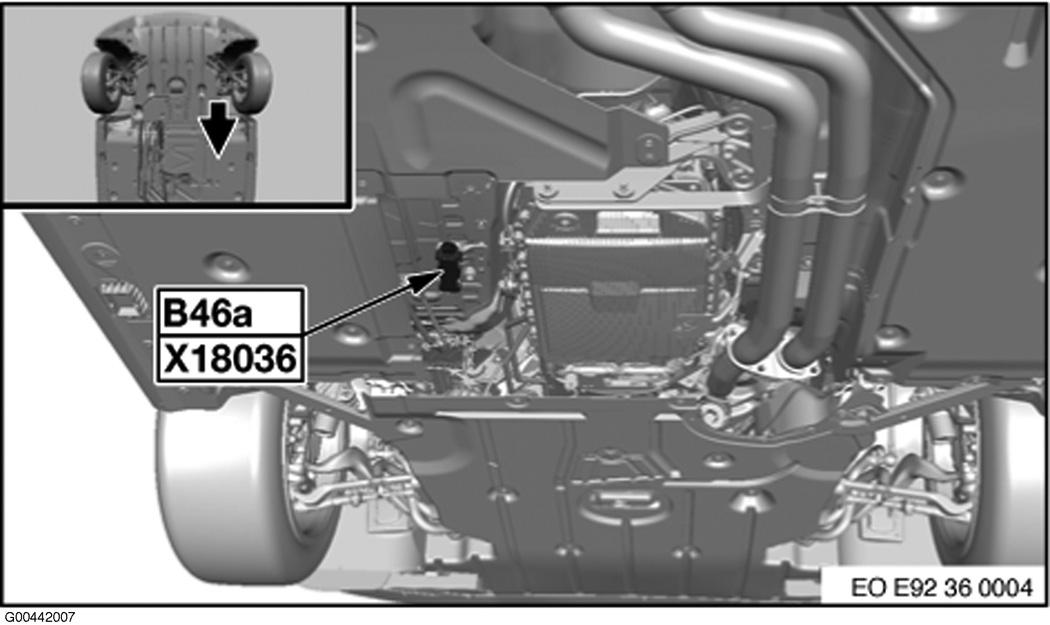

Fig 82: Under Vehicle

G00442007

Courtesy of BMW OF NORTH AMERICA, INC.

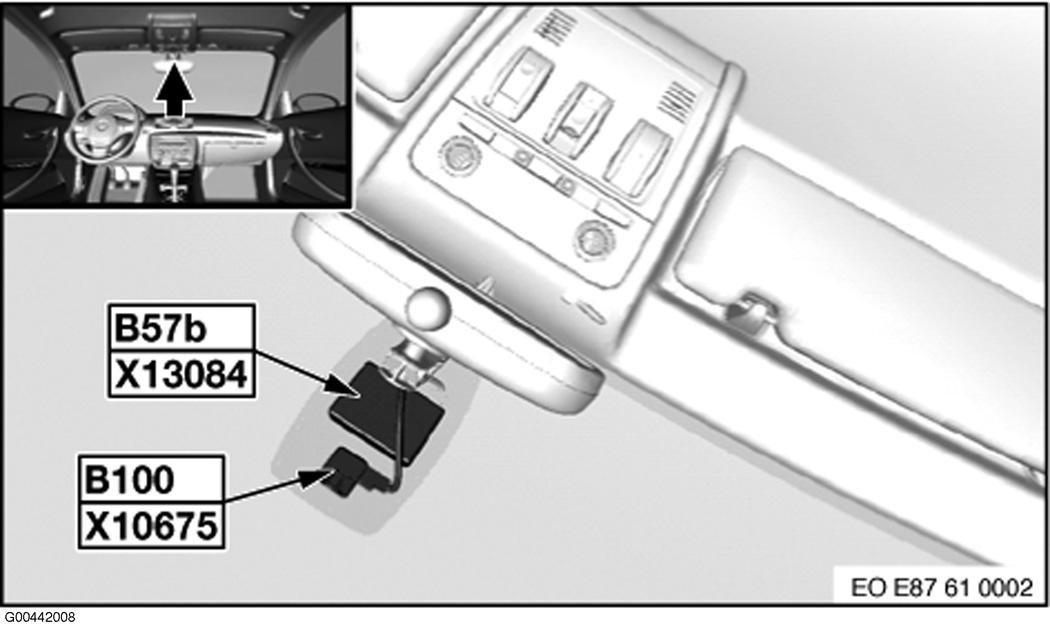

Fig 83: Top Center Of Windshield

G00442008

Courtesy of BMW OF NORTH AMERICA, INC.

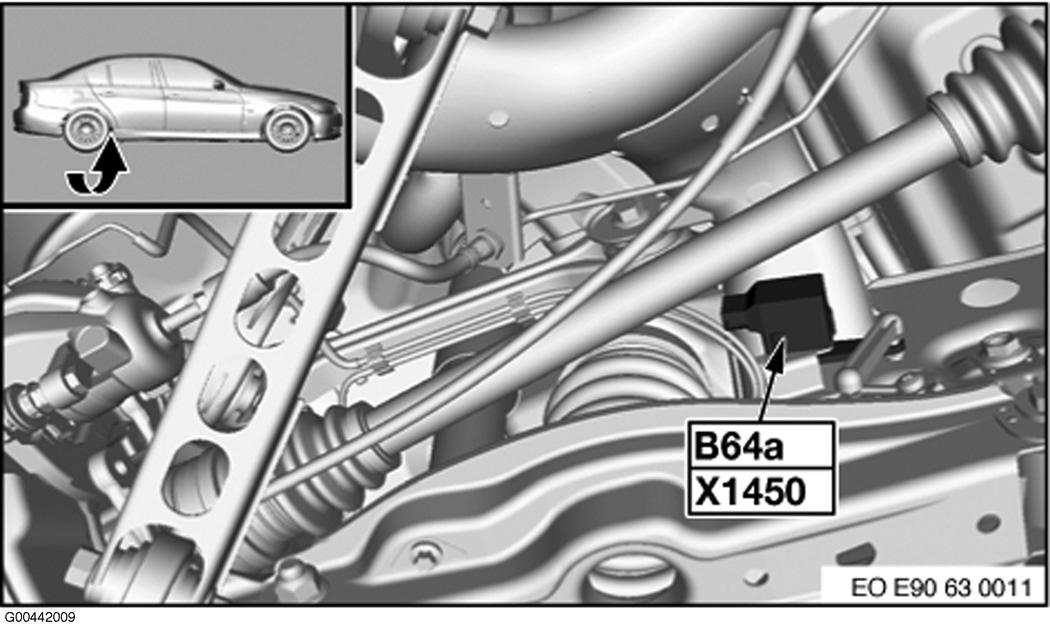

Fig 84: Front Of Right Rear Wheel

G00442009

Courtesy of BMW OF NORTH AMERICA, INC.

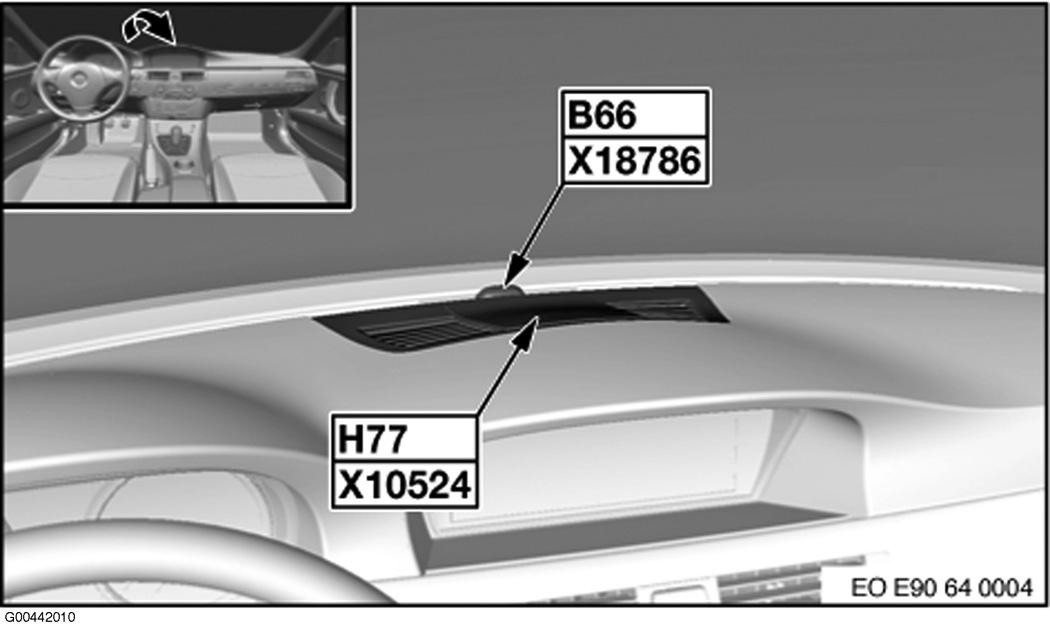

Fig 85: Top Center Of Dash

G00442010

Courtesy of BMW OF NORTH AMERICA, INC.

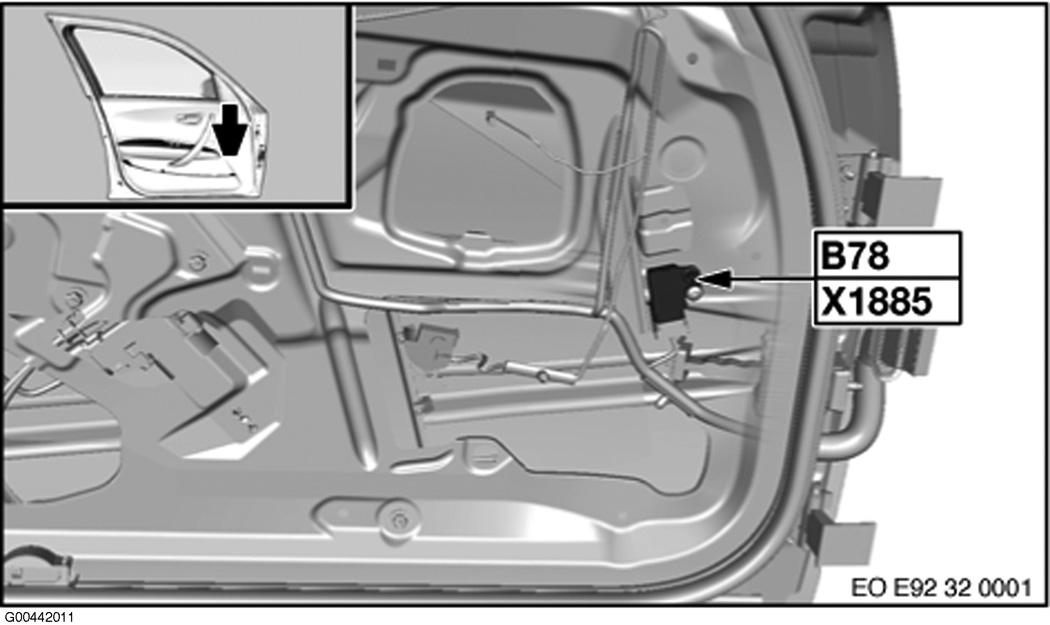

Fig 86: Driver Door

G00442011

Courtesy of BMW OF NORTH AMERICA, INC.

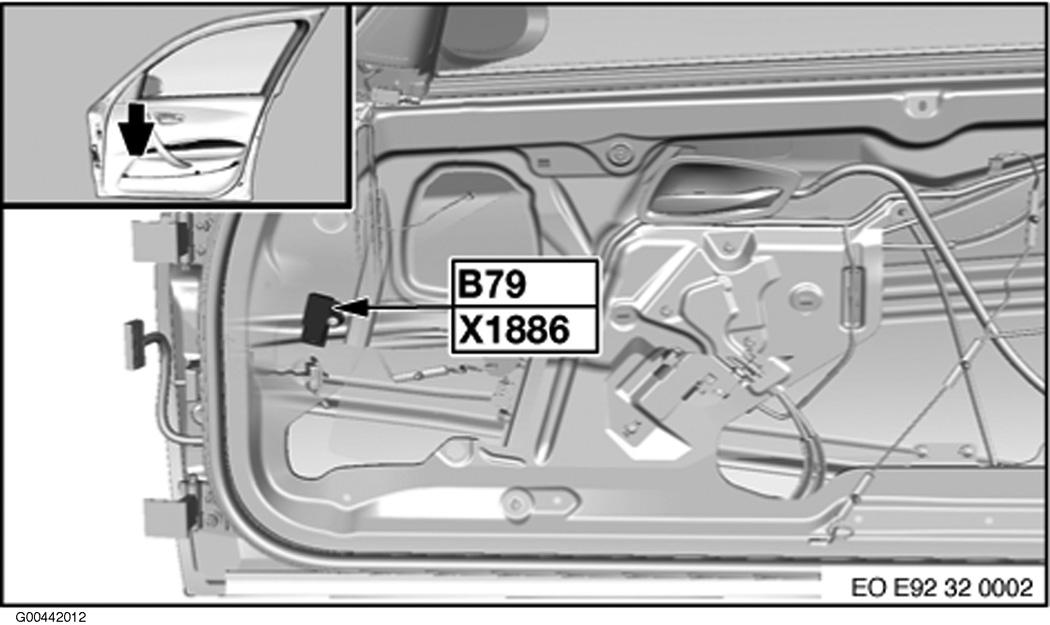

Fig 87: Front Passenger Door

G00442012

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 88: Right Rear Of Engine Compartment

G00442013

Courtesy of BMW OF NORTH AMERICA, INC.

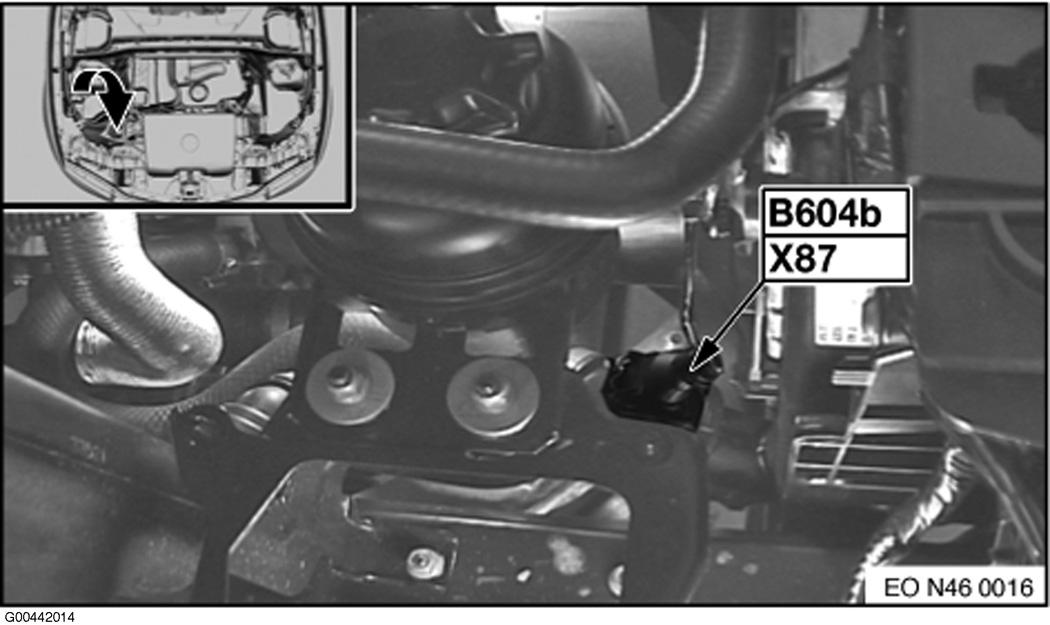

Fig 89: Right Side Of Engine Compartment

G00442014

Courtesy of BMW OF NORTH AMERICA, INC.

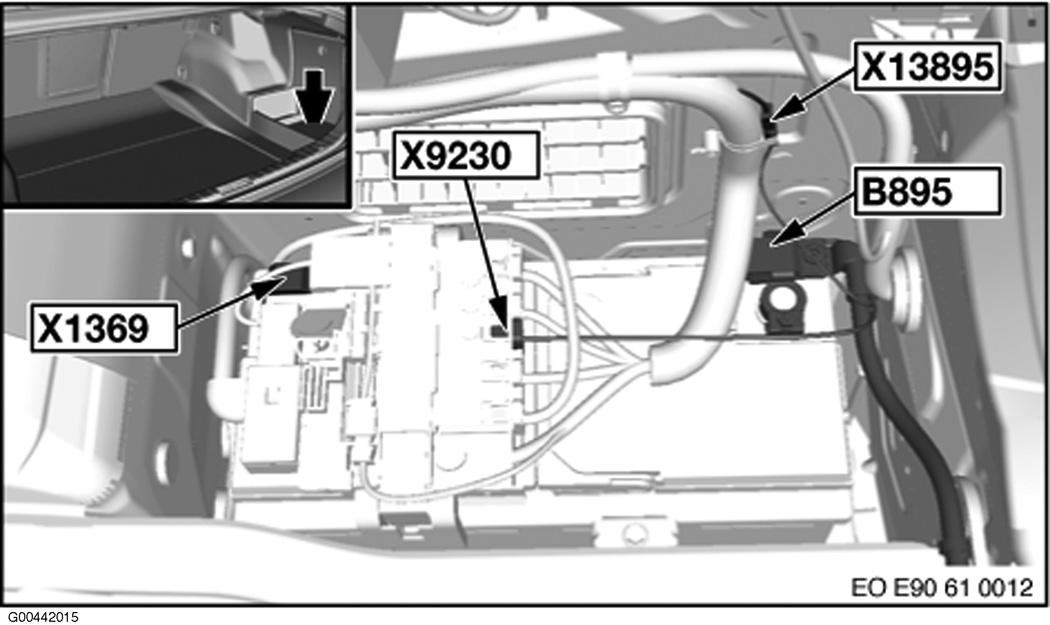

Fig 90: Right Side Of Rear Compartment

G00442015

Courtesy of BMW OF NORTH AMERICA, INC.

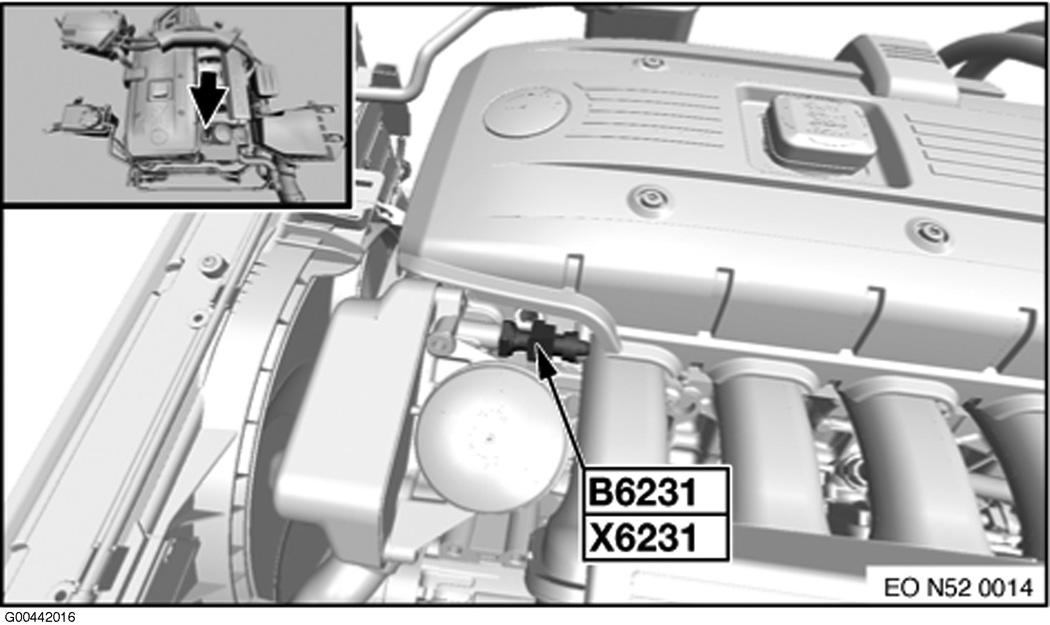

Fig 91: Left Side Of Engine Compartment

G00442016

Courtesy of BMW OF NORTH AMERICA, INC.

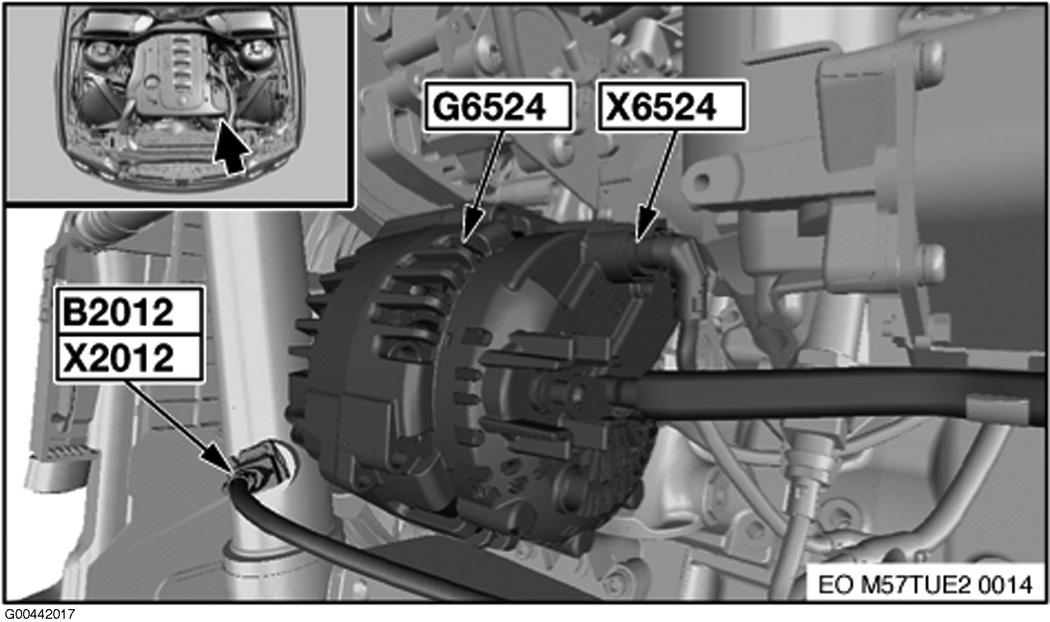

Fig 92: Generator

G00442017

Courtesy of BMW OF NORTH AMERICA, INC.

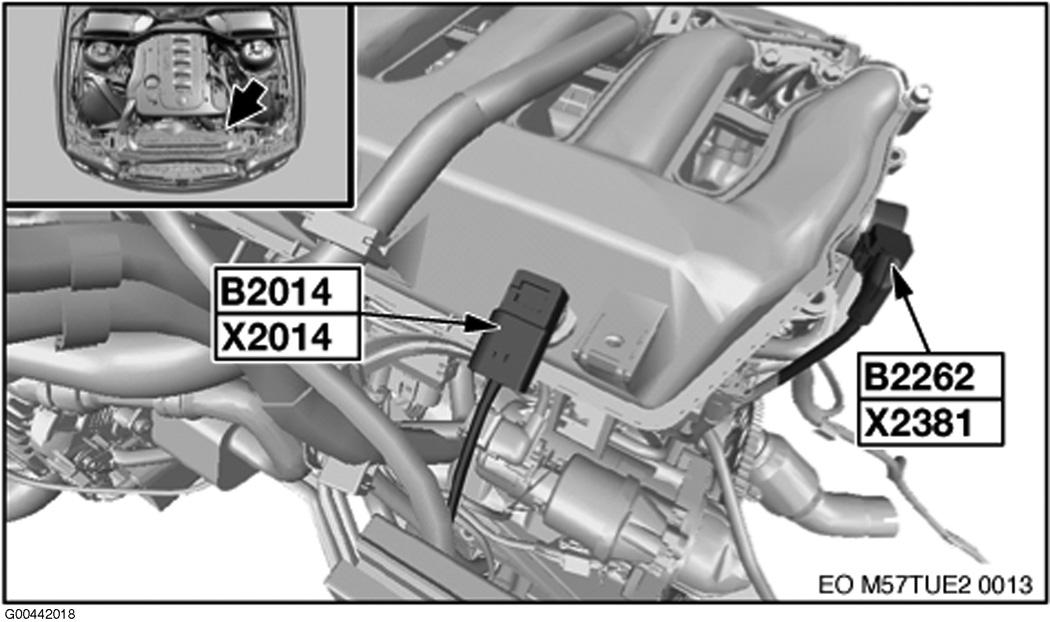

Fig 93: Left Side Of Engine Compartment

G00442018

Courtesy of BMW OF NORTH AMERICA, INC.

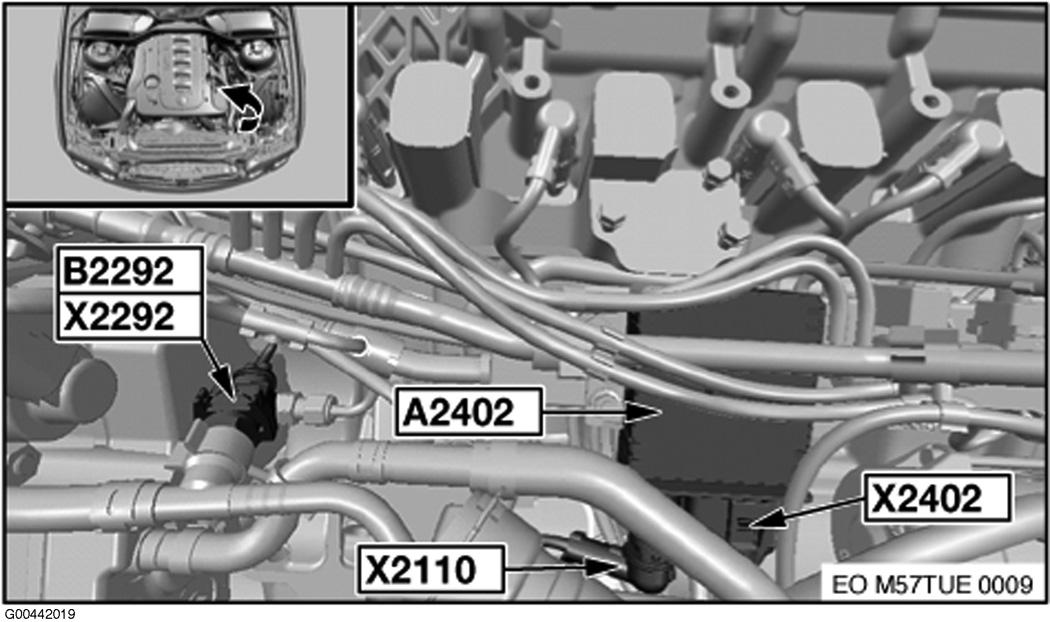

Fig 94: Left Side Of Engine Compartment

G00442019

Courtesy of BMW OF NORTH AMERICA, INC.

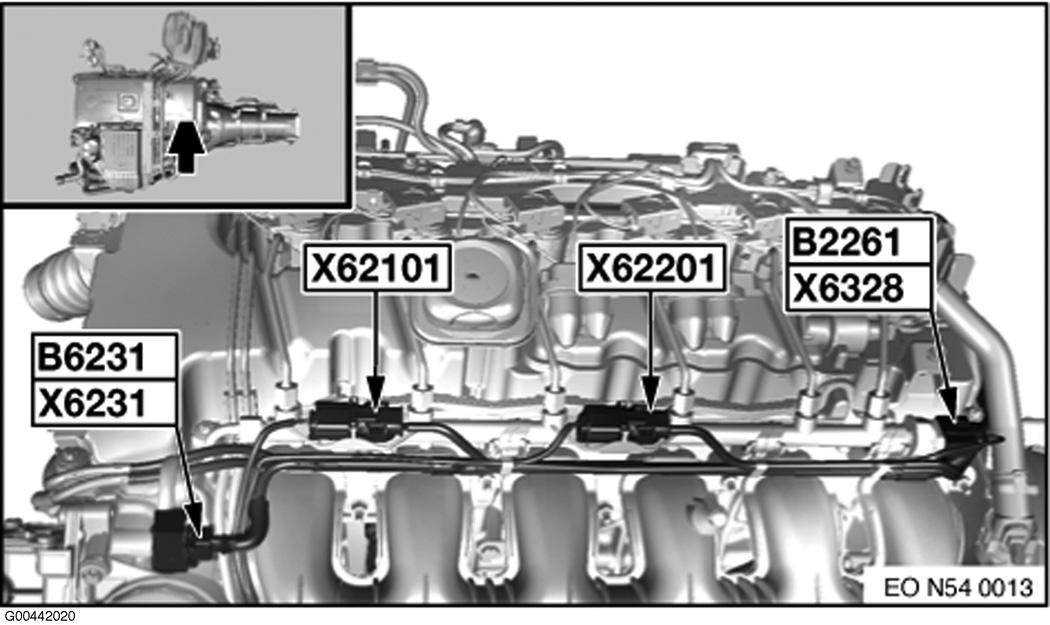

Fig 95: Left Side Of Engine

G00442020

Courtesy of BMW OF NORTH AMERICA, INC.

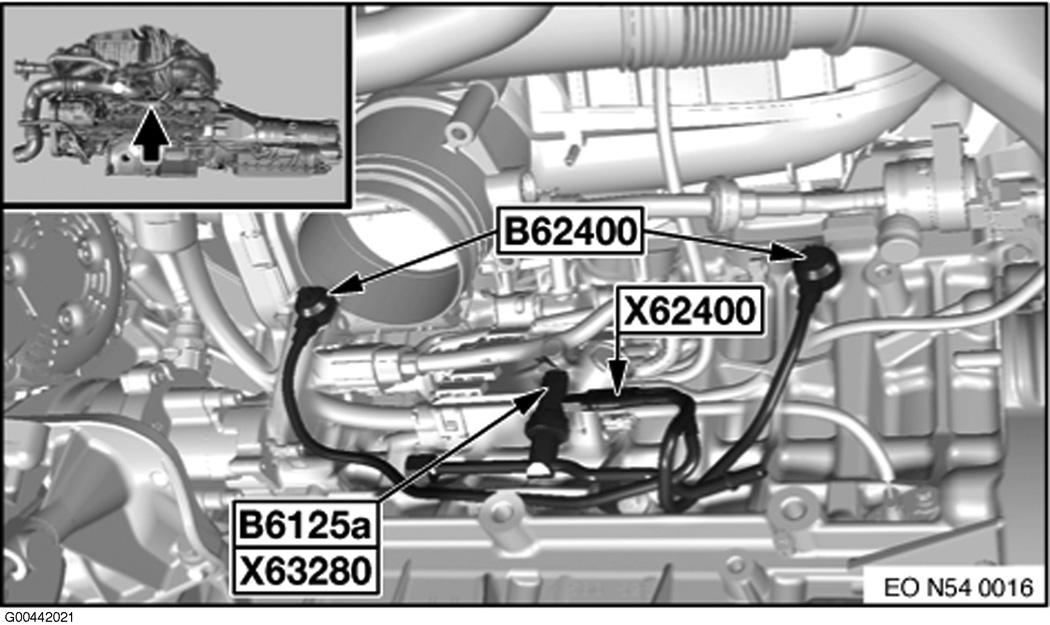

Fig 96: Knock Sensor

G00442021

Courtesy of BMW OF NORTH AMERICA, INC.

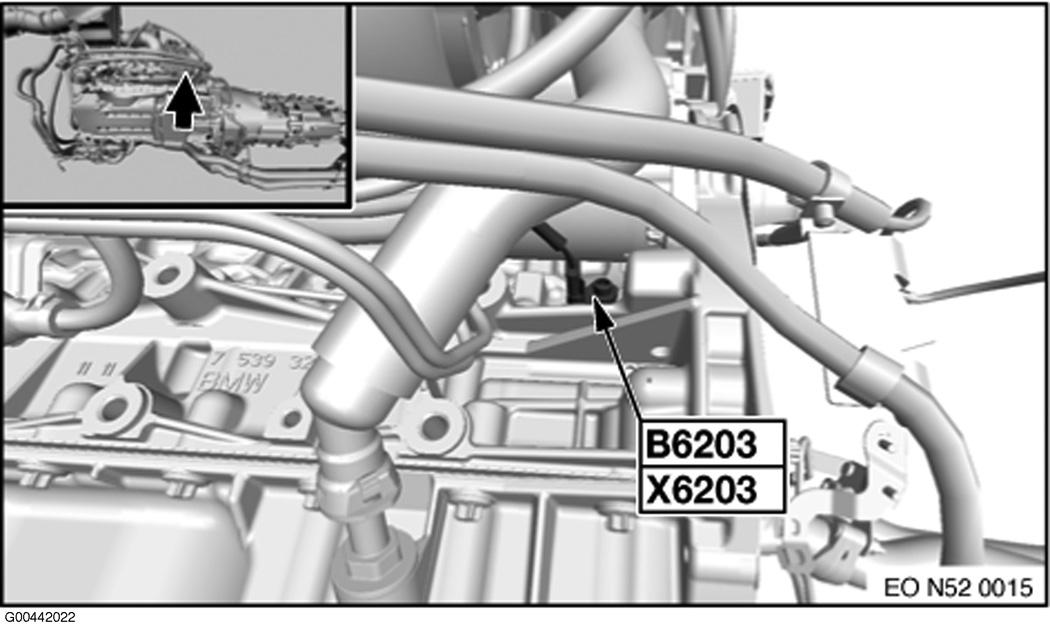

Fig 97: Crankshaft Sensor

G00442022

Courtesy of BMW OF NORTH AMERICA, INC.

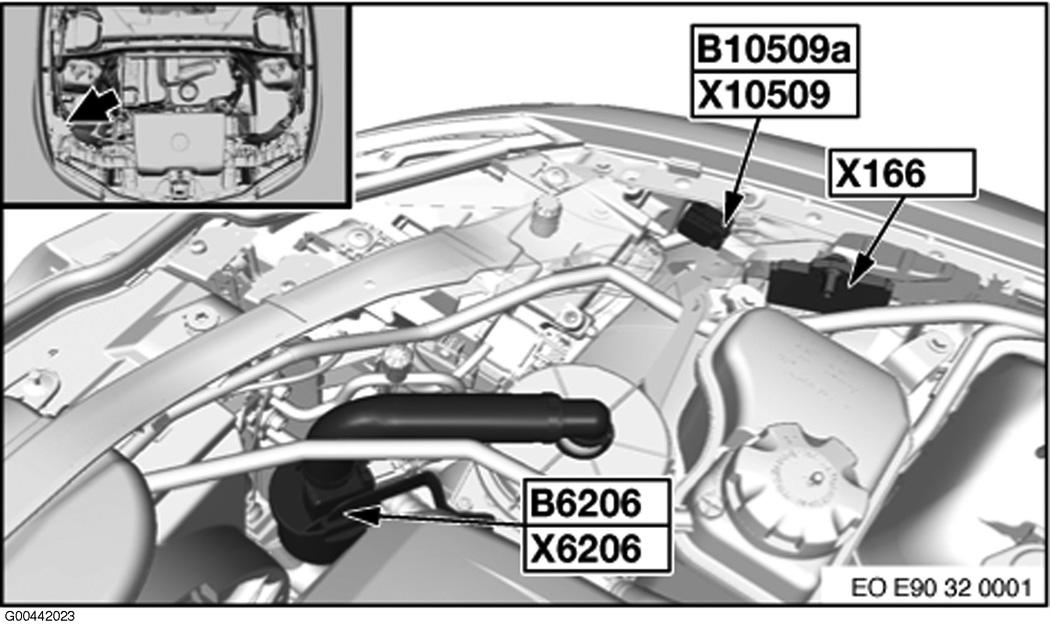

Fig 98: Right Side Of Engine

G00442023

Courtesy of BMW OF NORTH AMERICA, INC.

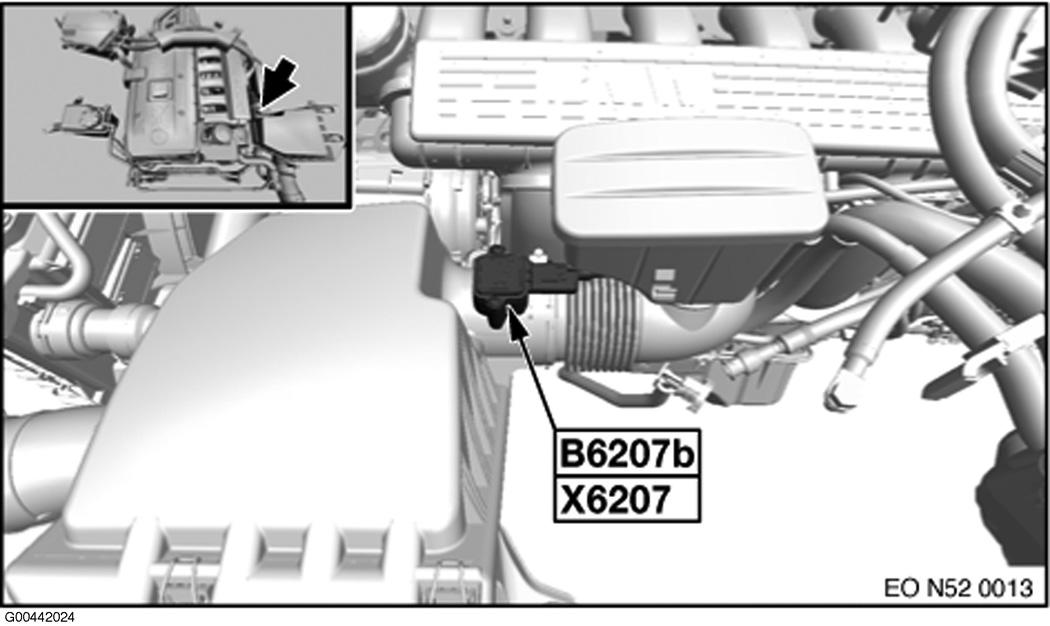

Fig 99: Air Mass Flow Sensor

G00442024

Courtesy of BMW OF NORTH AMERICA, INC.

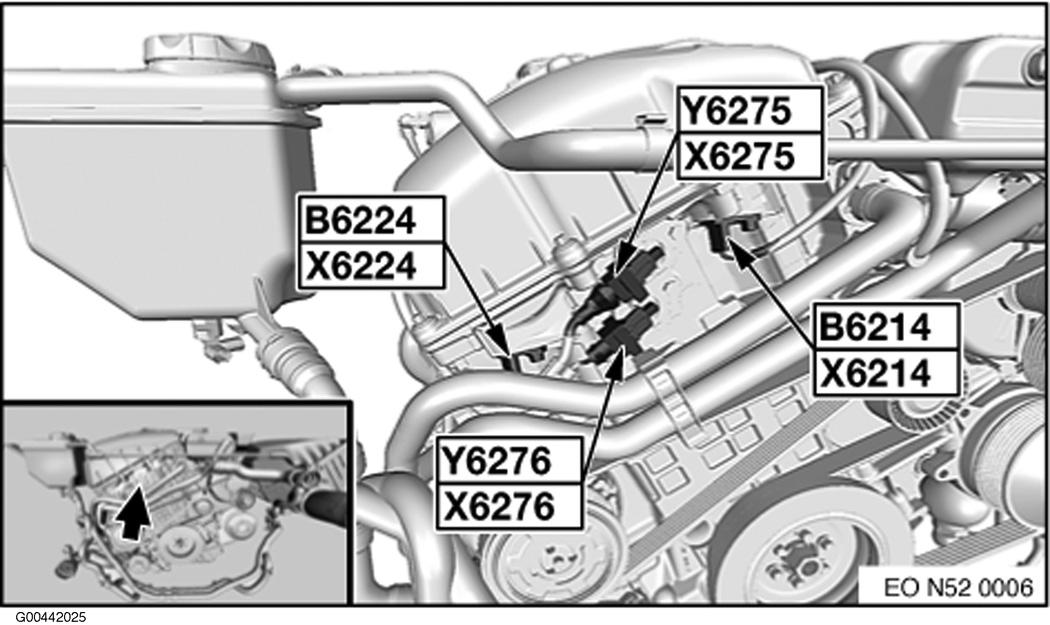

Fig 100: Front Of Engine

G00442025

Courtesy of BMW OF NORTH AMERICA, INC.

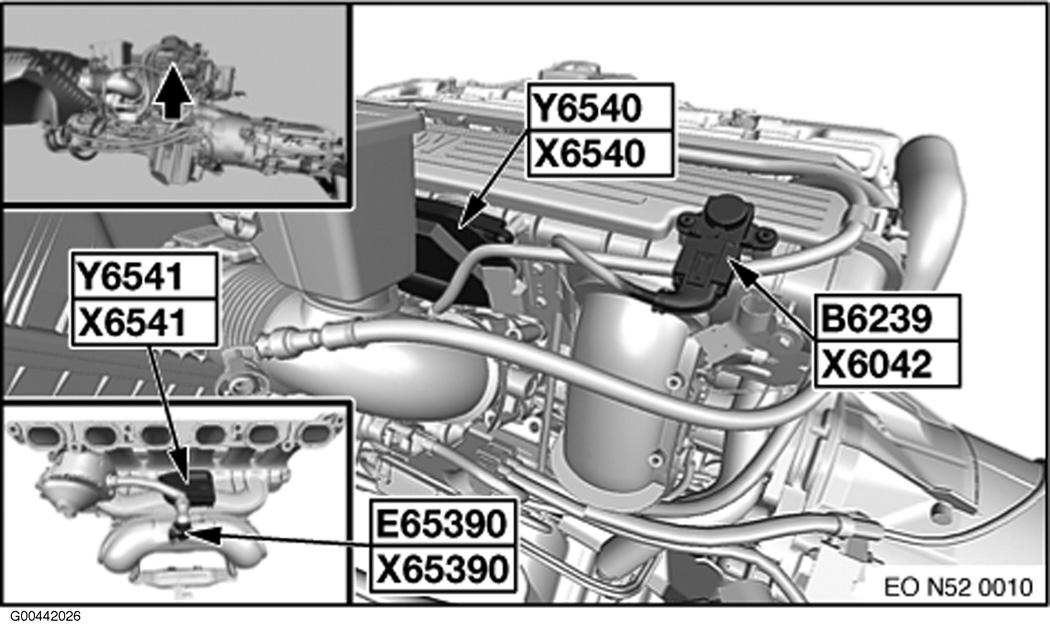

Fig 101: Top Of Engine

G00442026

Courtesy of BMW OF NORTH AMERICA, INC.

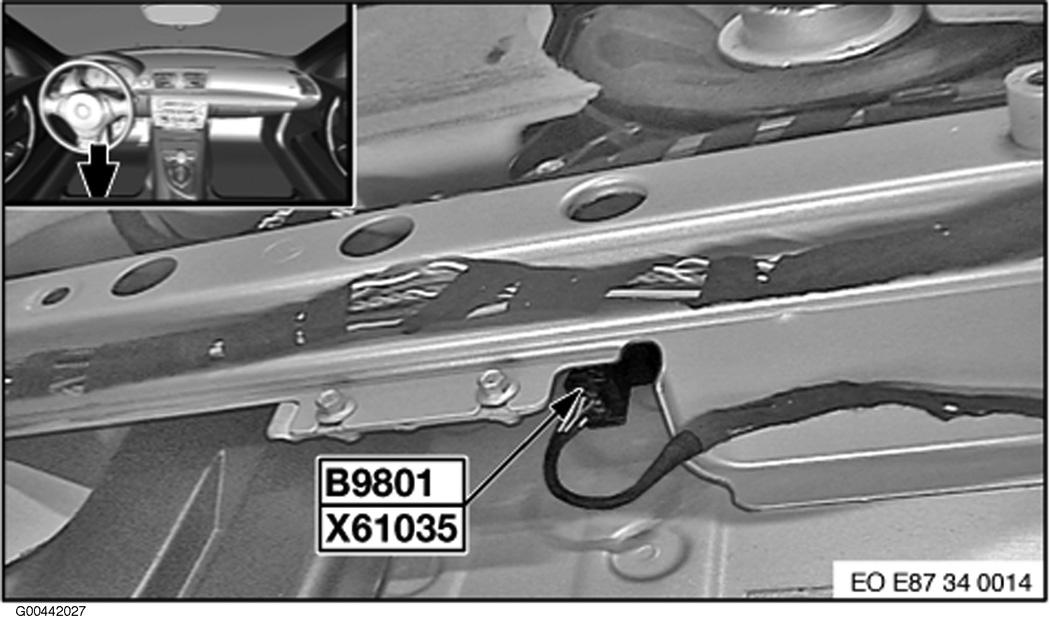

Fig 102: Front Of Driver Seat

G00442027

Courtesy of BMW OF NORTH AMERICA, INC.

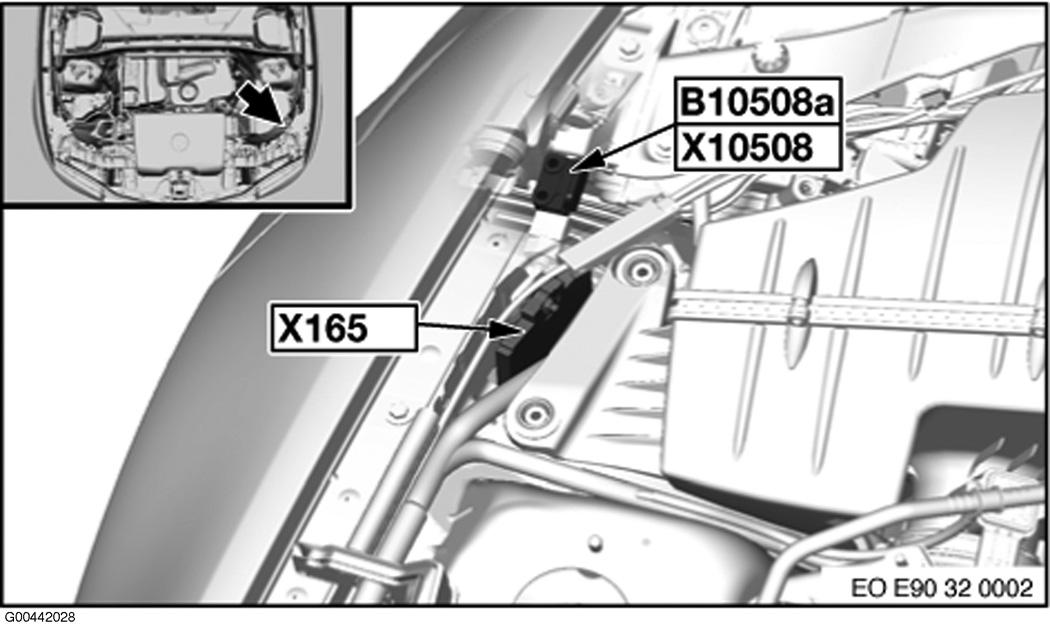

Fig 103: Left Side Of Engine

G00442028

Courtesy of BMW OF NORTH AMERICA, INC.

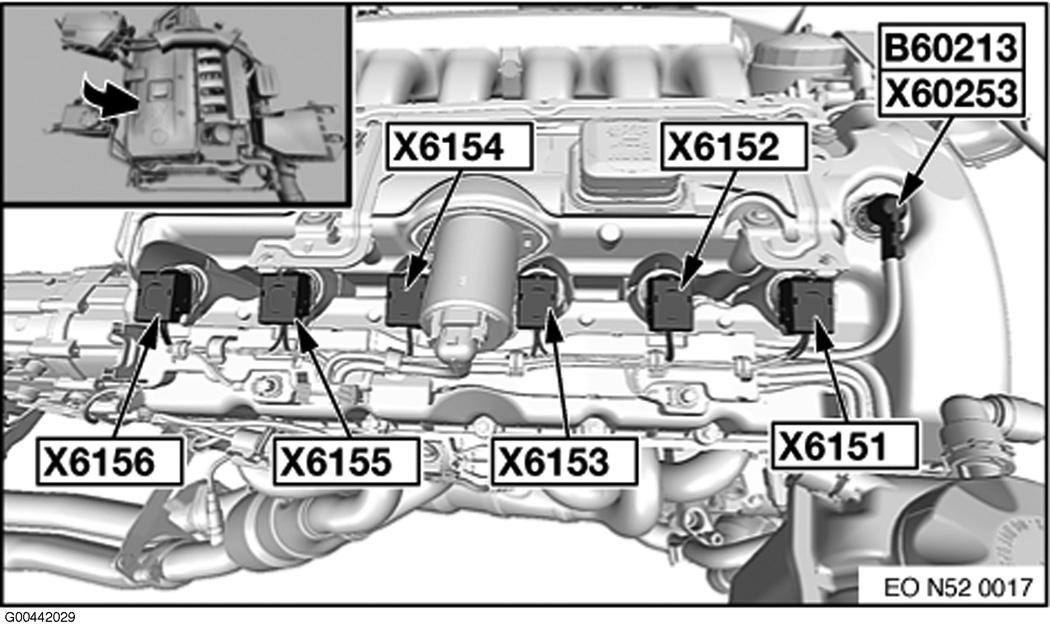

Fig 104: Top Of Engine

G00442029

Courtesy of BMW OF NORTH AMERICA, INC.

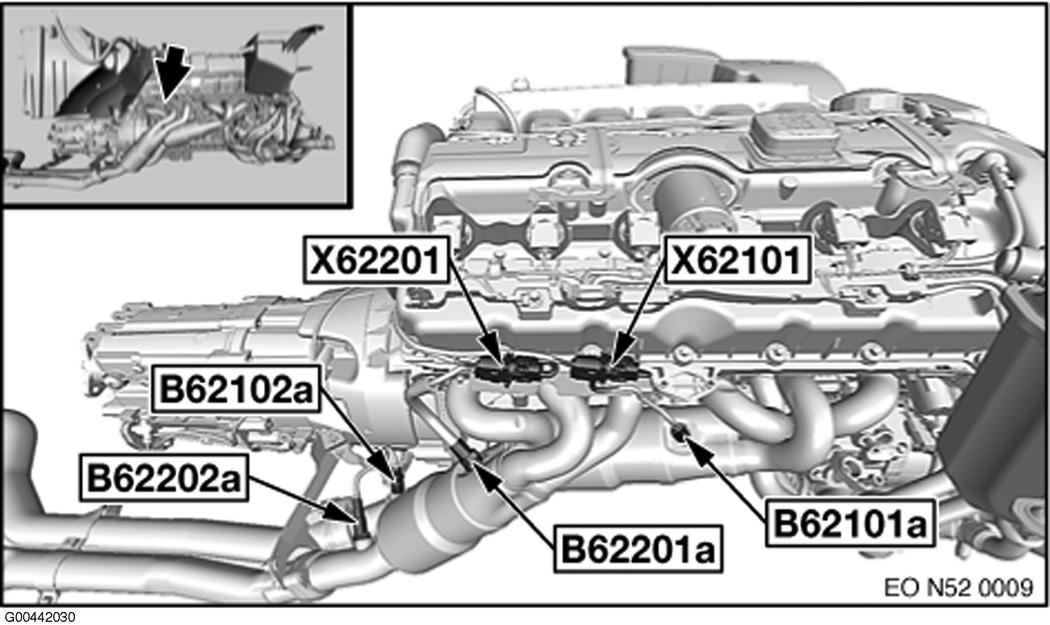

Fig 105: Oxygen Sensor

G00442030

Courtesy of BMW OF NORTH AMERICA, INC.

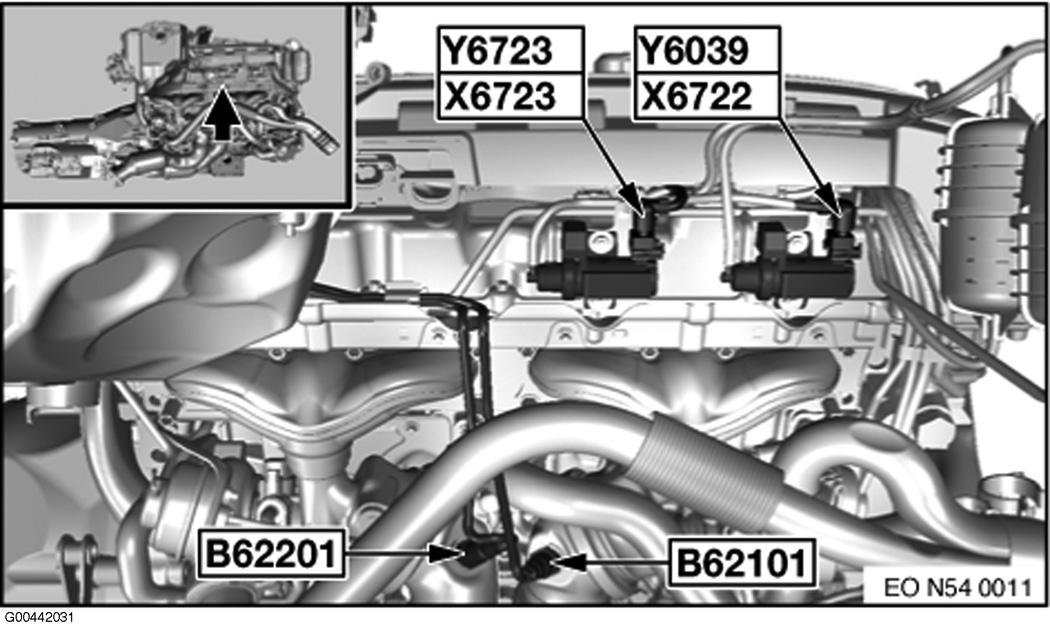

Fig 106: Oxygen Sensor

G00442031

Courtesy of BMW OF NORTH AMERICA, INC.

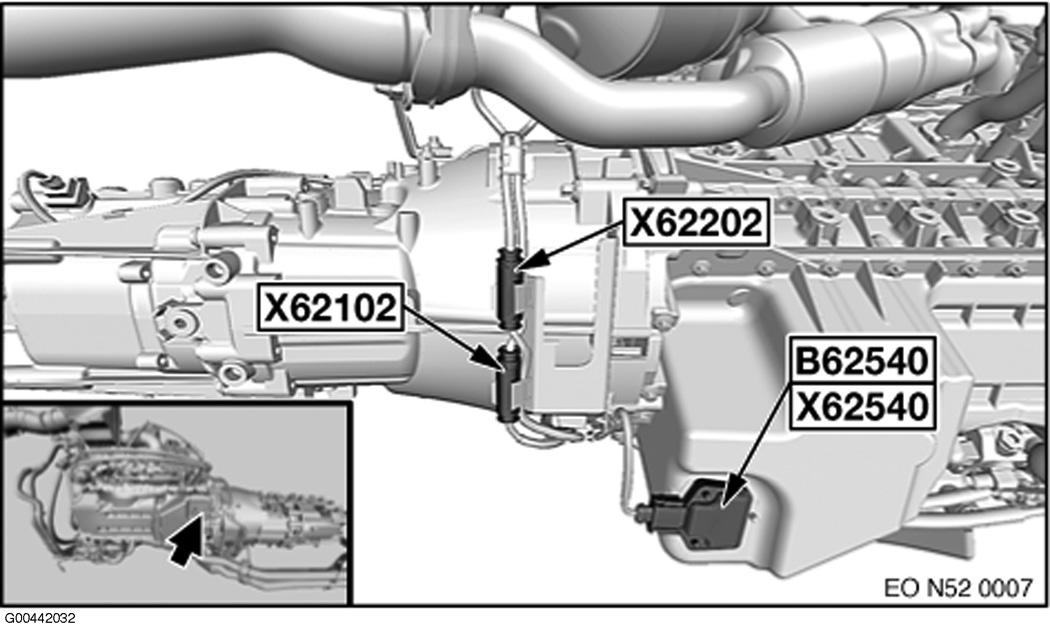

Fig 107: Oil Pressure Sensor

G00442032

Courtesy of BMW OF NORTH AMERICA, INC.

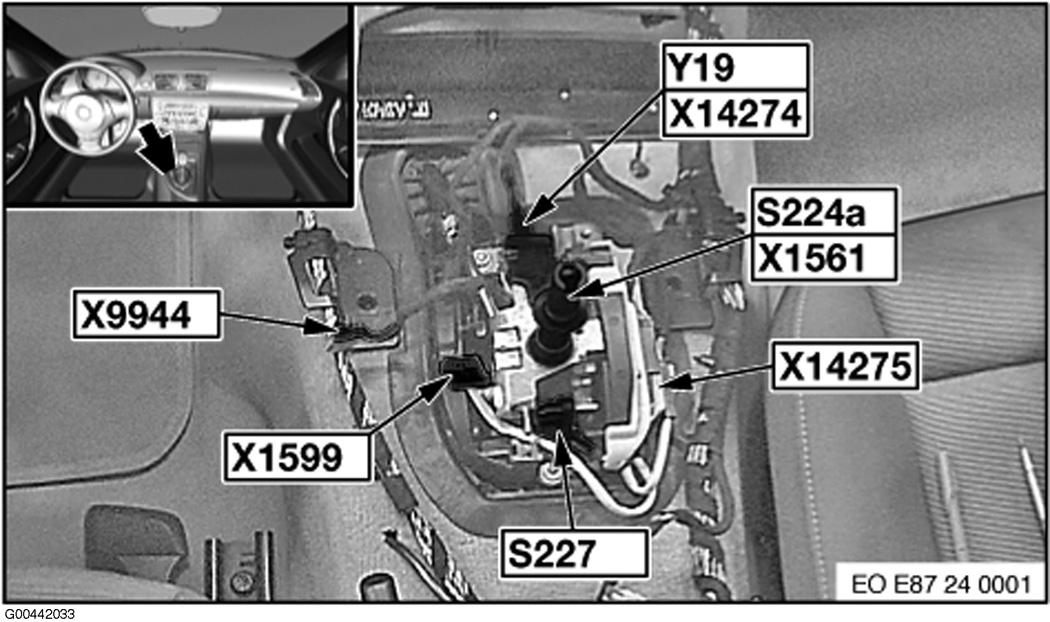

Fig 108: Center Console

G00442033

Courtesy of BMW OF NORTH AMERICA, INC.

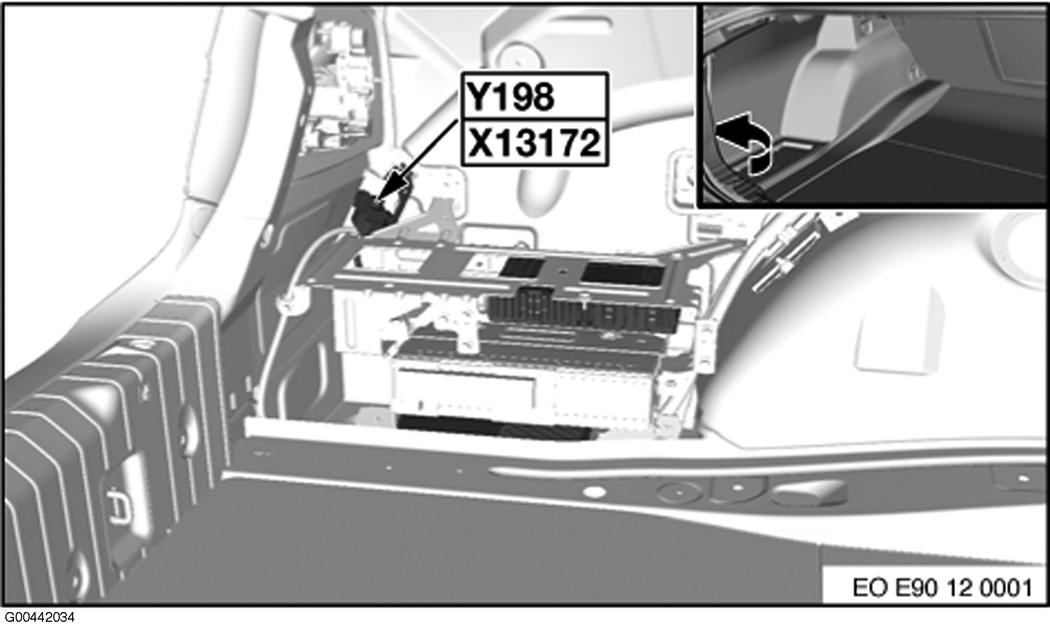

Fig 109: Left Side Of Rear Compartment

G00442034

Courtesy of BMW OF NORTH AMERICA, INC.

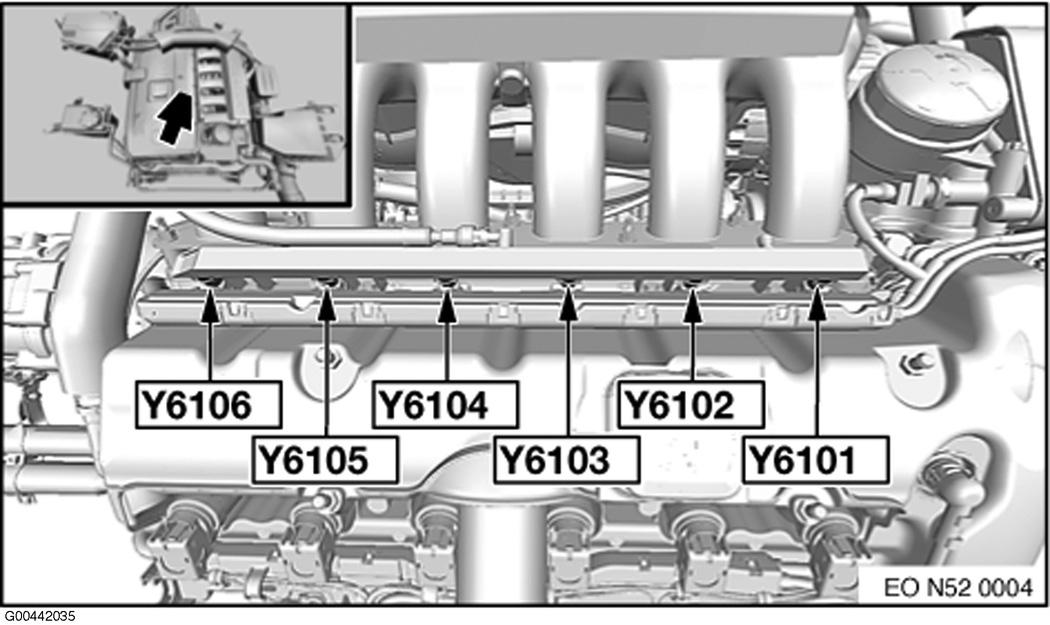

Fig 110: Fuel Injectors

G00442035

Courtesy of BMW OF NORTH AMERICA, INC.

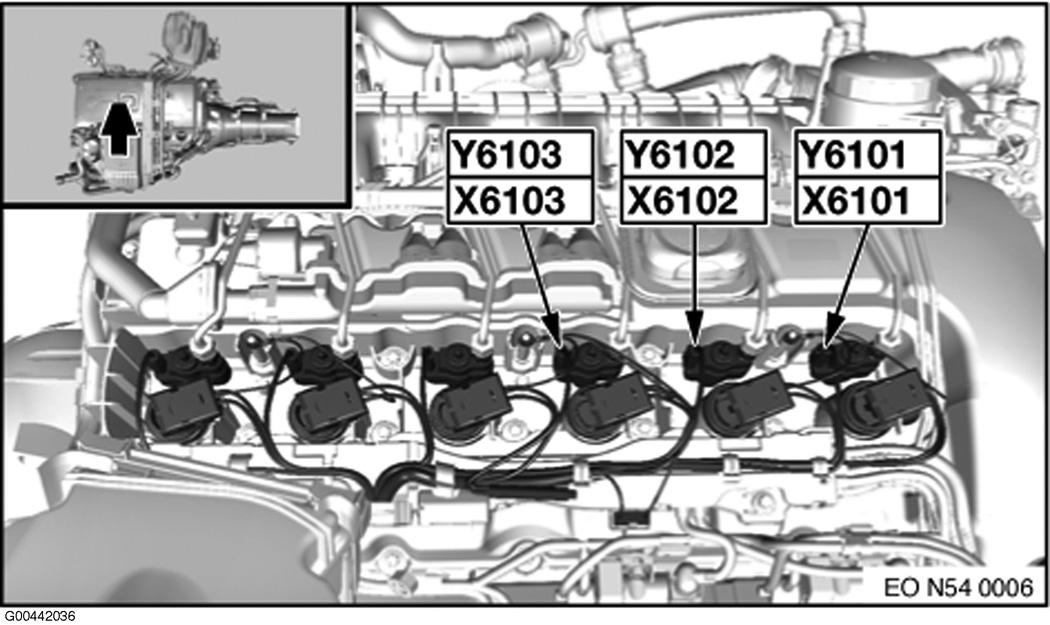

Fig 111: Fuel Injectors

G00442036

Courtesy of BMW OF NORTH AMERICA, INC.

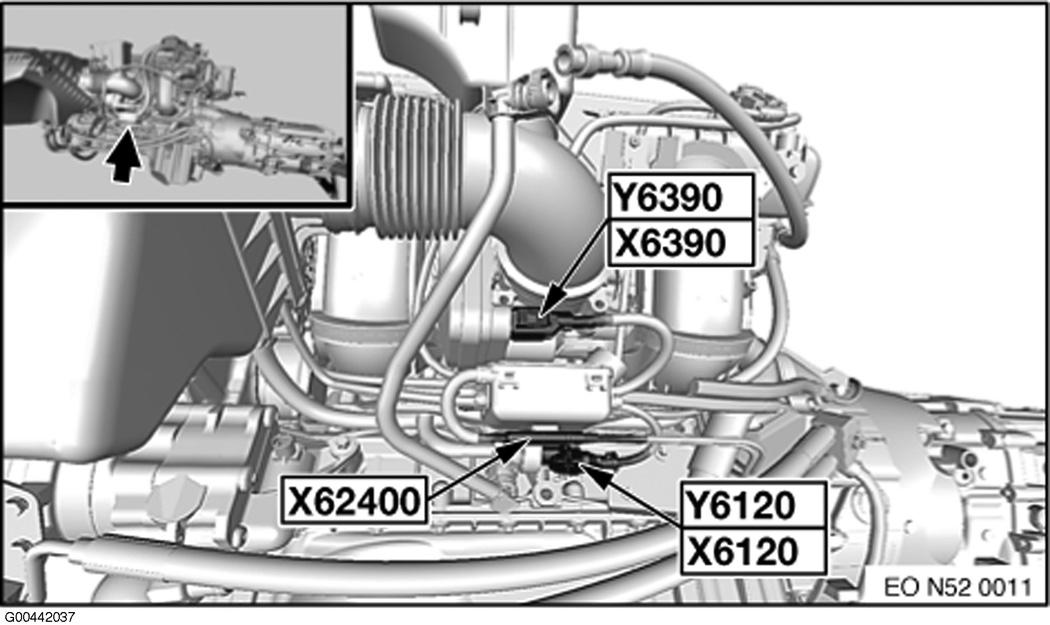

Fig 112: Left Side Of Engine

G00442037

Courtesy of BMW OF NORTH AMERICA, INC.

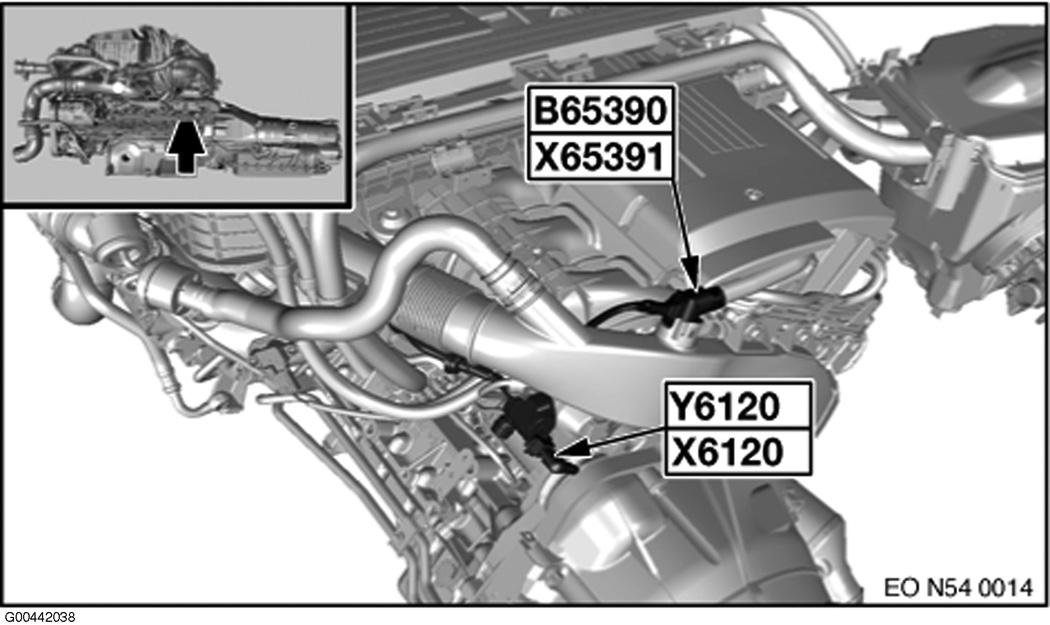

Fig 113: Rear Of Engine

G00442038

Courtesy of BMW OF NORTH AMERICA, INC.

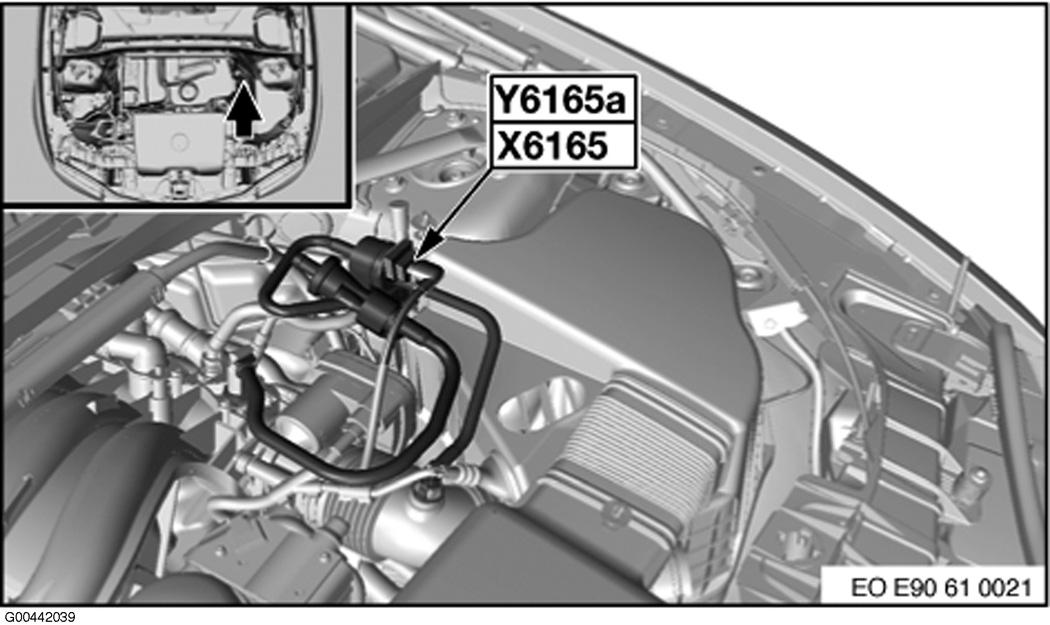

Fig 114: Left Side Of Engine Compartment

G00442039

Courtesy of BMW OF NORTH AMERICA, INC.

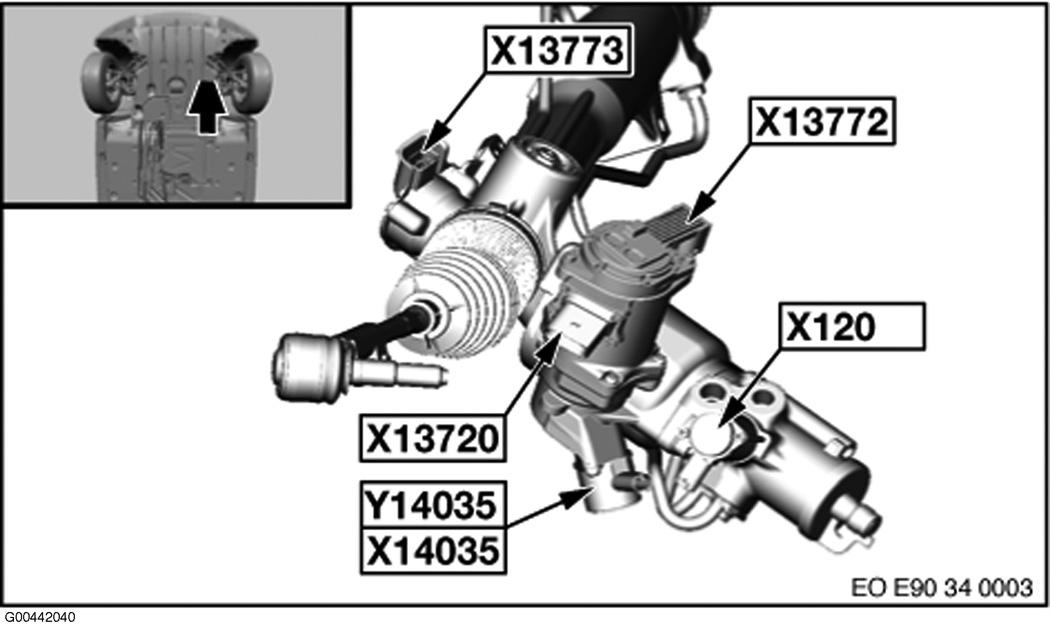

Fig 115: Under Vehicle

G00442040

Courtesy of BMW OF NORTH AMERICA, INC.

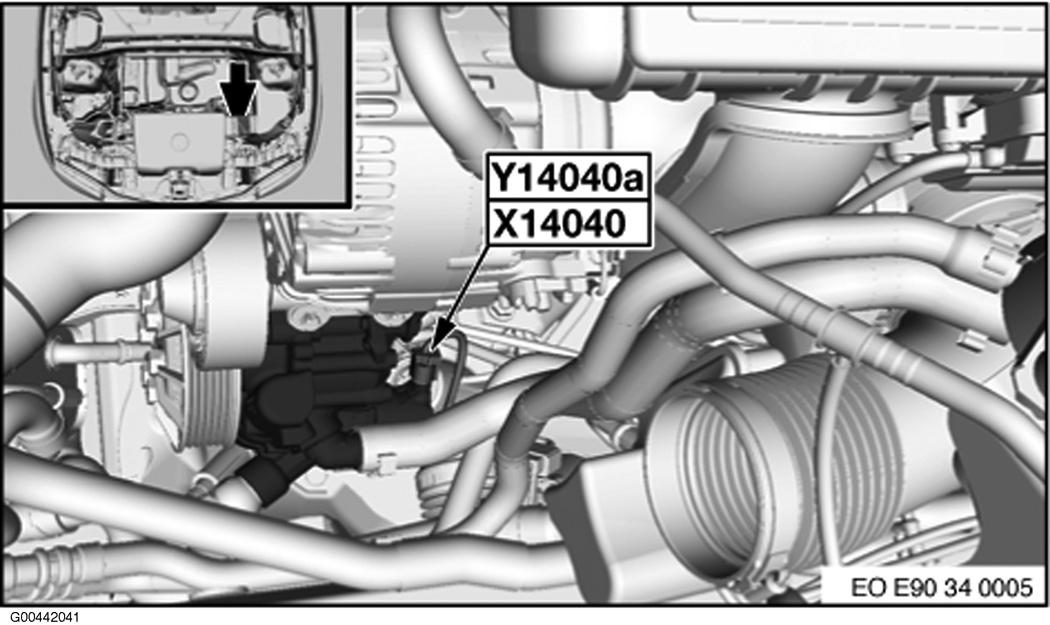

Fig 116: Left Side Of Engine Compartment

G00442041

Courtesy of BMW OF NORTH AMERICA, INC.

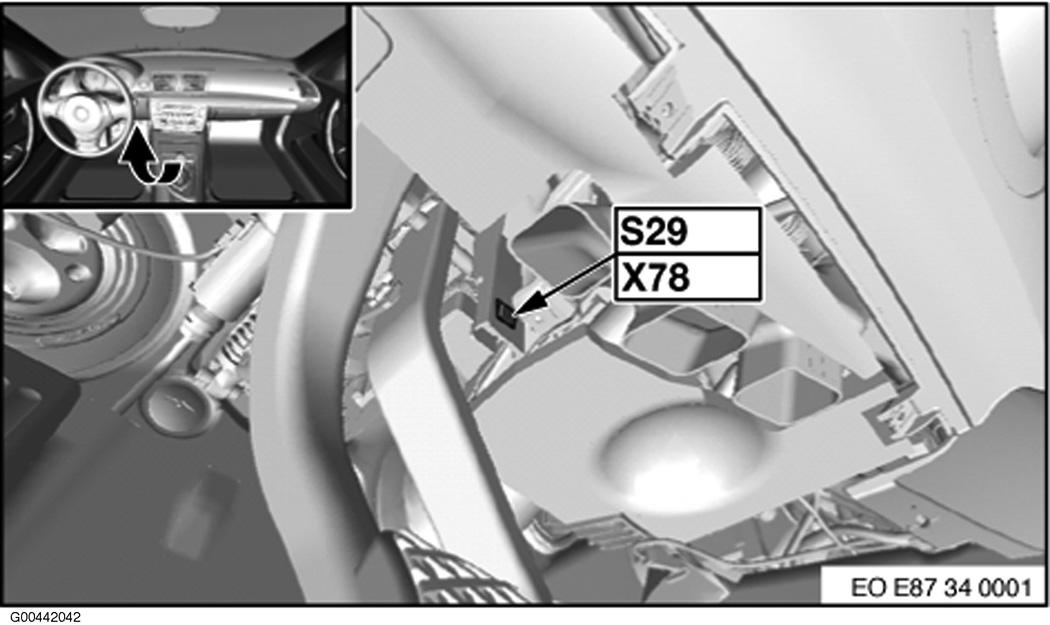

Fig 117: Left Side Of Dash

G00442042

Courtesy of BMW OF NORTH AMERICA, INC.

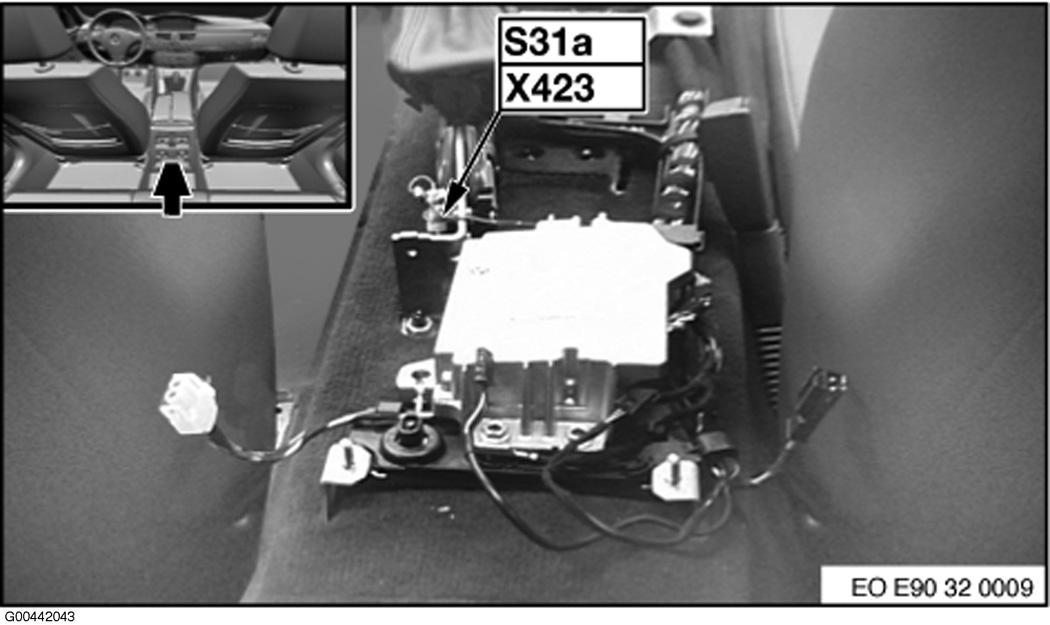

Fig 118: Center Console

G00442043

Courtesy of BMW OF NORTH AMERICA, INC.

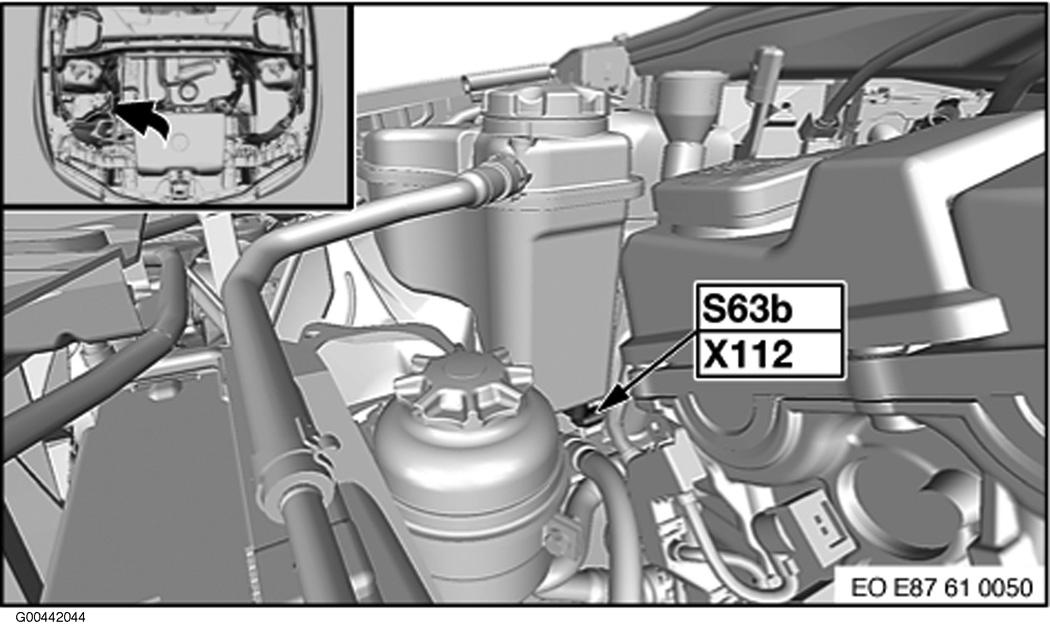

Fig 119: Right Side Of Engine Compartment

G00442044

Courtesy of BMW OF NORTH AMERICA, INC.

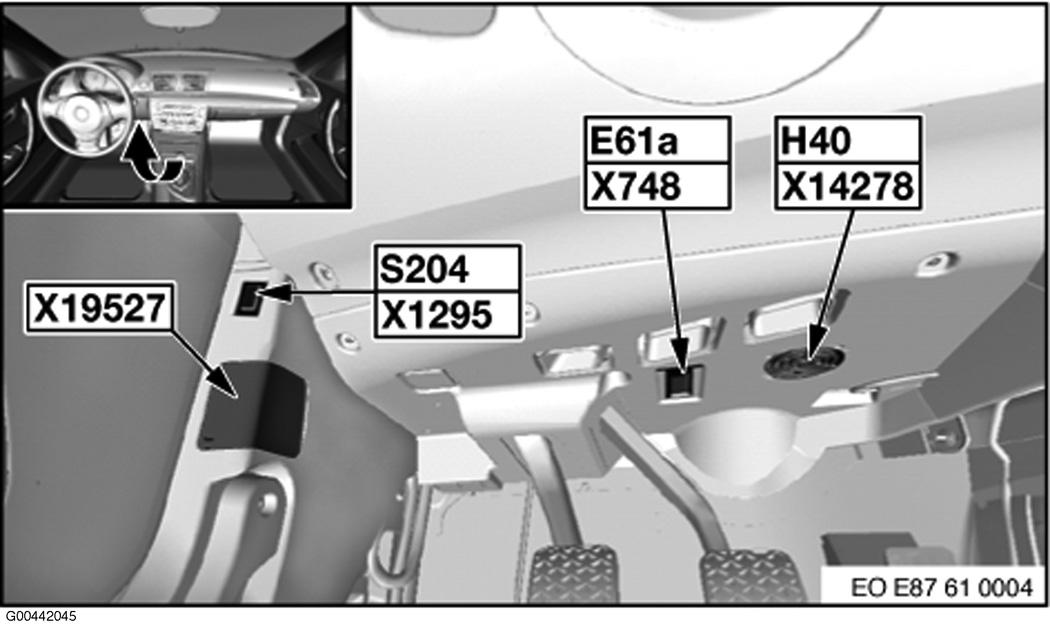

Fig 120: Left Side Of Dash

G00442045

Courtesy of BMW OF NORTH AMERICA, INC.

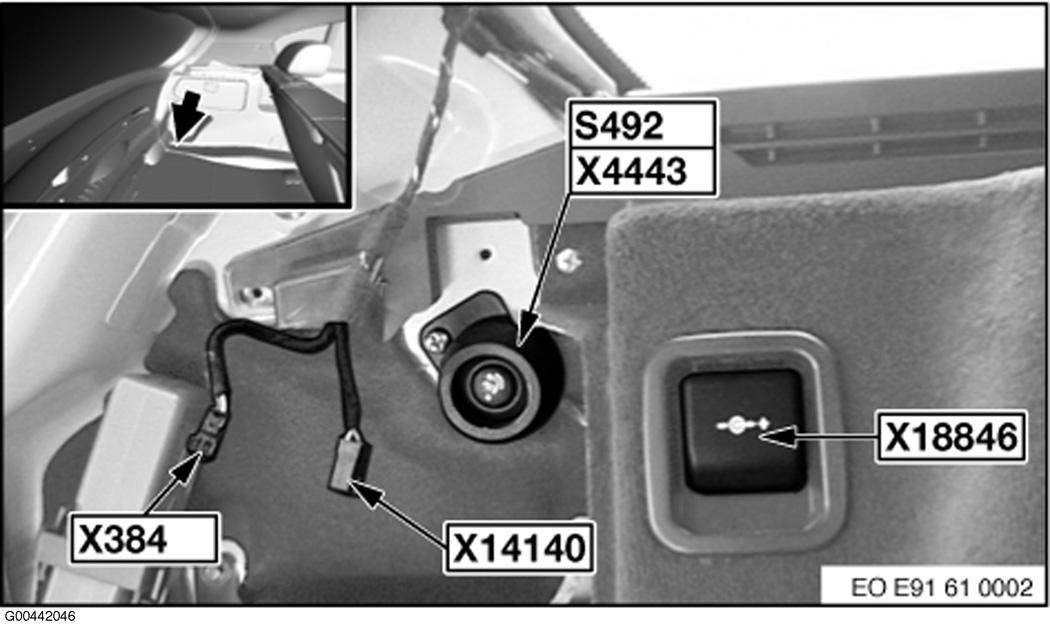

Fig 121: Rear Compartment

G00442046

Courtesy of BMW OF NORTH AMERICA, INC.

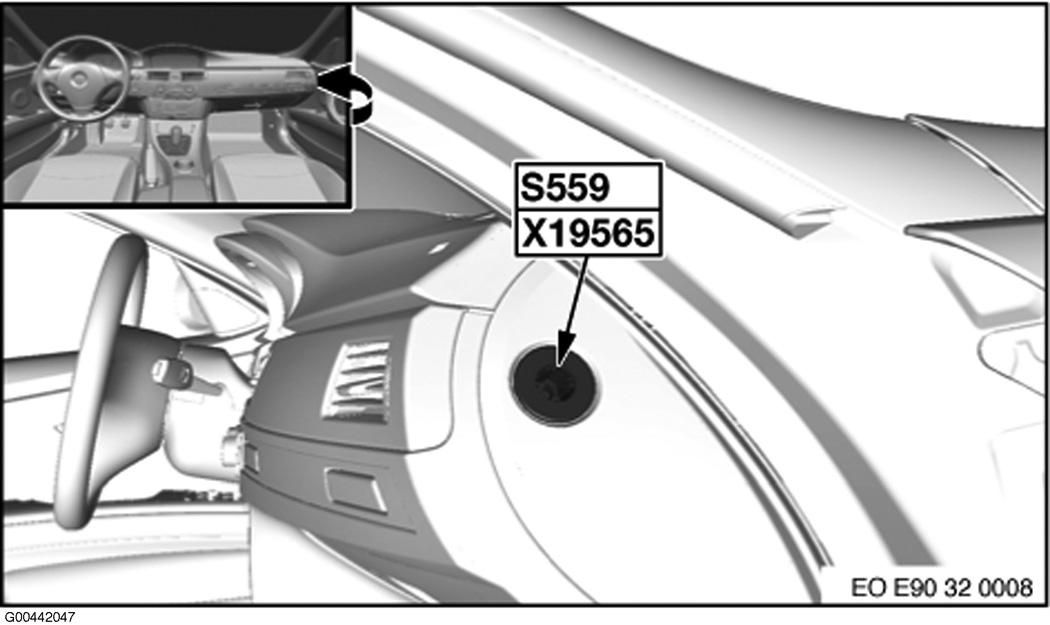

Fig 122: Right Side Of Dash

G00442047

Courtesy of BMW OF NORTH AMERICA, INC.

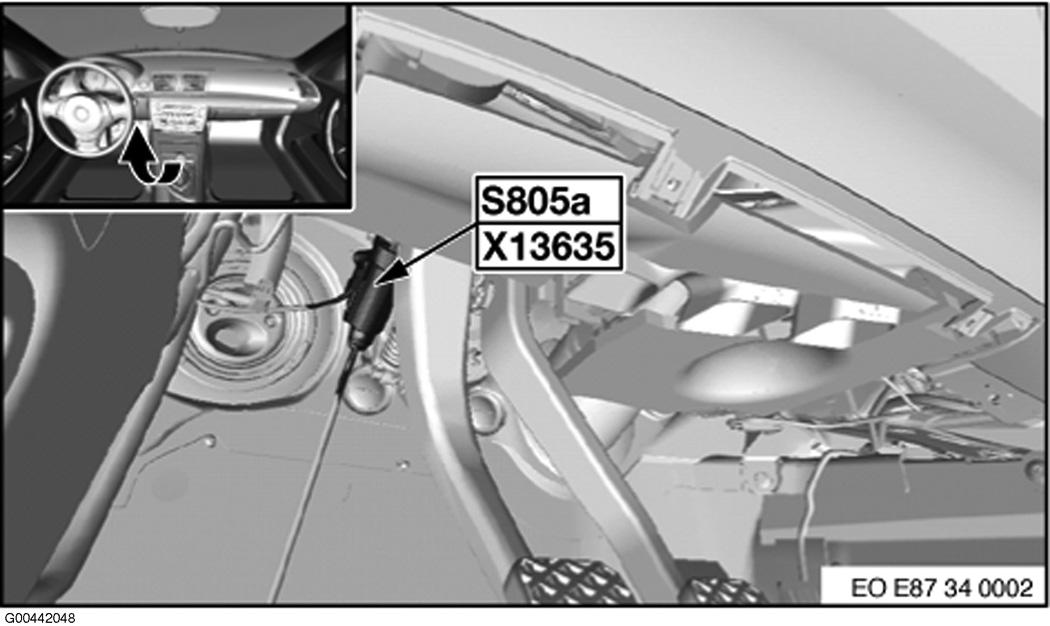

Fig 123: Left Side Of Dash

G00442048

Courtesy of BMW OF NORTH AMERICA, INC.

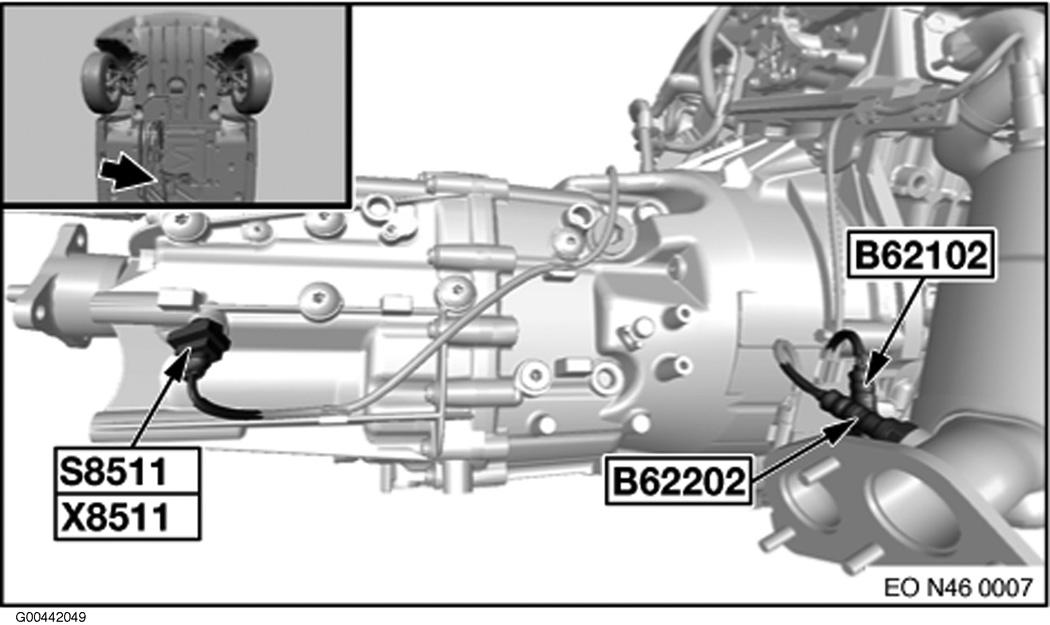

Fig 124: Under Vehicle

G00442049

Courtesy of BMW OF NORTH AMERICA, INC.

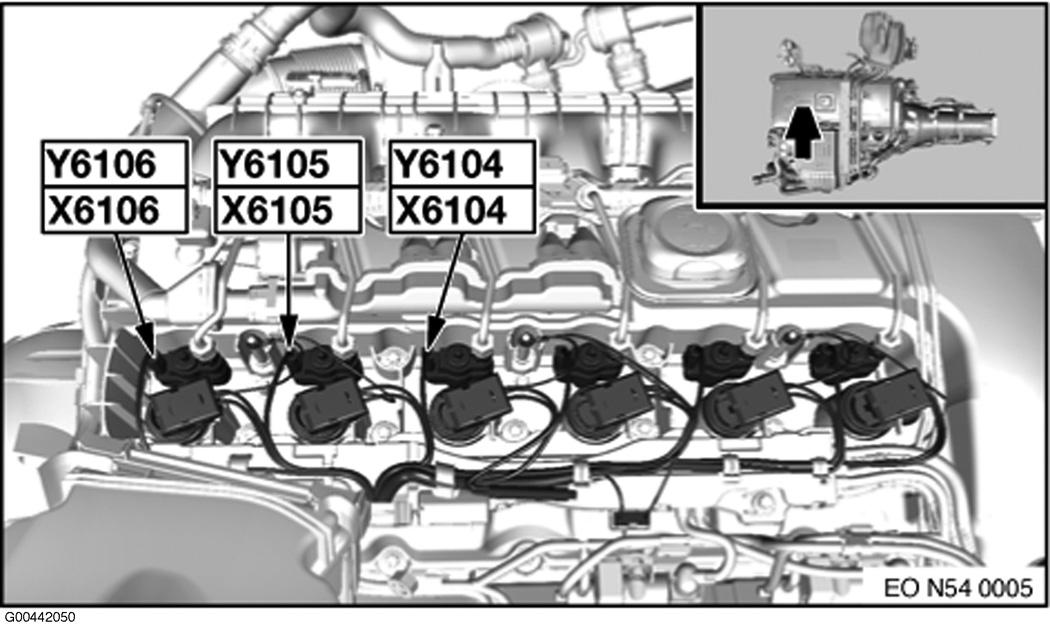

Fig 125: Fuel Injectors

G00442050

Courtesy of BMW OF NORTH AMERICA, INC.

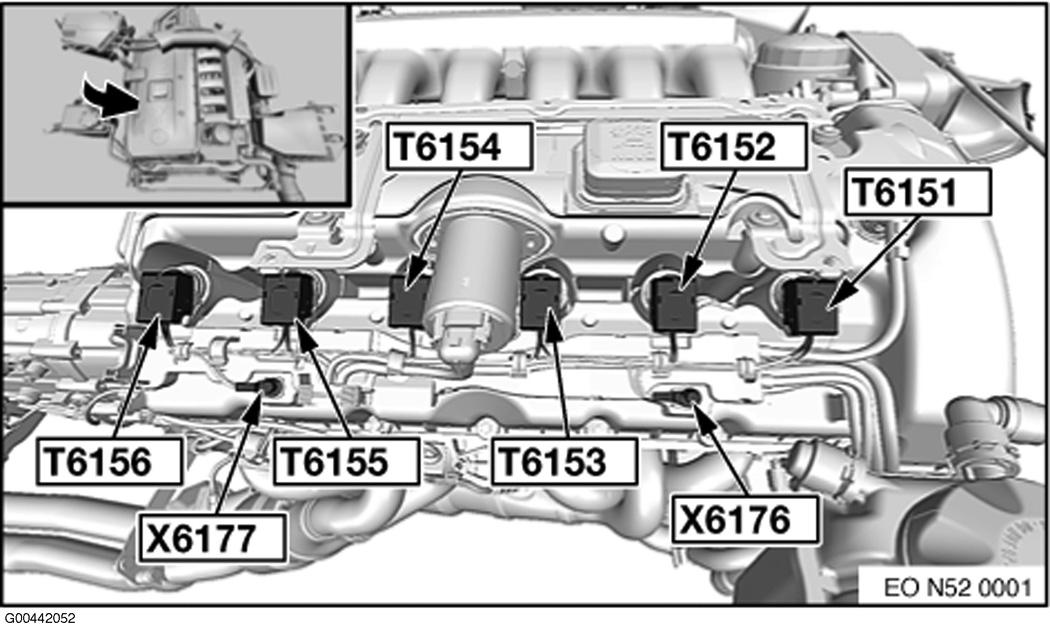

Fig 126: Top Of Engine

G00442052

Courtesy of BMW OF NORTH AMERICA, INC.

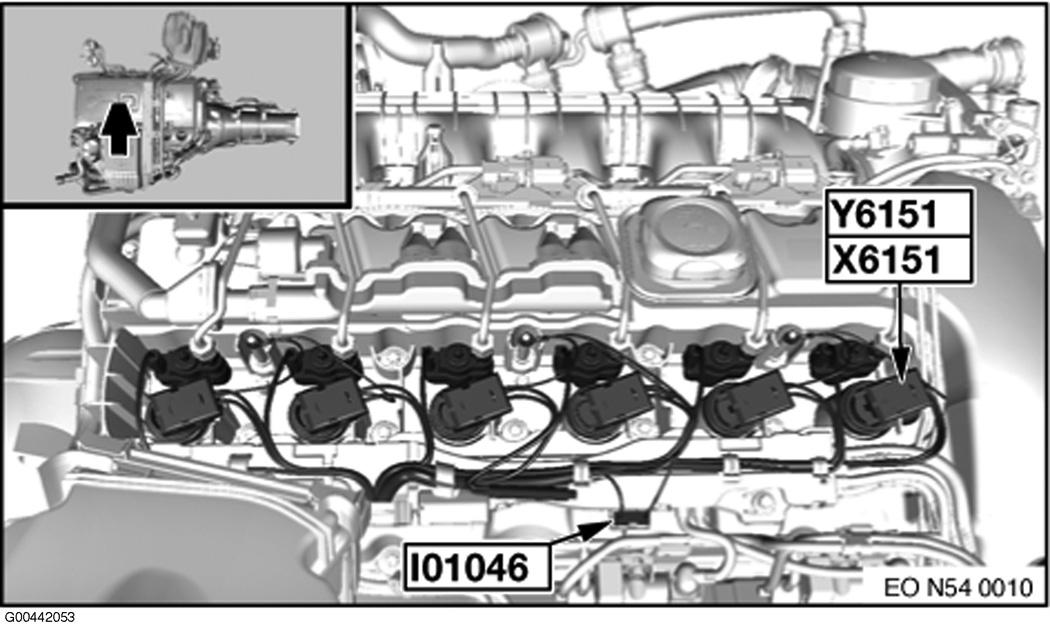

Fig 127: Top Of Engine

G00442053

Courtesy of BMW OF NORTH AMERICA, INC.

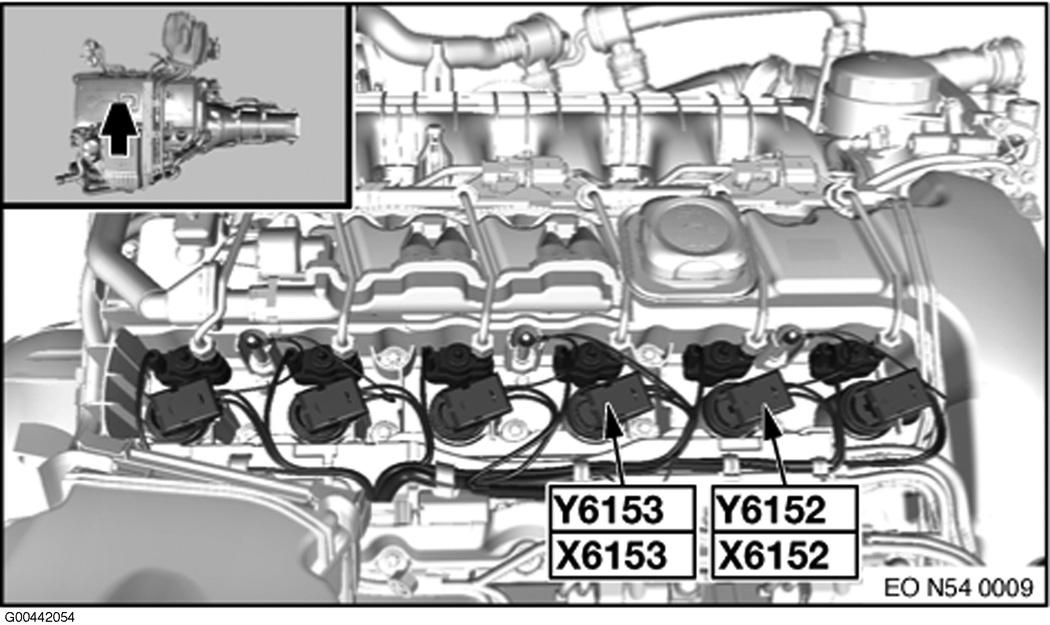

Fig 128: Top Of Engine

G00442054

Courtesy of BMW OF NORTH AMERICA, INC.

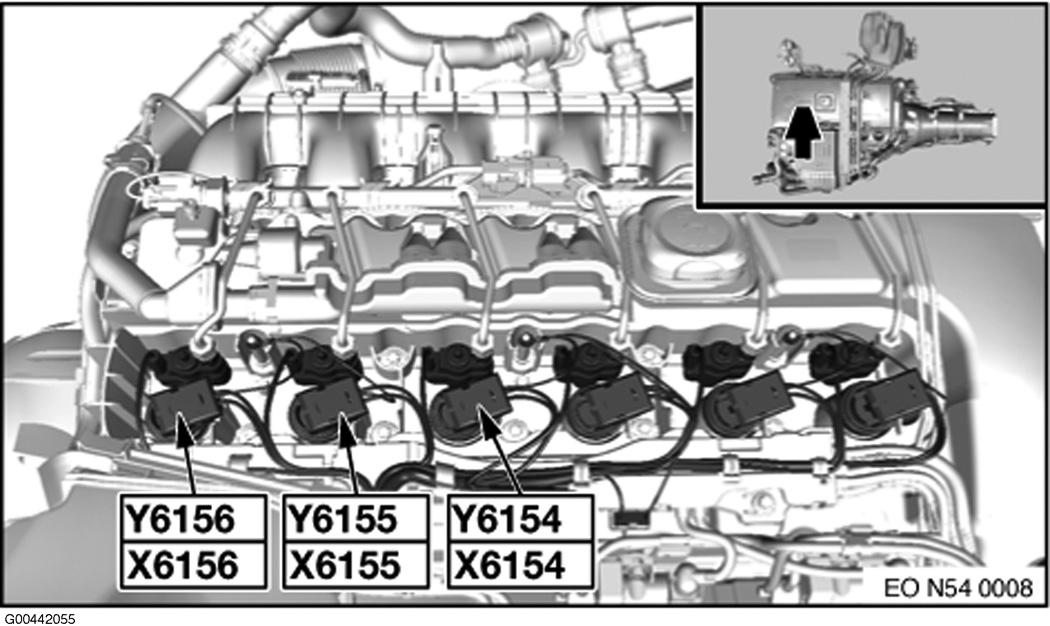

Fig 129: Top Of Engine

G00442055

Courtesy of BMW OF NORTH AMERICA, INC.

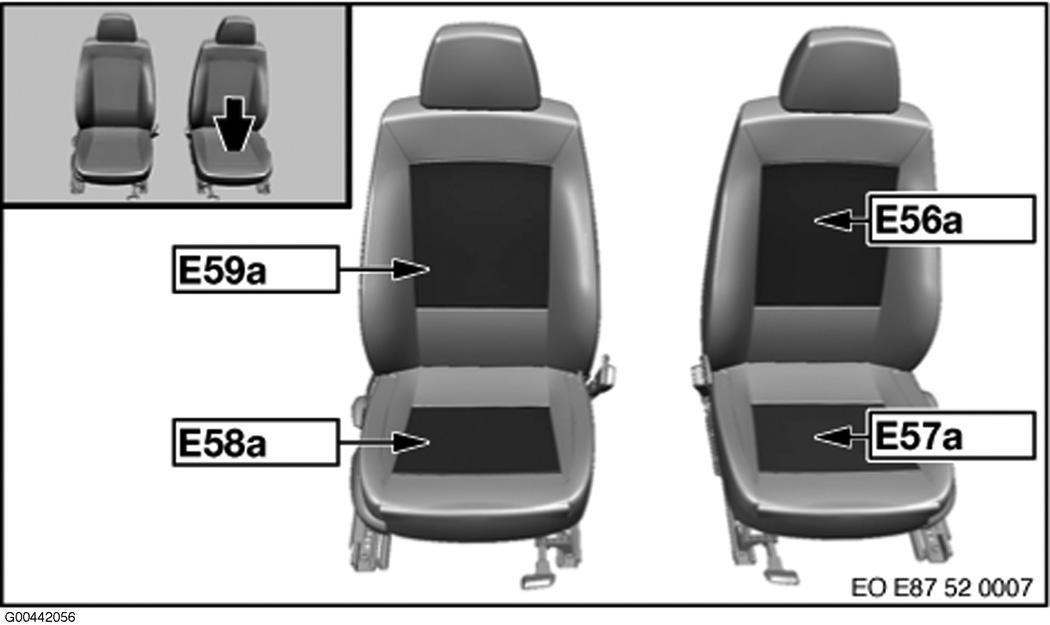

Fig 130: Heated Seat Elements

G00442056

Courtesy of BMW OF NORTH AMERICA, INC.

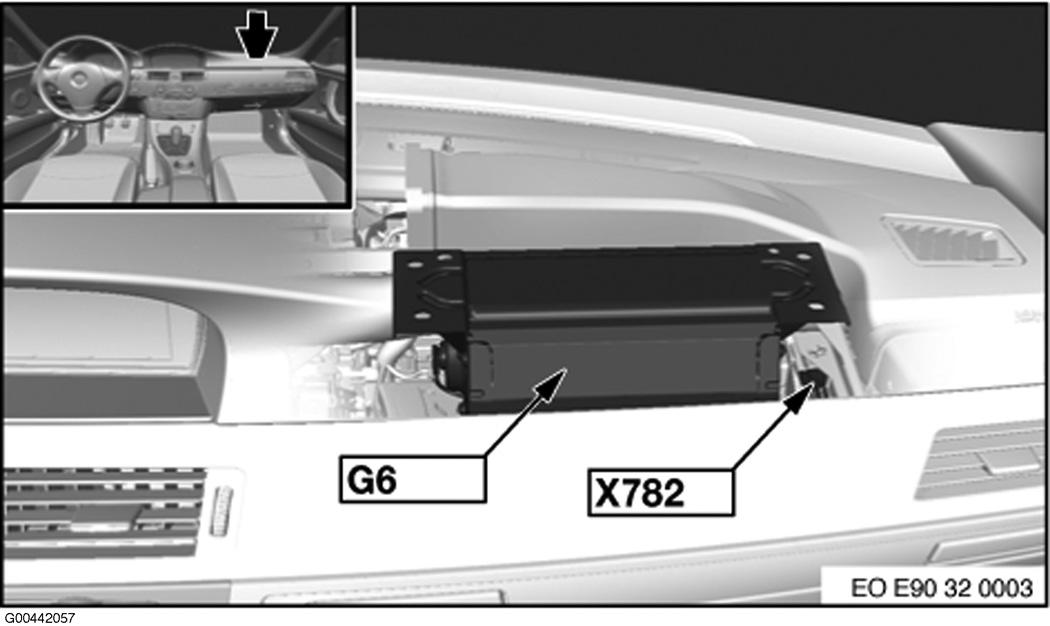

Fig 131: Top Of Right Of Dash

G00442057

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 132: Seat Belt Buckle Assembly

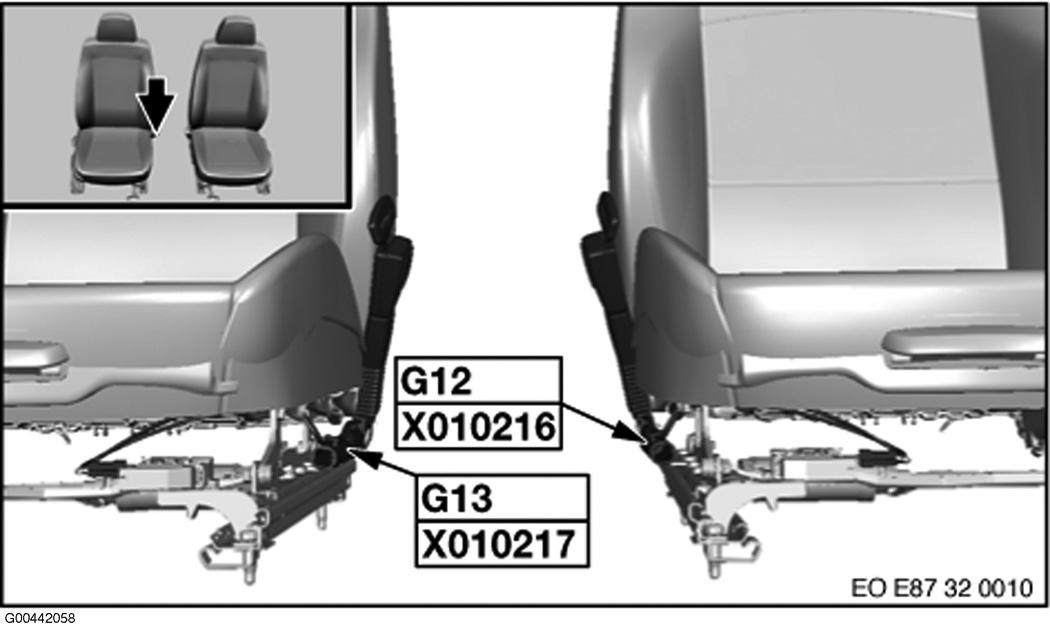

G00442058

Courtesy of BMW OF NORTH AMERICA, INC.

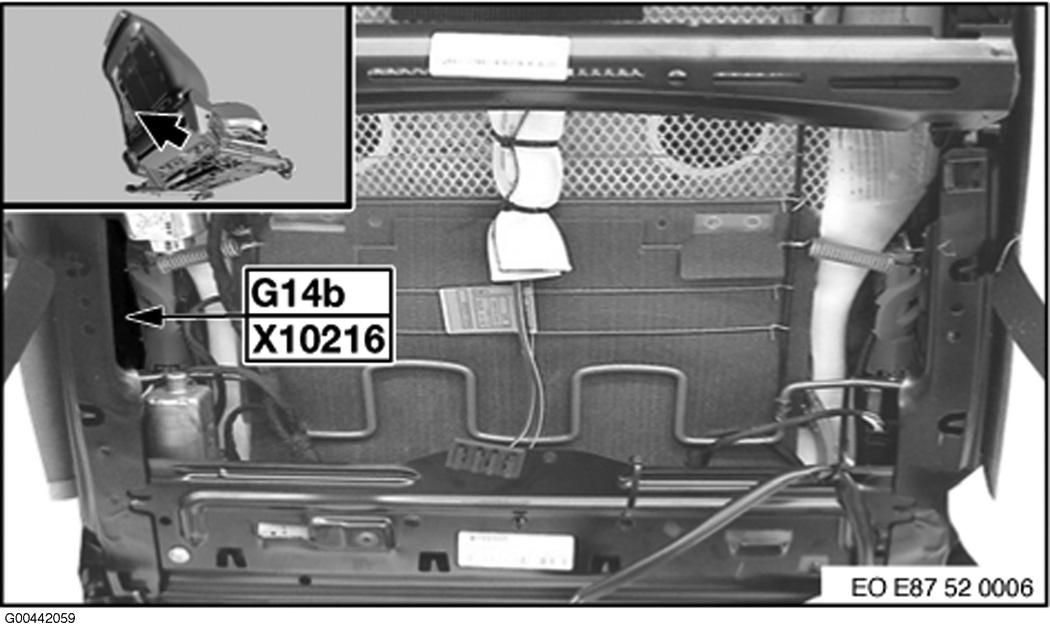

Fig 133: Under Driver Seat

G00442059

Courtesy of BMW OF NORTH AMERICA, INC.

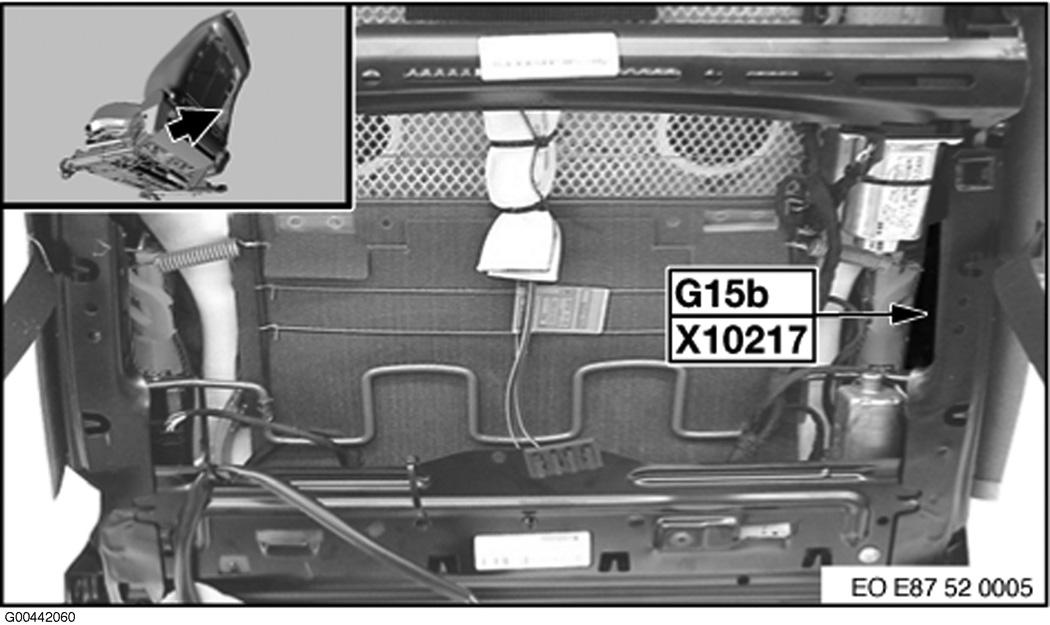

Fig 134: Under Passenger Seat

G00442060

Courtesy of BMW OF NORTH AMERICA, INC.

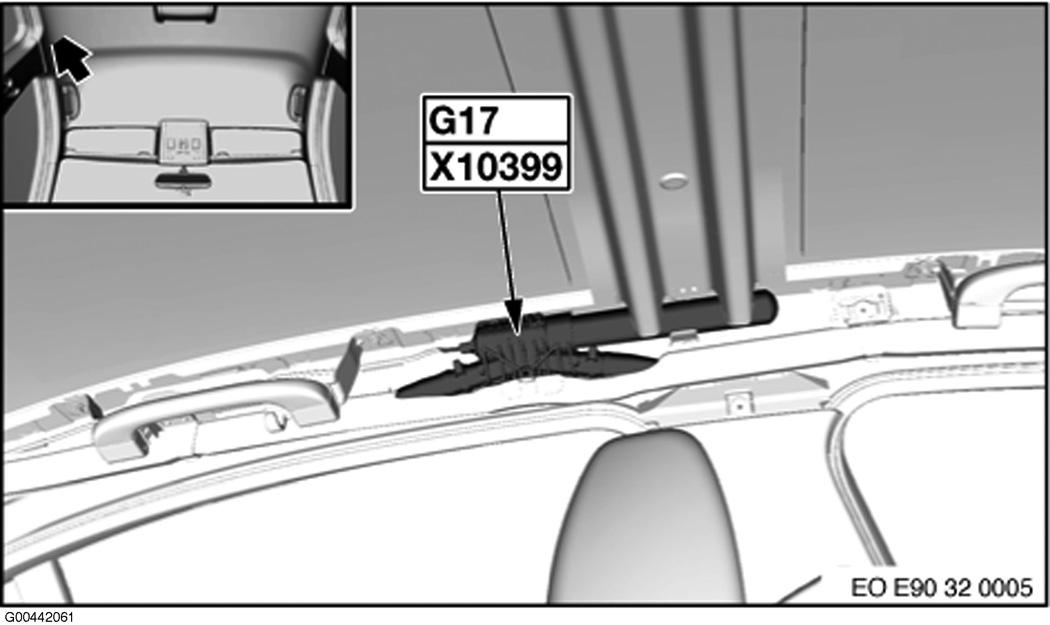

Fig 135: In Headliner

G00442061

Courtesy of BMW OF NORTH AMERICA, INC.

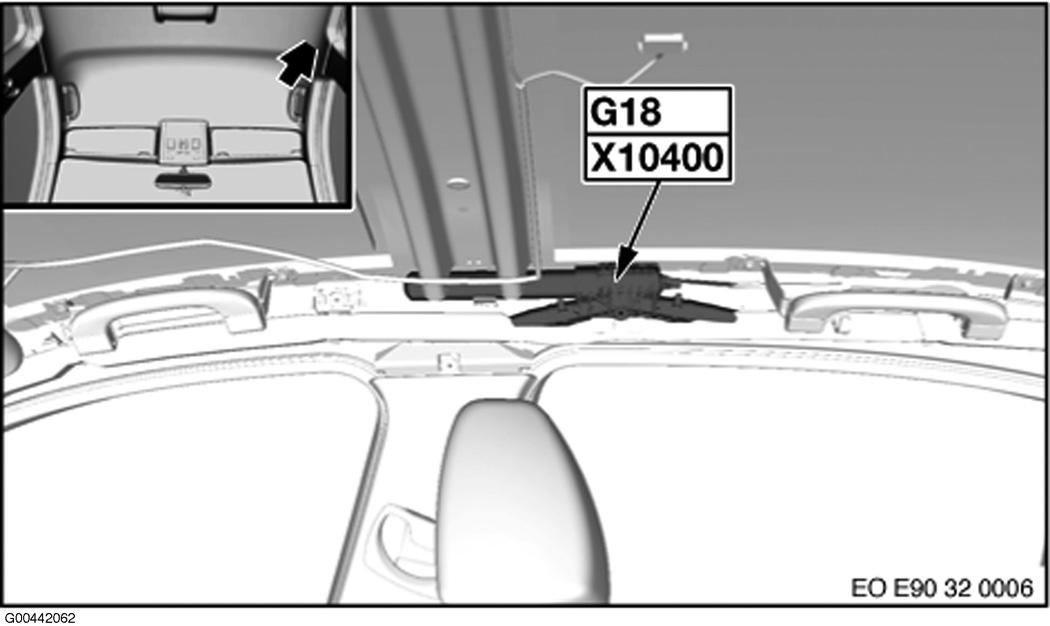

Fig 136: In Headliner

G00442062

Courtesy of BMW OF NORTH AMERICA, INC.

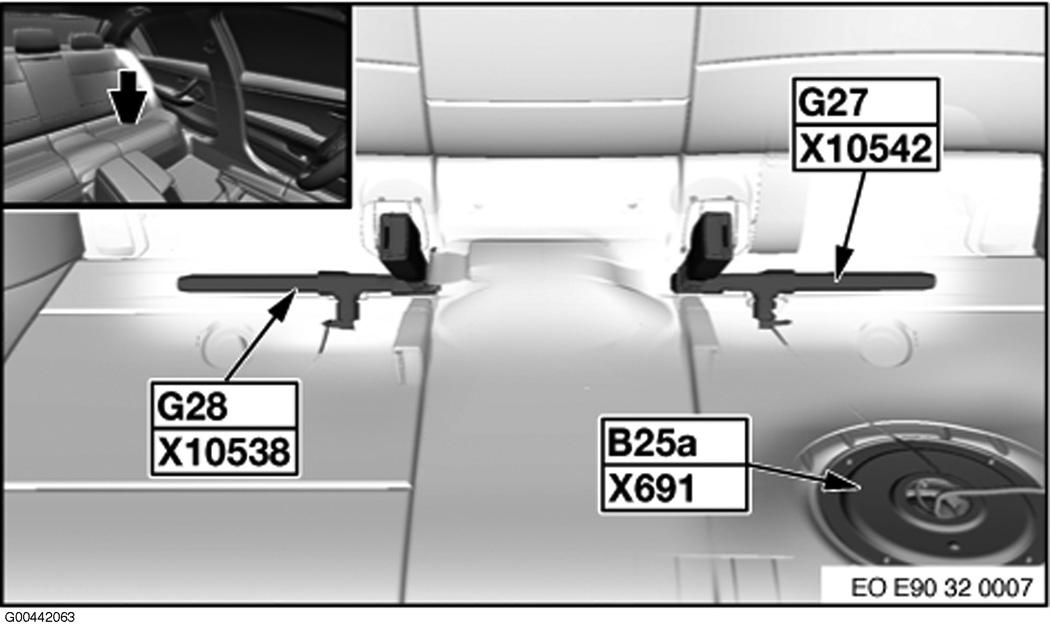

Fig 137: Under Rear Seat

G00442063

Courtesy of BMW OF NORTH AMERICA, INC.

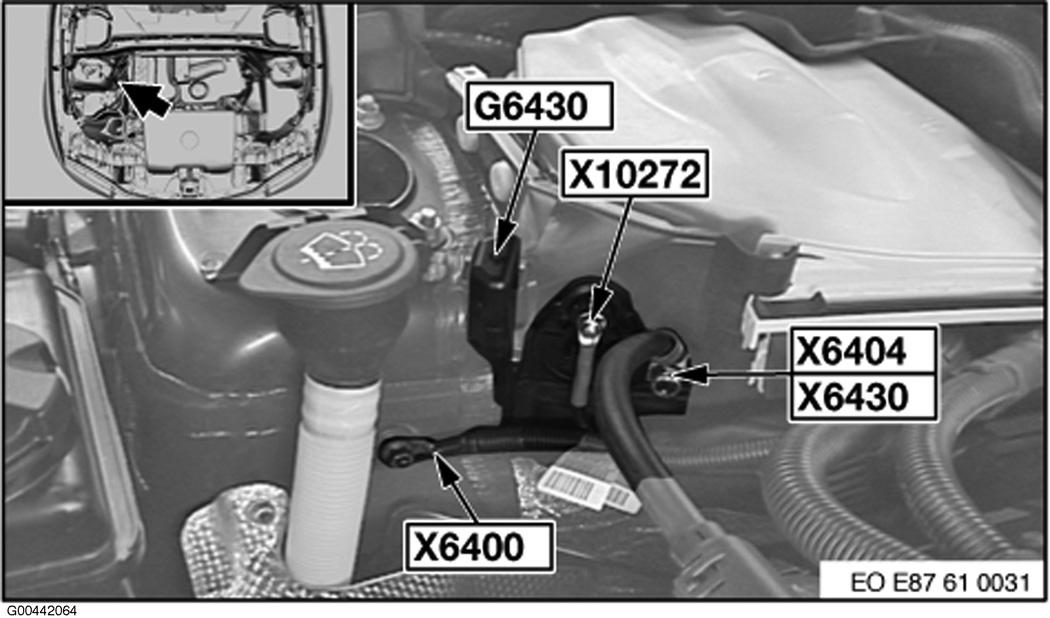

Fig 138: Right Side Of Engine Compartment

G00442064

Courtesy of BMW OF NORTH AMERICA, INC.

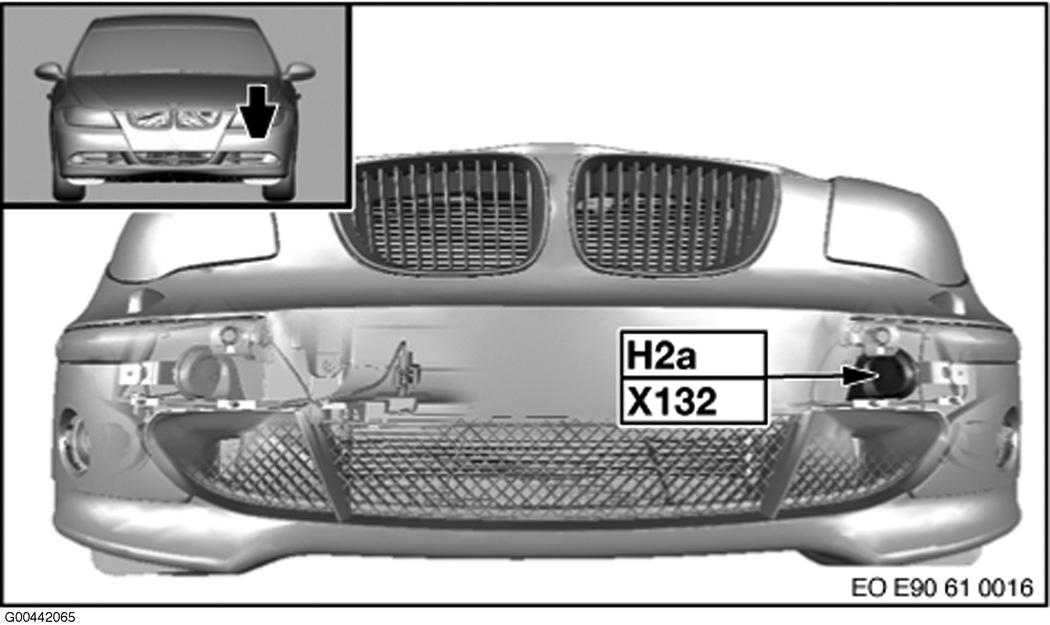

Fig 139: Left Side Of Front Bumper

G00442065

Courtesy of BMW OF NORTH AMERICA, INC.

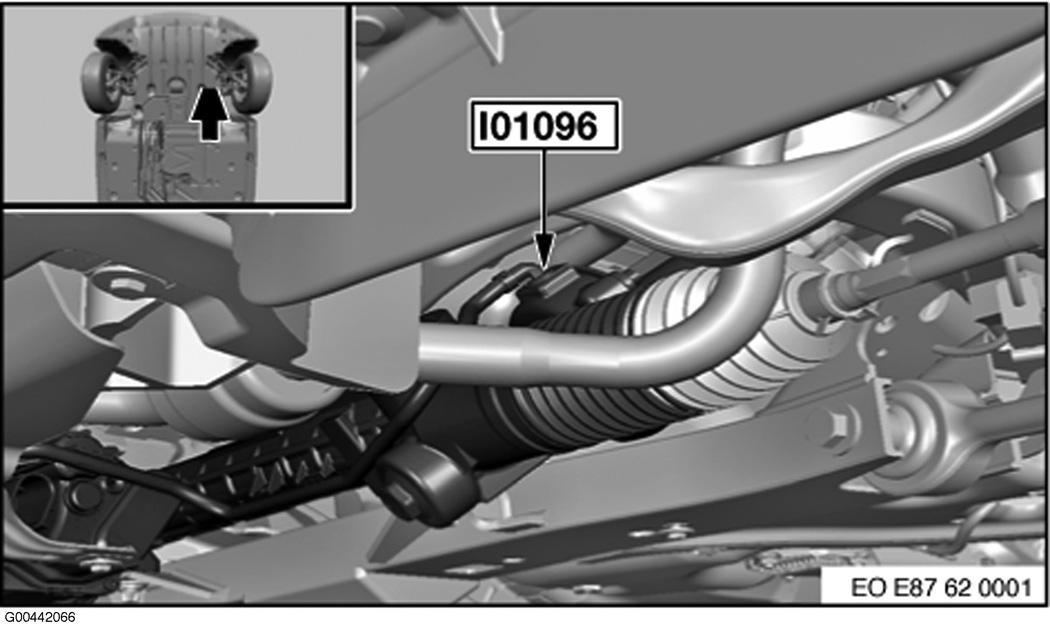

Fig 140: Under Vehicle

G00442066

Courtesy of BMW OF NORTH AMERICA, INC.

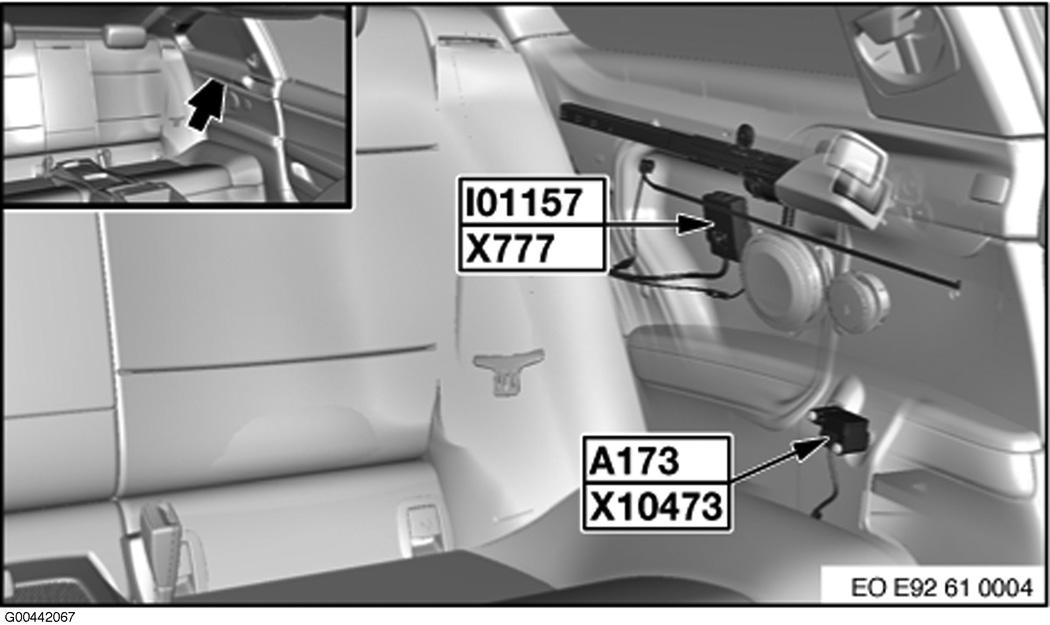

Fig 141: Left Rear Interior Panel

G00442067

Courtesy of BMW OF NORTH AMERICA, INC.

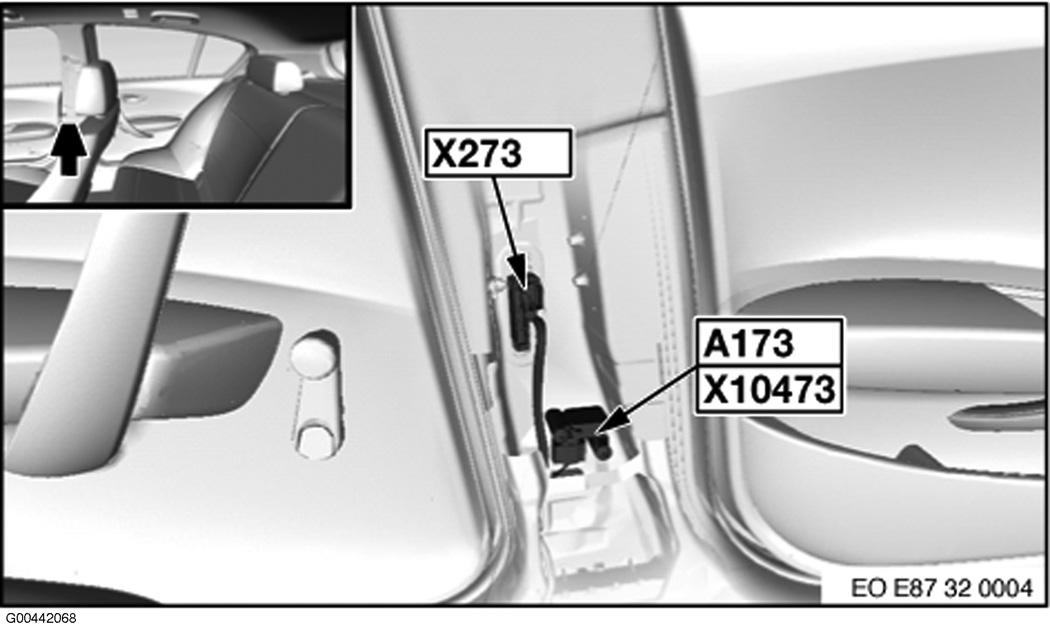

Fig 142: Left Middle Interior Panel

G00442068

Courtesy of BMW OF NORTH AMERICA, INC.

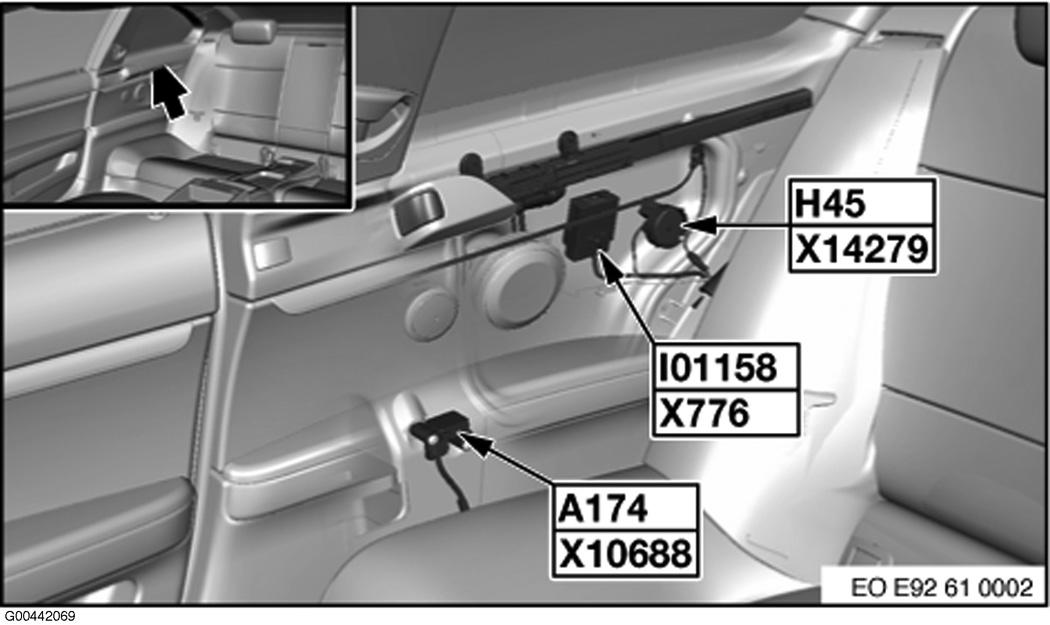

Fig 143: Right Rear Interior Panel

G00442069

Courtesy of BMW OF NORTH AMERICA, INC.

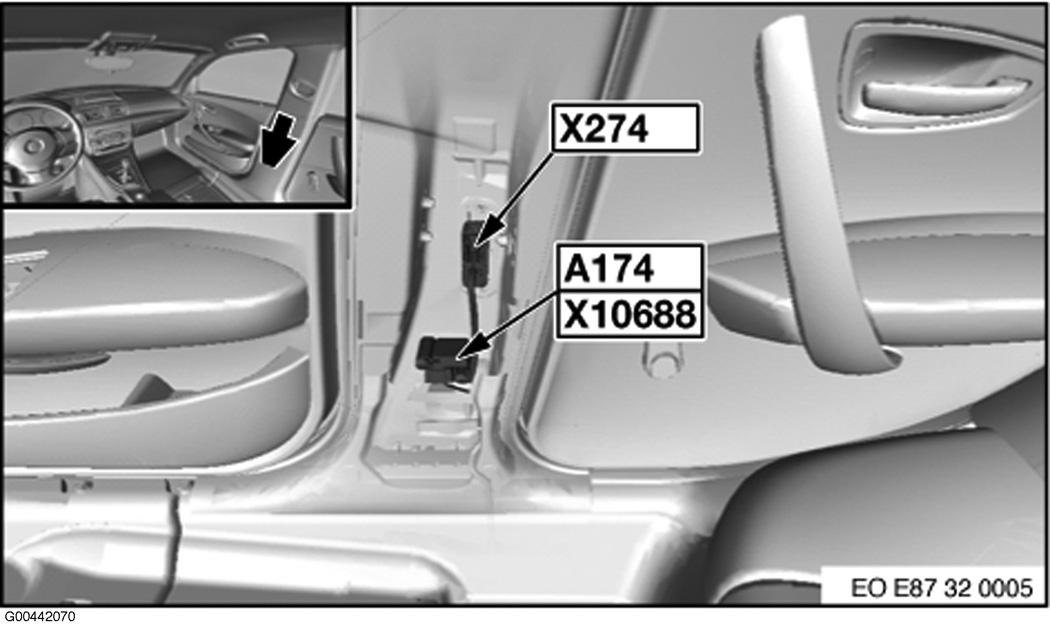

Fig 144: Right Middle Interior Panel

G00442070

Courtesy of BMW OF NORTH AMERICA, INC.

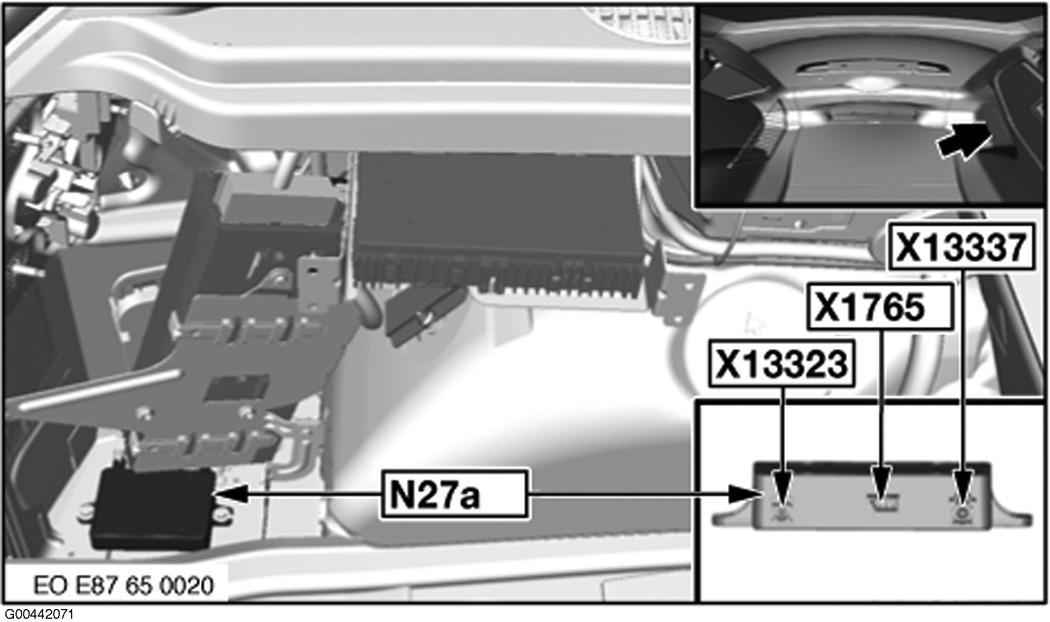

Fig 145: Left Side Of Rear Compartment

G00442071

Courtesy of BMW OF NORTH AMERICA, INC.

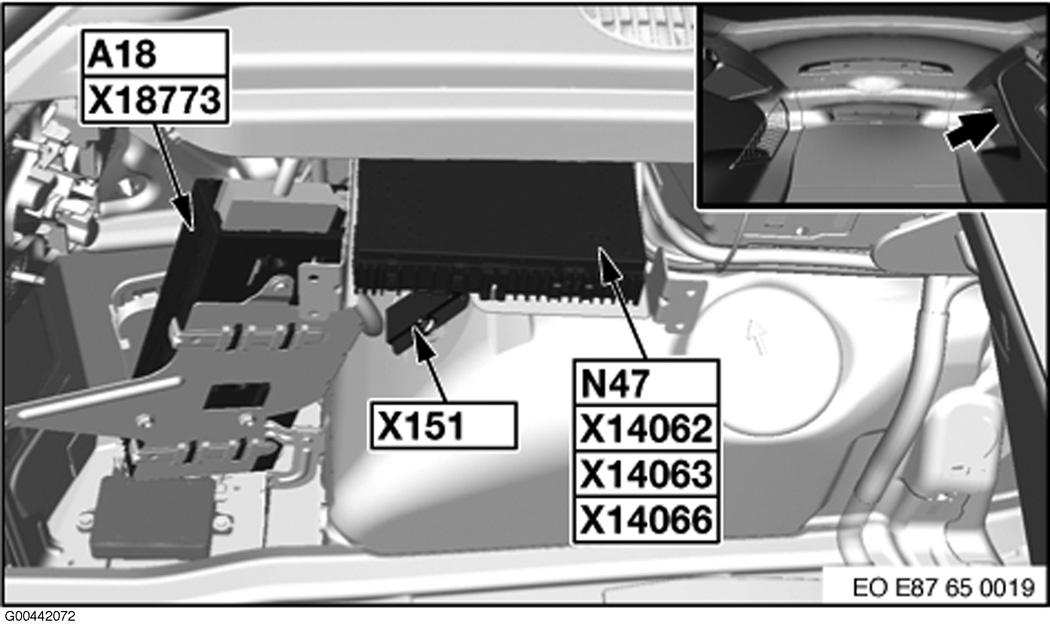

Fig 146: Left Side Of Rear Compartment

G00442072

Courtesy of BMW OF NORTH AMERICA, INC.

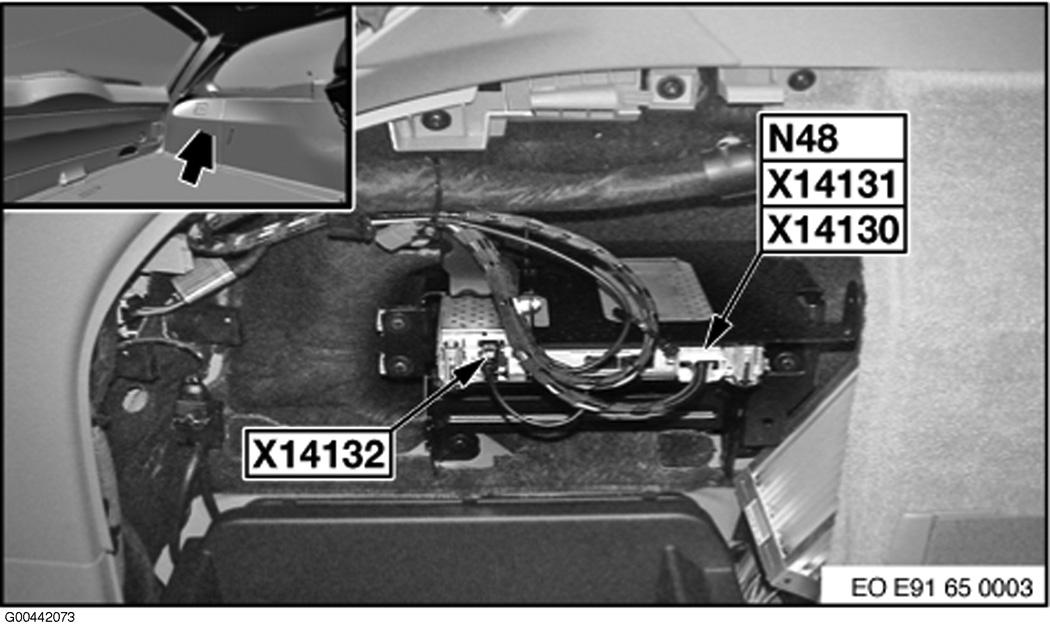

Fig 147: Left Side Of Rear Compartment

G00442073

Courtesy of BMW OF NORTH AMERICA, INC.

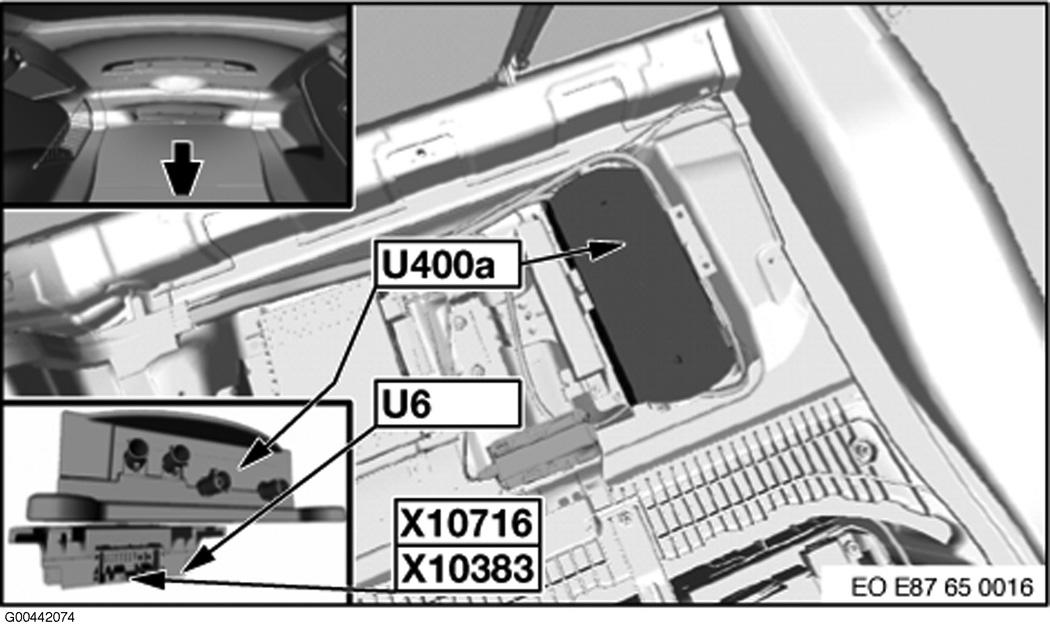

Fig 148: Center Of Rear Compartment

G00442074

Courtesy of BMW OF NORTH AMERICA, INC.

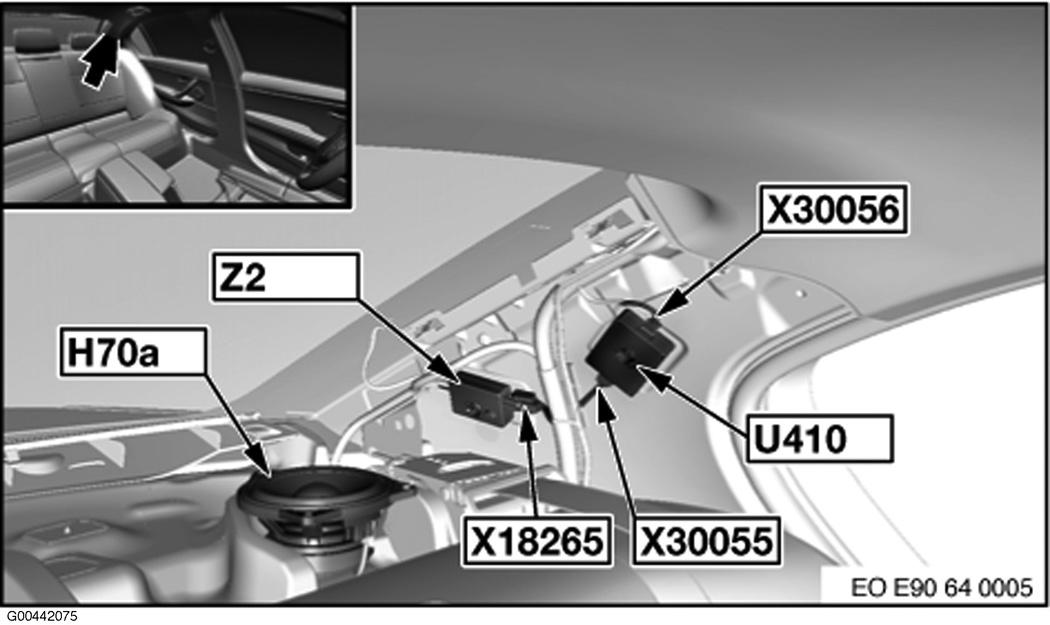

Fig 149: Left Side Of Rear Window Panel

G00442075

Courtesy of BMW OF NORTH AMERICA, INC.

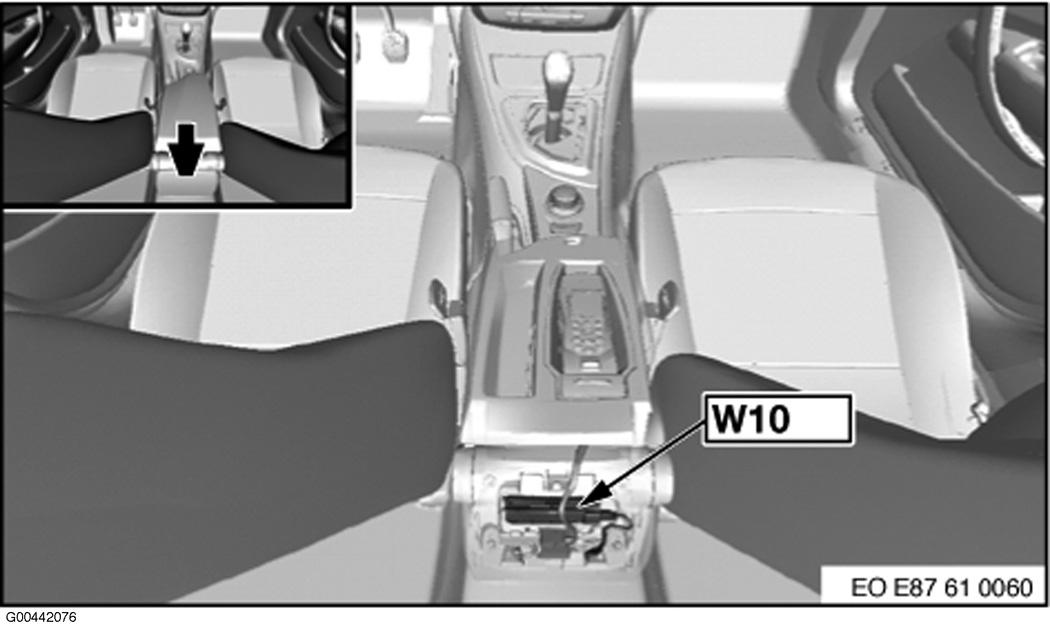

Fig 150: Center Console

G00442076

Courtesy of BMW OF NORTH AMERICA, INC.

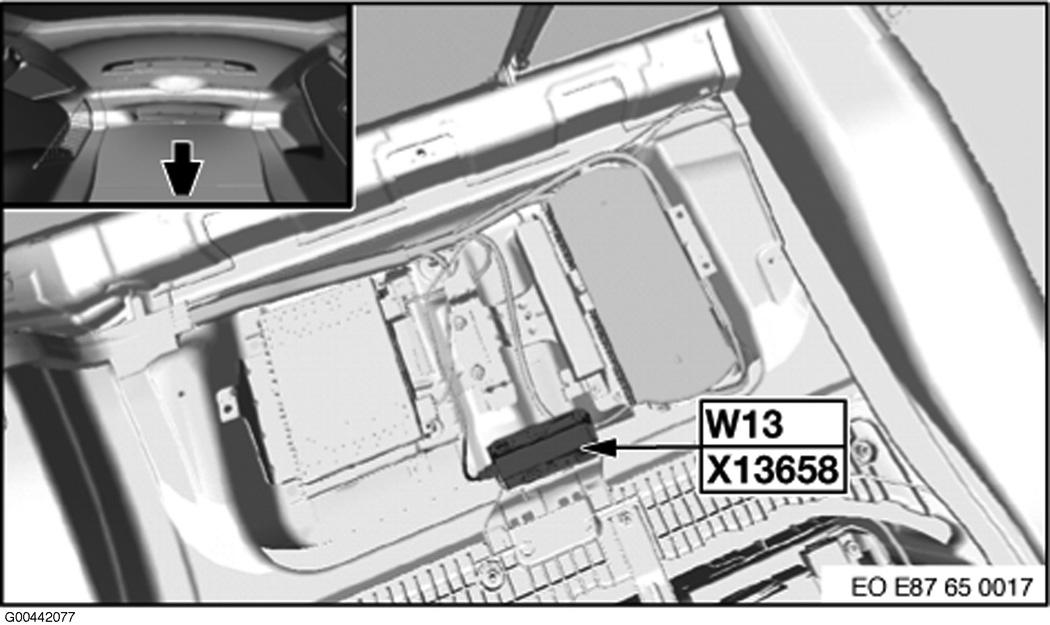

Fig 151: Center Of Rear Compartment

G00442077

Courtesy of BMW OF NORTH AMERICA, INC.

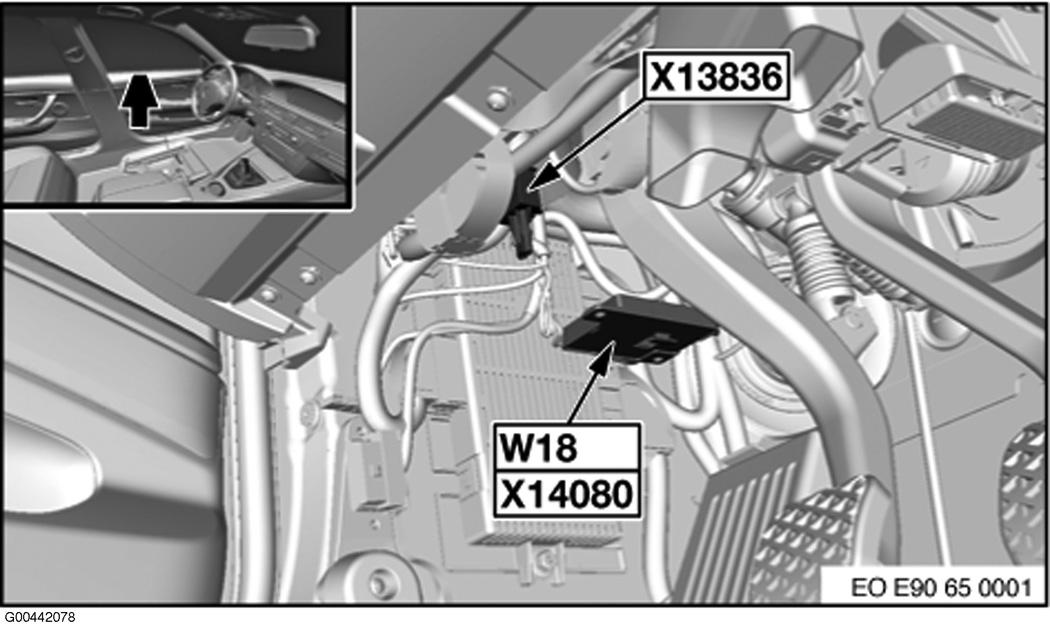

Fig 152: Under Left Side Of Dash

G00442078

Courtesy of BMW OF NORTH AMERICA, INC.

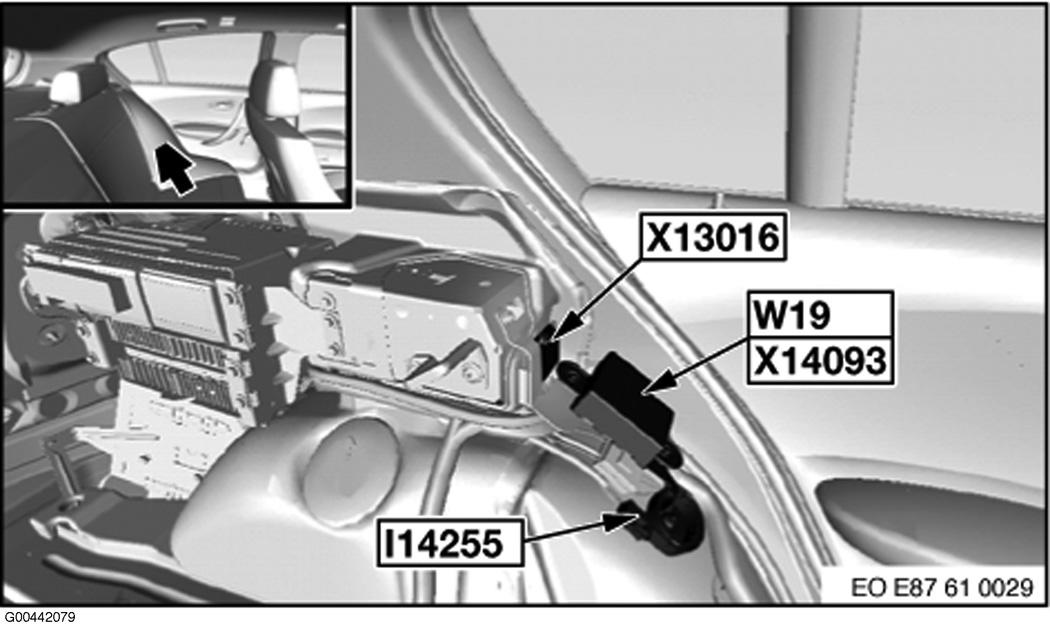

Fig 153: Left Rear Interior Panel

G00442079

Courtesy of BMW OF NORTH AMERICA, INC.

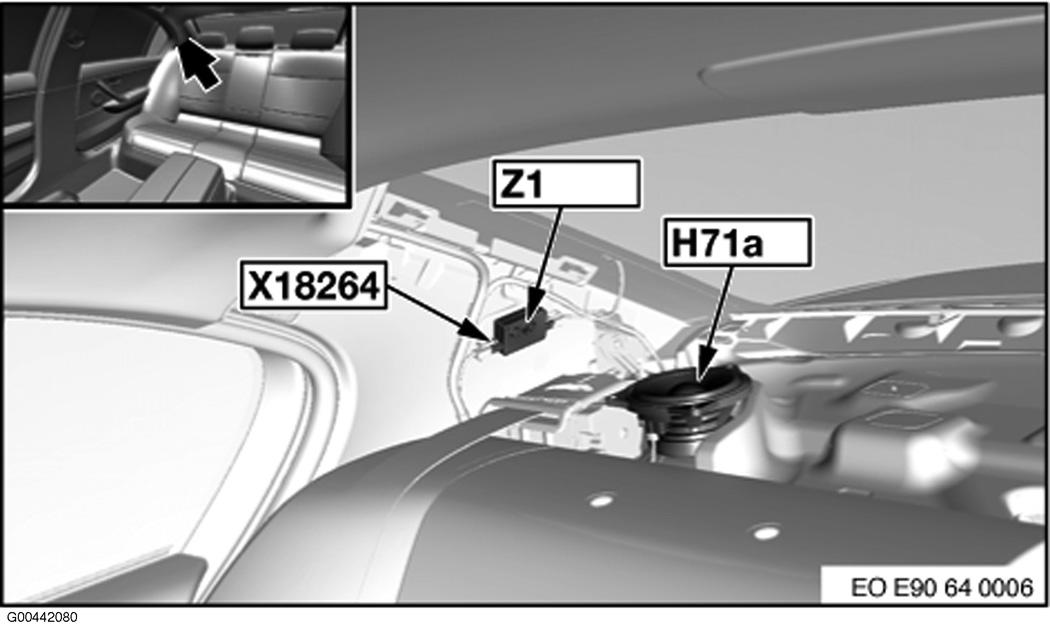

Fig 154: Right Side Of Rear Window Panel

G00442080

Courtesy of BMW OF NORTH AMERICA, INC.

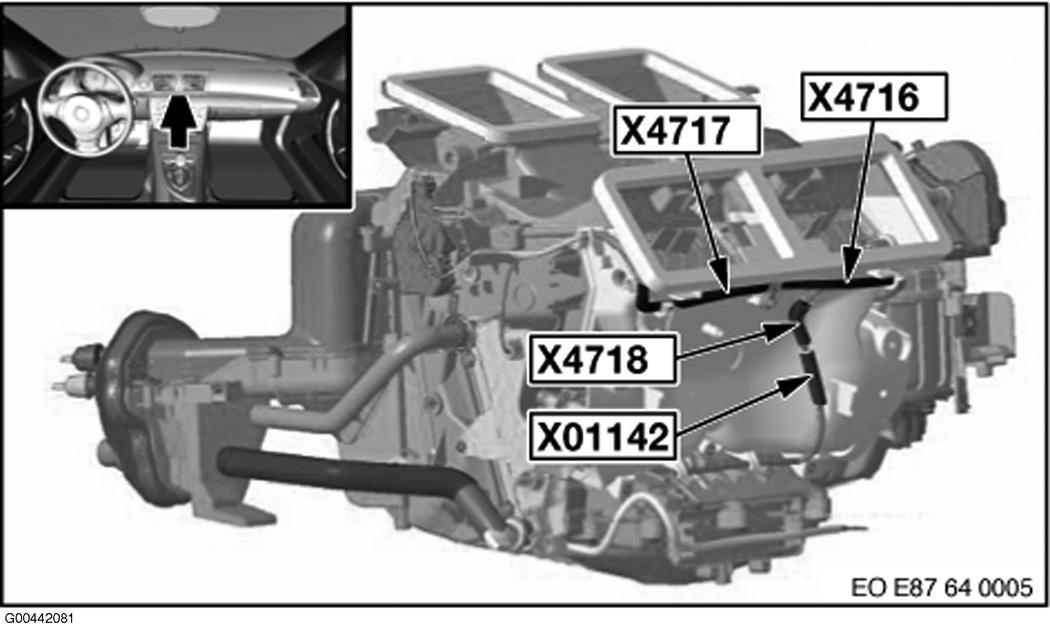

Fig 155: Center Of Dash

G00442081

Courtesy of BMW OF NORTH AMERICA, INC.

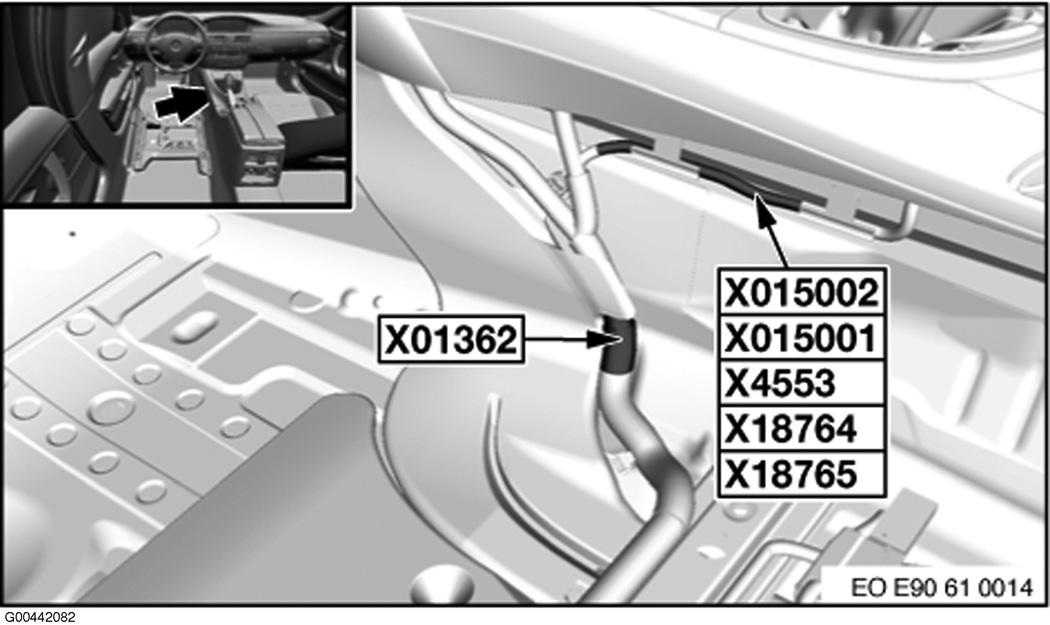

Fig 156: Center Console

G00442082

Courtesy of BMW OF NORTH AMERICA, INC.

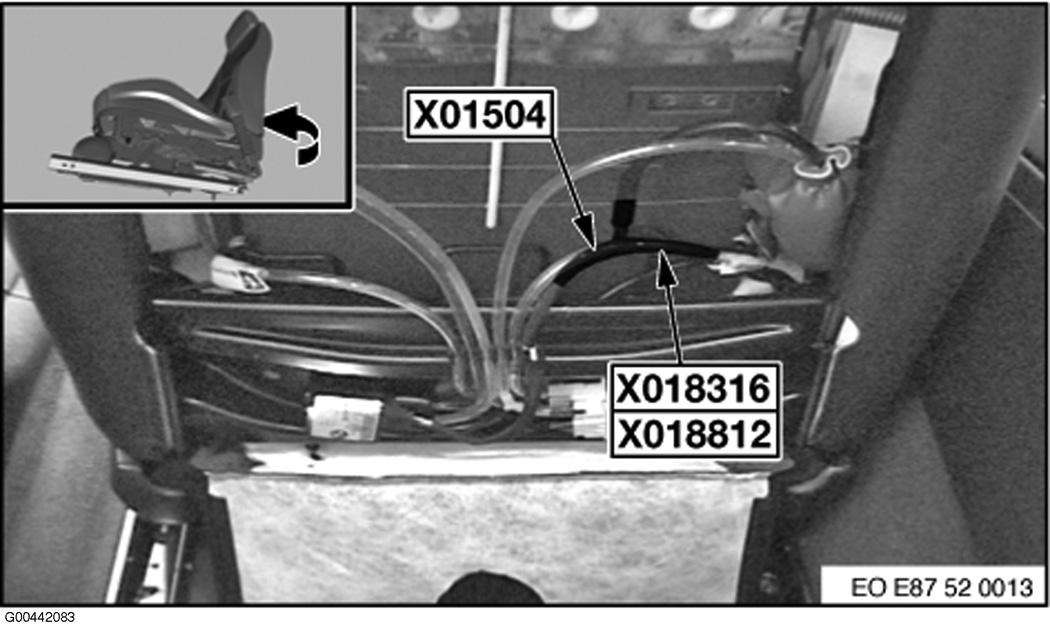

Fig 157: Driver Seat Back

G00442083

Courtesy of BMW OF NORTH AMERICA, INC.

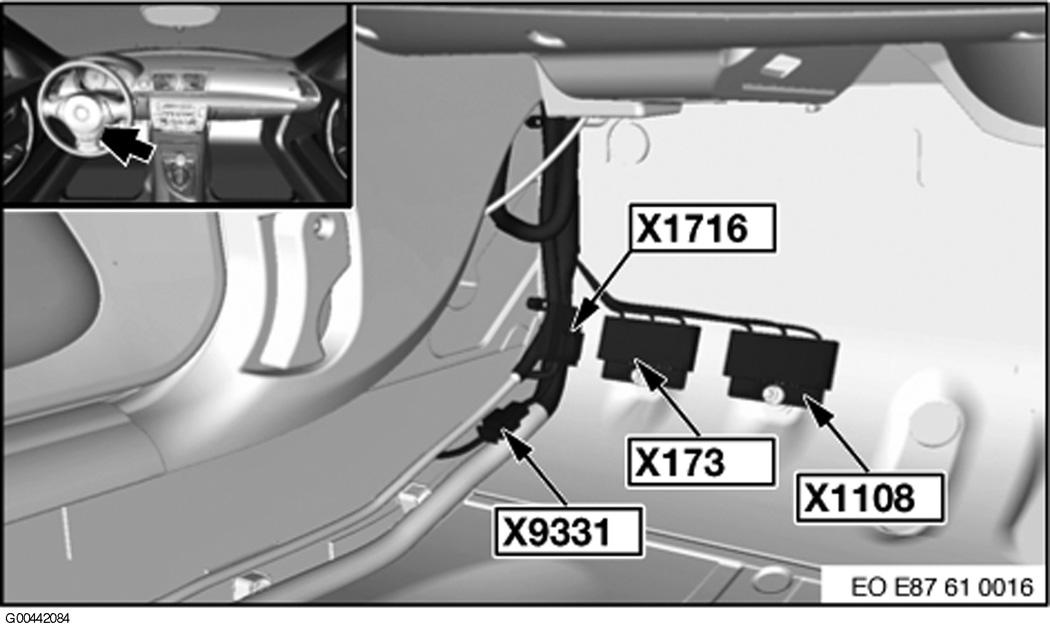

Fig 158: Under Left Side Of Dash

G00442084

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 159: Right Side Of Dash

G00442085

Courtesy of BMW OF NORTH AMERICA, INC.

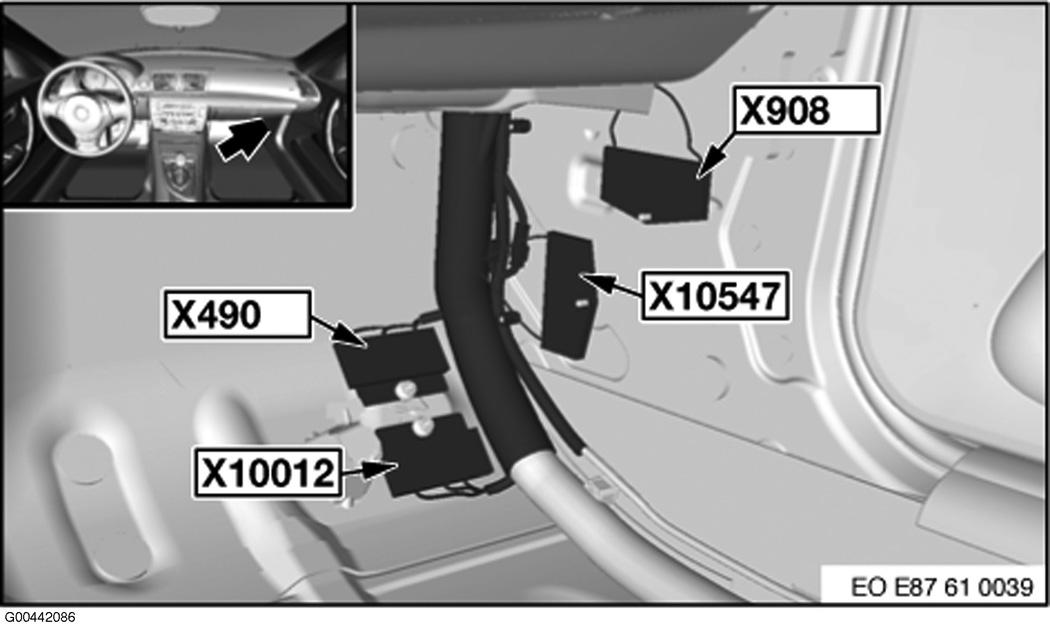

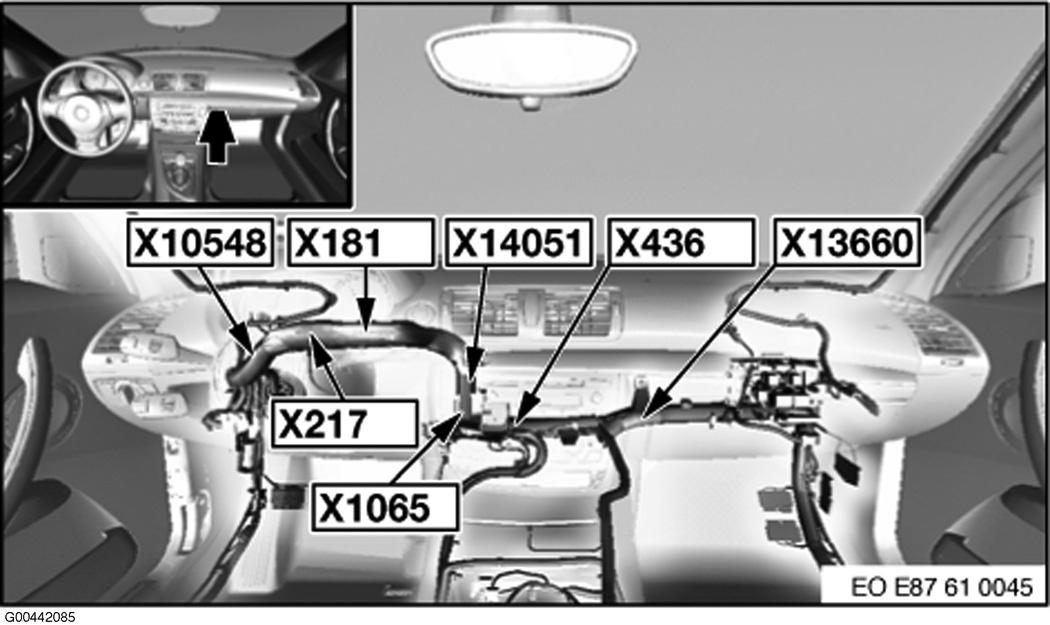

Fig 160: Right Side Of Dash

G00442086

Courtesy of BMW OF NORTH AMERICA, INC.

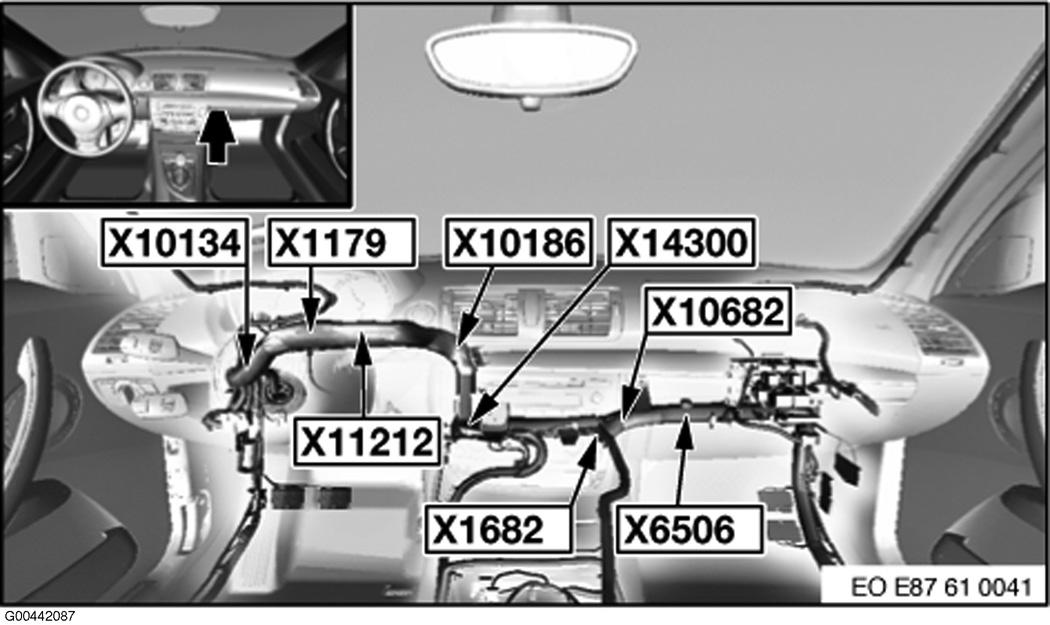

Fig 161: Right Side Of Dash

G00442087

Courtesy of BMW OF NORTH AMERICA, INC.

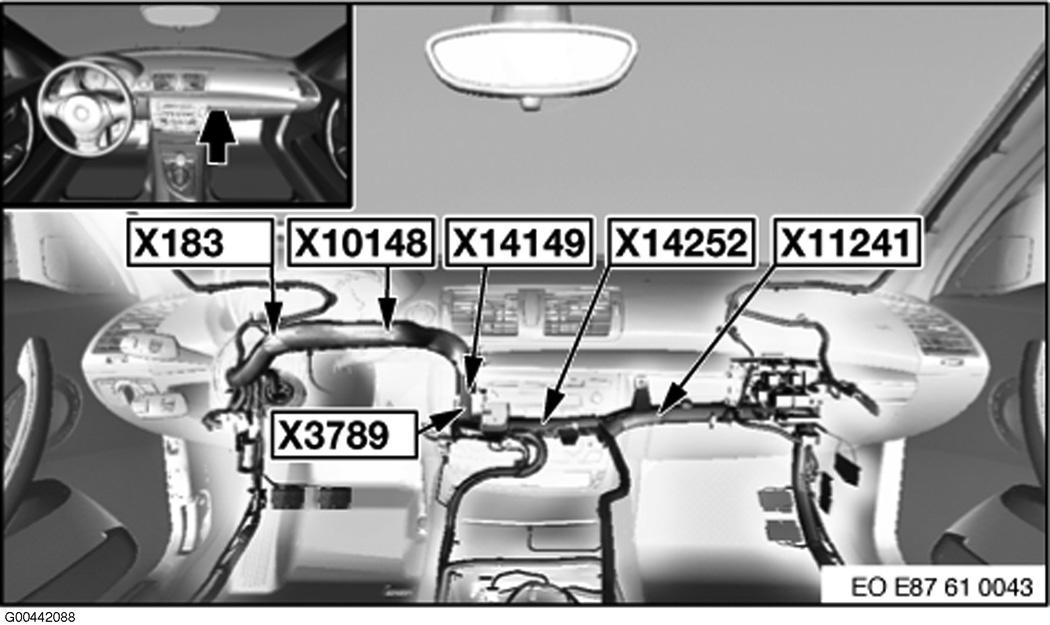

Fig 162: Right Side Of Dash

G00442088

Courtesy of BMW OF NORTH AMERICA, INC.

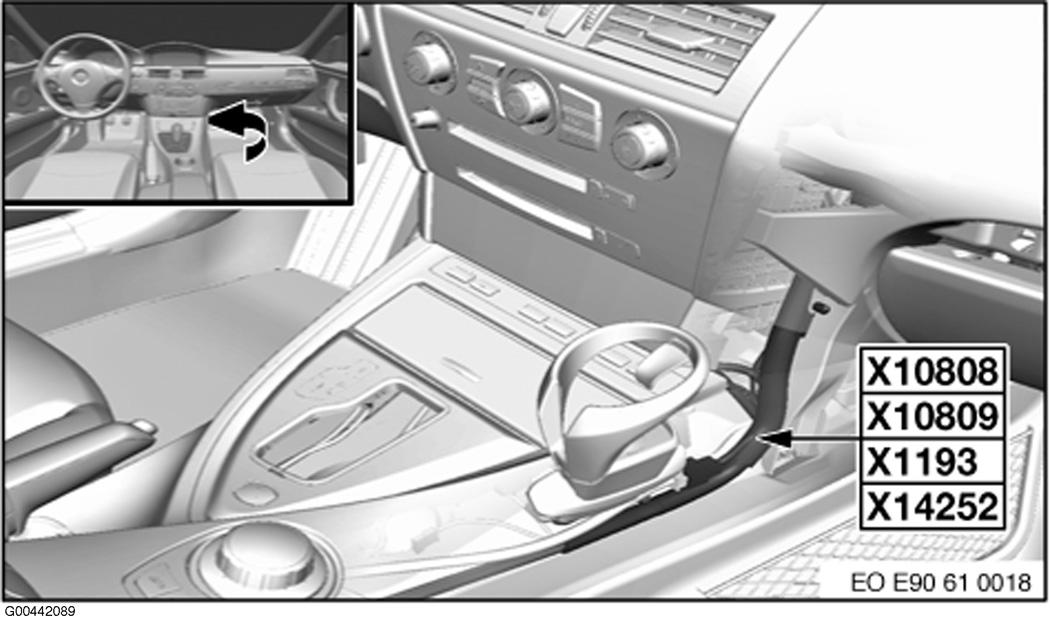

Fig 163: Right Side Of Dash

G00442089

Courtesy of BMW OF NORTH AMERICA, INC.

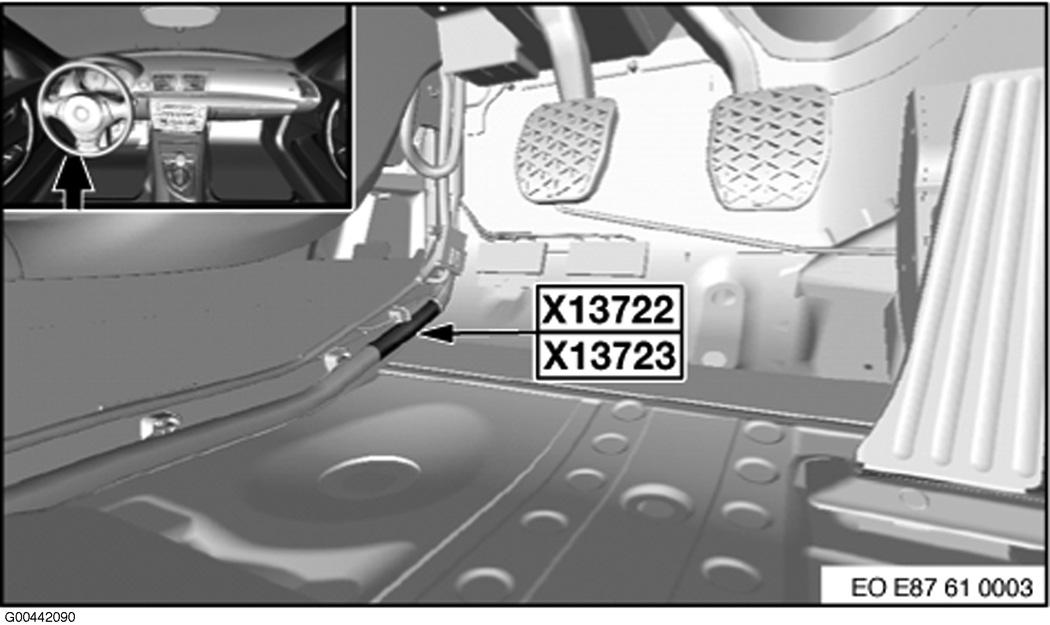

Fig 164: Under Left Side Of Dash

G00442090

Courtesy of BMW OF NORTH AMERICA, INC.

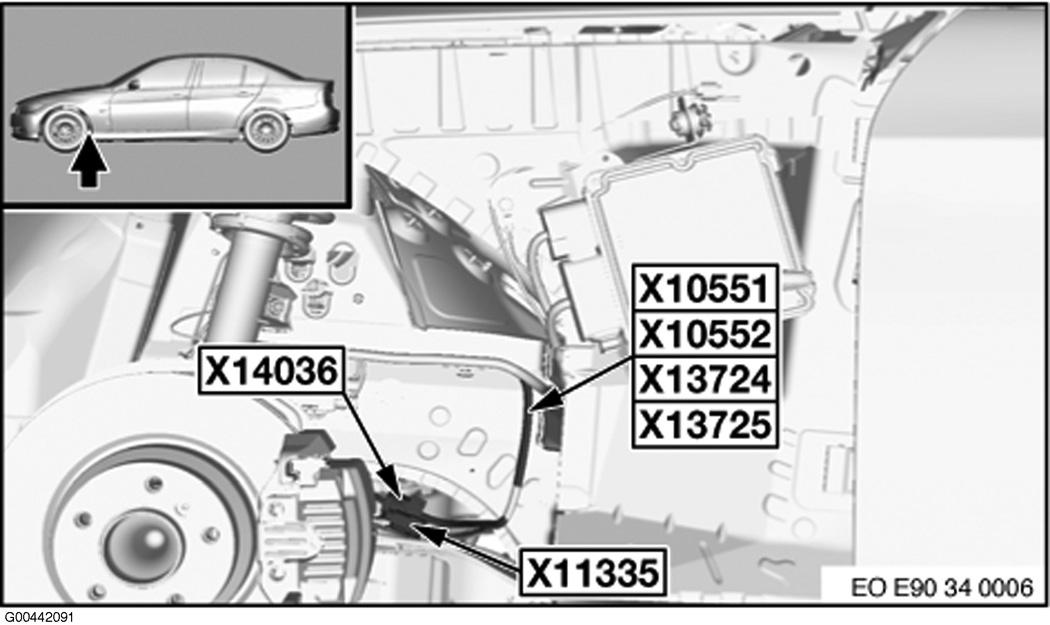

Fig 165: Behind Left Front Wheel

G00442091

Courtesy of BMW OF NORTH AMERICA, INC.

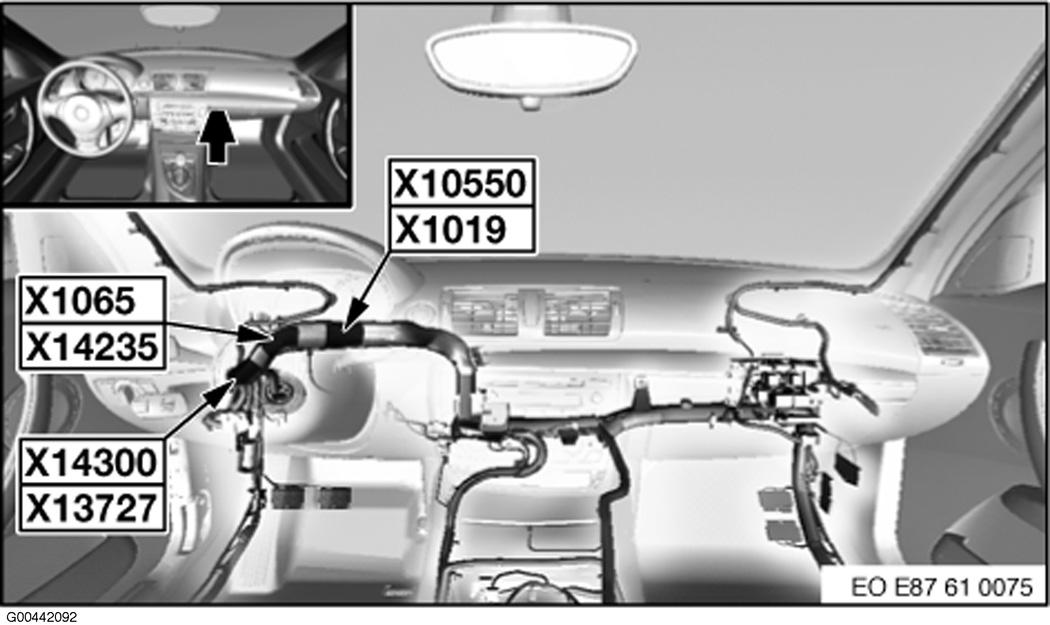

Fig 166: Right Side Of Dash

G00442092

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 167: Right Middle Interior Panel

G00442095

Courtesy of BMW OF NORTH AMERICA, INC.

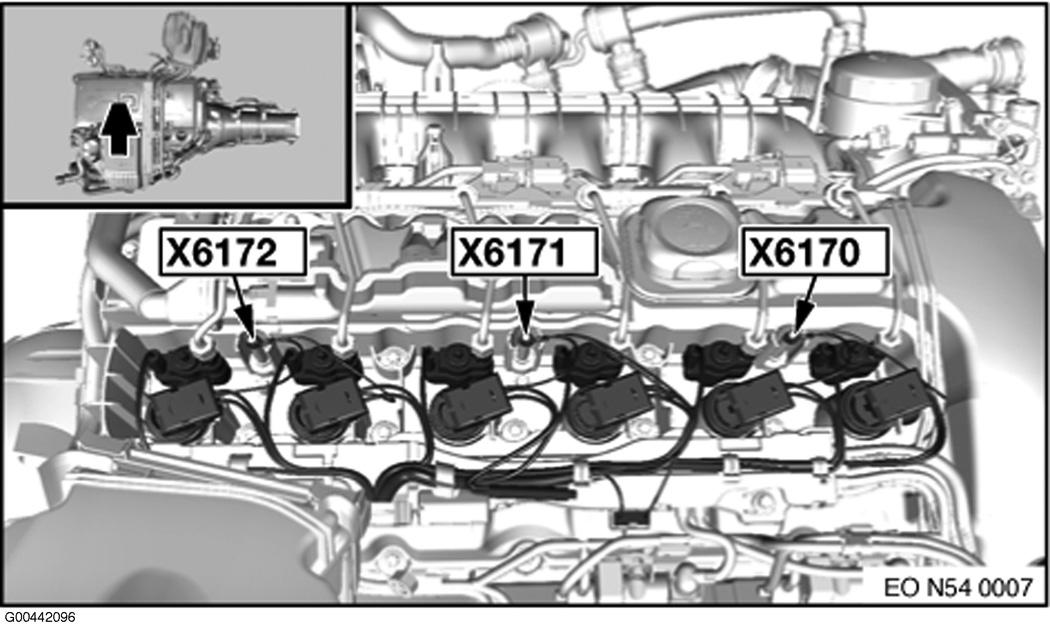

Fig 168: Top Of Engine

G00442096

Courtesy of BMW OF NORTH AMERICA, INC.

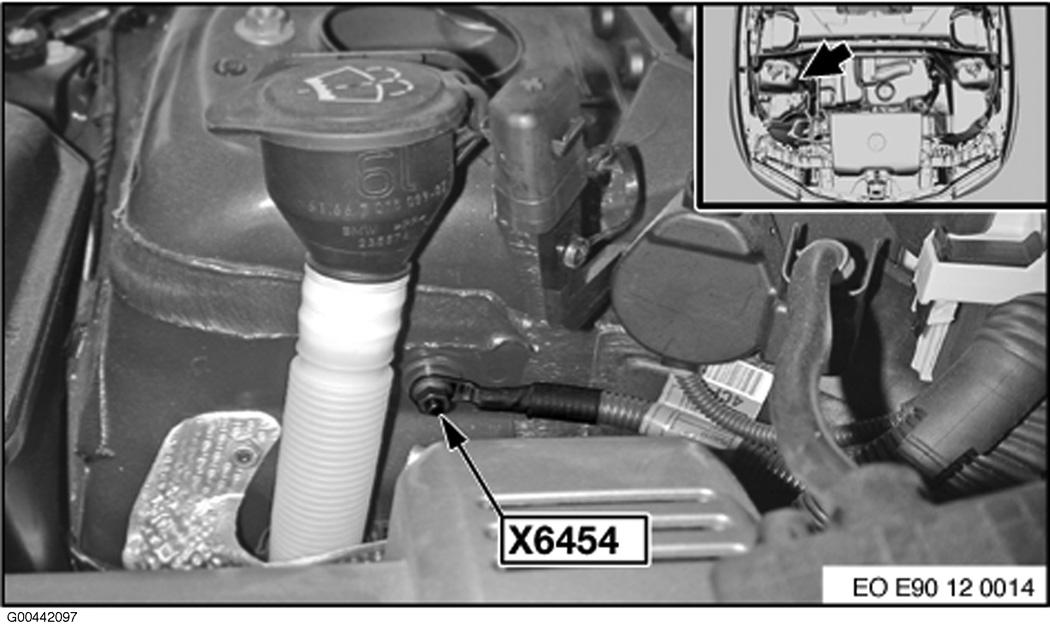

Fig 169: Right Side Of Engine Compartment

G00442097

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 170: Left Front Of Valve Cover

G00467499

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 171: Left Front Of Engine

G00467520

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 172: Top Of Engine

G00467521

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 173: Top Of Engine

G00467523

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 174: Left Front Of Engine

G00467525

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 175: Top Front Of Engine

G00467526

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 176: Bottom Of Engine

G00467527

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 177: Front Of Engine

G00467528

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 178: Right Side Of Engine

G00467529

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 179: Left Front Of Engine

G00467531

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 180: Left Rear Of Engine

G00467532

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 181: Right Rear Of Engine

G00467534

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 182: Front Of Engine

G00467533

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 183: Left Side Of Engine

G00467535

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 184: Under Right Rear Seat

G00467490

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 185: Left Front Fender

G00467491

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 186: Left Rear Of Engine Compartment

G00467492

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 187: Front Of Engine Compartment

G00467493

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 188: Right Rear Passenger Compartment

G00467494

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 189: Left Rear Of Body

G00467495

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 190: Left Valve Cover

G00467496

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 191: Right Valve Cover

G00467497

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 192: Top Of Engine

G00467498

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 193: Right Front Of Valve Cover

G00467518

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 194: Top Rear Of Engine

G00467500

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 195: Top Rear Of Engine

G00467501

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 196: Top Of Engine

G00467502

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 197: Top Of Engine

G00467503

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 198: Front Of Engine

G00467504

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 199: Right Rear Of Engine

G00467505

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 200: Bottom Of Engine

G00467506

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 201: Exhaust System

G00467508

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 202: Top Of Engine

G00467509

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 203: Top Of Engine

G00467510

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 204: Top Of Engine

G00467512

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 205: Top Rear Of Engine

G00467513

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 206: Right Front Of Engine

G00467514

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 207: Top Center Of Engine

G00467515

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 208: Top Center Of Engine

G00467516

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 209: Side Of Transmission

G00467517

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 210: Right Rear Of Engine Compartment

G00467519

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 211: Top Of Engine

G00467522

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 212: Front Of Engine

G00467524

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 213: Right Side Of Engine

G00467530

Courtesy of BMW OF NORTH AMERICA, INC.

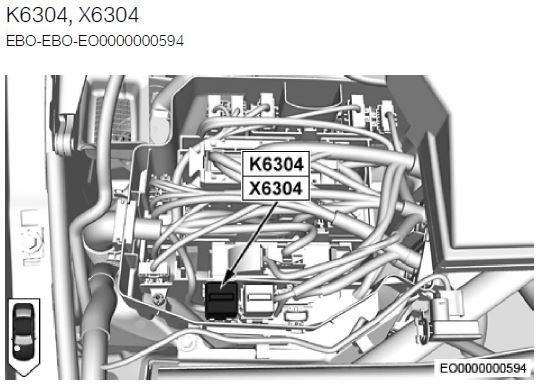

Fig 214: Right Rear Of Engine Compartment

G00563620

Courtesy of BMW OF NORTH AMERICA, INC.

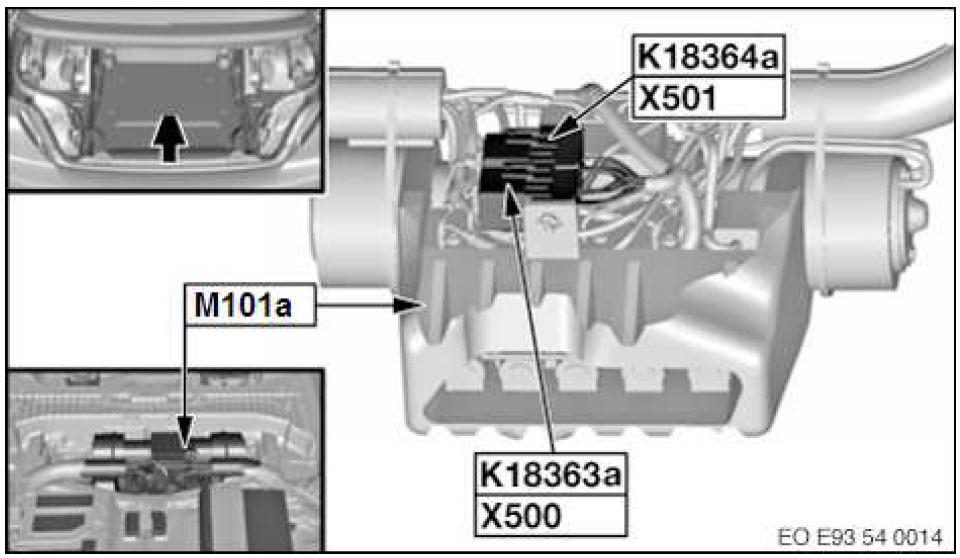

Fig 215: Under Rear Floor Panel

G00575605

Courtesy of BMW OF NORTH AMERICA, INC.

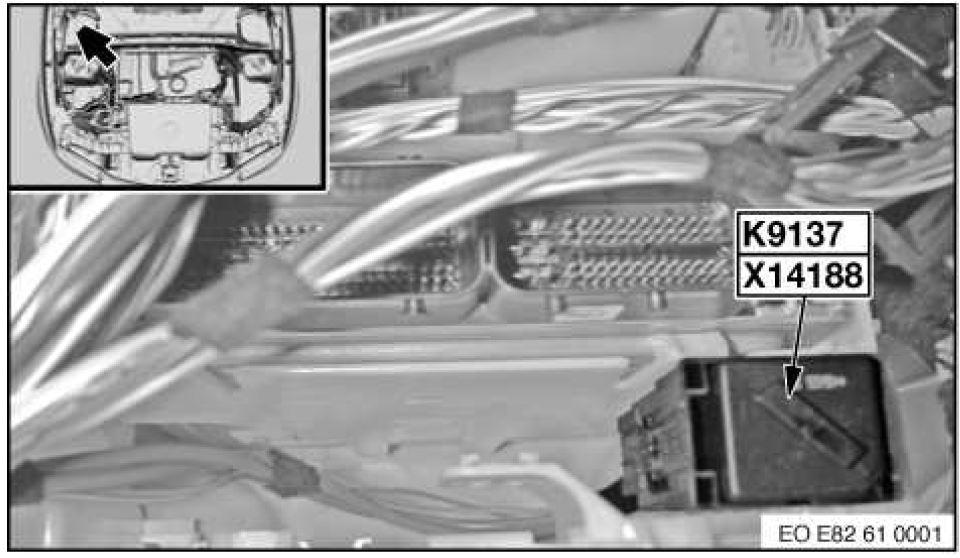

Fig 216: Right Rear Of Engine Compartment

G00585726

Courtesy of BMW OF NORTH AMERICA, INC.
