Electrical Component Locator: Splices

SPLICES LOCATION

Component Location
X1019 Right side of dash. See Figure.
X01142 Center of dash. See Figure.

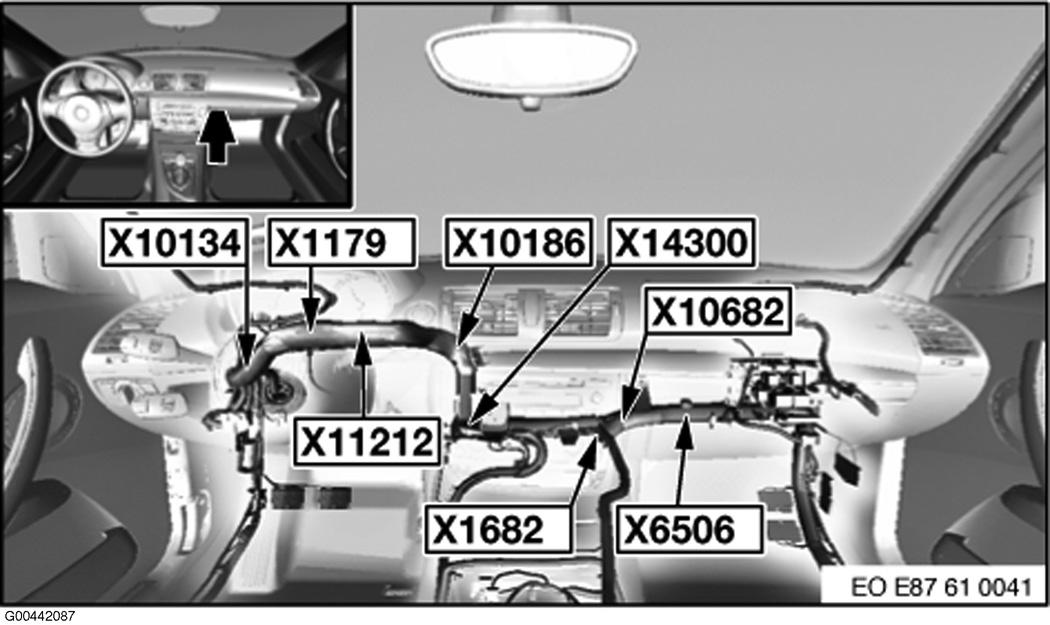

X1179 Right side of dash. See Figure.
X01362 Left side of center console. See Figure.
X1682 Right side of dash. See Figure.
X10134 Right side of dash. See Figure.
X10148 Right side of dash. See Figure.
X10186 Right side of dash. See Figure.

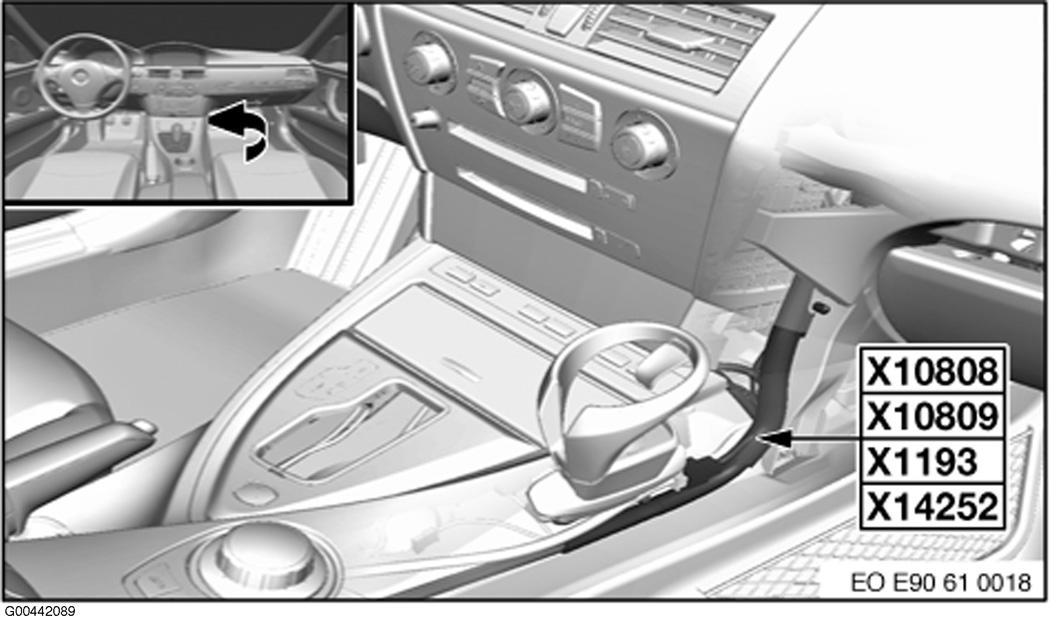

X10808 Right side of center dash. See Figure.
X10809 Right side of center dash. See Figure.
X13722 Under left of dash. See Figure.
X13723 Under left of dash. See Figure.
X13724 Behind left front wheel. See Figure.
X13725 Behind left front wheel. See Figure.
X13727 Right side of dash. See Figure.
X14235 Right side of dash. See Figure.
