Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

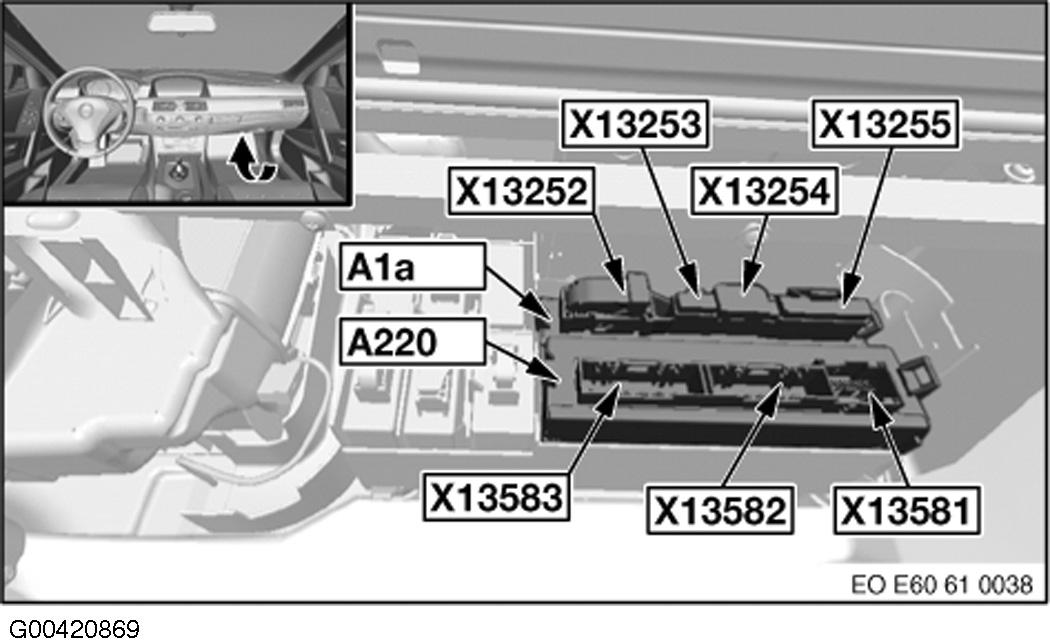

Fig 1: Behind Glove Box

G00420869

Courtesy of BMW OF NORTH AMERICA, INC.

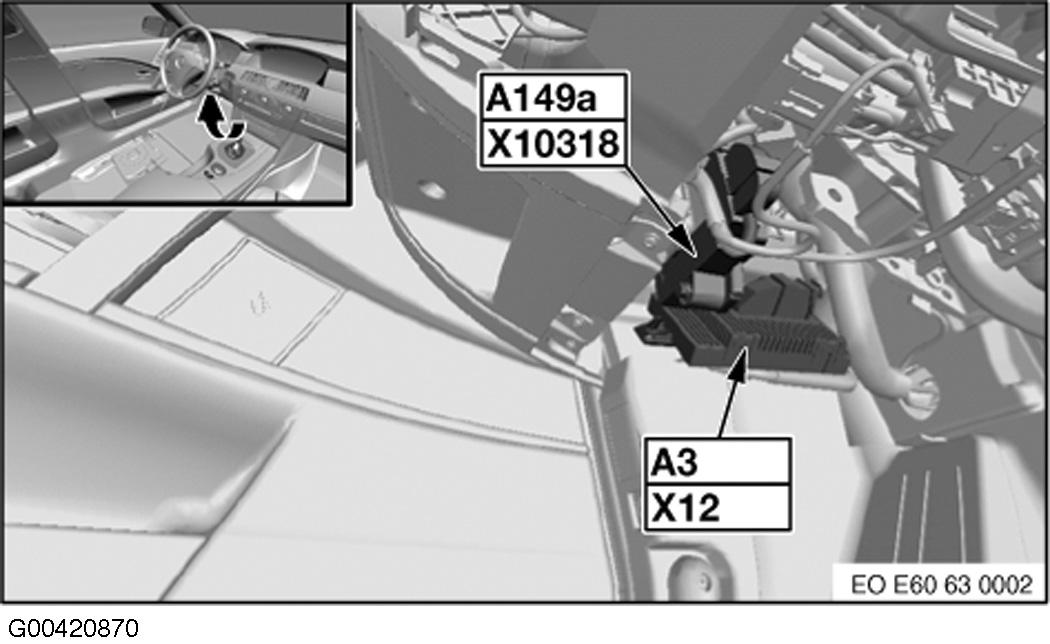

Fig 2: Left Kick Panel

G00420870

Courtesy of BMW OF NORTH AMERICA, INC.

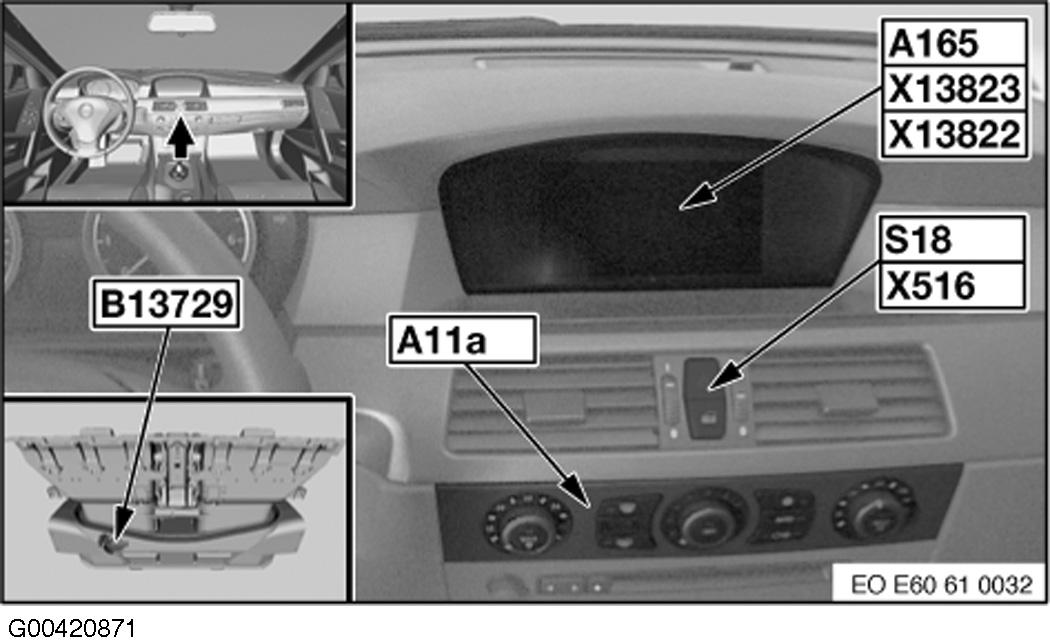

Fig 3: Center Of Dash

G00420871

Courtesy of BMW OF NORTH AMERICA, INC.

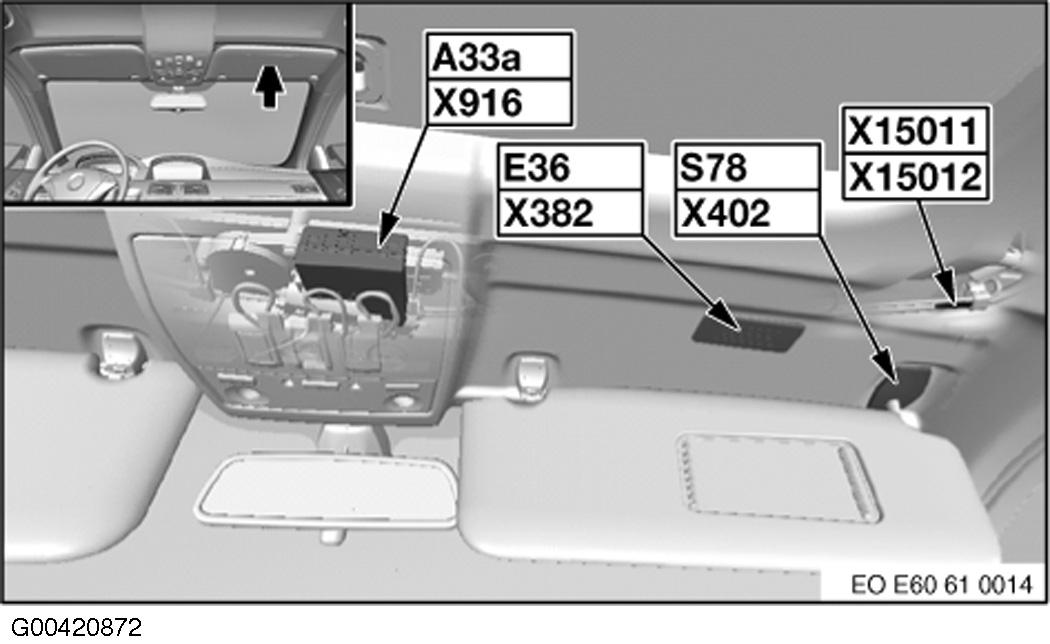

Fig 4: Front Of Roof

G00420872

Courtesy of BMW OF NORTH AMERICA, INC.

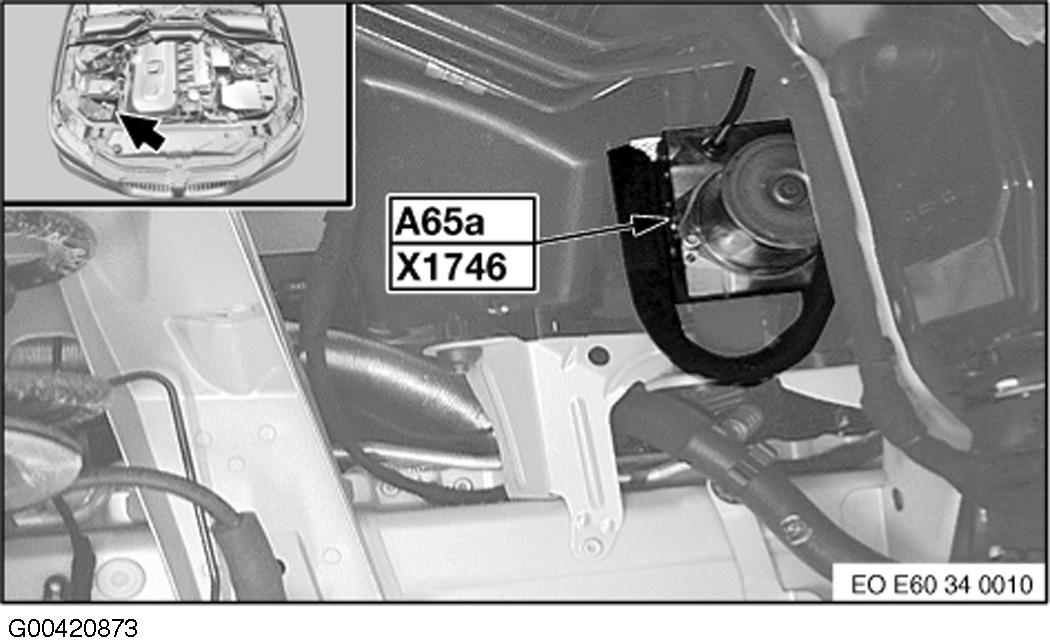

Fig 5: Right Front Of Engine Compartment

G00420873

Courtesy of BMW OF NORTH AMERICA, INC.

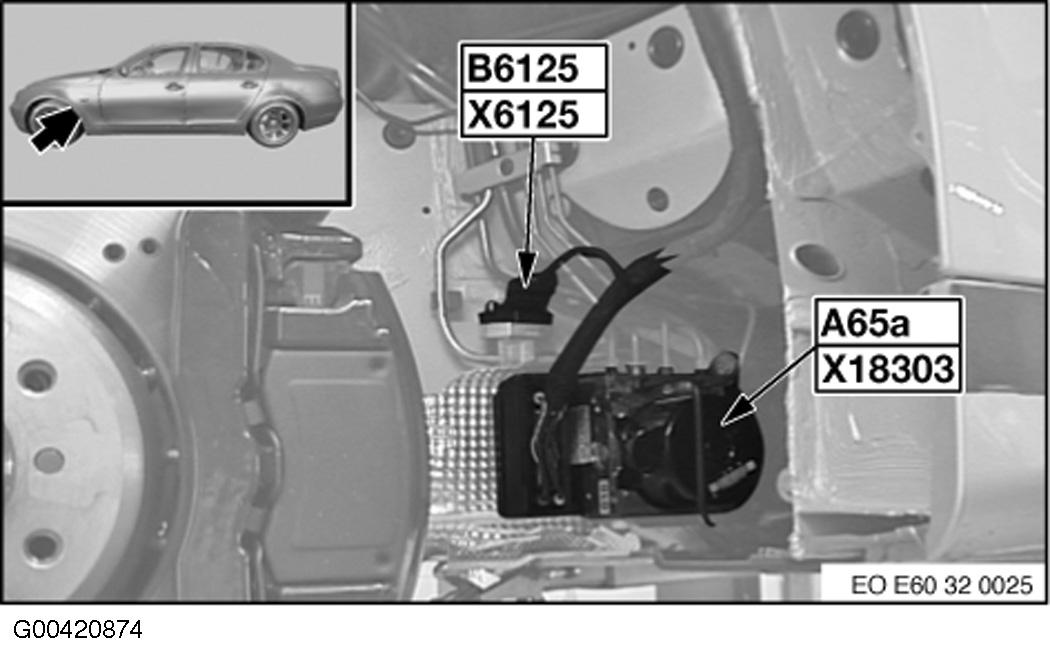

Fig 6: Left Front Wheelwell

G00420874

Courtesy of BMW OF NORTH AMERICA, INC.

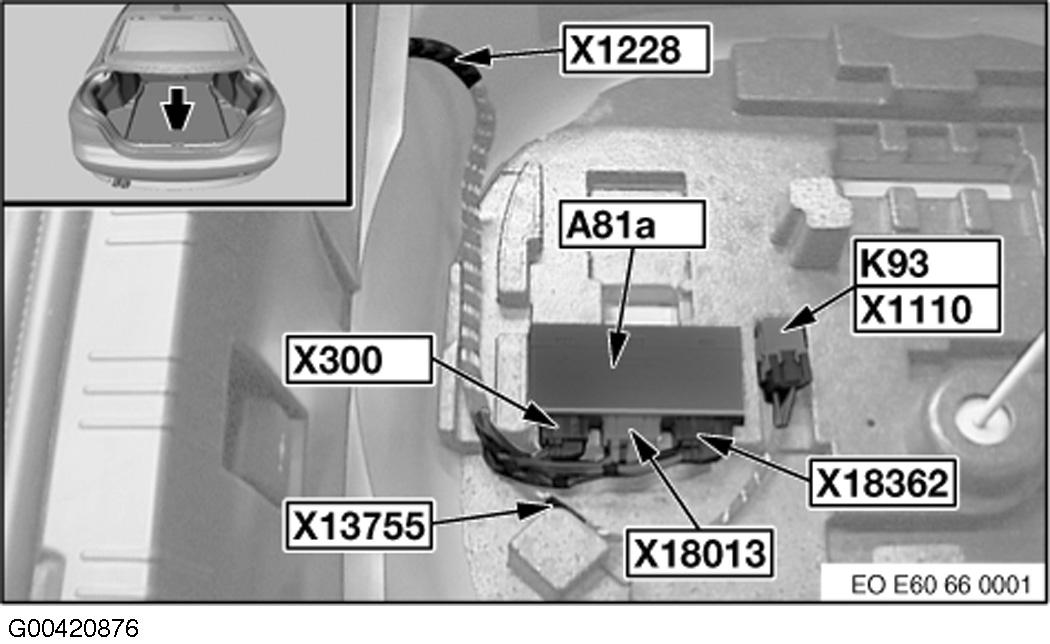

Fig 7: Center Of Rear Compartment

G00420876

Courtesy of BMW OF NORTH AMERICA, INC.

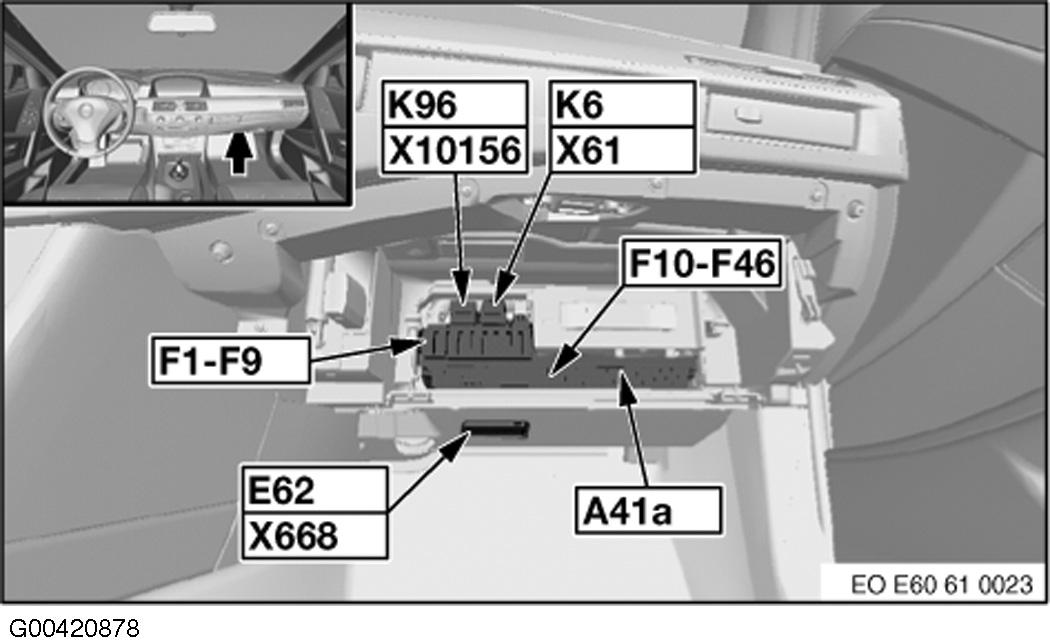

Fig 8: Behind Right Side Of Dash

G00420878

Courtesy of BMW OF NORTH AMERICA, INC.

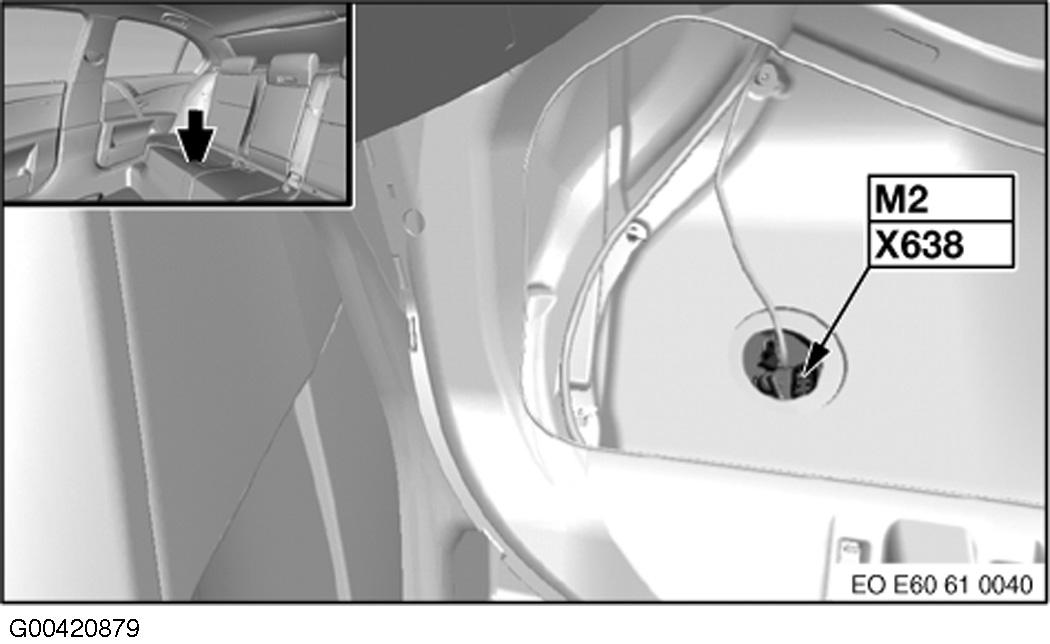

Fig 9: Below Right Rear Seat

G00420879

Courtesy of BMW OF NORTH AMERICA, INC.

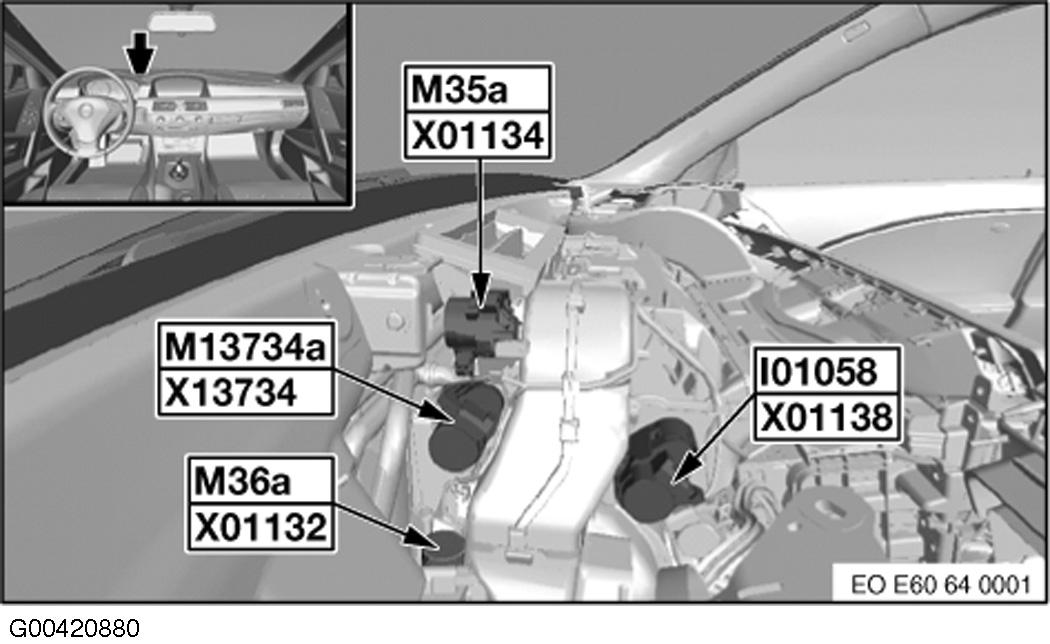

Fig 10: Top Left Side Of Dash

G00420880

Courtesy of BMW OF NORTH AMERICA, INC.

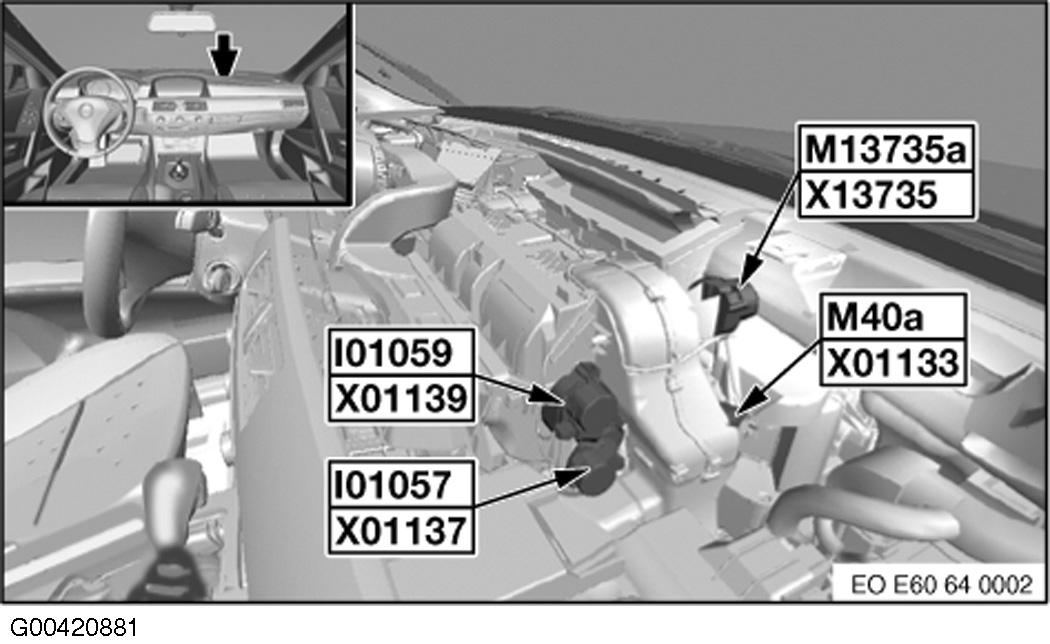

Fig 11: Top Right Side Of Dash

G00420881

Courtesy of BMW OF NORTH AMERICA, INC.

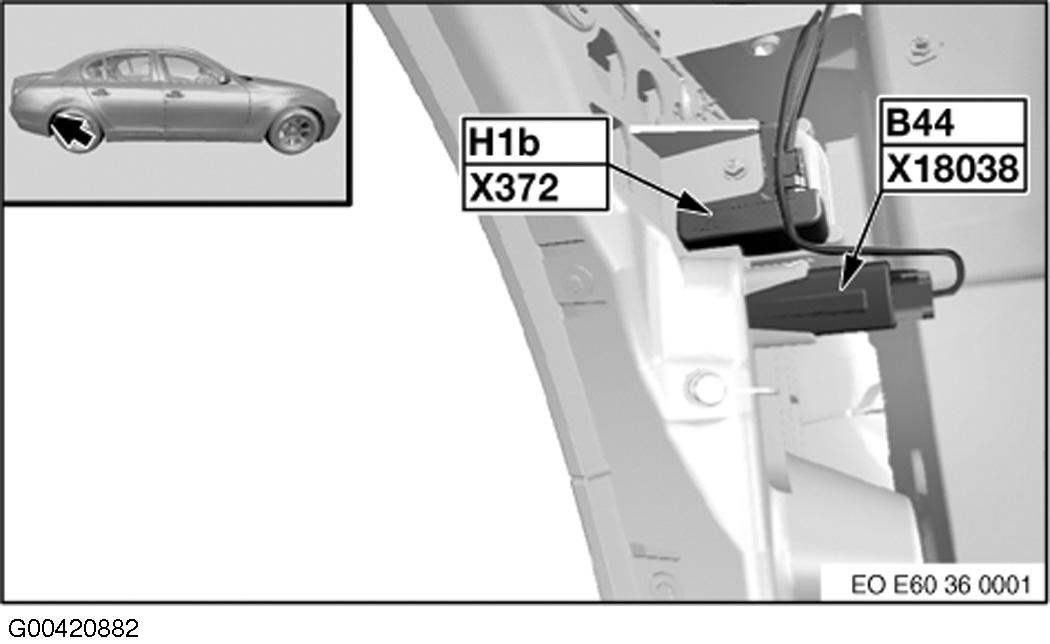

Fig 12: Right Rear Wheelwell

G00420882

Courtesy of BMW OF NORTH AMERICA, INC.

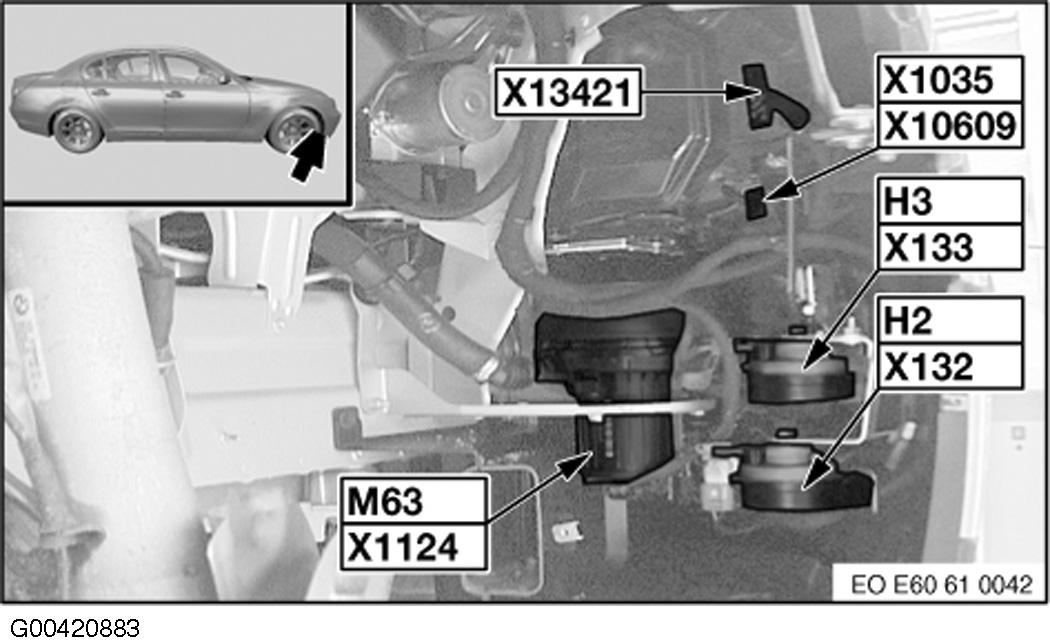

Fig 13: Right Front Wheelwell

G00420883

Courtesy of BMW OF NORTH AMERICA, INC.

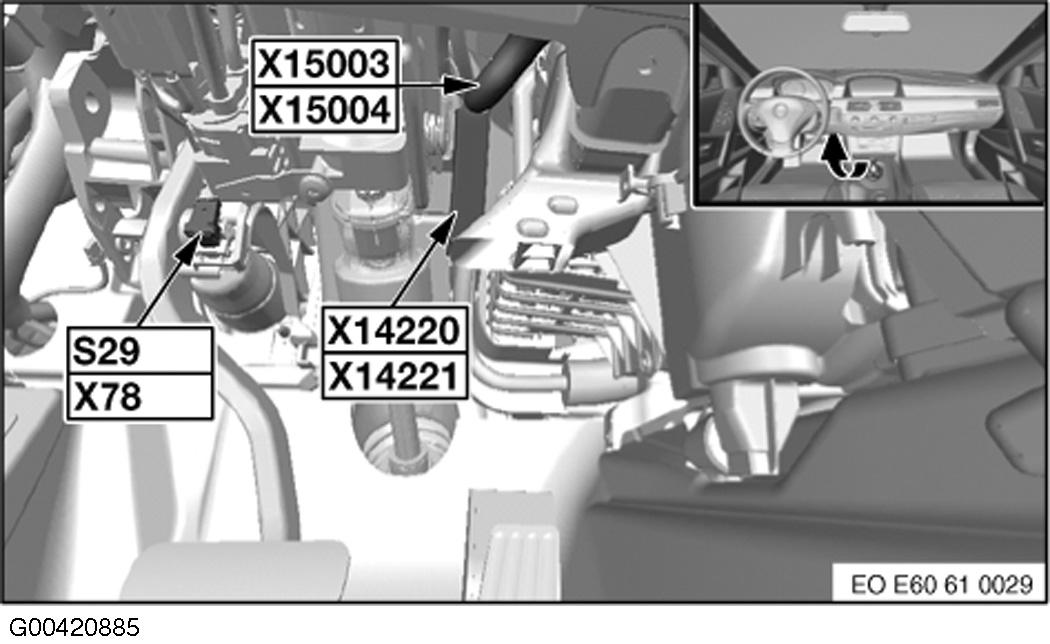

Fig 14: Left Side Of Dash

G00420885

Courtesy of BMW OF NORTH AMERICA, INC.

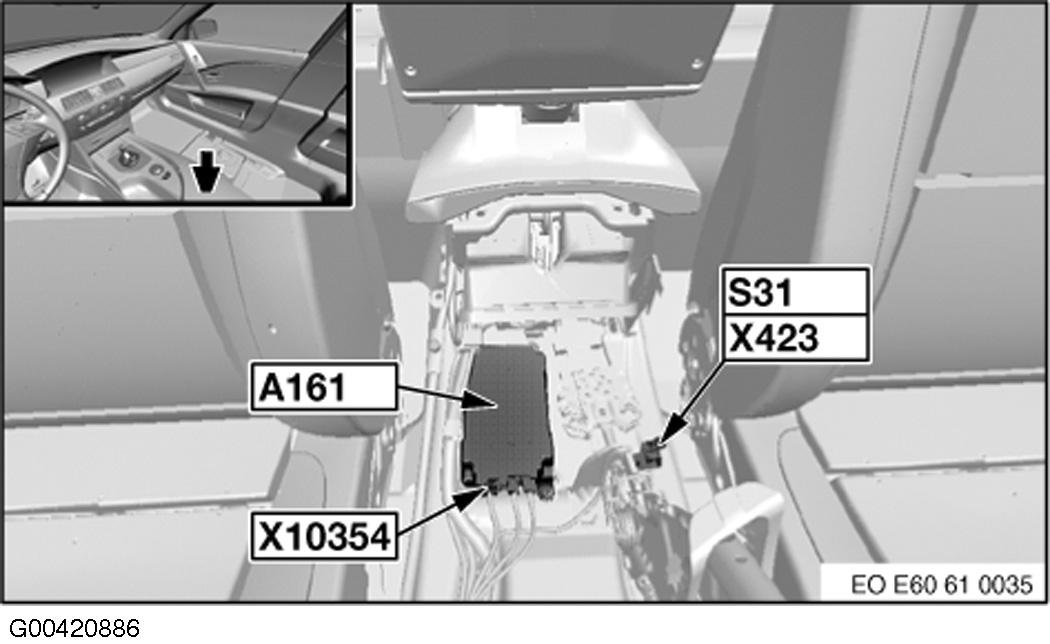

Fig 15: Rear Center Console

G00420886

Courtesy of BMW OF NORTH AMERICA, INC.

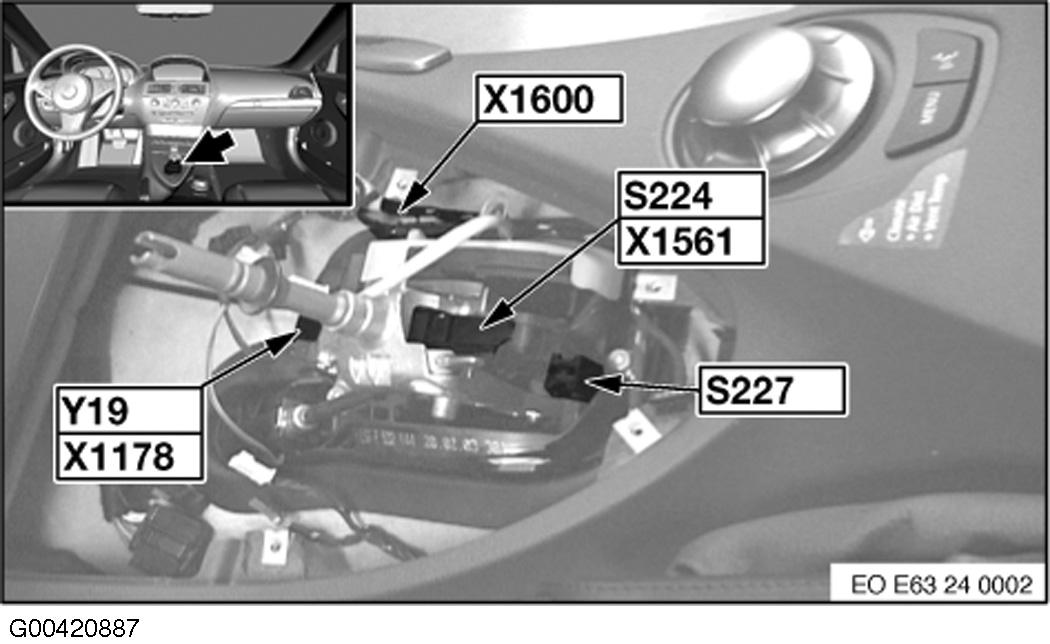

Fig 16: Center Console

G00420887

Courtesy of BMW OF NORTH AMERICA, INC.

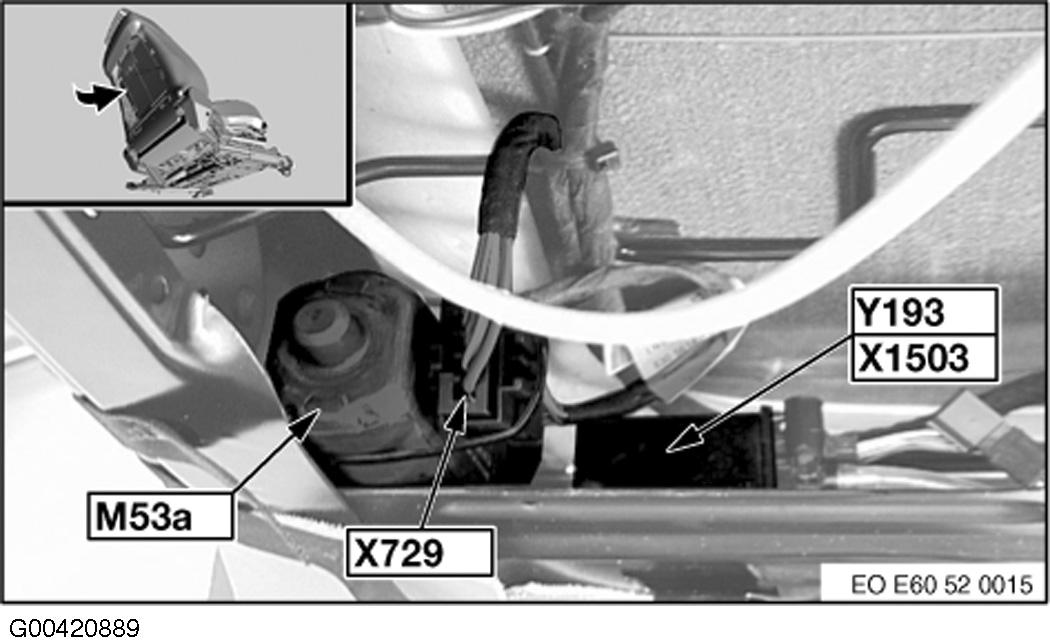

Fig 17: Driver's Seatback

G00420889

Courtesy of BMW OF NORTH AMERICA, INC.

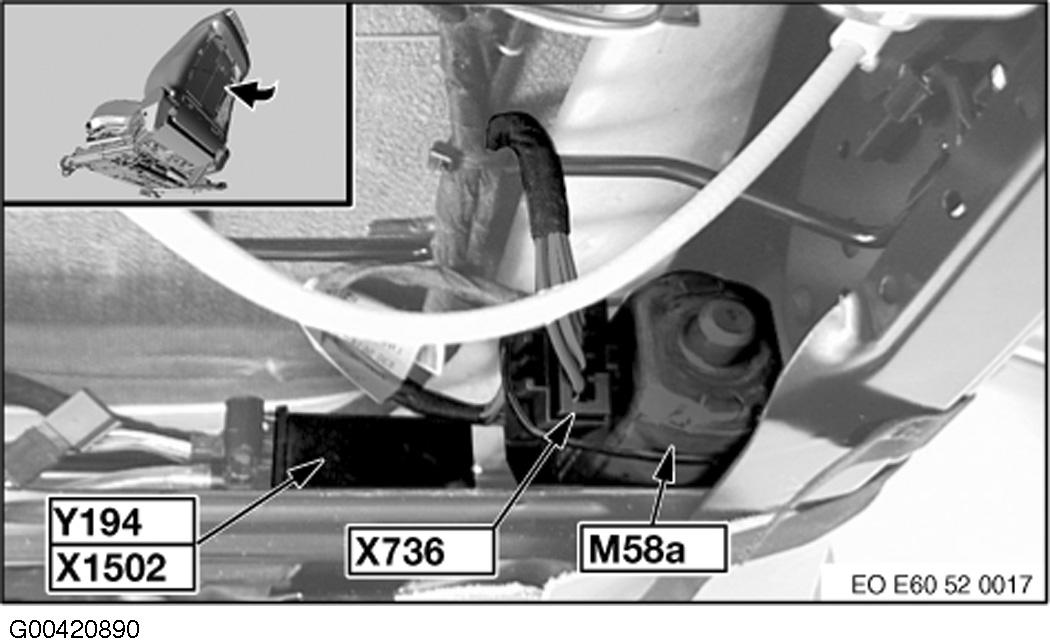

Fig 18: Passenger's Seatback

G00420890

Courtesy of BMW OF NORTH AMERICA, INC.

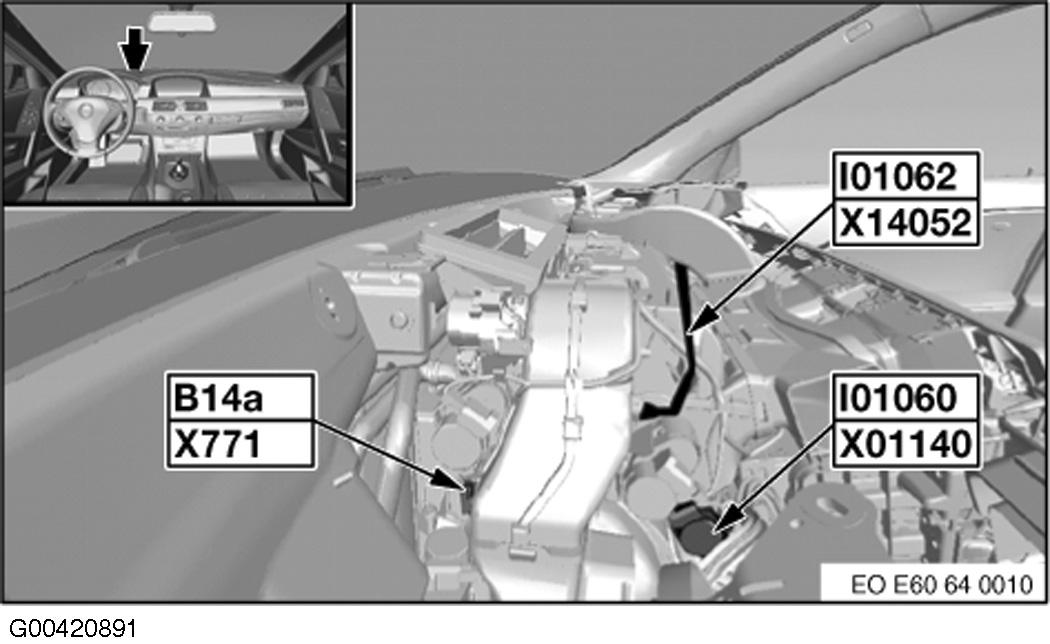

Fig 19: Top Left Side Of Dash

G00420891

Courtesy of BMW OF NORTH AMERICA, INC.

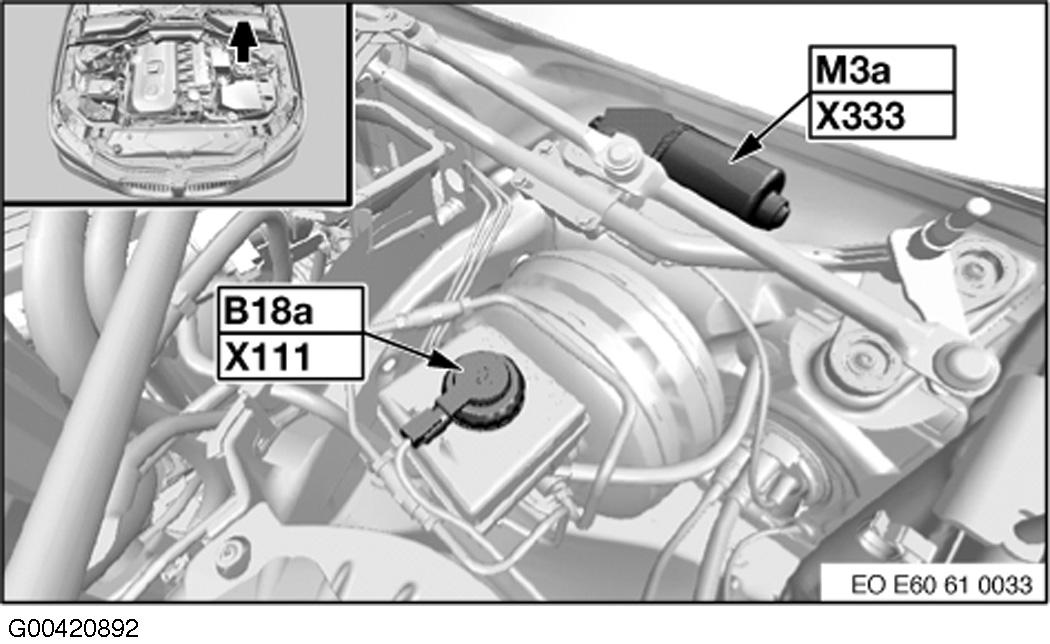

Fig 20: Left Rear Engine Compartment

G00420892

Courtesy of BMW OF NORTH AMERICA, INC.

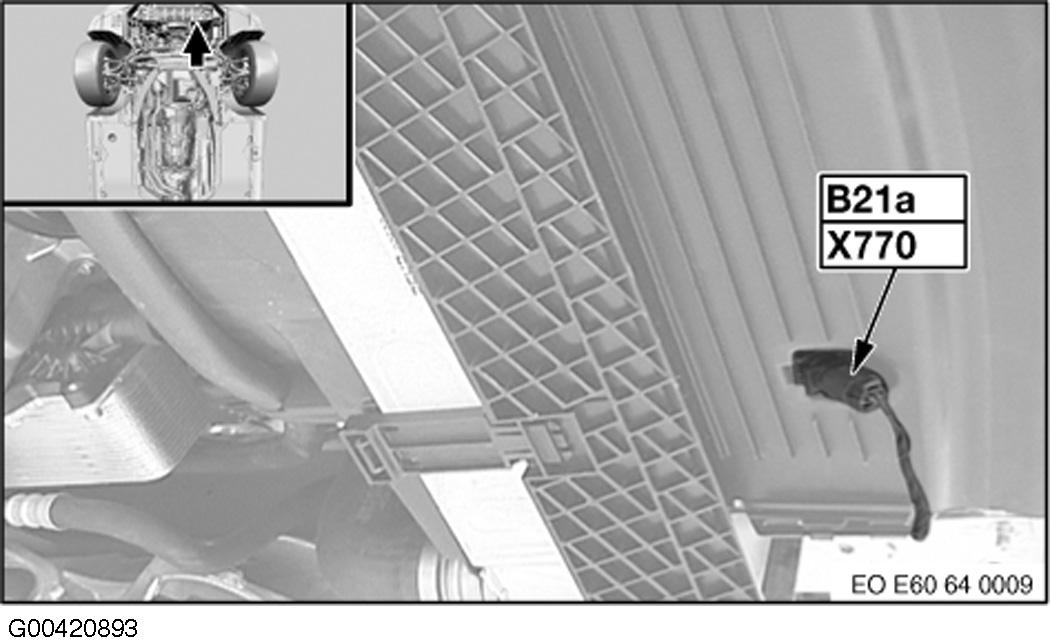

Fig 21: Under Front Of Vehicle

G00420893

Courtesy of BMW OF NORTH AMERICA, INC.

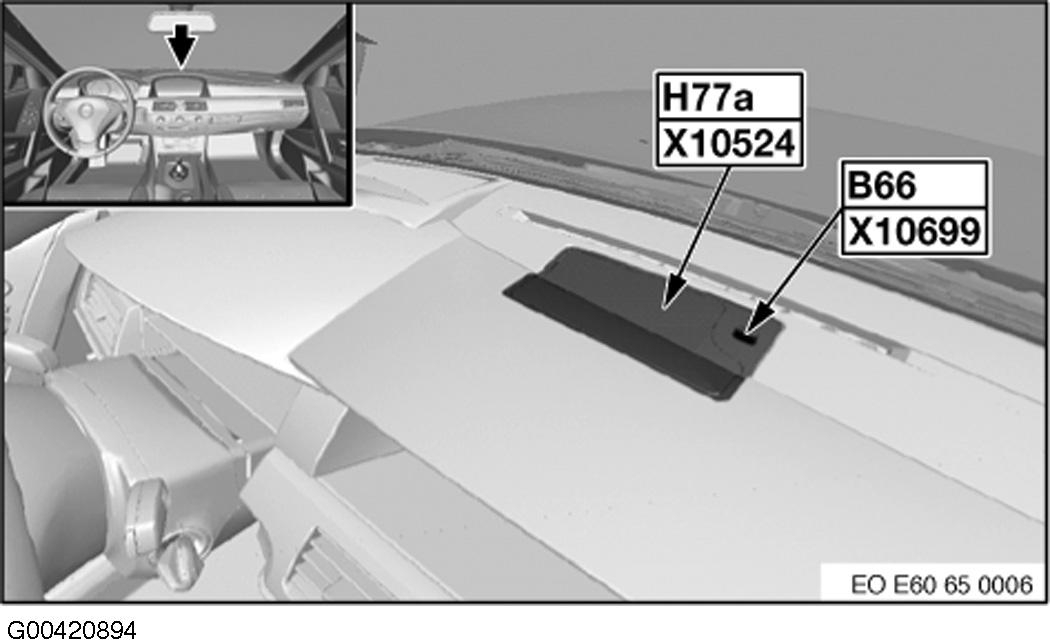

Fig 22: Top Center Of Dash

G00420894

Courtesy of BMW OF NORTH AMERICA, INC.

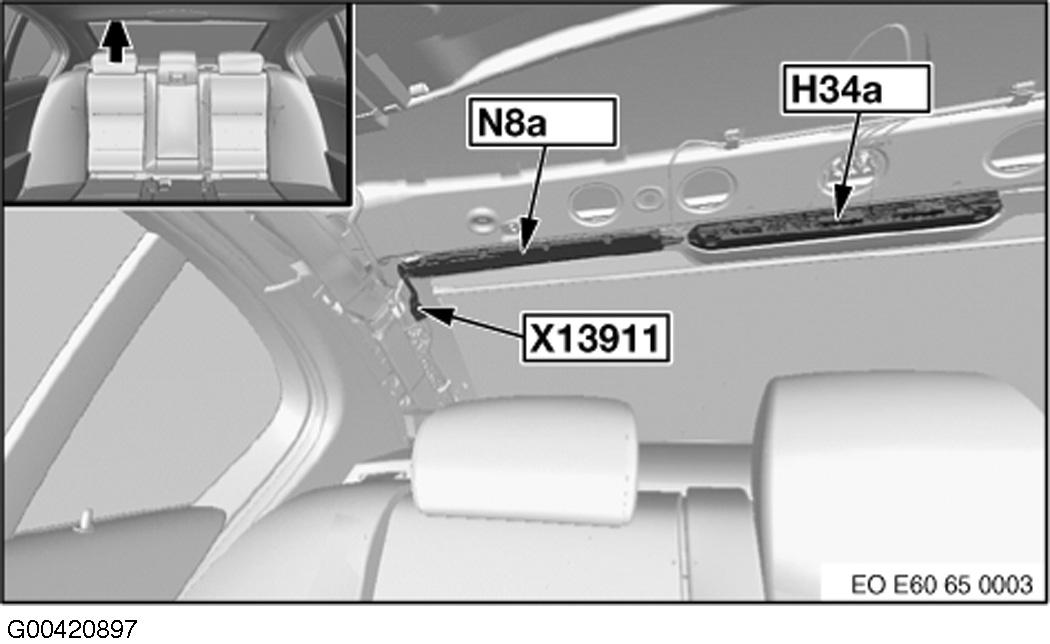

Fig 23: Right "C" Pillar

G00420897

Courtesy of BMW OF NORTH AMERICA, INC.

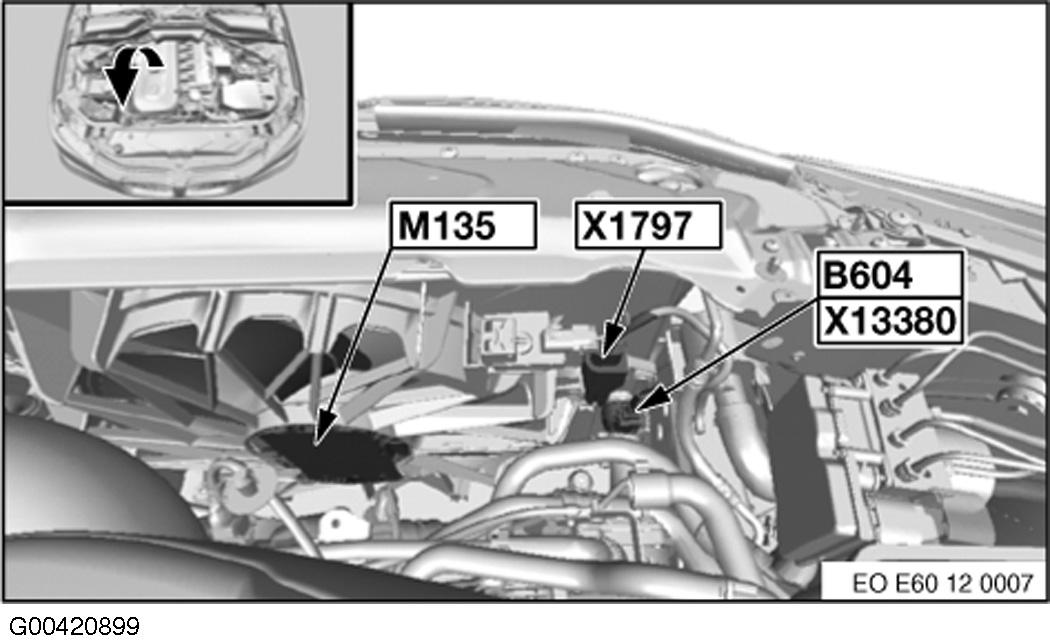

Fig 24: Right Front Of Engine

G00420899

Courtesy of BMW OF NORTH AMERICA, INC.

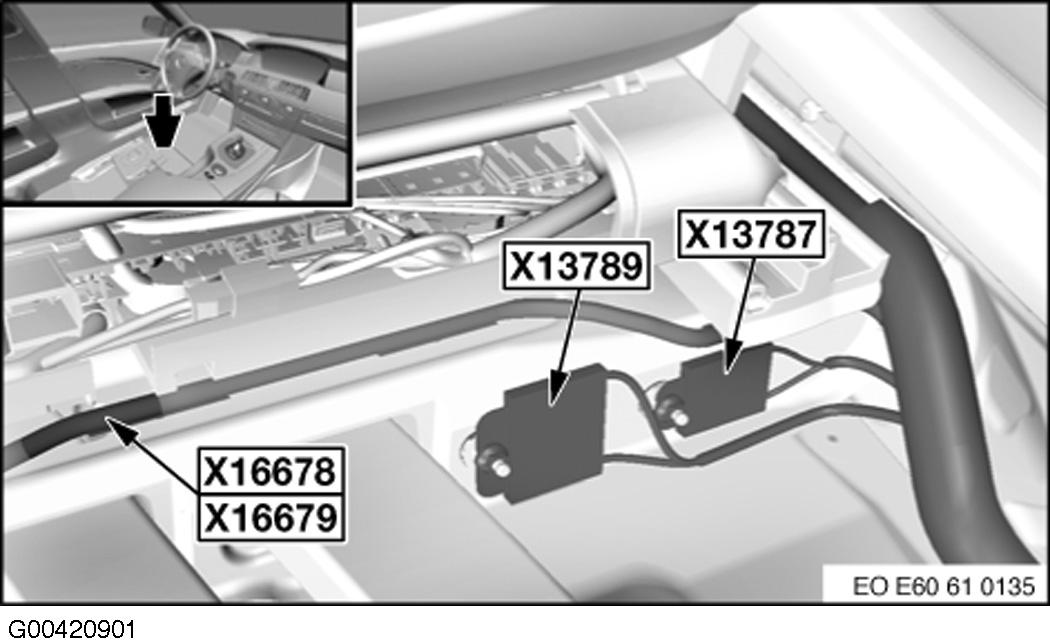

Fig 25: Left Front Rocker Panel

G00420901

Courtesy of BMW OF NORTH AMERICA, INC.

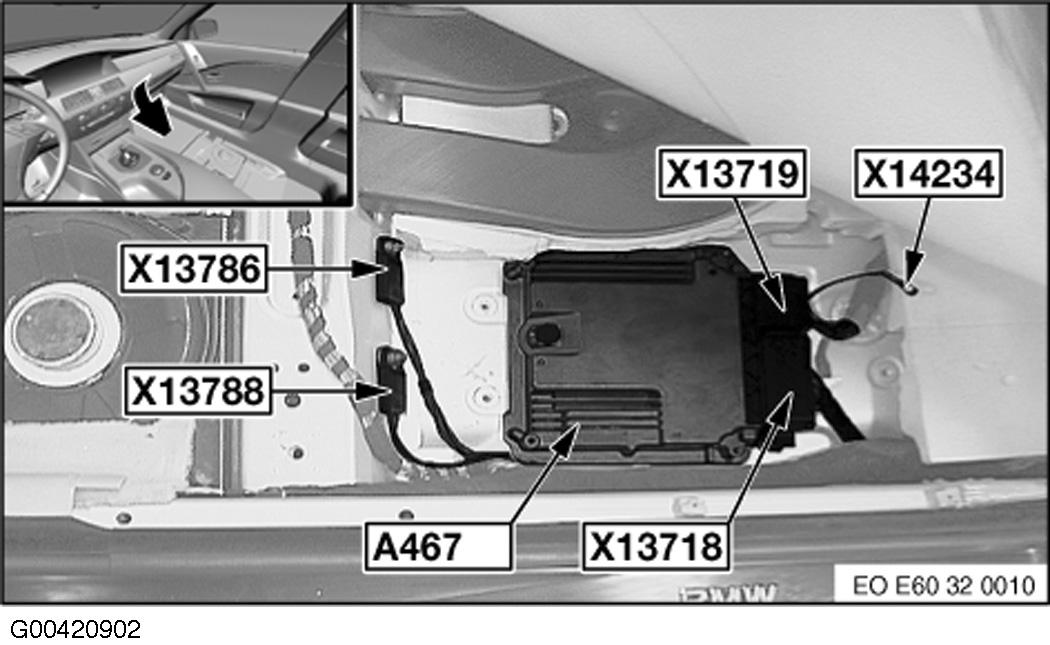

Fig 26: Right Front Floor

G00420902

Courtesy of BMW OF NORTH AMERICA, INC.

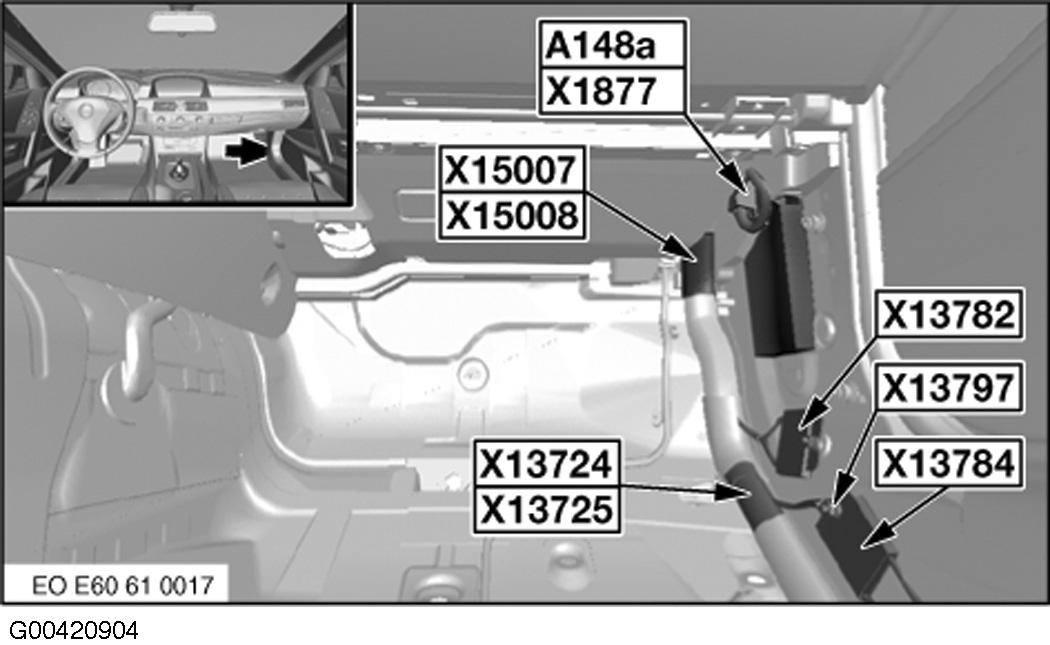

Fig 27: Right Kick Panel

G00420904

Courtesy of BMW OF NORTH AMERICA, INC.

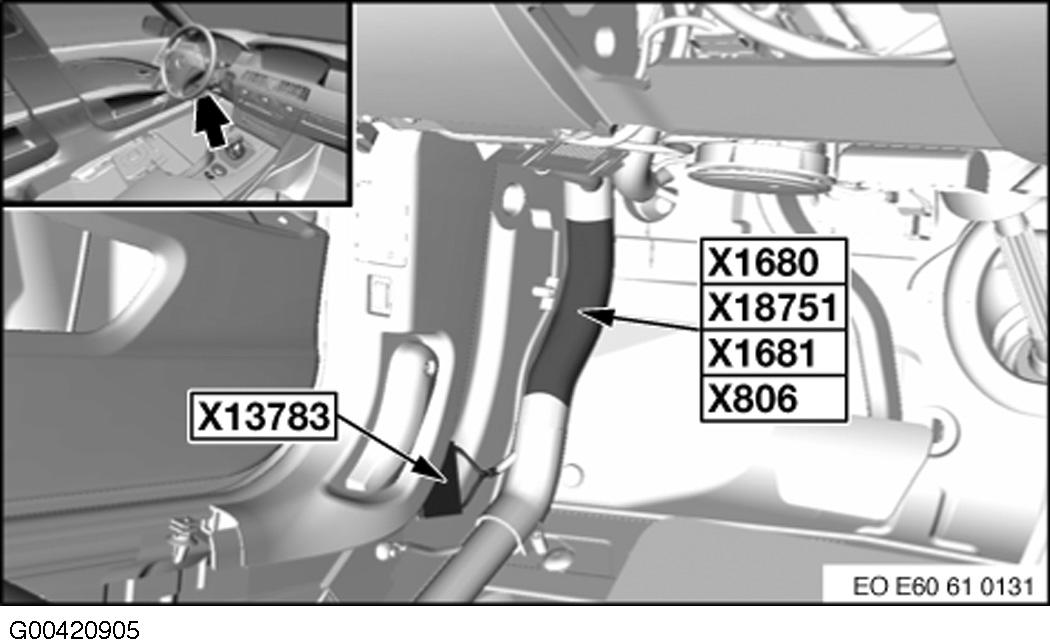

Fig 28: Left Kick Panel

G00420905

Courtesy of BMW OF NORTH AMERICA, INC.

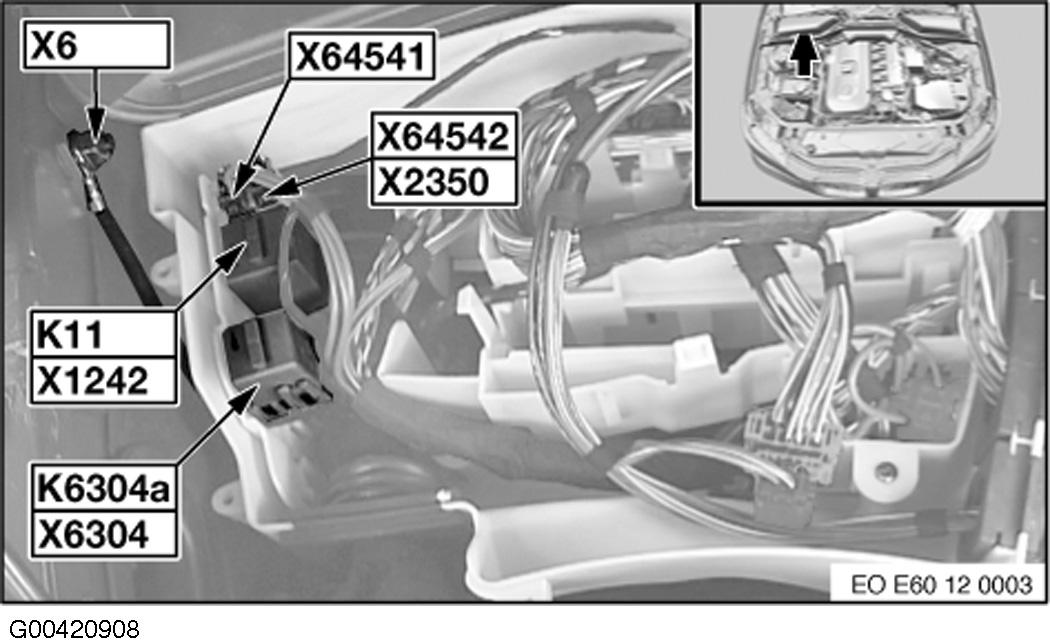

Fig 29: Right Rear Of Engine Compartment

G00420908

Courtesy of BMW OF NORTH AMERICA, INC.

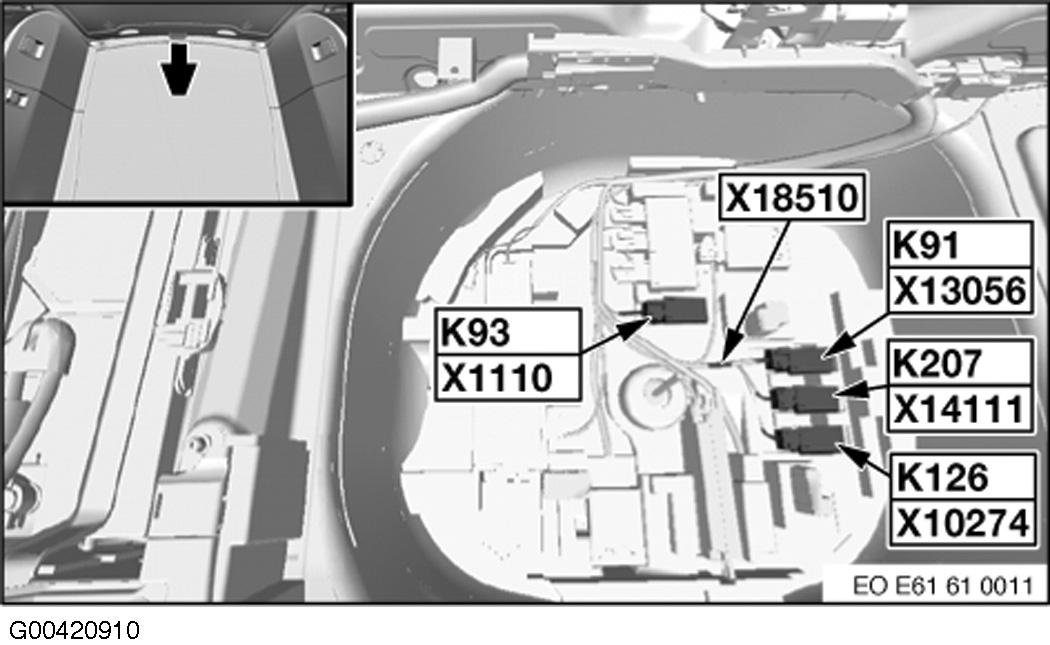

Fig 30: Rear Of Vehicle (Wagon)

G00420910

Courtesy of BMW OF NORTH AMERICA, INC.

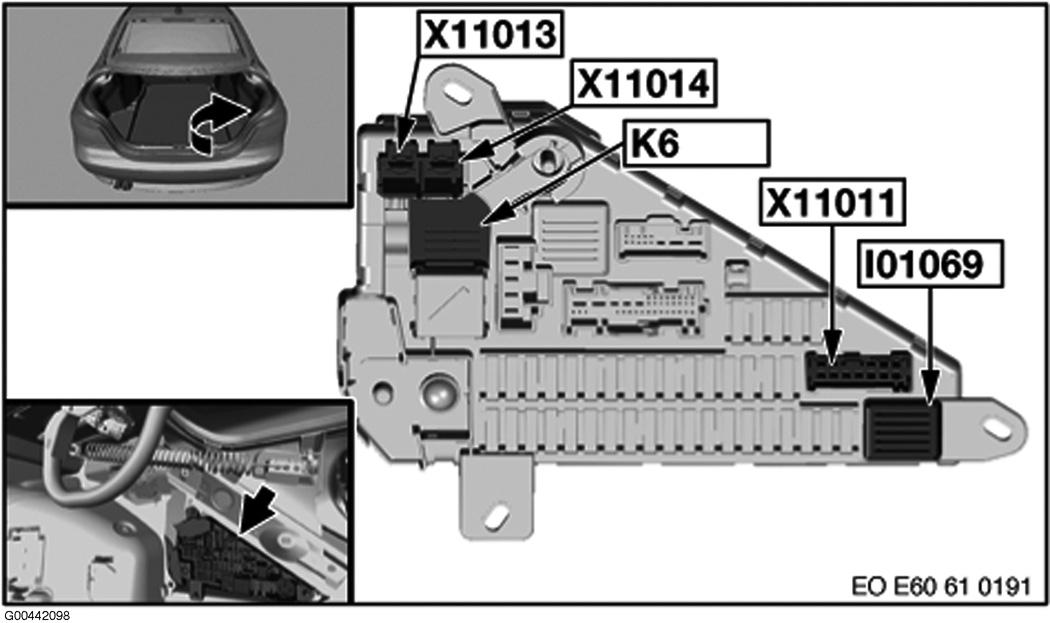

Fig 31: Right Side Of Rear Compartment

G00442098

Courtesy of BMW OF NORTH AMERICA, INC.

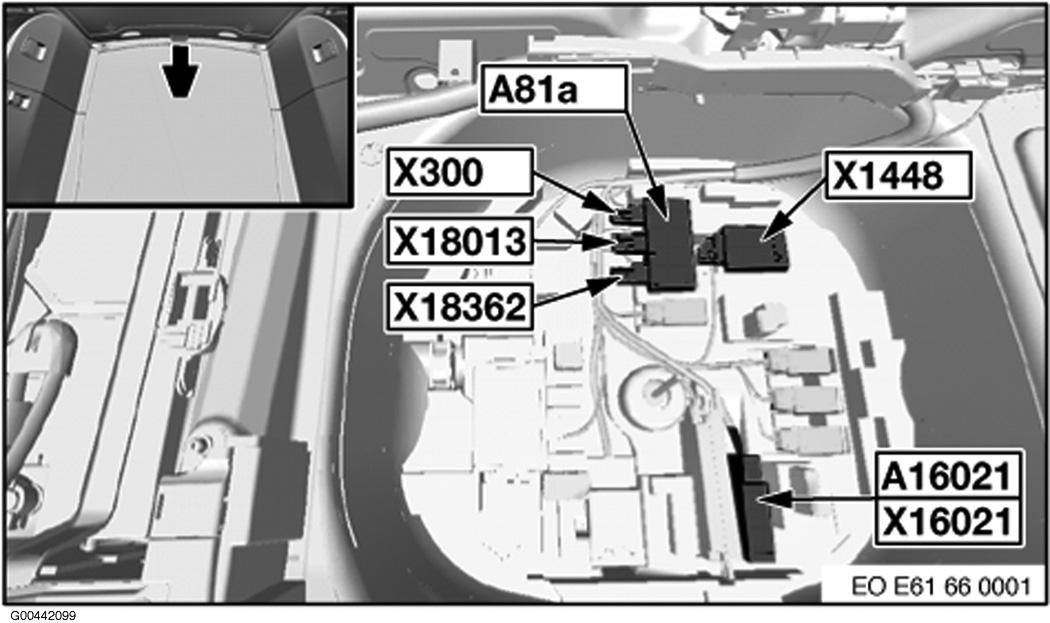

Fig 32: Under Spare Tire (Wagon)

G00442099

Courtesy of BMW OF NORTH AMERICA, INC.

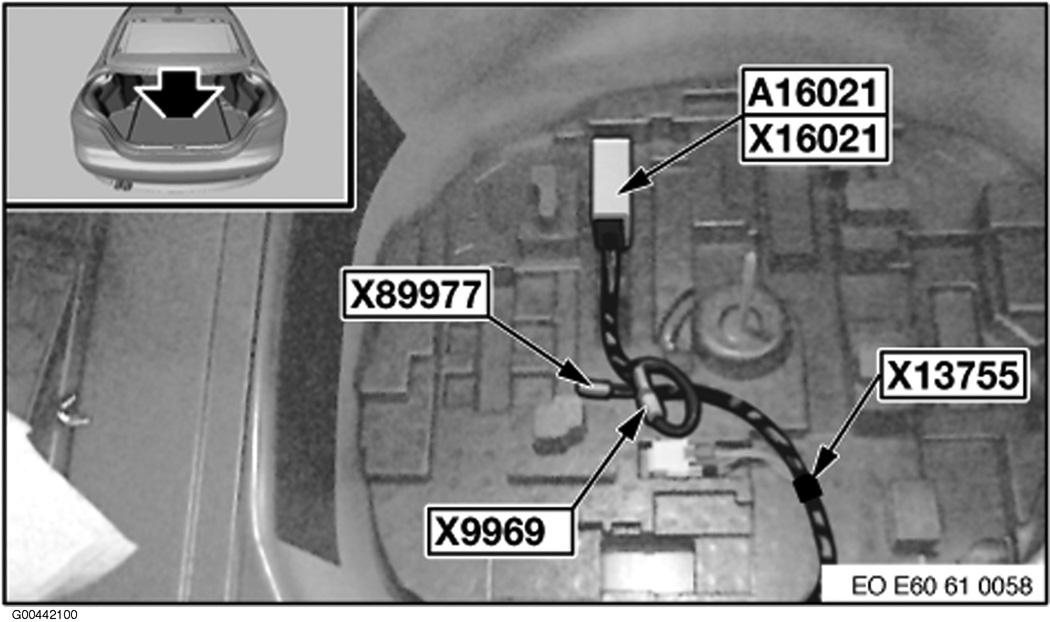

Fig 33: Under Spare Tire (Sedan)

G00442100

Courtesy of BMW OF NORTH AMERICA, INC.

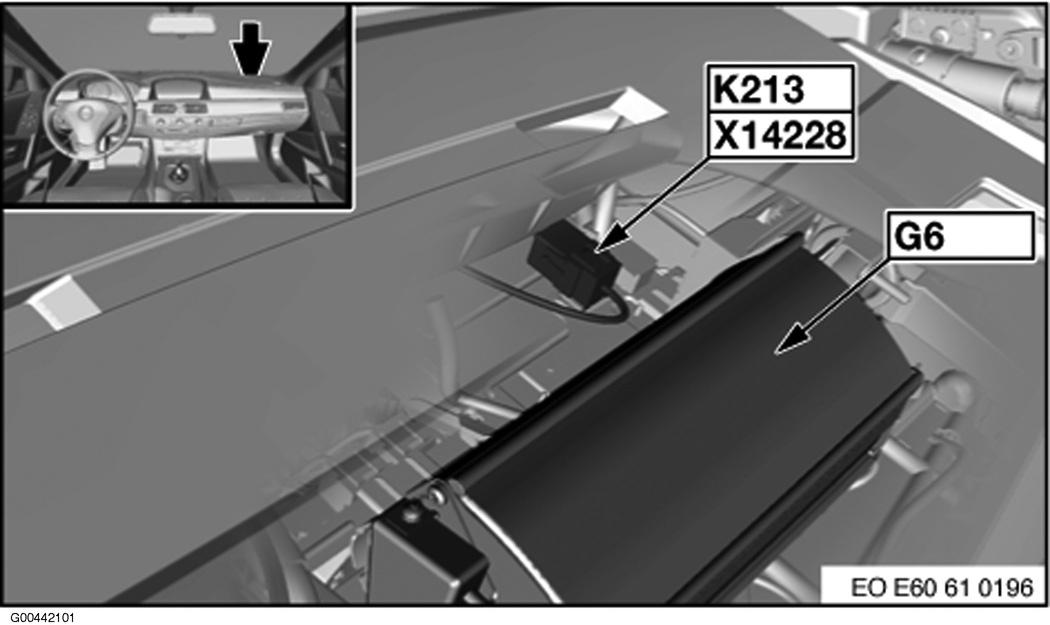

Fig 34: Top Right Side Of Dash

G00442101

Courtesy of BMW OF NORTH AMERICA, INC.

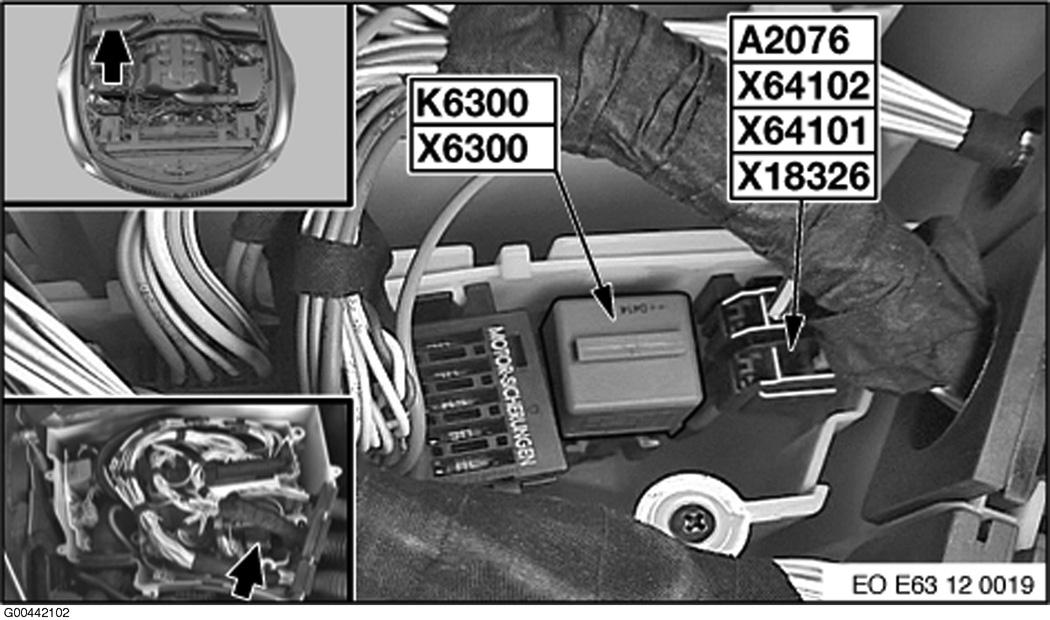

Fig 35: Right Rear Of Engine Compartment

G00442102

Courtesy of BMW OF NORTH AMERICA, INC.

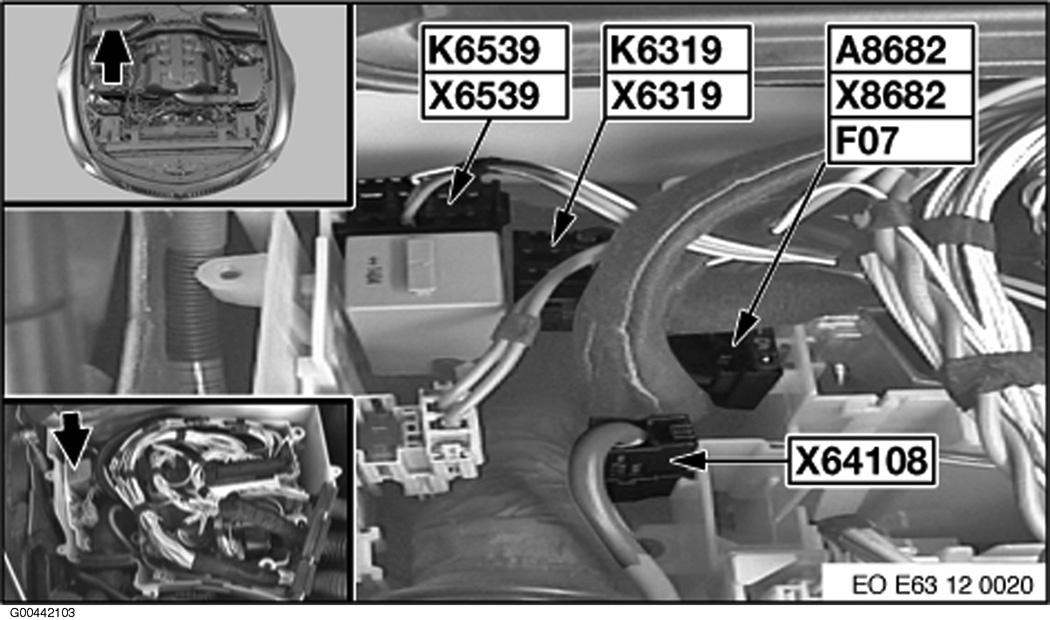

Fig 36: Right Rear Of Engine Compartment

G00442103

Courtesy of BMW OF NORTH AMERICA, INC.

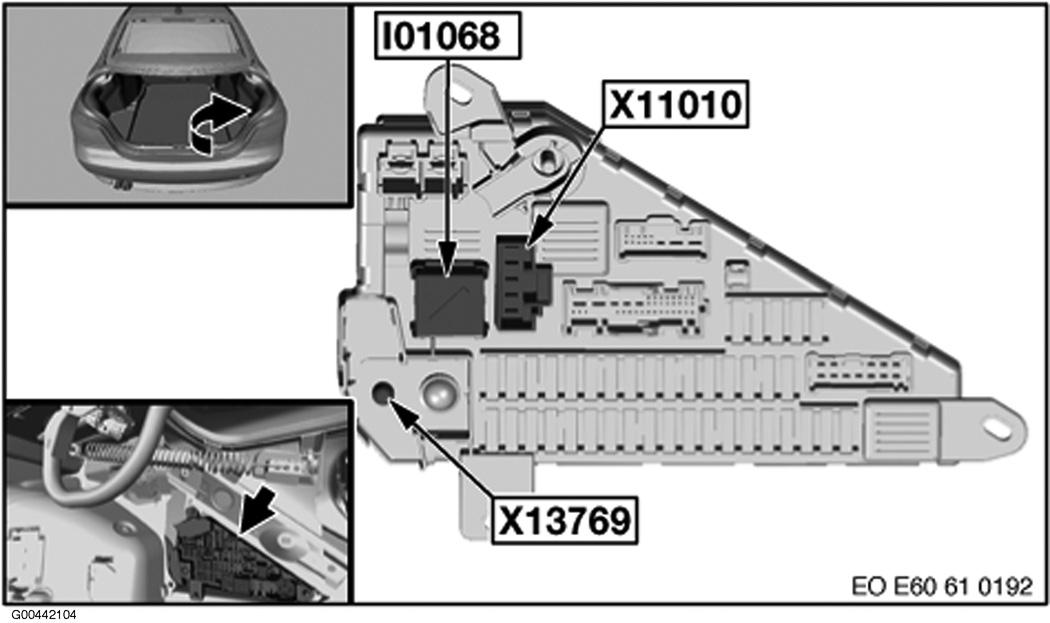

Fig 37: Right Side Of Rear Compartment

G00442104

Courtesy of BMW OF NORTH AMERICA, INC.

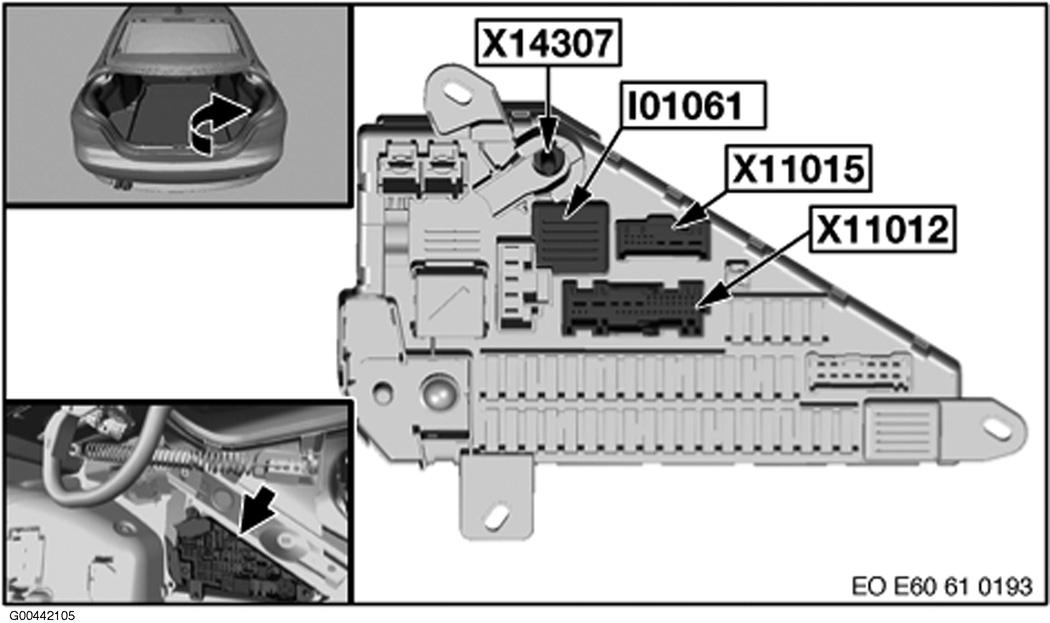

Fig 38: Right Side Of Rear Compartment

G00442105

Courtesy of BMW OF NORTH AMERICA, INC.

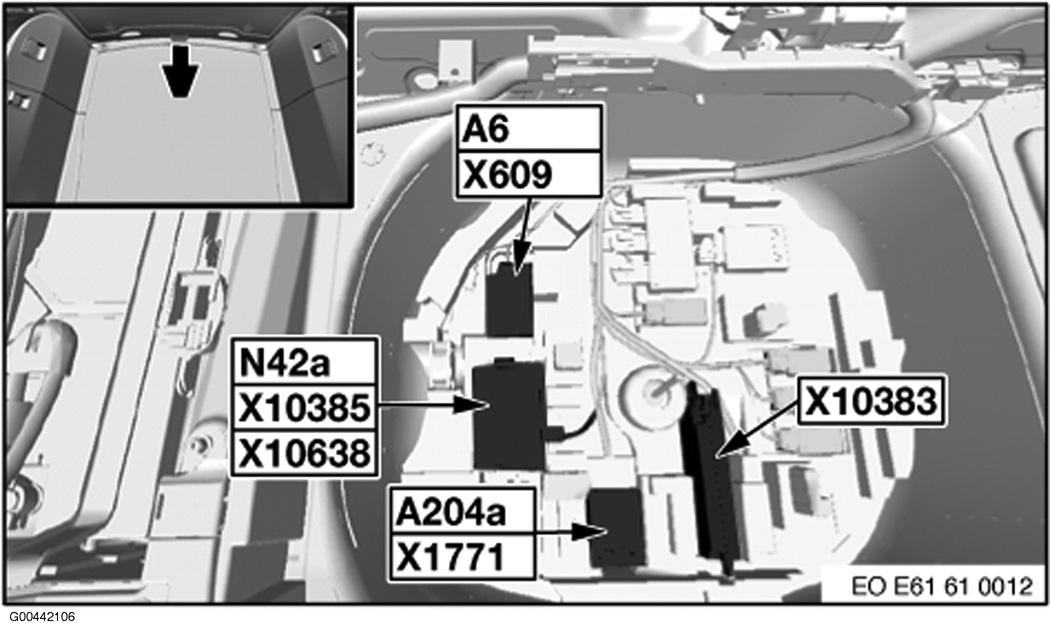

Fig 39: Under Spare Tire

G00442106

Courtesy of BMW OF NORTH AMERICA, INC.

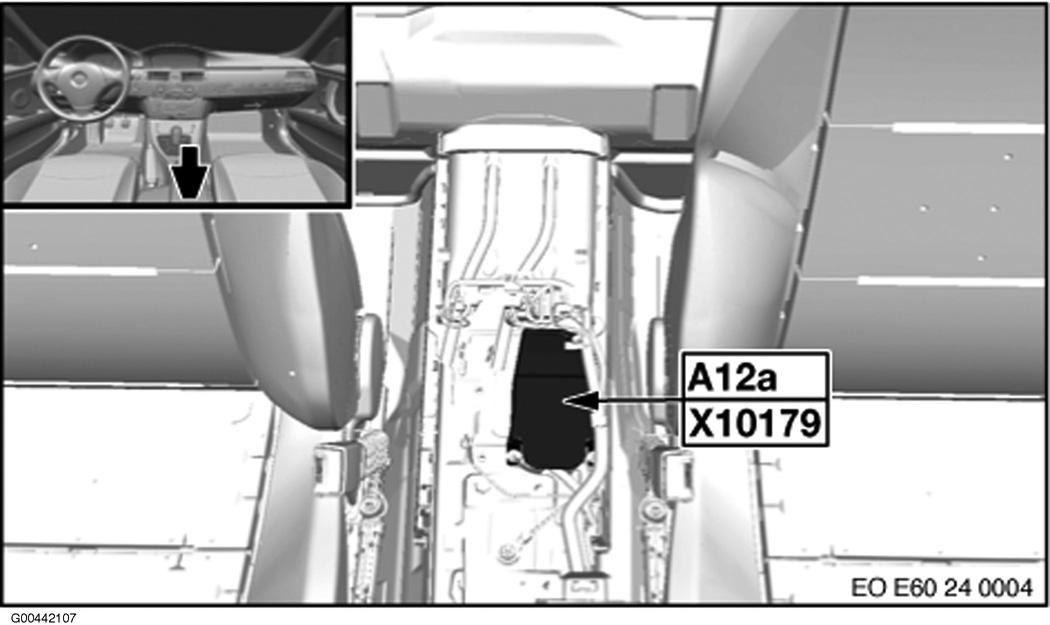

Fig 40: Center Console

G00442107

Courtesy of BMW OF NORTH AMERICA, INC.

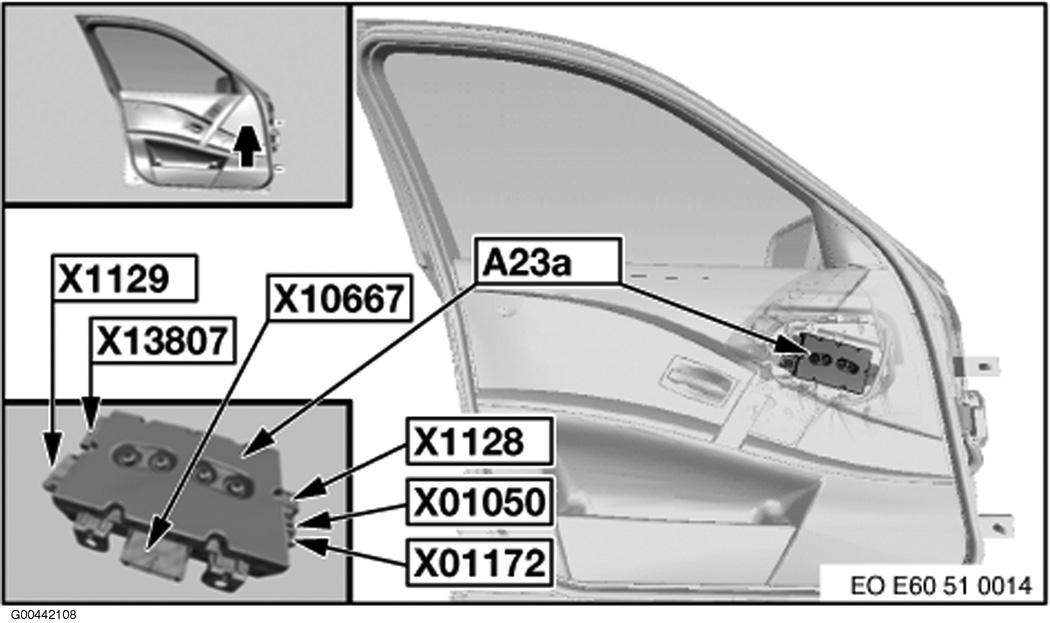

Fig 41: Driver's Door

G00442108

Courtesy of BMW OF NORTH AMERICA, INC.

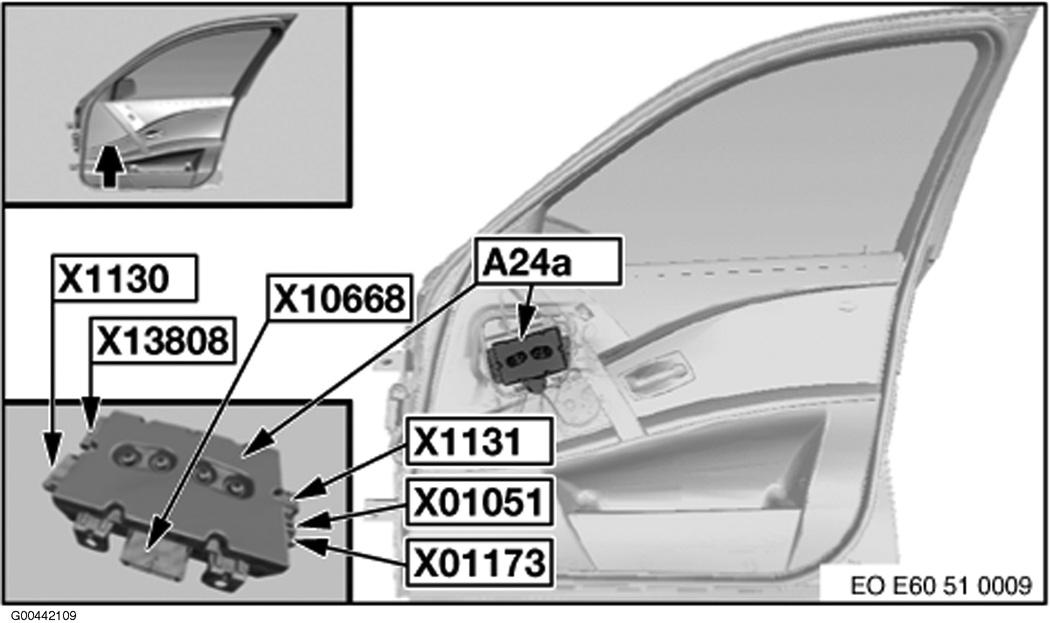

Fig 42: Front Passenger's Door

G00442109

Courtesy of BMW OF NORTH AMERICA, INC.

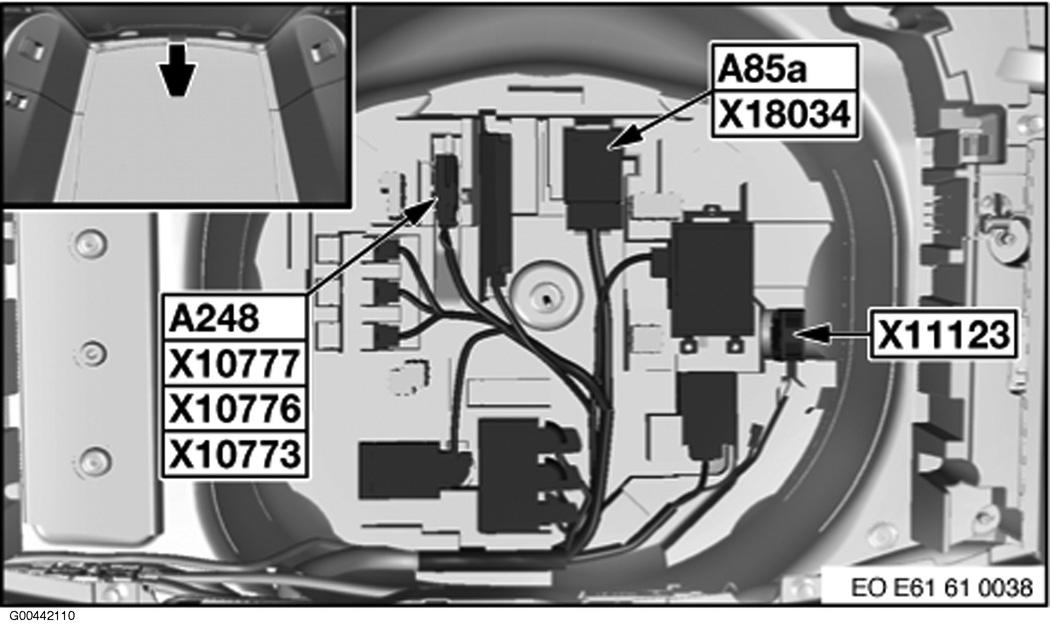

Fig 43: Under Spare Tire

G00442110

Courtesy of BMW OF NORTH AMERICA, INC.

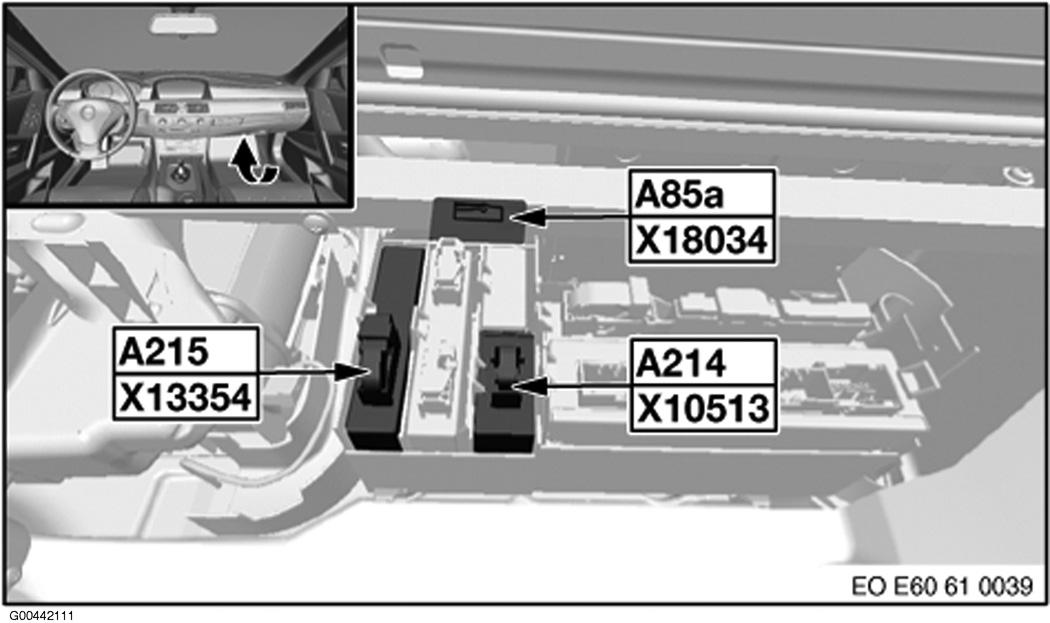

Fig 44: Under Right Side Of Dash

G00442111

Courtesy of BMW OF NORTH AMERICA, INC.

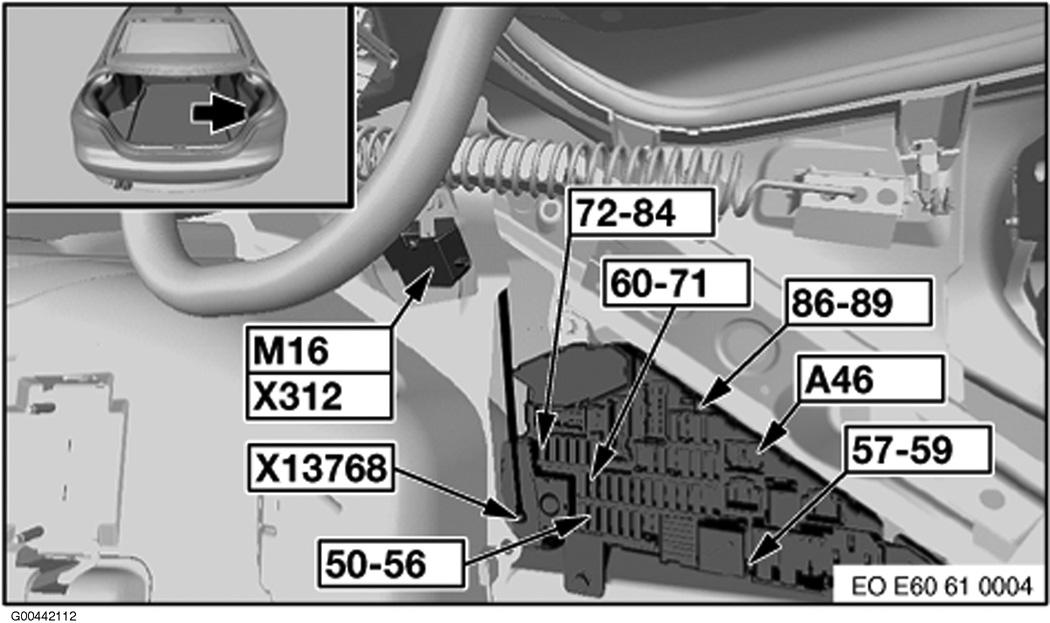

Fig 45: Right Side Of Rear Compartment (Sedan)

G00442112

Courtesy of BMW OF NORTH AMERICA, INC.

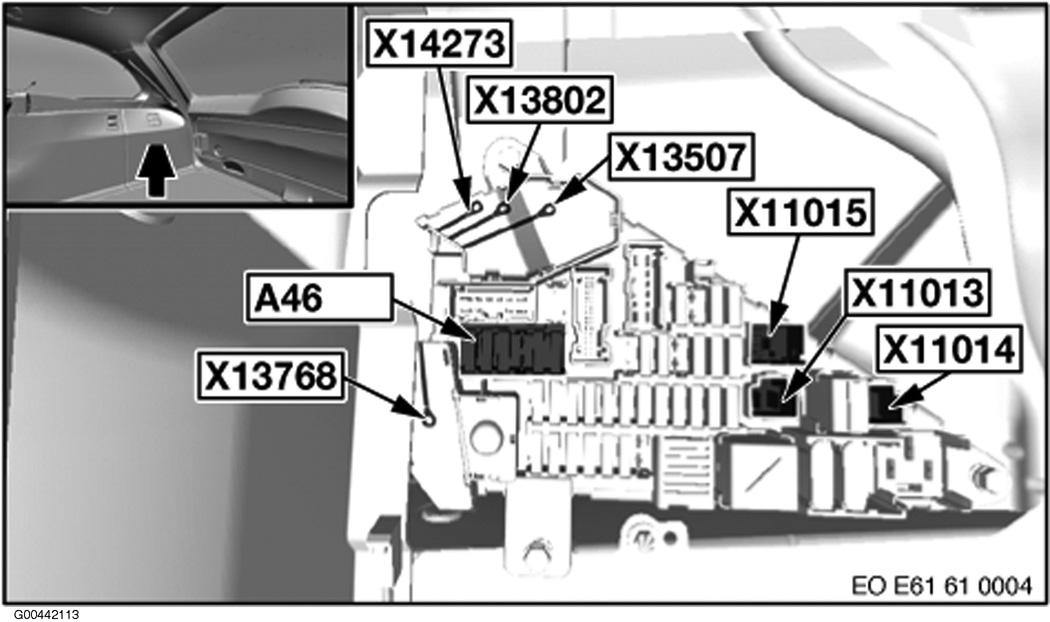

Fig 46: Right Side Of Rear Compartment (Wagon)

G00442113

Courtesy of BMW OF NORTH AMERICA, INC.

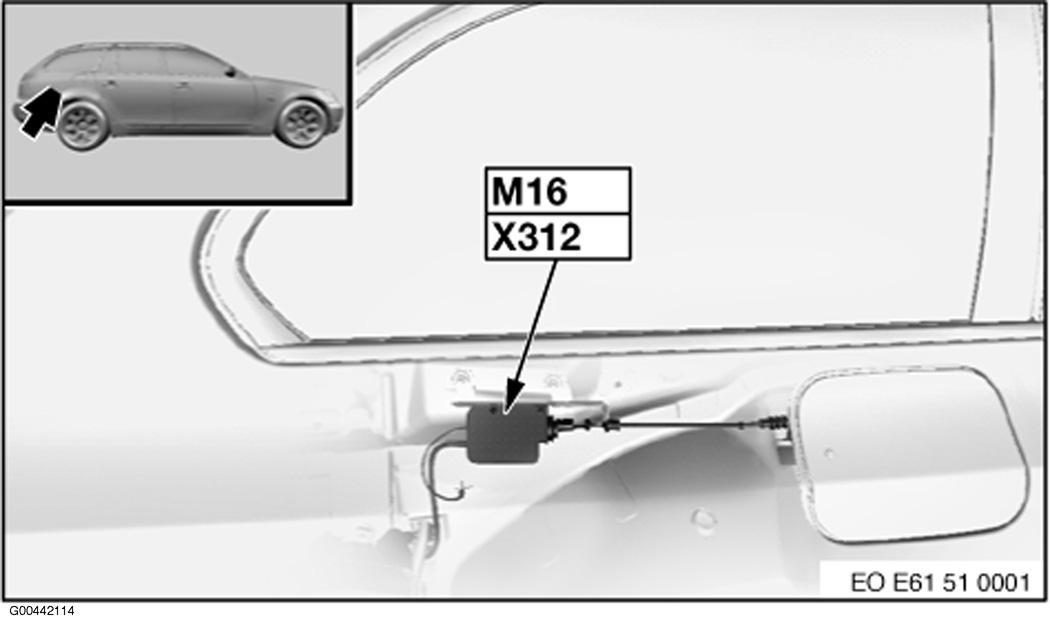

Fig 47: Below Right Rear Window

G00442114

Courtesy of BMW OF NORTH AMERICA, INC.

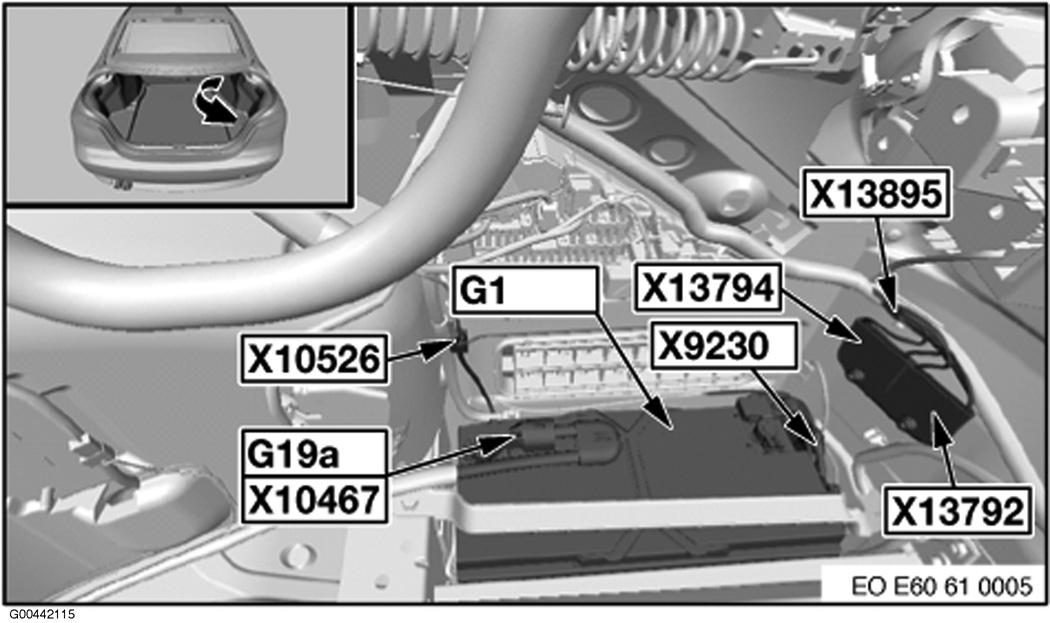

Fig 48: Right Side Of Rear Compartment

G00442115

Courtesy of BMW OF NORTH AMERICA, INC.

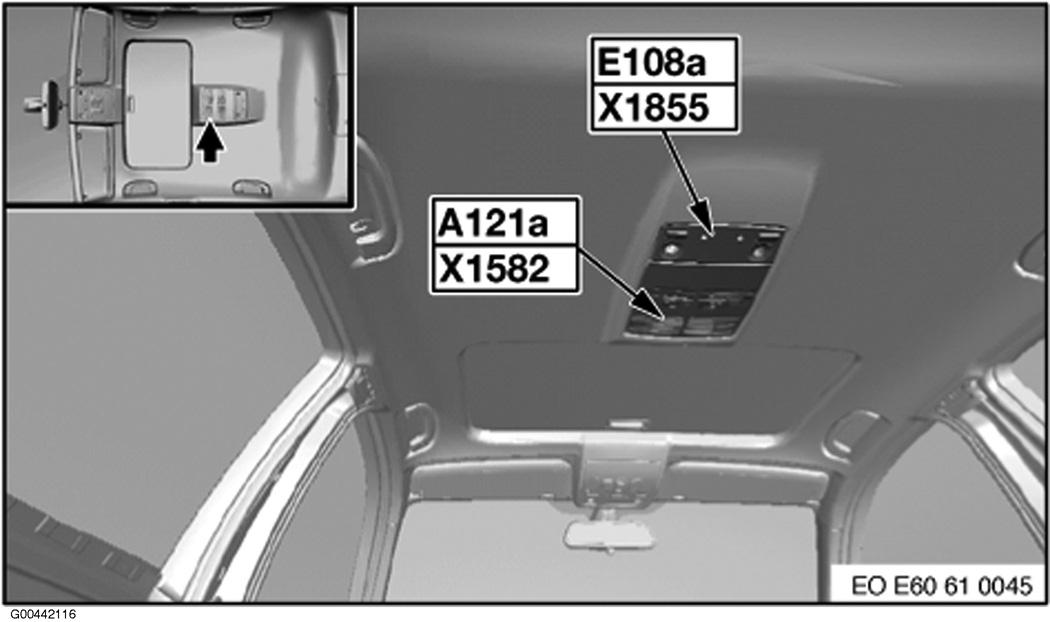

Fig 49: Behind Sunroof (Sedan)

G00442116

Courtesy of BMW OF NORTH AMERICA, INC.

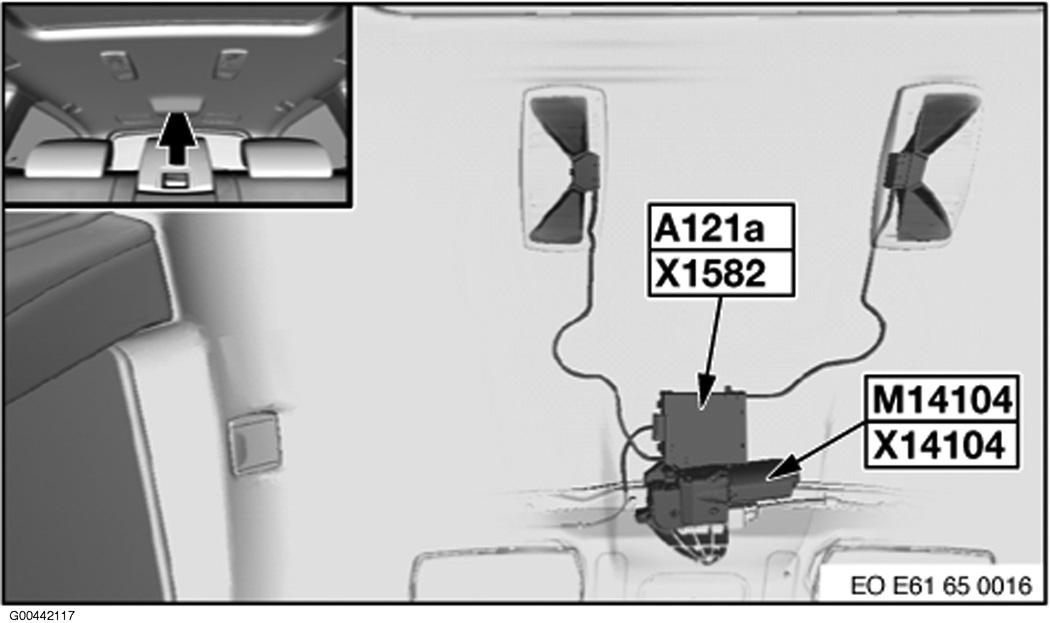

Fig 50: Rear Of Roof (Wagon)

G00442117

Courtesy of BMW OF NORTH AMERICA, INC.

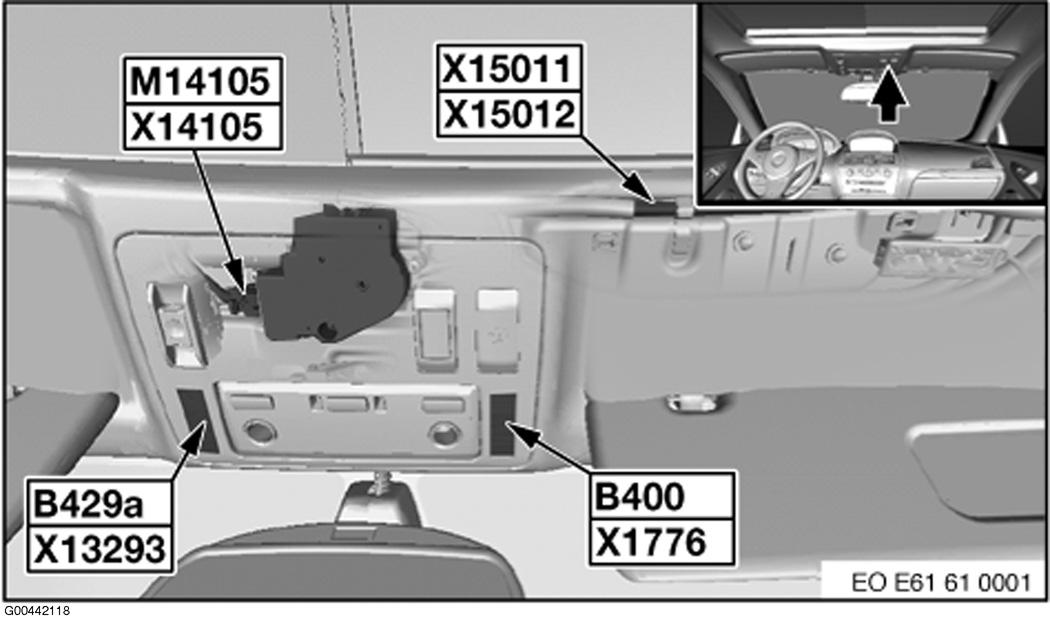

Fig 51: Front Center Of Roof

G00442118

Courtesy of BMW OF NORTH AMERICA, INC.

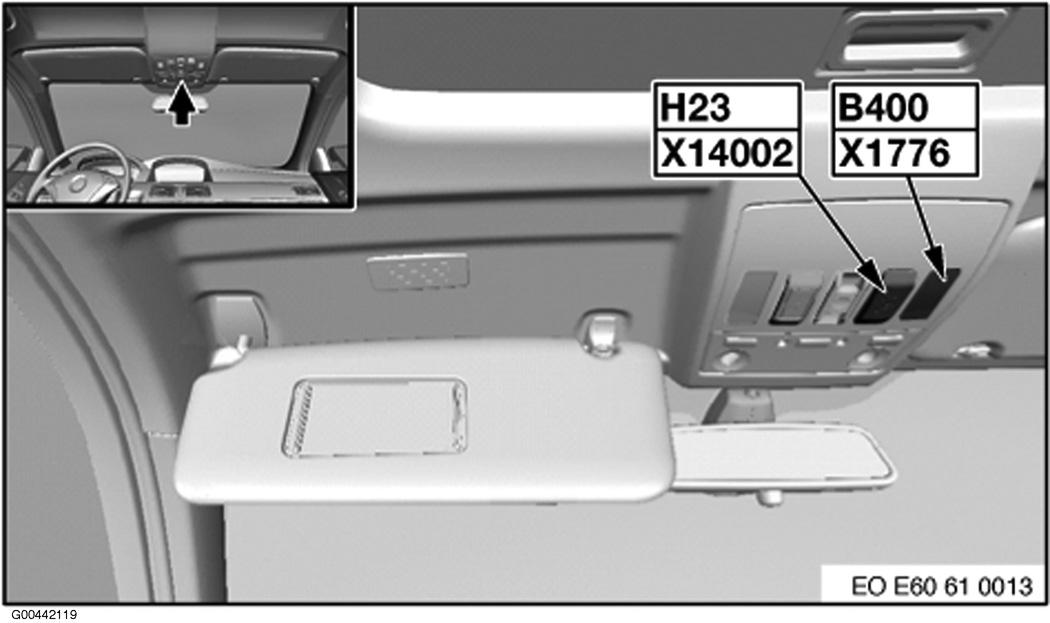

Fig 52: Front Center Of Roof

G00442119

Courtesy of BMW OF NORTH AMERICA, INC.

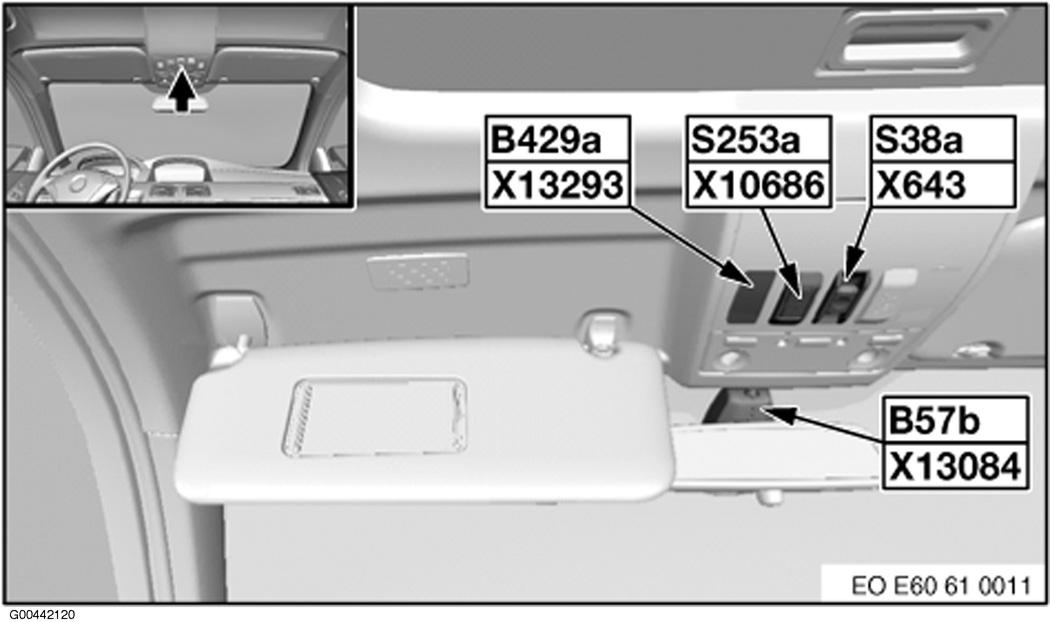

Fig 53: Front Center Of Roof

G00442120

Courtesy of BMW OF NORTH AMERICA, INC.

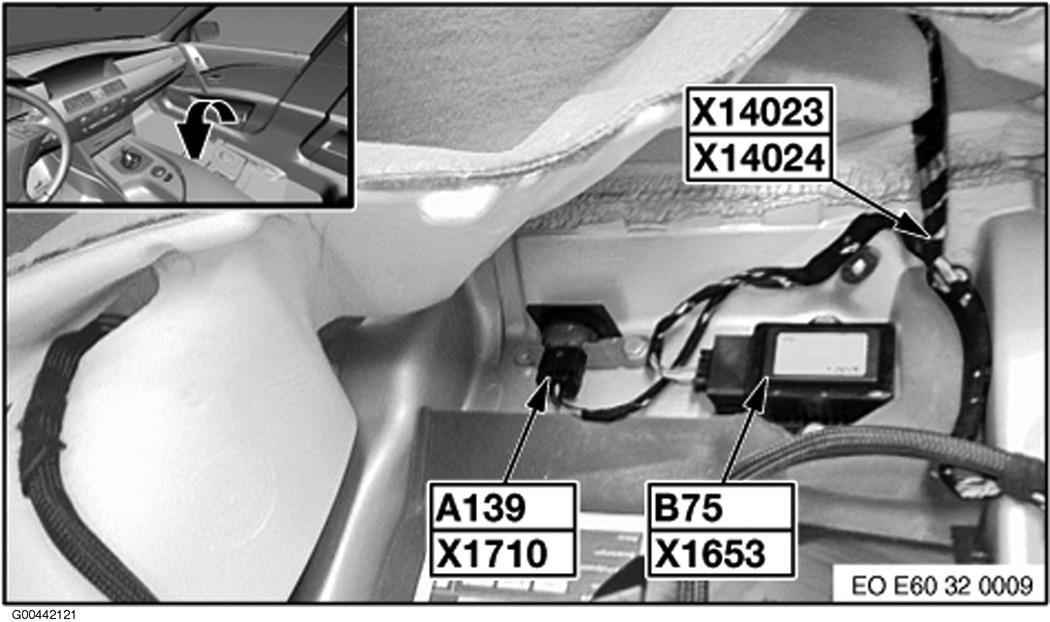

Fig 54: Under Front Passenger Seat

G00442121

Courtesy of BMW OF NORTH AMERICA, INC.

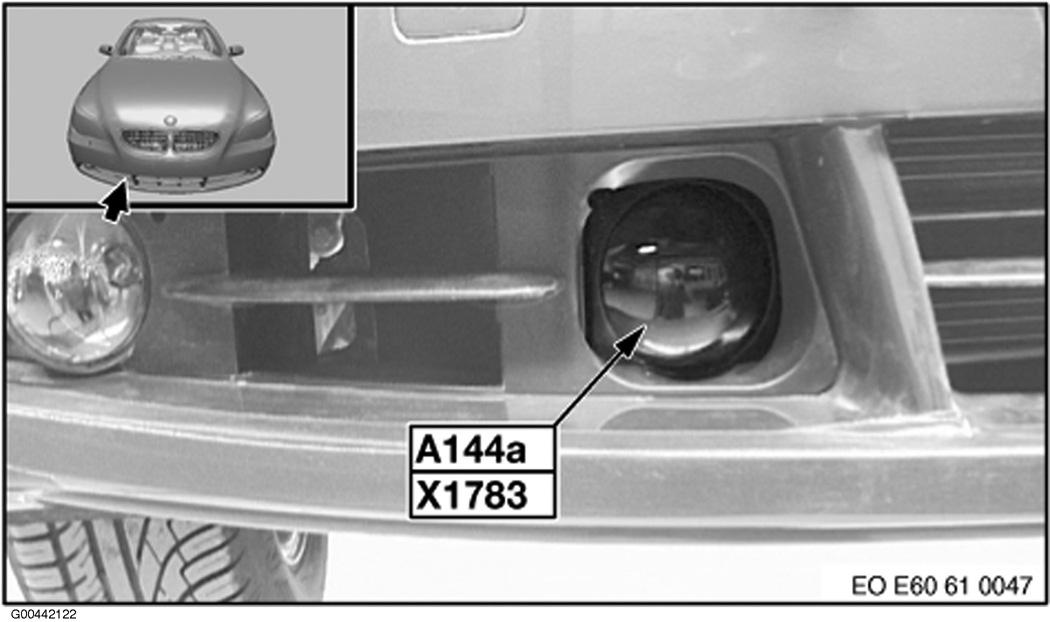

Fig 55: Right Front Of Bumper

G00442122

Courtesy of BMW OF NORTH AMERICA, INC.

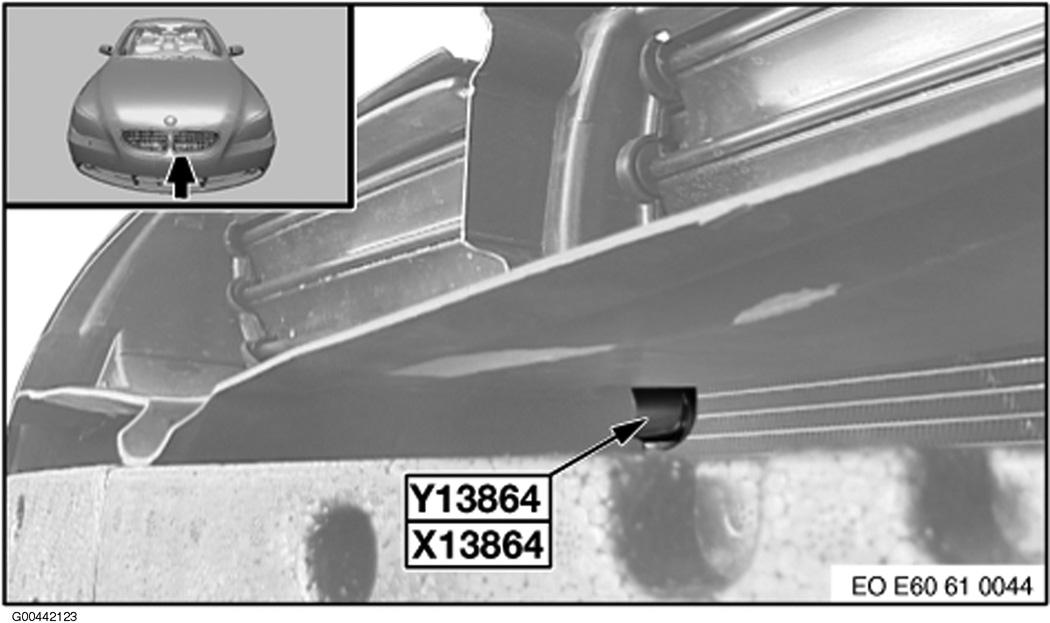

Fig 56: Center Of Bumper

G00442123

Courtesy of BMW OF NORTH AMERICA, INC.

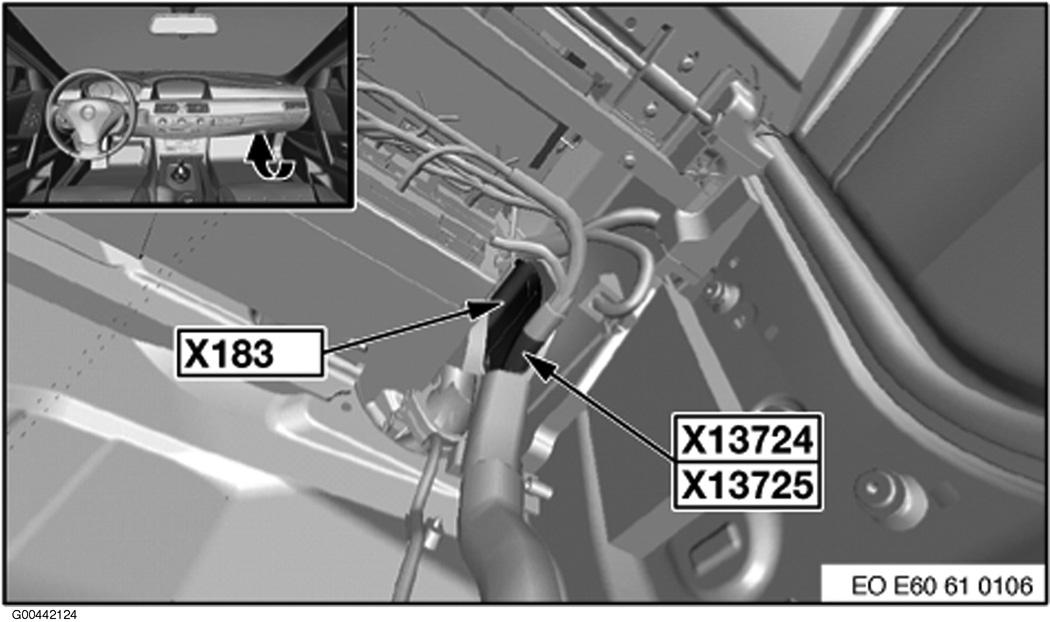

Fig 57: Under Right Side Of Dash

G00442124

Courtesy of BMW OF NORTH AMERICA, INC.

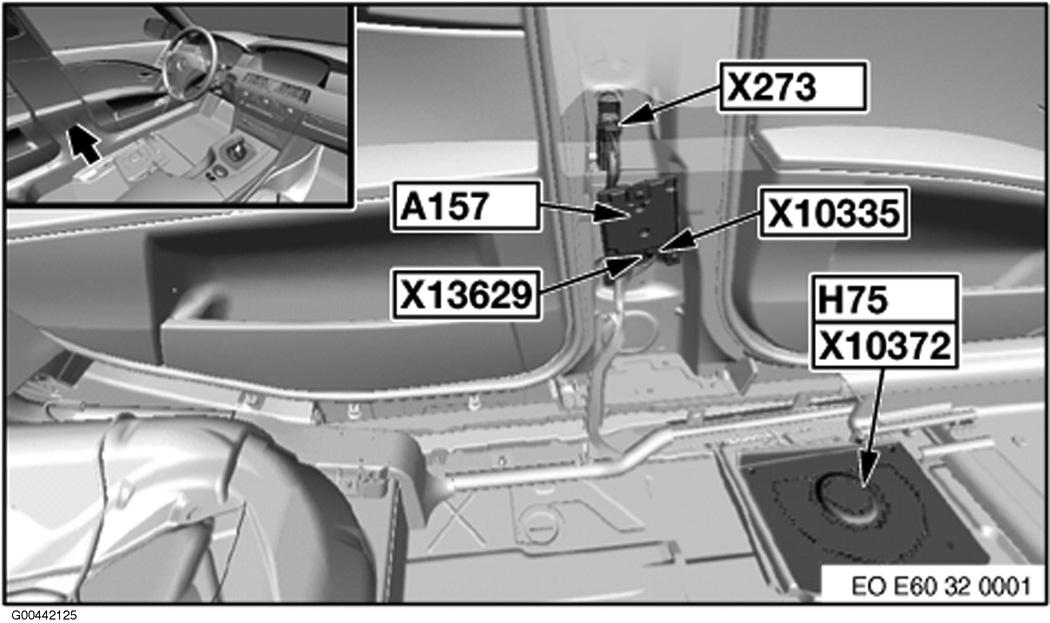

Fig 58: Bottom Of Left "B" Pillar

G00442125

Courtesy of BMW OF NORTH AMERICA, INC.

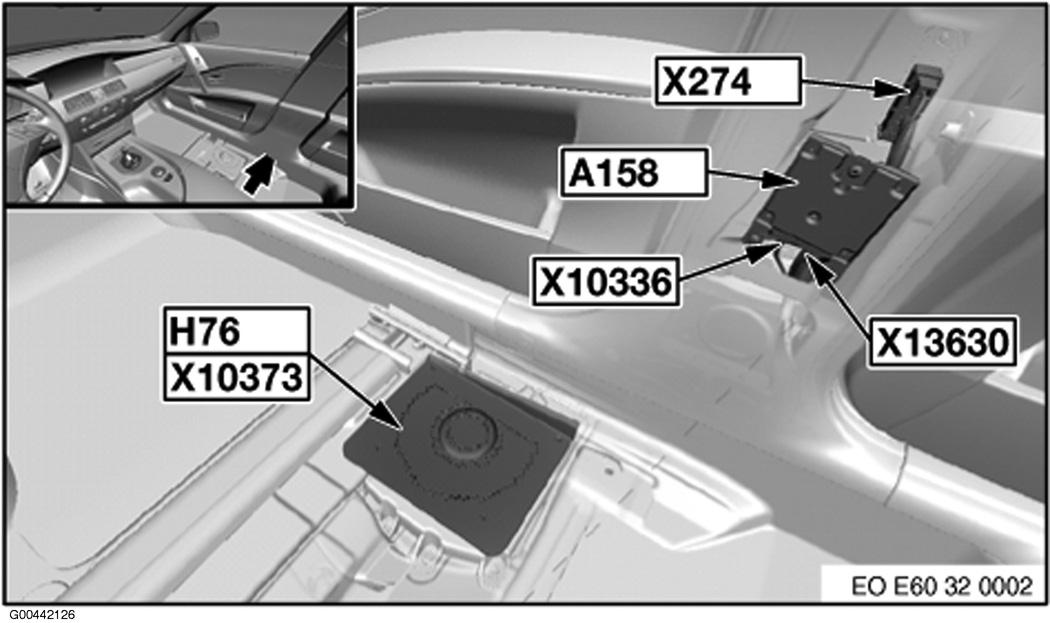

Fig 59: Bottom Of Right "B" Pillar

G00442126

Courtesy of BMW OF NORTH AMERICA, INC.

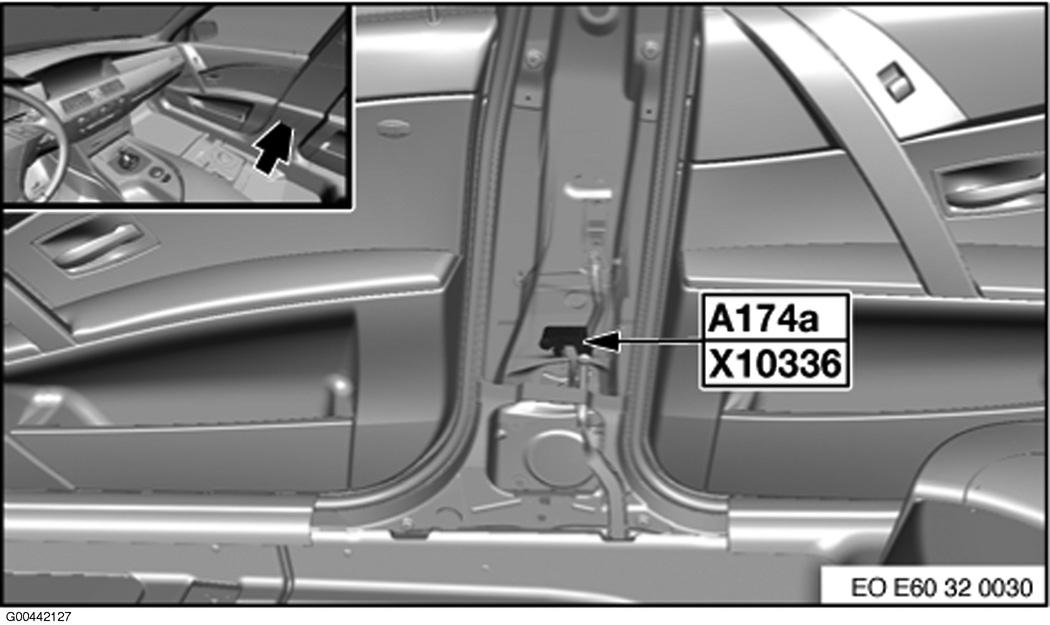

Fig 60: Bottom Of Right "B" Pillar

G00442127

Courtesy of BMW OF NORTH AMERICA, INC.

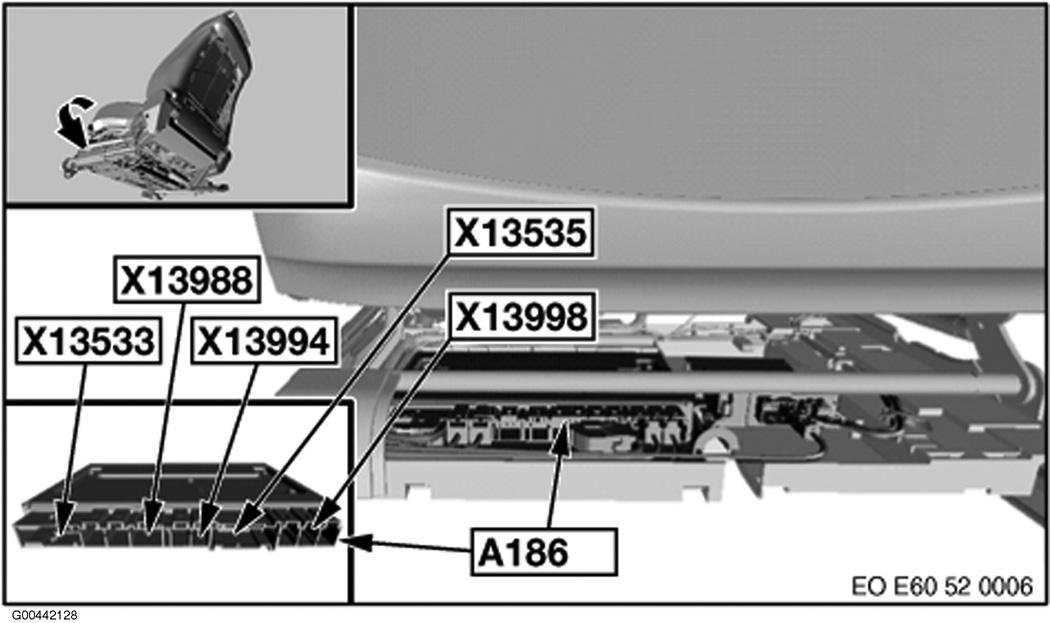

Fig 61: Under Front Passenger Seat

G00442128

Courtesy of BMW OF NORTH AMERICA, INC.

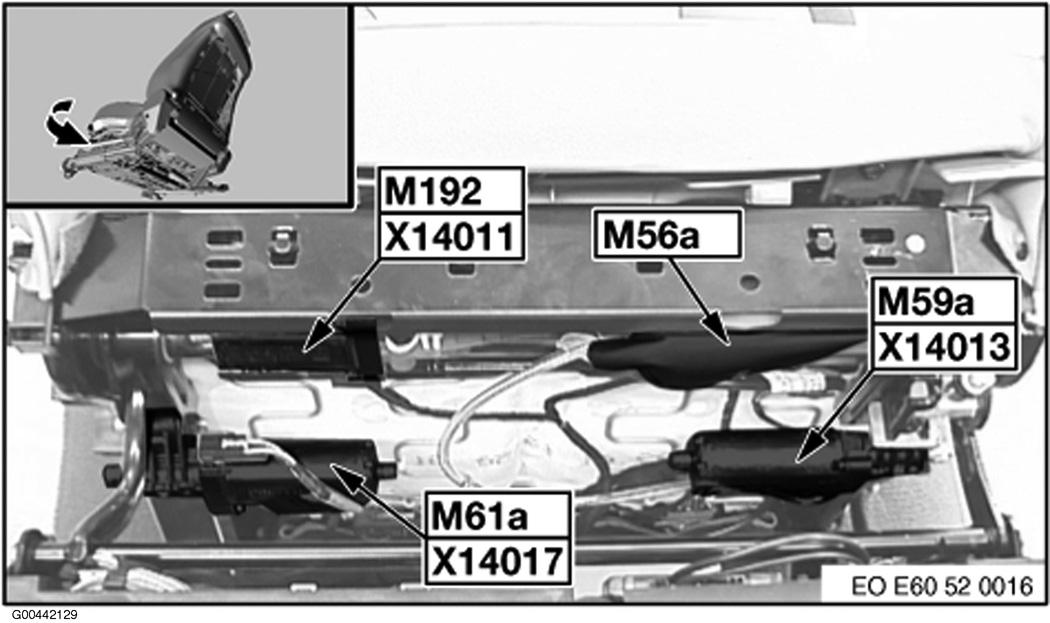

Fig 62: Under Front Passenger Seat

G00442129

Courtesy of BMW OF NORTH AMERICA, INC.

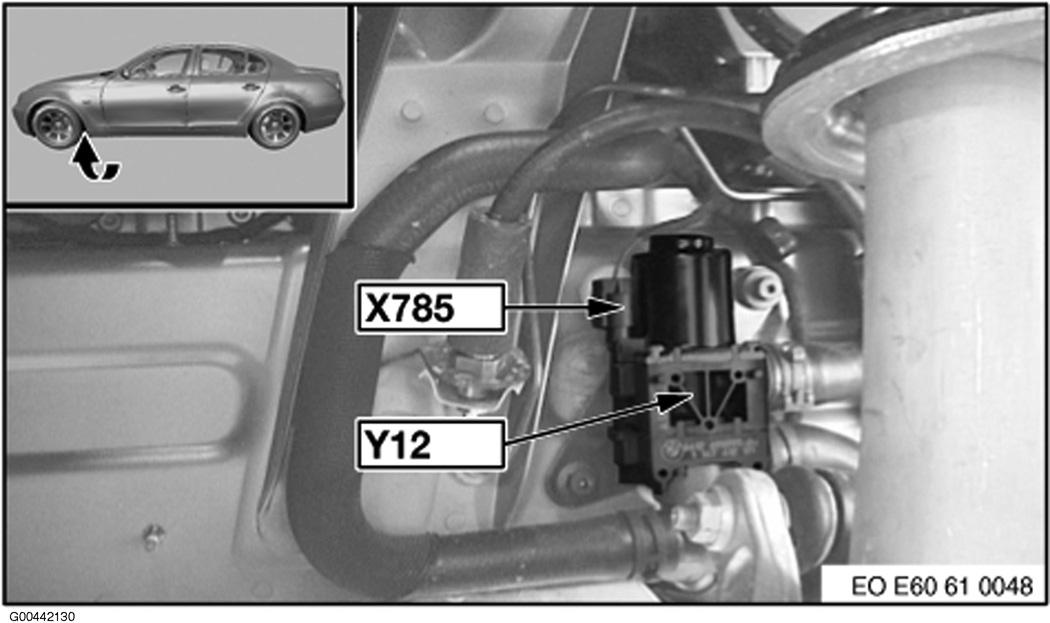

Fig 63: Behind Left Front Wheel

G00442130

Courtesy of BMW OF NORTH AMERICA, INC.

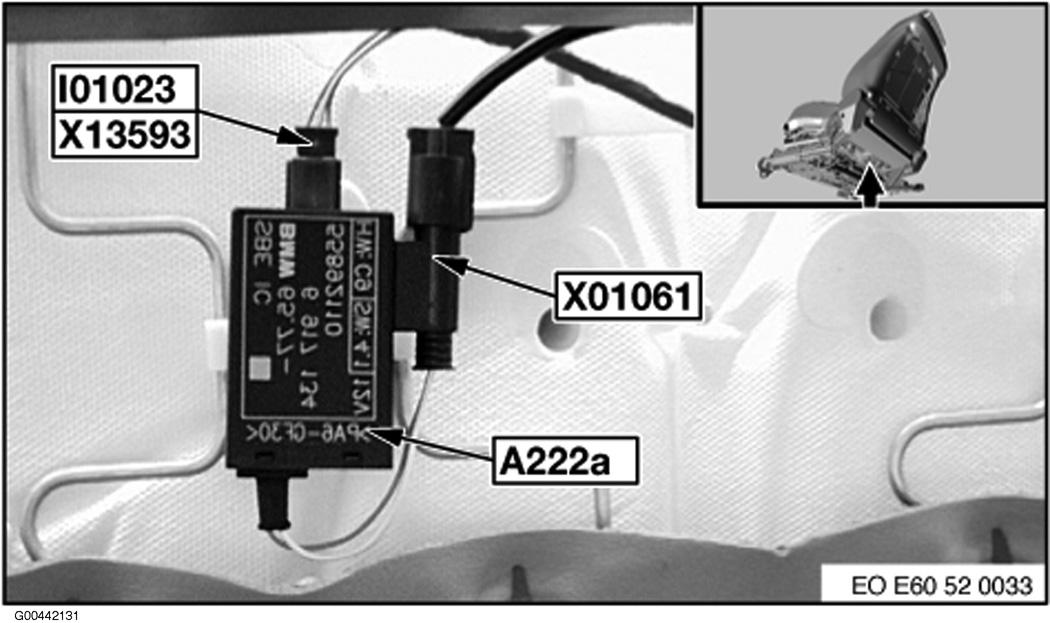

Fig 64: Under Front Passenger Seat

G00442131

Courtesy of BMW OF NORTH AMERICA, INC.

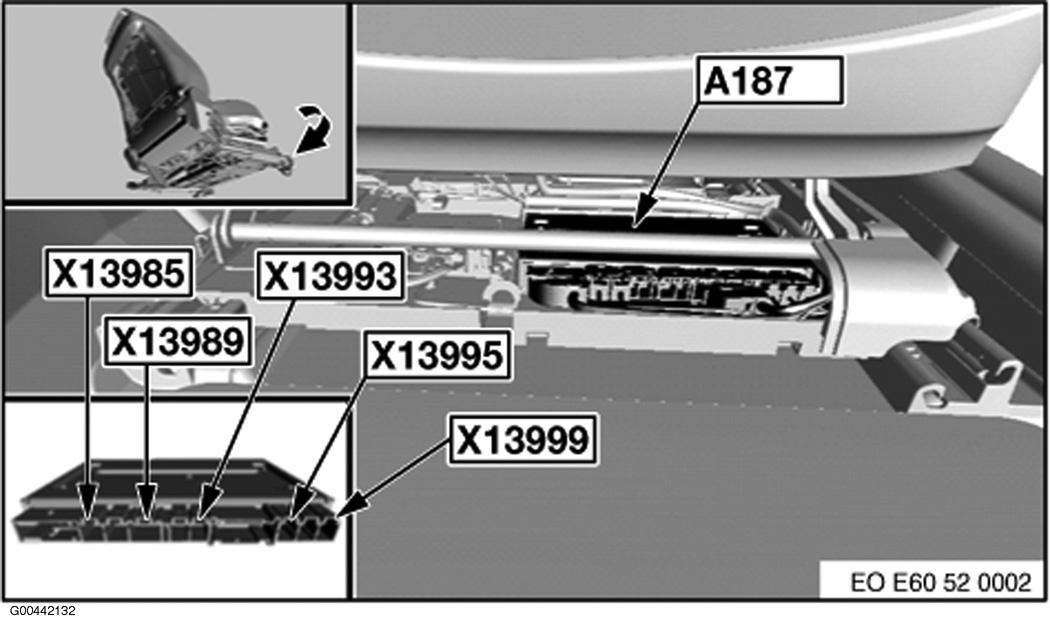

Fig 65: Under Driver Seat

G00442132

Courtesy of BMW OF NORTH AMERICA, INC.

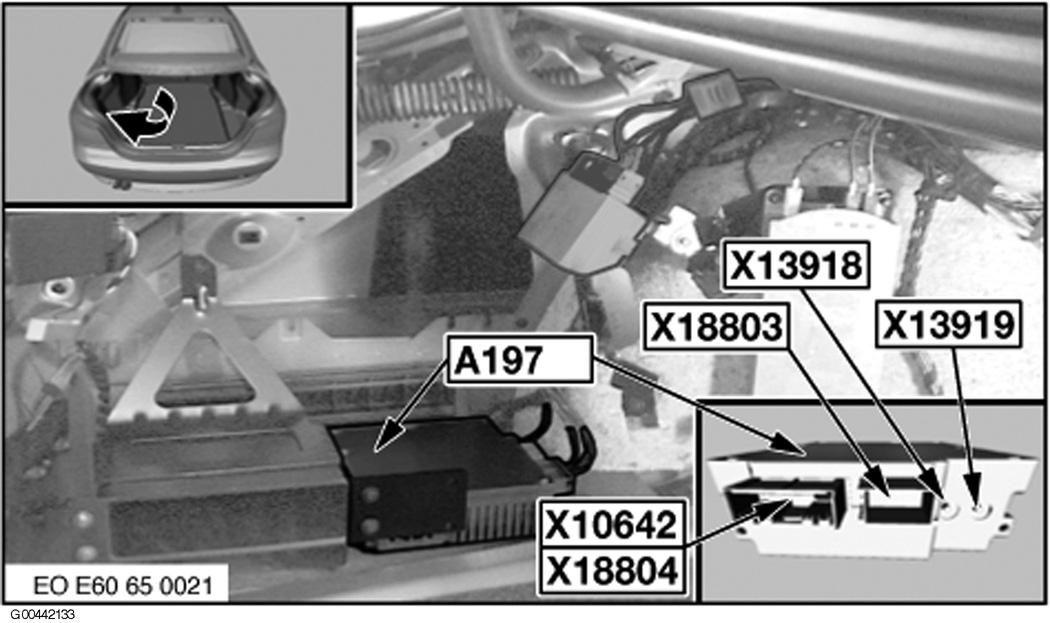

Fig 66: Left Side Of Rear Compartment (Sedan)

G00442133

Courtesy of BMW OF NORTH AMERICA, INC.

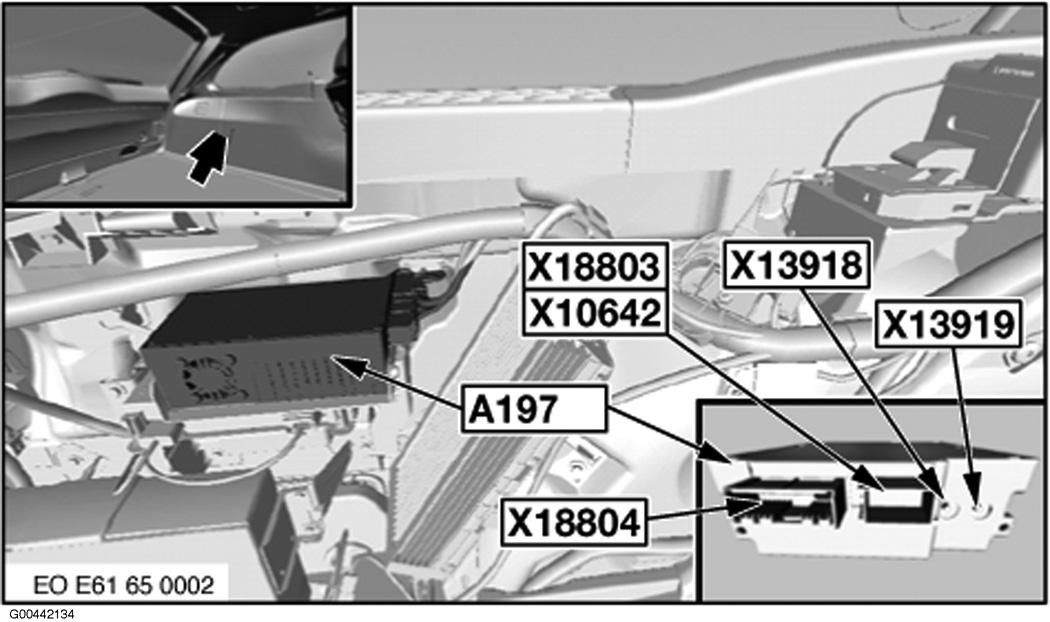

Fig 67: Left Side Of Rear Compartment (Wagon)

G00442134

Courtesy of BMW OF NORTH AMERICA, INC.

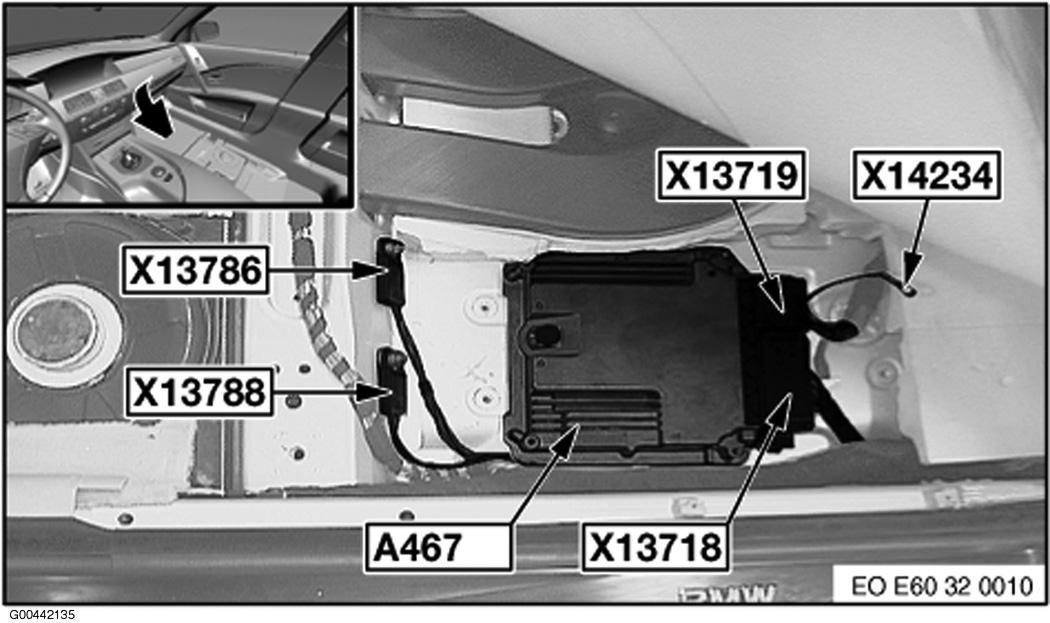

Fig 68: Front Of Front Passenger Seat

G00442135

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 69: Under Right Side Of Dash

G00442136

Courtesy of BMW OF NORTH AMERICA, INC.

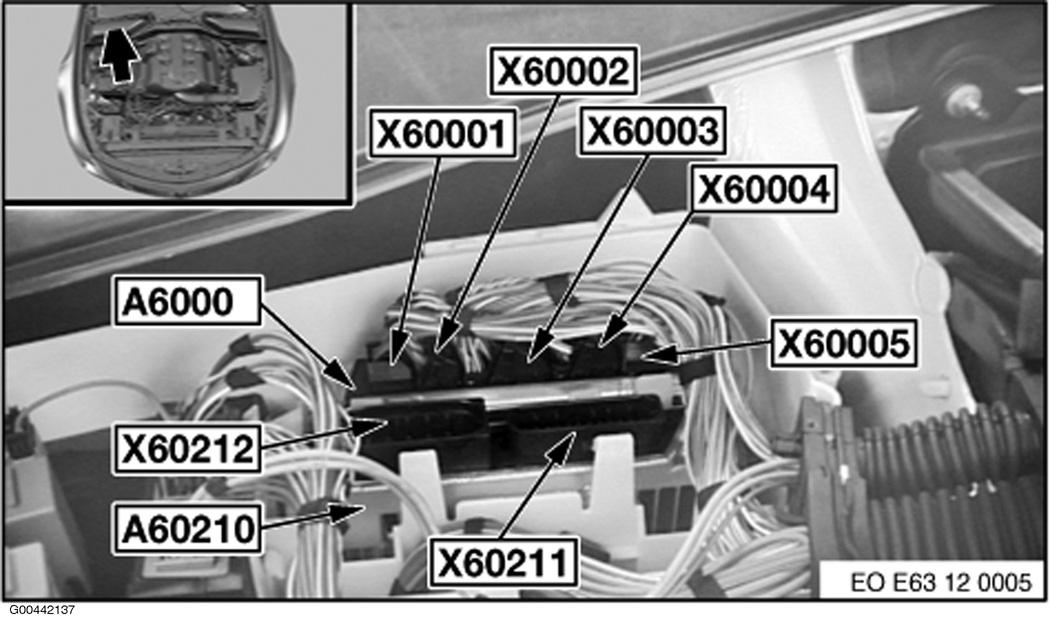

Fig 70: Right Rear Of Engine Compartment

G00442137

Courtesy of BMW OF NORTH AMERICA, INC.

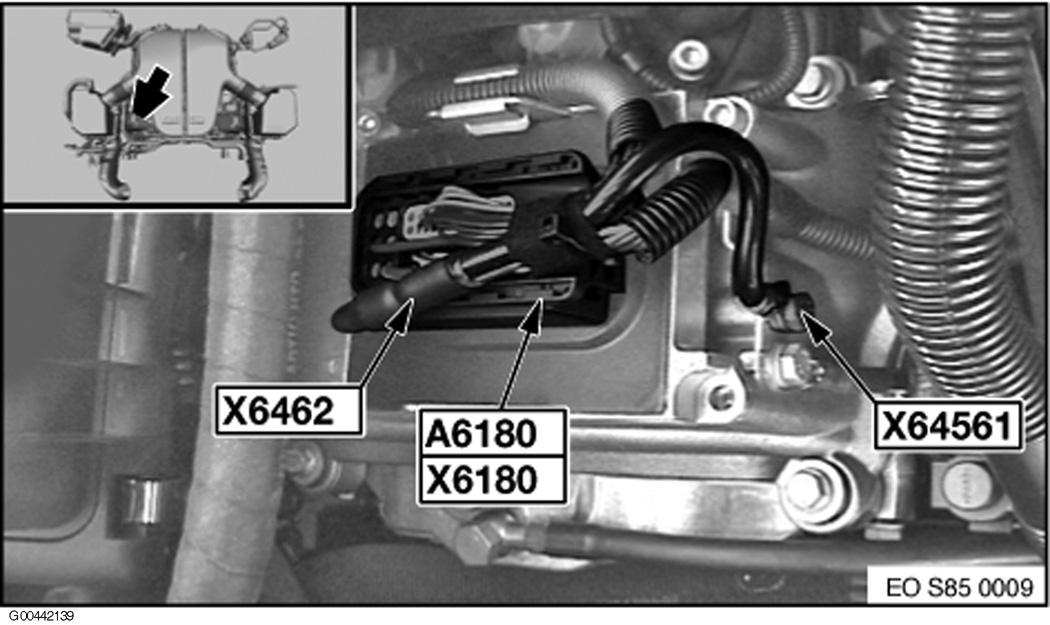

Fig 71: Right Front Side Of Engine

G00442139

Courtesy of BMW OF NORTH AMERICA, INC.

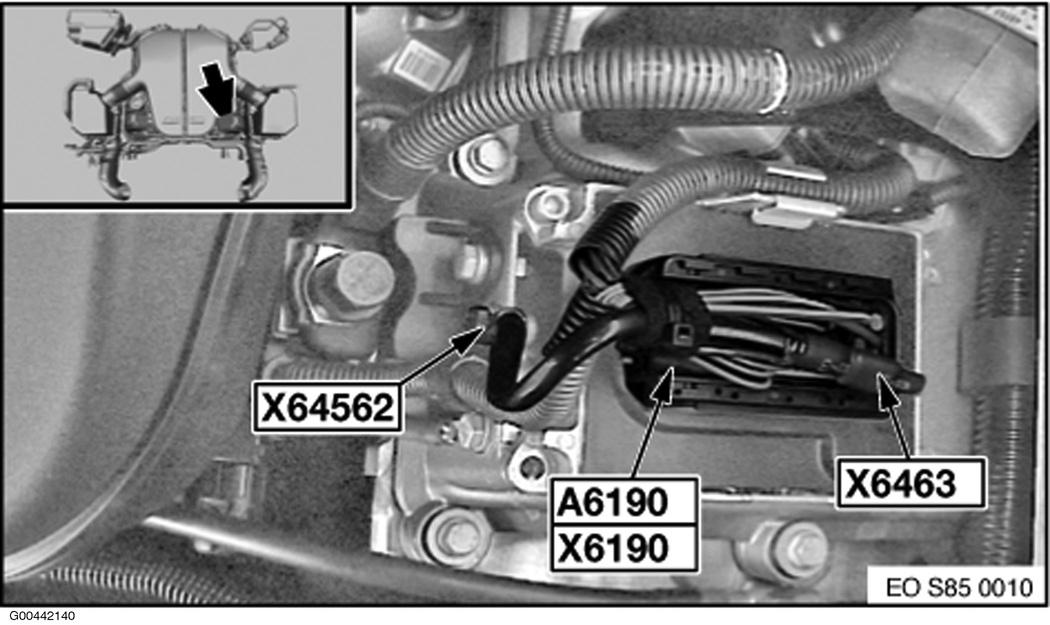

Fig 72: Left Front Side Of Engine

G00442140

Courtesy of BMW OF NORTH AMERICA, INC.

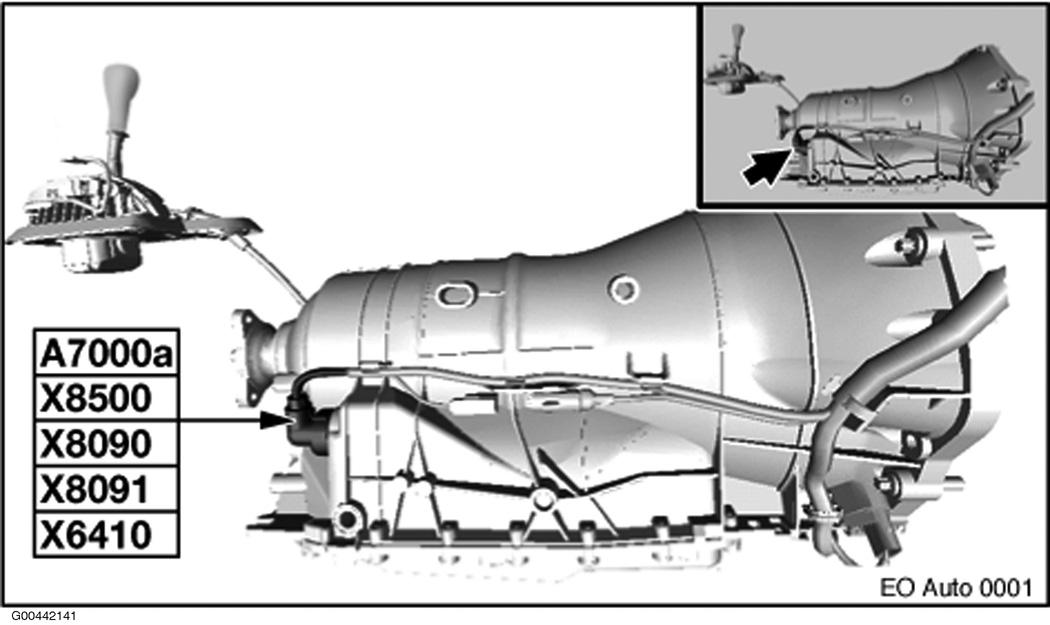

Fig 73: Rear Of Transmission

G00442141

Courtesy of BMW OF NORTH AMERICA, INC.

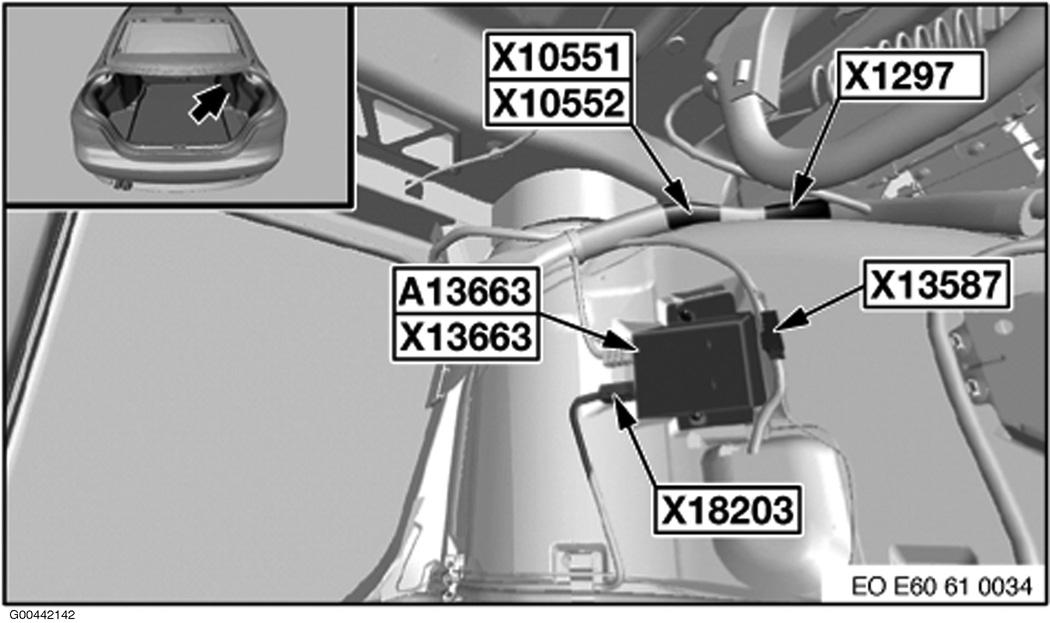

Fig 74: Right Rear Side Of Rear Compartment (Sedan)

G00442142

Courtesy of BMW OF NORTH AMERICA, INC.

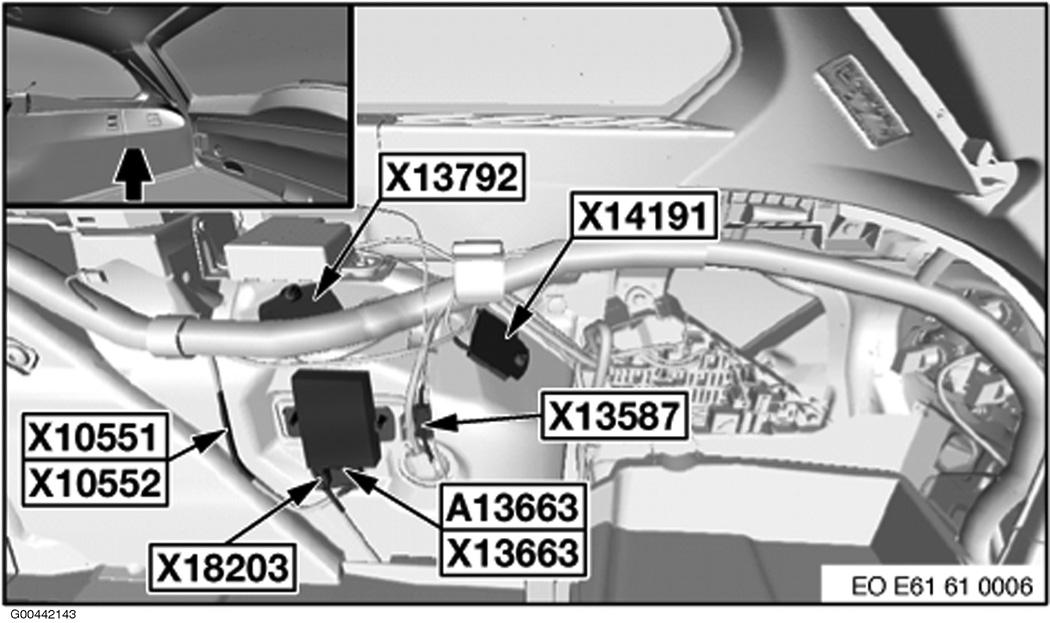

Fig 75: Right Side Of Rear Compartment (Wagon)

G00442143

Courtesy of BMW OF NORTH AMERICA, INC.

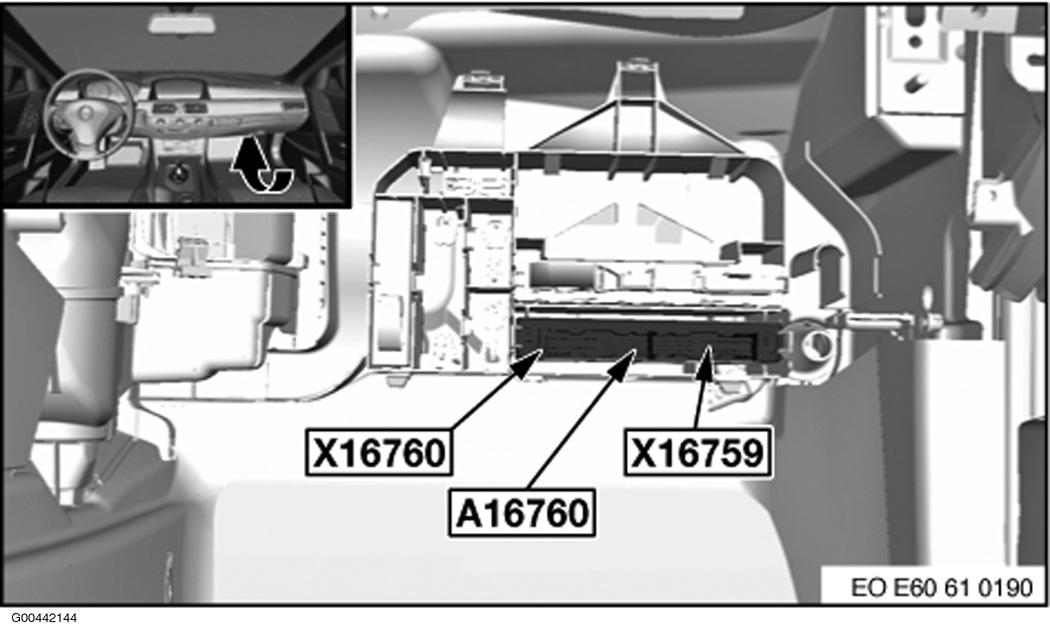

Fig 76: Under Right Side Of Dash

G00442144

Courtesy of BMW OF NORTH AMERICA, INC.

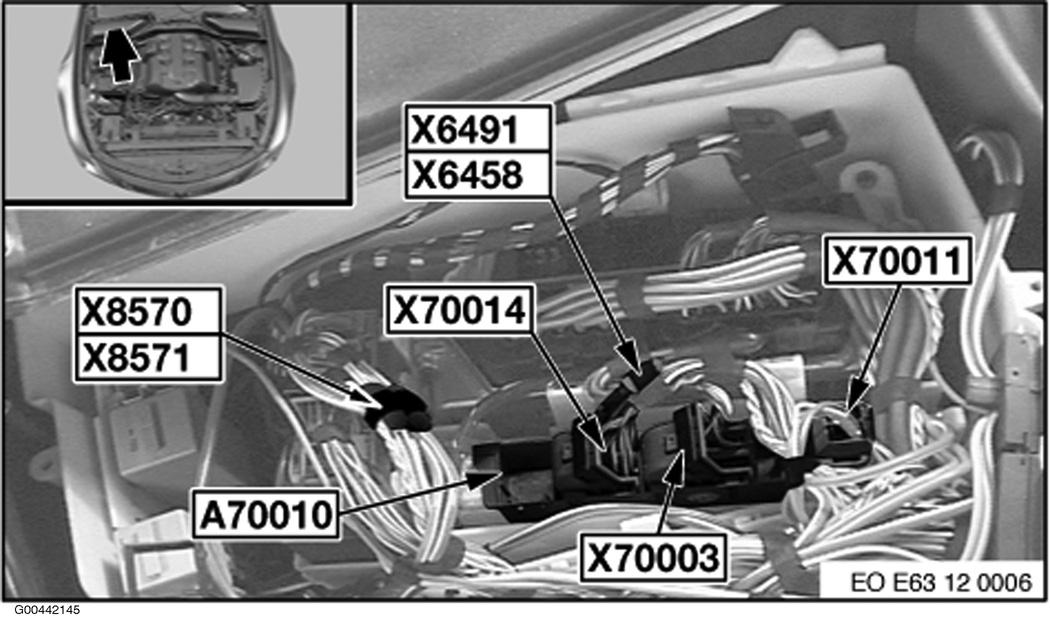

Fig 77: Right Rear Of Engine Compartment

G00442145

Courtesy of BMW OF NORTH AMERICA, INC.

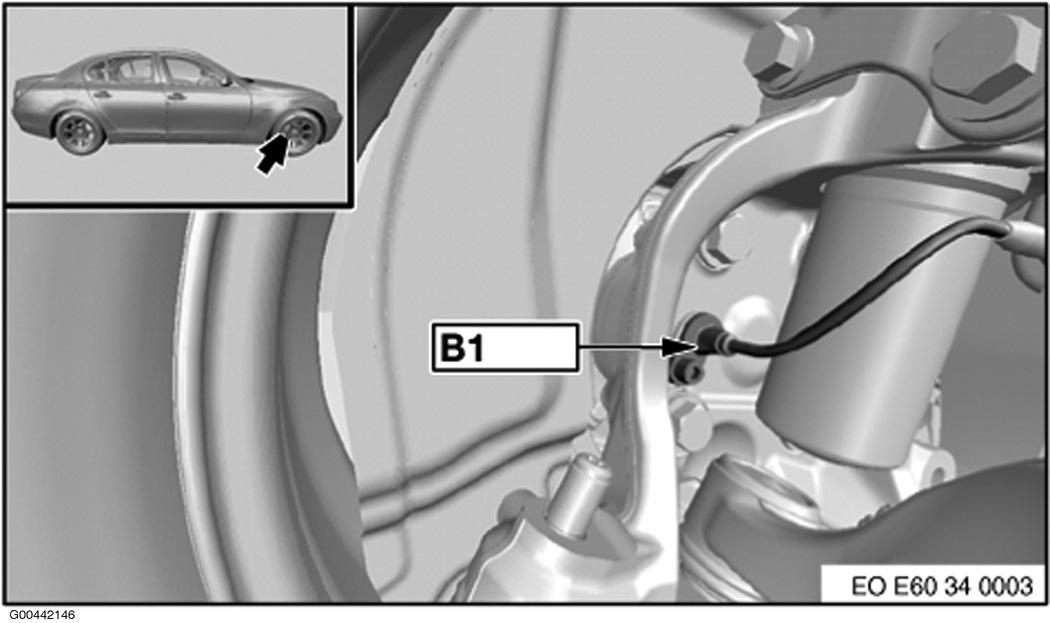

Fig 78: Behind Right Front Wheel

G00442146

Courtesy of BMW OF NORTH AMERICA, INC.

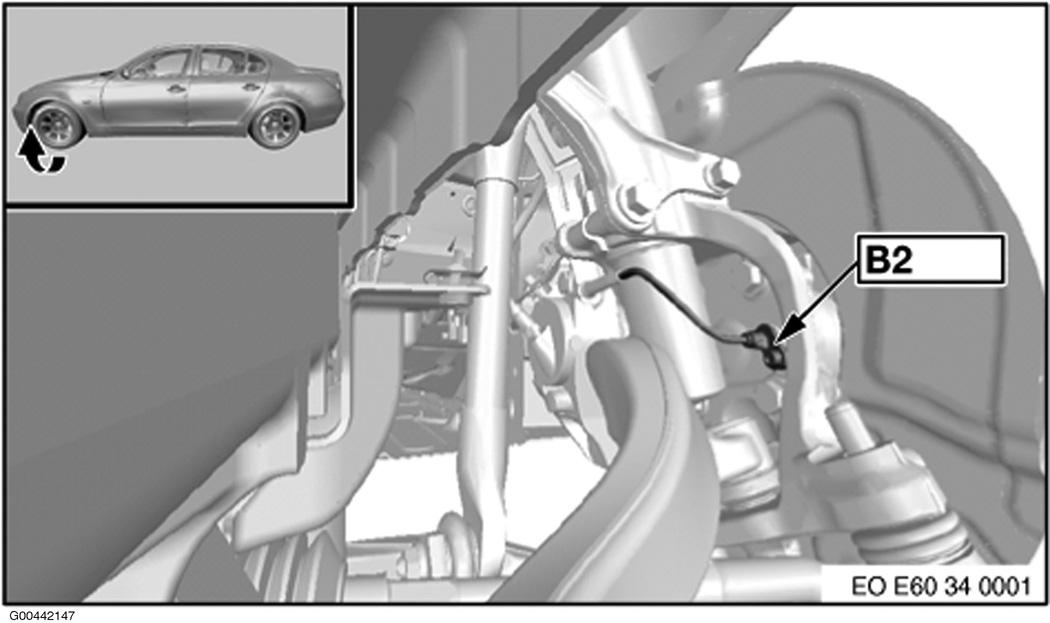

Fig 79: Front Of Left Front Wheel

G00442147

Courtesy of BMW OF NORTH AMERICA, INC.

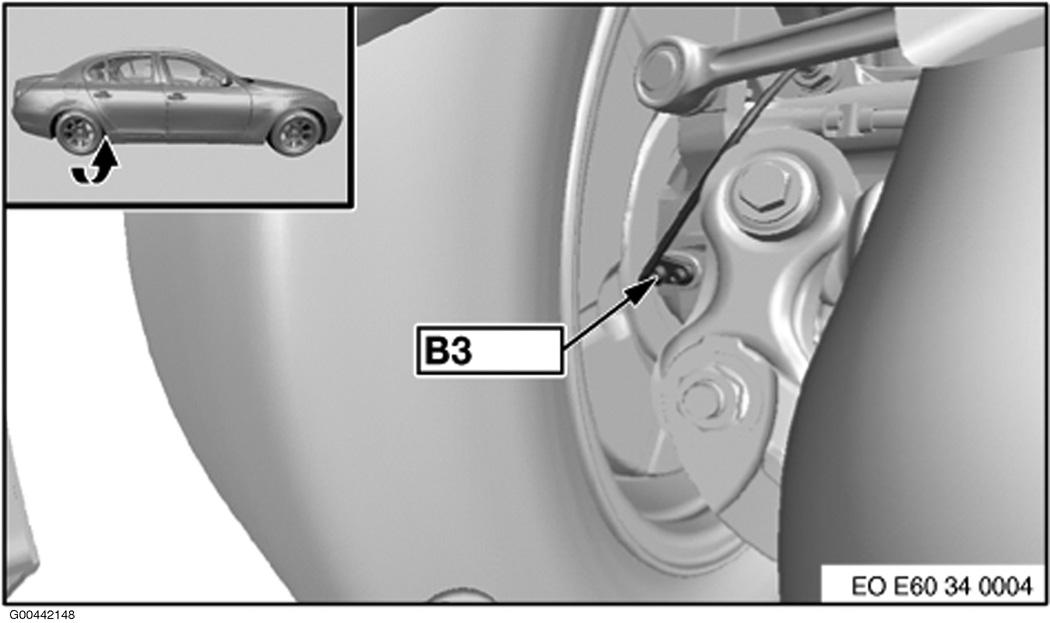

Fig 80: Front Of Right Rear Wheel

G00442148

Courtesy of BMW OF NORTH AMERICA, INC.

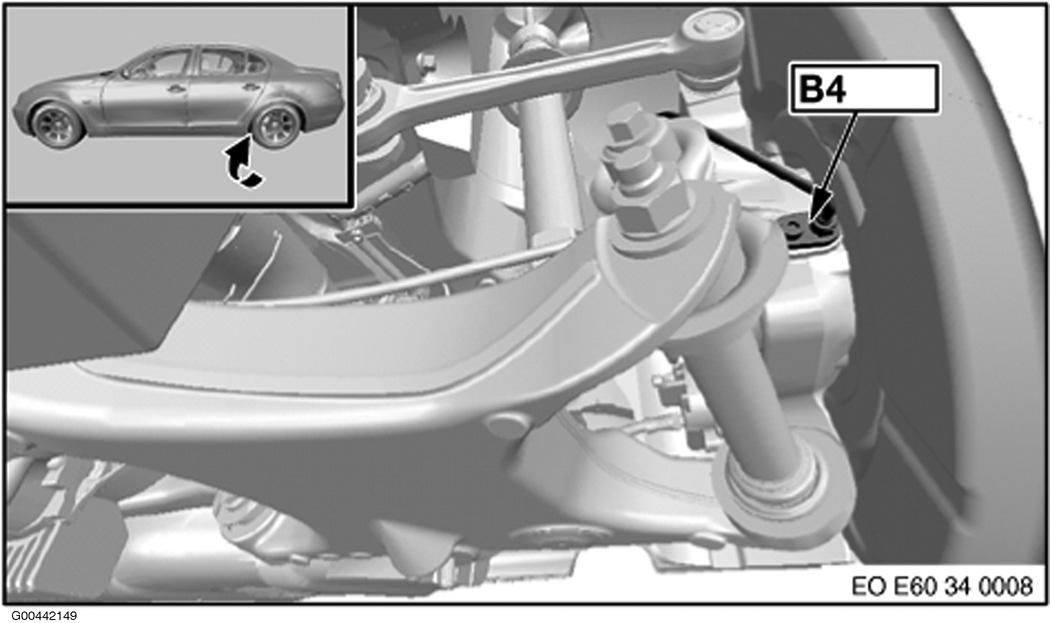

Fig 81: Front Of Left Rear Wheel

G00442149

Courtesy of BMW OF NORTH AMERICA, INC.

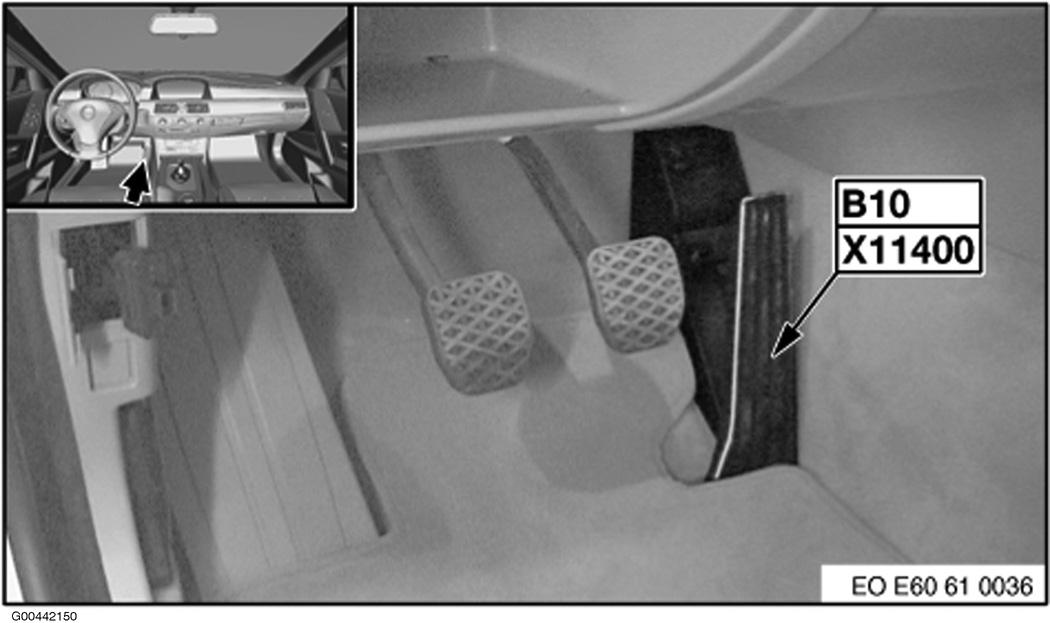

Fig 82: Part Of Accelerator Pedal

G00442150

Courtesy of BMW OF NORTH AMERICA, INC.

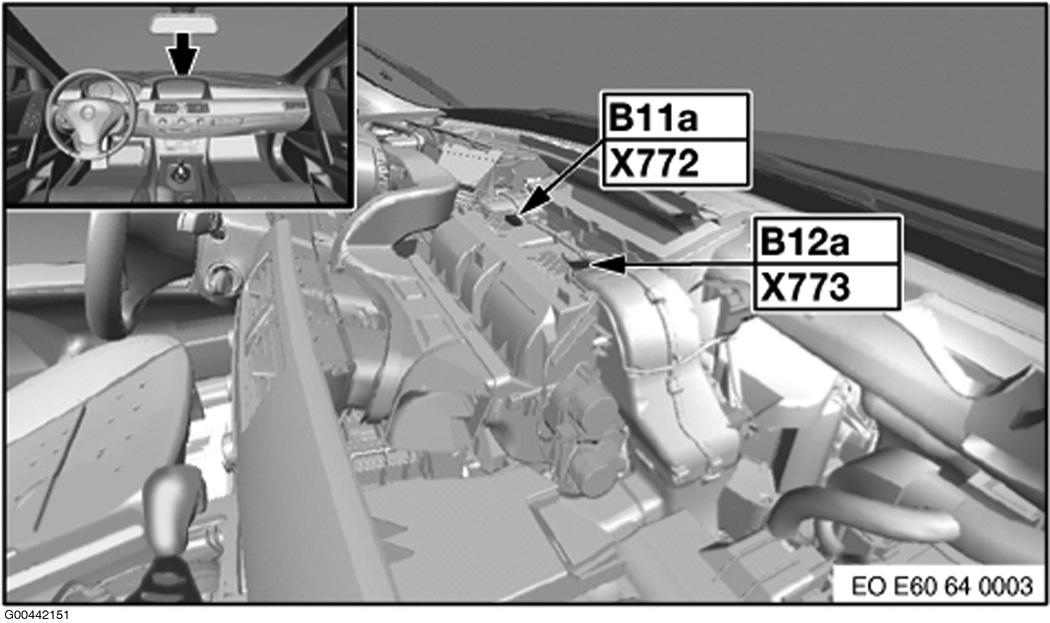

Fig 83: Top Center Of Dash

G00442151

Courtesy of BMW OF NORTH AMERICA, INC.

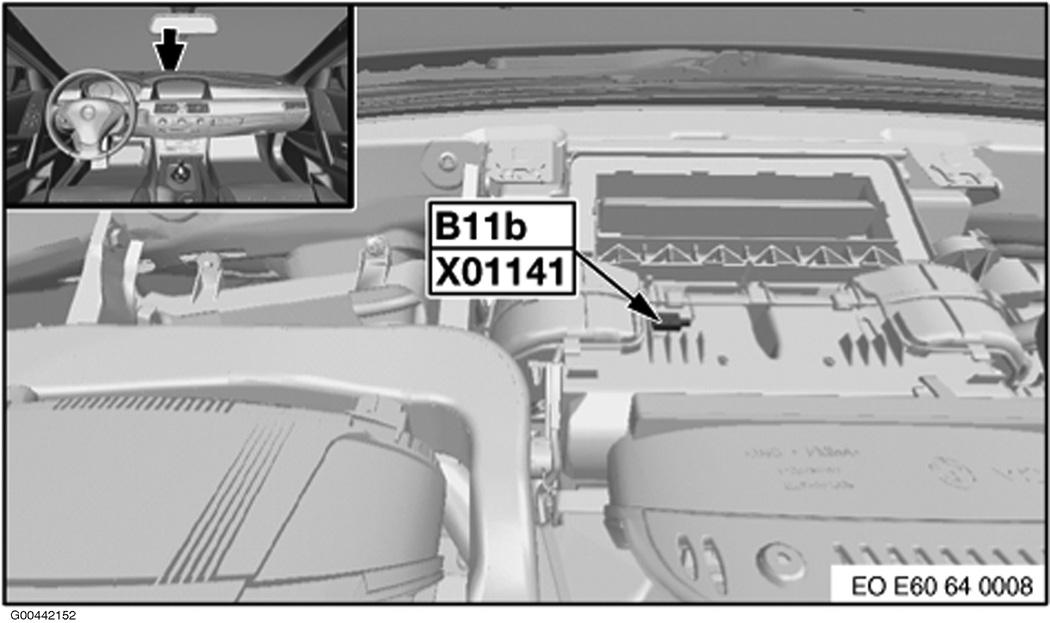

Fig 84: Top Center Of Dash

G00442152

Courtesy of BMW OF NORTH AMERICA, INC.

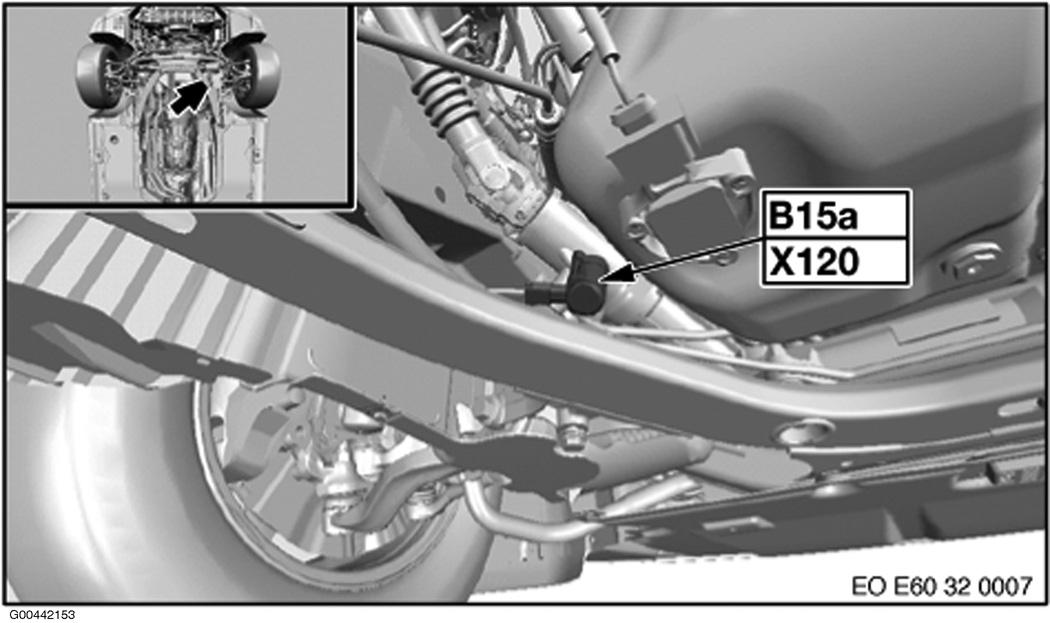

Fig 85: Under Vehicle

G00442153

Courtesy of BMW OF NORTH AMERICA, INC.

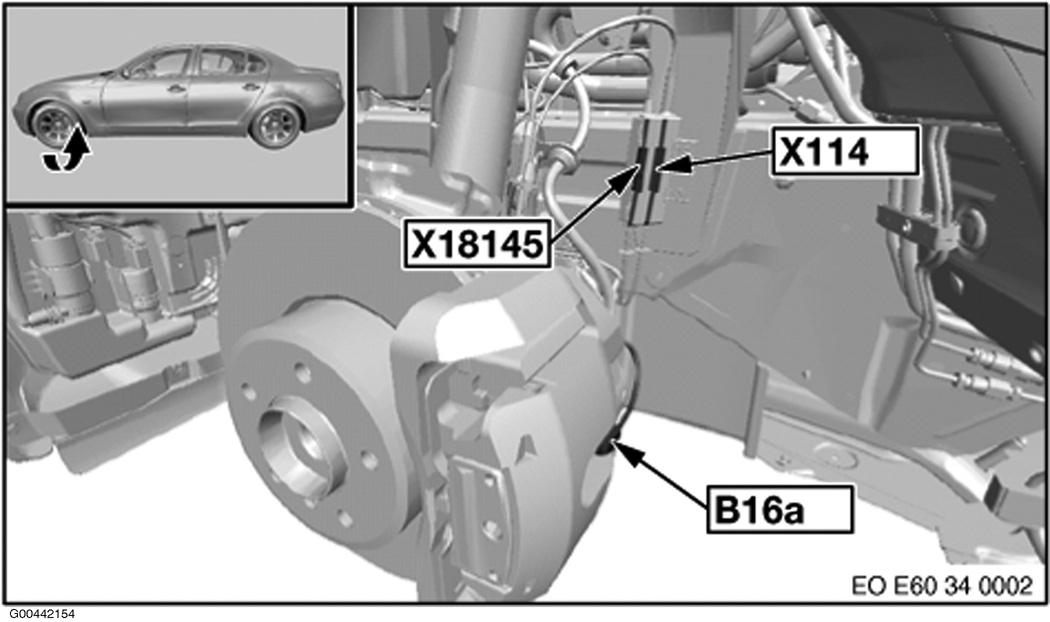

Fig 86: Behind Left Front Wheel

G00442154

Courtesy of BMW OF NORTH AMERICA, INC.

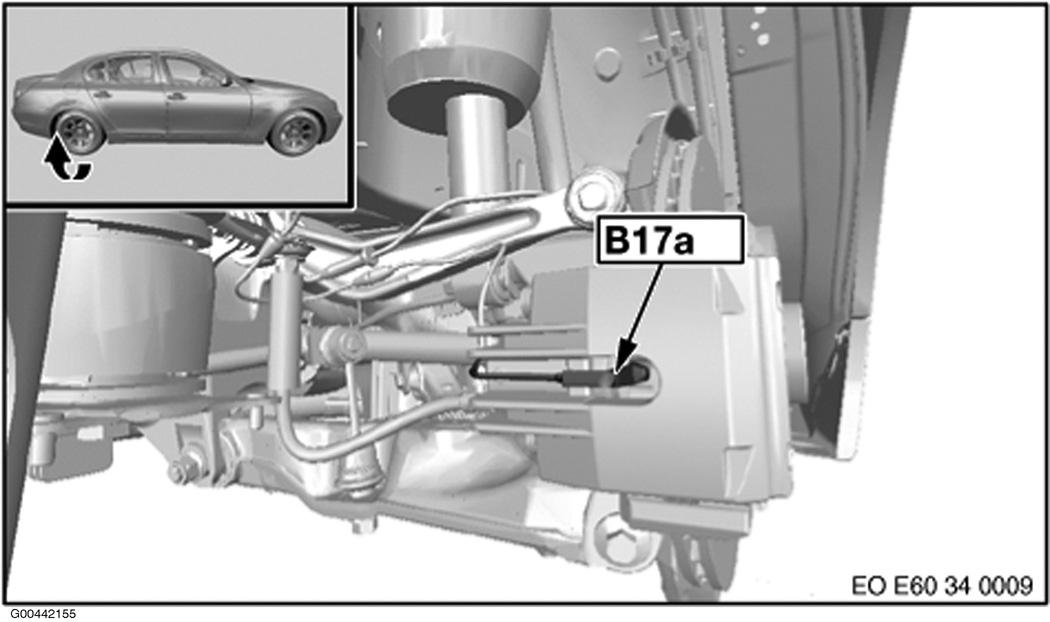

Fig 87: Behind Right Rear Wheel

G00442155

Courtesy of BMW OF NORTH AMERICA, INC.

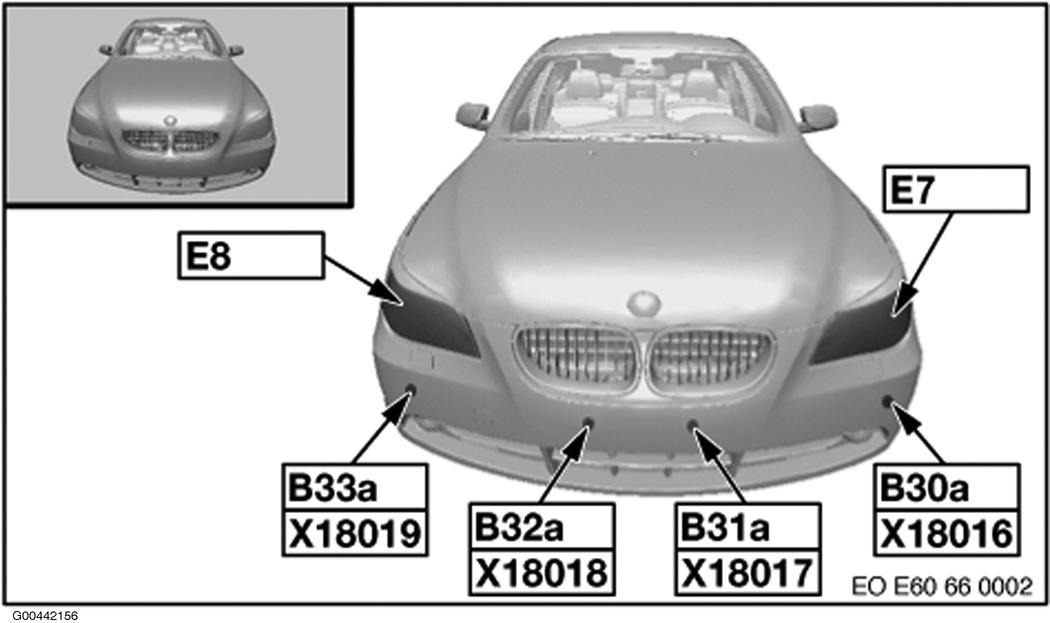

Fig 88: Front Bumper

G00442156

Courtesy of BMW OF NORTH AMERICA, INC.

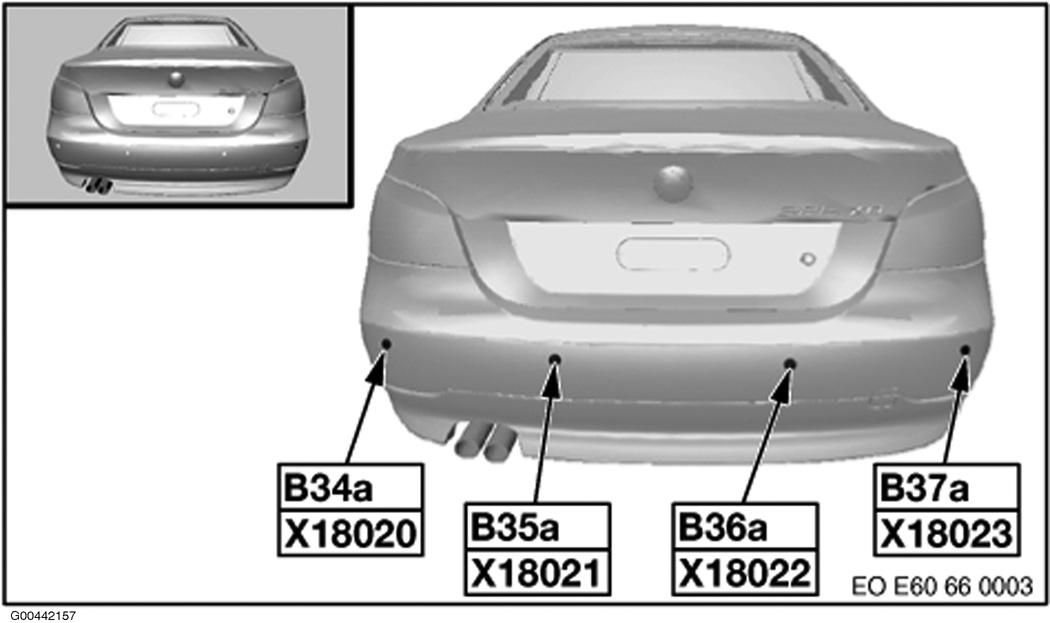

Fig 89: Rear Bumper (Sedan)

G00442157

Courtesy of BMW OF NORTH AMERICA, INC.

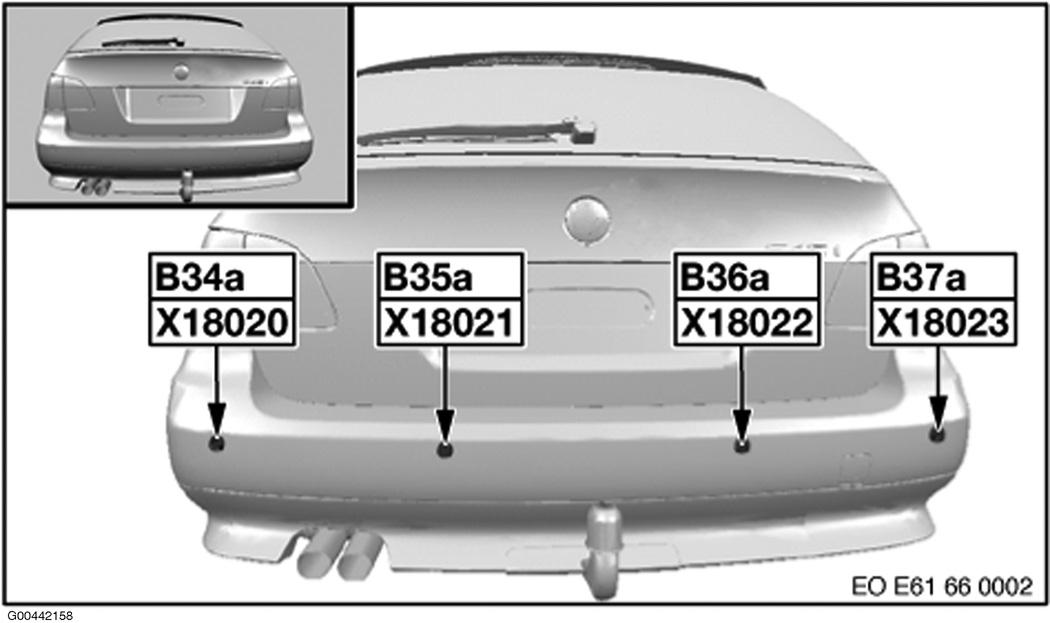

Fig 90: Rear Bumper (Wagon)

G00442158

Courtesy of BMW OF NORTH AMERICA, INC.

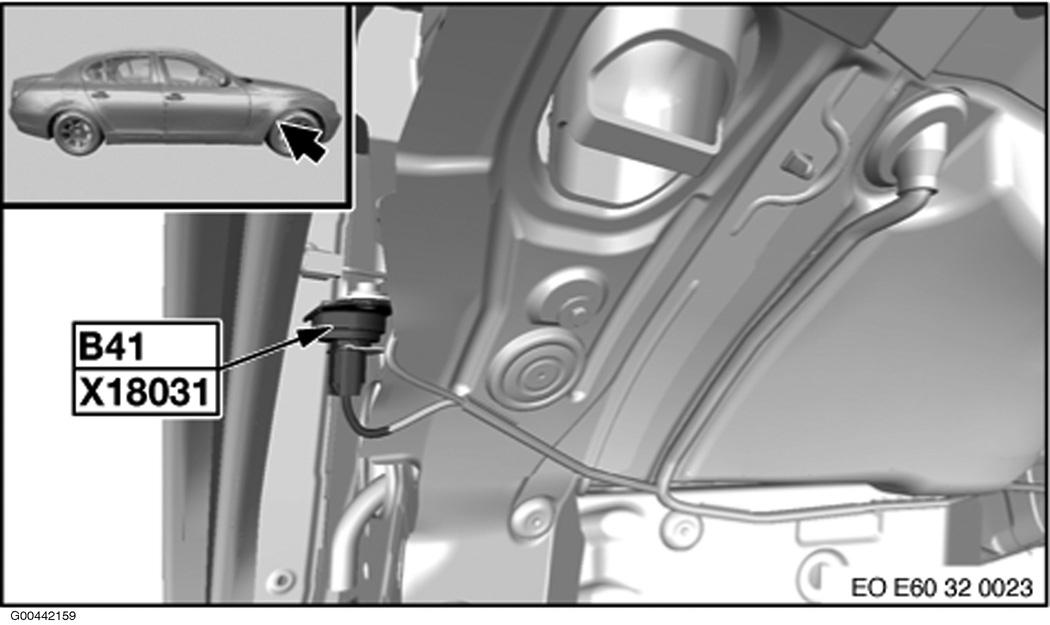

Fig 91: Behind Right Front Wheel

G00442159

Courtesy of BMW OF NORTH AMERICA, INC.

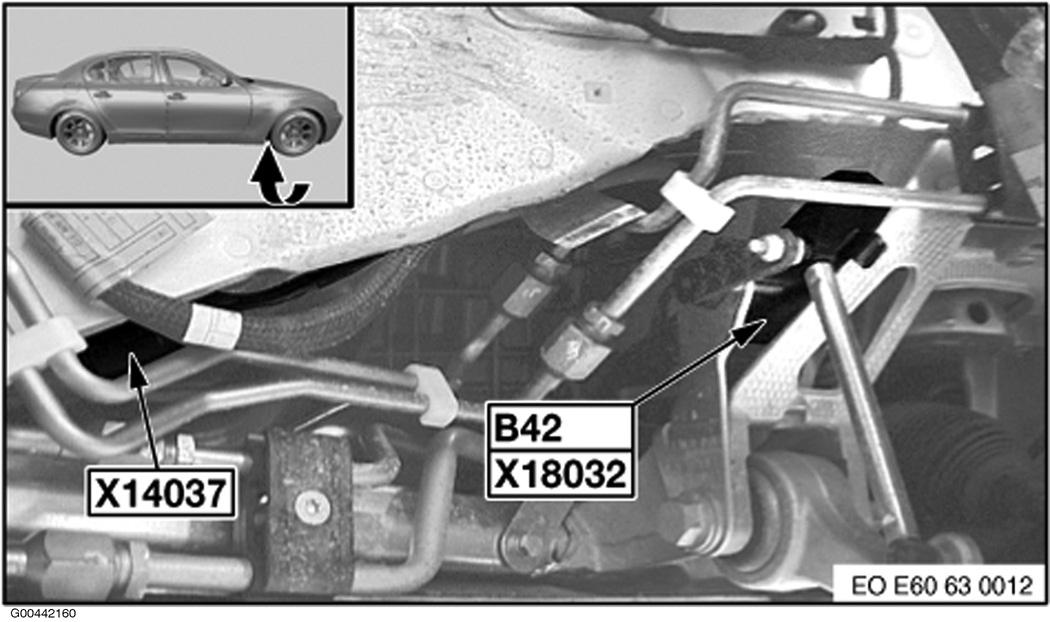

Fig 92: Behind Right Front Wheel

G00442160

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 93: Behind Left Front Wheel

G00442161

Courtesy of BMW OF NORTH AMERICA, INC.

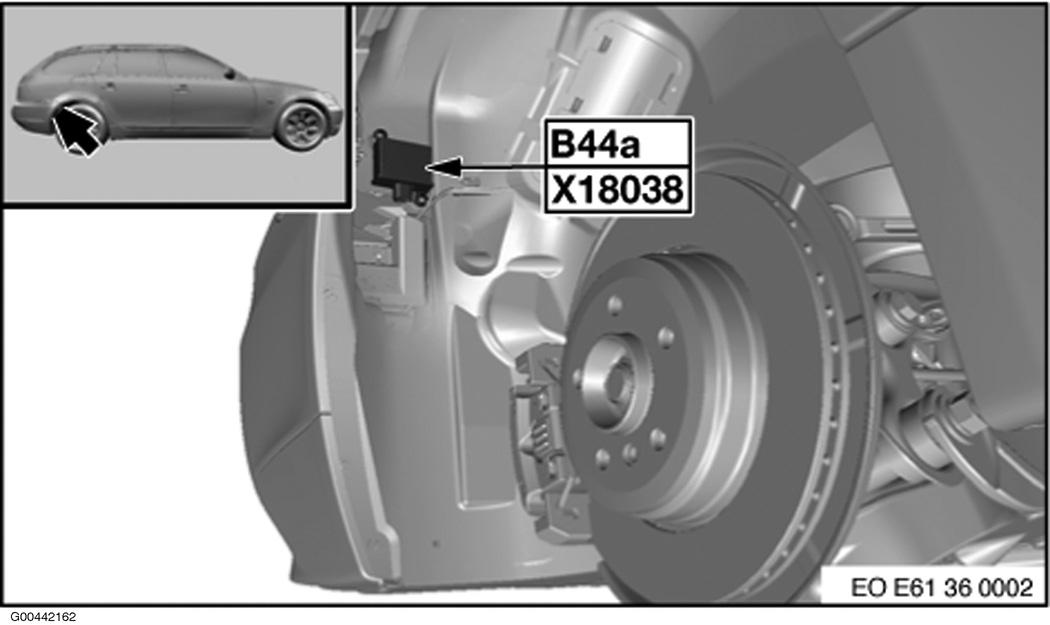

Fig 94: Behind Right Rear Wheel

G00442162

Courtesy of BMW OF NORTH AMERICA, INC.

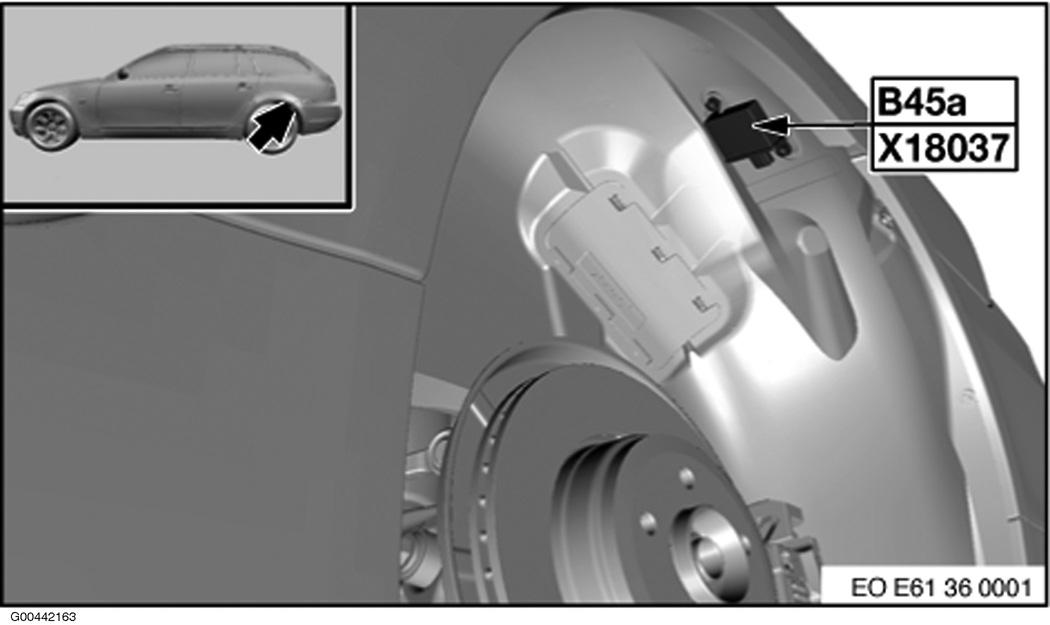

Fig 95: Behind Left Rear Wheel

G00442163

Courtesy of BMW OF NORTH AMERICA, INC.

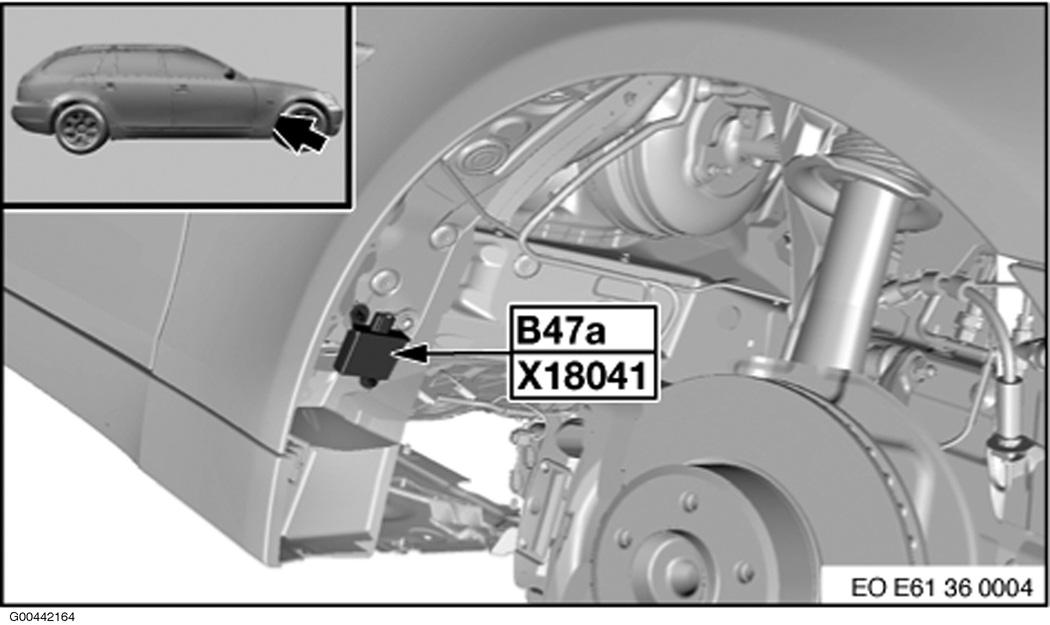

Fig 96: Behind Right Front Wheel

G00442164

Courtesy of BMW OF NORTH AMERICA, INC.

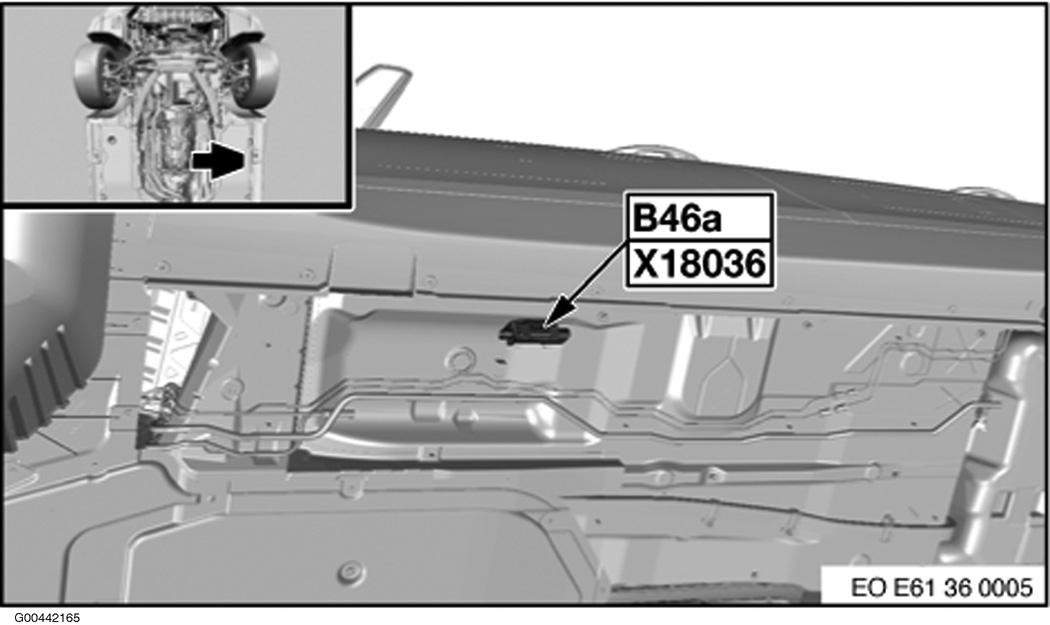

Fig 97: Under Vehicle

G00442165

Courtesy of BMW OF NORTH AMERICA, INC.

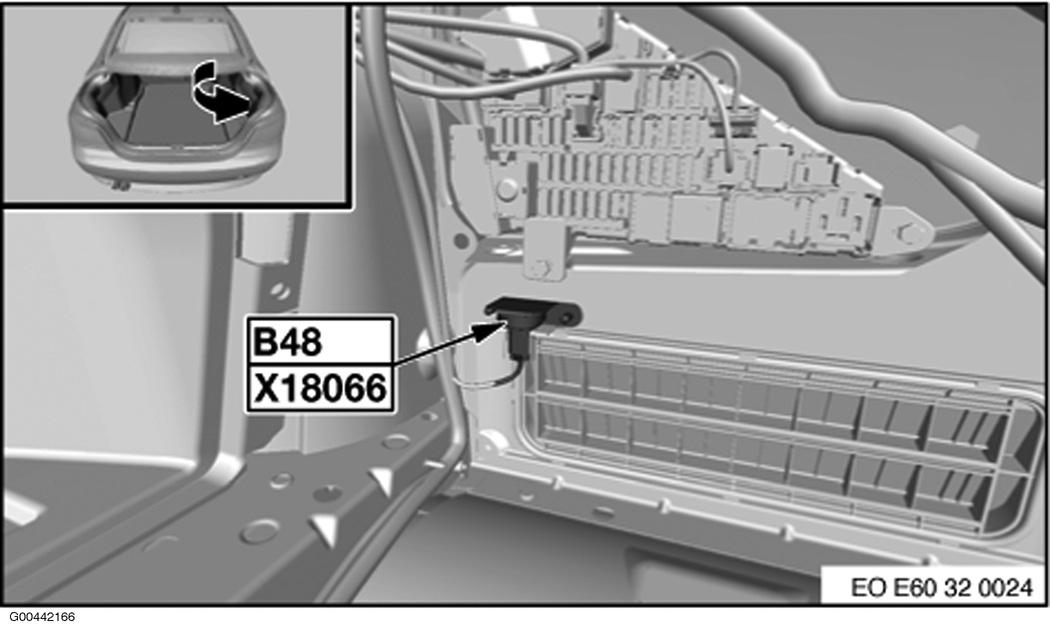

Fig 98: Right Side Of Rear Compartment

G00442166

Courtesy of BMW OF NORTH AMERICA, INC.

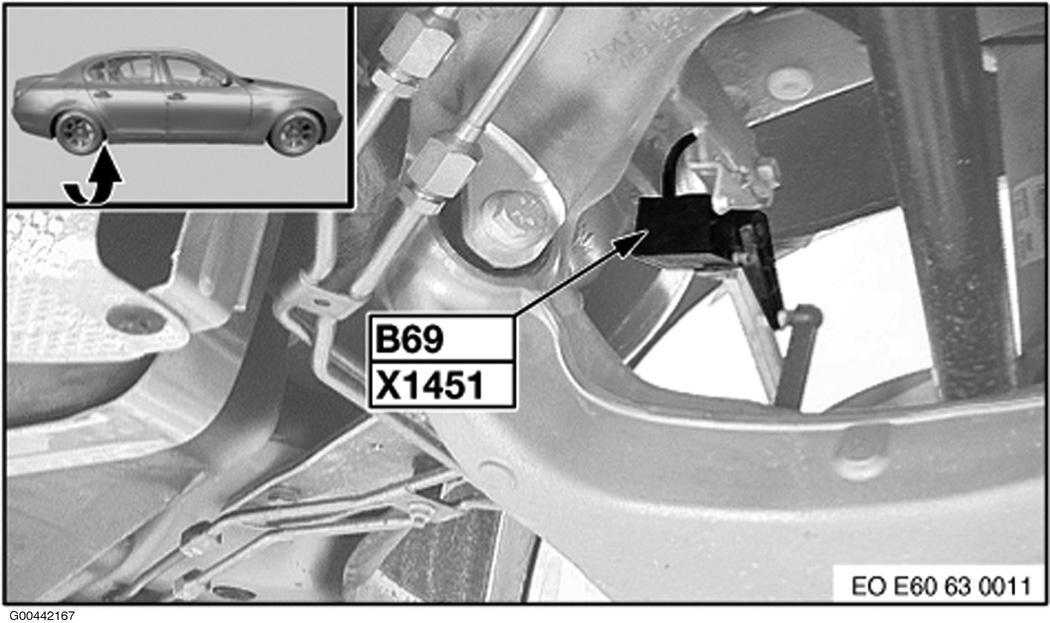

Fig 99: Front Of Right Rear Wheel

G00442167

Courtesy of BMW OF NORTH AMERICA, INC.

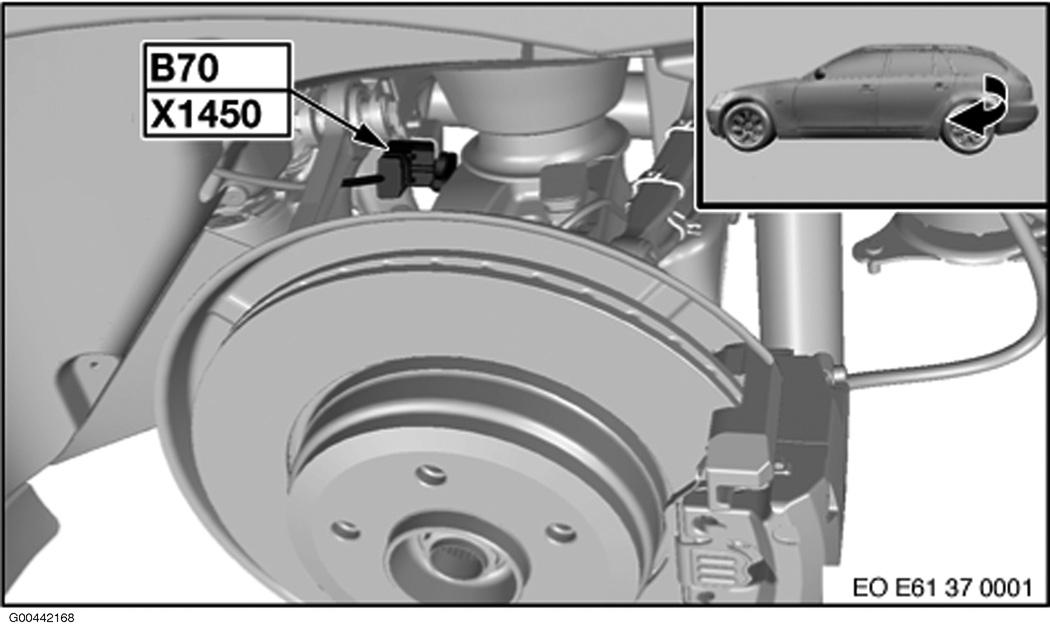

Fig 100: Front Of Left Rear Wheel

G00442168

Courtesy of BMW OF NORTH AMERICA, INC.

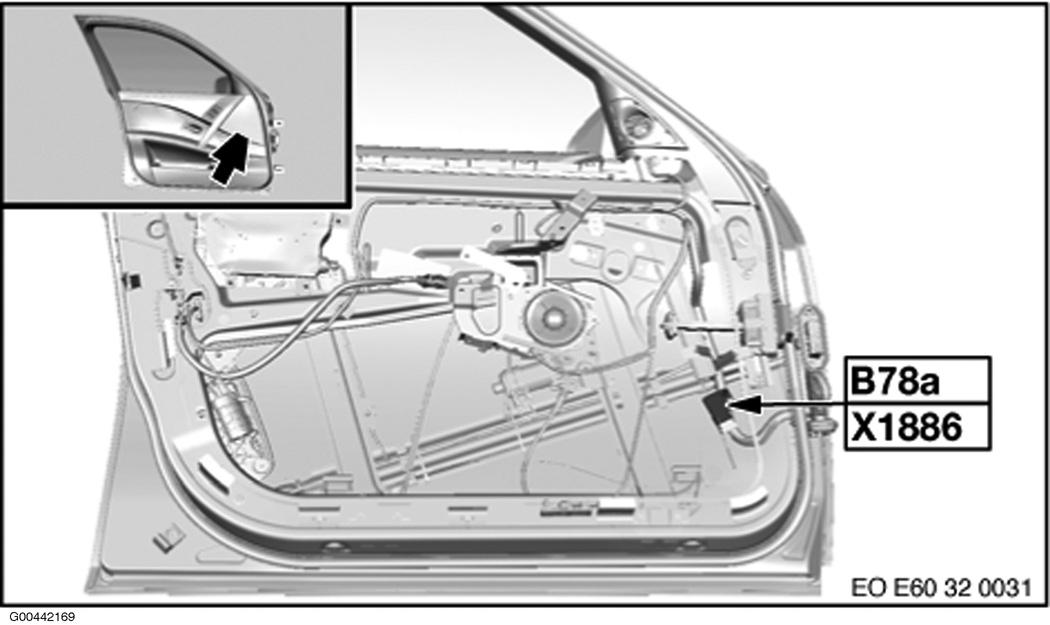

Fig 101: Driver's Door

G00442169

Courtesy of BMW OF NORTH AMERICA, INC.

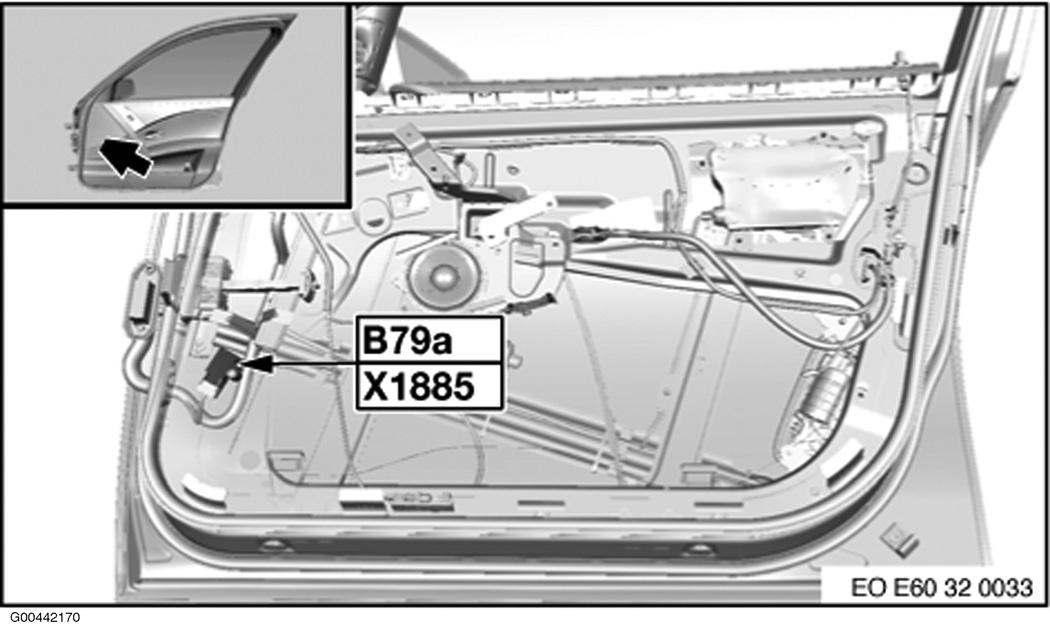

Fig 102: Front Passenger's Door

G00442170

Courtesy of BMW OF NORTH AMERICA, INC.

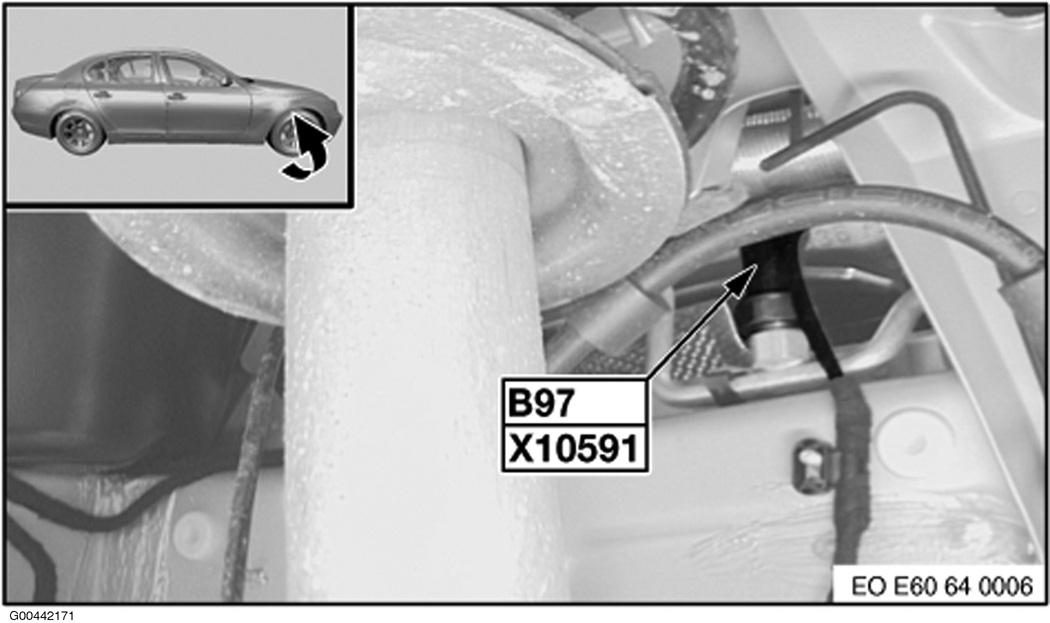

Fig 103: Behind Right Front Wheel

G00442171

Courtesy of BMW OF NORTH AMERICA, INC.

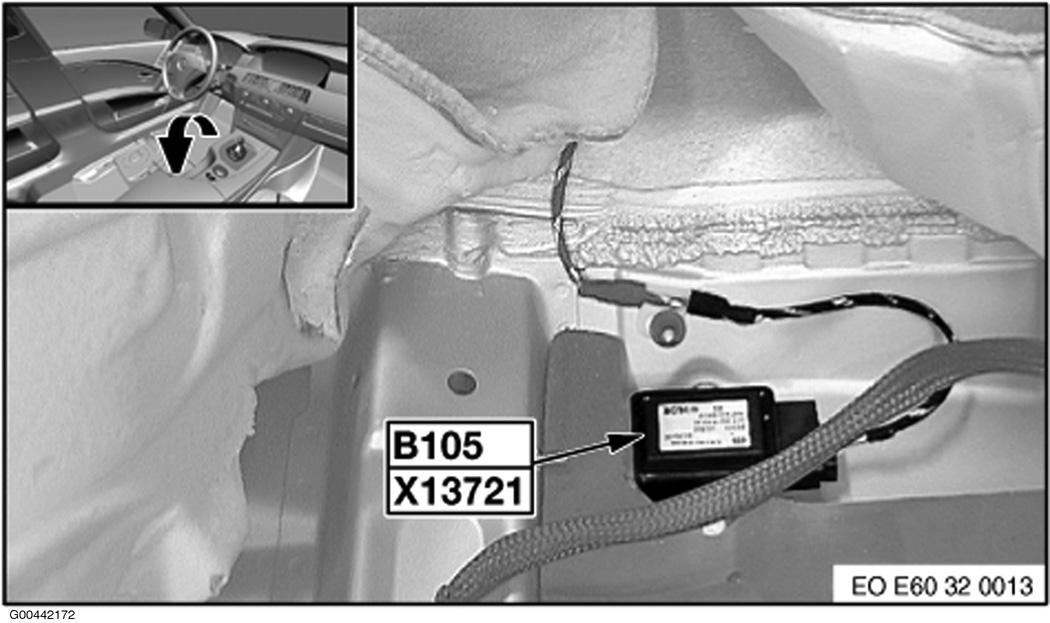

Fig 104: Under Driver's Seat

G00442172

Courtesy of BMW OF NORTH AMERICA, INC.

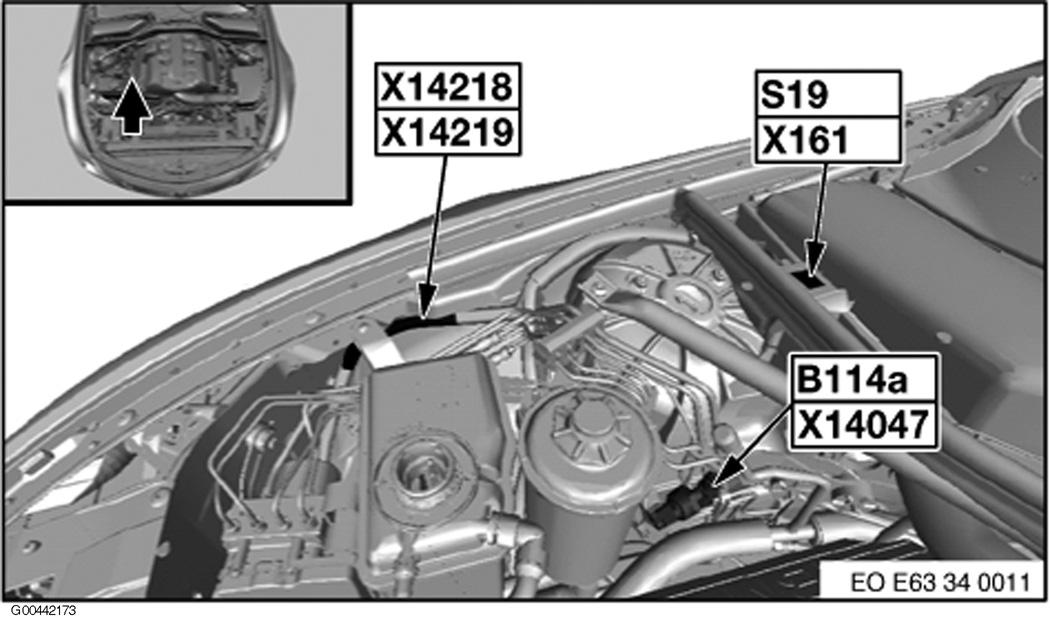

Fig 105: Right Side Of Engine Compartment

G00442173

Courtesy of BMW OF NORTH AMERICA, INC.

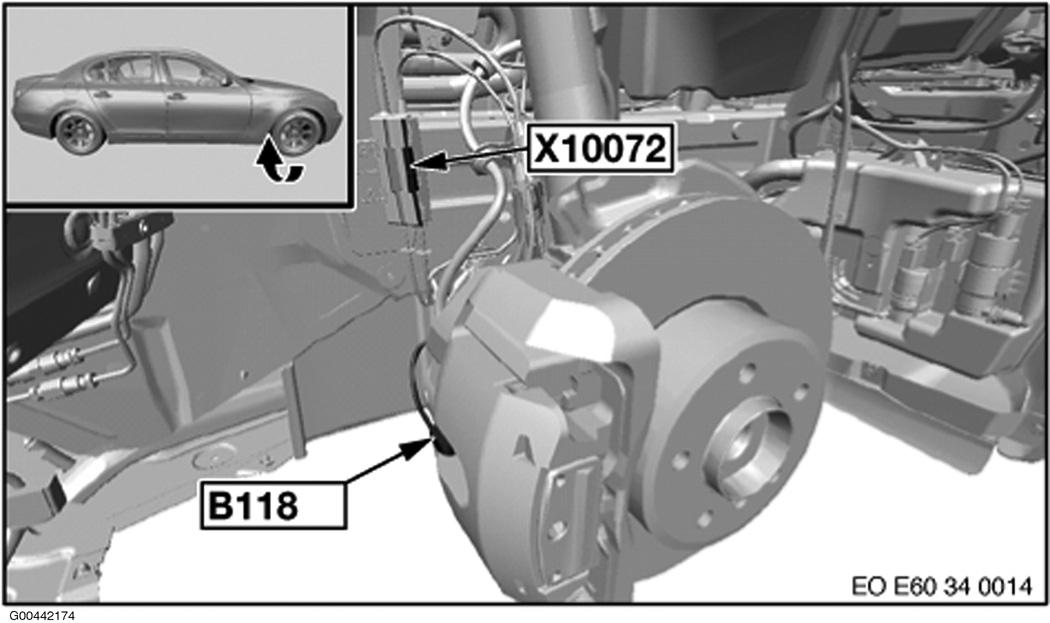

Fig 106: Behind Right Front Wheel

G00442174

Courtesy of BMW OF NORTH AMERICA, INC.

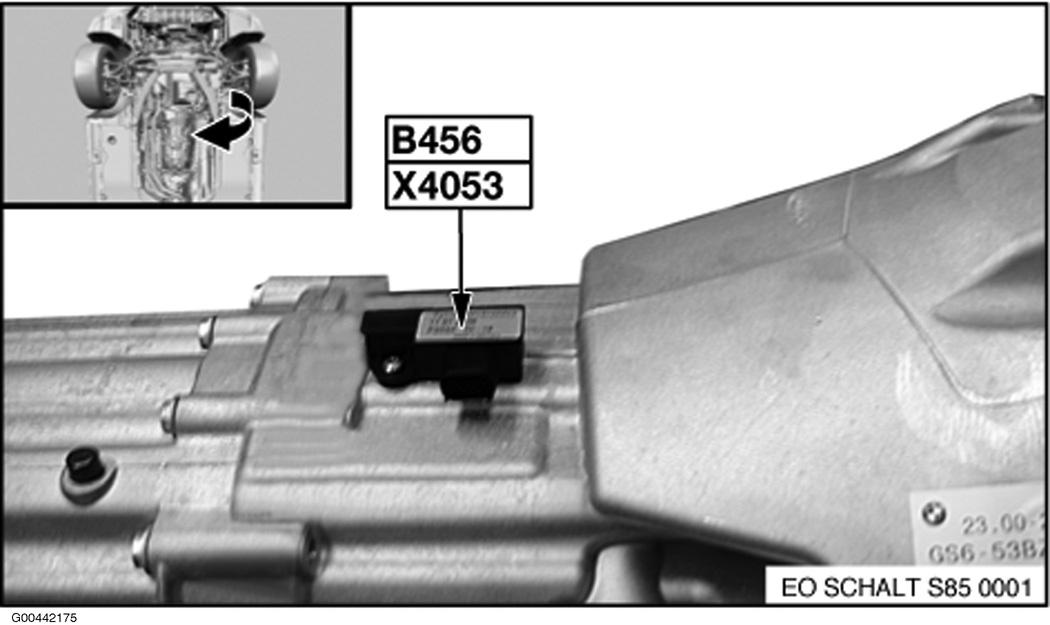

Fig 107: Under Vehicle

G00442175

Courtesy of BMW OF NORTH AMERICA, INC.

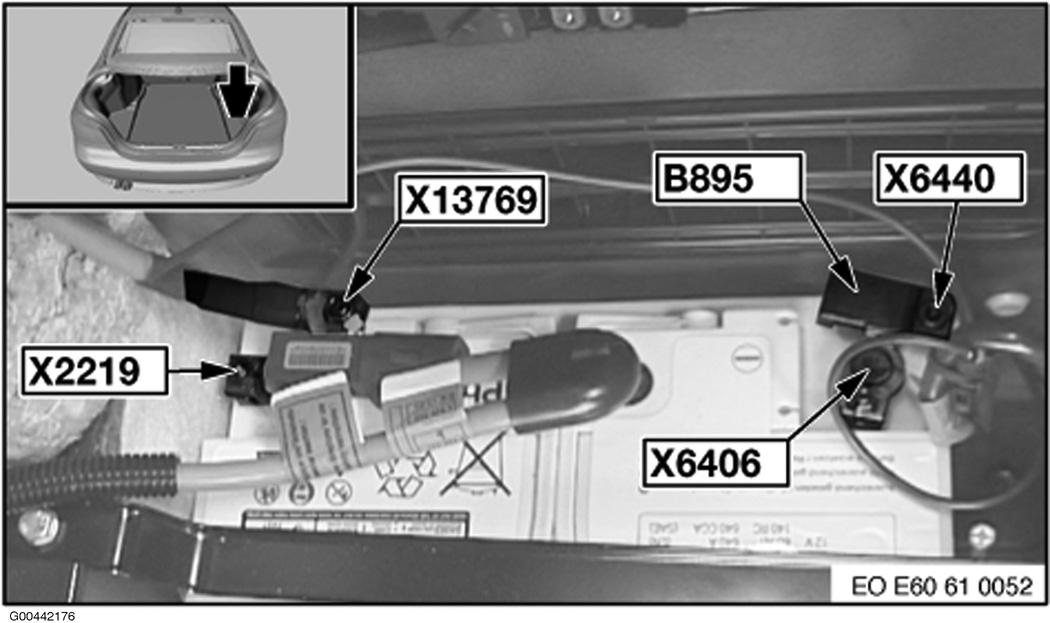

Fig 108: Right Side Of Rear Compartment

G00442176

Courtesy of BMW OF NORTH AMERICA, INC.

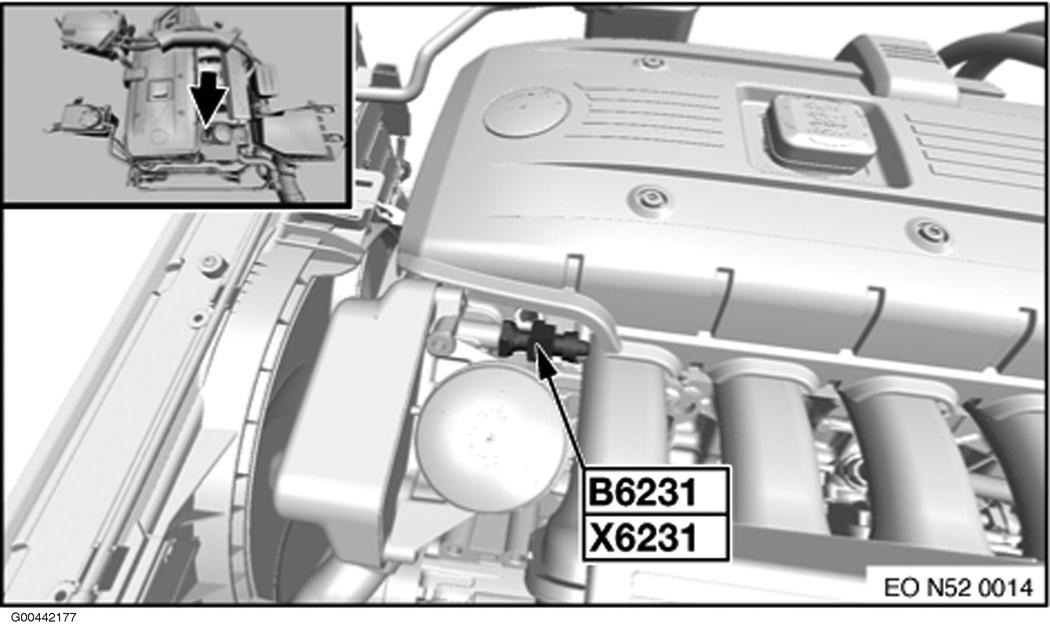

Fig 109: Top Of Engine

G00442177

Courtesy of BMW OF NORTH AMERICA, INC.

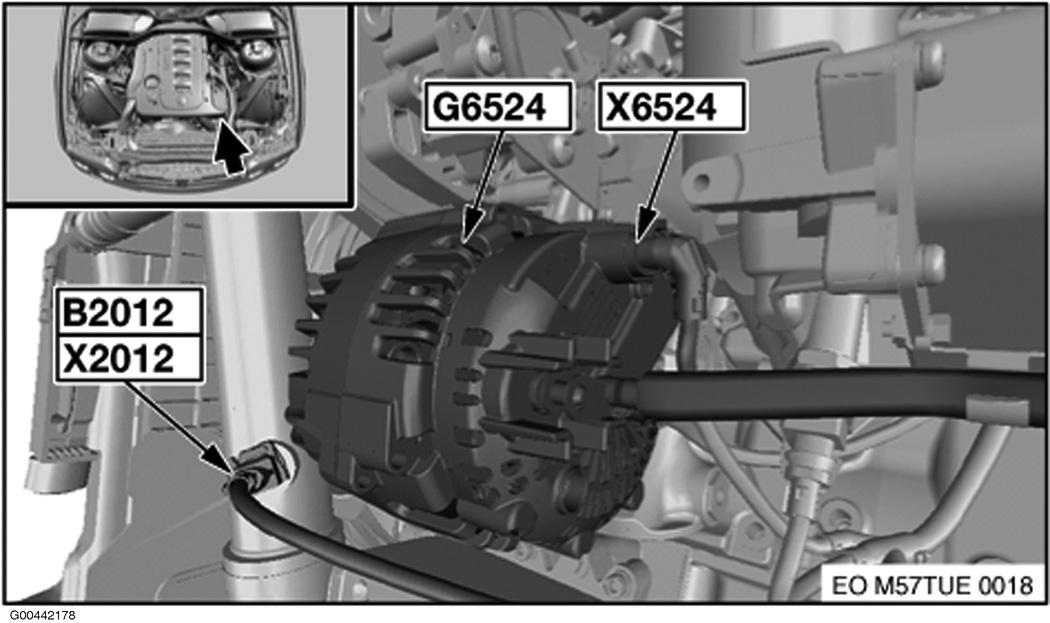

Fig 110: Near Generator

G00442178

Courtesy of BMW OF NORTH AMERICA, INC.

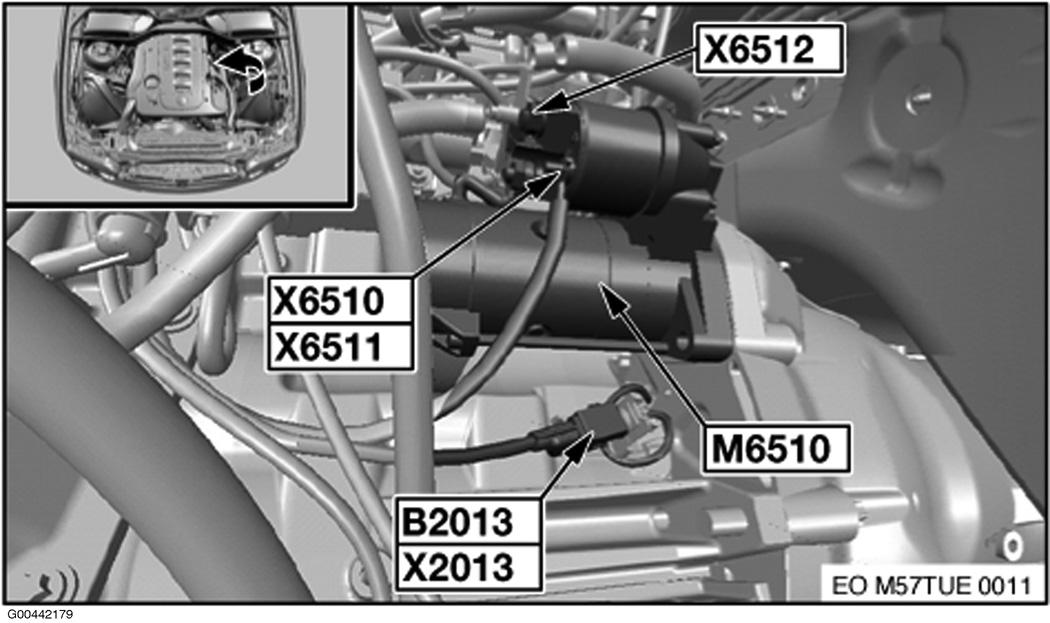

Fig 111: Near Starter

G00442179

Courtesy of BMW OF NORTH AMERICA, INC.

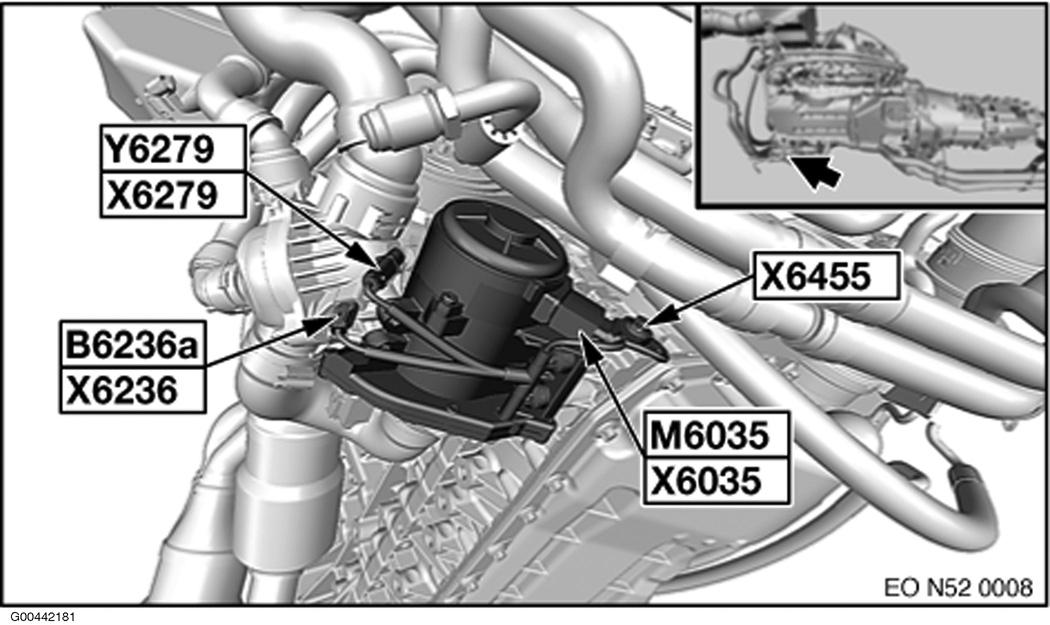

Fig 112: Front Rear Of Engine

G00442181

Courtesy of BMW OF NORTH AMERICA, INC.

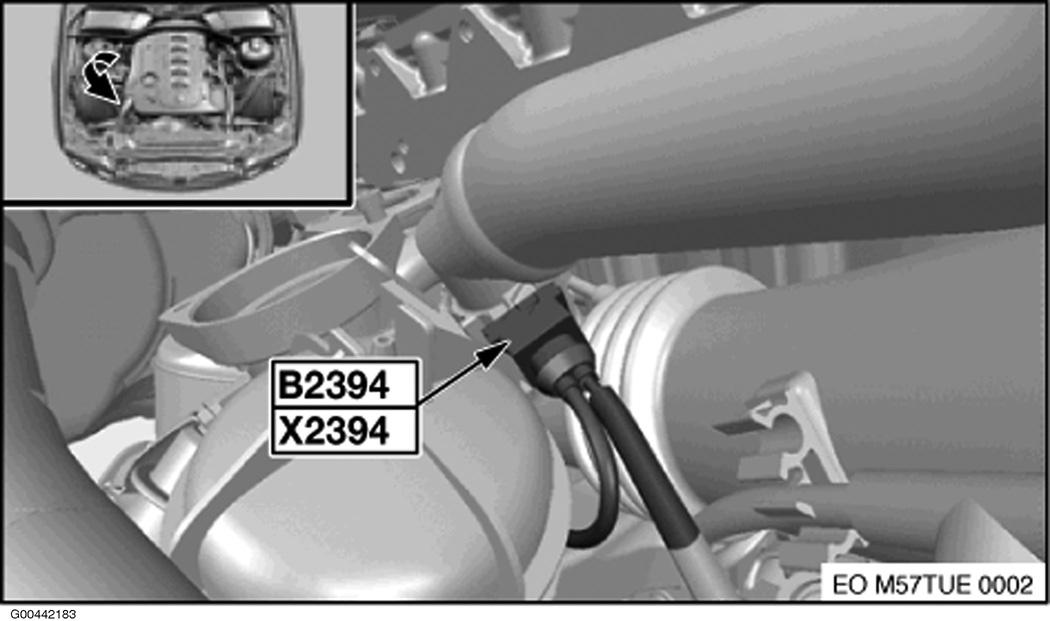

Fig 113: Right Side Of Engine

G00442183

Courtesy of BMW OF NORTH AMERICA, INC.

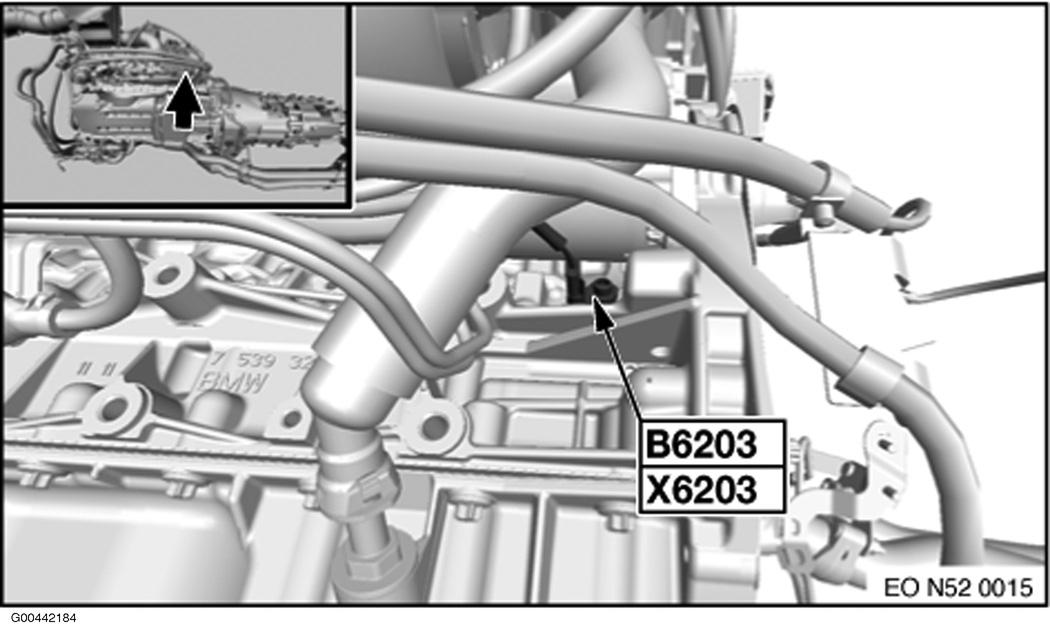

Fig 114: Left Side Of Engine

G00442184

Courtesy of BMW OF NORTH AMERICA, INC.

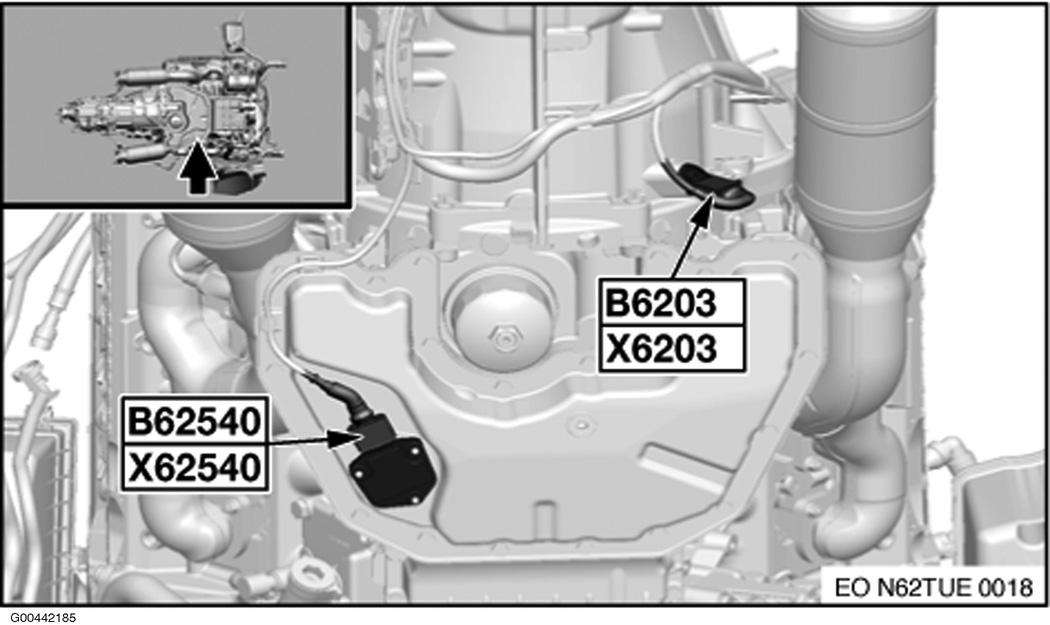

Fig 115: Right Side Of Engine

G00442185

Courtesy of BMW OF NORTH AMERICA, INC.

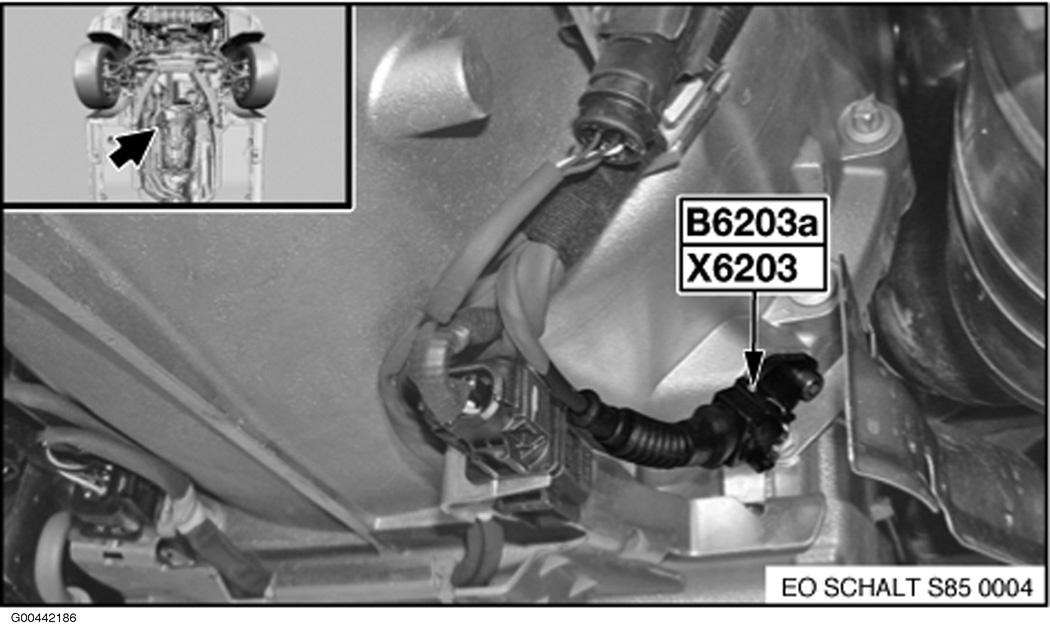

Fig 116: Under Vehicle

G00442186

Courtesy of BMW OF NORTH AMERICA, INC.

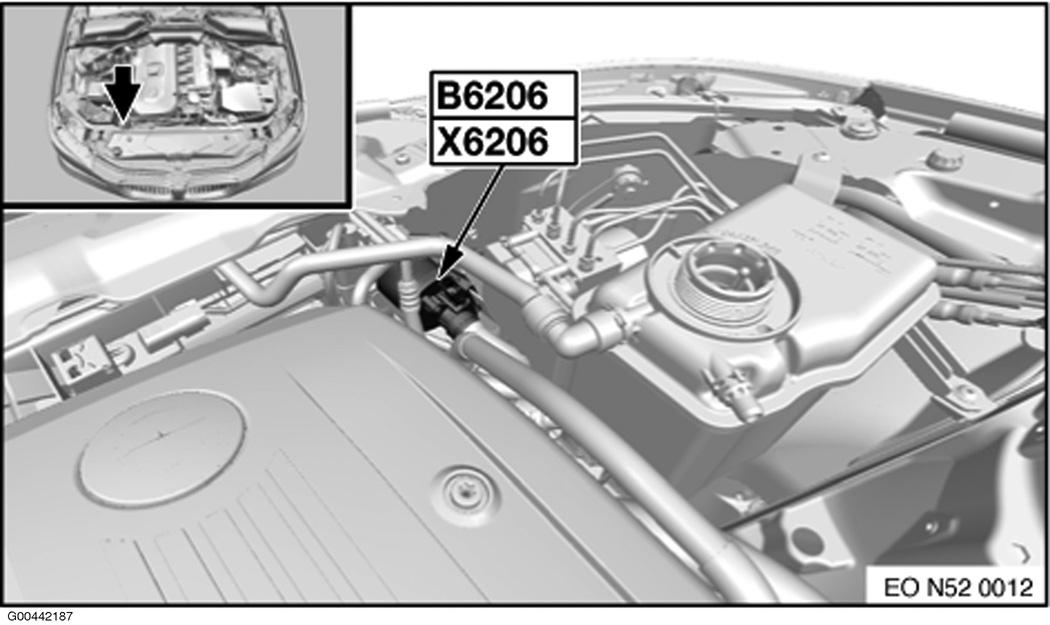

Fig 117: Right Front Of Engine Compartment

G00442187

Courtesy of BMW OF NORTH AMERICA, INC.

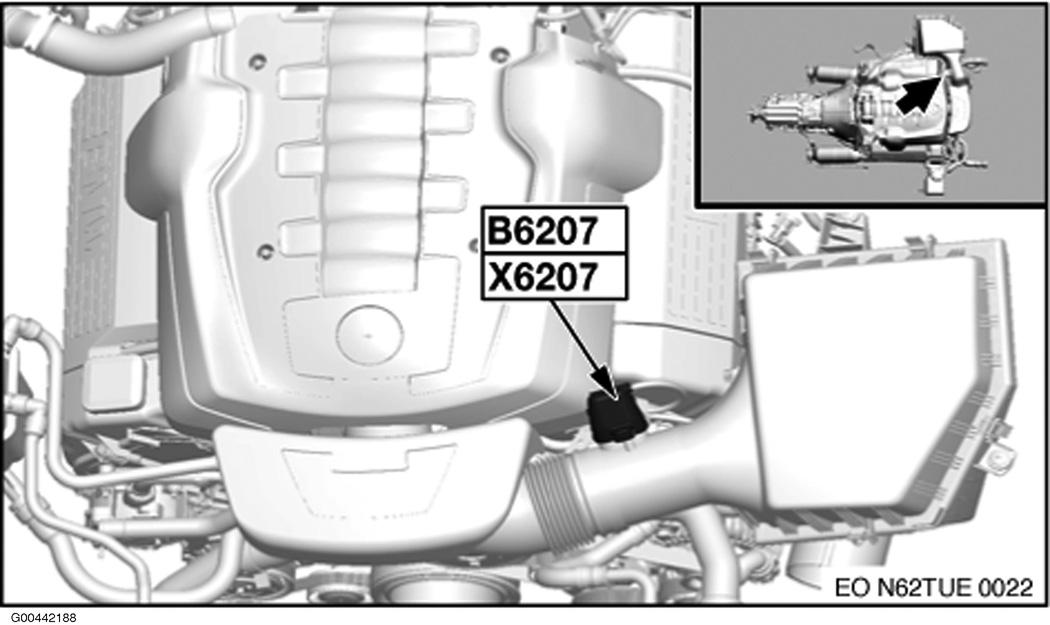

Fig 118: Right Side Of Engine

G00442188

Courtesy of BMW OF NORTH AMERICA, INC.

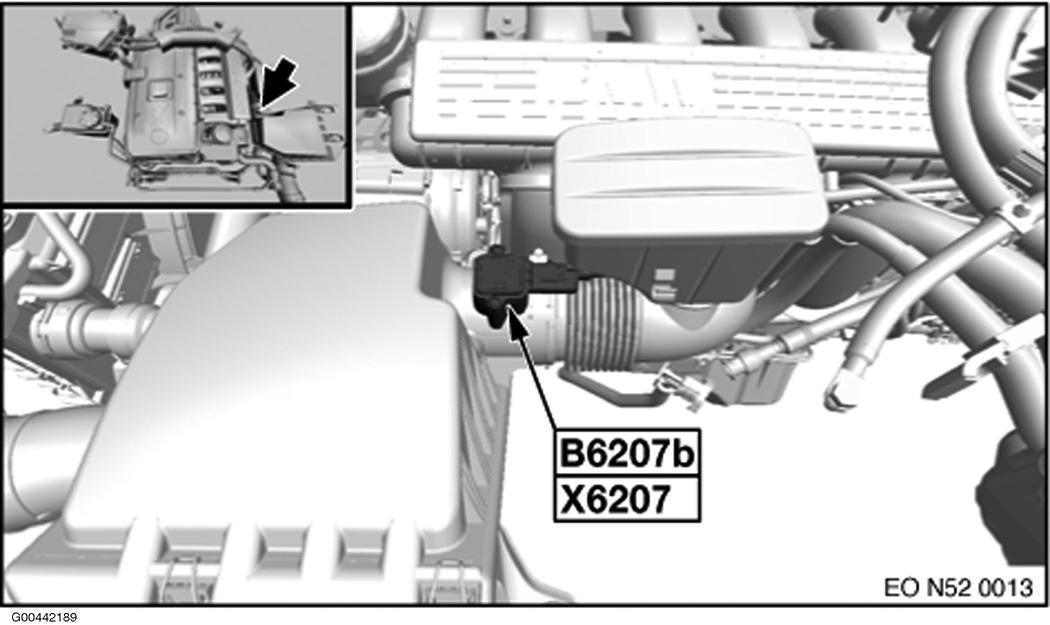

Fig 119: Top Of Engine

G00442189

Courtesy of BMW OF NORTH AMERICA, INC.

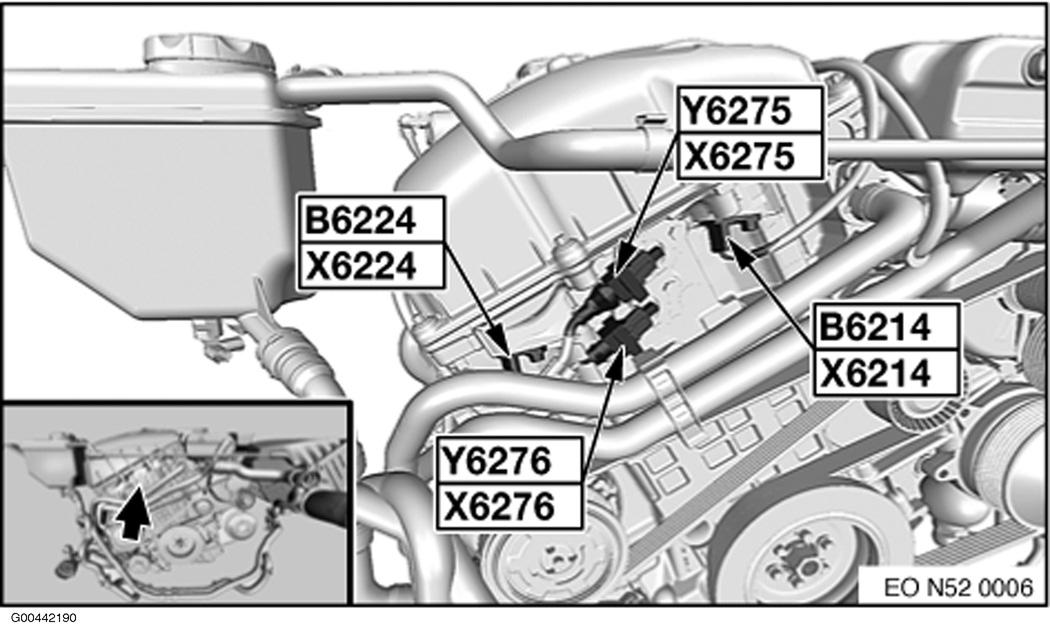

Fig 120: Front Of Engine

G00442190

Courtesy of BMW OF NORTH AMERICA, INC.

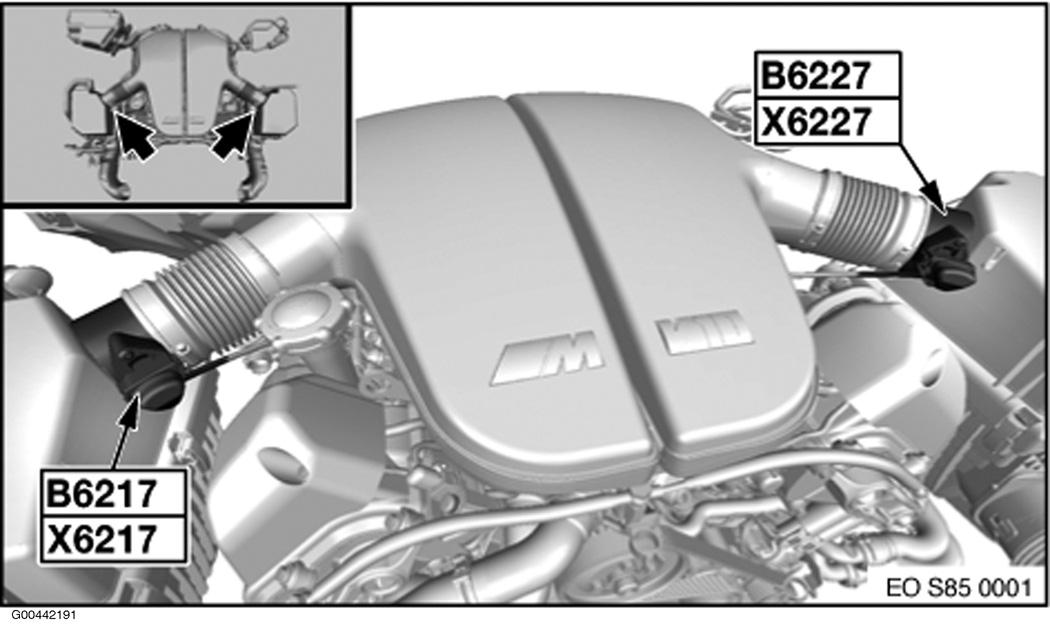

Fig 121: Air Mass Sensors

G00442191

Courtesy of BMW OF NORTH AMERICA, INC.

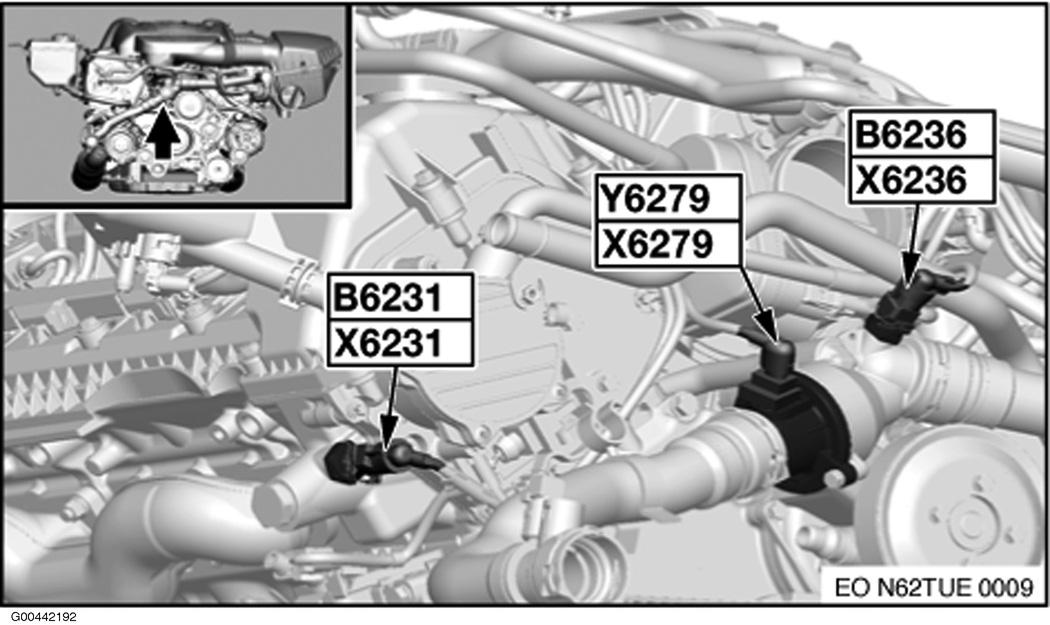

Fig 122: Front Of Engine

G00442192

Courtesy of BMW OF NORTH AMERICA, INC.

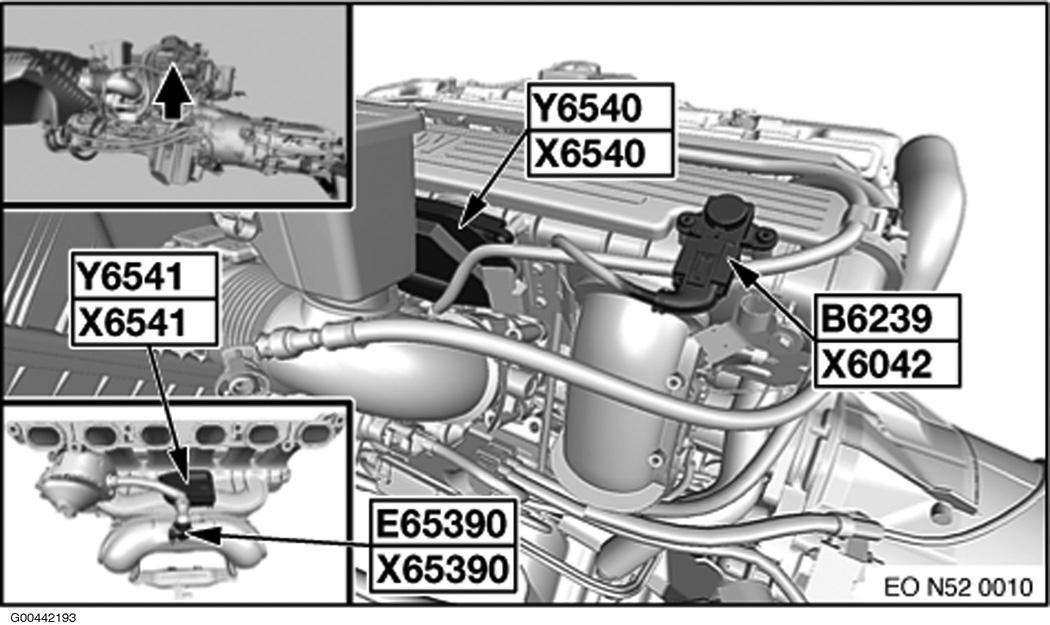

Fig 123: Top Of Engine (3.0L)

G00442193

Courtesy of BMW OF NORTH AMERICA, INC.

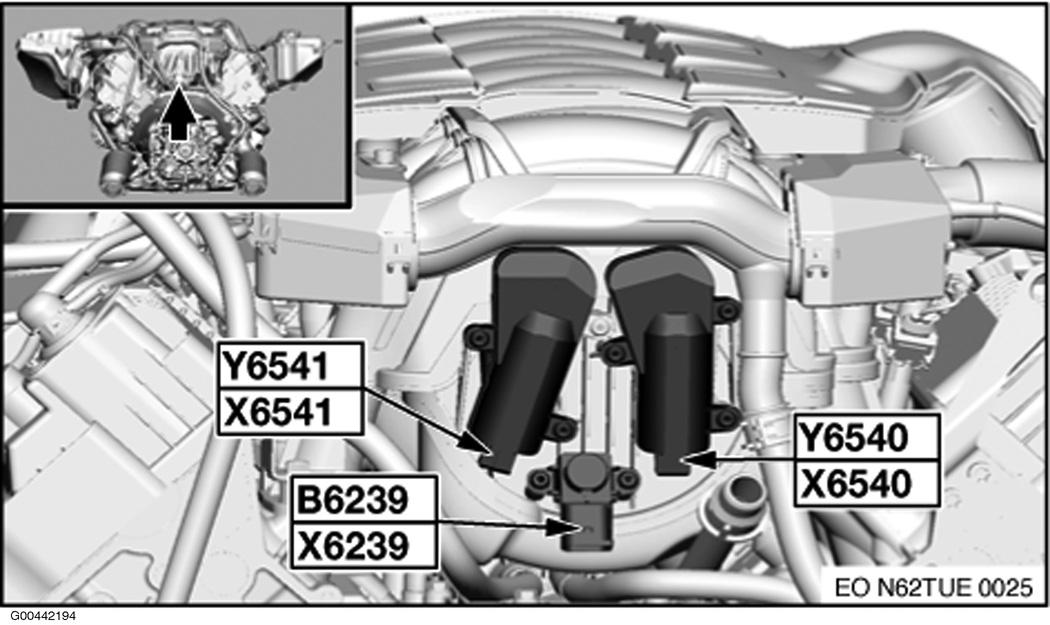

Fig 124: DISA Controller Valves (4.8L)

G00442194

Courtesy of BMW OF NORTH AMERICA, INC.

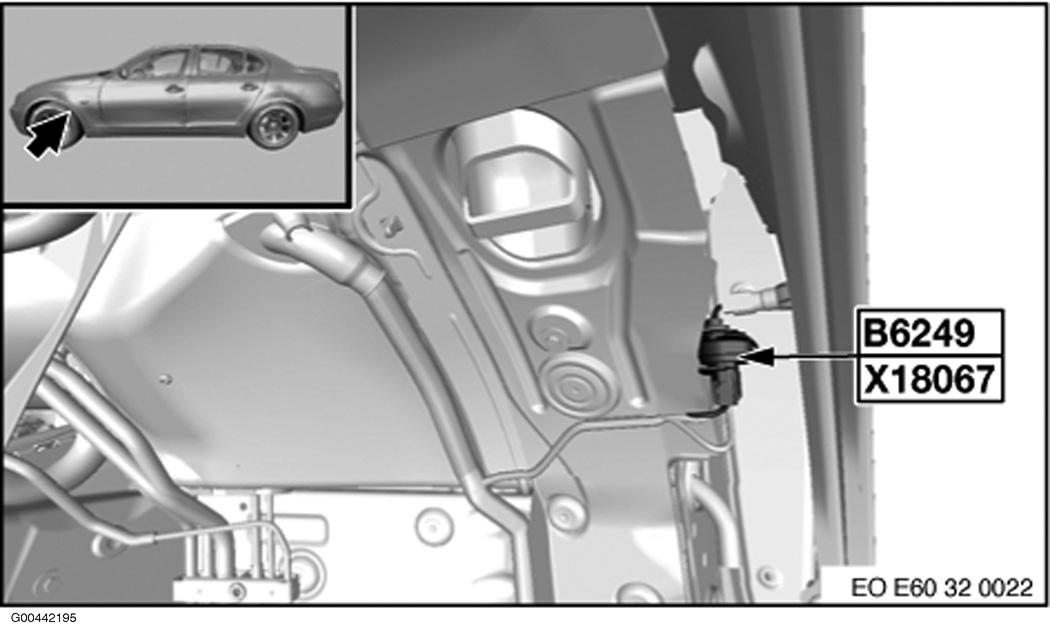

Fig 125: Behind Left Front Wheel

G00442195

Courtesy of BMW OF NORTH AMERICA, INC.

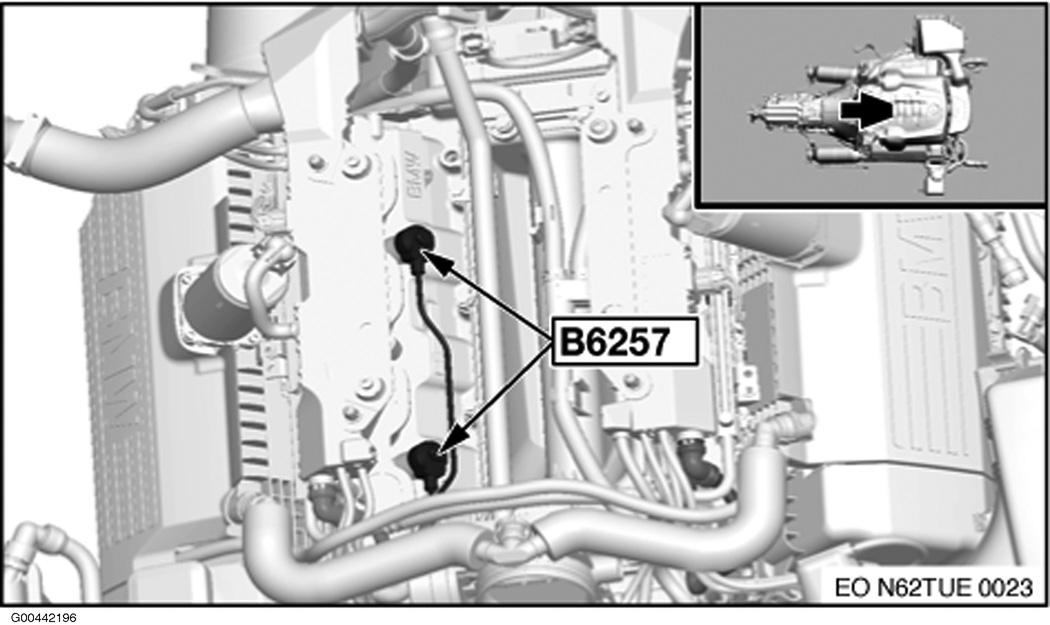

Fig 126: Right Side Of Engine

G00442196

Courtesy of BMW OF NORTH AMERICA, INC.

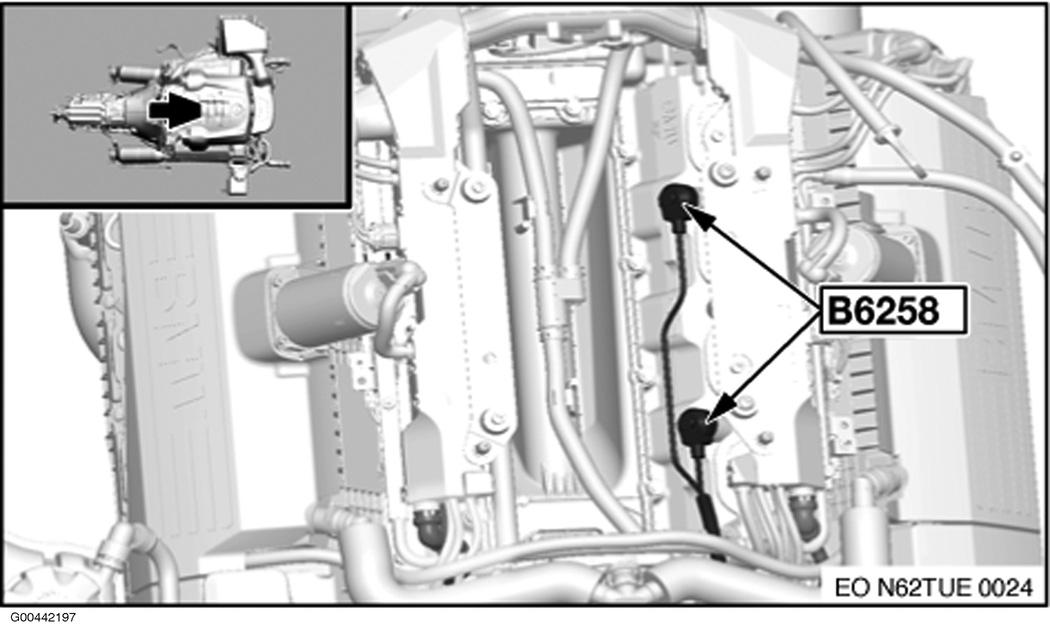

Fig 127: Right Side Of Engine

G00442197

Courtesy of BMW OF NORTH AMERICA, INC.

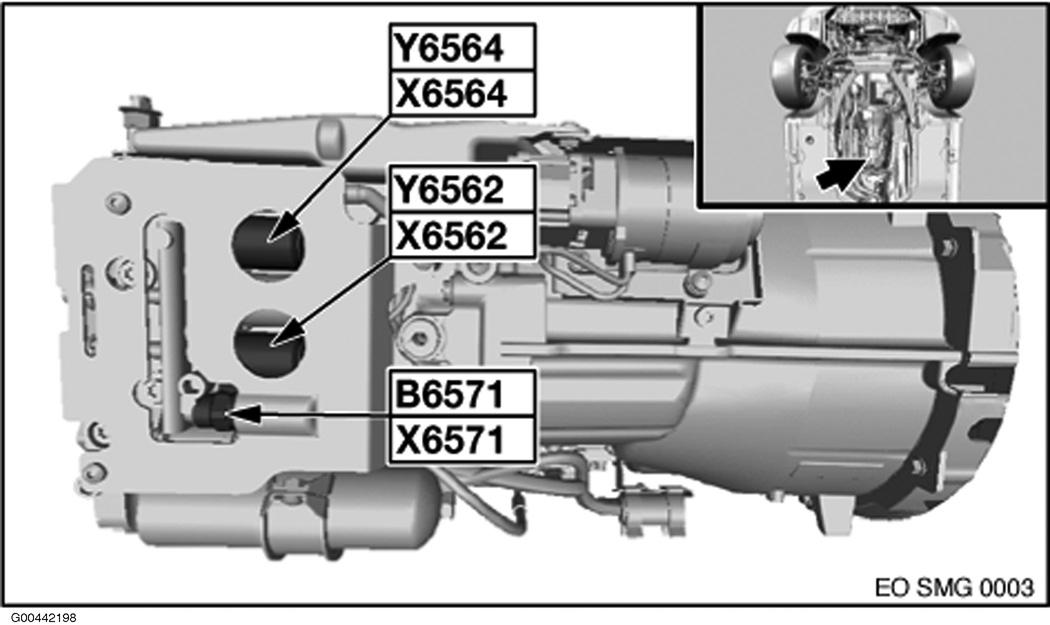

Fig 128: Under Vehicle

G00442198

Courtesy of BMW OF NORTH AMERICA, INC.

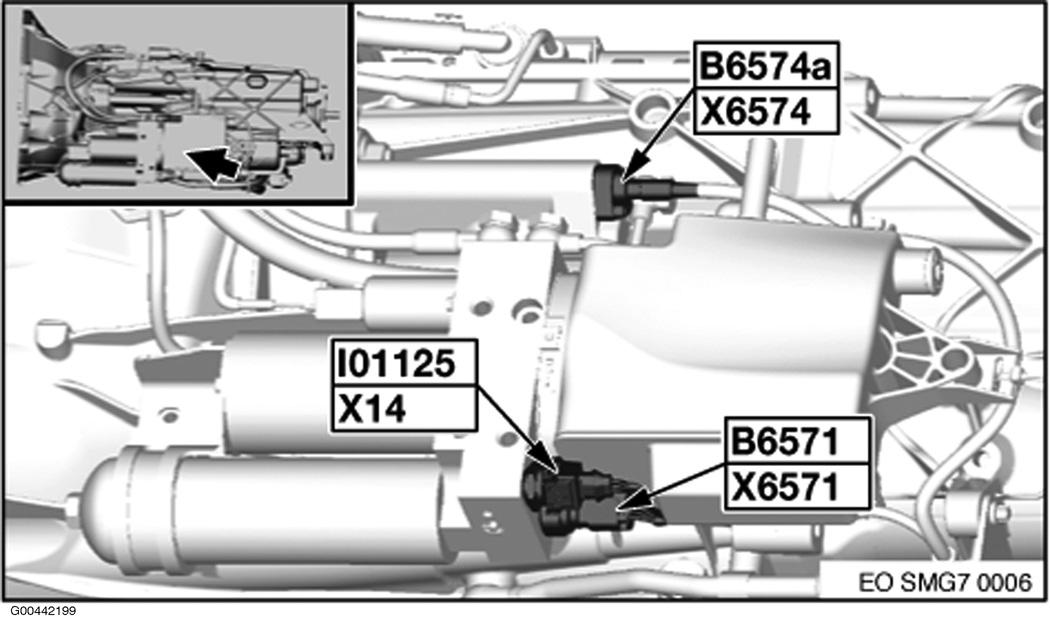

Fig 129: Left Side Of Transmission

G00442199

Courtesy of BMW OF NORTH AMERICA, INC.

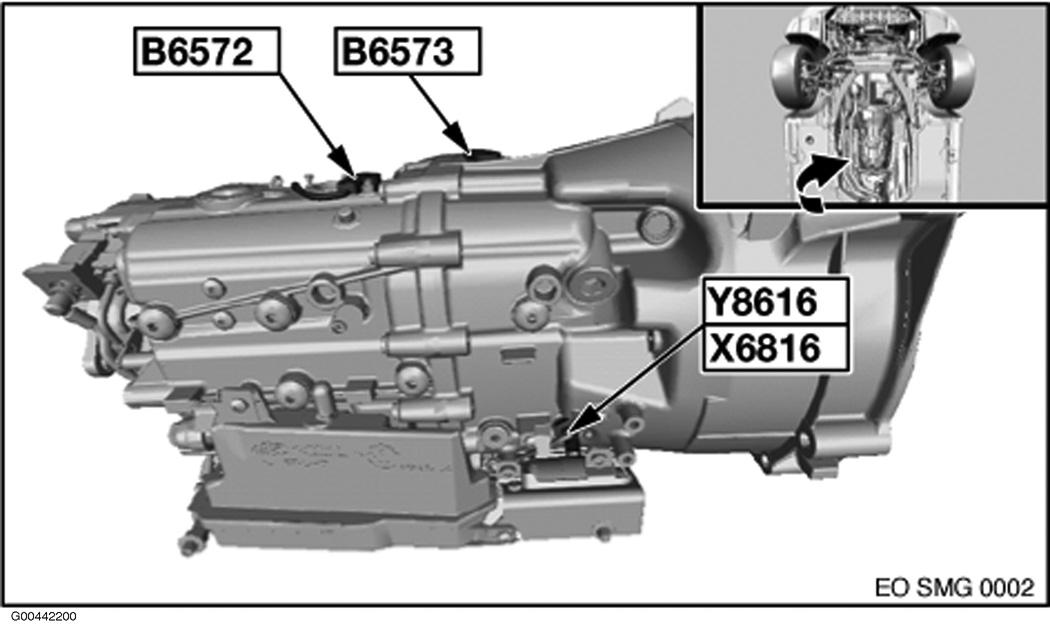

Fig 130: Under Vehicle

G00442200

Courtesy of BMW OF NORTH AMERICA, INC.

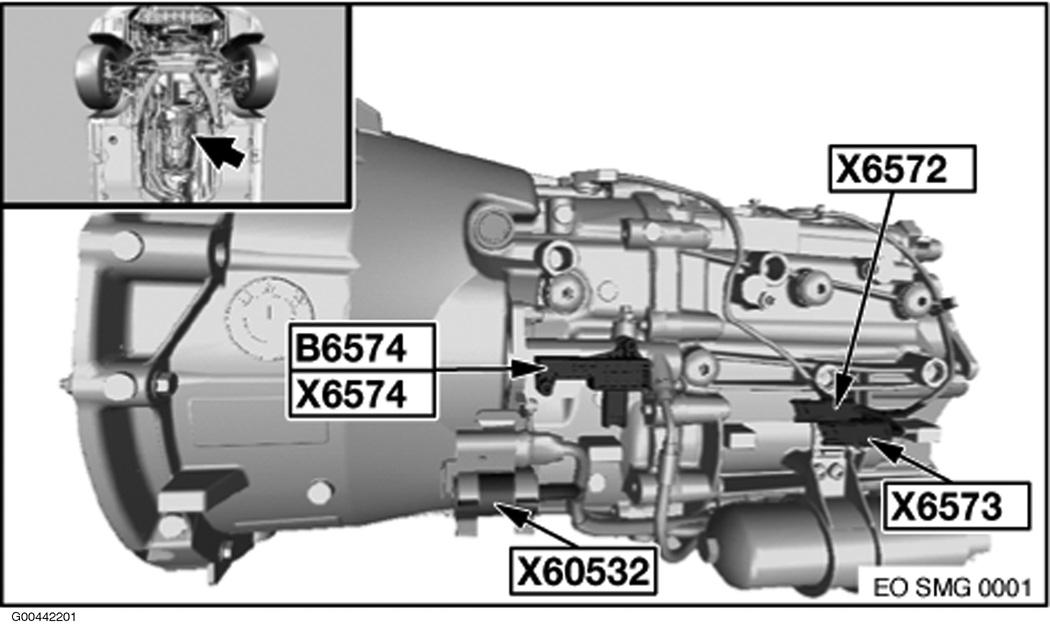

Fig 131: Under Vehicle

G00442201

Courtesy of BMW OF NORTH AMERICA, INC.

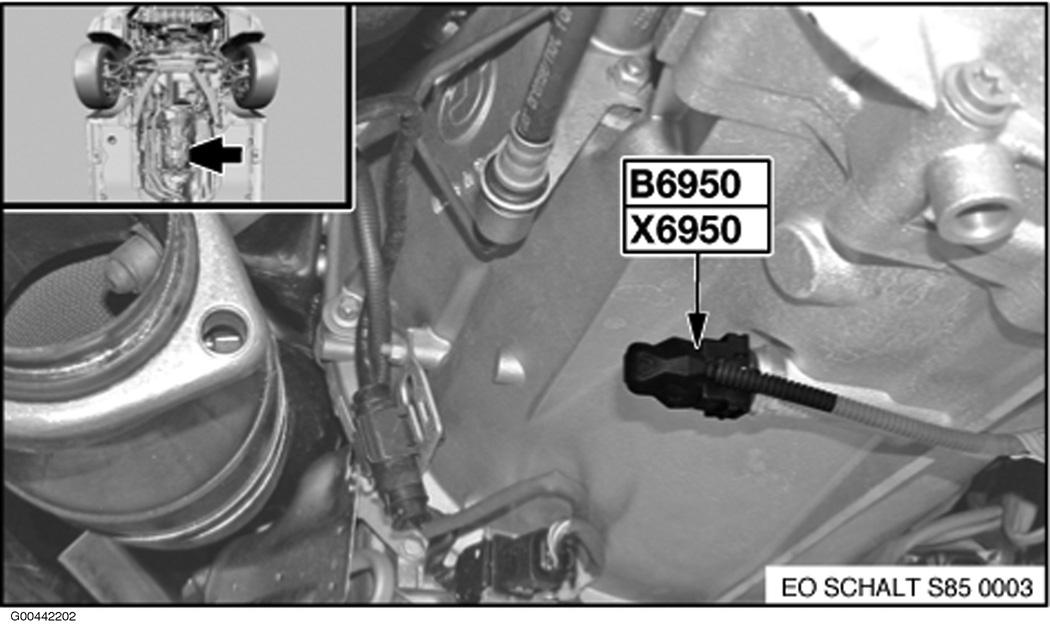

Fig 132: Under Vehicle

G00442202

Courtesy of BMW OF NORTH AMERICA, INC.

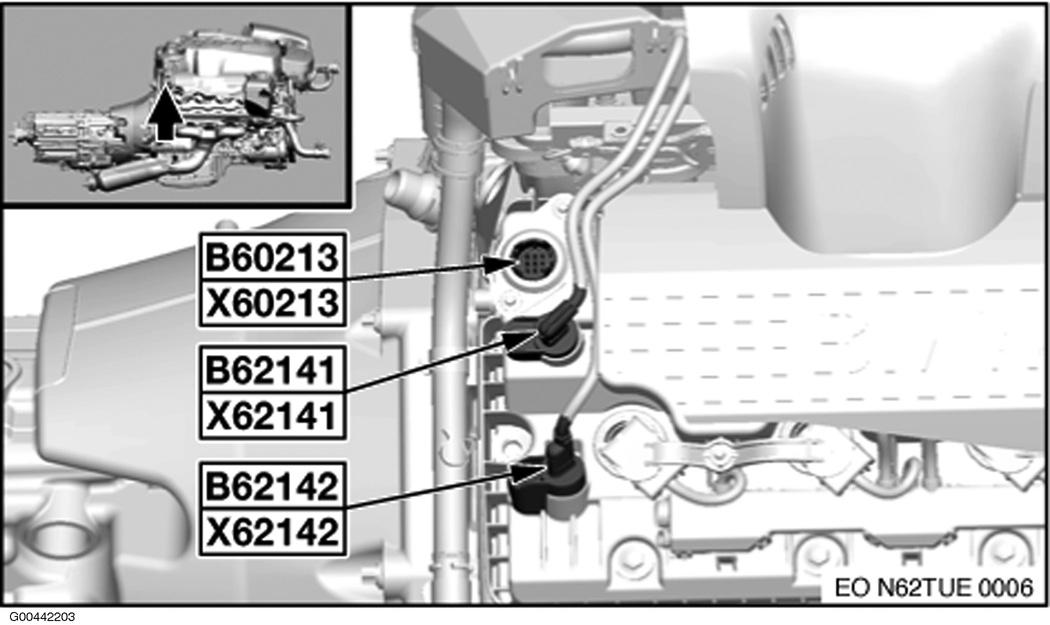

Fig 133: Rear Of Engine

G00442203

Courtesy of BMW OF NORTH AMERICA, INC.

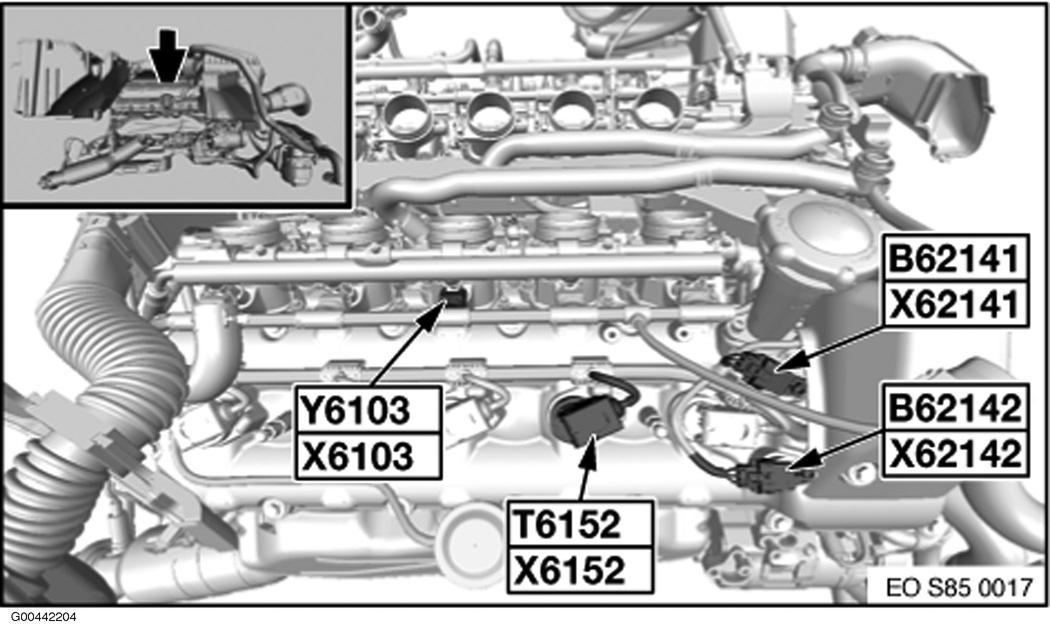

Fig 134: Top Of Engine

G00442204

Courtesy of BMW OF NORTH AMERICA, INC.

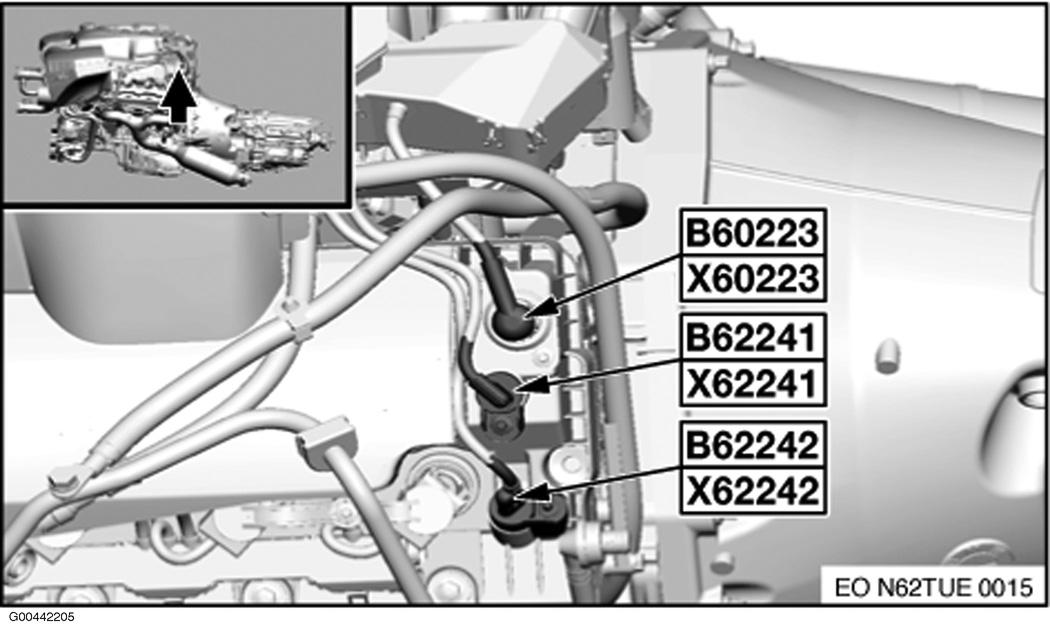

Fig 135: Rear Of Engine

G00442205

Courtesy of BMW OF NORTH AMERICA, INC.

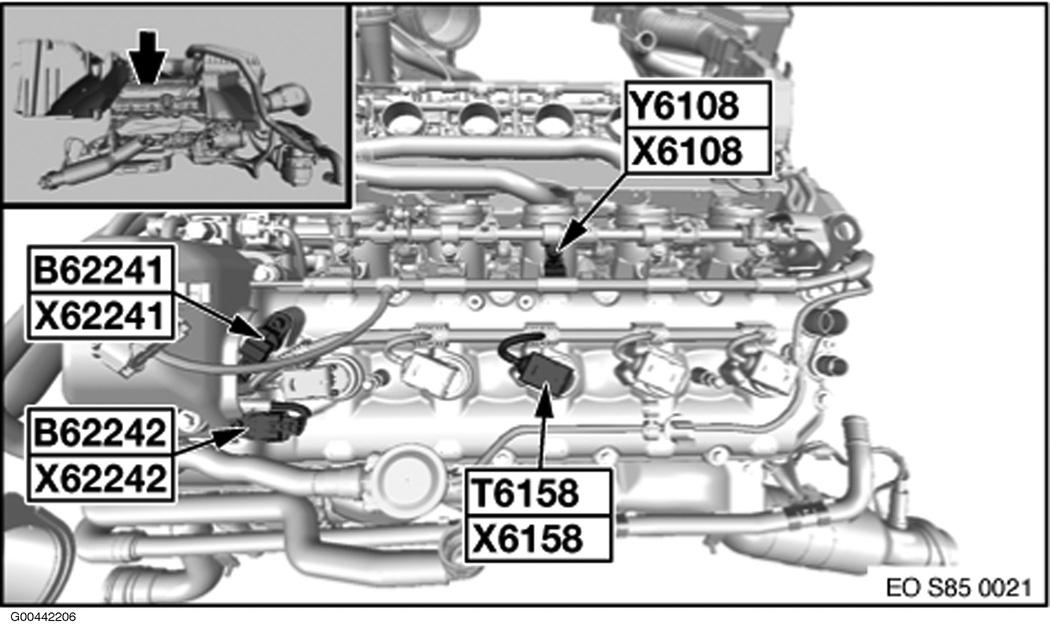

Fig 136: Top Of Engine

G00442206

Courtesy of BMW OF NORTH AMERICA, INC.

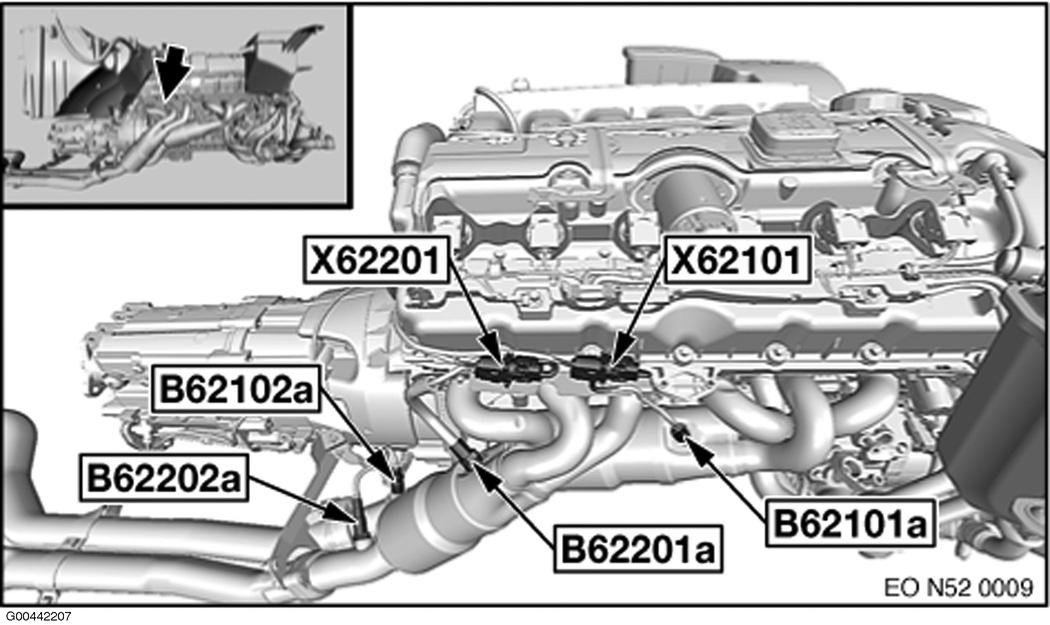

Fig 137: Right Rear Of Engine

G00442207

Courtesy of BMW OF NORTH AMERICA, INC.

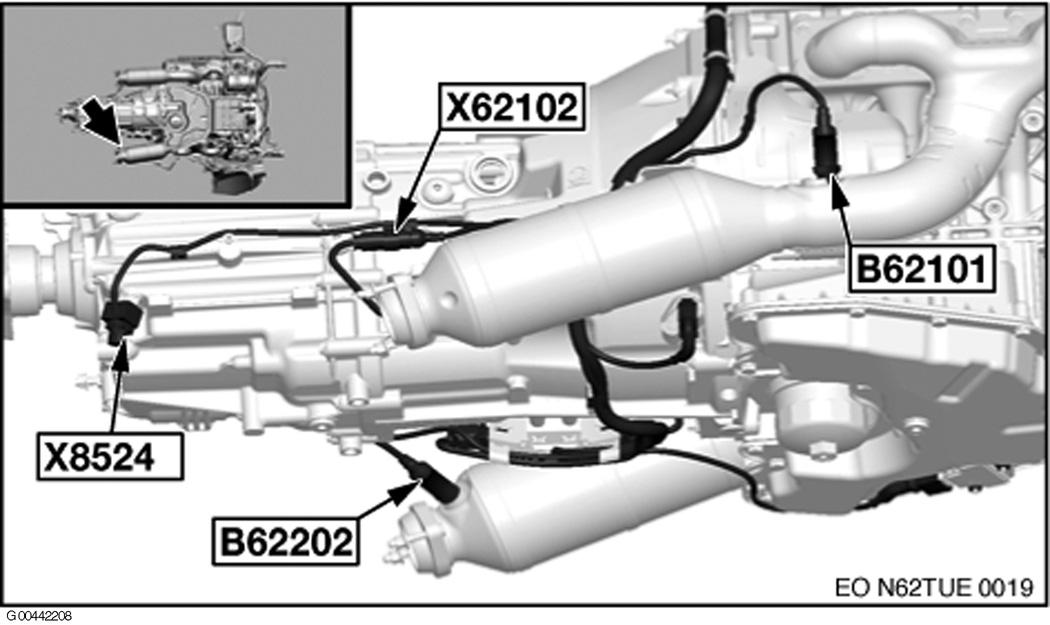

Fig 138: Oxygen Sensors (550i)

G00442208

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 139: Oxygen Sensors (550i)

G00442209

Courtesy of BMW OF NORTH AMERICA, INC.

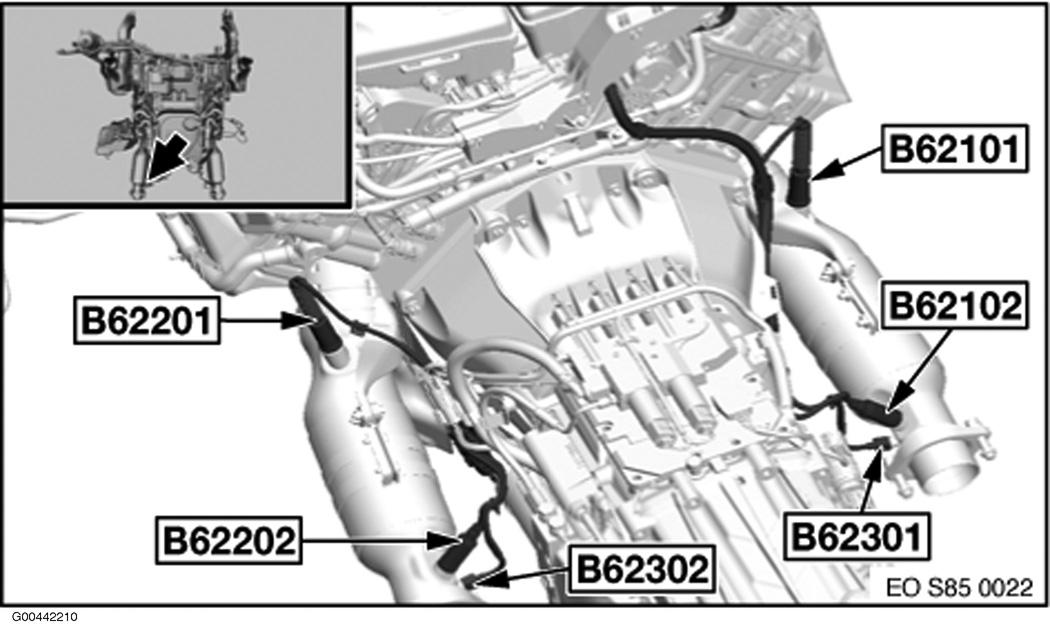

Fig 140: Oxygen Sensors (M5)

G00442210

Courtesy of BMW OF NORTH AMERICA, INC.

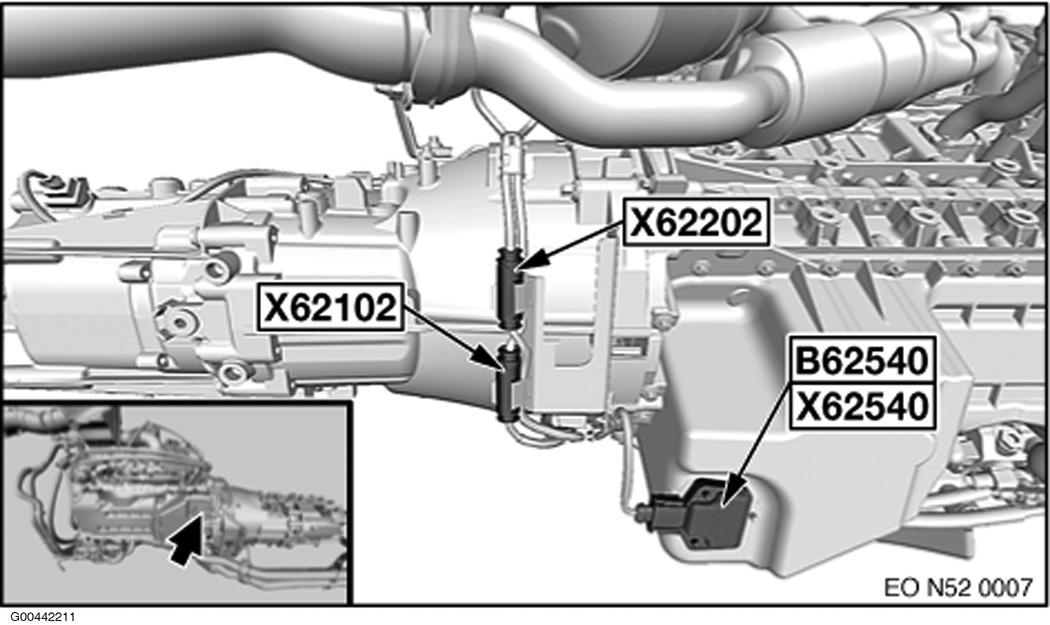

Fig 141: Rear Of Engine

G00442211

Courtesy of BMW OF NORTH AMERICA, INC.

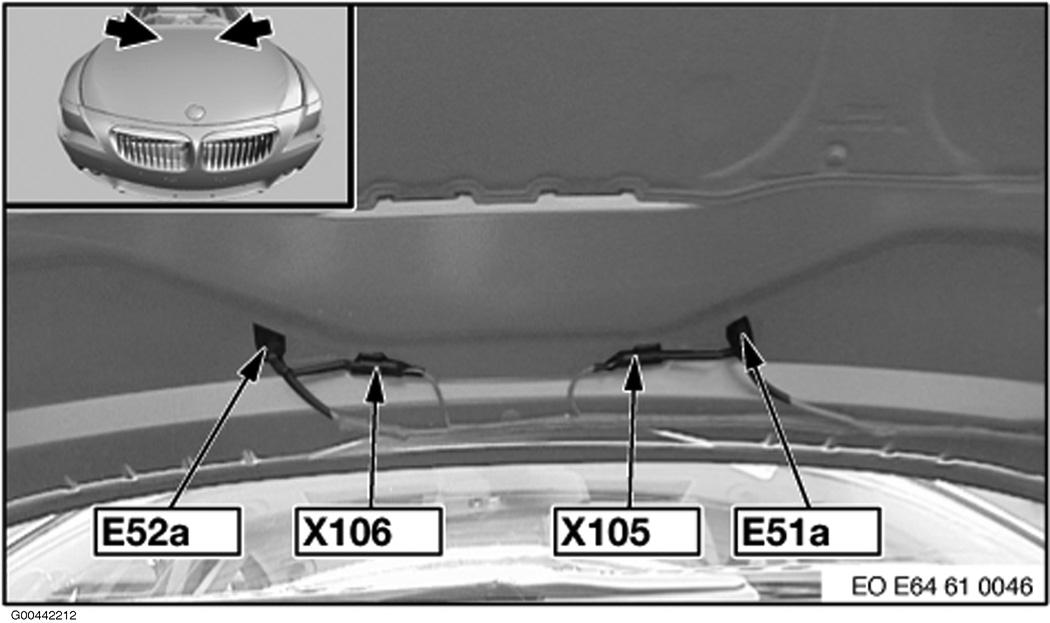

Fig 142: Top Rear Of Hood

G00442212

Courtesy of BMW OF NORTH AMERICA, INC.

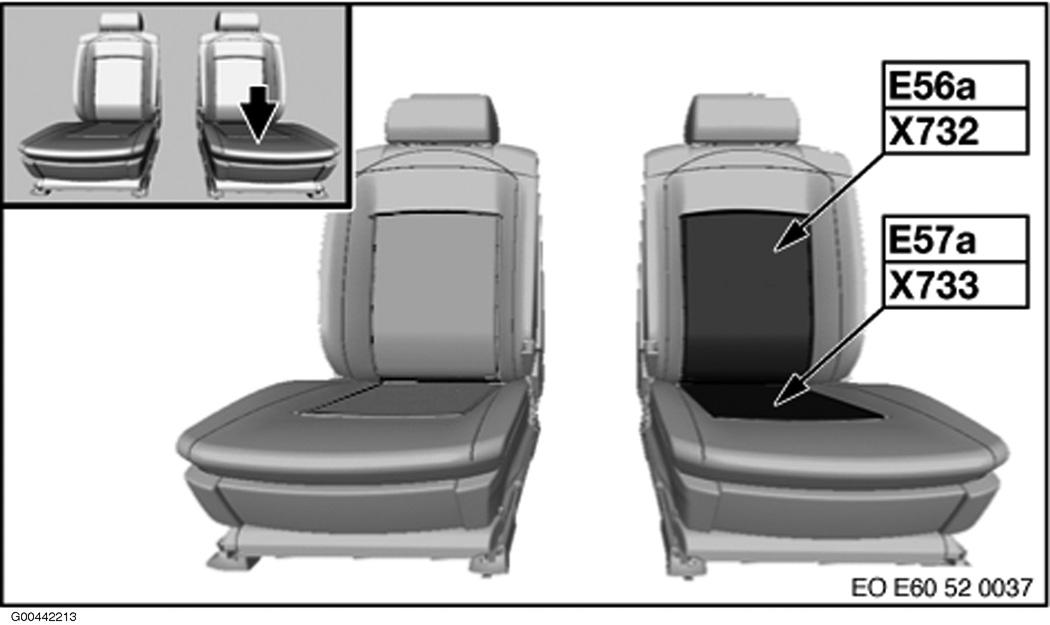

Fig 143: Left Front Seat

G00442213

Courtesy of BMW OF NORTH AMERICA, INC.

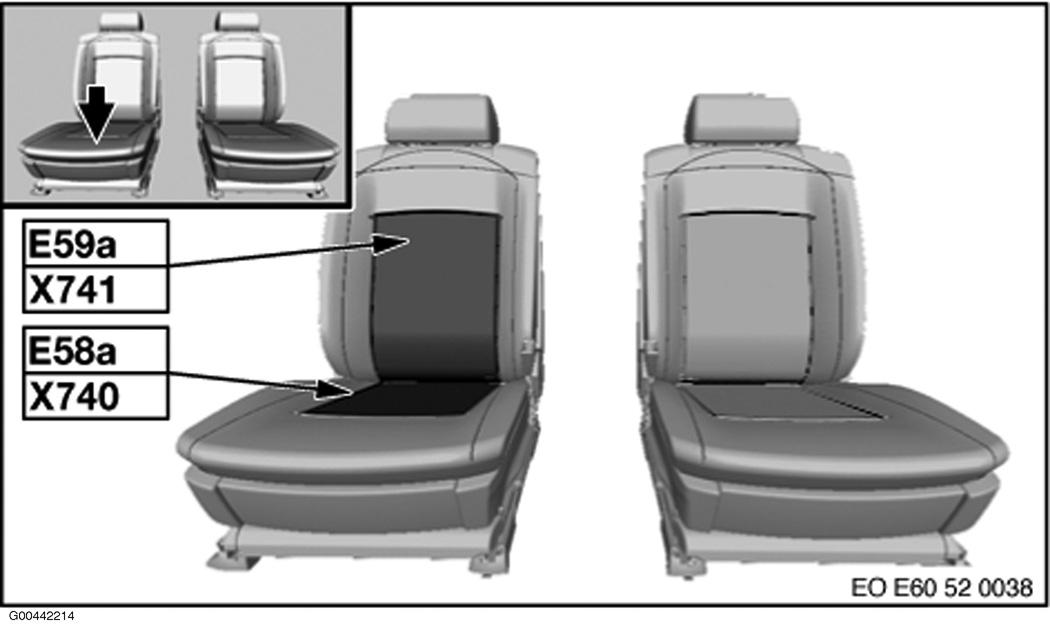

Fig 144: Right Front Seat

G00442214

Courtesy of BMW OF NORTH AMERICA, INC.

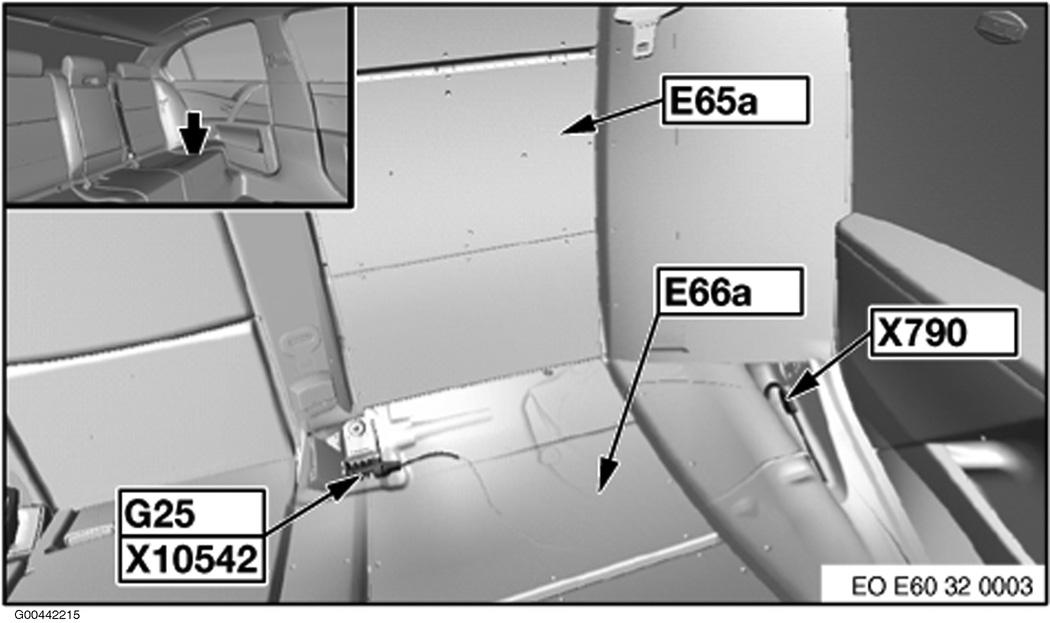

Fig 145: Under Left Rear Seat

G00442215

Courtesy of BMW OF NORTH AMERICA, INC.

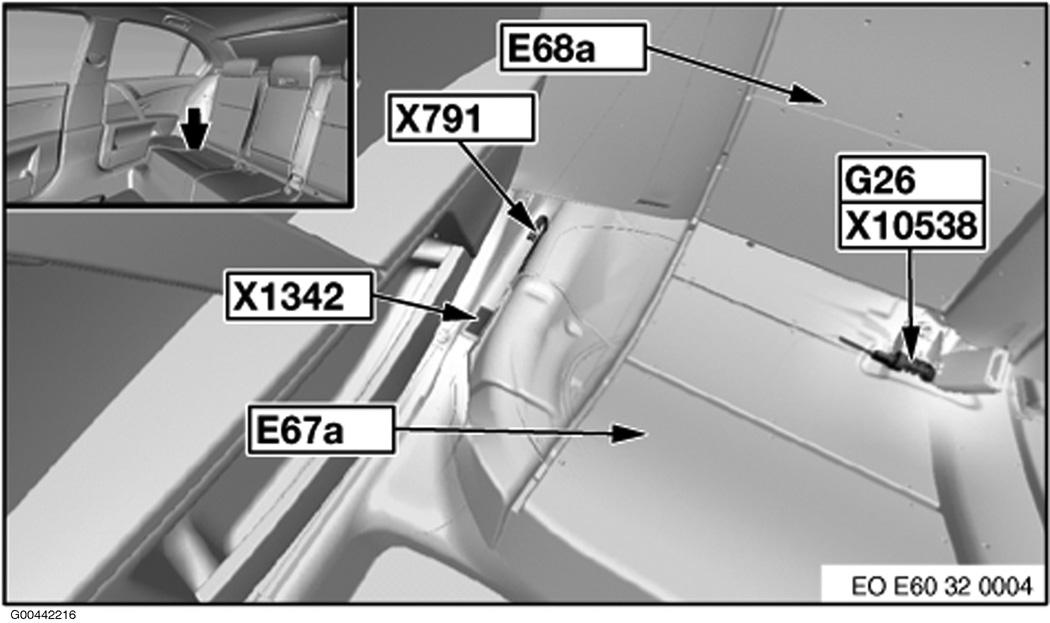

Fig 146: Under Right Rear Seat

G00442216

Courtesy of BMW OF NORTH AMERICA, INC.

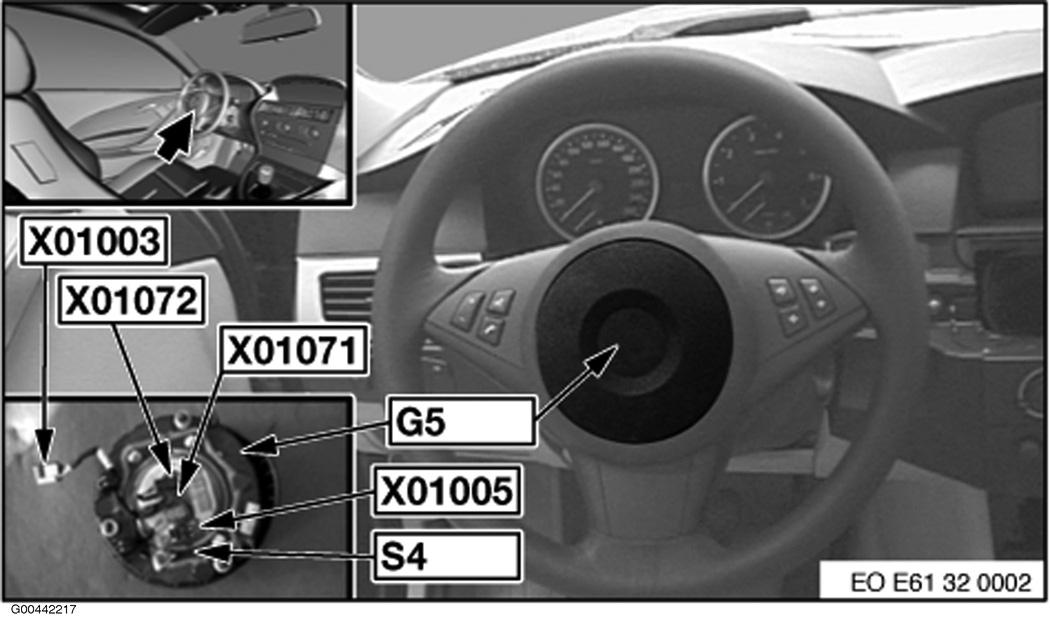

Fig 147: Part Of Steering Wheel

G00442217

Courtesy of BMW OF NORTH AMERICA, INC.

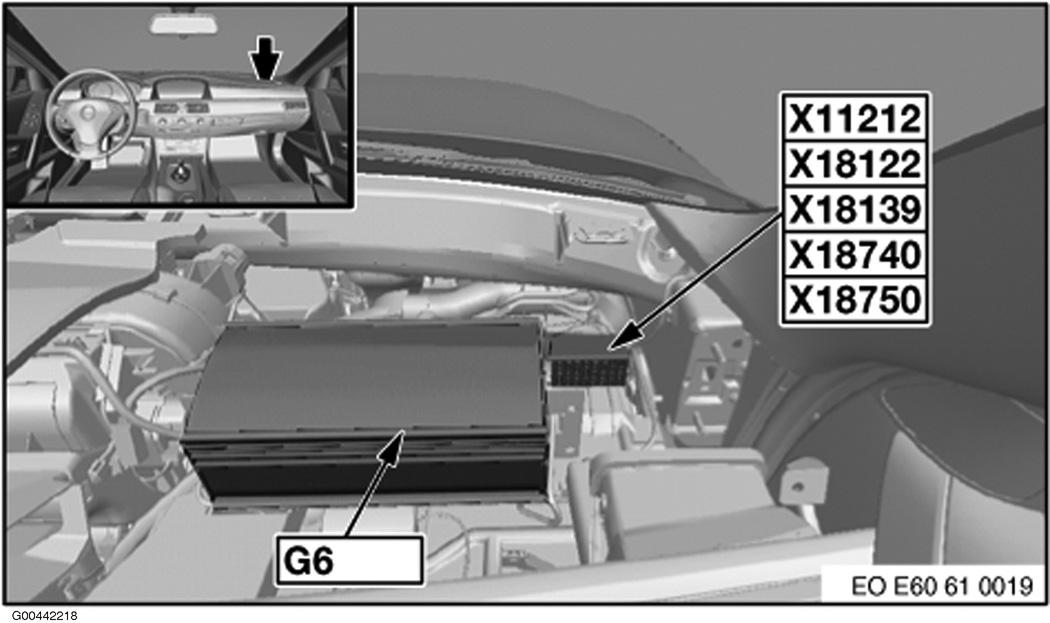

Fig 148: Top Right Side Of Dash

G00442218

Courtesy of BMW OF NORTH AMERICA, INC.

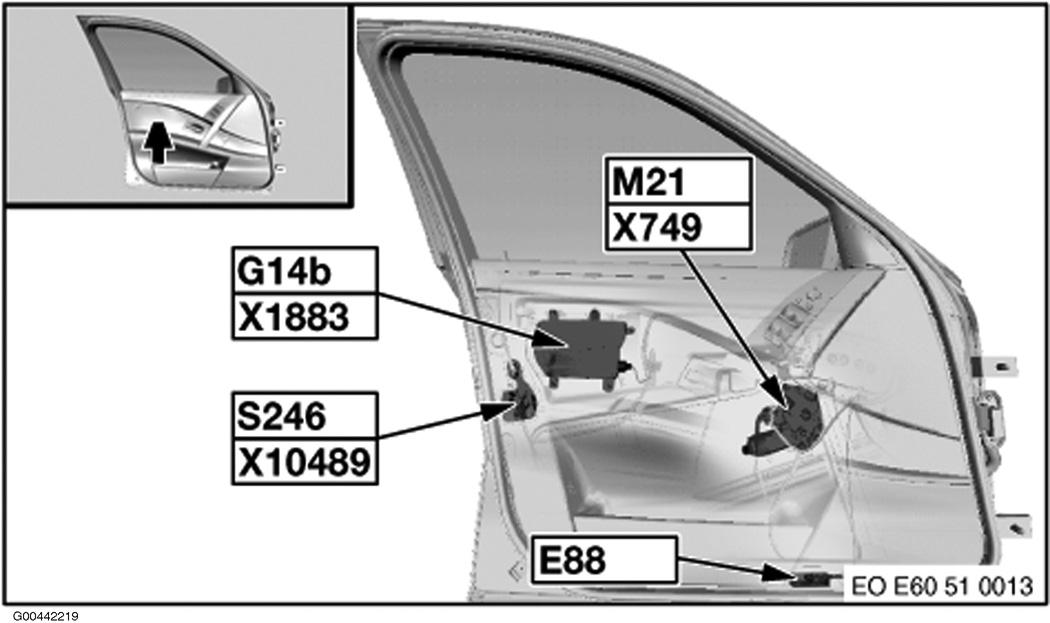

Fig 149: Driver's Door

G00442219

Courtesy of BMW OF NORTH AMERICA, INC.

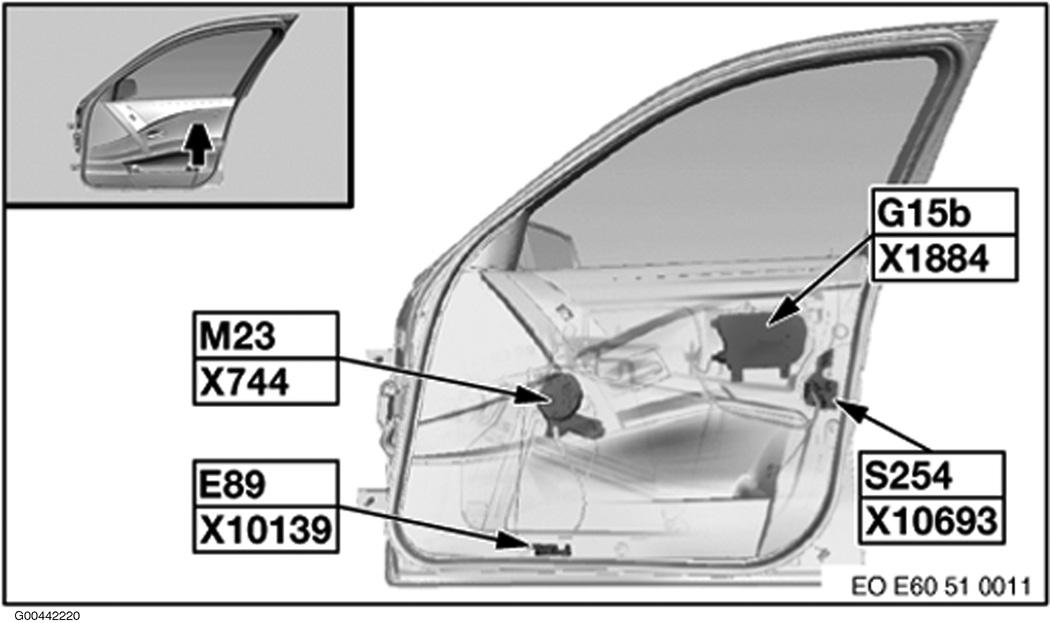

Fig 150: Front Passenger's Door

G00442220

Courtesy of BMW OF NORTH AMERICA, INC.

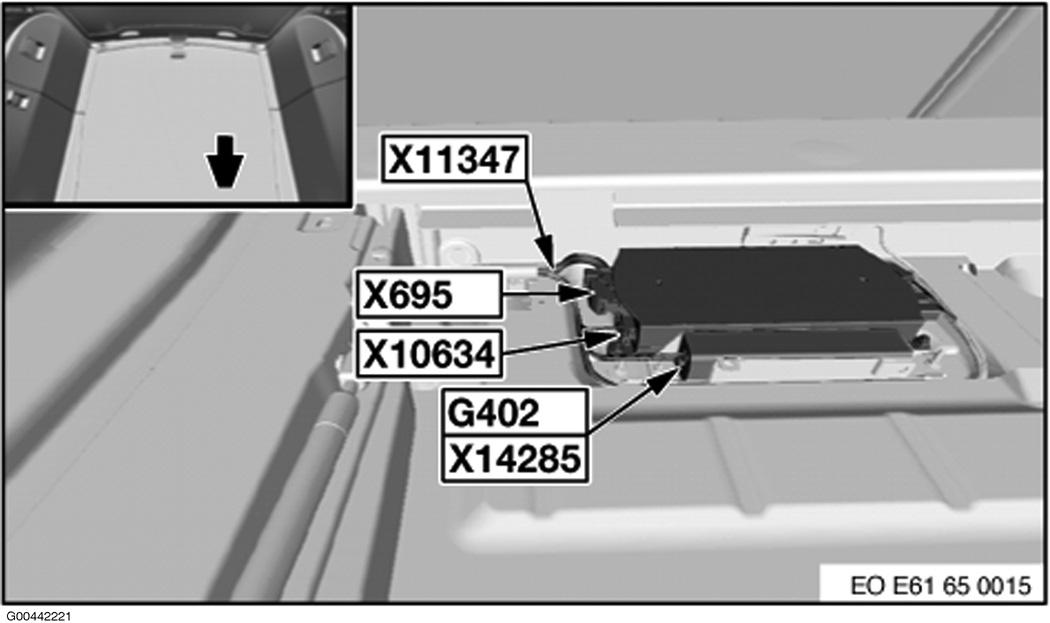

Fig 151: Rear Compartment

G00442221

Courtesy of BMW OF NORTH AMERICA, INC.

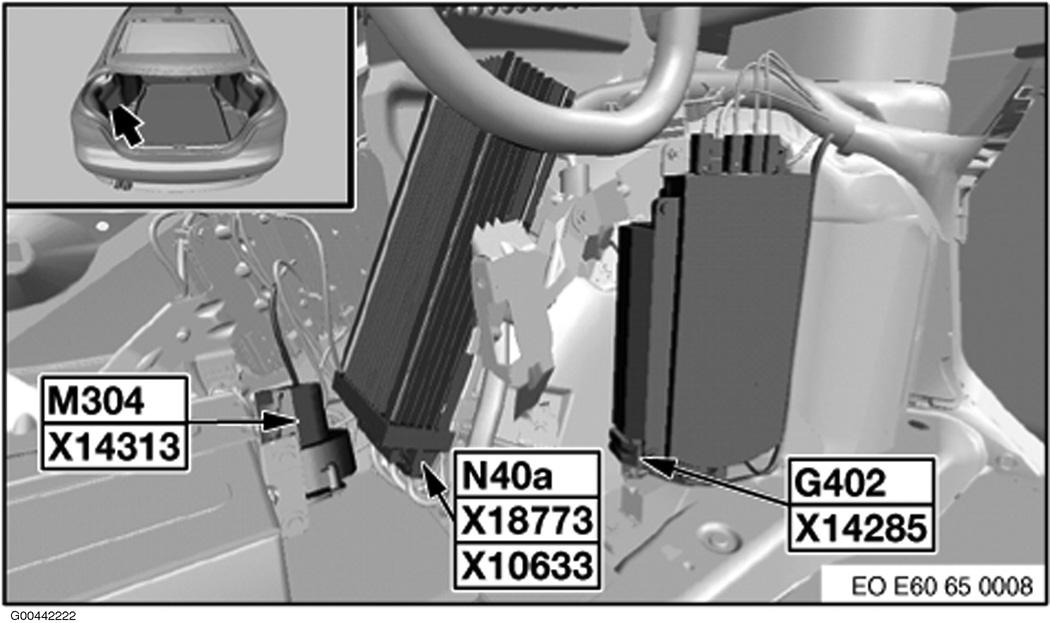

Fig 152: Left Side Of Rear Compartment

G00442222

Courtesy of BMW OF NORTH AMERICA, INC.

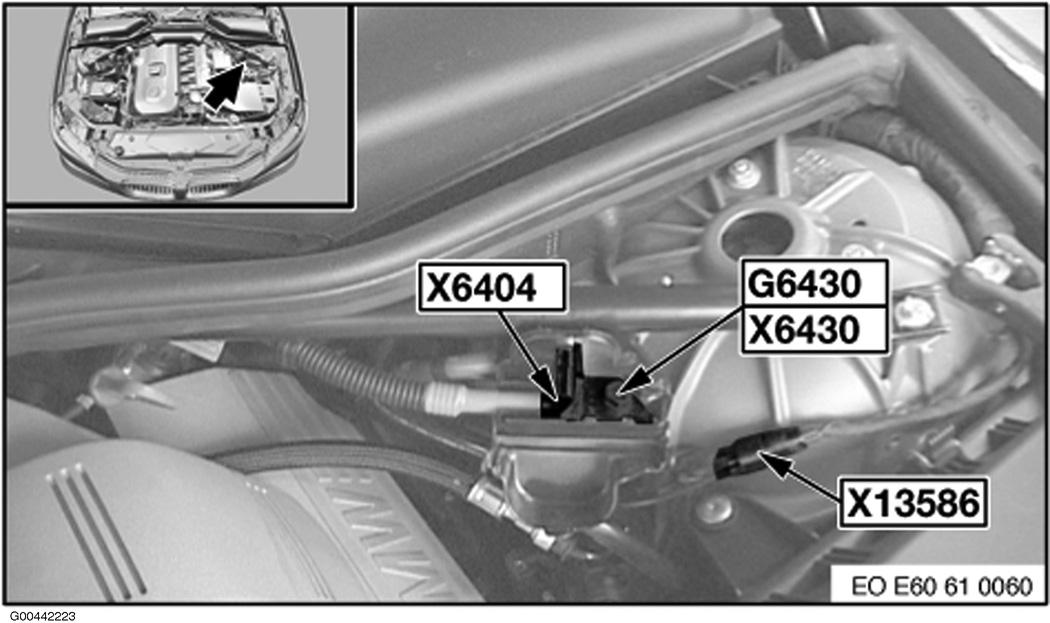

Fig 153: Left Side Of Engine Compartment

G00442223

Courtesy of BMW OF NORTH AMERICA, INC.

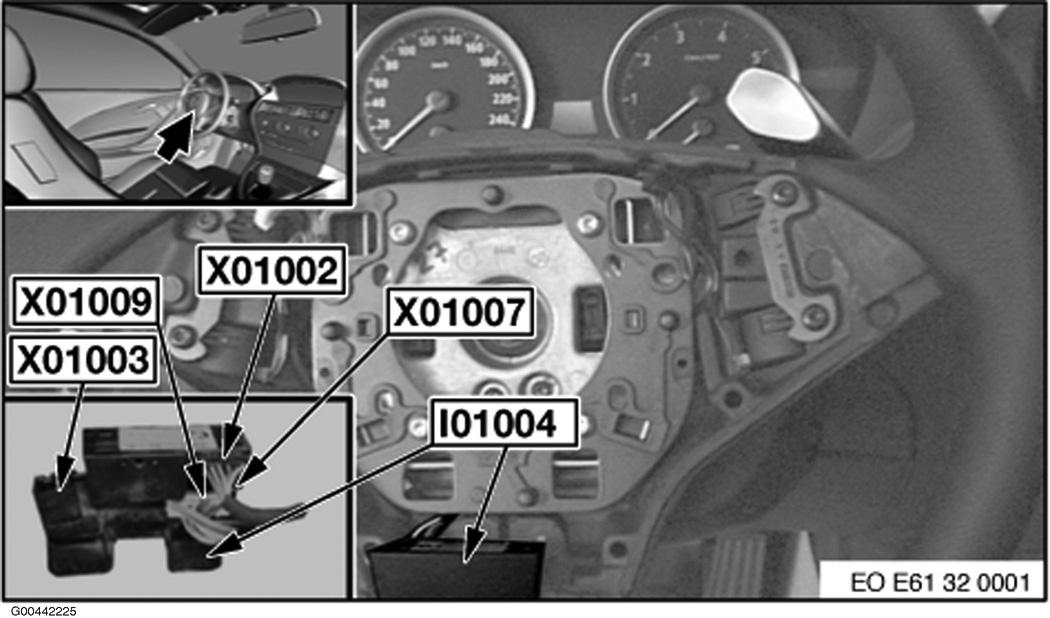

Fig 154: Part Of Steering Wheel

G00442225

Courtesy of BMW OF NORTH AMERICA, INC.

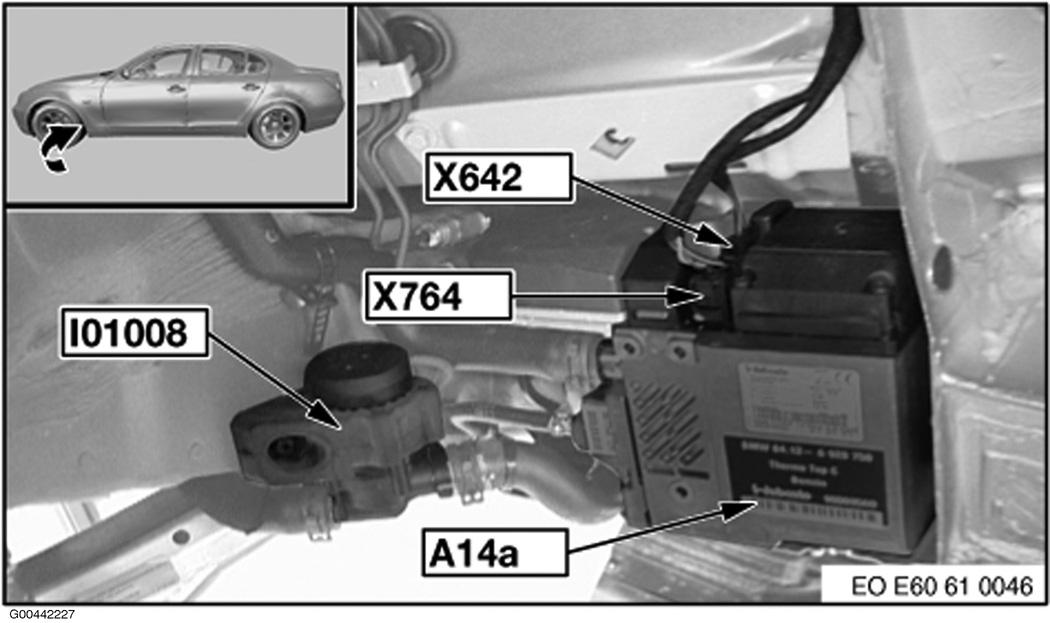

Fig 155: Behind Left Front Wheel

G00442227

Courtesy of BMW OF NORTH AMERICA, INC.

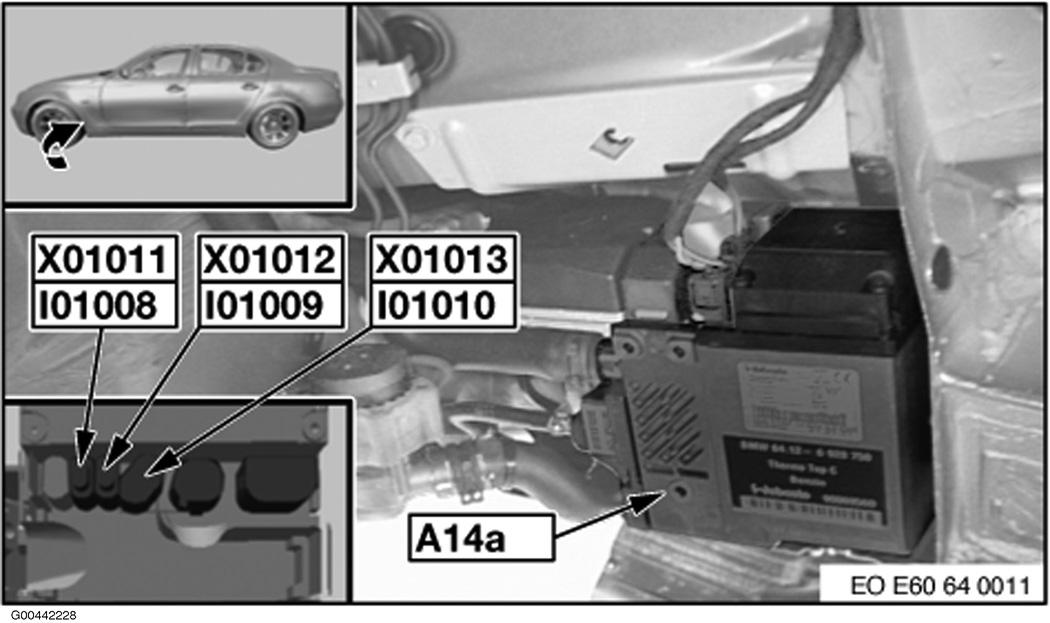

Fig 156: Behind Left Front Wheel

G00442228

Courtesy of BMW OF NORTH AMERICA, INC.

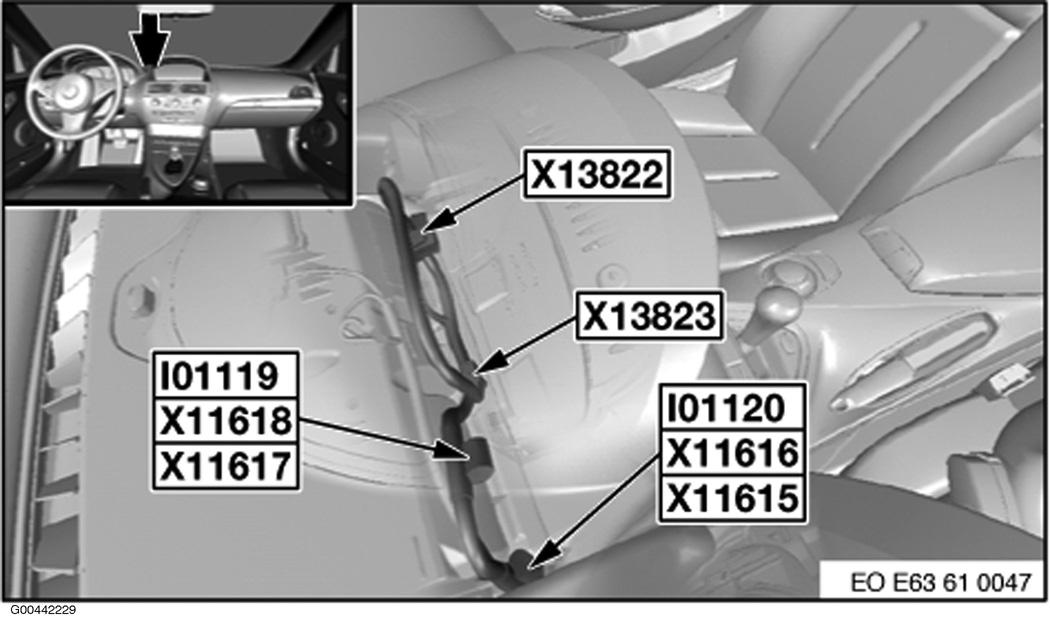

Fig 157: Top Center Of Dash

G00442229

Courtesy of BMW OF NORTH AMERICA, INC.

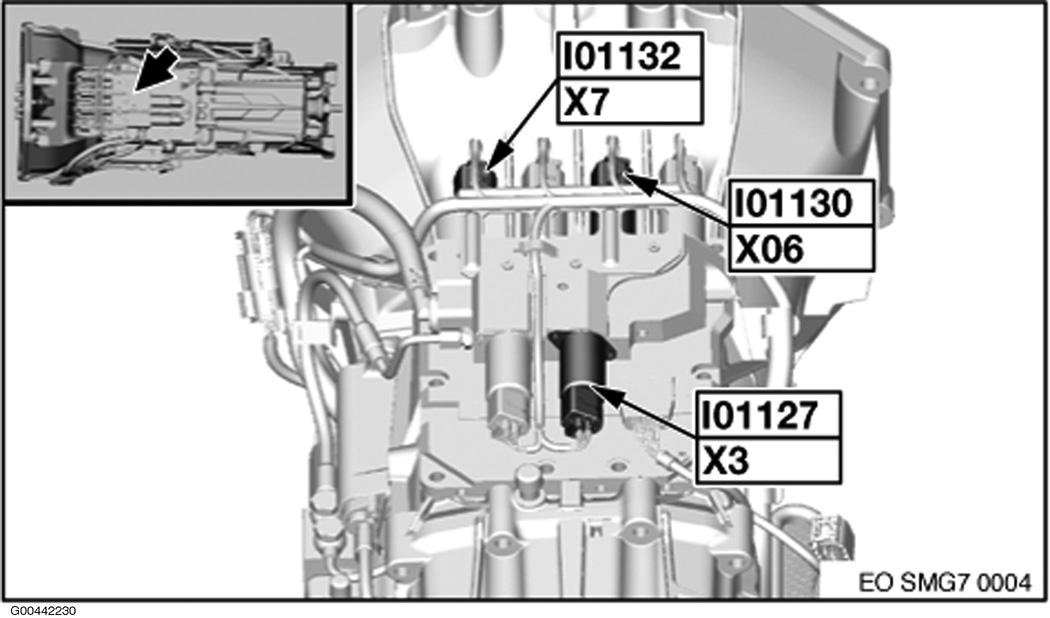

Fig 158: Top Of Transmission

G00442230

Courtesy of BMW OF NORTH AMERICA, INC.

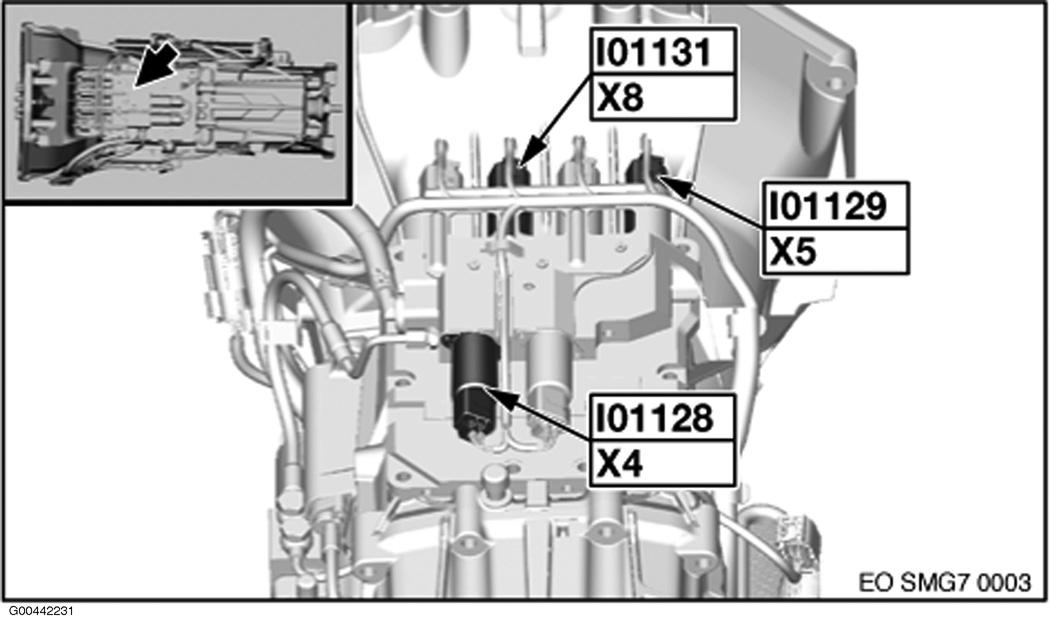

Fig 159: Top Of Transmission

G00442231

Courtesy of BMW OF NORTH AMERICA, INC.

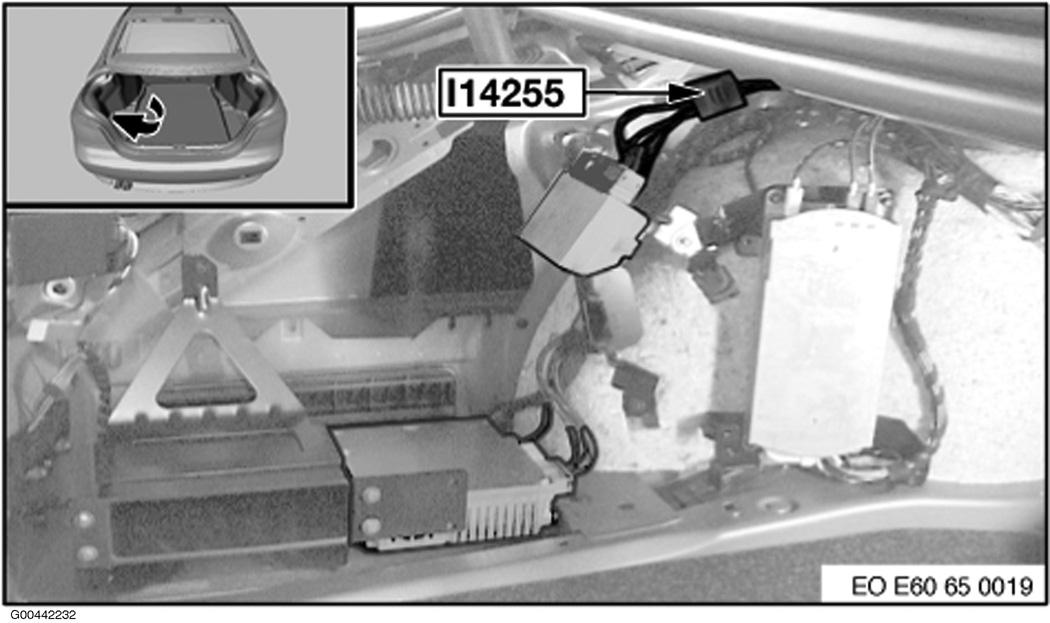

Fig 160: Left Side Of Rear Compartment

G00442232

Courtesy of BMW OF NORTH AMERICA, INC.

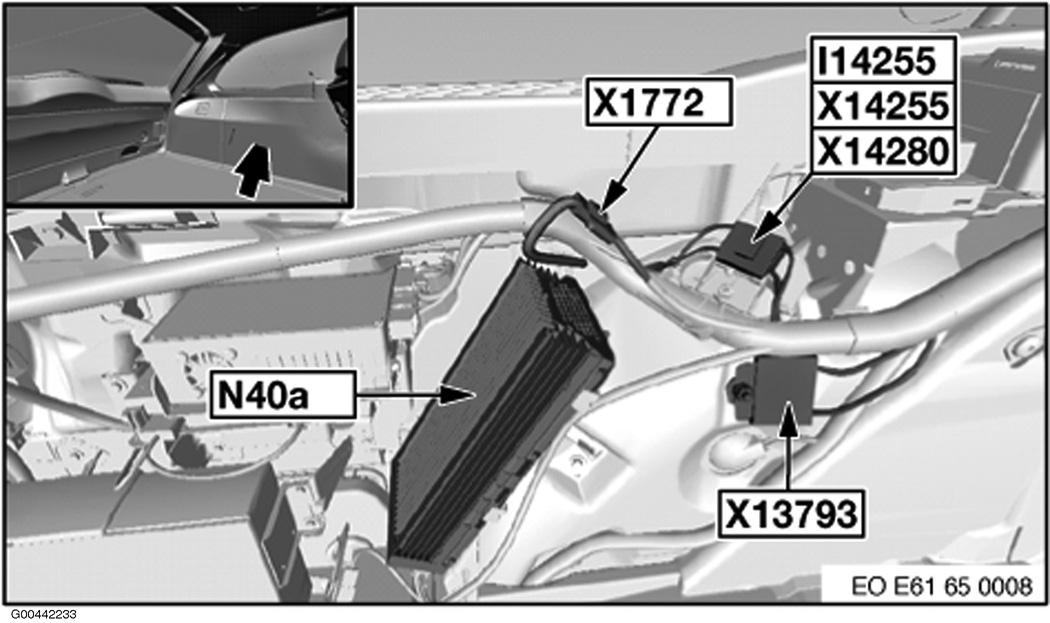

Fig 161: Left Side Of Rear Compartment

G00442233

Courtesy of BMW OF NORTH AMERICA, INC.

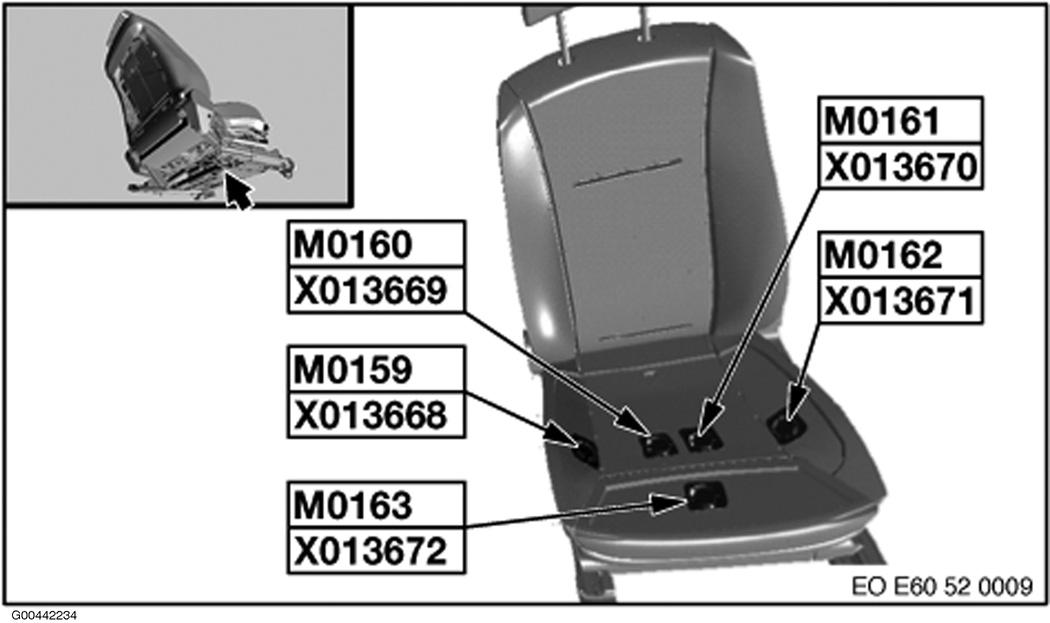

Fig 162: Front Passenger's Seat

G00442234

Courtesy of BMW OF NORTH AMERICA, INC.

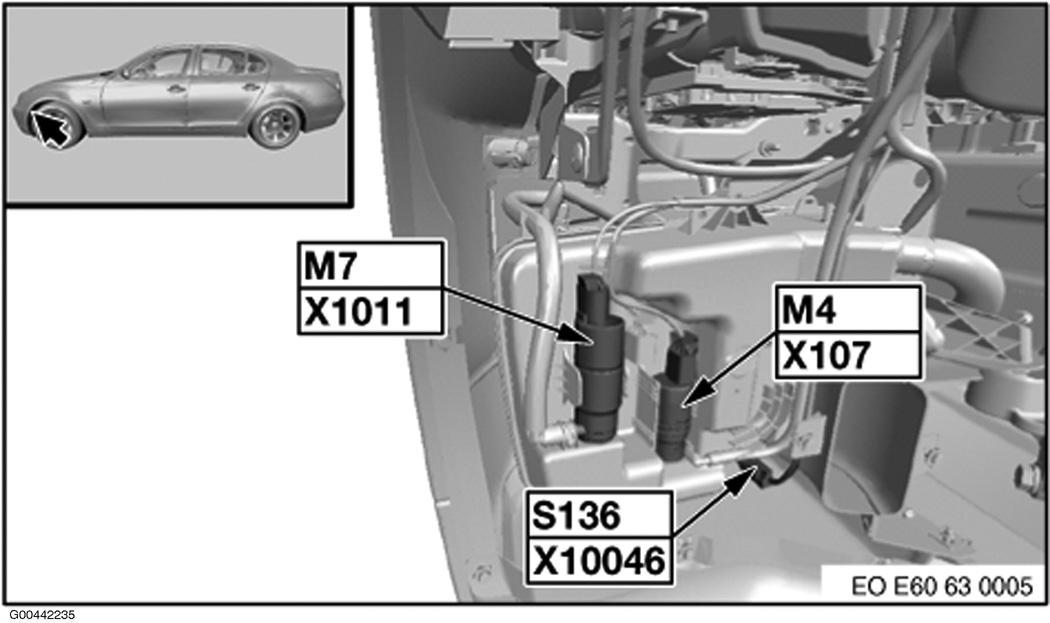

Fig 163: Front Of Left Front Wheel (Sedan)

G00442235

Courtesy of BMW OF NORTH AMERICA, INC.

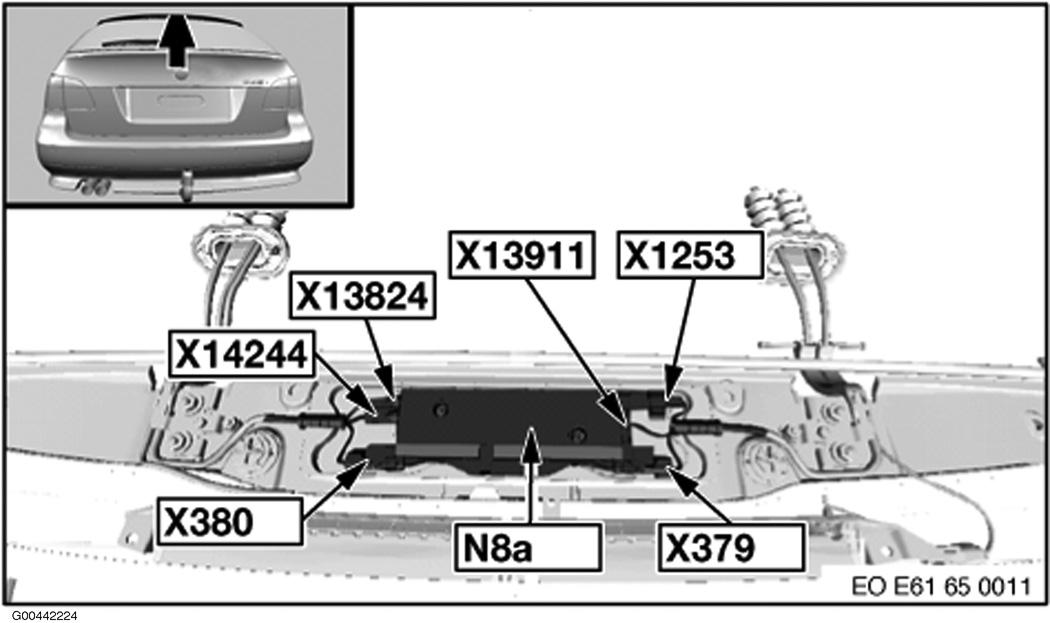

Fig 164: Top Rear Of Roof

G00442224

Courtesy of BMW OF NORTH AMERICA, INC.

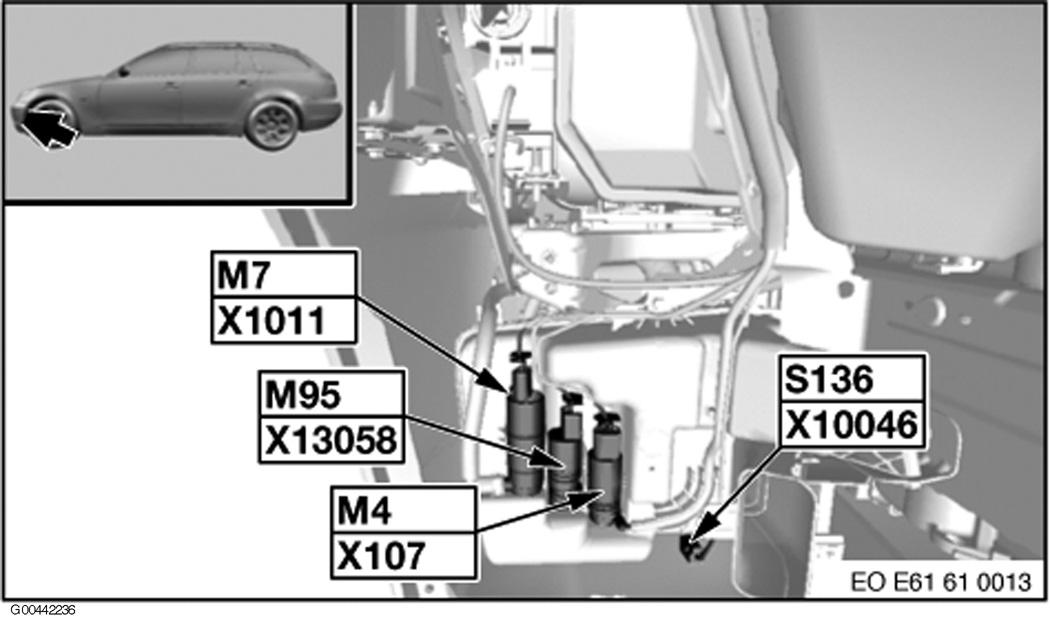

Fig 165: Front Of Left Front Wheel (Wagon)

G00442236

Courtesy of BMW OF NORTH AMERICA, INC.

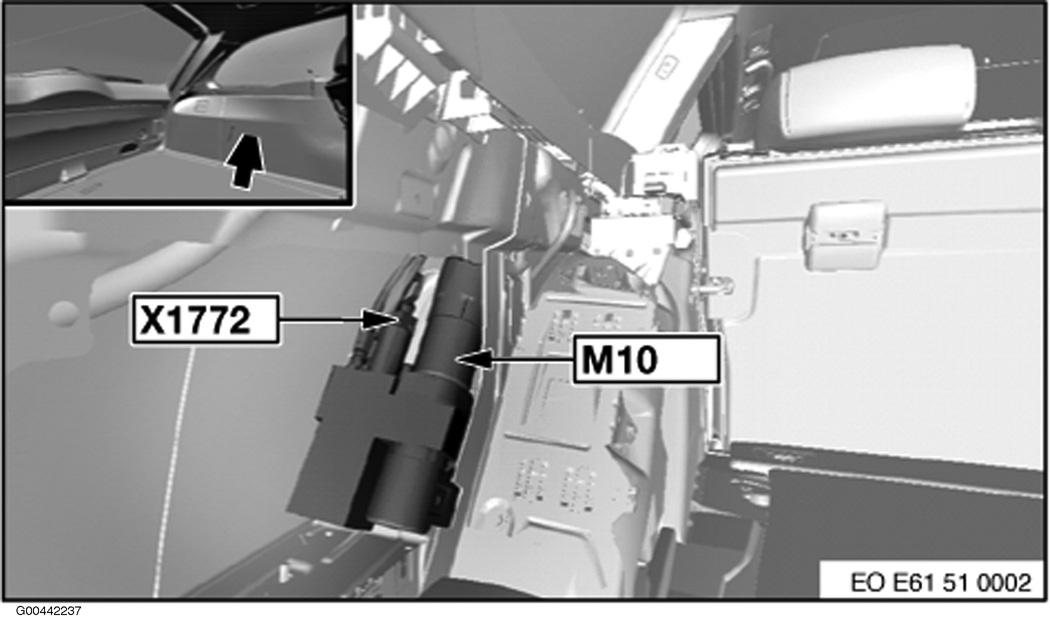

Fig 166: Left Side Of Rear Compartment

G00442237

Courtesy of BMW OF NORTH AMERICA, INC.

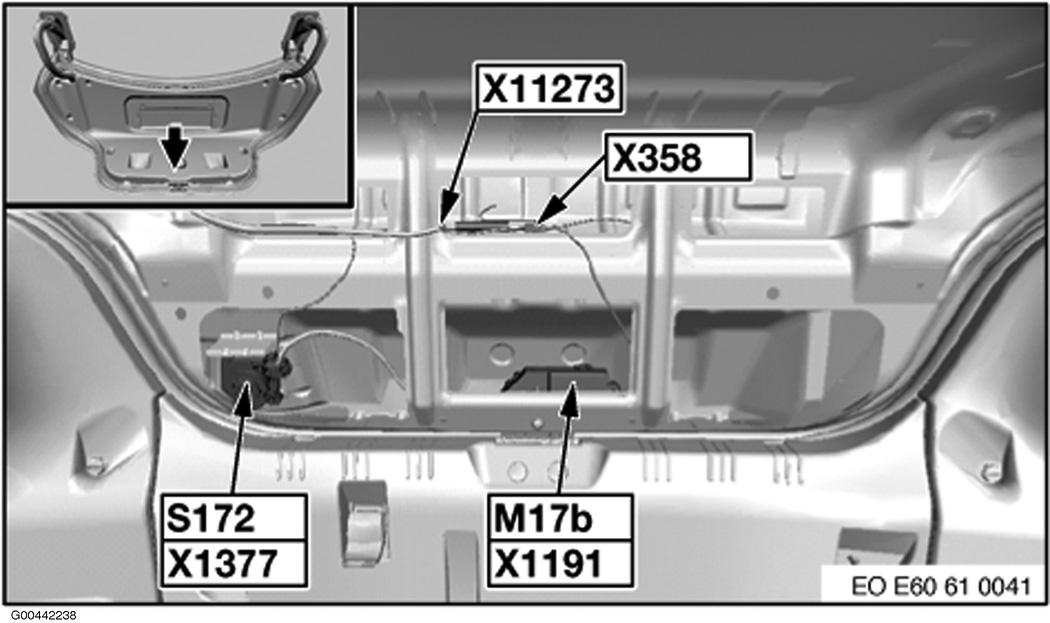

Fig 167: Rear Compartment Door

G00442238

Courtesy of BMW OF NORTH AMERICA, INC.

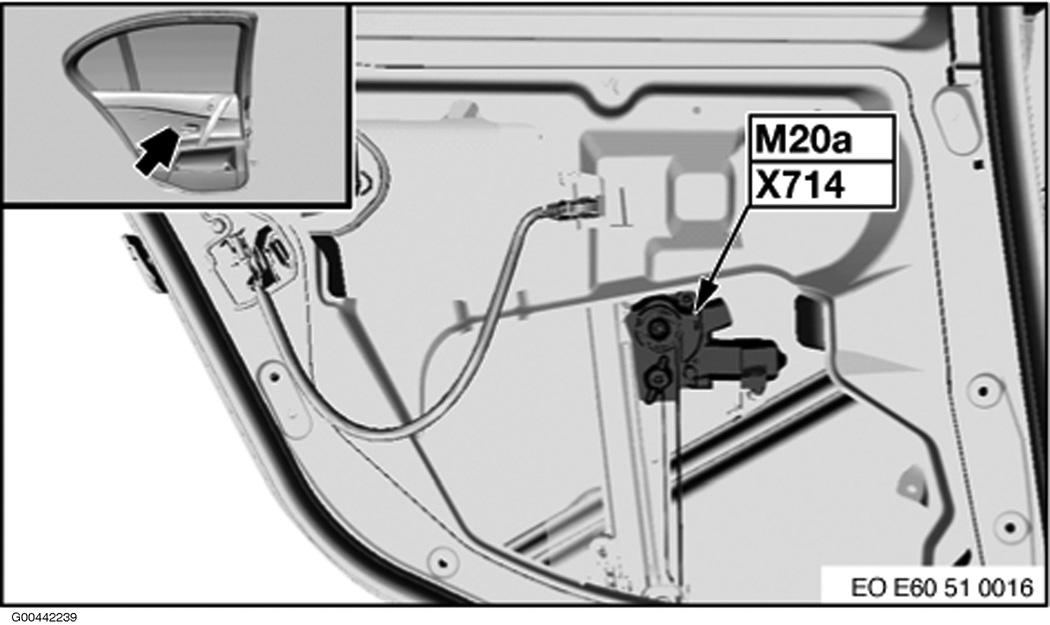

Fig 168: Left Rear Door

G00442239

Courtesy of BMW OF NORTH AMERICA, INC.

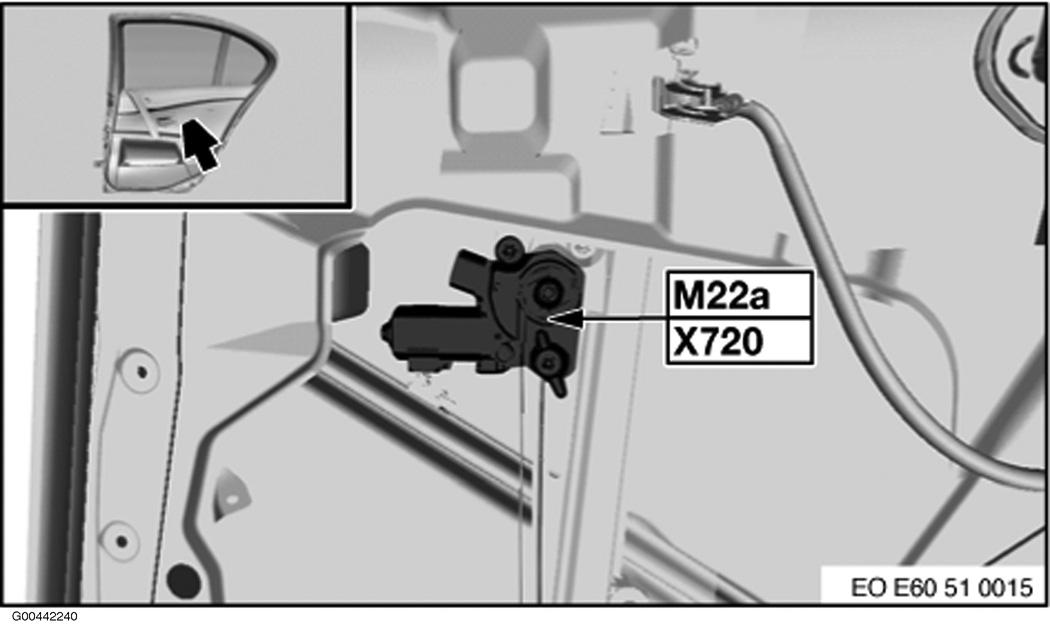

Fig 169: Right Rear Door

G00442240

Courtesy of BMW OF NORTH AMERICA, INC.

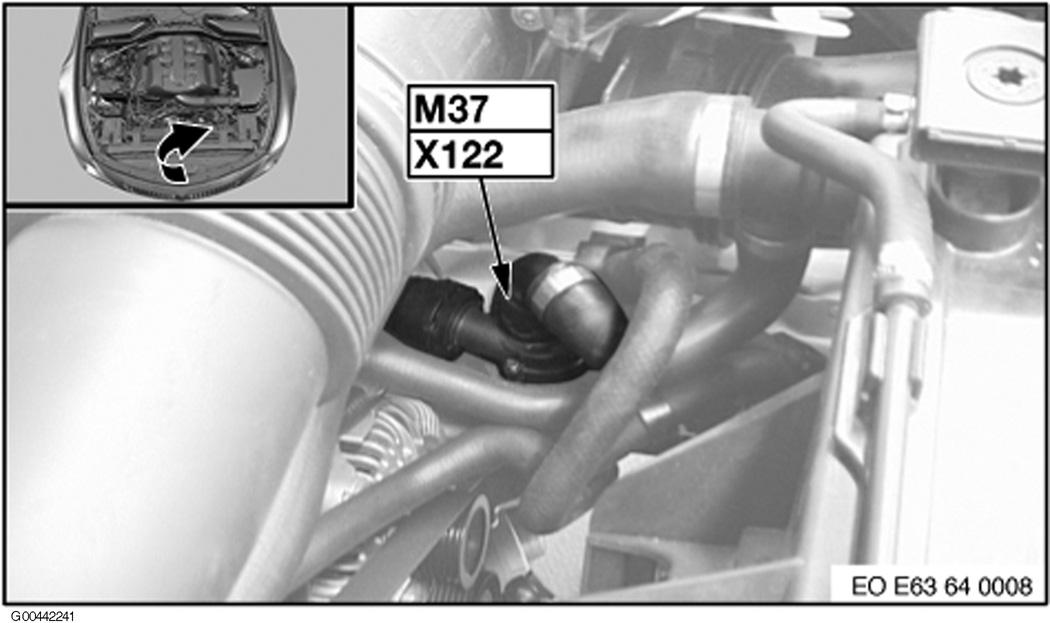

Fig 170: Front Engine Compartment

G00442241

Courtesy of BMW OF NORTH AMERICA, INC.

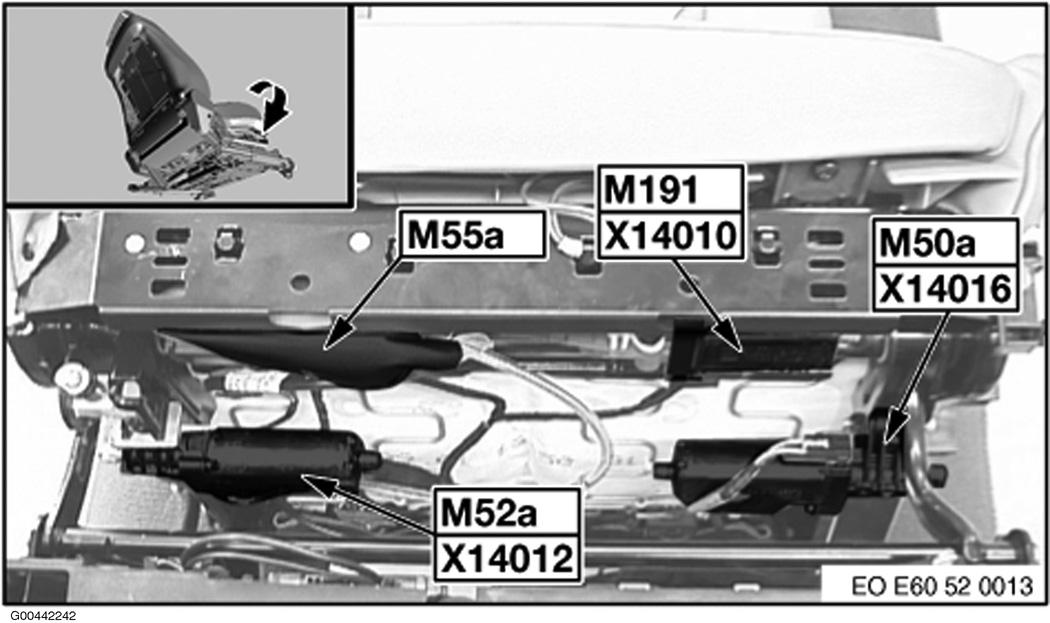

Fig 171: Under Driver's Seat

G00442242

Courtesy of BMW OF NORTH AMERICA, INC.

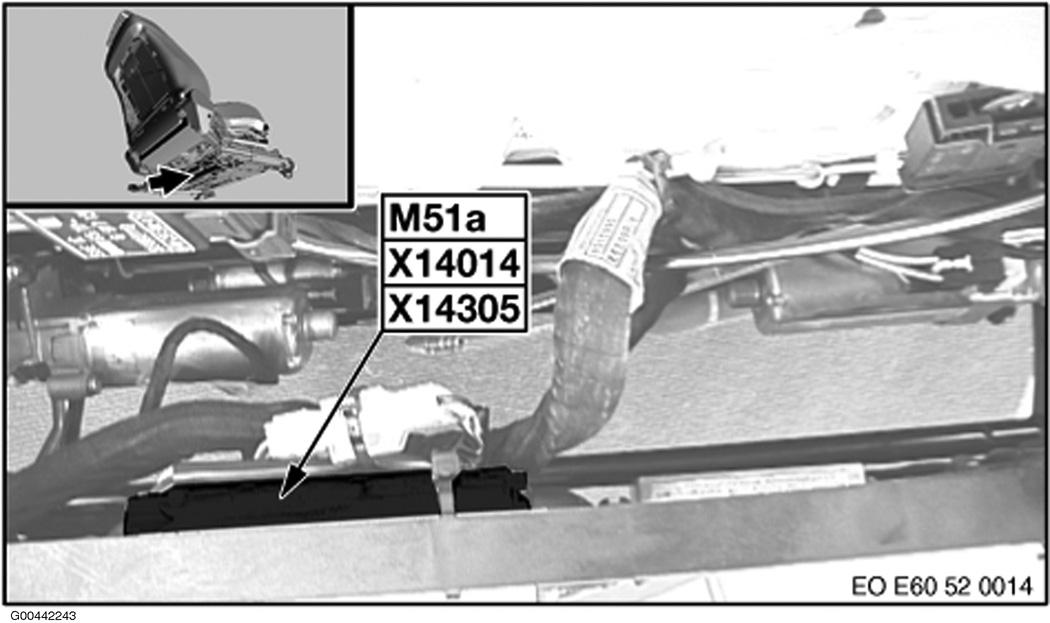

Fig 172: Under Driver's Seat

G00442243

Courtesy of BMW OF NORTH AMERICA, INC.

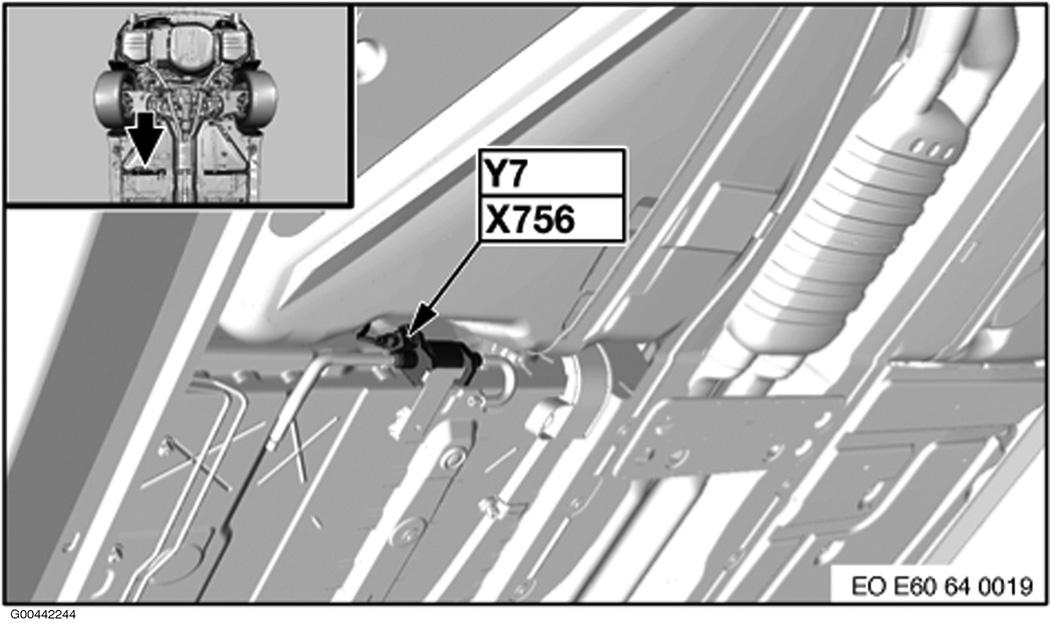

Fig 173: Under Vehicle

G00442244

Courtesy of BMW OF NORTH AMERICA, INC.

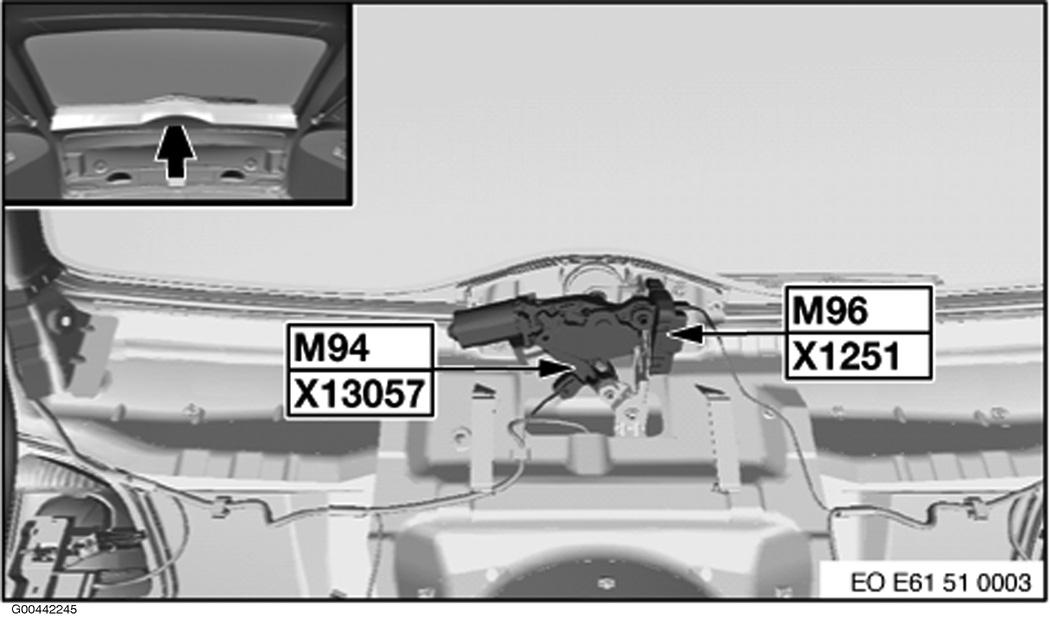

Fig 174: Rear Compartment Door

G00442245

Courtesy of BMW OF NORTH AMERICA, INC.

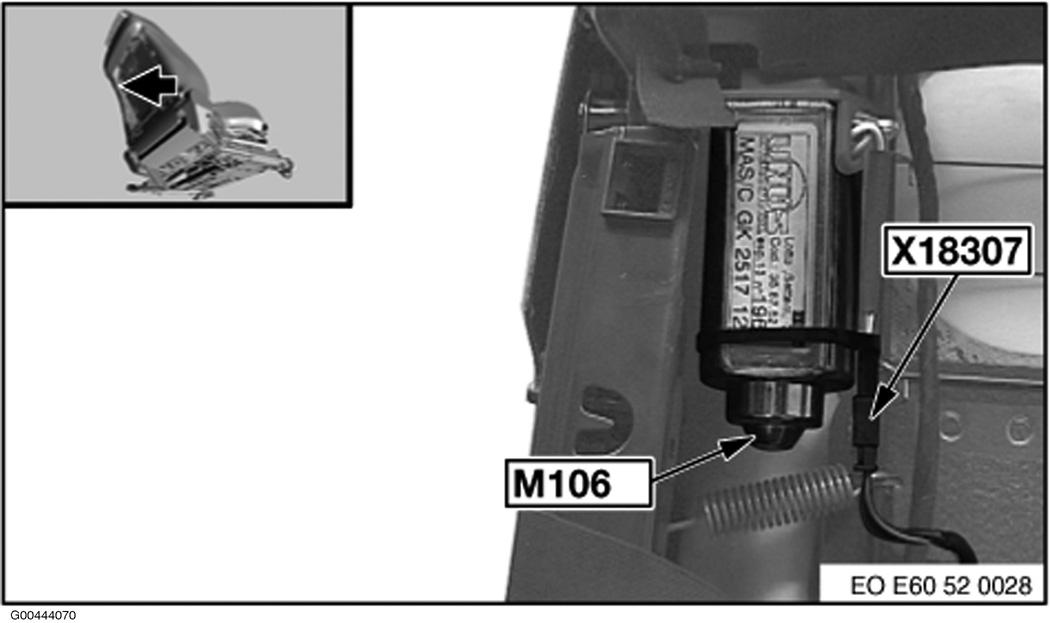

Fig 175: Behind Driver's Seat Back

G00444070

Courtesy of BMW OF NORTH AMERICA, INC.

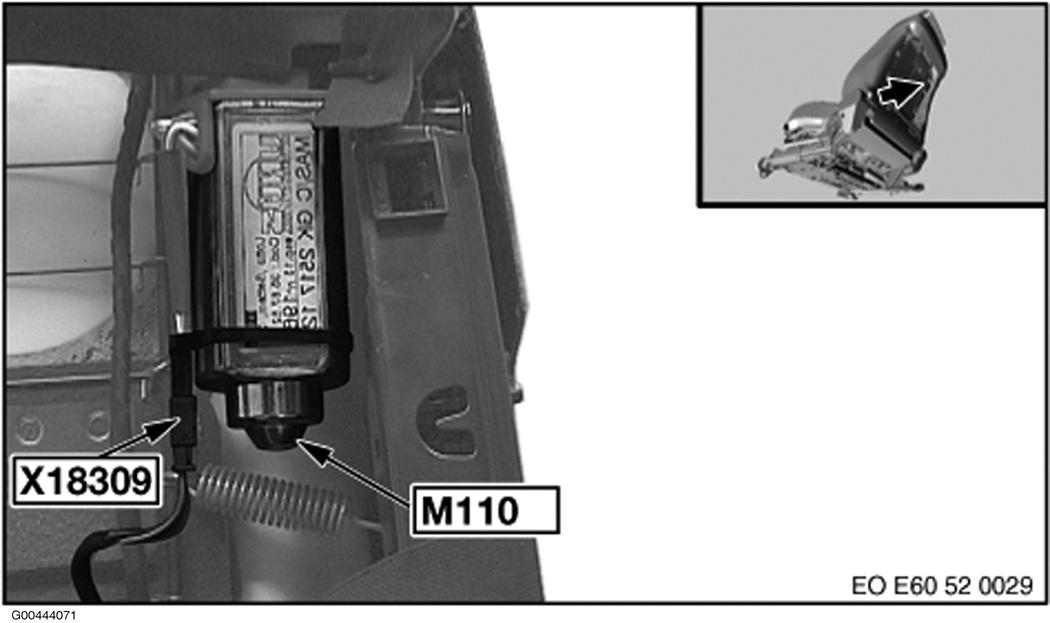

Fig 176: Behind Front Passenger's Seat Back

G00444071

Courtesy of BMW OF NORTH AMERICA, INC.

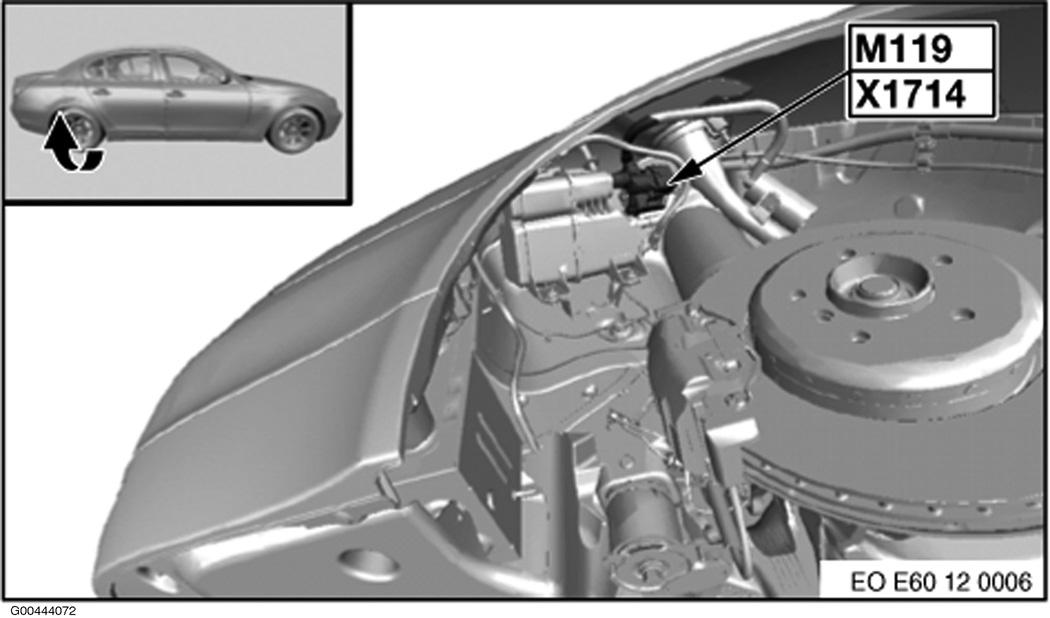

Fig 177: Behind Right Rear Wheel

G00444072

Courtesy of BMW OF NORTH AMERICA, INC.

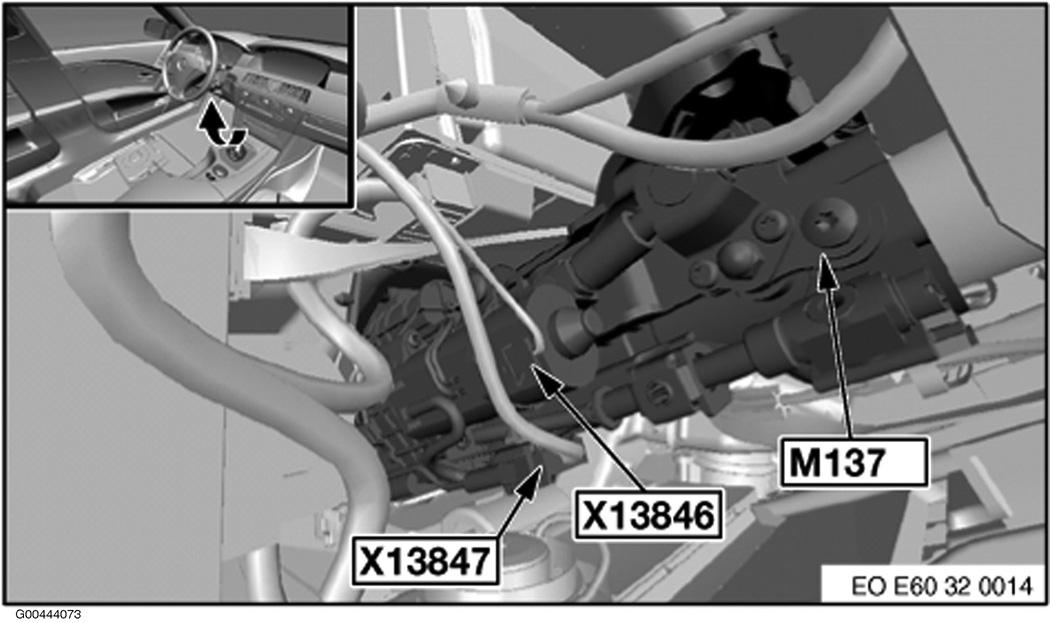

Fig 178: Under Left Side Of Dash

G00444073

Courtesy of BMW OF NORTH AMERICA, INC.

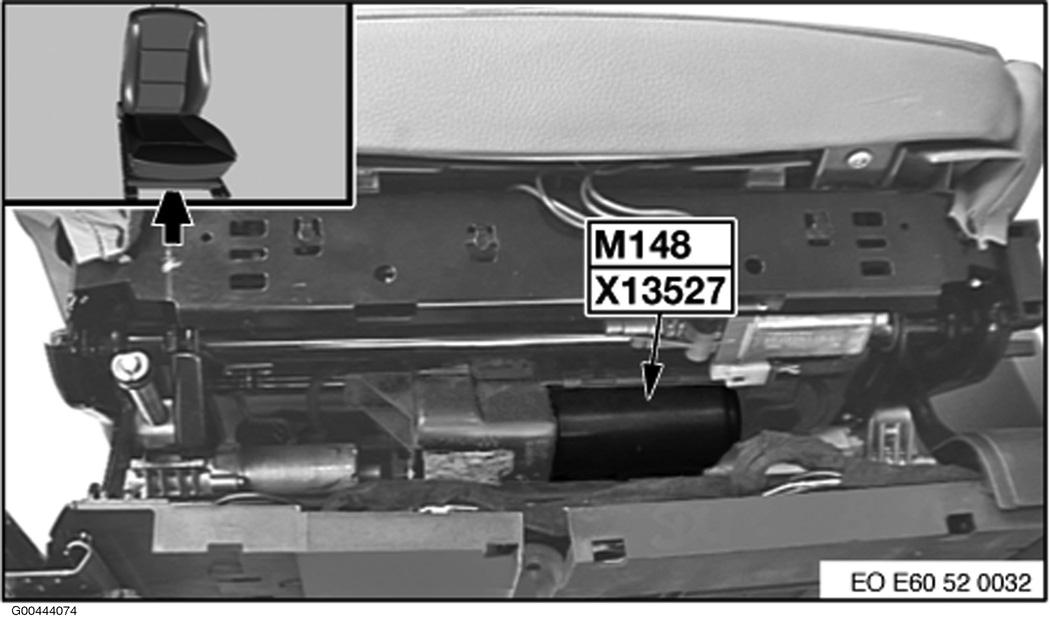

Fig 179: Under Front Passenger's Seat

G00444074

Courtesy of BMW OF NORTH AMERICA, INC.

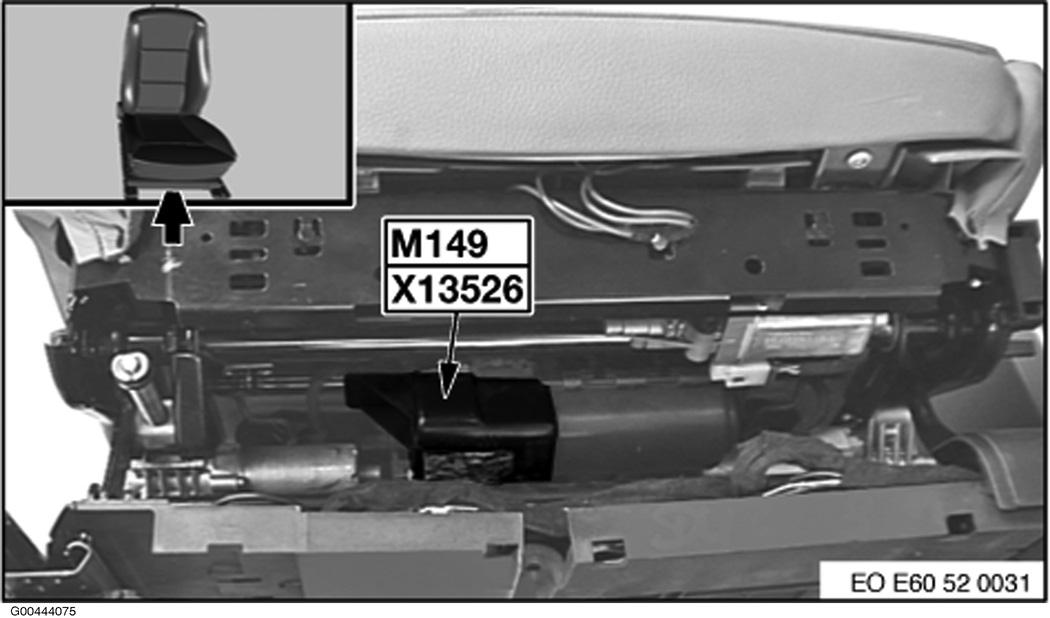

Fig 180: Under Driver's Seat

G00444075

Courtesy of BMW OF NORTH AMERICA, INC.

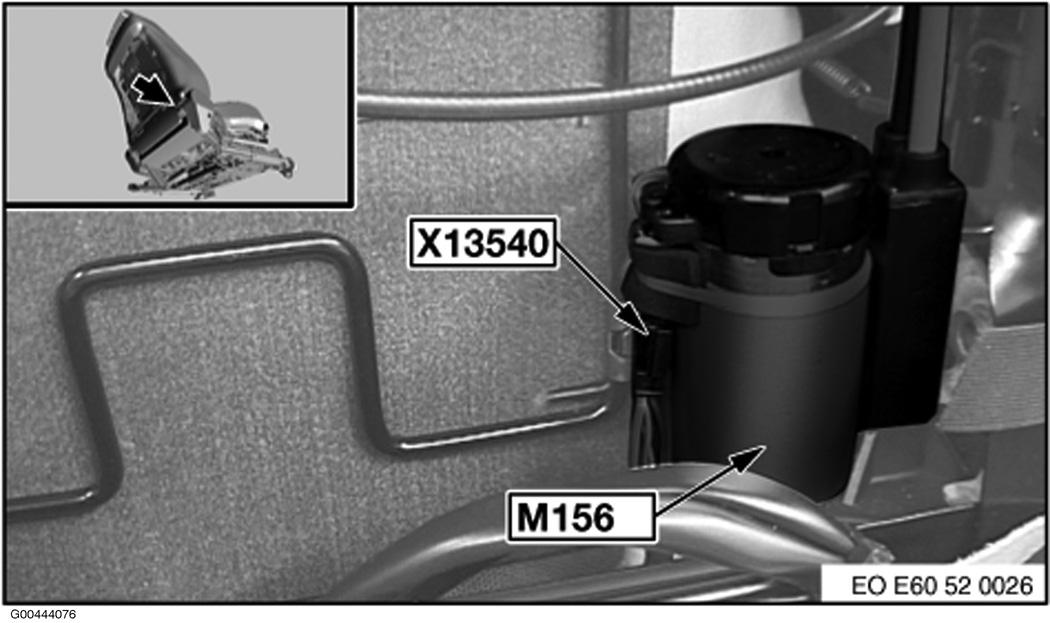

Fig 181: Bottom Of Driver's Seat Back

G00444076

Courtesy of BMW OF NORTH AMERICA, INC.

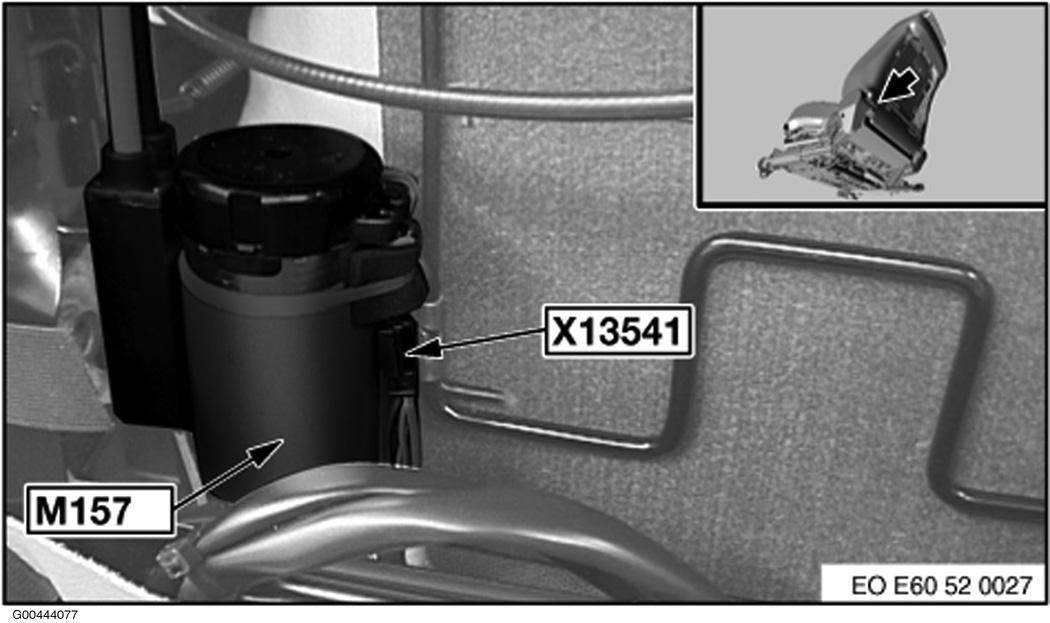

Fig 182: Bottom Of Front Passenger's Seat Back

G00444077

Courtesy of BMW OF NORTH AMERICA, INC.

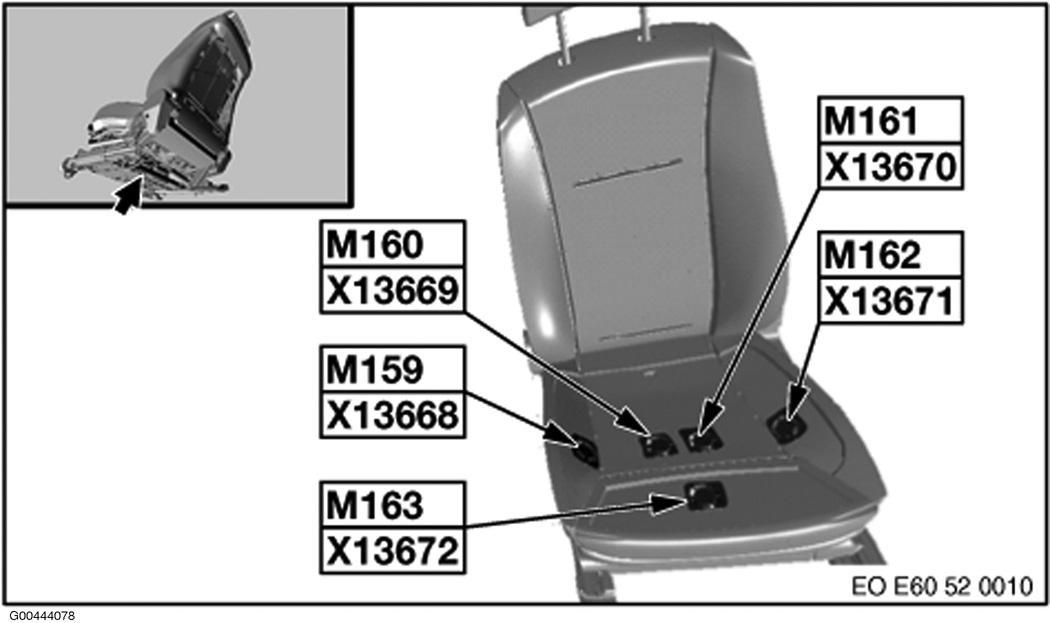

Fig 183: In Driver's Seat Cushion

G00444078

Courtesy of BMW OF NORTH AMERICA, INC.

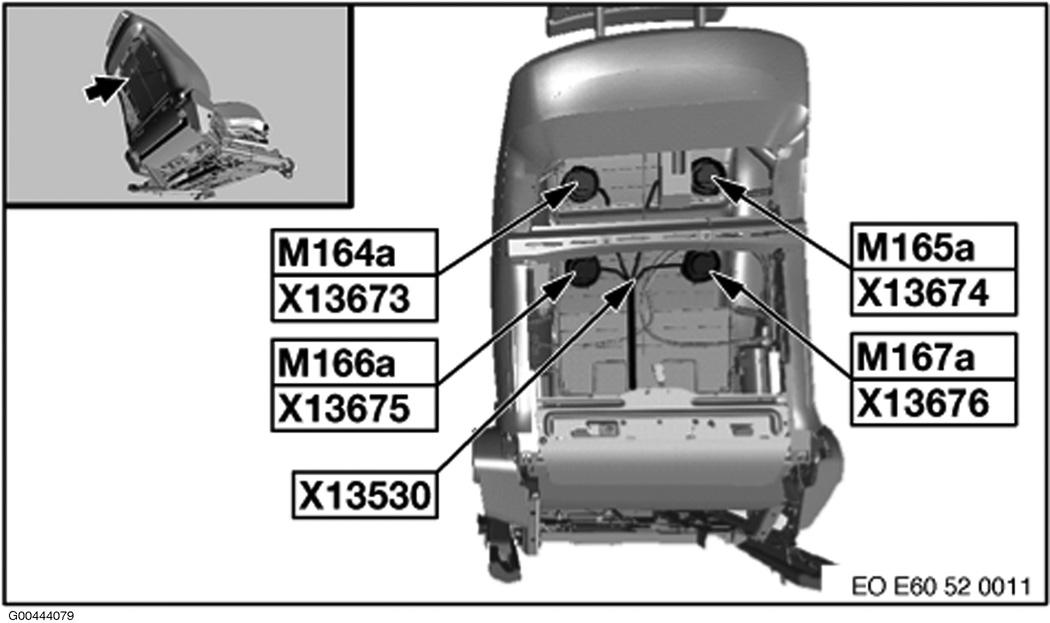

Fig 184: In Driver's Seat Back

G00444079

Courtesy of BMW OF NORTH AMERICA, INC.

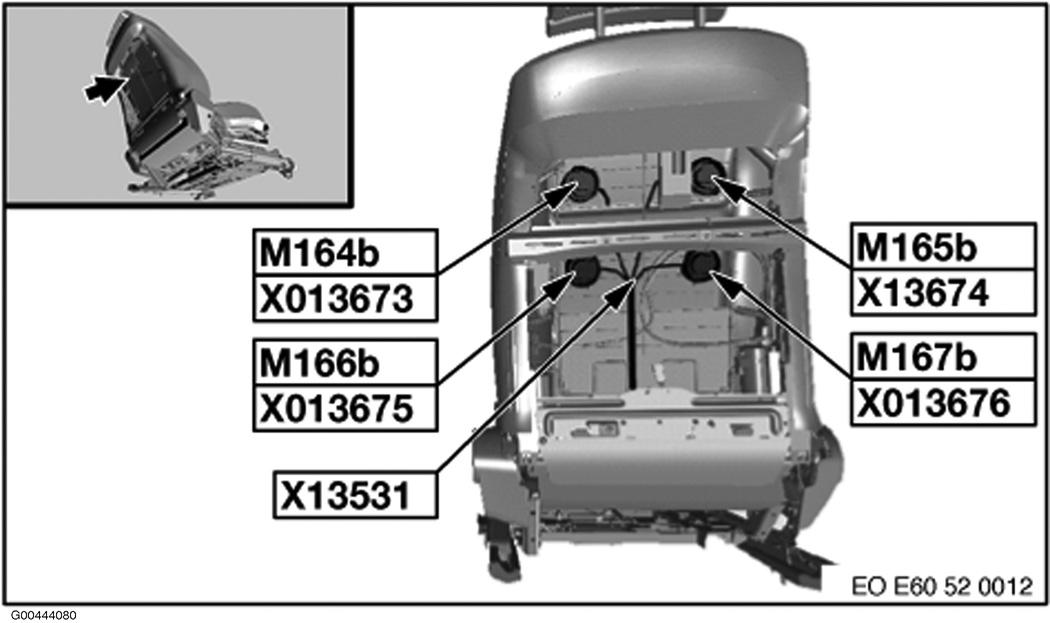

Fig 185: In Front Passenger's Seat Back

G00444080

Courtesy of BMW OF NORTH AMERICA, INC.

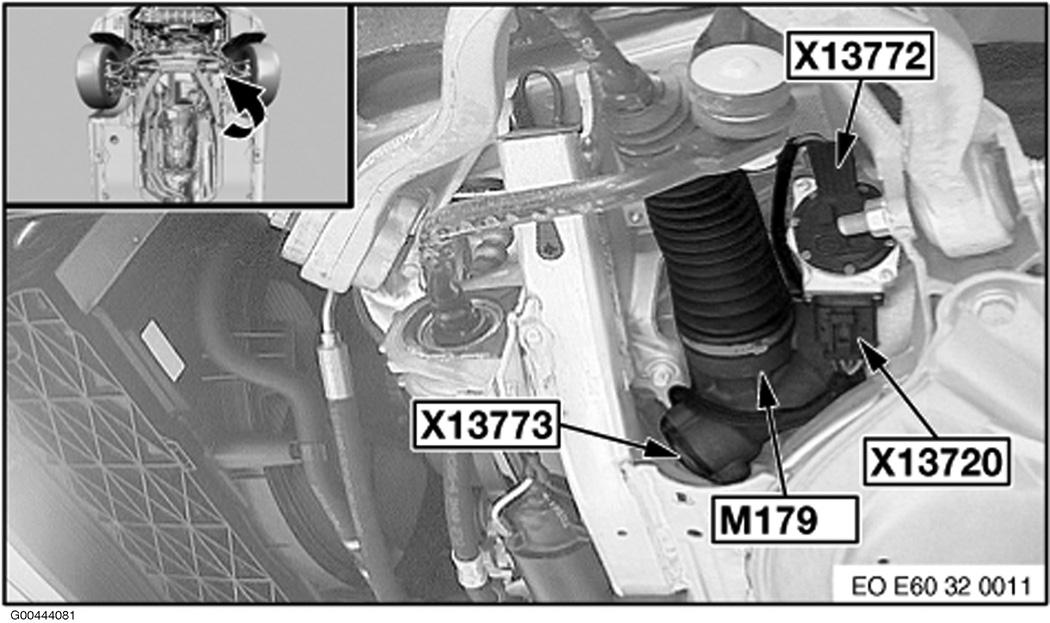

Fig 186: Under Vehicle

G00444081

Courtesy of BMW OF NORTH AMERICA, INC.

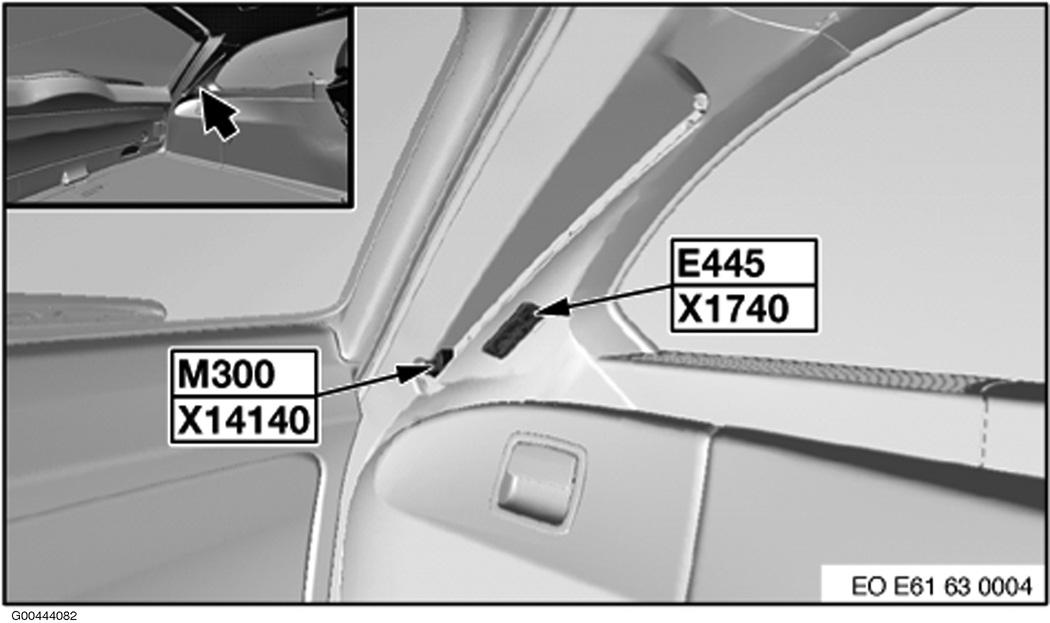

Fig 187: Left Side Of Rear Compartment

G00444082

Courtesy of BMW OF NORTH AMERICA, INC.

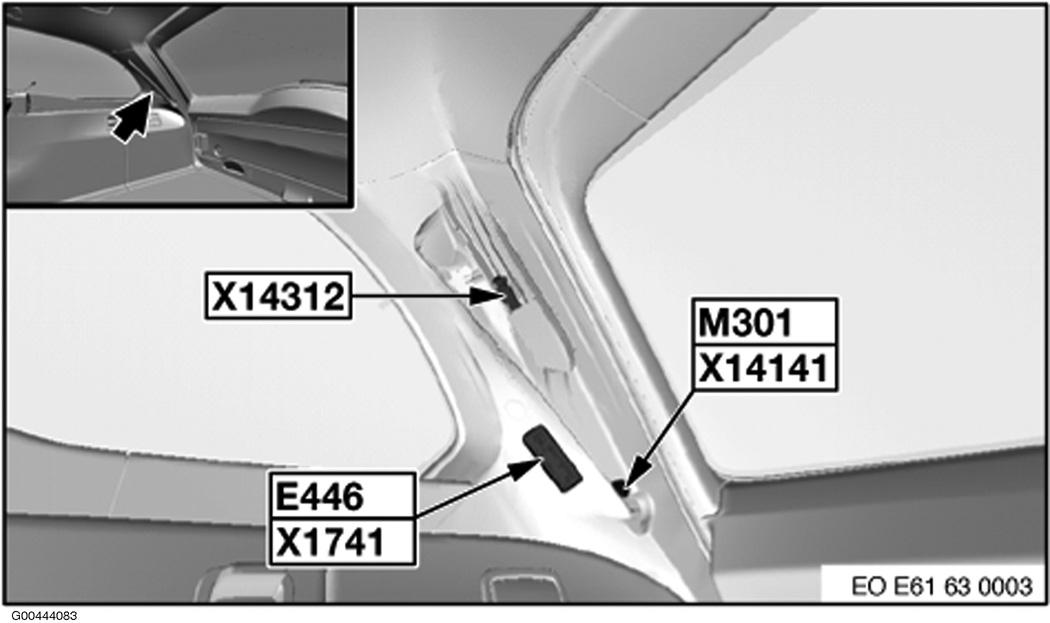

Fig 188: Right Side Of Rear Compartment

G00444083

Courtesy of BMW OF NORTH AMERICA, INC.

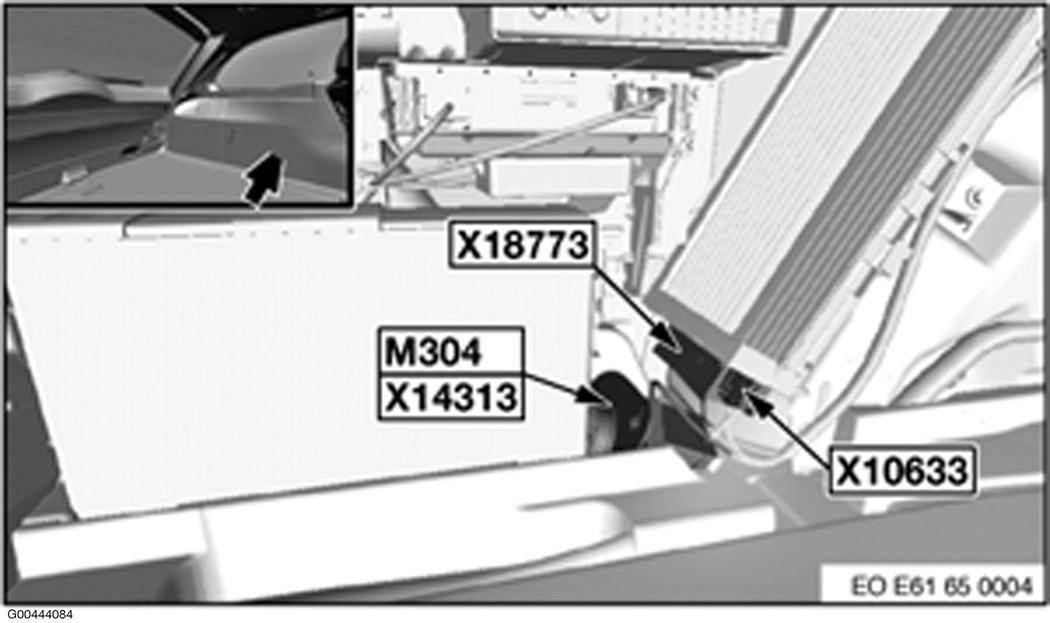

Fig 189: Left Side Of Rear Compartment

G00444084

Courtesy of BMW OF NORTH AMERICA, INC.

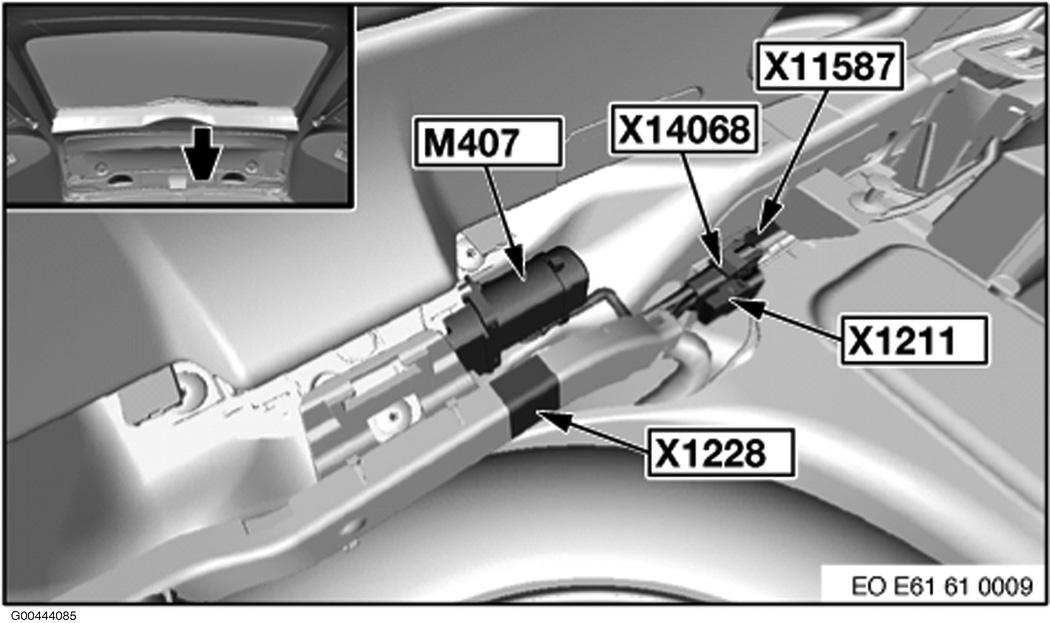

Fig 190: Rear Compartment

G00444085

Courtesy of BMW OF NORTH AMERICA, INC.

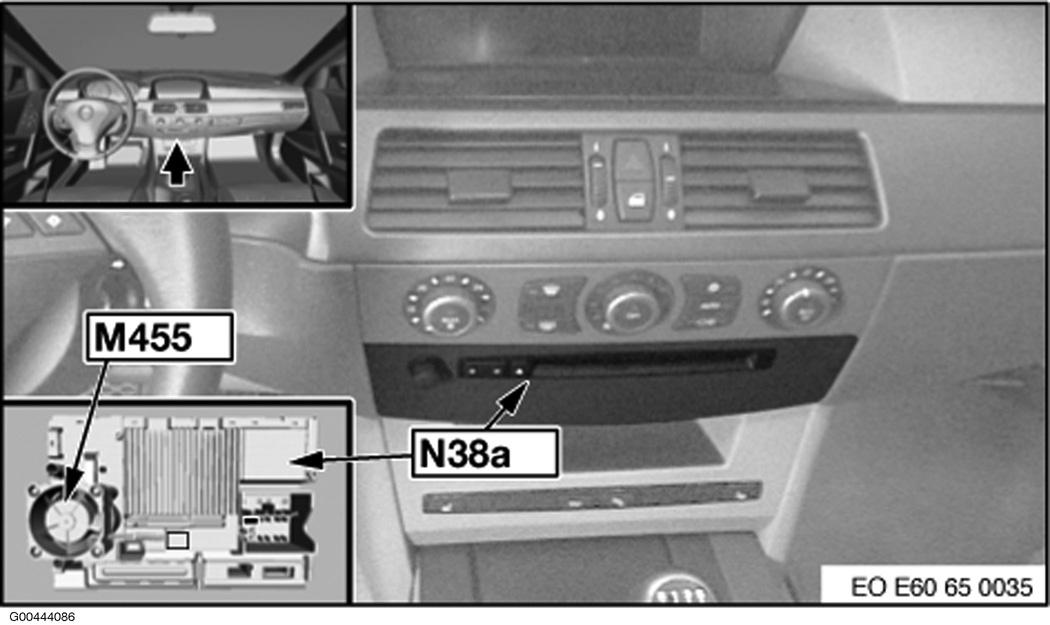

Fig 191: Center Of Dash

G00444086

Courtesy of BMW OF NORTH AMERICA, INC.

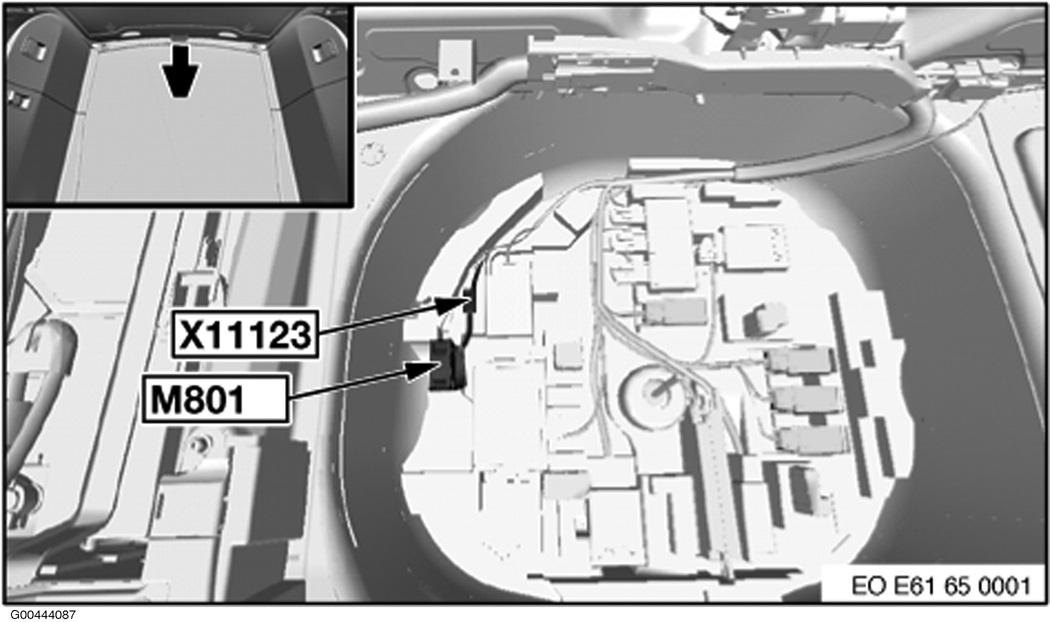

Fig 192: Under Spare Tire

G00444087

Courtesy of BMW OF NORTH AMERICA, INC.

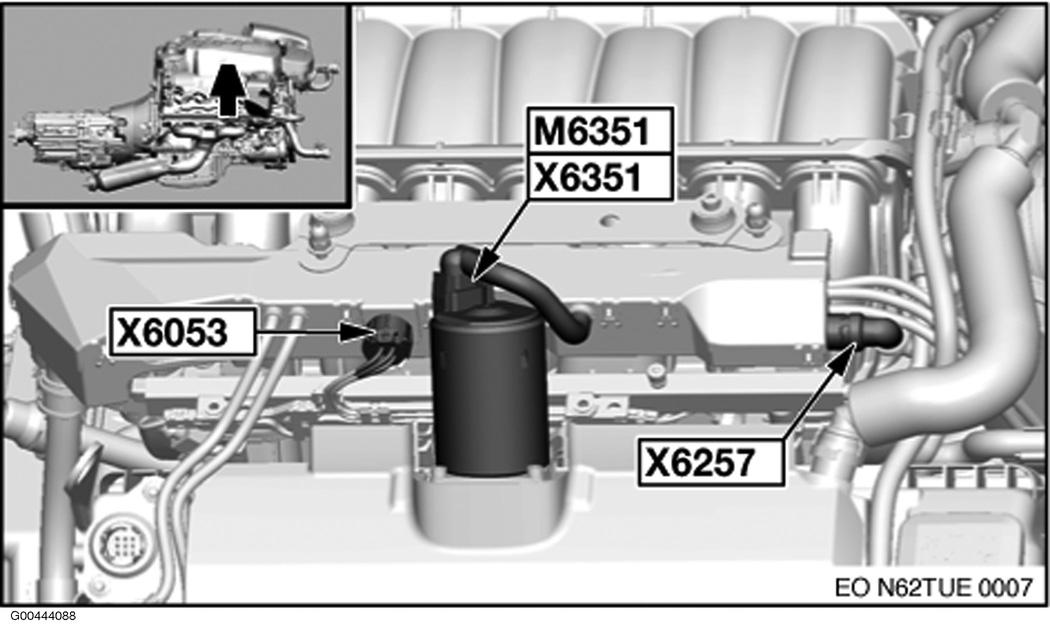

Fig 193: Right Side Of Engine

G00444088

Courtesy of BMW OF NORTH AMERICA, INC.

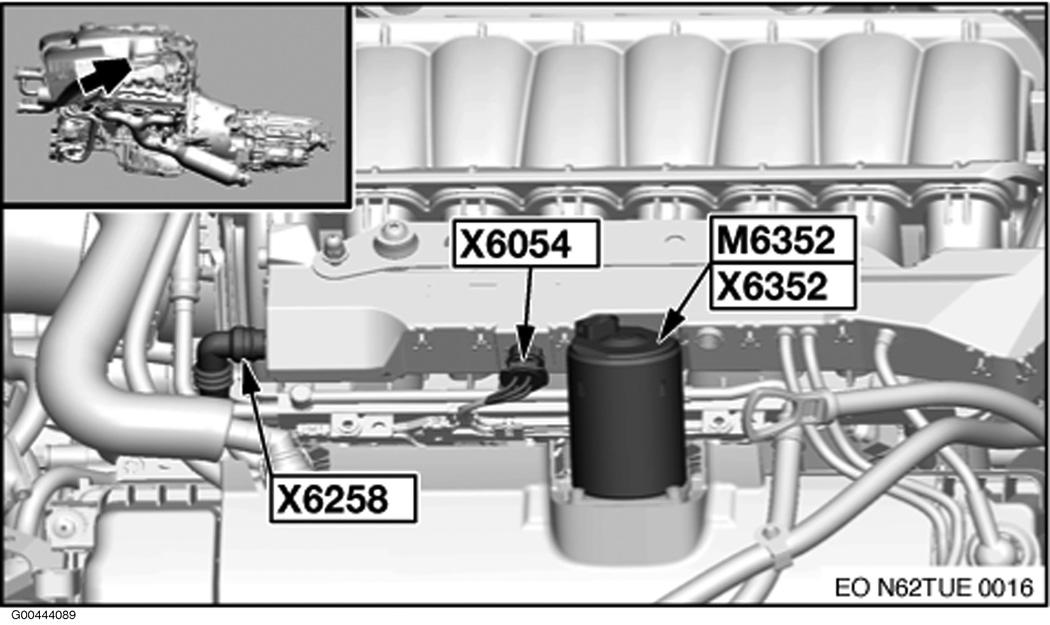

Fig 194: Left Side Of Engine

G00444089

Courtesy of BMW OF NORTH AMERICA, INC.

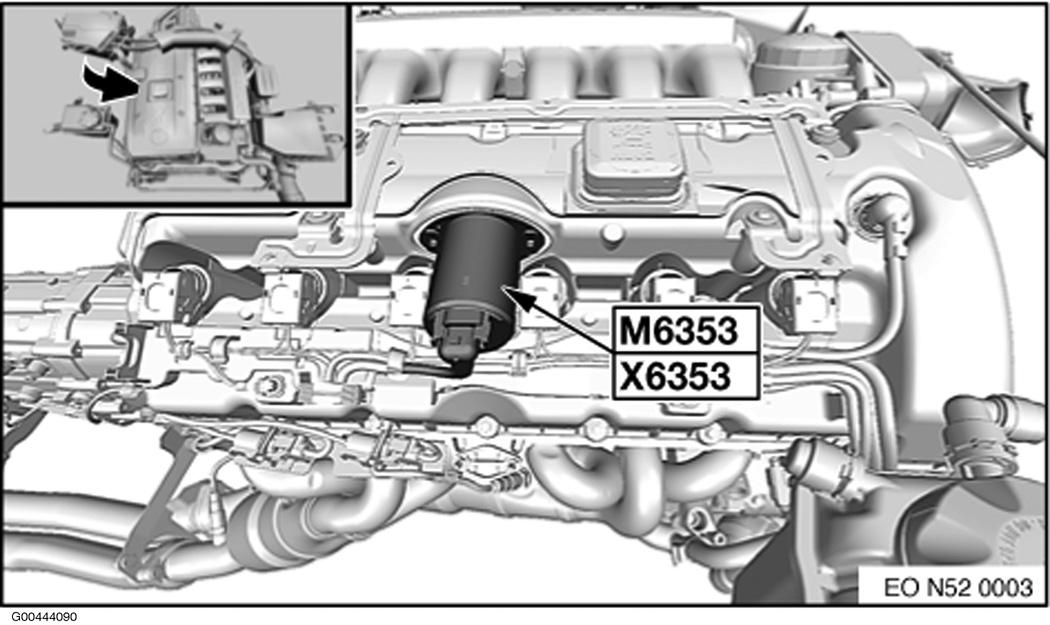

Fig 195: Top Of Engine

G00444090

Courtesy of BMW OF NORTH AMERICA, INC.

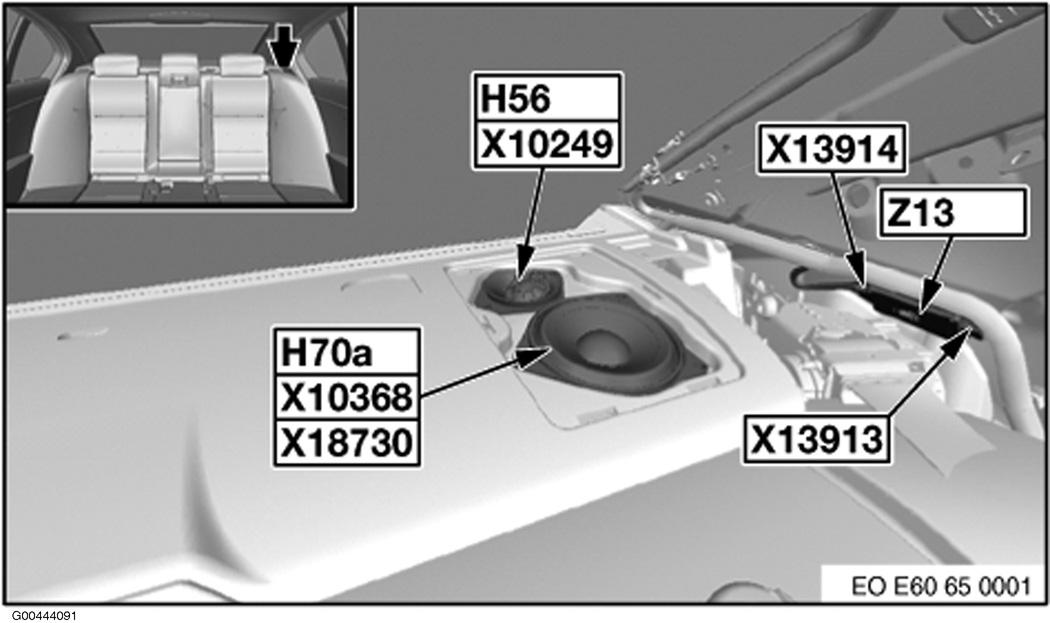

Fig 196: Bottom Of Left "C" Pillar

G00444091

Courtesy of BMW OF NORTH AMERICA, INC.

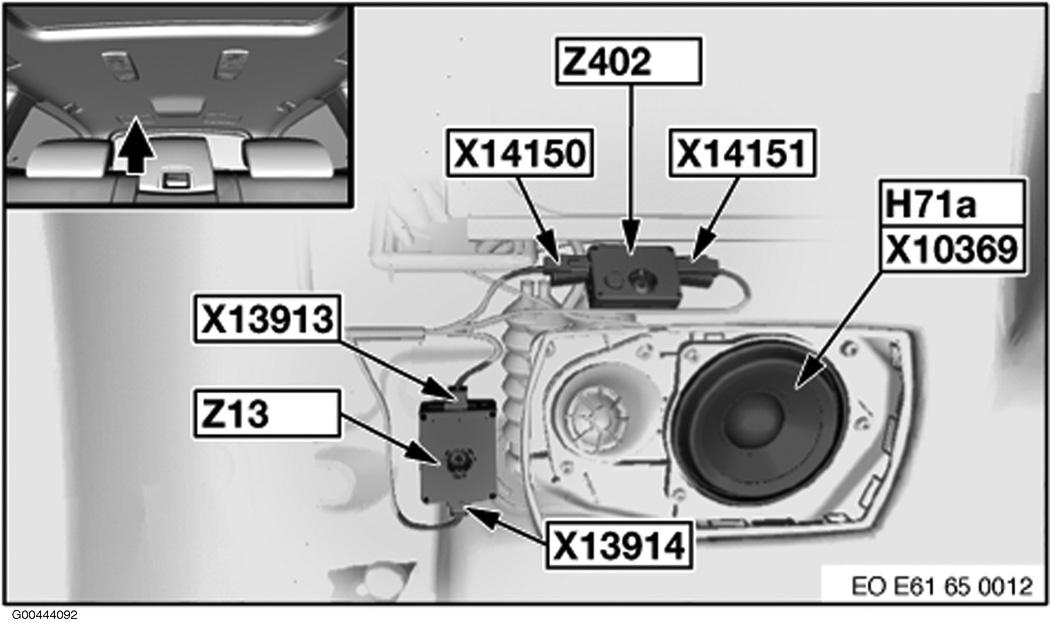

Fig 197: Rear Of Roof

G00444092

Courtesy of BMW OF NORTH AMERICA, INC.

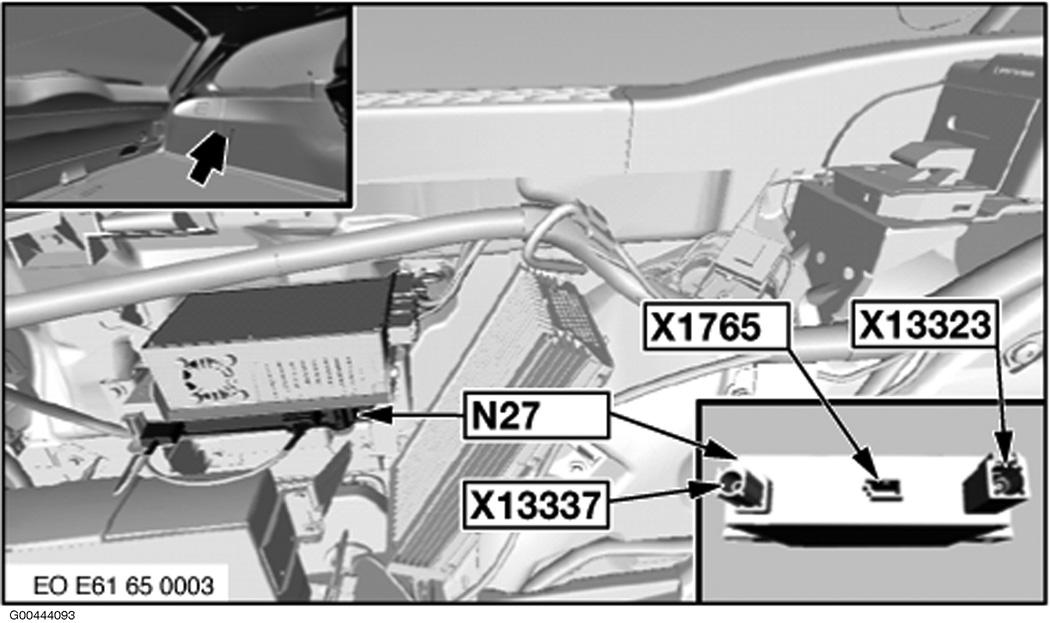

Fig 198: Left Side Of Rear Compartment (Wagon)

G00444093

Courtesy of BMW OF NORTH AMERICA, INC.

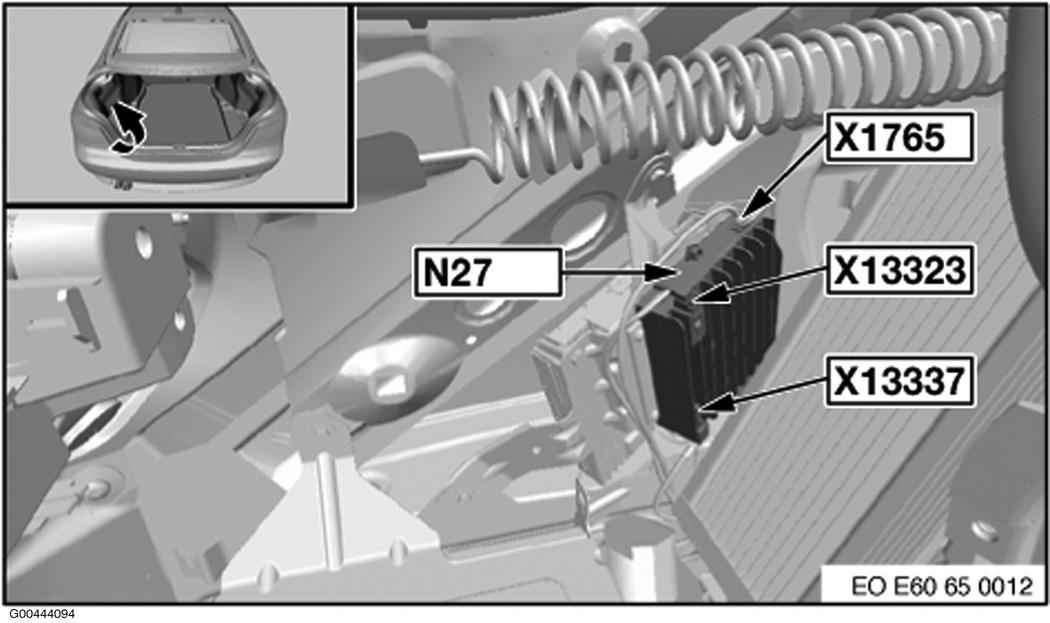

Fig 199: Left Side Of Rear Compartment (Sedan)

G00444094

Courtesy of BMW OF NORTH AMERICA, INC.

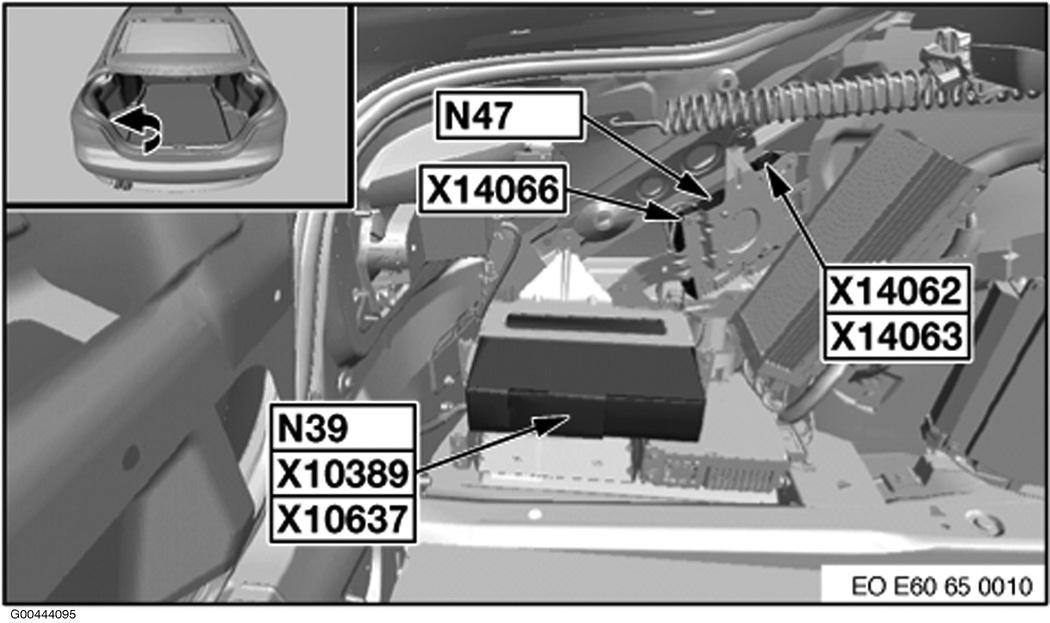

Fig 200: Left Side Of Rear Compartment

G00444095

Courtesy of BMW OF NORTH AMERICA, INC.

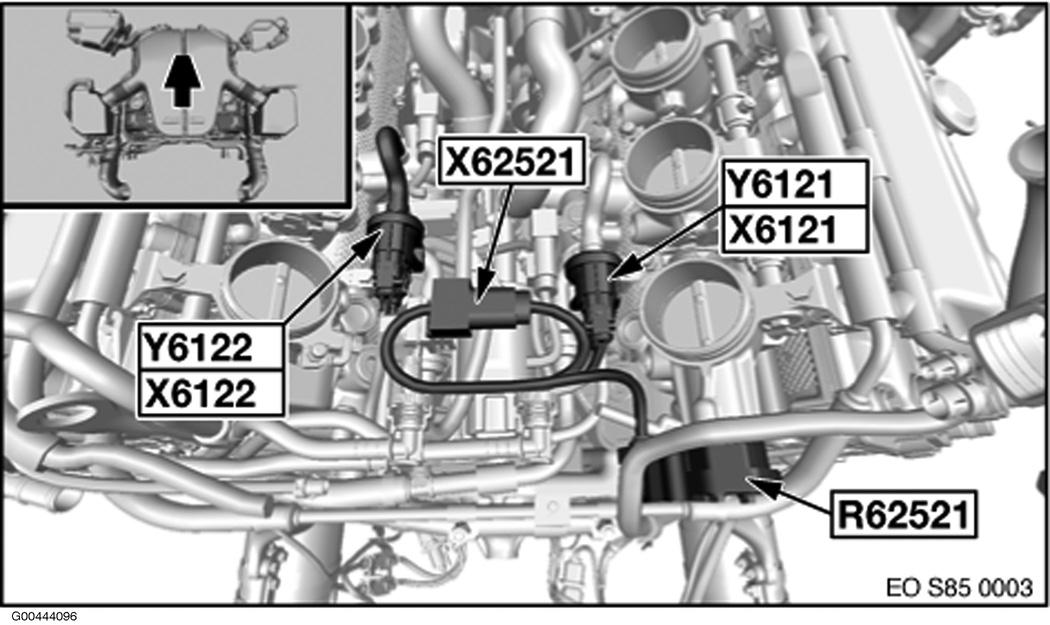

Fig 201: Top Of Engine

G00444096

Courtesy of BMW OF NORTH AMERICA, INC.

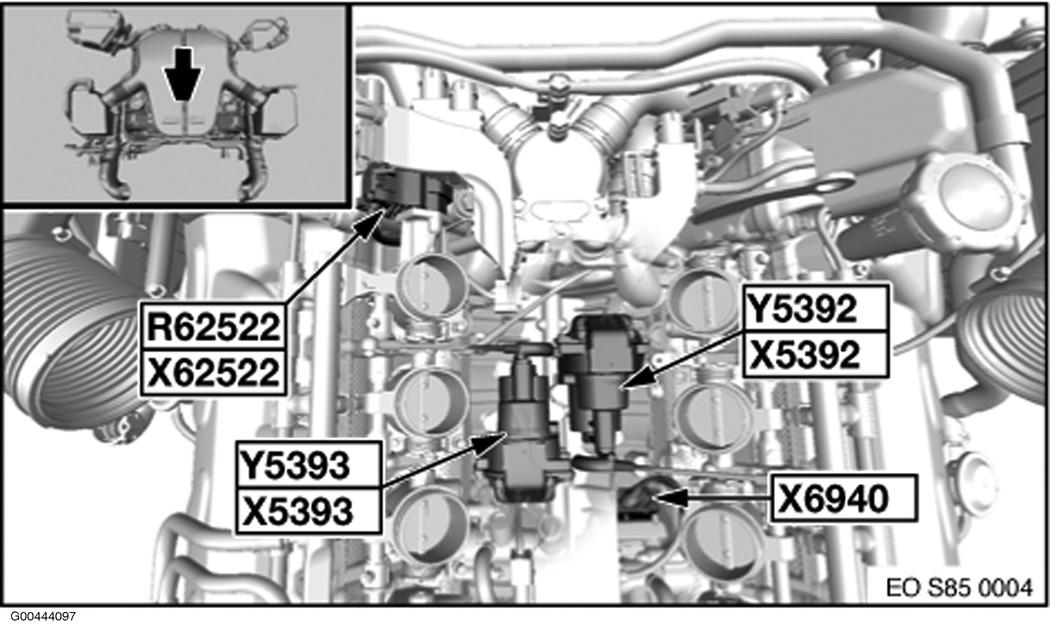

Fig 202: Top Of Engine

G00444097

Courtesy of BMW OF NORTH AMERICA, INC.

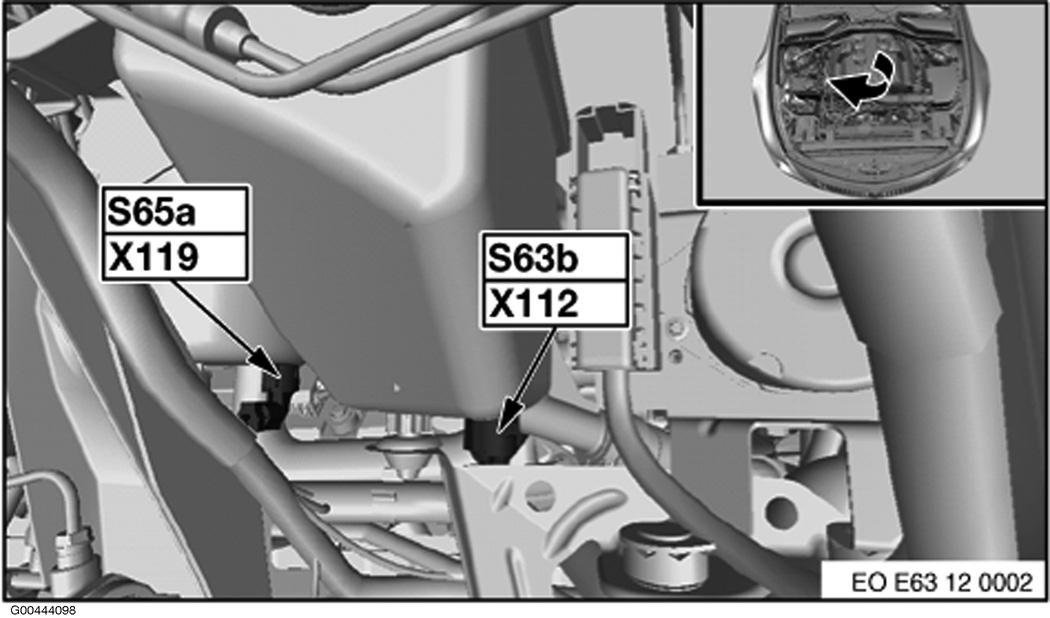

Fig 203: Right Side Of Engine

G00444098

Courtesy of BMW OF NORTH AMERICA, INC.

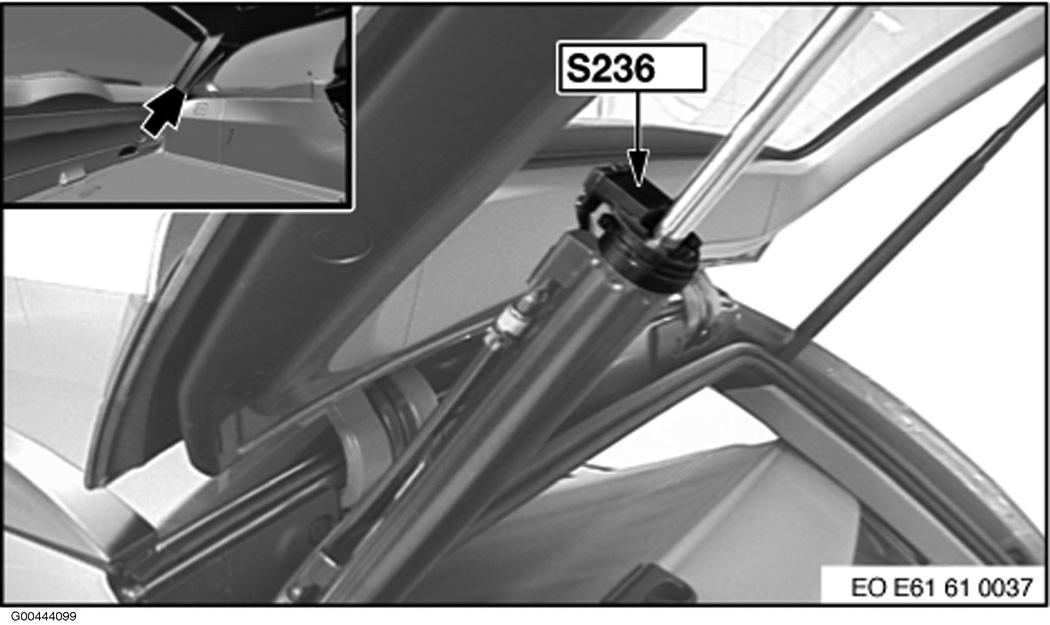

Fig 204: Bottom Of Left "C" Pillar

G00444099

Courtesy of BMW OF NORTH AMERICA, INC.

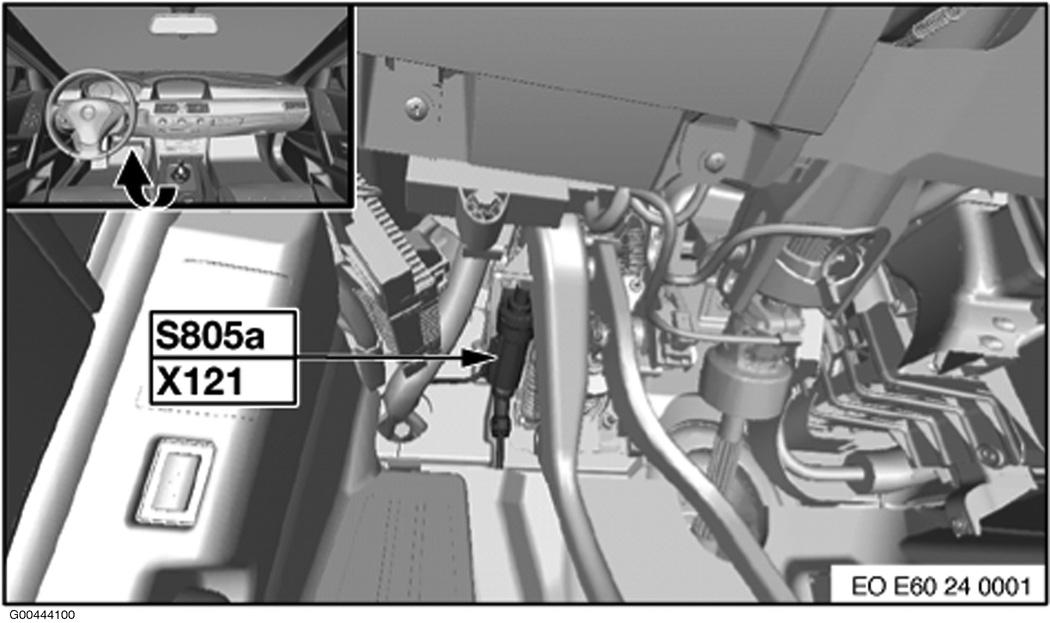

Fig 205: Under Left Side Of Dash

G00444100

Courtesy of BMW OF NORTH AMERICA, INC.

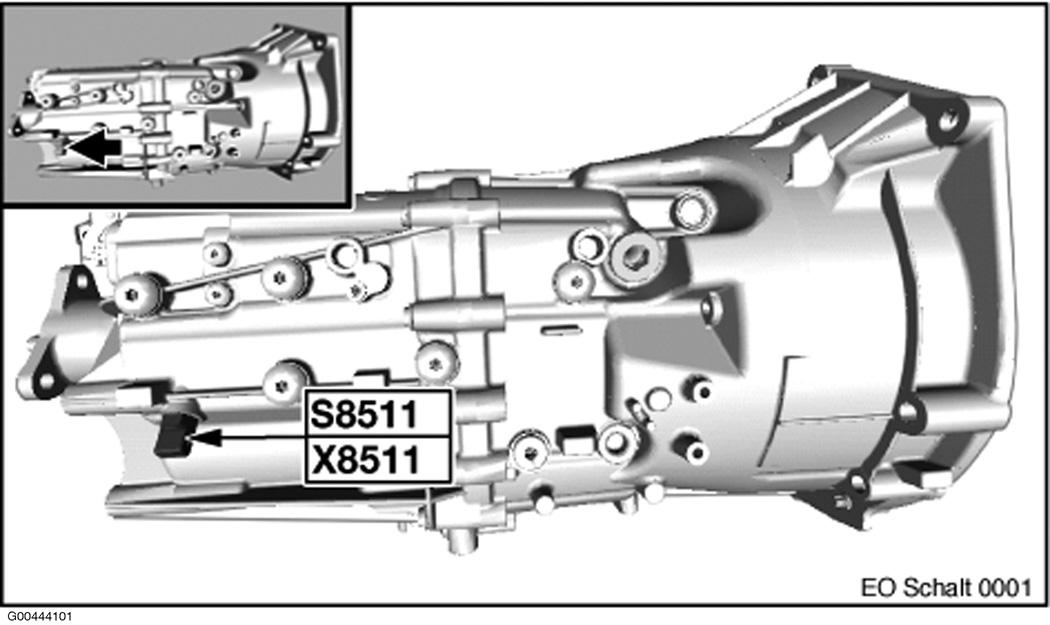

Fig 206: Right Rear Side Of Transmission

G00444101

Courtesy of BMW OF NORTH AMERICA, INC.

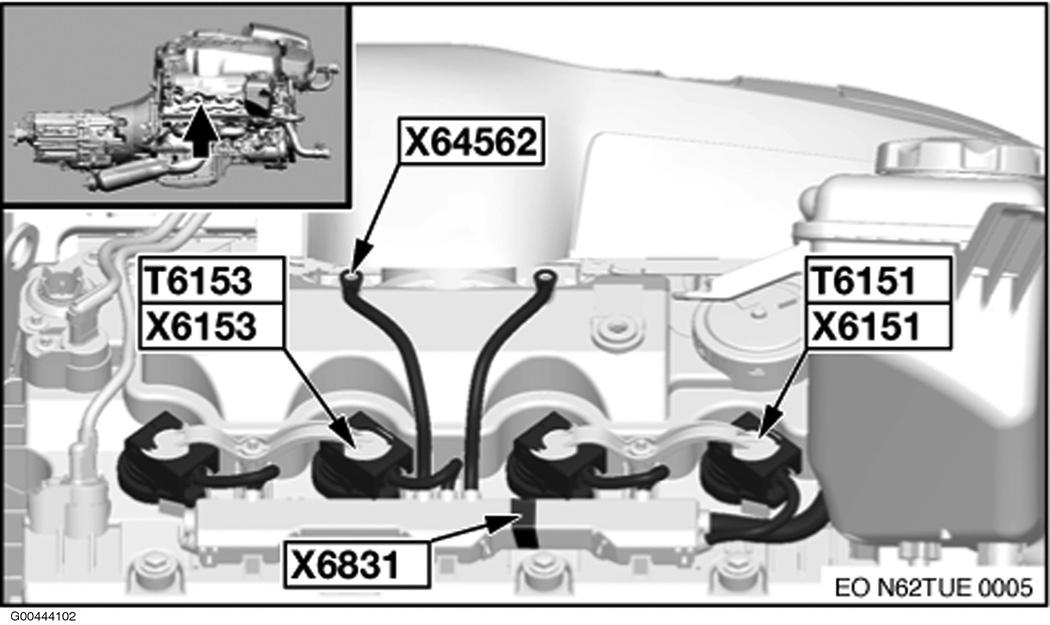

Fig 207: Top Of Engine (4.8L)

G00444102

Courtesy of BMW OF NORTH AMERICA, INC.

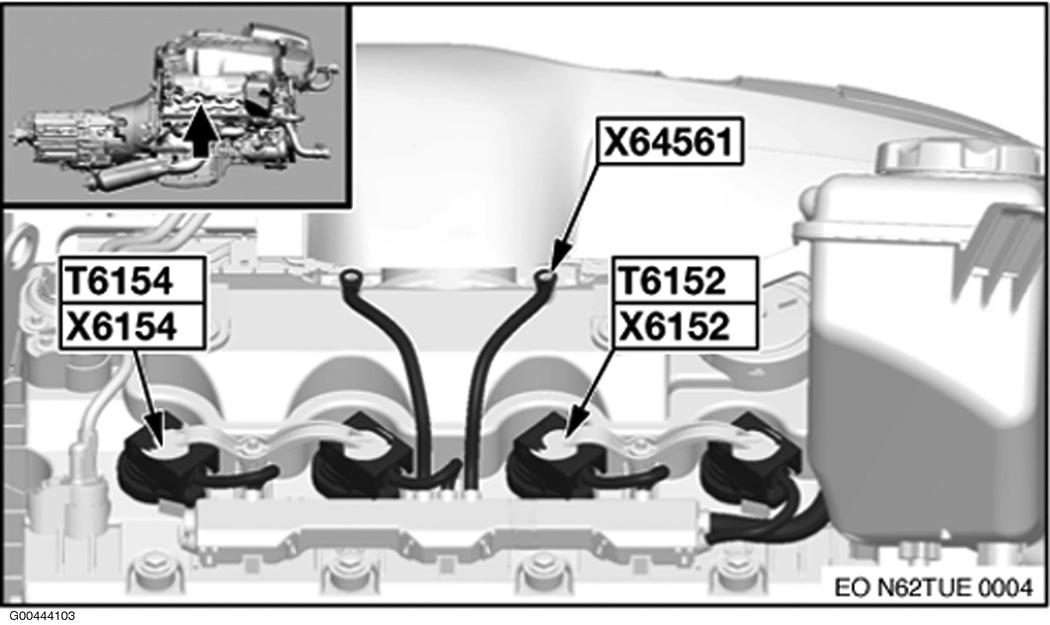

Fig 208: Top Of Engine (4.8L)

G00444103

Courtesy of BMW OF NORTH AMERICA, INC.

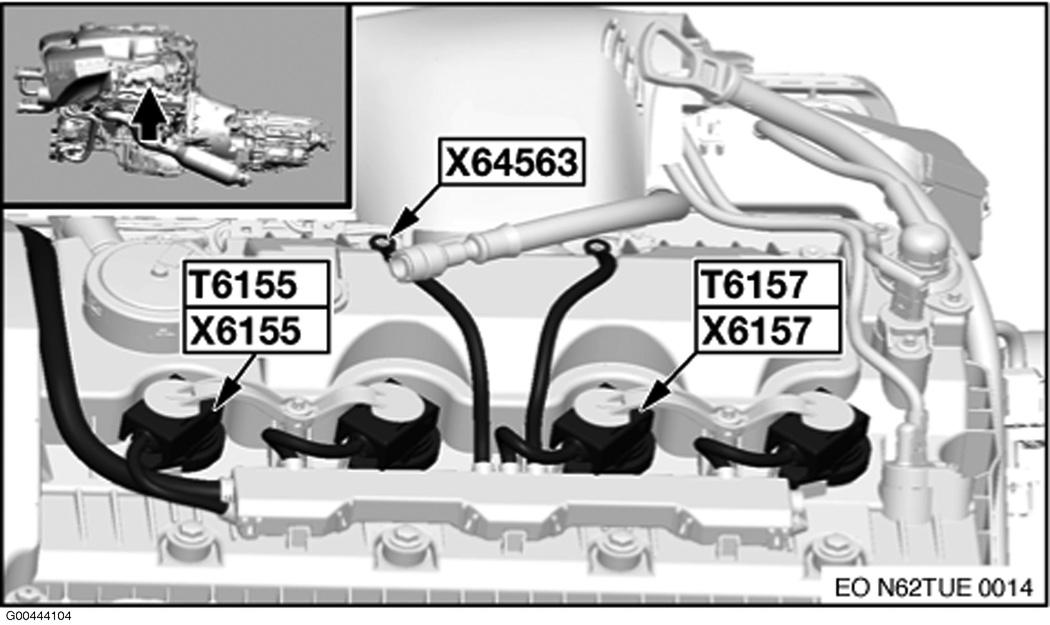

Fig 209: Top Of Engine (4.8L)

G00444104

Courtesy of BMW OF NORTH AMERICA, INC.

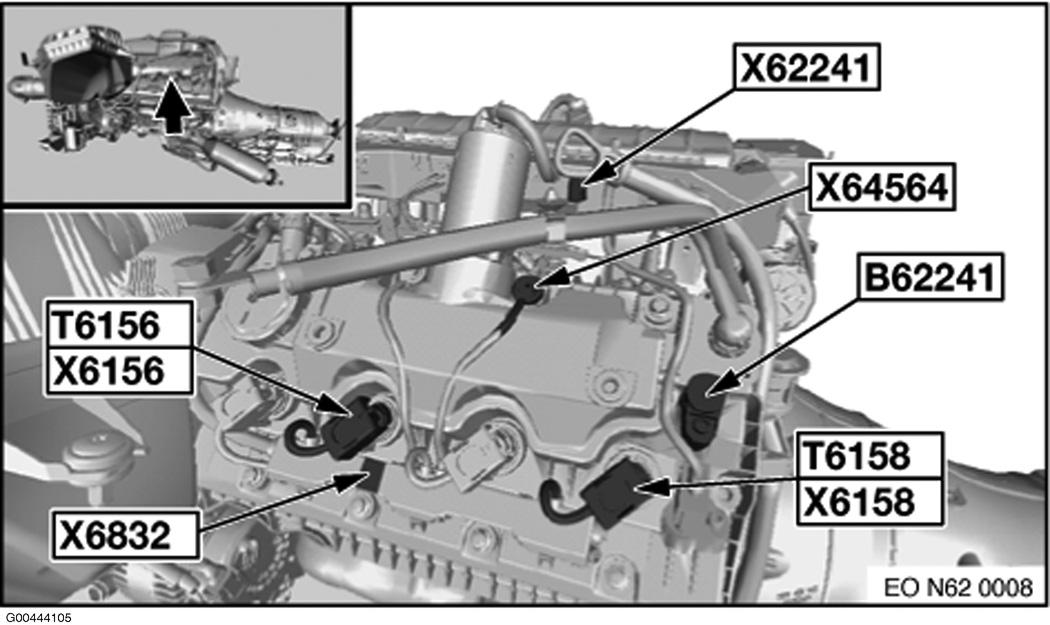

Fig 210: Top Of Engine (4.8L)

G00444105

Courtesy of BMW OF NORTH AMERICA, INC.

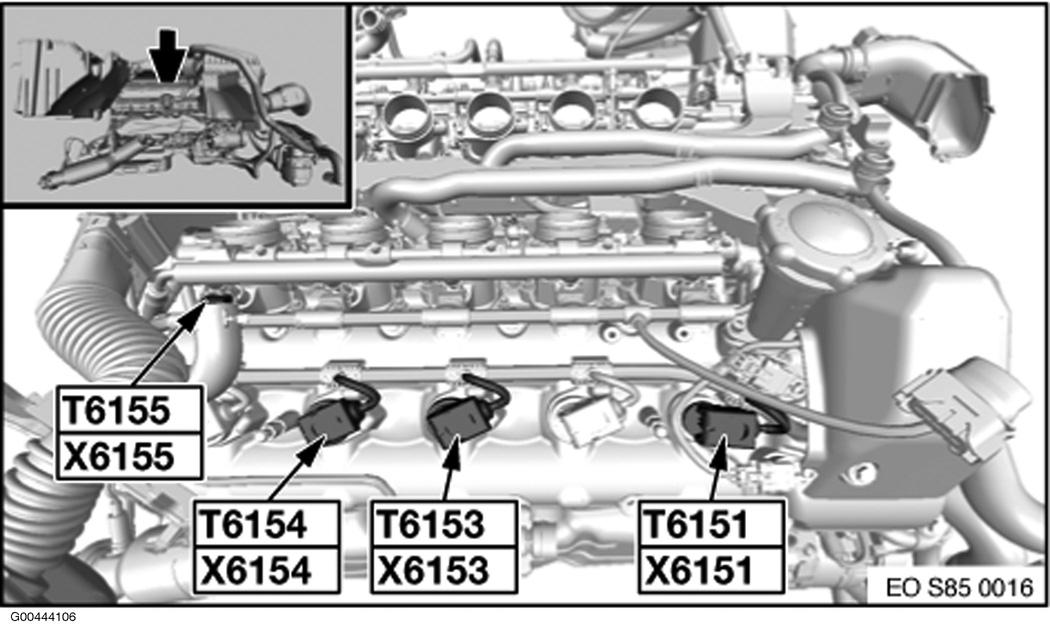

Fig 211: Top Of Engine (5.0L)

G00444106

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 212: Top Of Engine (5.0L)

G00444107

Courtesy of BMW OF NORTH AMERICA, INC.

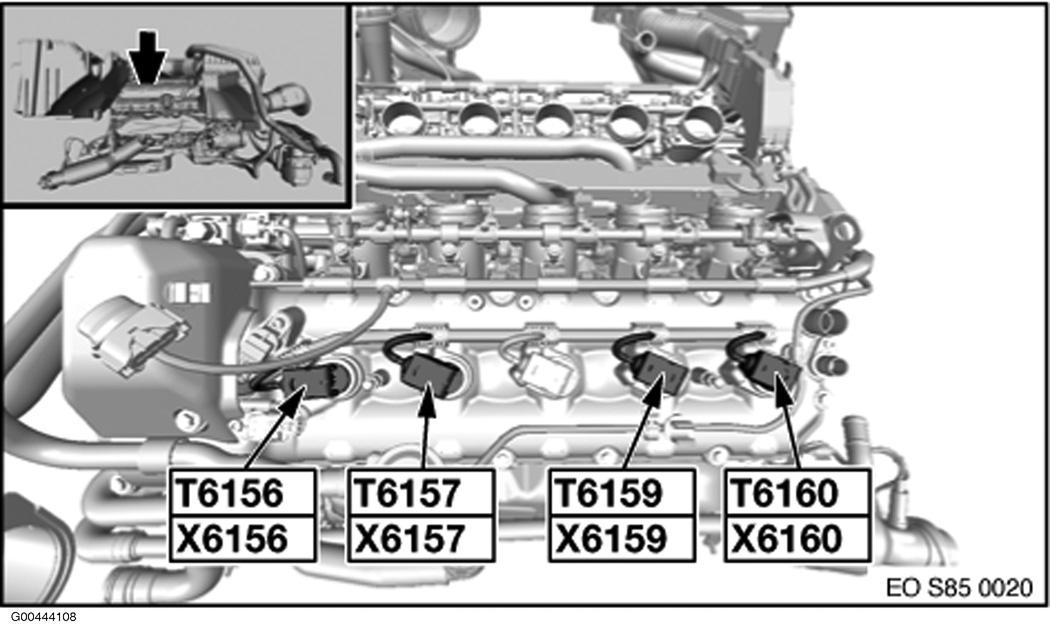

Fig 213: Top Of Engine (5.0L)

G00444108

Courtesy of BMW OF NORTH AMERICA, INC.

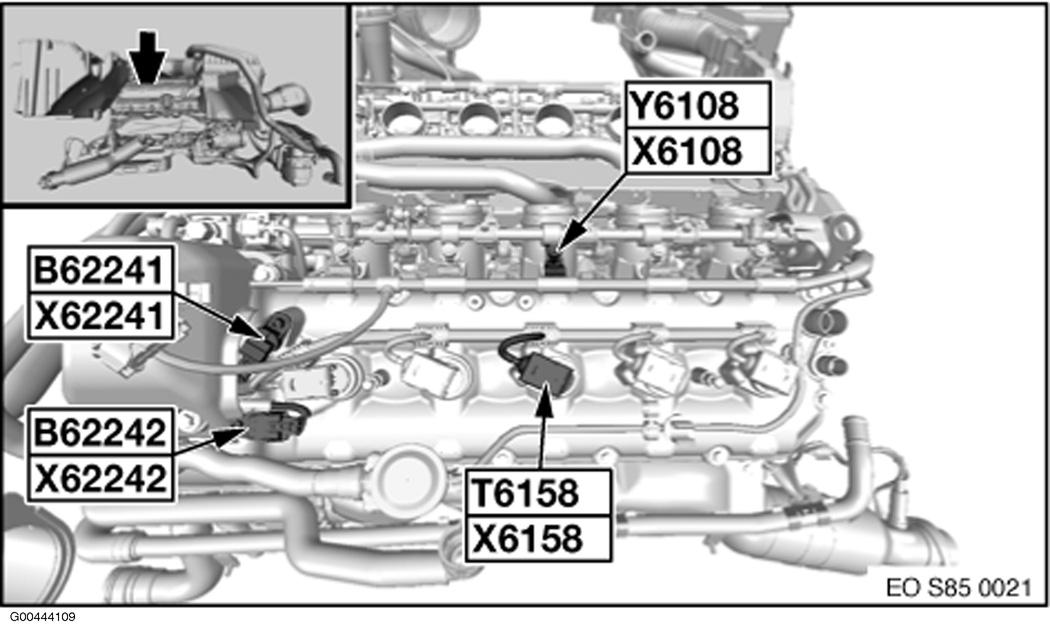

Fig 214: Top Of Engine (5.0L)

G00444109

Courtesy of BMW OF NORTH AMERICA, INC.

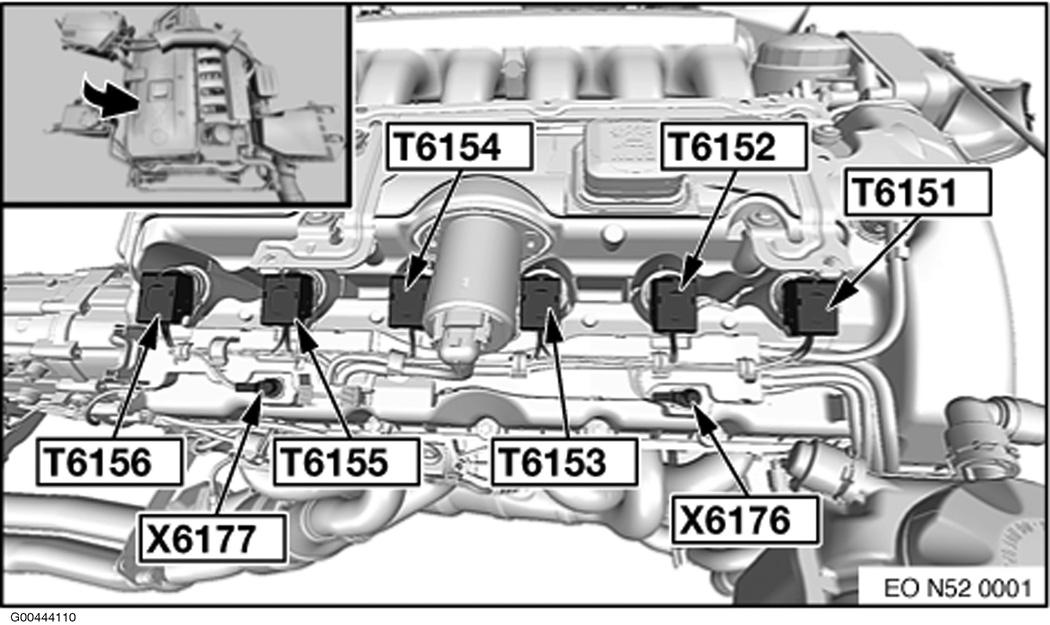

Fig 215: Top Of Engine (3.0L)

G00444110

Courtesy of BMW OF NORTH AMERICA, INC.

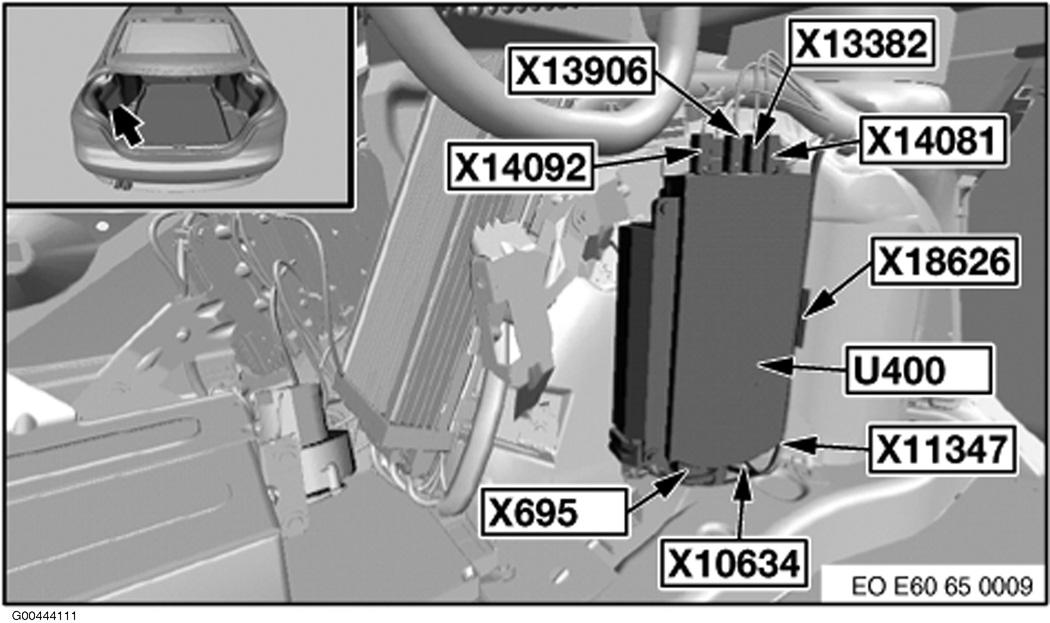

Fig 216: Left Side Of Rear Compartment

G00444111

Courtesy of BMW OF NORTH AMERICA, INC.

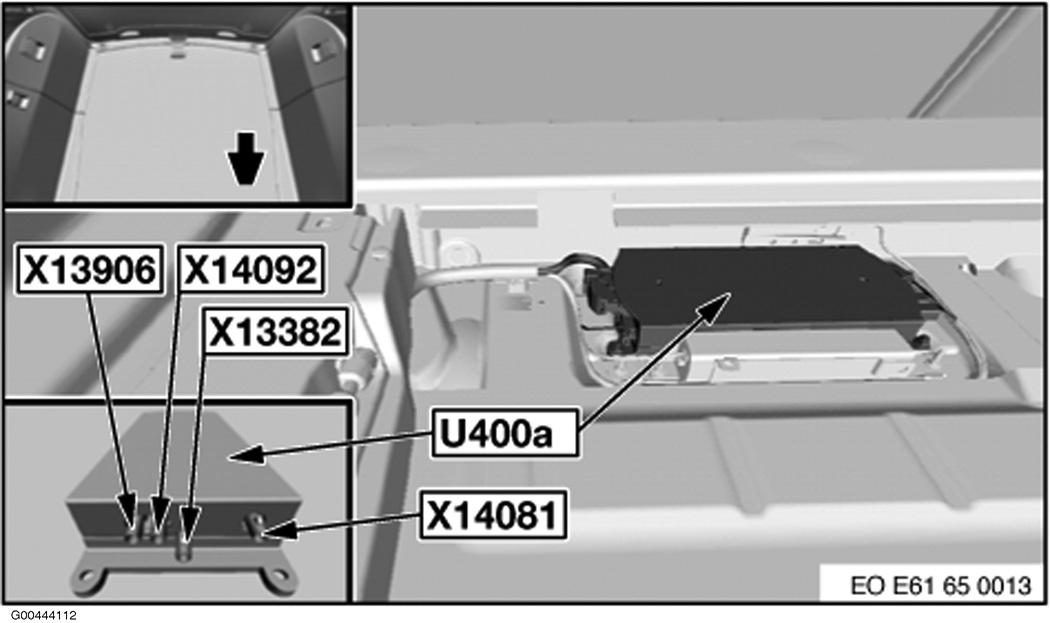

Fig 217: Rear Compartment

G00444112

Courtesy of BMW OF NORTH AMERICA, INC.

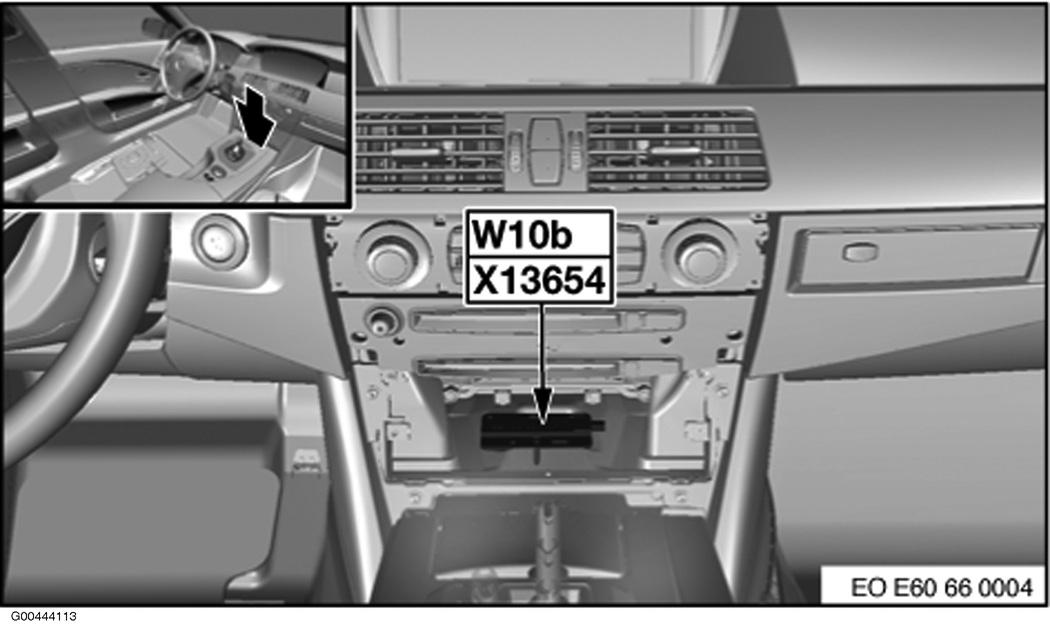

Fig 218: Center Of Dash

G00444113

Courtesy of BMW OF NORTH AMERICA, INC.

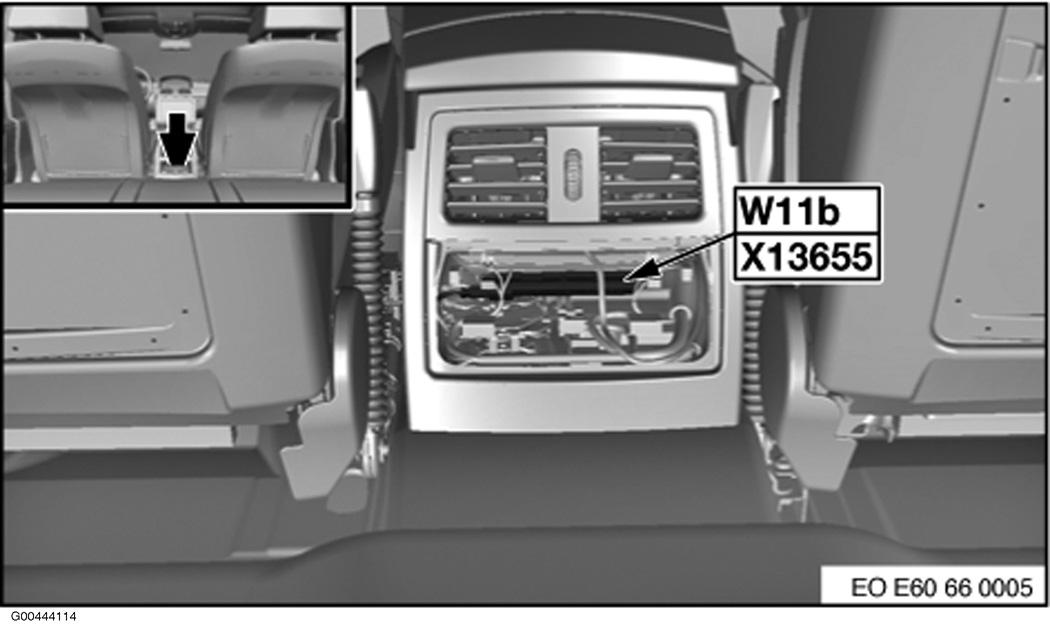

Fig 219: Rear Of Center Console

G00444114

Courtesy of BMW OF NORTH AMERICA, INC.

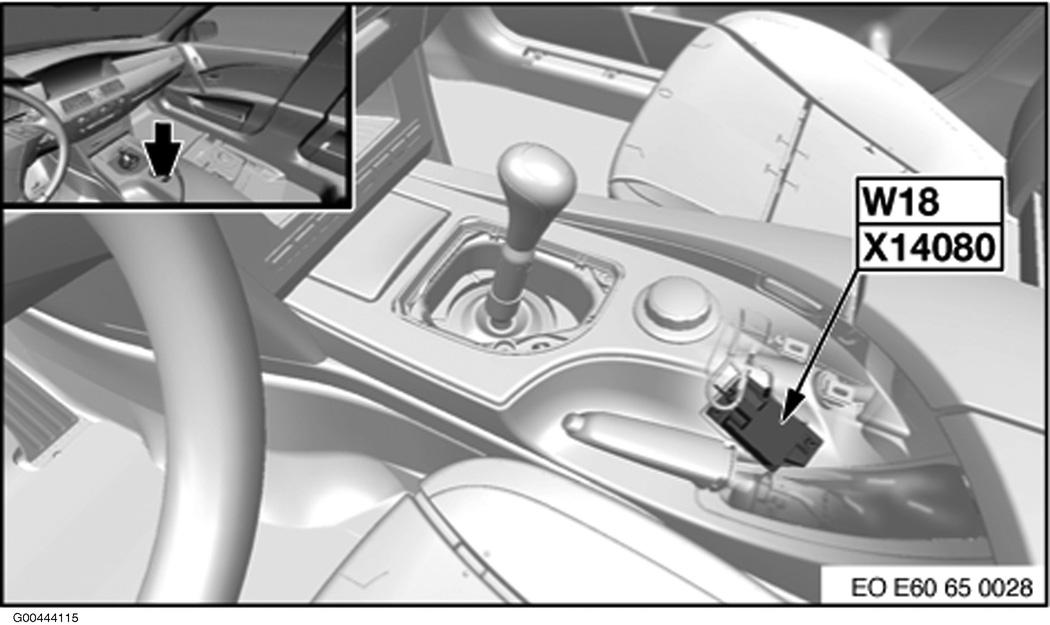

Fig 220: Center Console

G00444115

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 221: Behind Rear Seats

G00444116

Courtesy of BMW OF NORTH AMERICA, INC.

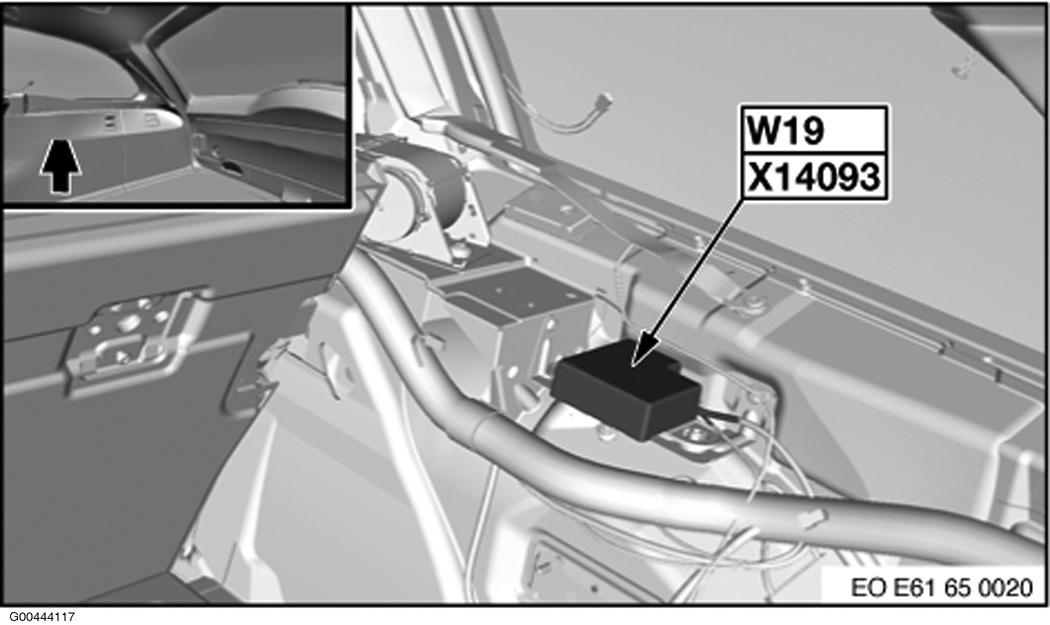

Fig 222: Right Side Of Rear Compartment

G00444117

Courtesy of BMW OF NORTH AMERICA, INC.

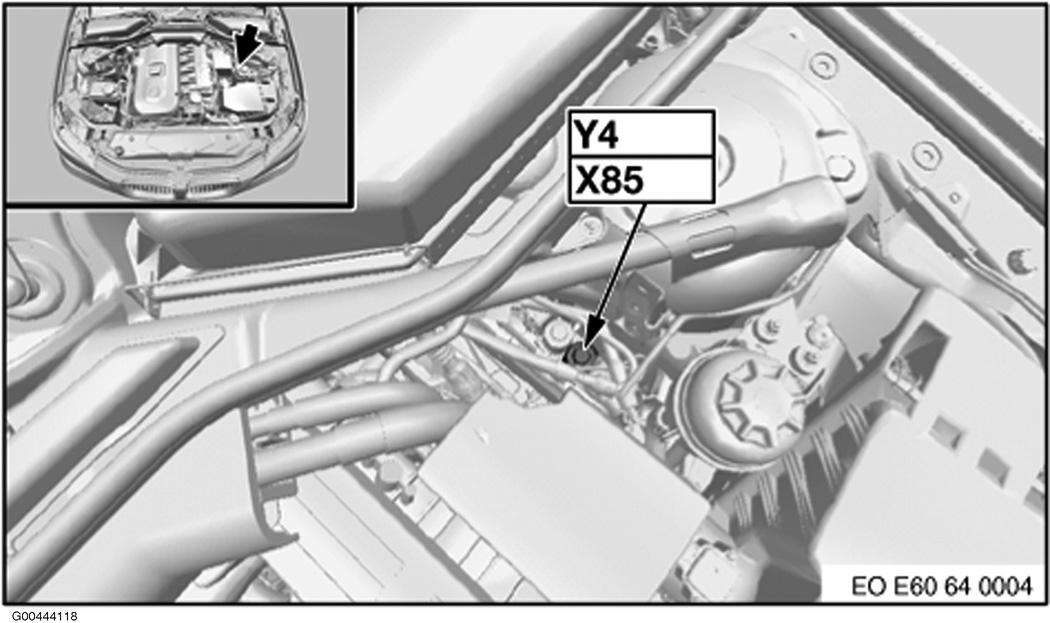

Fig 223: Left Side Of Engine Compartment

G00444118

Courtesy of BMW OF NORTH AMERICA, INC.

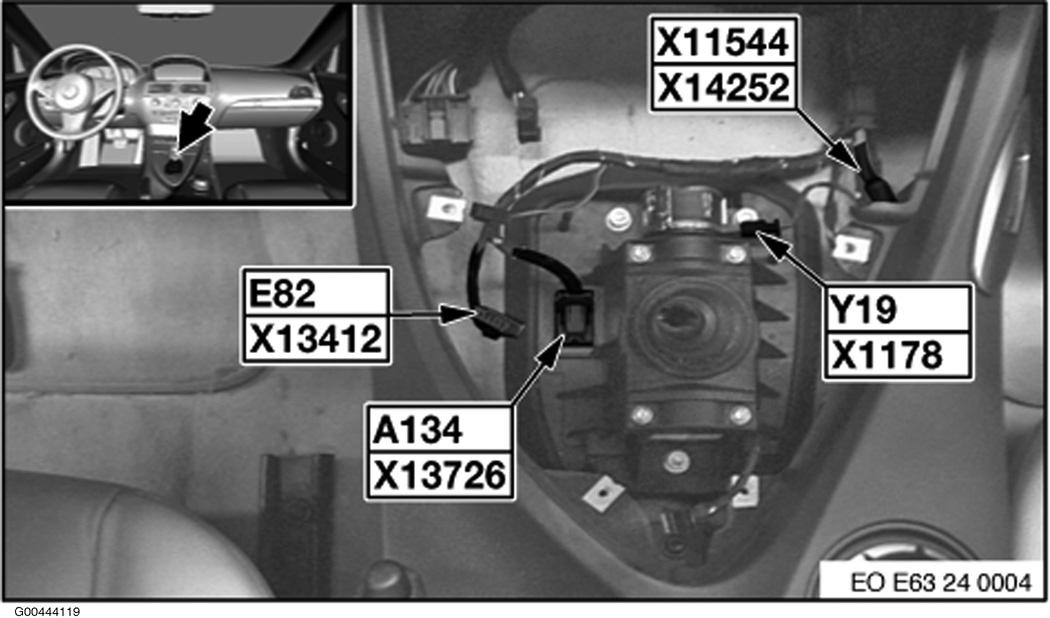

Fig 224: Near Shifter

G00444119

Courtesy of BMW OF NORTH AMERICA, INC.

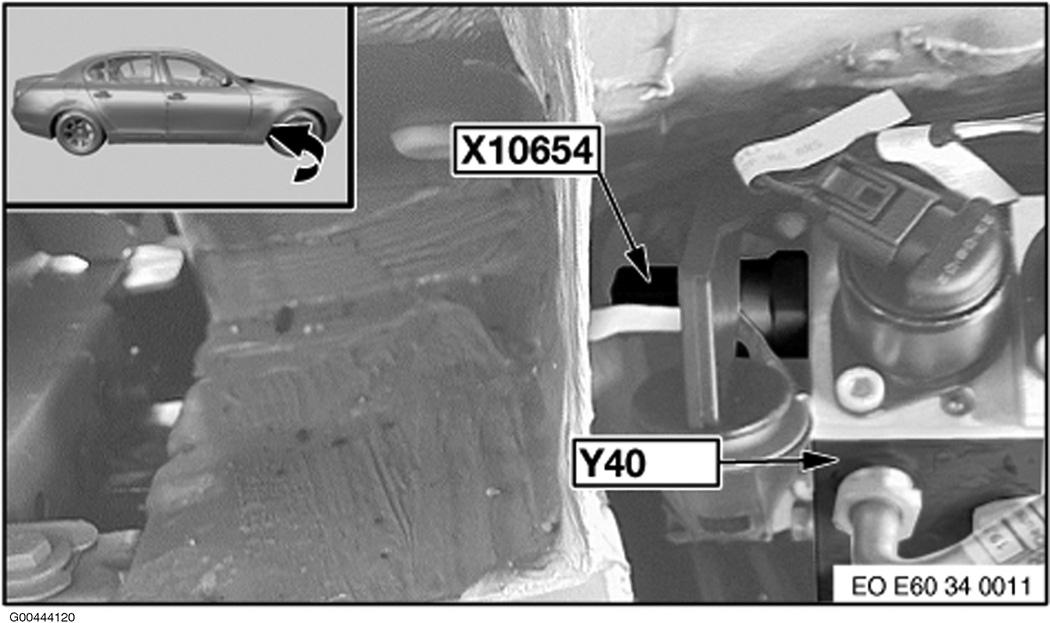

Fig 225: Behind Right Front Wheel

G00444120

Courtesy of BMW OF NORTH AMERICA, INC.

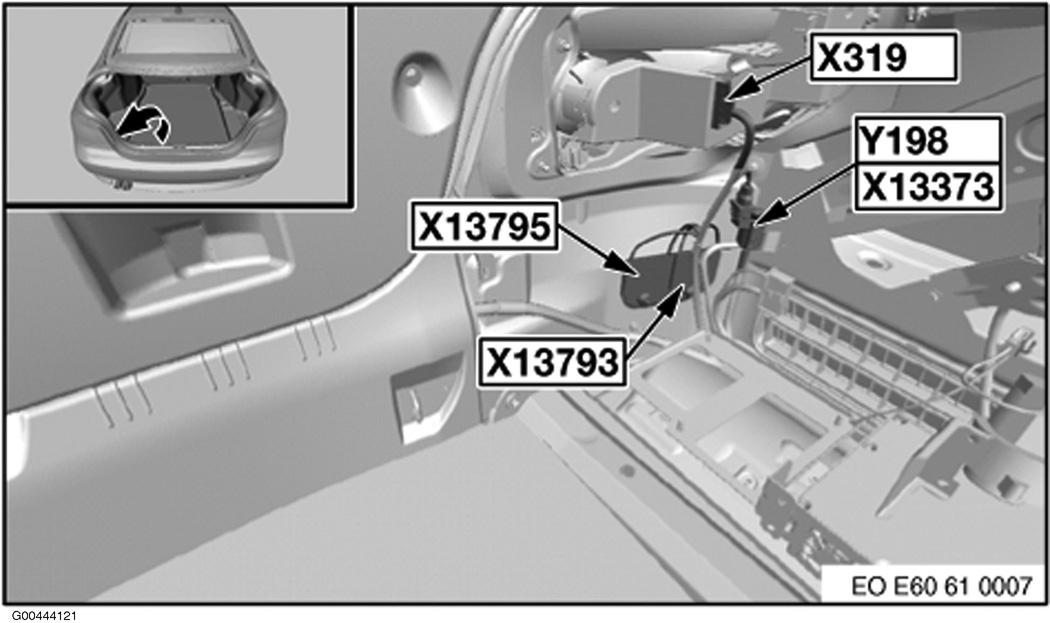

Fig 226: Left Side Of Rear Compartment (Sedan)

G00444121

Courtesy of BMW OF NORTH AMERICA, INC.

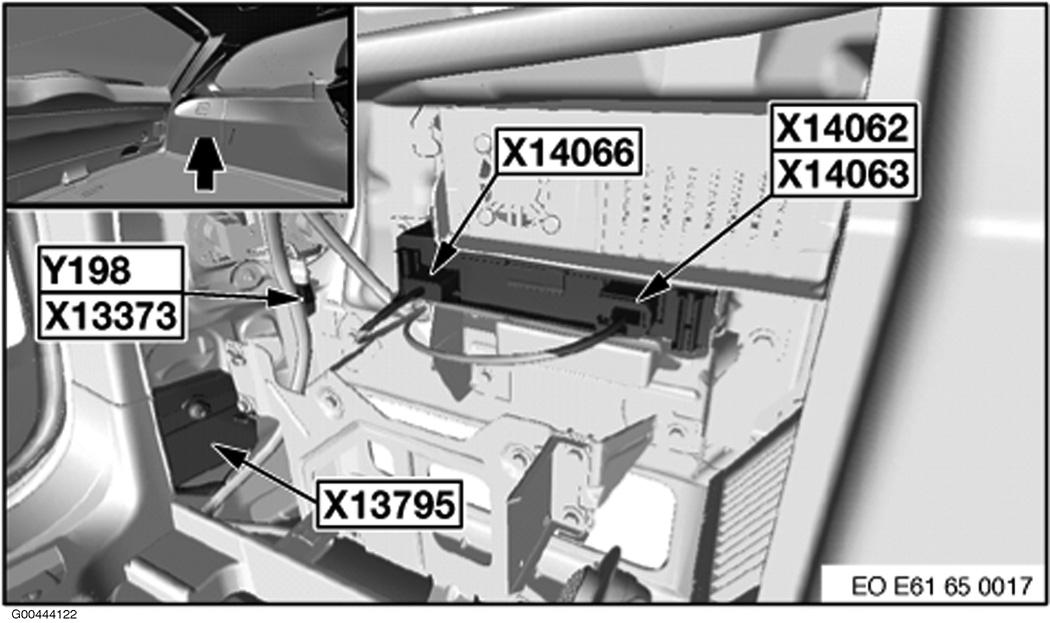

Fig 227: Left Side Of Rear Compartment (Wagon)

G00444122

Courtesy of BMW OF NORTH AMERICA, INC.

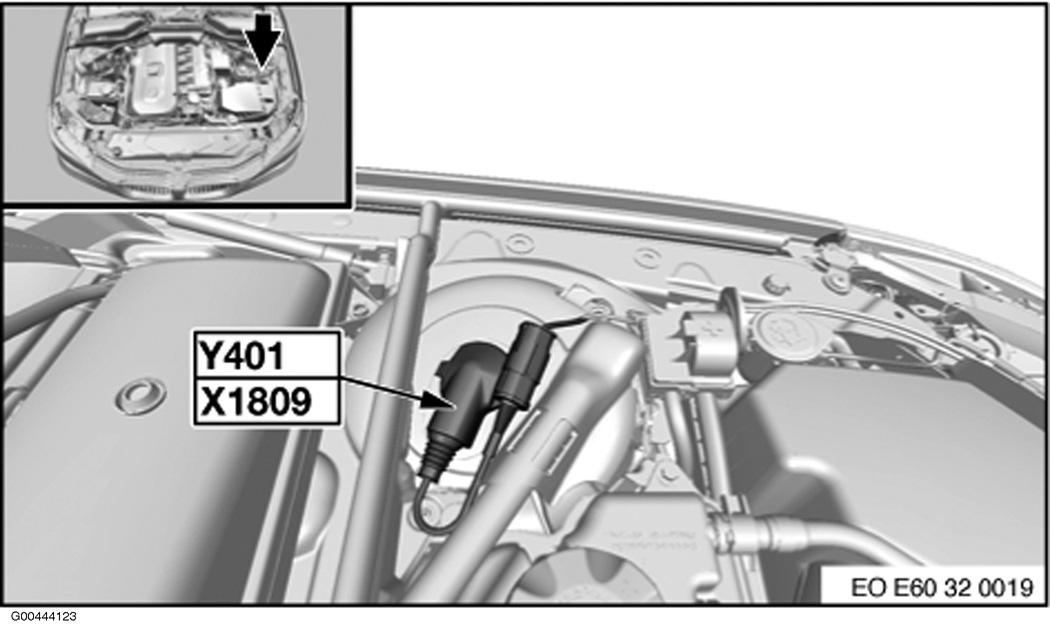

Fig 228: Left Side Of Engine Compartment

G00444123

Courtesy of BMW OF NORTH AMERICA, INC.

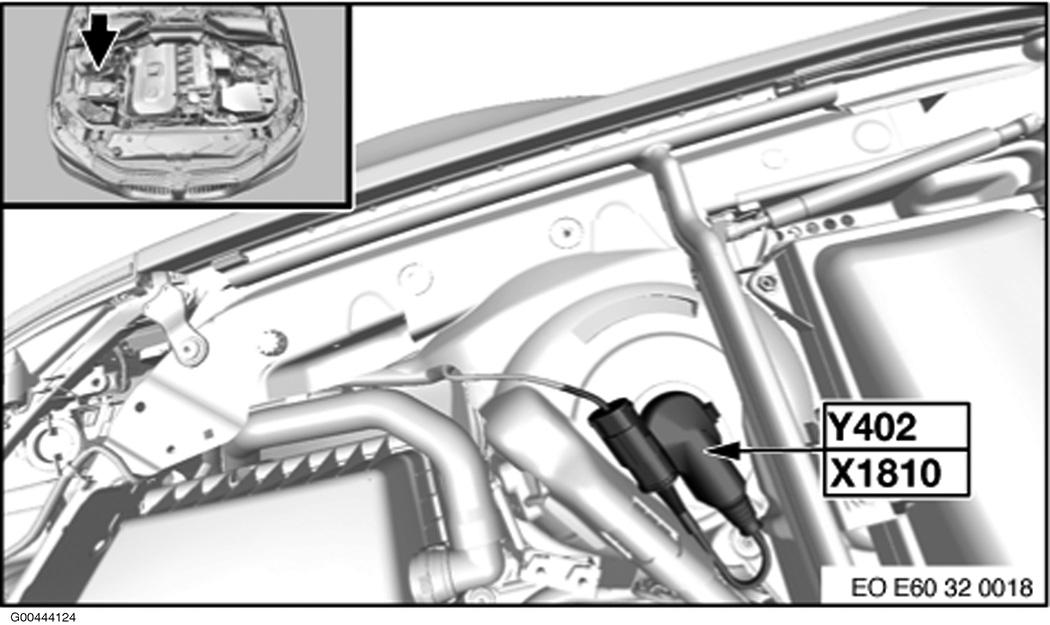

Fig 229: Right Side Of Engine Compartment

G00444124

Courtesy of BMW OF NORTH AMERICA, INC.

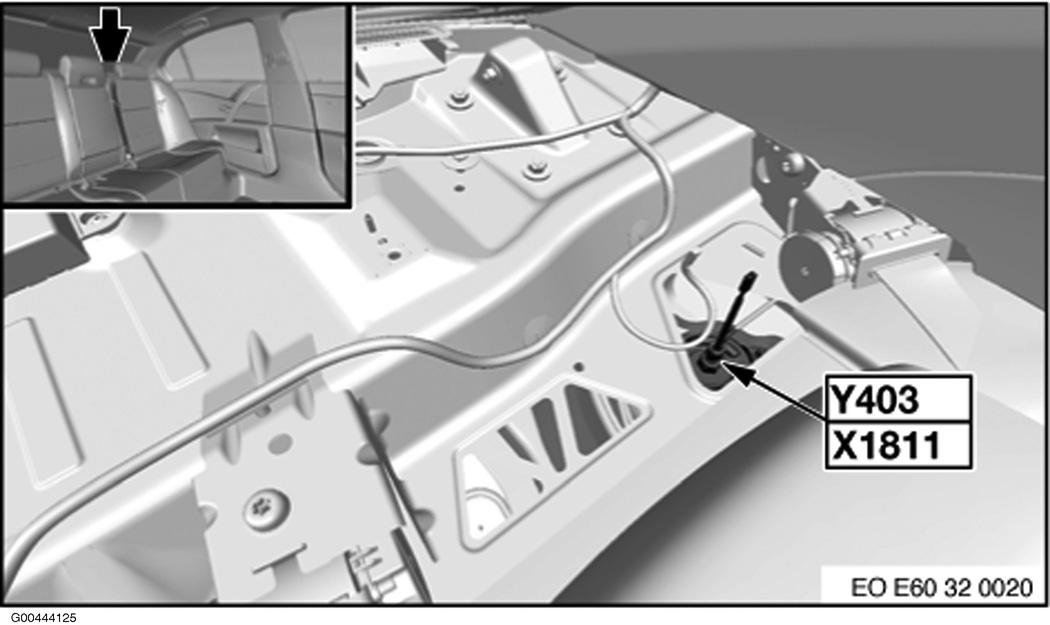

Fig 230: Behind Left Rear Seat

G00444125

Courtesy of BMW OF NORTH AMERICA, INC.

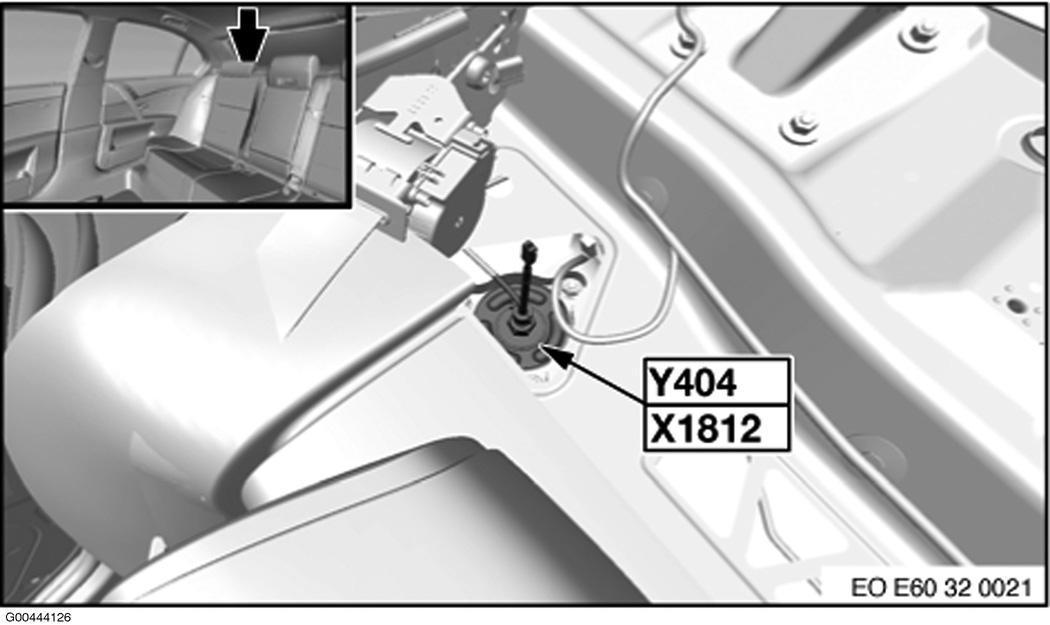

Fig 231: Behind Right Rear Seat

G00444126

Courtesy of BMW OF NORTH AMERICA, INC.

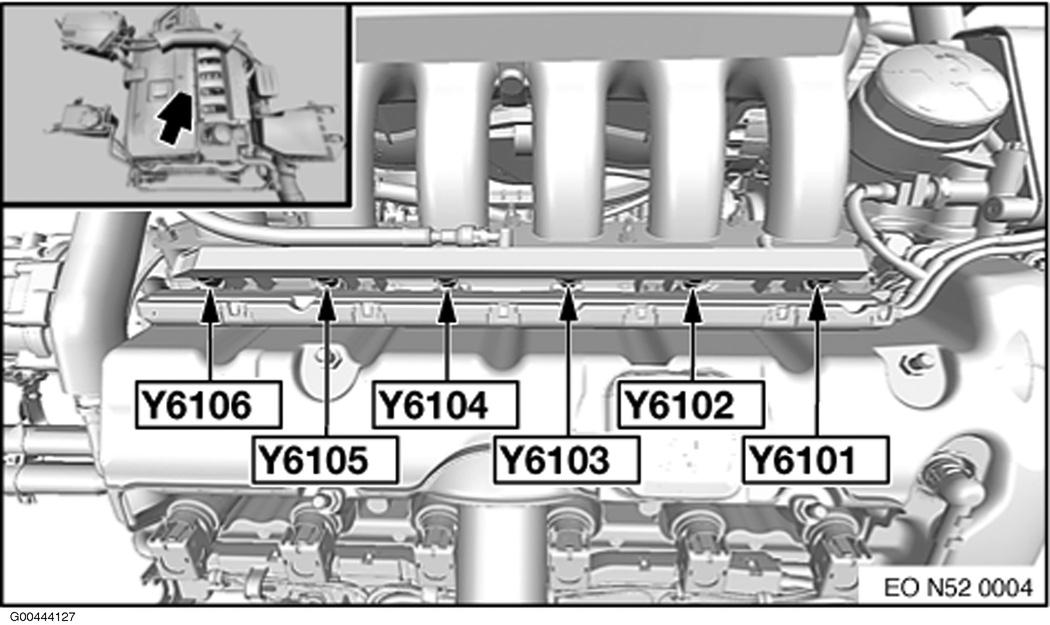

Fig 232: Top Of Engine (3.0L)

G00444127

Courtesy of BMW OF NORTH AMERICA, INC.

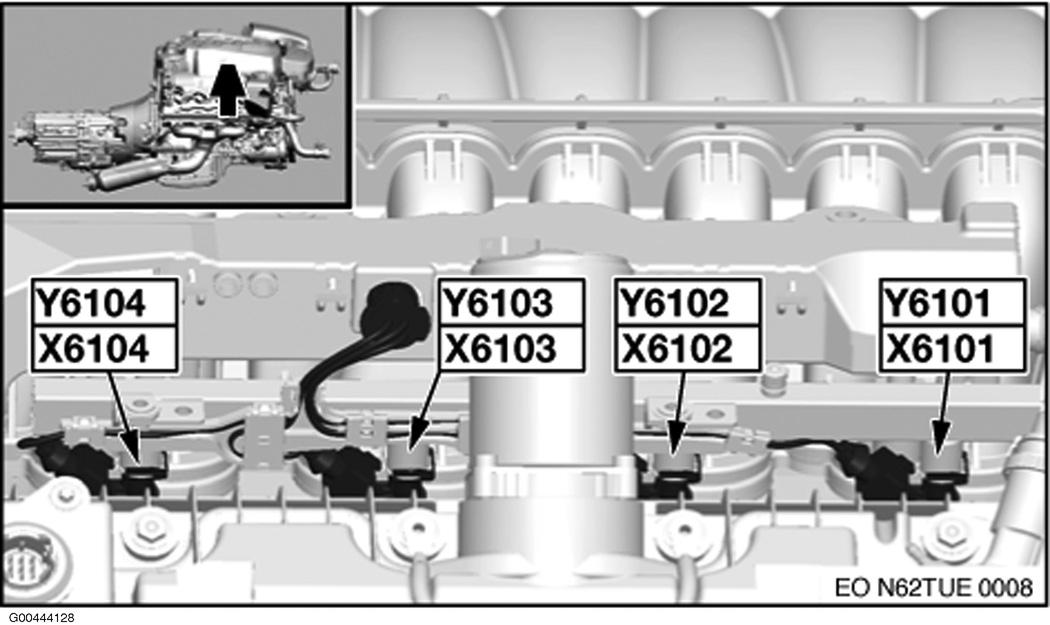

Fig 233: Top Of Engine (4.8L)

G00444128

Courtesy of BMW OF NORTH AMERICA, INC.

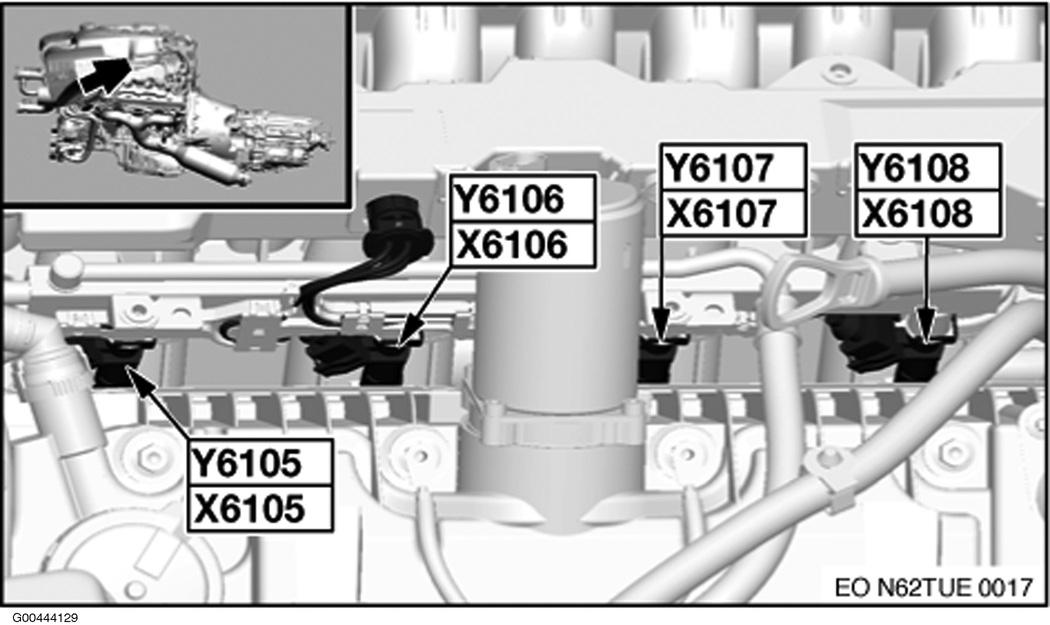

Fig 234: Top Of Engine (4.8L)

G00444129

Courtesy of BMW OF NORTH AMERICA, INC.

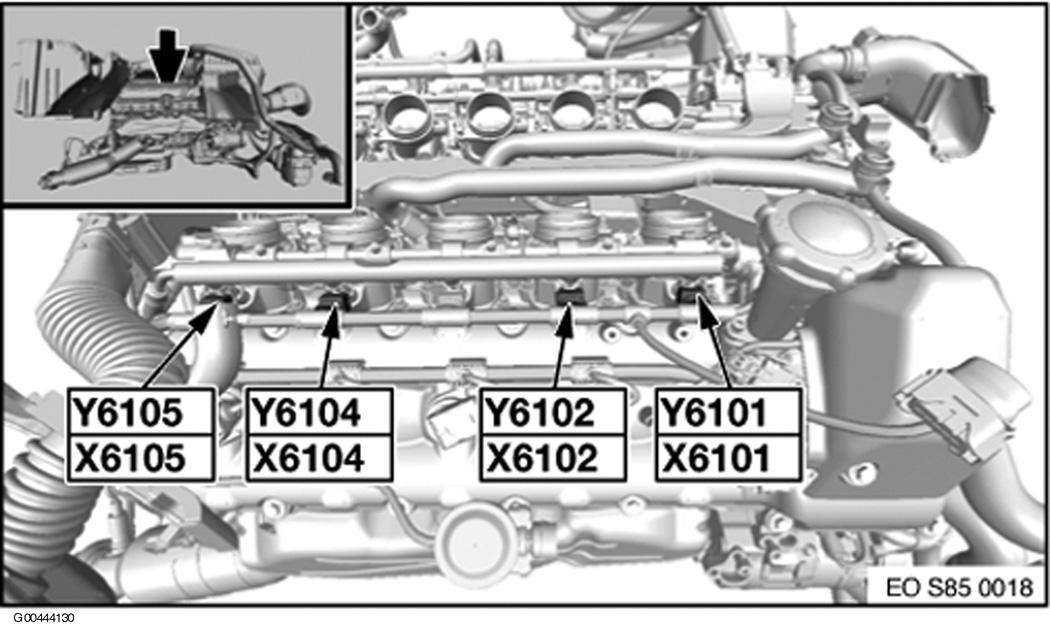

Fig 235: Top Of Engine (5.0L)

G00444130

Courtesy of BMW OF NORTH AMERICA, INC.

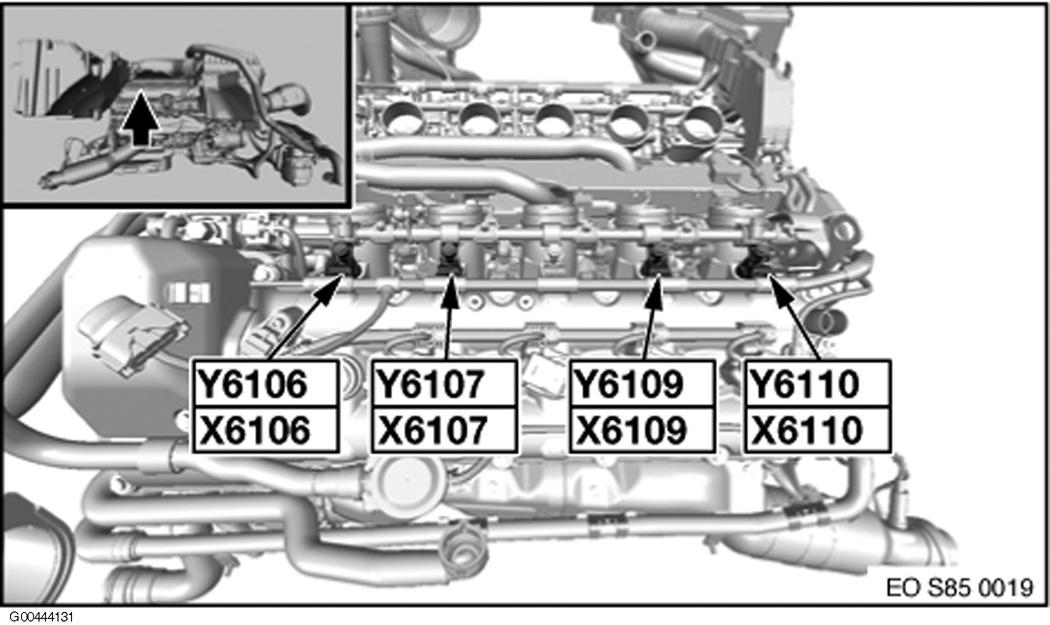

Fig 236: Top Of Engine (5.0L)

G00444131

Courtesy of BMW OF NORTH AMERICA, INC.

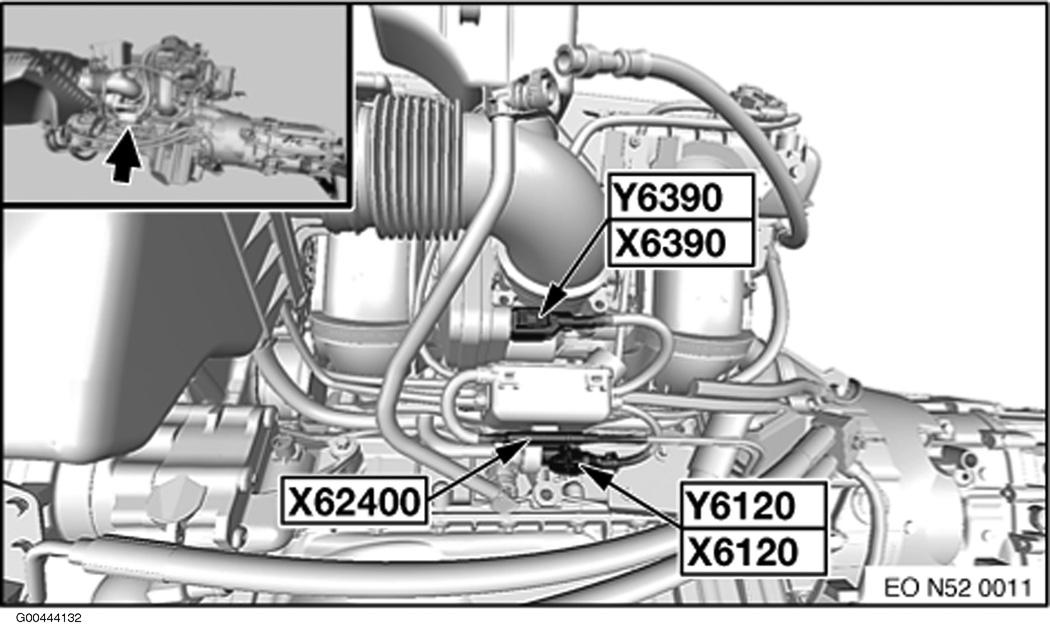

Fig 237: Electric Throttle Valve (3.0L)

G00444132

Courtesy of BMW OF NORTH AMERICA, INC.

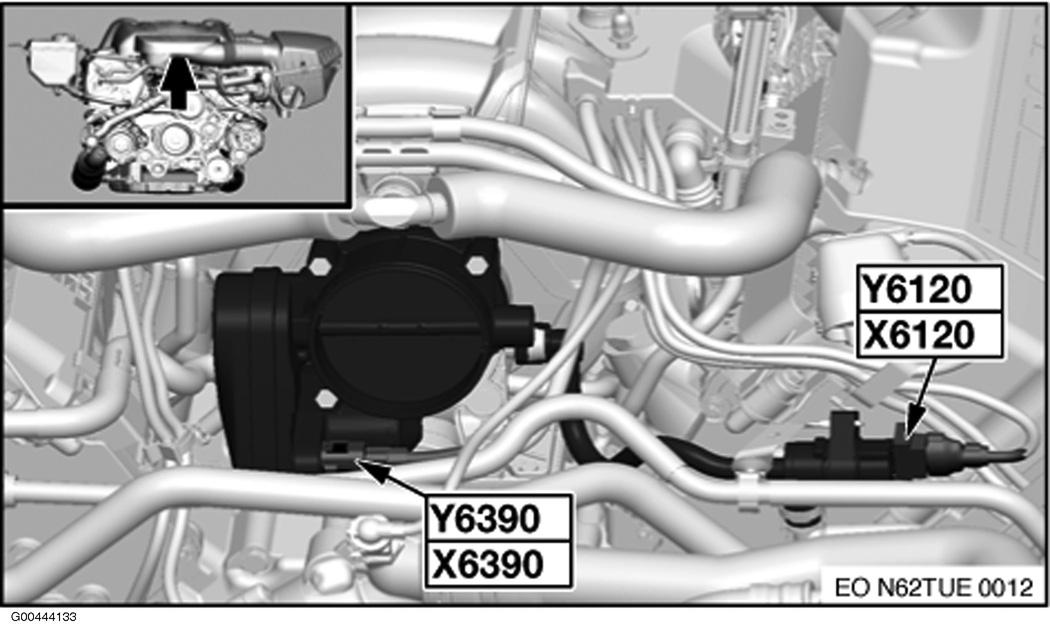

Fig 238: Front Of Engine (4.8L)

G00444133

Courtesy of BMW OF NORTH AMERICA, INC.

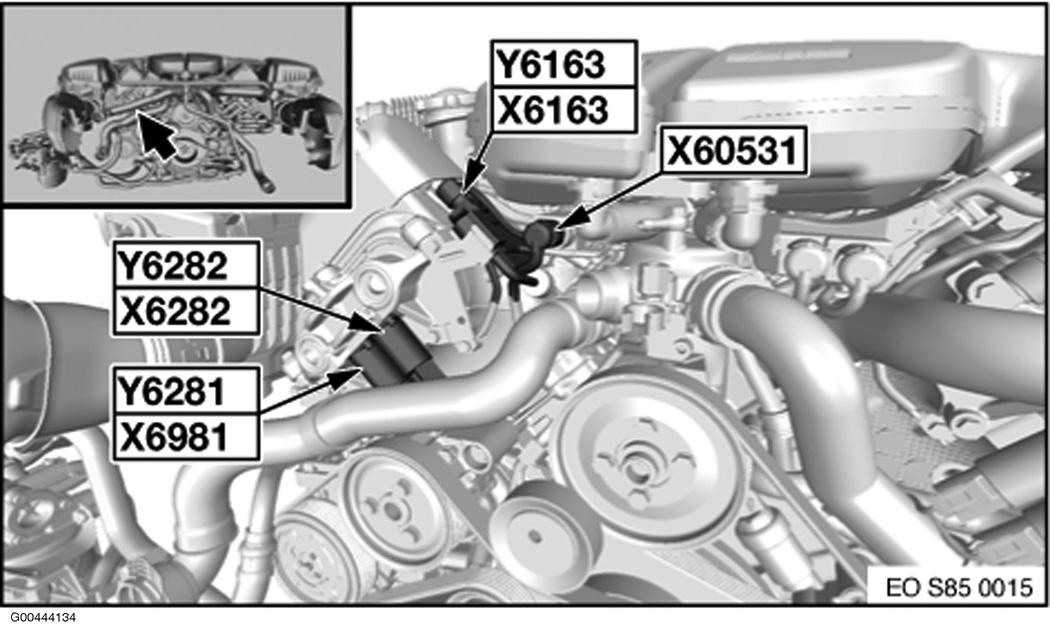

Fig 239: Front Of Engine (5.0L)

G00444134

Courtesy of BMW OF NORTH AMERICA, INC.

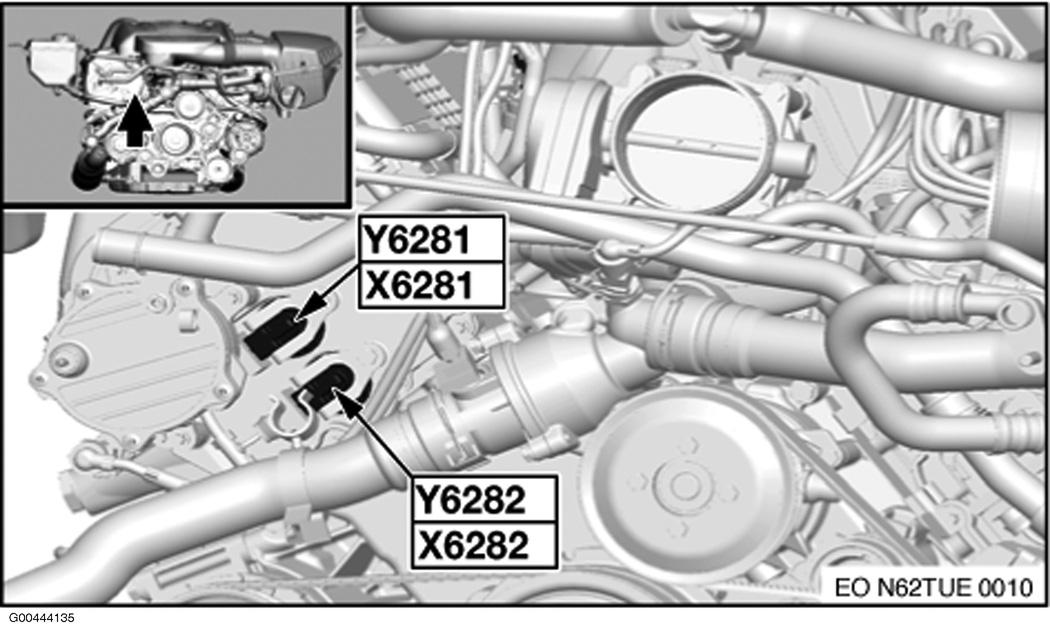

Fig 240: Front Of Engine (4.8L)

G00444135

Courtesy of BMW OF NORTH AMERICA, INC.

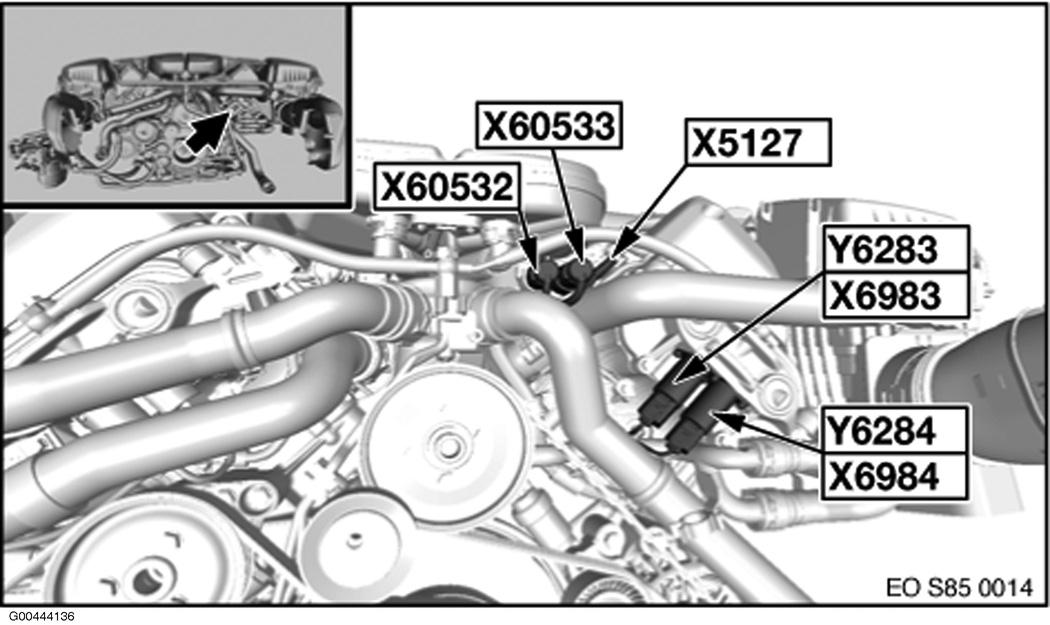

Fig 241: Front Of Engine (5.0L)

G00444136

Courtesy of BMW OF NORTH AMERICA, INC.

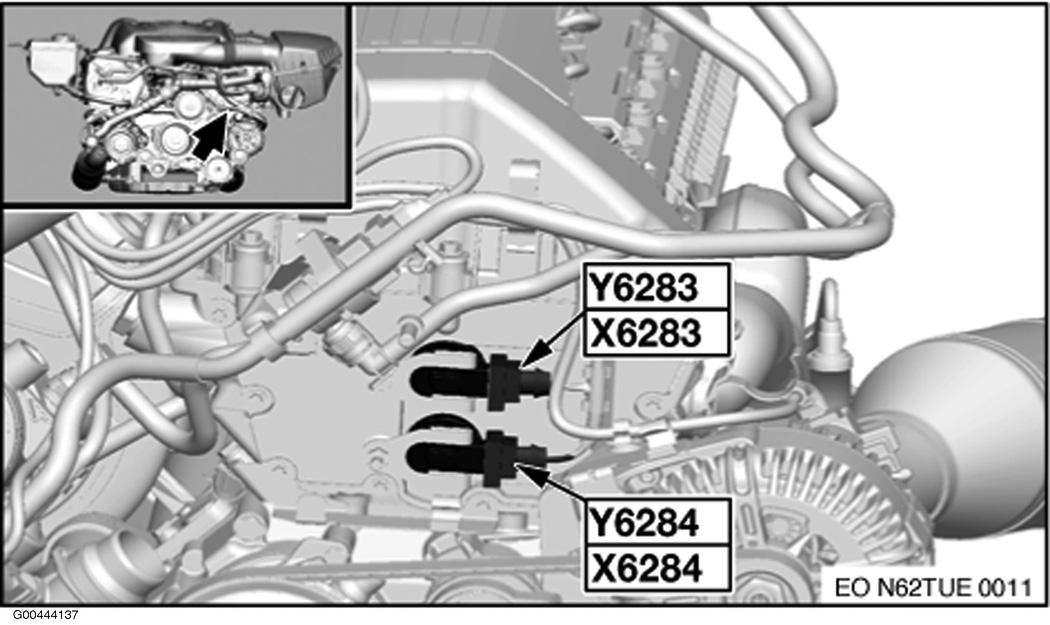

Fig 242: Front Of Engine (4.8L)

G00444137

Courtesy of BMW OF NORTH AMERICA, INC.

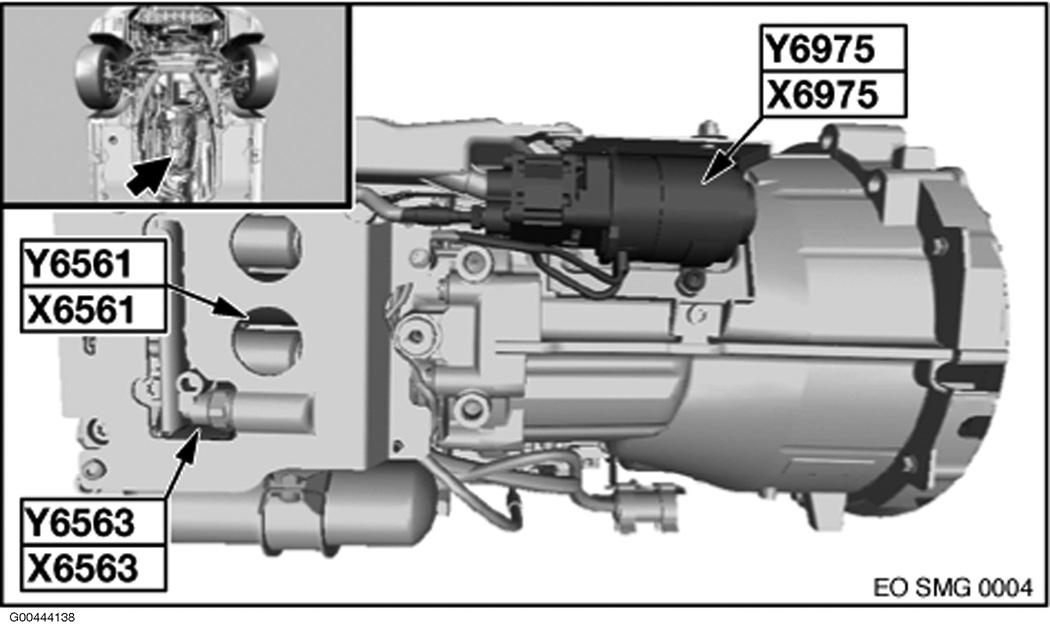

Fig 243: Under Vehicle

G00444138

Courtesy of BMW OF NORTH AMERICA, INC.

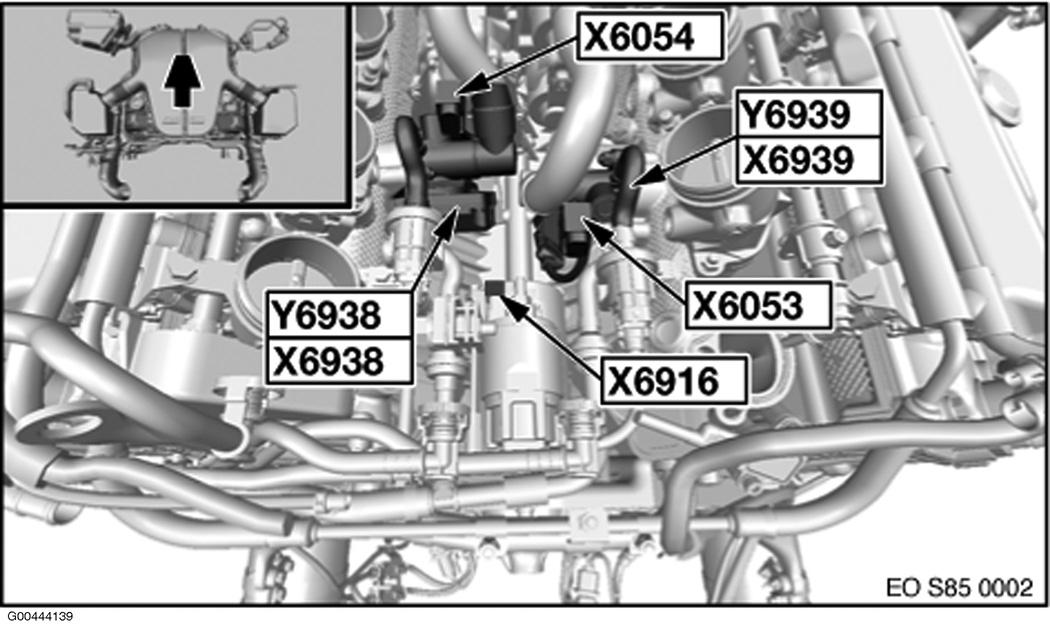

Fig 244: Top Of Engine

G00444139

Courtesy of BMW OF NORTH AMERICA, INC.

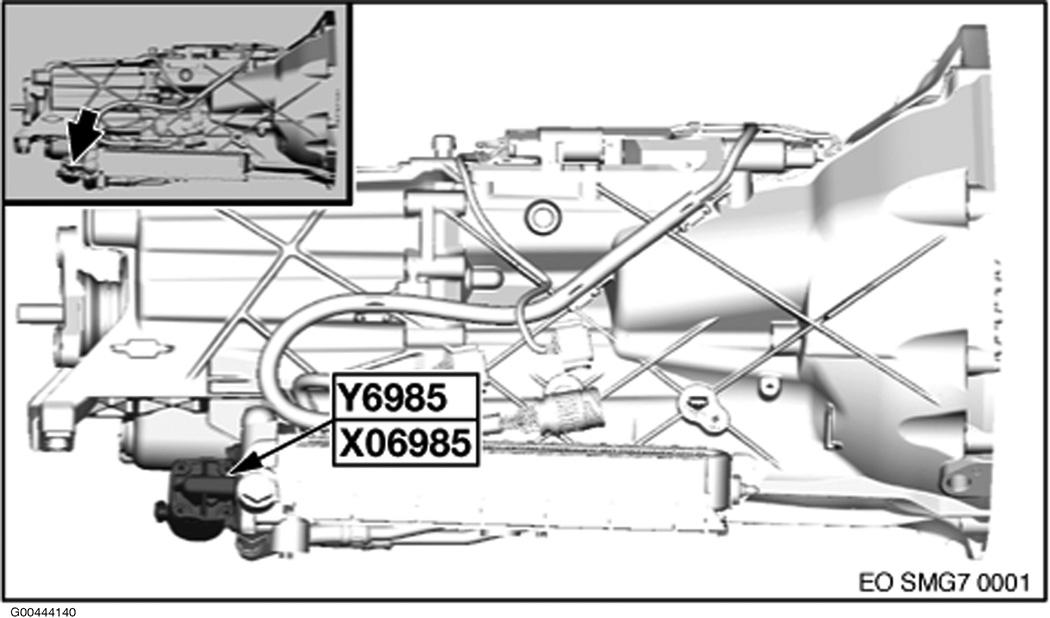

Fig 245: Rear Of Transmission

G00444140

Courtesy of BMW OF NORTH AMERICA, INC.

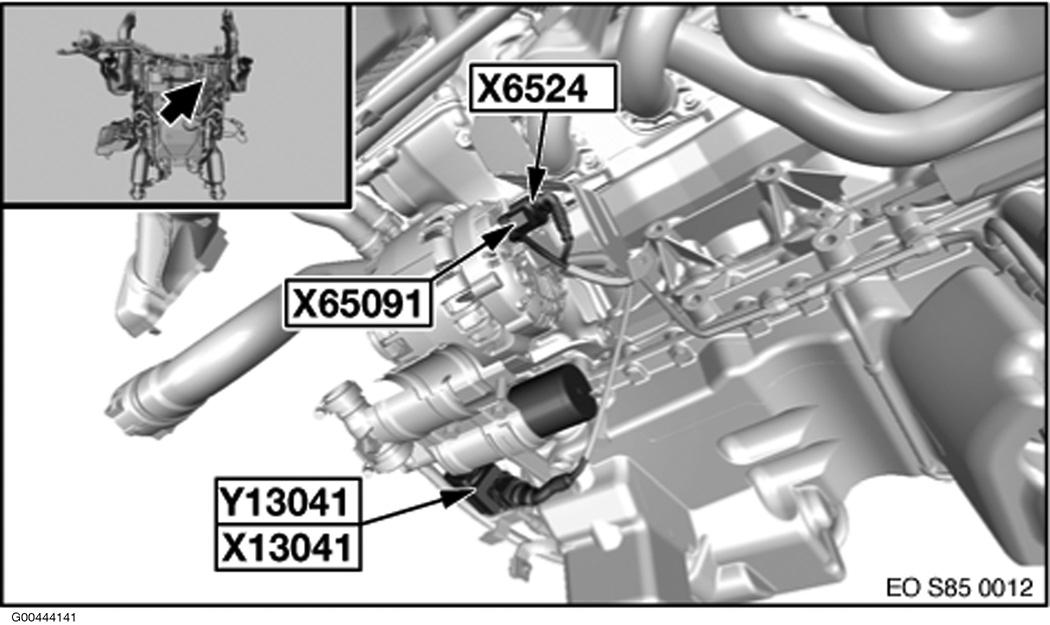

Fig 246: VANOS Pressure Valve

G00444141

Courtesy of BMW OF NORTH AMERICA, INC.

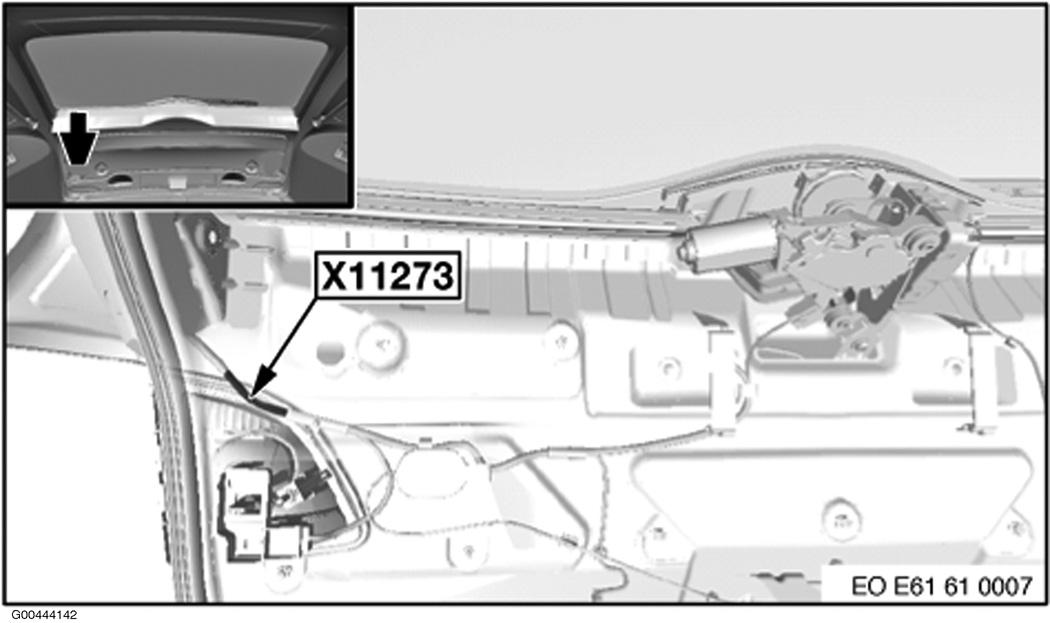

Fig 247: Right Side Of Rear Compartment Door

G00444142

Courtesy of BMW OF NORTH AMERICA, INC.

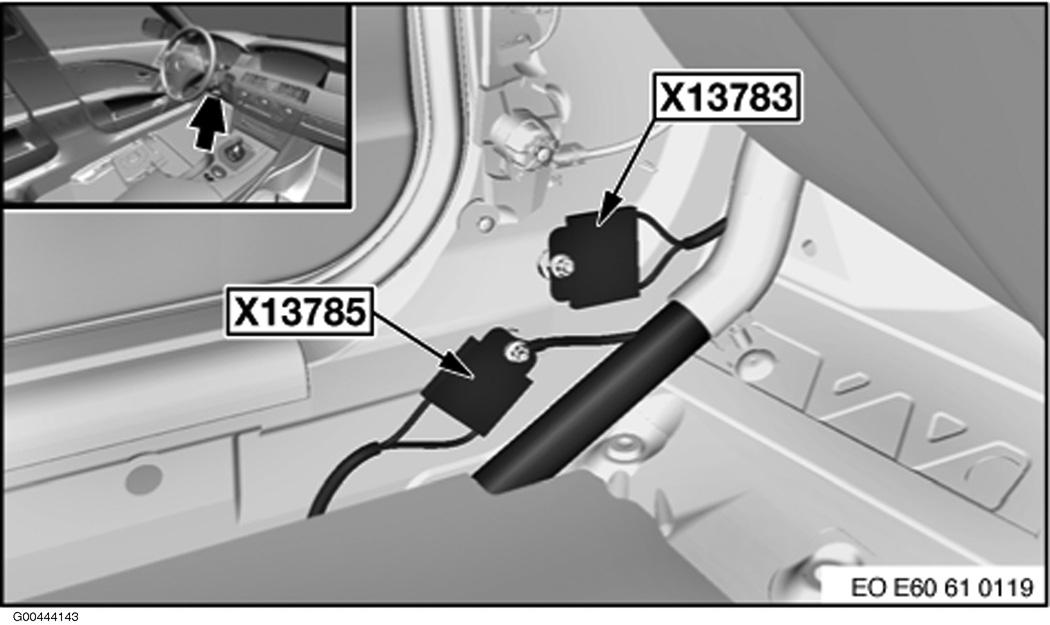

Fig 248: Under Left Side Of Dash

G00444143

Courtesy of BMW OF NORTH AMERICA, INC.

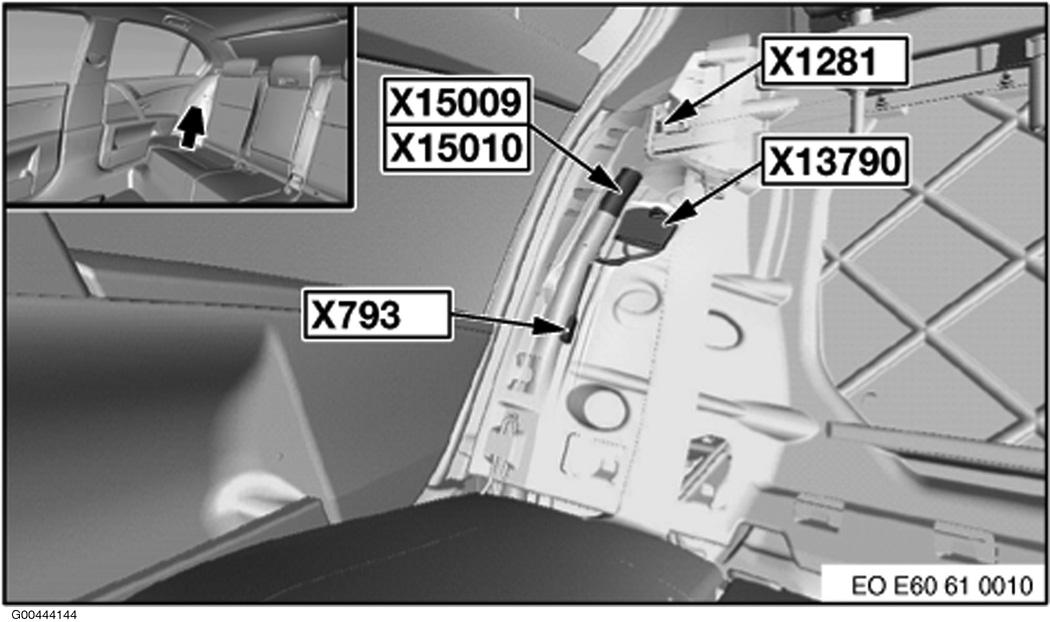

Fig 249: Rear Of Right Rear Door

G00444144

Courtesy of BMW OF NORTH AMERICA, INC.

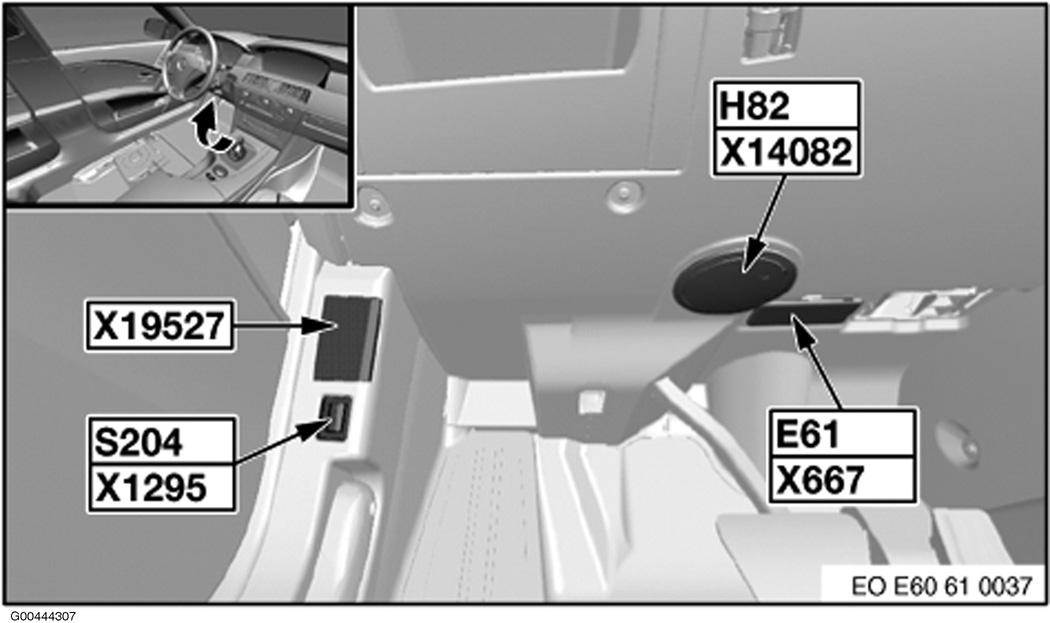

Fig 250: Left Side Of Left Kick Panel

G00444307

Courtesy of BMW OF NORTH AMERICA, INC.
