System Components: Notes

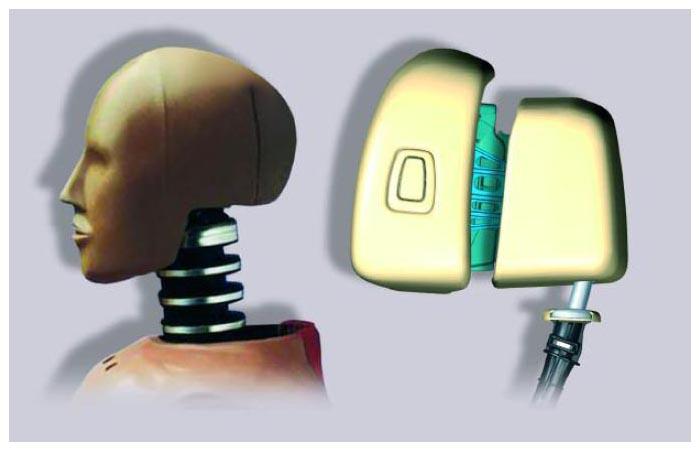

The essential components of the crash sensitive head restraint are the following:

• Head restraint bar
• Head restraint frame
• Impact plate and head restraint cushion
• Pyrotechnic actuator
• Spring actuating mechanism
• Button for head restraint adjustment

The button for adjusting the head restraint releases the mechanical lock preventing the cushion part being pushed backwards.

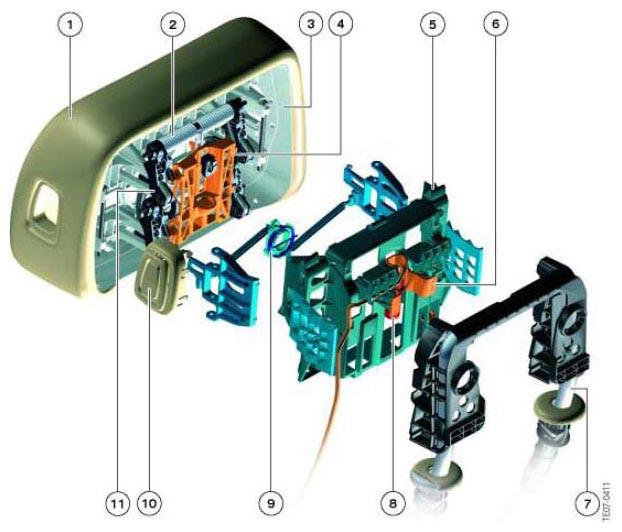

Index	Explanation
1	Head restraint cushion
2	Spring actuating mechanism
3	Head restraint impact plate
4	Release plate
5	Head restraint frame
6	Pyrotechnic actuator holder
7	Head restraint bar
8	Pyrotechnic actuator
9	Linkage with catches for head restraint adjustment
10	Button for head restraint adjustment
11	Head restraint actuating mechanism

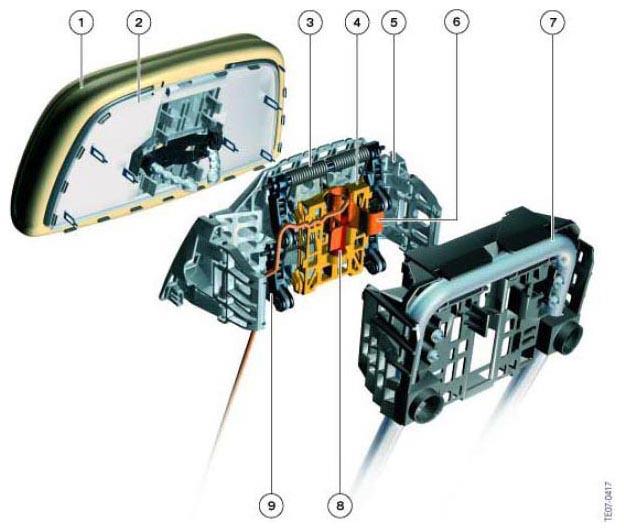

Index	Explanation
1	Head restraint cushion
2	Head restraint impact plate
3	Spring actuating mechanism
4	Release plate
5	Head restraint frame
6	Pyrotechnic actuator holder
7	Head restraint bar
8	Pyrotechnic actuator
9	Head restraint actuating mechanism
