On-Board Connection: Notes

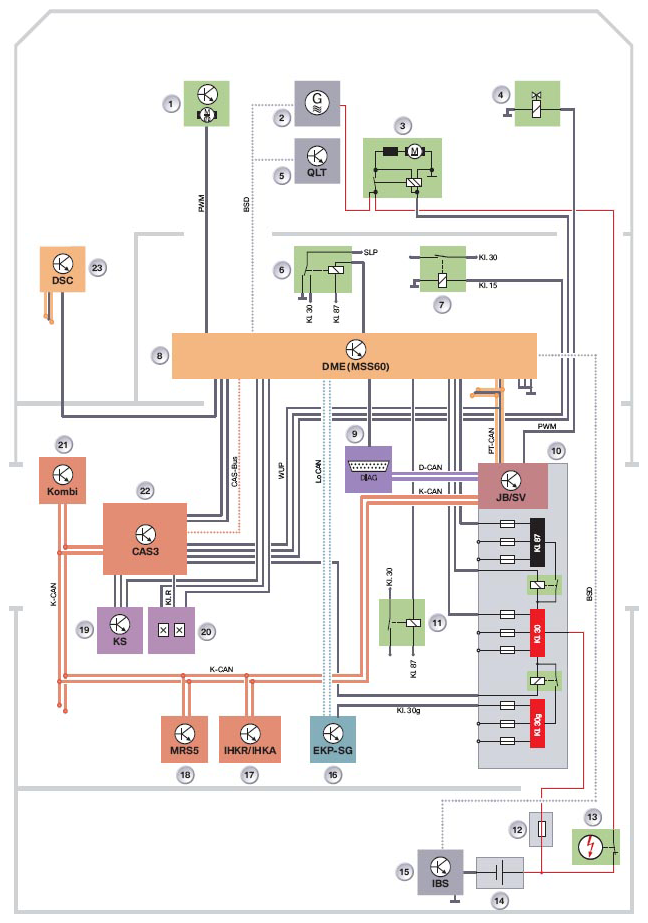

Index for On-Board Connection
INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Electrical cooling fan |
| 2 | Alternator |
| 3 | Starter |
| 4 | Control valve in the air conditioning compressor |
| 5 | Oil condition sensor |
| 6 | Secondary air pump relay |
| 7 | Injection nozzle supply relay |
| 8 | Engine control unit MSS60 |
| 9 | OBD2 diagnosis connector (TD output from MSS60 and D-CAN to JB) |
| 10 | Junction box (JB) and distribution box (SV) |
| 11 | Evacuating pump relay for brake servo action |
| 12 | High-current circuit breaker (250 A) |
| 13 | Safety battery terminal (SBK) |
| 14 | AGM battery. |
| 15 | Intelligent battery sensor (IBS) |
| 16 | Electric fuel pump control unit |
| 17 | IHKR/IHKA control unit |
| 18 | Multiple restraint system (MRS5) |
| 19 | Clutch module (KS) |
| 20 | Brake light switching module |
| 21 | Instrument cluster |
| 22 | Car Access System (CAS3) |
| 23 | Dynamic Stability Control (DSC) |
