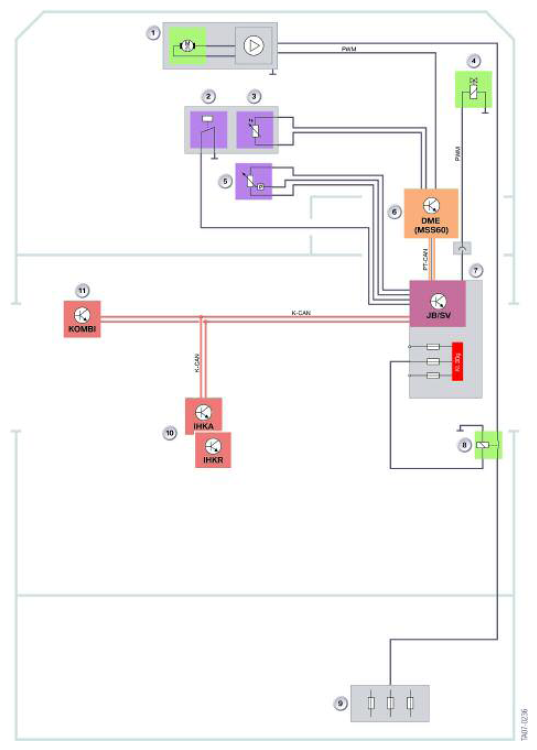

Cooling System Circuit Diagram
INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Electric fan (850 W) |
| 2 | Coolant level switch |
| 3 | Coolant temperature sensor |
| 4 | Control valve in the air conditioning |
| 5 | Coolant pressure sensor |
| 6 | MSS60 Engine control system |
| 7 | Junction box |
| 8 | Electric fan relay |
| 9 | High-current circuit breakers |
| 10 | IHKA |
| 11 | Instrument cluster |
