61 13... Fuse holder

Remove appropriate fuse from fuse holder (1).

NOTE: Identify the position when removing fuses.

Pull sliding lock (2) out of fuse holder (1) completely.

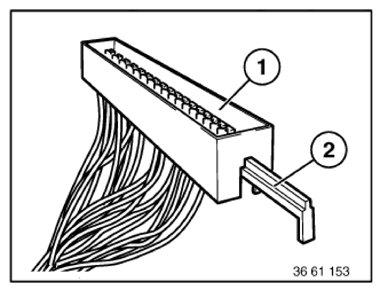

Fig 1: Identifying Fuse Holder

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (3) of appropriate contact and pull out cable.

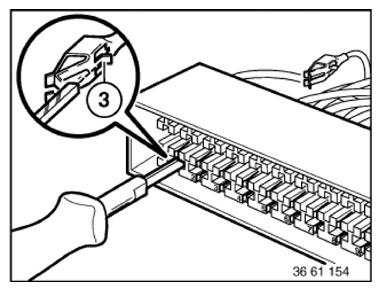

Fig 2: Pressing Back Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
