61 13... Main relay connector for DME

Open locking clamp (1) for the corresponding cable.

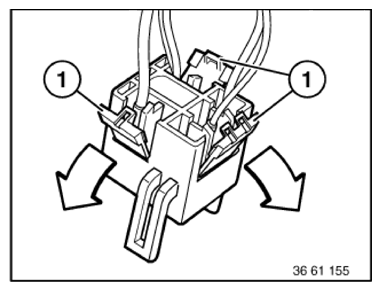

Fig 1: Opening Locking Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (2) of appropriate contact and pull out cable with contact.

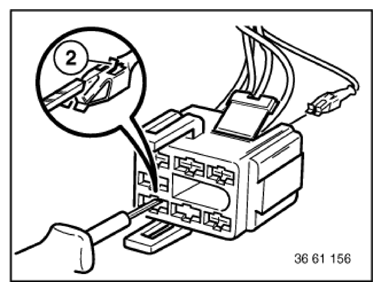

Fig 2: Pressing Back Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
