61 13... Repairing ribbon cables

Special tools required:

• 61 1 190

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Identifying Ribbon Cables, Connector Housing And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

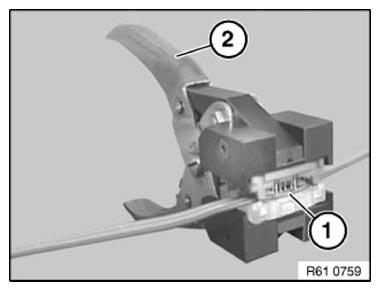

Place connector housing (1) in pliers (2) 61 1 190 .

Close pliers (2).

Fig 2: Placing Connector Housing In Pliers (61 1 190)

Courtesy of BMW OF NORTH AMERICA, INC.
