11 00 039 Checking compression in all cylinders (N43/N53/N54)

Special tools required:

IMPORTANT: High tension - mortal danger!
Interrupt power supply to ignition coils.
Read and comply with notes on compression pressure check.

Necessary preliminary tasks:

Unscrew tip (1) from special tool 11 0 222 .

IMPORTANT: Then check the Schrader valve that is now visible for secure seating.

Fig 1: Identifying Special Tool (11 0 222) And (11 8 731)

Courtesy of BMW OF NORTH AMERICA, INC.

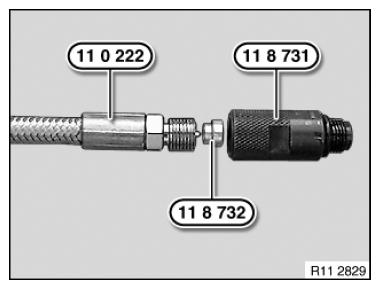

Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731 .

Fig 2: Identifying Special Tool (11 0 222), (11 8 732) & (11 8 731)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 into special tool 11 8 731 to 10 Nm.

IMPORTANT: Oil thread on special tool 11 8 731 .

Fig 3: Tightening Special Tool (11 0 222) Onto Special Tool (11 8 731)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 by hand into spark plug thread and connect special tool 11 0 224 .

Use adapter (1) if the compression pressure is being checked with the BMW diagnosis system.

Depress accelerator pedal and actuate starter until compression pressure stops rising.

NOMINAL VALUES , compression pressure

Fig 4: Depressing Accelerator Pedal
Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine

Delete fault memory.
