Fuel Delivery from Fuel Tank

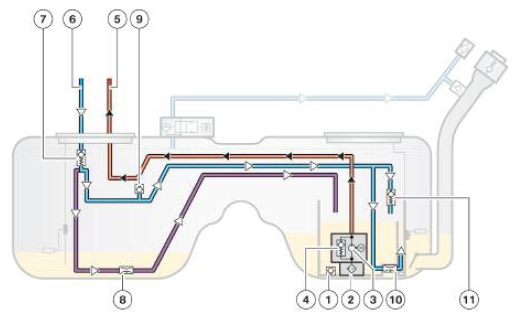

In the event of the surge chamber being completely empty, the initial filling valve (1) ensures that fuel enters the surge chamber while refuelling.
The fuel reaches the fuel pump (3) via the intake filter (2), then continues through the delivery line (5) to the fuel filter. The fuel pump is located in the surge chamber. A pressure relief valve (4) is integrated in the fuel pump to prevent pressure in the delivery line from rising too high.
| Index | Explanation |
|---|---|
| 1 | Initial fill valve |
| 2 | Intake mesh filter |
| 3 | Fuel pump |
| 4 | Pressure relief valve |
| 5 | Feed line |
| 6 | Return line |
| 7 | Leak prevention valve |
| 8 | Suction jet pump |
| 9 | Air inlet valve |
| 10 | Suction jet pump |
| 11 | Pressure relief valve |
As the engine switches off, the delivery line is depressurized but cannot run dry because, provided the system is not leaking, no air is able to enter it. In addition, after the fuel pump has switched off, the fuel pressure/temperature sensor is checked for plausibility.
Fuel that is required for lubrication and the function of high pressure generation flows back into the fuel tank via the return line (7). The fuel coming from the return line is divided into two lines downstream of the leak prevention valve (7). The non-return valve prevents the fuel tank from draining in the event of damage to lines on the engine or underbody. It also prevents the return line from running dry while the engine is off.
One of the lines guides the fuel into the surge chamber via a suction jet pump (10). The suction jet pump transports the fuel from the fuel tank into the surge chamber. If the fuel delivery pressure in the return line increases too much, the pressure relief valve (11) opens and allows the fuel to flow directly into the surge chamber.
An air inlet valve is used in the E70. The air inlet valve (9) ensures that air can enter the line when the engine is off, preventing fuel from flowing back from the right-hand half of the fuel tank to the left.
Instead of the air inlet valve (9) a non-return valve is used on the E90. The non-return valve ensures that, while the engine is off, fuel from the right-hand half of the fuel tank cannot flow back into the left-hand half. The return system remains completely filled with fuel.
A further line branches off into the left-hand half of the fuel tank after the non-return valve (7) and transports the fuel into the surge chamber via the suction jet pump (8).
