Piezo Injector Operation: Notes

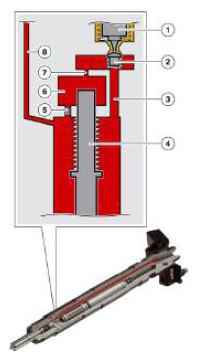

Fig 1: Piezo Injector Operation Diagram
G06896063Courtesy of BMW OF NORTH AMERICA, INC.
INDEX EXPLANATION CHART

Index Explanation
1 Coupler module
2 Control valve
3 Bypass
4 Nozzle needle
5 Restrictor
6 Control volume
7 Outlet
8 Supply duct to nozzle

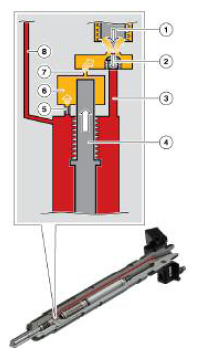

Fig 2: Piezo Injector Operation Diagram - Injector Opening
G06896064Courtesy of BMW OF NORTH AMERICA, INC.
