5.2.4. Longitudinal acceleration sensor

Two longitudinal acceleration sensors are installed in the front area of the engine supports. The measured values are transmitted to the Crash Safety Module and evaluated there.

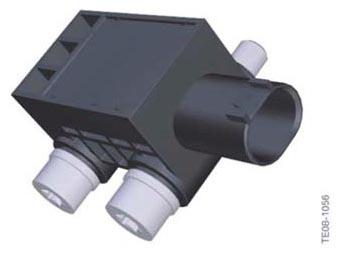

Fig 1: Identifying Engine Support Longitudinal Acceleration Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
