2.3. N63 engine: Notes

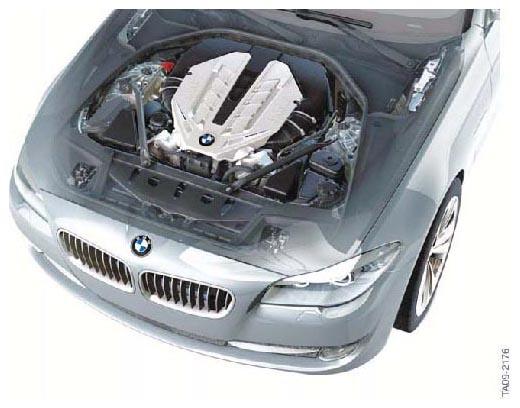

The N63 engine is the successor of the N62 engine and the world's first engine with optimized package thanks to the placement of the turbochargers and the main catalytic converters. In order to obtain performance goals with the optimum package and weight, the two turbochargers and the catalytic converters have been placed in the engine V-space between the cylinder banks, which meant reversing the positions of the intake and outlet ports. This arrangement allows short pipe lengths and large cross-sections, which in turn minimizes the pressure losses on the intake and exhaust side.
Highlights
- Use across all series (E71/E72/F01/F02/F04/F07/F10)
- Twin turbochargers placed in the engine V-space
- Catalytic converters close to the engine
- Direct fuel injection piezo-electric injectors
- MSD85 Digital Motor Electronics, liquid-cooled with FlexRay connection
- Indirect charge air cooling
