11 00 670 Securing engine in installation position (N55)

Special tools required:

00 6 000
00 6 002
00 6 004
00 6 010
00 6 050

WARNING: Danger of injury!
Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

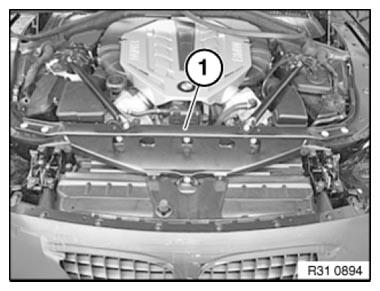

IMPORTANT: Special tool 00 6 000 must not be fitted when cross-member (1) is installed!

Fig 1: Identifying Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work

SECURE THE ENGINE COMPARTMENT LID IN THE SERVICE POSITION.
Remove underbody protection at front and rear. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION or UNDERBODY PROTECTION AT REAR .
Remove trim panel for engine compartment lid at side. See 51 76 035 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT ENGINE COMPARTMENT LID SEAL LOCATOR .

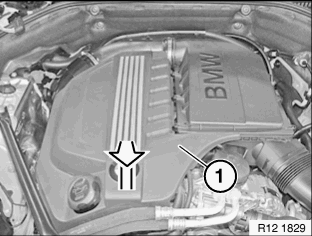

Remove acoustic cover.

Fig 2: Removing Acoustic Cover

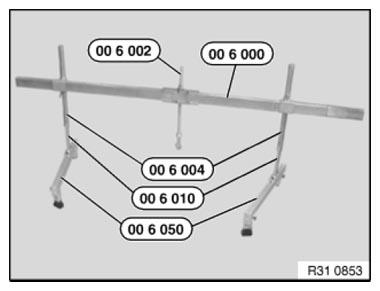

Assemble cross-member 00 6 000 with special tools 00 6 002 00 6 004, 00 6 010, 00 6 050.

Fig 3: Assembling Cross-Member 00 6 000 With Special Tools (00 6 002 00 6 004, 00 6 010 And 00 6 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows: N63 engine

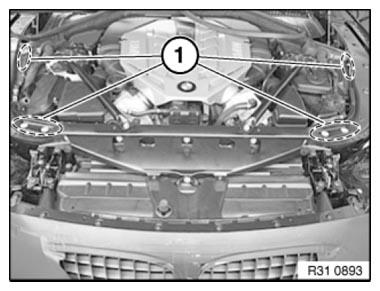

NOTE: Contact points (1) for special tool 00 6 050 are pictured.

Position cross-member 00 6 000 with a 2nd person helping on contact points (1).

Fig 4: Identifying Special Tool (00 6 050) Contacting Points

Courtesy of BMW OF NORTH AMERICA, INC.

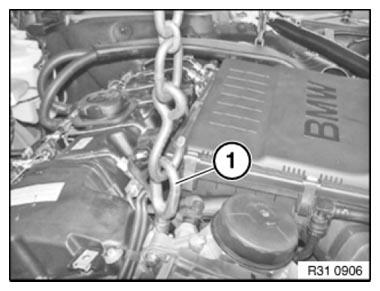

Screw towing hook (1) into engine block.

Fig 5: Identifying Towing Hook

Courtesy of BMW OF NORTH AMERICA, INC.

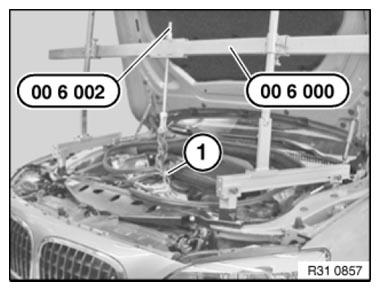

Align cross-member so that spindle 00 6 002 is correctly positioned over towing hook.

Secure suitable chain to spindle 00 6 002 and suspend from towing hook (1).

Fig 6: Identifying Spindle 00 6 002 And Towing Hook

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.

WARNING: Danger of injury!

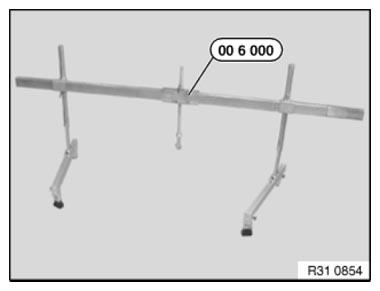

Tighten down all screws and nuts on crossmember 00 6 000.

Fig 7: Identifying Crossmember (00 6 000)

Courtesy of BMW OF NORTH AMERICA, INC.

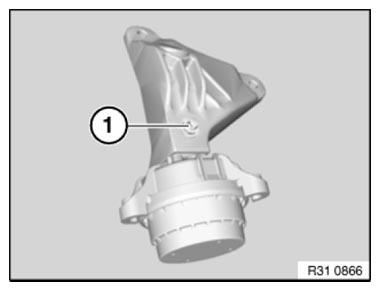

Release bolts (1) on engine mount.

Raise engine approx. 10 mm with cross-member.

IMPORTANT: Observe installation note!

To ensure play between engine mount and engine support arm, lower the engine completely before tightening the bolt connection (engine mount/engine support arm).

Tightening torque 22 11 2AZ .

Fig 8: Identifying Engine Mount/Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.
