Radiator shutter drive unit
The radiator shutter drive with integrated control electronics circuit is an actuator motor. The radiator shutter drive is connected to an adjustment mechanism. The adjustment mechanism moves the individual fins of the radiator shutter to the relevant position.
The radiator shutter has 2 positions:
- Radiator shutter closed
- Radiator shutter opened

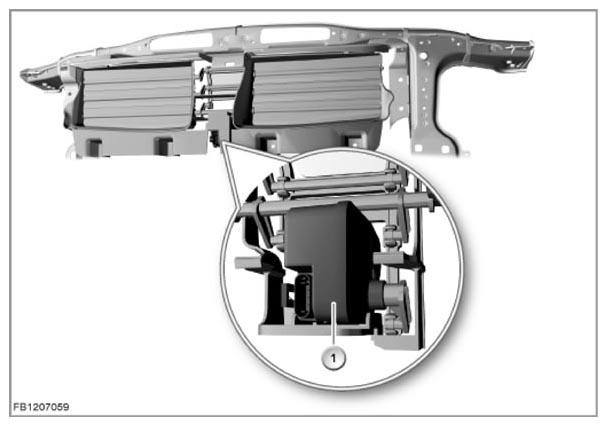

The illustration shows the radiator shutter drive on the E90.
| Index | Explanation |
|---|---|
| 1 | Radiator shutter drive unit |
