Automatic Engine Start-Stop Function (MSA): Displays

Various displays for the automatic engine start-stop are available to the driver as a feedback signal. All messages for the automatic engine start-stop are output on the instrument cluster (KOMBI).

Distinction is drawn between the following displays:

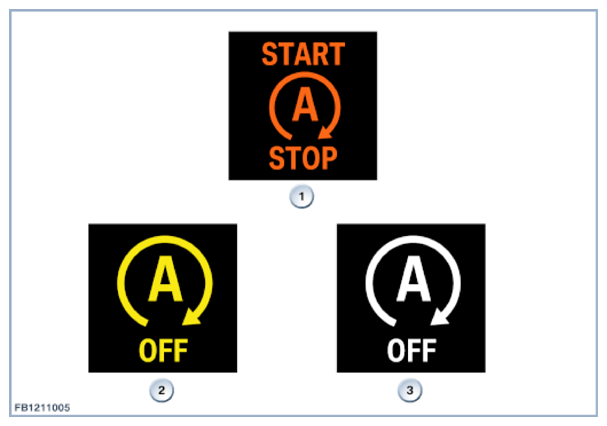

Fig 1: Display - Automatic Engine Start-Stop Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Automatic engine start-stop activated, engine stopped and start-capable (color may vary model-specific)
2	Automatic engine start-stop function failed
3	Automatic engine start-stop deactivated
