System overview

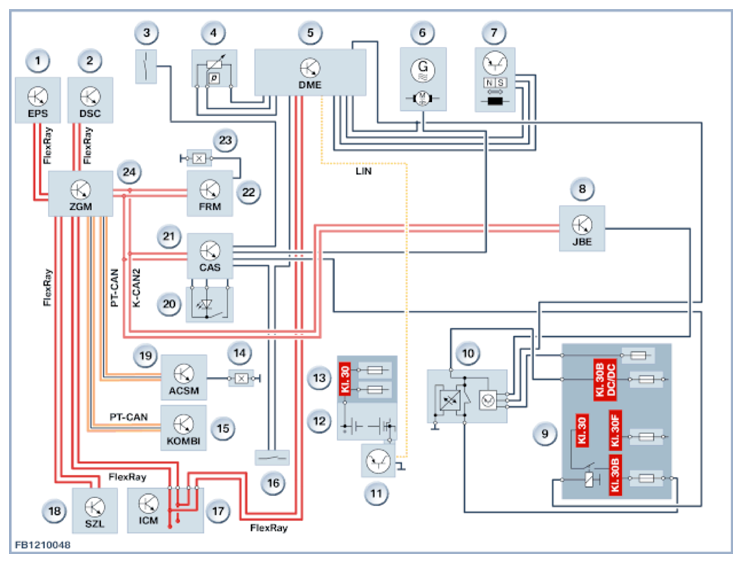

The following system overview shows an example of the functional networking of the automatic engine start-stop function for vehicles with manual transmission and junction box electronics (JBE).
| Item | Explanation |
|---|---|
| 1 | Electronic Power Steering (EPS) |
| 2 | Dynamic stability control (DSC) |
| 3 | Engine compartment lid contact switch |
| 4 | Brake vacuum sensor |
| 5 | Digital engine electronics |
| 6 | Starter motor |
| 7 | Zero-gear sensor |
| 8 | Junction Box Electronics (JBE) |
| 9 | Fuse carrier, rear |
| 10 | DC/DC converter |
| 11 | Intelligent battery sensor |
| 12 | Battery |
| 13 | Power distribution box, battery |
| 14 | Seat belt buckle switch, driver's side |
| 15 | Instrument panel (KOMBI) |
| 16 | Clutch module |
| 17 | Integrated chassis management (ICM) |
| 18 | Steering column switch center (SZL) |
| 19 | Crash Safety Module (ACSM) |
| 20 | Automatic engine start-stop function button |
| 21 | Car access system (CAS) |
| 22 | Footwell module (FRM) |
| 23 | Door lock, driver's side |
| 24 | Central gateway module (ZGM) |
