Switchover valve for engine mount
The switchover valve for engine mounts is attached to the air collector for intake air. The DME activates the switchover valve. The activated switchover valve opens and releases the partial vacuum to the engine mounts.

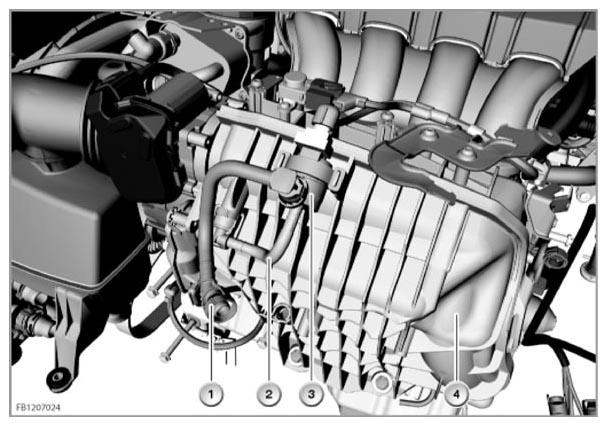

| Index | Explanation |
|---|---|
| 1 | Vacuum hose to the engine mounts |
| 2 | vacuum line |
| 3 | Changeover valve |
| 4 | Air collector for intake air |
