Fuel pump
The electric fuel pump is an in-tank pump. The maximum fuel delivery pressure depends on the low-pressure system.
Courtesy of BMW OF NORTH AMERICA, INC.

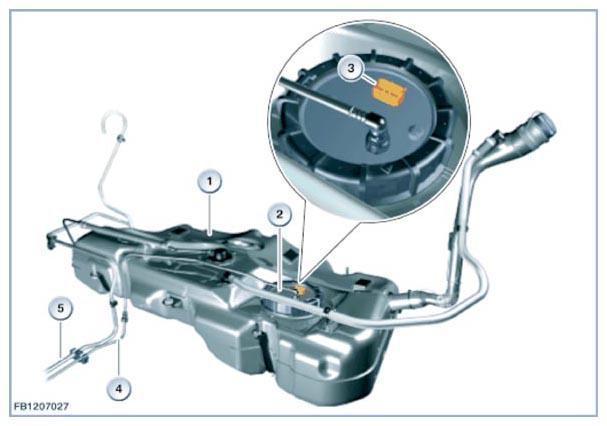

| Item |
Explanation |
| 1 |
Fuel tank |
| 2 |
Fuel pump |
| 3 |
Plug connection |
| 4 |
Fuel feed |
| 5 |
Fuel return line (diesel) |
