72 12... Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
72 12... Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners

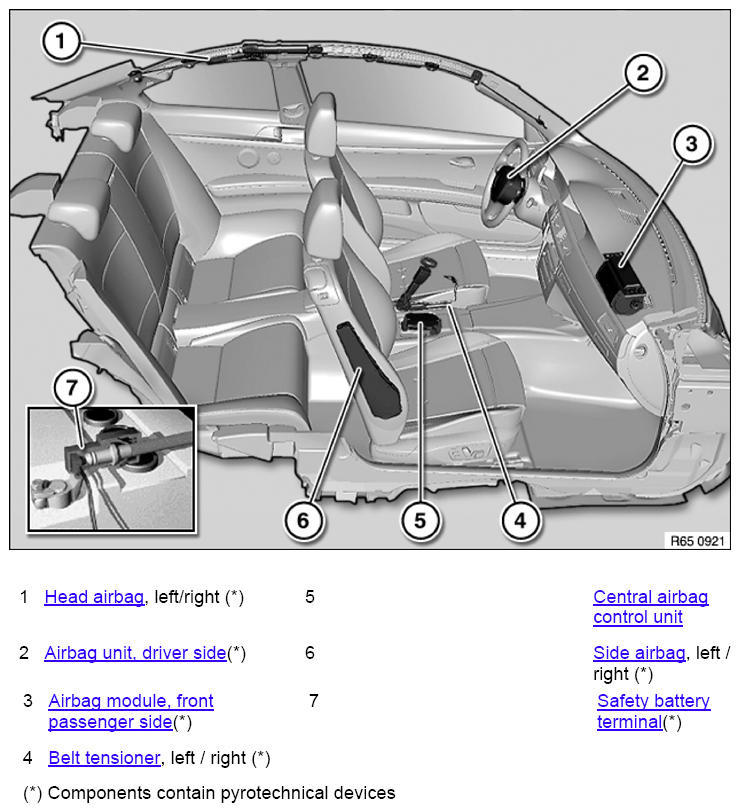

Fig 1: Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
