Audio player via Bluetooth

The Combox makes it possible to stream audio signals wirelessly via Bluetooth from a corresponding source. To do so, the source must support the A2DP (Advanced Audio Distribution Profile). A source can be a cell phone or MP3 player, for example. The A2DP profile is used to transmit the audio signal only.

The AVRCP (Audio Video Remote Control Profile) is used for remote control of the source. The range of functions of the remote control depends on the version of AVRCP supported in the source. Initially the Combox will support Version 1.0 and 1.3 of AVRCP. As of 03/2011 version 1.4 of AVRCP will be implemented.

NOTE: For optimum functionality of the audio player via Bluetooth, use only BMW recommended devices. For a list of these devices, please visit  http://www.bmwusa.com/bluetooth
Fig 1: Display - Coupling Of Audio Player Or Mobile Phone
G06896827Courtesy of BMW OF NORTH AMERICA, INC.

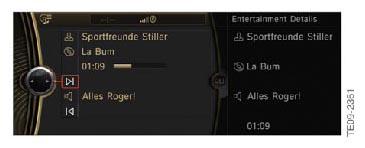

Fig 2: Display - Playback Of Music Track Via Bluetooth
G06896828Courtesy of BMW OF NORTH AMERICA, INC.
