5.3. Actuators: Notes
The following actuator are installed in the F10:
- Driver's airbag
- Front-passenger airbag
- Knee airbag, left and right
- Head airbag, left and right
- Side airbag, front left and right
- Belt tensioner, front left and right
- Active head restraints, front left and right
- Safety battery terminal.
- Airbag indicator light
- Seat belt warning light
- Indicator lamp for front passenger airbag deactivation
In addition, the following indicator lights inform the occupants of the status of the safety systems:

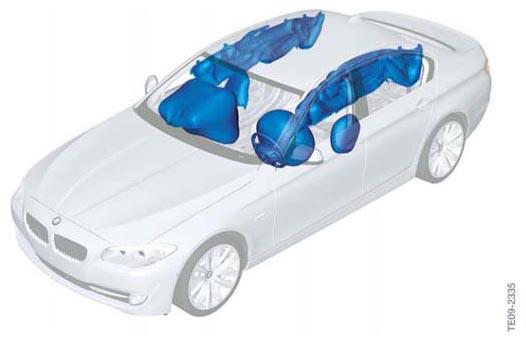

The following two graphics show the airbags in non-triggered and triggered status. Depending on the type of the specific crash, only certain airbags are triggered.
