11 00 050 Removing and installing engine (N55)

Special tools required:

11 0 000
11 7 310
11 8 680
13 5 281
13 5 282

Necessary preliminary work

Disconnect NEGATIVE BATTERY lead.
MOVE engine compartment lid into service position.
Remove CATALYTIC CONVERTER .
Remove TRANSMISSION .
Remove front OUTPUT SHAFTS (AWD only).
Drain ENGINE OIL .
Remove INTAKE SILENCER HOUSING .
Remove MANIFOLD .
Remove FAN COWL with electric fan.
Remove RADIATOR .
Remove COOLANT THERMOSTAT .
Remove TRANSMISSION OIL COOLER for automatic transmission.
Detach all coolant hoses from engine.
Remove bulkhead sound insulation.
Detach vacuum line from brake booster.
Unfasten ENGINE WIRING HARNESS and lay to one side.

To remove or install the engine, the towing hook 72 15 8 108 670 is required.

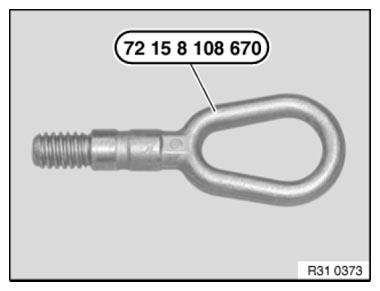

Fig 1: Identifying Towing Hook (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

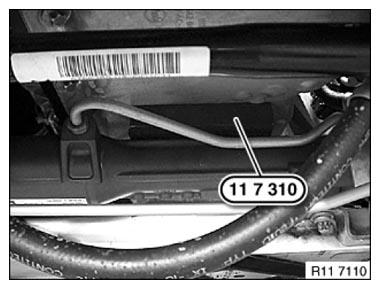

Support engine with special tool 11 7 310 on steering box.

Fig 2: Supporting Engine With Special Tool (11 7 310) On Steering Box

Courtesy of BMW OF NORTH AMERICA, INC.

Evacuate Air conditioning.

Release screws (1) of A/C lines and disconnect.

Do not remove air conditioning compressor.

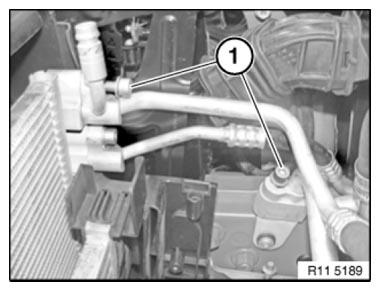

Fig 3: Identifying A/C Lines Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach right pressure pipe (1) from charge air cooler.

Fig 4: Identifying Right Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

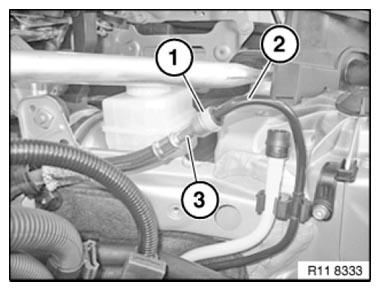

Remove circlip (1).

Unlock and disconnect fuel lines (2 and 3).

Fig 5: Identifying Circlip And Fuel Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Close off fuel line (3) with special tool 13 5 281.

Close off fuel line (2) with special tool 13 5 282.

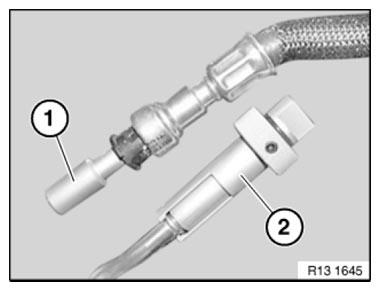

Fig 6: Identifying Fuel Lines

Courtesy of BMW OF NORTH AMERICA, INC.

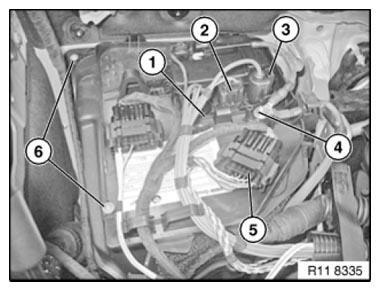

Disconnect plug connection (1) on carrier plate.

Disconnect plug connection (2) on carrier plate.

Disconnect plug connection (3) on carrier plate.

Release positive battery terminal (4) on carrier plate.

Tightening torque: 12 90 7AZ .

Disconnect plug connection (5) on carrier plate.

Release screw (1) on carrier plate.

Tightening torque: 12 90 6AZ .

Lift carrier plate upward to remove.

Fig 7: Identifying Screw, Plug Connections And Positive Battery Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

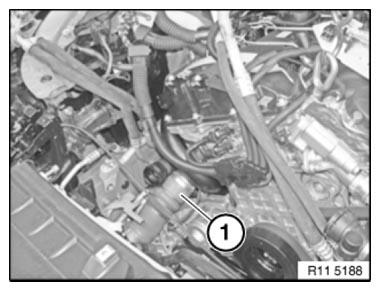

Release power steering pump (1) and set down on front axle support.

NOTE: Do not disconnect hydraulic lines.

Shown without air conditioning compressor for purposes of clarity.

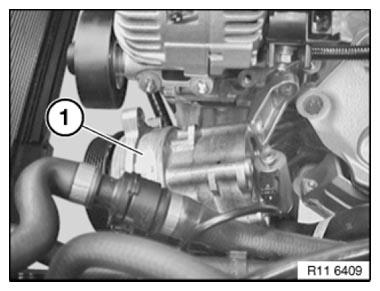

Fig 8: Identifying Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

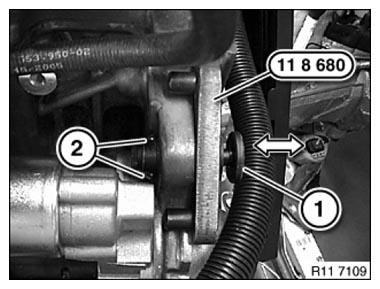

Mount special tool 11 8 680 on rear lifting eye (transmission side).

Push ball lock pin (1) in direction of arrow and hold down until special tool 11 8 680X is positioned in lifting eye.

Pull ball lock pin (1) outward in direction of arrow until both balls (2) are pushed outward.

Installation note:

For checking correct installation of special tool 11 8 680.

There must be a 6.5 mm gap between ball lock pin (1) and ball lock pin housing.

The gap dimension can be checked using a 6.5 mm drill.

Fig 9: Pulling Ball Lock Pin Outward Until Both Balls Pushed Outward

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 0 000 to engine crane.

Suspend special tool 11 0 000 from the

designated mounting eyelets of special tool 11 8 680 only (see arrow).

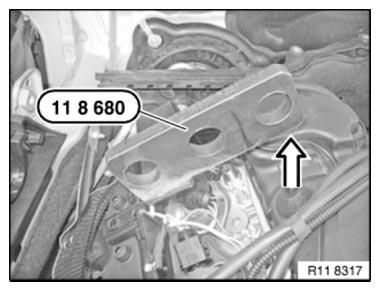

Fig 10: Identifying Special Tool (11 8 680)

Courtesy of BMW OF NORTH AMERICA, INC.

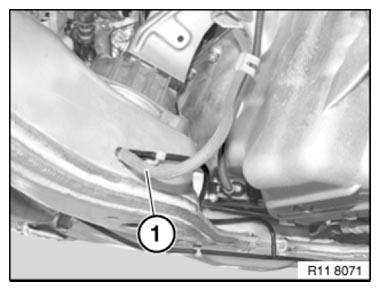

Release vacuum line (1) of engine mount.

Fig 11: Identifying Vacuum Line Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

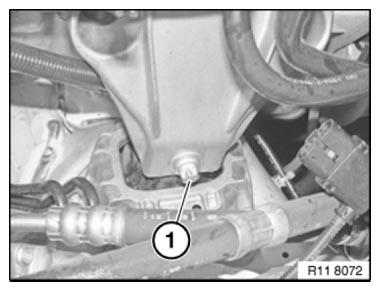

Release screws (1) on engine mount on left and right.

Fig 12: Identifying Screws On Engine Mount On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

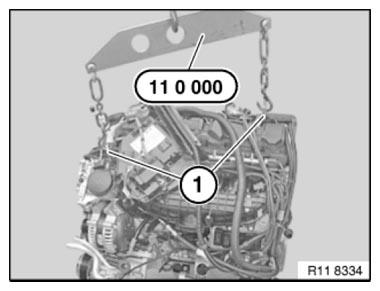

Screw towing eye into cylinder head.

Tightening torque 11 12 5AZ .

Suspend special tool 11 0 000 from the designated mounting eyelets (1) only.

Lift engine out with engine crane.

Fig 13: Lifting Engine Out With Engine Crane

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
