11 00... Service - engine oil (N55): Recycling

Catch and dispose of drained engine oil in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Release oil filter cover with special tool 11 9 240 .

Tightening torque 11 42 1AZ .

NOTE: Engine oil flows out of the oil filter housing and back into the oil sump.

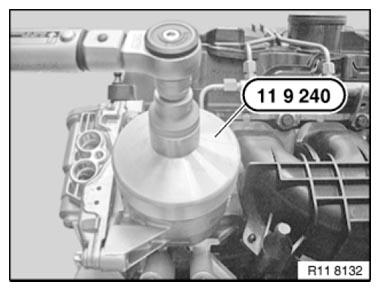

Fig 1: Releasing Oil Filter Cover With Special Tool (11 9 240)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear wheel drive:

Open oil drain plug (1) on oil sump.

Drain engine oil.

Installation note:

Replace sealing ring.

Tightening torque 11 13 1AZ .

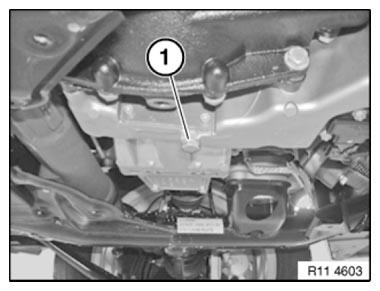

Fig 2: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Four-wheel drive:

Open oil drain plug (1) of oil sump and drain engine oil.

Installation note:

Replace sealing ring.

Tightening torque 11 13 1AZ .

Fig 3: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Remove and insert oil filter element (1) in direction of arrow.

Installation note:

Replace oil filter element (1) and sealing ring (2).

Replace gasket (3) and renew if necessary.

NOTE: Coat sealing rings (2, 3) with engine oil.

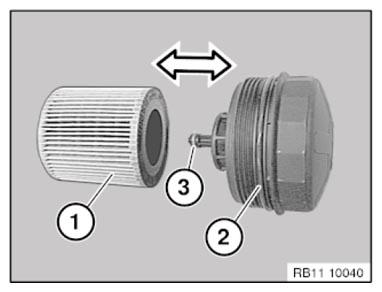

Fig 4: Removing And Inserting Oil Filter Element

Courtesy of BMW OF NORTH AMERICA, INC.

Secure oil filter cover with special tool 11 9 240 .

Tightening torque 11 42 1AZ .

NOTE: Pour in ENGINE OIL .

Start engine and run at idle until oil pressure indicator light goes out.

Switch off engine

Check oil filter cover and screw plug on oil sump for leaks.

Assemble engine.

Fig 5: Securing Oil Filter Cover With Special Tool (11 9 240)

Courtesy of BMW OF NORTH AMERICA, INC.

Checking engine oil level:

Park vehicle on a horizontal surface
Allow engine to run at operating temperature for three minutes with increased engine speed (approx. 1100 RPM)
Read off engine oil level in instrument panel or on Control Display
Top up engine oil if necessary
