Functional description

Strain gauge are used for detecting the pressure. A steel membrane equipped with strain gauge in the sensor is deformed by the adjacent pressure. The changes in resistance in the strain gauge are electronically detected by a Wheatstone bridge and evaluated. The measured voltage is then included as an actual value in the charge-air-pressure control.

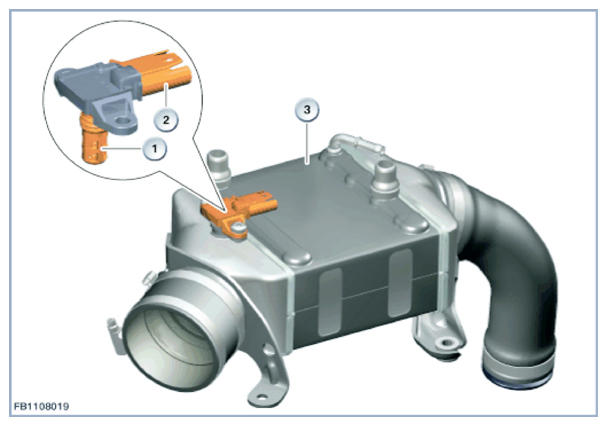

Fig 1: Charging Pressure Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
