Structure and inner electrical connection

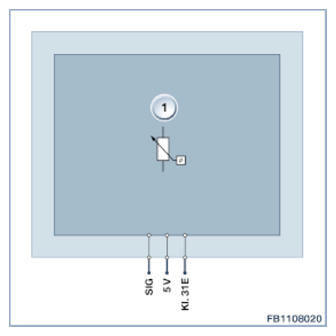

The fuel low-pressure sensor is connected by means of a three-pin plug connection.
The sensor is supplied with 5 Volts by the engine control.
| Index | Explanation |
|---|---|
| 1 | Fuel low-pressure sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| SIG | Fuel pressure signal |
| 5 V | 5 Volts, supply voltage |
| Terminal 31E | Terminal 31, electronics earth (ground) |
