Structure and inner electrical connection

The measuring procedure is based on Hall IC. The output signal uses a flank to show Low status and a gap to show High status. The intake camshaft sensor operates on the same principle as the crankshaft sensor. However, the camshaft sensor wheel differs fundamentally. A special mark pattern enables emergency operation in the event of failure of the crankshaft sensor. However, the resolution of the camshaft sensor signal is too imprecise to replace the crankshaft sensor during normal operation.

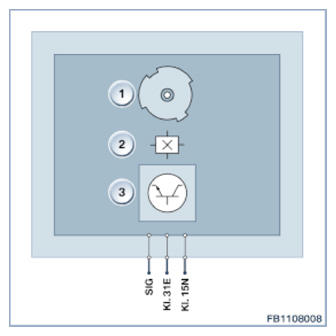

Fig 1: Hall Effect Sensor - Circuit Diagram
G09872676Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Camshaft sensor wheel
2 Hall effect sensor
3 Evaluation electronics
PIN REFERENCE

Pin Explanation
Terminal 15N Terminal 15N, supply voltage
Kl. 31 Terminal 31, ground
SIG Signal line
