Structure and inner electrical connection

The signal is converted by a Piezo-ceramic disc. Pressure forces within the ceramic lead to a load shift that causes a voltage. This voltage is picked up by contact discs.

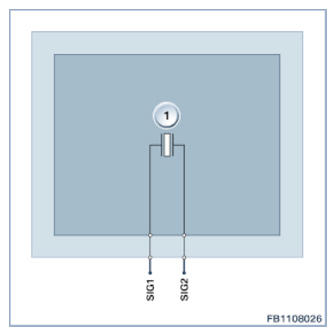

Fig 1: Knock Sensor - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
