FKA Rear Control Unit Panel

The 4-zone system has four control points for individually adjusting the climate control settings.

The rear passengers can adjust the temperature separately for the left and right sides.

The automatic program with its 5 intensity settings can also be selected in the rear seats.

As for the front seats, the intensity level in automatic mode for the rear passengers is selected and set by pressing the fan rocker button.

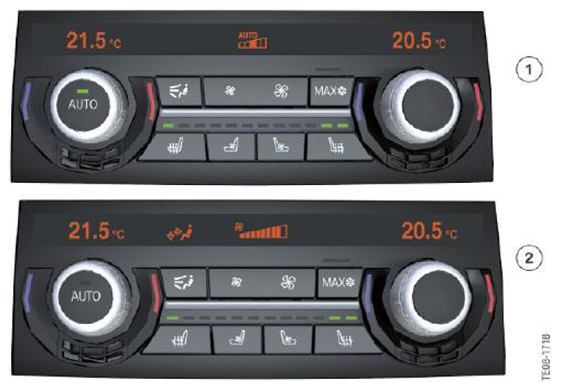

Fig 1: Identifying FKA Rear Control Unit Panel

Courtesy of BMW OF NORTH AMERICA, INC.
