Enabling Code FSC/SWT - Enabling The Navigation System Map At QC1 (65 30 09)

Publication date: 2014-01-01
Reference number: 65 30 09

ENABLING CODE FSC/SWT - ENABLING THE NAVIGATION SYSTEM MAP AT QC1

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B65 30 09, Date of Issue: January 2014

BMW:	E71, E84, E89, F01, F02, F02H, F06, F07, F10, F10H, F12, F13, F15, F22, F25, F30, F30H, F31, F32, F33, F34; With option 609 (Navigation System Professional)
GROUP:	Audio, Navigation, Monitors, Alarms, SRS

Superceded Bulletin(s): SI B65 30 09, Date of Issue: April 2010

This Service Information bulletin supersedes SI B65 30 09 dated April 2010.

SUBJECT

Enabling Code FSC/SWT - Enabling the Navigation System Map at QC1

SITUATION

The navigation system is inoperative unless the map is enabled during the QC1 Pre-Delivery Check.

INFORMATION

New vehicles come equipped with a navigation road map that must be enabled via an enable code (FSC). This process is part of the QC1 Pre-Delivery Check performed with the ISID (ISTA Diagnosis).

IMPORTANT: There is no programming involved!

PROCEDURE

Enabling the navigation map at QC1 requires the use of an "INITIAL" enabling code.

NOTE: In order to avoid unnecessary delays in the QC1 process, order this "INITIAL" enabling code at least 24 hours before performing QC1. This code is valid for 30 days, after which it is automatically deleted.

Unlike other enabling codes, these "INITIAL" codes are available free of charge from the Parts department (nominal charge $.01). The part number for the "INITIAL" enabling code is published in the EPC. It must be ordered as a coded part via the parts ordering process.

The delivery of the enabling code takes place in the After Sales Assistance Portal (ASAP).

NOTE: If a BMW center has two dealer numbers, when retrieving the enabling code, be sure to use the same dealer number that your Parts department used when the original order was placed.

Procedure for ordering and downloading the initial enabling code:

Refer to attachment A.

Procedure for activation of the navigation system map using ISTA:

Refer to attachment B.

For a general overview on the enabling code ordering and downloading process, refer to SI B 09 04 09 .

PARTS INFORMATION

Part Number	Description	Quantity
Refer to EPC, VIN-specific	Enable code, initial, Professional GPS	1

WARRANTY INFORMATION

Since this process is part of the new QC1 Pre-Delivery Check, no additional warranty costs can be claimed.

ATTACHMENTS

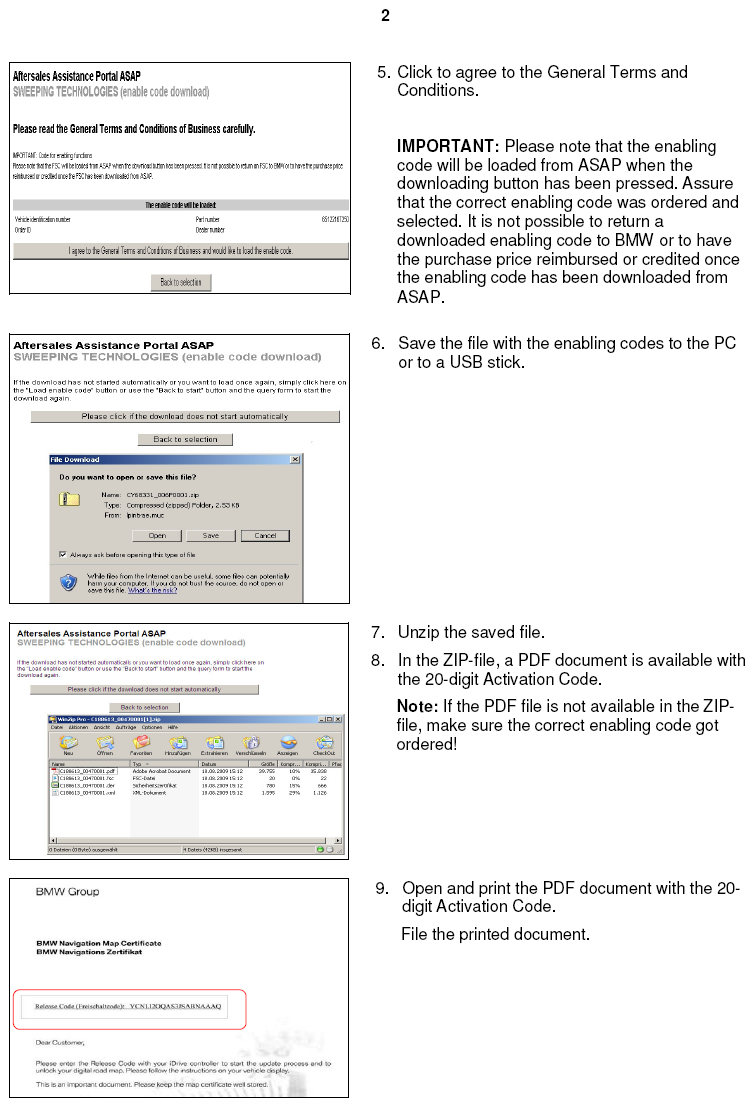

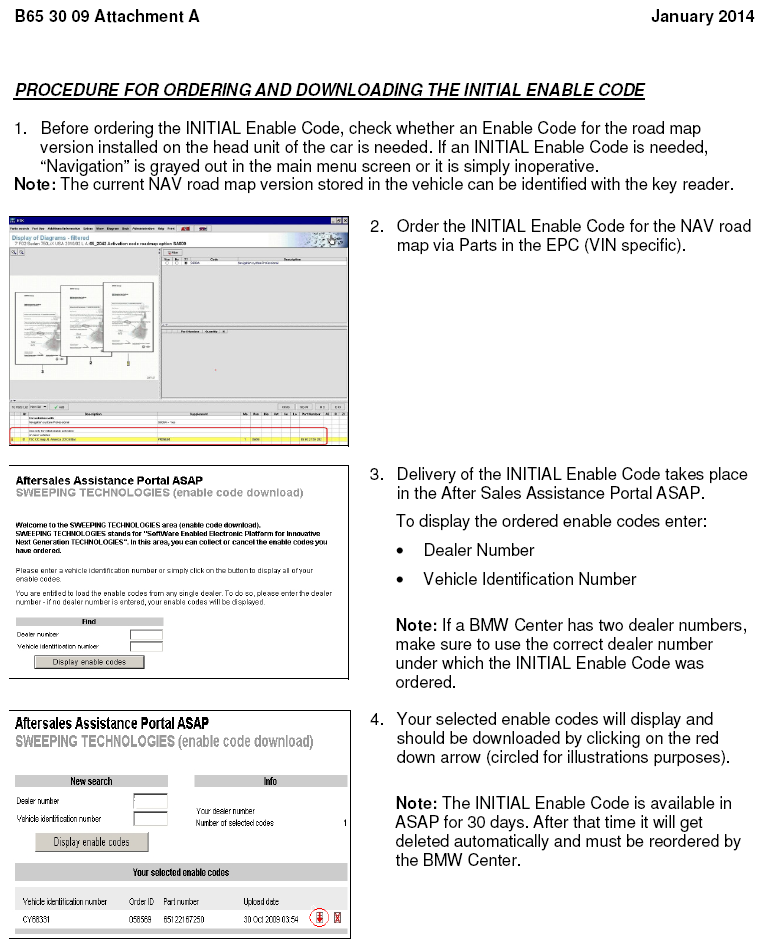

B653009_Attachment_A

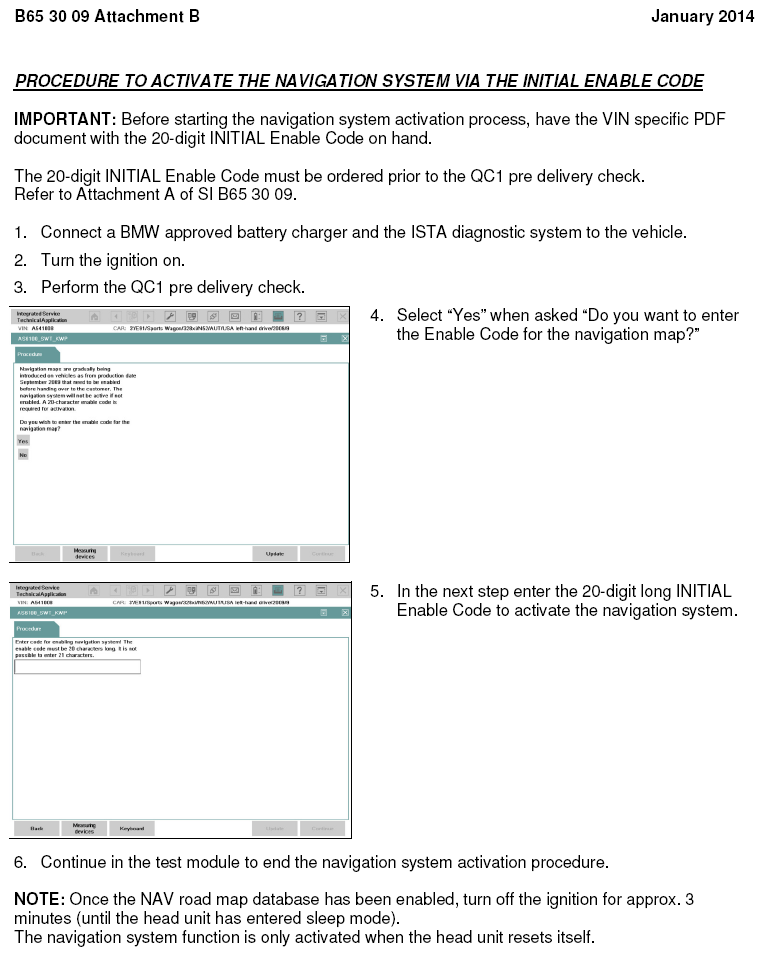

B653009_Attachment_B
