Adaptive Driver Airbag, with Active Vent: Notes

INDEX CHART

Index	Explanation
1	Gas generator with exhaust vents
2	Actuator for vent valve

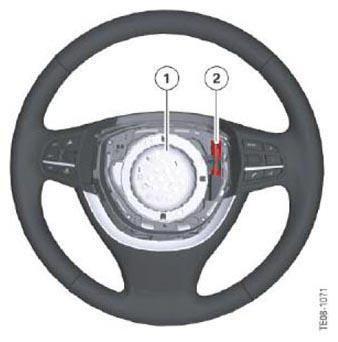

Fig 1: Identifying Driver Airbag Mounting Location

Courtesy of BMW OF NORTH AMERICA, INC.

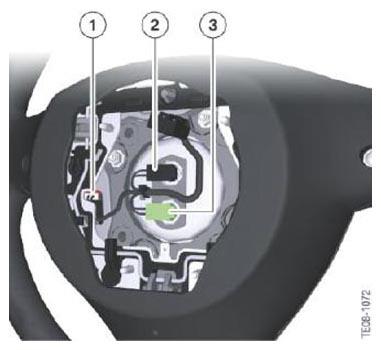

Fig 2: Identifying Rear Driver Airbag Squib Connections

Courtesy of BMW OF NORTH AMERICA, INC.

SQUIB CONNECTIONS LEGENDS

Index	Explanation
1	Connection of the squib for The active vent valve
2	Connection of the squib for the first stage
3	Connection of the squib for the second stage
