Seat-integrated Side Airbag
The seat-integrated side airbags are mounted on the F01/F02 for the purpose of achieving optimum interior functionality, an appealing design while satisfying high safety requirements.

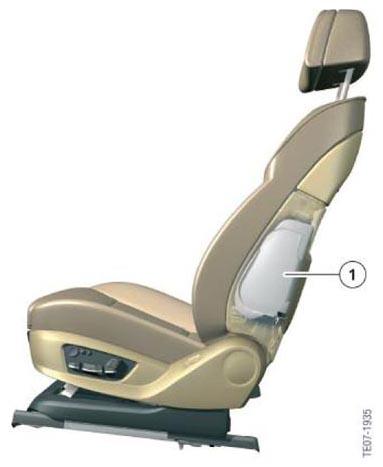

The side airbags are folded, together with the inflator assembly (gas generator) in a plastic housing. The airbag module is secured into the backrest and concealed by the rear panel.
The side airbag is triggered in response to a sufficiently strong impact from the side. The side airbag emerges between the seat backrest and the rear panel and inflates between the door and occupant.
The air cushion between the door and occupant provides controlled impact damping and therefore reduces the load on the occupant.
NOTE:
It is important that no additional seat covers are fitted as they would greatly impair or even immobilize the airbag function.
