11 00 598 Removing and installing engine on front axle (N74)

Necessary preliminary tasks:

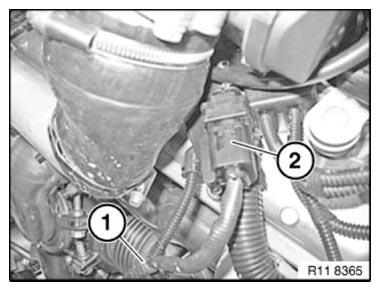

Disconnect plug connection (2) of exhaust gas oxygen sensor (1).

Fig 1: Identifying Plug Connection And Exhaust Gas Oxygen Sensor
G08469060Courtesy of BMW OF NORTH AMERICA, INC.

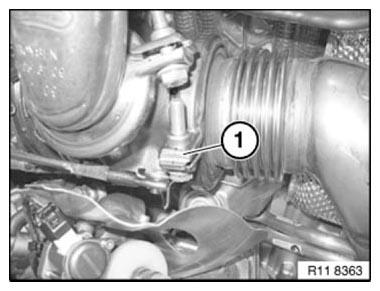

Release V-band clamp (1).

Fig 2: Identifying V-Band Clamp
G08469061Courtesy of BMW OF NORTH AMERICA, INC.

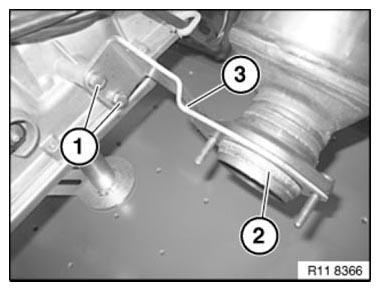

Release screws (1).

Remove seal (2).

Installation note:

Replace seals.

Take off holder (3).

Fig 3: Identifying Take Off Holder, Seal And Screw
G08469062Courtesy of BMW OF NORTH AMERICA, INC.

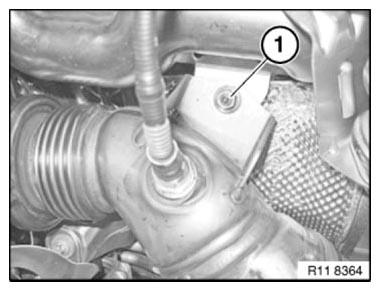

Slacken nut (1).

Remove catalytic converter 1-6 and 7-12.

Fig 4: Identifying Catalytic Converter Slacken Nut
G08469063Courtesy of BMW OF NORTH AMERICA, INC.

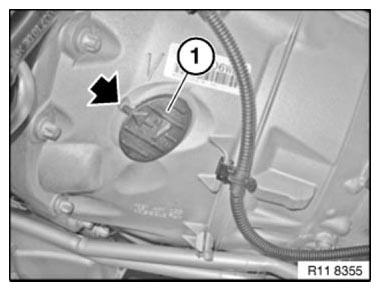

Remove cover on transmission.

Fig 5: Locating Transmission Cover
G08469064Courtesy of BMW OF NORTH AMERICA, INC.

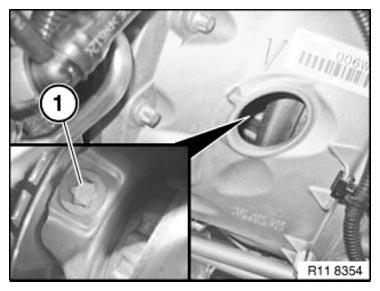

Release all screws (1) on the converter.

Fig 6: Identifying Converter Screw
G08469065Courtesy of BMW OF NORTH AMERICA, INC.

The converter must be secured for removal.

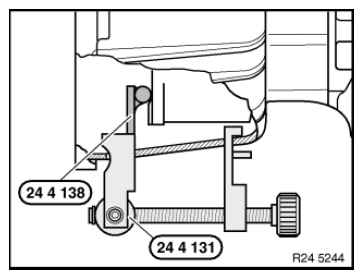

Insert special tools 24 4 131 and 24 4 138 into the recess on the transmission housing.

Fig 7: Inserting Special Tools 24 4 131 And 24 4 138 Into Recess On Transmission Housing
G08488006Courtesy of BMW OF NORTH AMERICA, INC.

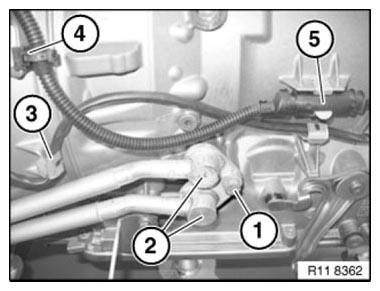

Pull off the engine wiring harness (4).

Unclip the oxygen sensor cable from the mounting (3).

Unclip and disconnect the oxygen sensor connector (5).

Undo the bolt (1) of the transmission oil line.

Take off the transmission oil line (2).

Fig 8: Identifying Oxygen Sensor Connector, Transmission Oil Line, Engine Wiring Harness And Bolt
G08469067Courtesy of BMW OF NORTH AMERICA, INC.

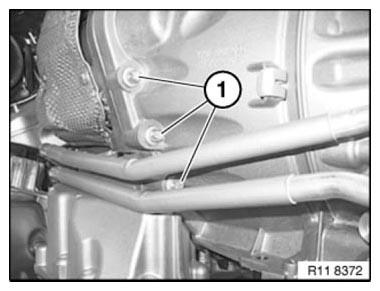

Undo the transmission bolts (1).

Fig 9: Identifying Transmission Bolts
G08469068Courtesy of BMW OF NORTH AMERICA, INC.

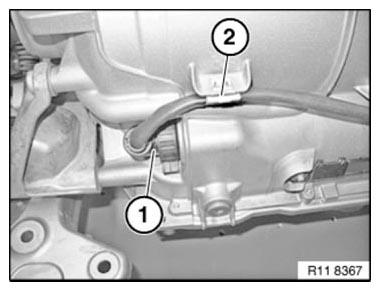

Take off the transmission connector (1).

Unclip the transmission wiring harness from holders (2).

Fig 10: Identifying Transmission Connector And Wiring Harness Holder
G08469069Courtesy of BMW OF NORTH AMERICA, INC.

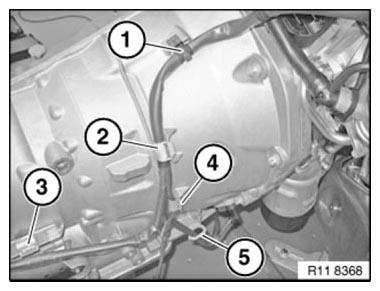

Unclip the transmission wiring harness from its holders (2 3 4 and 5).

Pull off the transmission wiring harness from the transmission at the holder (1).

Fig 11: Identifying Transmission Wiring Harness Holders
G08469070Courtesy of BMW OF NORTH AMERICA, INC.

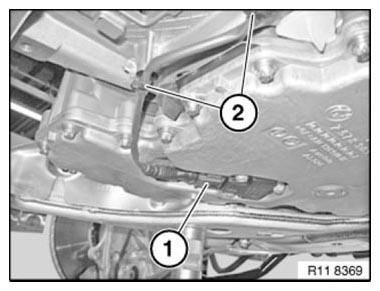

Disconnect plug connection (1) on oil level sensor.

Unclip the transmission wiring harness from holders (2).

Fig 12: Identifying Transmission Wiring Harness Holder And Oil Level Sensor Plug Connection
G08469071Courtesy of BMW OF NORTH AMERICA, INC.

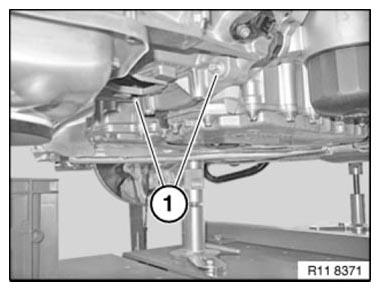

Undo the transmission bolts (1).

Fig 13: Identifying Transmission Bolts
G08469072Courtesy of BMW OF NORTH AMERICA, INC.

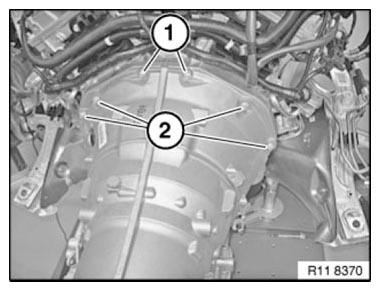

Undo the transmission bolts (1 and 2).

Fig 14: Identifying Transmission Bolts
G08469073Courtesy of BMW OF NORTH AMERICA, INC.

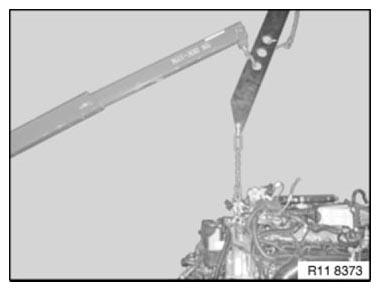

Attach the engine using the engine crane and special tool 11 0 020.

Fig 15: Attaching Engine Using Engine Crane And Special Tool 11 0 020
G08469074Courtesy of BMW OF NORTH AMERICA, INC.

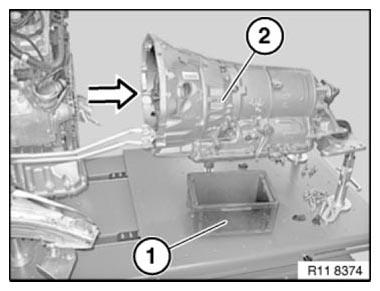

Disconnect transmission (2) from engine in the direction of the arrow.

Fig 16: Identifying Air Intake Manifold Screw
G08469075Courtesy of BMW OF NORTH AMERICA, INC.

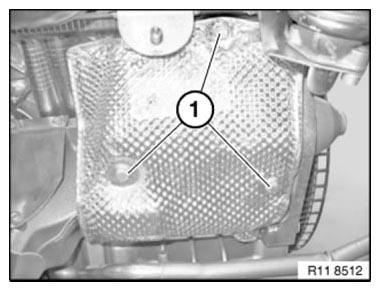

Release screws (1).

Remove the heat shield.

Fig 17: Vacuum Activation - Connection Diagram
G08469076Courtesy of BMW OF NORTH AMERICA, INC.

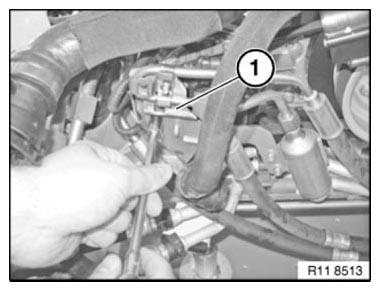

Release holder for hydraulic lines (1).

Fig 18: Identifying Intake Plenum Bolt
G08469077Courtesy of BMW OF NORTH AMERICA, INC.

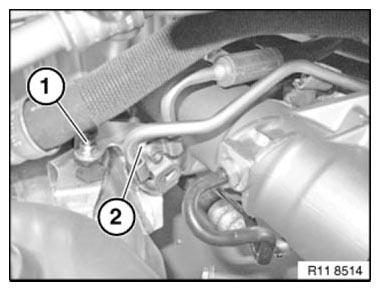

Slacken nut (1).

Release pressure hose of power steering pump with holder.

Fig 19: Identifying Electric Changeover Valve Screws
G08469078Courtesy of BMW OF NORTH AMERICA, INC.

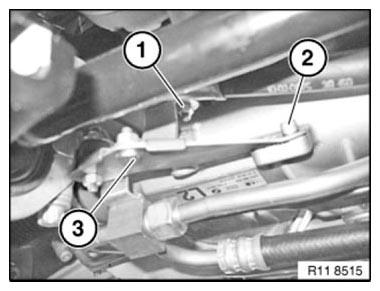

Slacken nut (1).

Release screw (2).

Release pressure hose with holder (3).

Fig 20: Identifying Exhaust Turbocharger Screws
G08469079Courtesy of BMW OF NORTH AMERICA, INC.

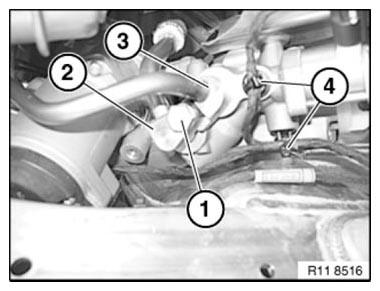

Release central bolt (1).

Pull off pressure lines (2 and 3).

Installation note:

Replace all O-rings.

Open cable clips (4).

Fig 21: Identifying Pressure Sensors And Cable Strap Holder
G08469080Courtesy of BMW OF NORTH AMERICA, INC.

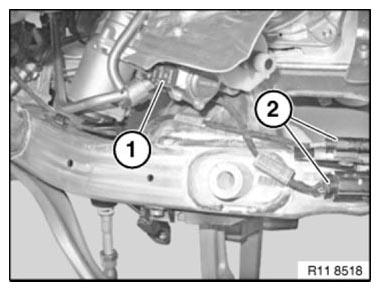

Disconnect the plug connections (1 and 2) on the steering box and front axle support.

Fig 22: Identifying Vacuum Pump Screw
G08469081Courtesy of BMW OF NORTH AMERICA, INC.

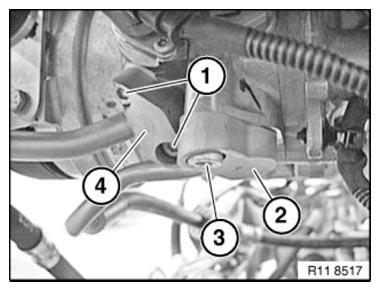

Release screws (1).

Pull off the expansion hose (4).

Installation note:

Replace O-rings.

Release screws (3).

Pull off the expansion hose (2).

Installation note:

Replace O-rings.

Fig 23: Identifying Expansion Hose And Screws
G08469082Courtesy of BMW OF NORTH AMERICA, INC.

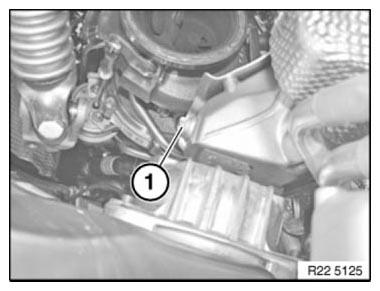

Undo the BOLT (1) on the left-hand engine mount.

Fig 24: Identifying Left-Hand Engine Mount Bolt
G08469083Courtesy of BMW OF NORTH AMERICA, INC.

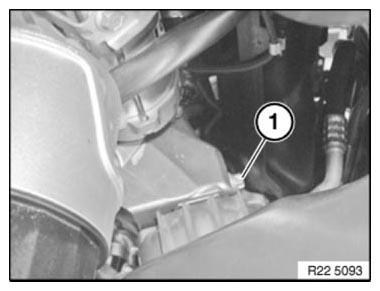

Undo the BOLT (1) on the right-hand engine mount.

Fig 25: Identifying Right-Hand Engine Mount Bolt
G06894848Courtesy of BMW OF NORTH AMERICA, INC.

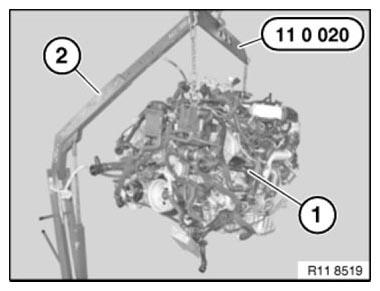

Lift the engine (1) with the engine crane (2) and special tool 11 0 020 from the front axle.

Mount engine on assembly stand.

Fig 26: Lifting Engine Using Engine Crane And Special Tool 11 0 020
G08469085Courtesy of BMW OF NORTH AMERICA, INC.
