11 00 670 Securing engine in installation position (N74)
WARNING:
Risk of injury!
Observe following instructions relating to special tool:
- Prior to each use, check the special tools for defects, modifications and operational reliability.
- Damaged/modified special tools must not be used!
- No changes or modifications may be made to the special tools!
- Keep special tools dry, clean and free of grease.
NOTE:
- Numbering system for special tools has been re-encoded.
IMPORTANT:
Special tool 00 6 000

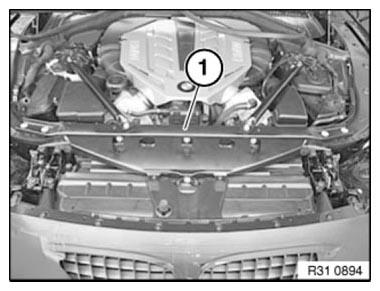

must not be fitted when transverse member (1) is installed!
Necessary preliminary tasks:
- Secure engine compartment lid in service position. See SERVICE POSITION (ACTIVE UP TO 09/2011) or SERVICE POSITION (ACTIVE FROM 09/2011) .
- Remove PANEL for engine compartment lid at side
- Remove acoustic cover
- Remove front UNDERBODY PROTECTION

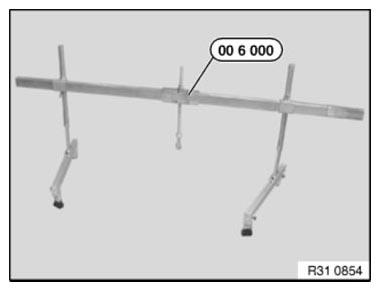

Assemble transverse member 00 6 000 with special tools 00 6 00200 6 004 , 00 6 010, 00 6 050 .

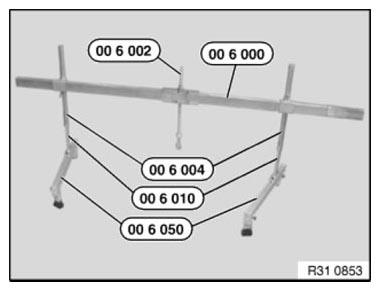

Fig 2: Assembling Transverse Member 00 6 000 Using Special Tools 00 6 002 00 6 004, 00 6 010, 00 6 050
NOTE:

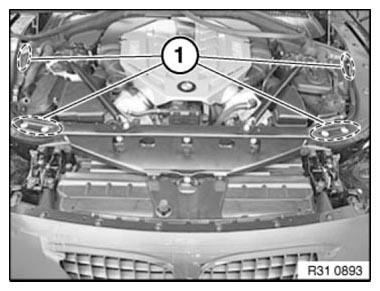

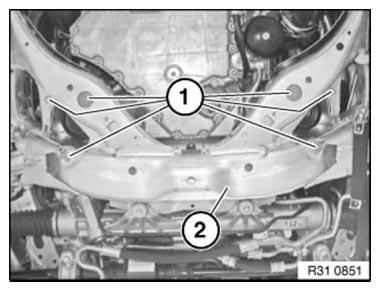

Contact points (1) for special tool 00 6 050
are pictured.
IMPORTANT:
Risk of damage!
Position transverse member 00 6 000 with a 2nd person helping on contact points ().

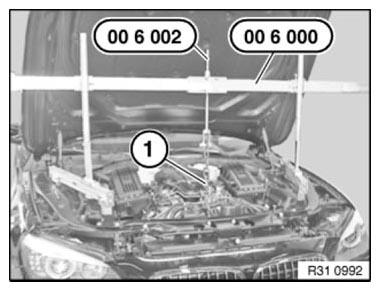

Secure suitable chain (1) on the spindle 00 6 002 .

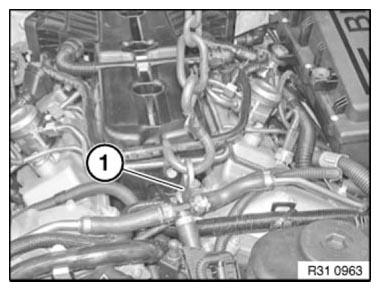

Suspend chain on the front suspension lug (1) of the engine.
IMPORTANT:
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its attachment parts) and the body.
WARNING:
Risk of injury!
Tighten down all screws and nuts on transverse member 00 6 000 .
Release screws (1).
Tightening torque: see 1AZ in 22 11 ENGINE MOUNTING
Raise engine approx. 10 mm with transverse member.
