12-1170 Tool

0491128 121170 Tool Minimum set: Mechanical tools MW

NOTE: (Spark plug tool) For releasing spark plugs and for tightening to torque limitation, special tool is being discontinued without replacement! [Discontinued]

Storage Location

Consisting of:

= 0491129 Socket WAF 46
NOTE: (Spark plug wrench) AF 16 mm S50, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N40, N42, N43, N73, N73H [released]
= 0491130 Torque limiter
NOTE: (Torque limiter) 23 Nm ±3 Nm, engine: S14, S38, S50 Do not use the special tool any more because the torque will change. [Blocked]

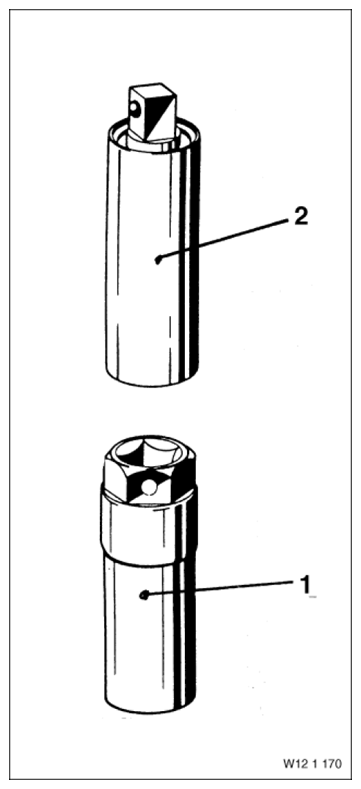

Fig 1: Identifying Tool (0491128)
Courtesy of BMW OF NORTH AMERICA, INC.
